Polaris AutoClear PAGTF45 User manual

FOR YOUR SAFETY - This product must be installed by a qualified pool professional or
personnel who are knowledgeable with the standards and code requirements for above-
ground pool equipment. The maintainer must be a qualified pool professional or personnel
with sufficient experience in pool equipment installation and maintenance so that all of the
instructions in this manual can be followed exactly. Improper installation and/or operation may
result in death, serious injury or property damage. DO NOT MODIFY THIS EQUIPMENT.
Before installing this product, read and follow all warning notices and instructions that
accompany this product. Failure to follow warning notices and instructions may result in death,
serious injury or property damage. Consult Polaris customer service at 1-800-822-7933 for
assistance. Improper installation and/or operation may void the warranty.
WARNING
If these instructions are not followed exactly, a fire or explosion
may result, causing property damage, personal injury, or death.
Above-Ground
Tablet Feeder
PAGTF45
INSTALLATION AND OPERATION MANUAL
ENGLISH | FRANÇAIS | ESPAÑOL
A uTO C LEAR
TF

Page 2 ENGLISH Polaris®AutoClear™TF Tablet Feeder |Installation & Operation Manual
Table of Contents
Section 1. Important Safety Instructions..........................3
Section 2. Installation.........................................................4
Section 3. Operation...........................................................7
Section 4. Winterizing ........................................................9
Section 5. Troubleshooting .............................................10

Page 3
Polaris®AutoClear™TF Tablet Feeder |Installation & Operation Manual ENGLISH
Section 1. Important Safety Instructions
READ AND FOLLOW ALL INSTRUCTIONS
RISK OF FIRE OR EXPLOSION.
Only use slow dissolving Tri-Chlorine OR Bromine tablets in this chemical
dosing unit and NEVER mix different chemical products together. Failure to
observe the above warning could result in an explosion and re.
NEVER use oils or grease to lubricate o-ring. Oil in contact with Trichlor
may result in FIRE. Lubricate o-ring with approved silicone o-ring lubricant
only. If you are not the original owner of this feeder, or not sure which
chemical was used, be SAFE and ush thoroughly with fresh water.
CAUTION SHOULD BE USED WHEN REMOVING CAP. DO NOT INHALE
FUMES. IF YOUR POOL HAS COPPER PLUMBING DO NOT INSTALL.
This will damage the feeder. NOTE: If heaters are used, a Fireman’s Switch
or equivalent must be installed to prevent possible damage and improper
operation of check valve and other equipment subject to heat damage.
CALCIUM HYPOCHLORITE IS NOT TO BE USED IN ANY FORM.
Never open the dosing unit lid when the unit is running. Before doing so,
turn off the pool circulation pump and close all valves. Ensure you take
the following precautions: Do not smoke in the vicinity of the unit, wear
adequate eye and hand protection and avoid inhaling any gas that may
be released. Apart from occasions when the unit needs to be re-filled or
maintained, always ensure that the return line back to the pool is open to
avoid the accumulation of any gases.
DANGER
SAVE THESE INSTRUCTIONS

Page 4 ENGLISH Polaris®AutoClear™TF Tablet Feeder |Installation & Operation Manual
Section 2. Installation
Before you begin installation, verify you have all necessary parts
(see Table 1 below).

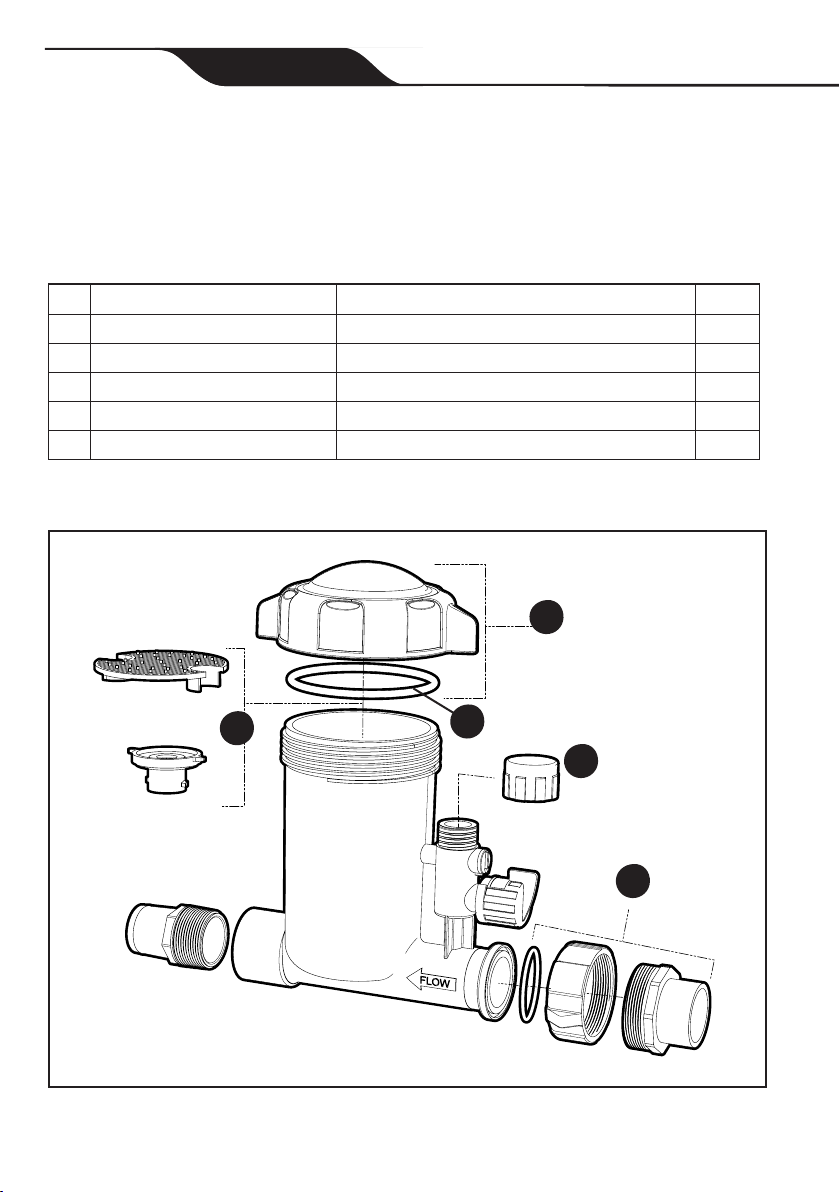

KIT PART NO. COMPONENT DESCRIPTION QTY
1 R0967400 Lid Assembly (Lid, Collar and O-ring) 1
2 R0968600 Lid O-ring 1
3 R0968500 Grate and Check Valve Assembly 1
4 R0967500 Flow Chamber Cap w/ O-ring 1
5 R0968700 Union Nut, Tail Piece and T-Gasket 1
Table 1. Components
1
3
5
4
2

Page 5
Polaris®AutoClear™TF Tablet Feeder |Installation & Operation Manual ENGLISH
DO NOT INSTALL chlorine feeder before the heating system. Damage
to the heating system may occur. The feeder is designed for permanent
installation in the return line of the pool and must always be installed after
the heater, pool cleaner, valves, mineral sanitizer etc. If there is no heater
then install the feeder after the lter and all other equipment.
CAUTION
In order to prevent risk of serious property damage, injury or death:
Wear eye and skin protection while maintaining or servicing this unit.
Do not inhale fumes from the chlorinator or chemical container.
Chlorine feeder may be under pressure. Use caution removing cover.
WARNING
1. Make sure all pumps and timer switches are OFF.
2. Place T-gasket into groove on inlet.
3. Install the 1-1/2" threaded adapter to the lter valve or system plumbing then
couple the feeder inlet to the 1-1/2”threaded adapter using the split union
nut.
4. Install the outlet connection:
• If the pool is plumbed with corrugated or ex hose, install the hose
adapter provided in the outlet. (Fig. 3a) Take the 1-1/2” hose adapter
and install in the outlet with Teon tape (not provided).
• If the pool is plumbed with 1-1/2” PVC pipe, use bushings installed
directly into the outlet side of the feeder and install the union tting
provided for the inlet. (Fig. 3b)

Page 6 ENGLISH Polaris®AutoClear™TF Tablet Feeder |Installation & Operation Manual
Figure 3a. Flex Hose Installation Configuration
WATER
FROM POOL
RETURN
TO POOL
Figure 3b. Rigid Pipe Installation Configuration

Page 7
Polaris®AutoClear™TF Tablet Feeder |Installation & Operation Manual ENGLISH
Section 3. Operation
NOTE:
• The consumption of chlorine in swimming pools varies according to use,
temperature, exposure to sunlight, and other factors. Initially, you will
need to experiment with the control valve to ensure that the unit doses
enough chemical to maintain the recommended residual. Start with the
valve in the 50% position. Test the residual regularly using instructions
below.
• This tablet feeder is designed to help you maintain a chlorine residual.
Always start a new feeder installation by ensuring that the chlorine is
already at a proper residual level. Consult your local dealer for water
conditioning and residual requirements for each pool.
Elevated chemical concentrations and Hazardous Gas - The introduction of
potentially hazardous gas or elevated chemical concentrations into the pool
during backwash and periods of no flow in the circulation system can cause
serious personal injury, or death. To avoid, use the following guidelines:
• Set dosage indicator to zero before stopping water ow through the
chlorinator.
• Minimize backwash time.
• Do not shut off pump for extended periods.
• Do not allow bathers into the pool area until full ow through the
circulation system has been established.
WARNING
Start-Up Steps
1. Ensure all pumps and time switches are off.
2. Fill the feeder with water making sure to bleed out any entrapped air in any of
the lines.
3. Remove cap of feeder and ll with proper size tablets. (For pools: 1"or 3"
diameter tablets.)
Above-Ground Tablet Feeder
Pool Size 5,000 - 20,000 Gallons
Capacity Five 3” Tabs/ 2lbs of 1” Tabs

Page 8 ENGLISH Polaris®AutoClear™TF Tablet Feeder |Installation & Operation Manual
4. Replace cap making sure o-ring is clean, lubricated with approved silicone,
and in place.
5. Turn on pump and timer switches for a minimum of 6 to 8 hours.
6. Adjust the dosage indicator according to the size of the pool. Use a test kit
to determine the chemical residual. It is recommended that the chemical
residual be checked daily for the rst ve days.
NOTE:
• Hot weather, high water temperature and increased bather use will
cause the pool to use more chemical. Increase the feed rate a few days
in advance when possible. The valve settings may require adjustment
depending on the conditions.
• If the feeder does not provide enough chemical residual when using 3”
tablets, switch to 1” tablets for faster erosion and increased residual.
• During regular maintenance, always check o-rings for damage, breaks,
swelling, etc. Replace if necessary. (see Replacement Parts list)
• Before operating this feeder, or any time the cover is removed,
completely ll feeder with water and bleed out entrapped air in any of
the lines.
To achieve optimal performance the pool must be cleaned and balanced as
follows:
• Raise chlorine level to APSP recommended levels so the water has a
sustained 1-3 ppm free chlorine level.
• Test pool chemistry and adjust pH between 7.4 and 7.6.
• Adjust total alkalinity between 80 and 120 ppm.
To avoid risk of property damage, serious injury or death, Calcium
Hypochlorite is not to be used in any form.
WARNING
In order to prevent risk of serious property damage, injury or death:
• Wear eye and skin protection while maintaining or servicing this unit.
• Do not inhale fumes from the chlorinator or chemical container.
• Chlorine feeder may be under pressure. Use caution removing cover.
WARNING

Page 9
Polaris®AutoClear™TF Tablet Feeder |Installation & Operation Manual ENGLISH
Replacing Tablets
1. Turn control valve to the closed position. SHUT OFF PUMP.
2. Wait one minute allowing the water and fumes to drain from the feeder.
3. Leave the control valve closed. (The check valve will prevent water from
entering the feeder).
4. Rotate lid to open and access tablets. Rell with tablets.
5. Completely ll body with water, and bleed out entrapped air in all system
lines.
6. Press lid with o-ring seal rmly into body. O-ring should be clean, lubricated
with silicone based lubricant and in place. Engage cover threads and turn
clockwise to seal. (Hand tighten only).
7. Open control valve to original setting. Inspect the inlet line below the control
valve for leaks each time the feeder is relled. Replace the lines yearly if
needed.
NOTE: Keep an eye on the tablet level in the unit, preferably reload BEFORE
they run out.
Section 4. Winterizing
NOTE: If the equipment is subject to freezing conditions, it will be necessary to
winterize the unit following these instructions.
1. Ensure that all power to the equipment system is disconnected/ turned off.
2. Drain water from the unit by disconnecting one side of the hose or pipe
connections.
3. Remove any remnants of undissolved chemical tablets, rinse out the body
with clean water.
4. Follow other normal procedures for your system to winterize.
5. Consult manufacturer instructions for winterizing additional equipment.

Page 10 ENGLISH Polaris®AutoClear™TF Tablet Feeder |Installation & Operation Manual
Section 5. Troubleshooting
SYMPTOM CAUSE CORRECTIVE ACTION
Plastic lid is
cloudy
Chlorine exposure Remove the lid and wipe clean. Place
lid in an open area, some cloudiness
may clear itself if left exposed to
sunlight and fresh air.
If cover becomes opaque and does
not clear after steps above, the cover
should be replaced.
DO NOT leave chlorinator open
without the lid installed. If the lid must
be left off to clear up, a replacement
must be installed temporarily.
Reduced
Flow / Low
Chlorine /
Flow Indicator
Not Moving
Clogged chlorinator
body
The bottom grate can be removed in
order to remove anything that may
clog the inside of the unit. Any chlorine
residue must be removed or it may
effect feeder performance. The grate
helps keep pieces of chemical tablets
from clogging the outlet.
Leaks around
connections
or cover
Damaged o-rings Check o-rings for damage, replace as
needed.
Low chlorine
concentration
in the pool
1. The trichlor tabs
have been consumed
2. Filtration time too
low
3. Chlorine demand
too high
1. Add trichlor tablets in the unit.
2. Increase daily ltration time.
3. If using 3” tabs, use 1” instead.
Water is green
and/or algae
is present
A water parameter
is not properly
maintained (pH,
cyanuric acid, etc)
Contact your pool professional for
more details and actions
