Poldent Endostar Provider User manual

Thank you for purchasing the Endostar Provider.
For optimum safety and performance, read this manual thoroughly before using the unit and pay close attention to warnings and notes. Keep
this manual in a readily accessible place for quick and easy reference.
Poldent Co. Ltd.
INSTRUCTIONS FOR USE
Cordless Endodontic Treatment Motorized Handpiece

1Instructions for Use 2019-03-20
Table of Contents
Accident Prevention 3
Precautions 5
Features 6
Parts Identification and Accompanying Items 7
Usage 8
(1) Operating Environments 8
(2) Before Using the Ensostar Provider 8
Charging the Battery 8
Connecting the Contra Angle 9
File Installation 10
Calibration 10
Operation Check 11
(3) Operation 12
Basic Operation 12
Memory Settings: Initial Settings 13
Memory Settings: Primary Functions 13
Memory Settings: Additional Operation Settings (OTR Mode) 14
Memory Settings: Additional Operation Settings (Normal Mode) 15
Memory Settings: Other Settings 16
Restoring the Initial Settings 17
(4) After Using the Endostar Provider 17
Removing the File 17
Operation with Endostar Navigator 18
Installing the File Electrode 18
Connecting the Transmission Cable 19
Operation Check 19
Meter Display 20
Operation 20
Cleaning the Rotor Axle and the Built-in Electrode 22
Cleaning the Rotor Axle and the Built-in Electrode 23
Replacing the Built-in Electrode with the External File Electrode 24
Maintenance 26
Autoclavable Components 26
Other Components: Wiping with Ethanol (70 vol% to 80 vol%) 30
Other Components: Washing and Wiping with Ethanol (70 vol% to 80 vol%) 31

2
Instructions for Use 2019-03-20
Replacement Parts, Transport and Storage Environments 32
(1) Replacement Parts 32
Replacing the Battery 32
Replacing the Built-in Electrode 33
(2) Transport and Storage Environments 34
Inspection and Warranty 35
Regular Inspection 35
Inspection Items 35
Warranty 36
Troubleshooting 37
Technical Specifications 39
Specifications 39
Symbols 40
Electromagnetic Disturbances (EMD) 41
Electromagnetic Disturbances (EMD) 41
Essential Performance 44
Cable List 44
Trademarks (™) and Registered Trademarks (®):
The names of companies, products, services, etc. used in this manual are either trademarks or registered trademarks owned by each company.

3Instructions for Use 2019-03-20
The warning symbols ( ) and caution symbols ( ) that appear next to the main text on the right hand side of the page refer to and are ex-
plained by the Warnings and Cautions at the bottom of the page.
Accident Prevention
Make sure to obtain clear instructions concerning the various ways to use the device described in this accompanying manual.
Most operation and maintenance problems result from insufficient attention to basic safety precautions and not being able to foresee potential
accidents.
Problems and accidents are best avoided by anticipating potential dangers and operating the device in accordance with the manufacturer’s rec-
ommendations. First, thoroughly read all precautions and instructions pertaining to safety and accident prevention. Then operate the device with
the utmost caution to prevent either damaging the device itself or causing bodily injury.
The following symbols and expressions indicate the degree of danger and harm that could result from ignoring the corresponding instructions:
This alerts the user of important points concerning operation or the risk of equipment damage.
The user (e.g., healthcare facility, clinic, hospital etc.) is responsible for the management, maintenance, and use of medical devices.
This equipment must only be used by dentists and other legally licensed professionals.
Do not use the Endostar Provider for anything other than its specified dental purpose.
This alerts the user of the possibility of extremely serious injury or complete destruction of the device, as well as other property dam-
age including the possibility of fire.
This alerts the user of the possibility of minor or moderate injury or damage to the device.
Customers
Preventing Accidents

4
Instructions for Use 2019-03-20
If an accident occurs, the Endostar Provider must not be used until repairs have been completed by a qualified and trained technician authorized
by the manufacturer.
Intended Operator Profile
a) Qualification : Legally qualified person such as dentists for endodontic device operation (it may differs among countries).
b) Education and Knowledge : It is assumed that the understands the risks of root canal measuring and treatment. It is also assumed the user is
thoroughly familiar with root canal measuring and treatment including the prevention of cross contamination.
c) Language Understanding : English (Intended for professional use as described above)
d) Experience : Experienced person with operating endodontic device.
No special training is required except in cases where this is required by legal regulations of the relevant country or
region.
In Case of Accident
User Qualifications
Patient Population
■Poldent Co. Ltd. will not be responsible for accidents, equipment damage, or bodily injury resulting from:
1. Repairs made by personnel not authorized by Poldent Co. Ltd.
2. Any changes, modifications, or alterations of its products
3. The use of products made by other manufacturers, except for those procured by Poldent Co. Ltd.
4. Maintenance or repairs using parts or components other than those specified by Poldent Co. Ltd. or other than in their original condition
5. Operating the device in a manner other than described in the operating procedures in this manual or in a manner inconsistent with the
safety precautions and warnings in this manual.
6. Workplace, environmental, or installation conditions that do not conform to those stated in this manual, such as an improper electrical
power supply.
7. Fires, earthquakes, floods, lightning, natural disasters, or forces majeure.
■The useful life of the Endostar Provider is 6 years from the date of installation provided it is regularly and properly inspected and maintained.
Disclaimers
Age Child to Elderly
Weight N/A
Nationality N/A
Sex N/A
Health It is not intended for use on patients wearing pacemakers or ICDs.
Condition Conscious and mentally alert person. (Person who can stay still during treatment.)
• When the device is connected to the Endostar Navigator, an apex locator, it is not recommended that this device be used with children under 12 years of age.

5Instructions for Use 2019-03-20
• Except for ways described in this manual, the device must not be connected to or used in combination with any other apparatus or system. It must not be used as an in-
tegral component of any other apparatus or system. Poldent Co. Ltd. will not be responsible for accidents, device damage, bodily injury or any other trouble which results
from ignoring this prohibition.
• A rubber dam should be used when performing endodontic treatment.
• No modification of the device is allowed.
• Instruments which produce considerable electrical noise such as electric scalpels can cause the Endostar Provider to operate abnormally. Turn the Endostar Provider off
before using any instruments that produce electrical noise.
• Do not use the device on patients who have a pacemaker or an Implantable Cardioverter Defibrillator (ICD). It could cause the pacemaker or the Implantable Cardioverter
Defibrillator (ICD ) to function abnormally.
• Illumination devices such as fluorescent lights and film viewers which use an inverter can cause the Endostar Provider to operate erratically. Do not use the Endostar Pro-
vider near lights such as these.
• The device must not be connected to or used in combination with any other apparatus or system. It must not be used as an integral component of any other apparatus or
system.
• Do not use the device in the medical operation room.
• Blocked canals cannot be accurately measured.
• Do not perform maintenance while using the device for treatment.
* Poldent Co. Ltd. is not responsible for any accidents or other types of trouble that are caused by not following the precautions noted below.
Precautions

6
Instructions for Use 2019-03-20
Features
⹅Indications for Use
The Endostar Provider is a compact, cordless endodontic treatment motorized handpiece for preparation and enlargement of root canals.
It may be connected to the Endostar Navigator (Poldent Co. Ltd.), an apex locator (sold separately).
It can be used to enlarge and prepare root canals, remove of gutta-percha point and softened dentin, and professional mechanical tooth clean-
ing.
Instructions for how to use the device when it is connected to the Endostar Navigator are printed on a blue background.
*These functions are available only when the device is connected to the Endostar Navigator.
*These functions are available only when the device is connected to the Endostar Navigator.
⹅Liquid Crystal Display (LCD)
The LCD is easy to read and shows all settings as well as how the motor is running.
⹅Controls
< OTR (Optimum Torque Reverse) Mode >
If the file torque is less than the set value, the file will keep rotating in the forward direction.
When the file torque is more than the set value, the file will automatically start rotating 90° in reverse and 180° forward repeatedly. Further-
more, OTR mode can set various motor controls as described below.
Speed : 100, 300, and 500 rpm
Torque Setting : 0.2, 0.4, 0.6, 0.8, and 1.0 Ncm
Auto Start & Stop*: The file starts when it is inserted in the canal and stops when it is taken out.
Apical Reverse or Stop*: The motor reverses or stops when the tip of the file reaches a preset position inside the canal.
< Normal Mode >
If the file torque is less than the set value, the file will keep rotating in the forward direction. When the file torque is more than the set value, the
file will automatically start rotating in reverse direction.
Furthermore, normal mode can set various motor controls as described below.
Speed : 50, 100, 150, 200, 250, 300, 400, 500, 600, 800, and 1000 rpm
Torque Reverse : The motor automatically reverses its rotation if the torque load exceeds the set value to reduces the risk of
jamming.
Slow Down : The file slows down as torque increases.
The file slows down as it approaches the apex if the device is connected to the Endostar Navigator.
Forward & Reverse : The file may rotate in both forward and reverse directions.
Auto Start & Stop*: The file starts when it is inserted in the canal and stops when it is taken out.
Apical Reverse or Stop*: The motor reverses or stops when the tip of the file reaches a preset position inside the canal.
Apical Torque Reduction*: The automatic torque reverse value is reduced as the file tip approaches the apex.
⹅Memory
Six combinations of speed, torque, etc. can be memorized.

7Instructions for Use 2019-03-20
Contra Angle
Main Switch
Liquid Crystal Display
Select Switch
Plus and Minus Switches
Power Supply CordCharge LED (orange)Power LED (green)
Charger
Motor Handpiece
Charger Switch
Parts Identification and Accompanying Items
⹅Standard Parts
⹅Optional Parts
Parts Identification
Accompanying Items (Parts of Device and Consumables)
Power Supply Cord
(Qty: 1)
Guide Bar
(Qty: 1)
LS OIL
(Qty: 1)
* Use the guide bar when replacing the built-in electrode or
external file electrode.
pp. 22 and 23 “Cleaning the Rotor Axle and
the Built-in Electrode”
p. 33 “Replacing the Built-in Electrode”
Handpiece Rest
(Qty: 1)
Transmission Cable
(Qty: 1)
External File Electrode
(Qty: 1)

8
1 2
Instructions for Use 2019-03-20
Green LED Orange LED
Before using the device, be sure that all autoclavable components have been sterilized.
p. 26 “Autoclavable Components”
The battery is built into the motor handpiece.
• The battery is not charged when the device is shipped and must be charged before using the device.
• Do not pull or yank the cord when disconnecting the power supply cord. Always grip the connectors.
• Use only the power cord provided and plug both ends all the way in.
• Charger and power supply cord must be located outside the so called patient environment (1.5 m around the patient location).
• If an electrical storm occurs while the battery is being charged, do not touch the charger or its cord as there would be a risk receiving an electric shock.
• Do not get the charger wet or use it where it might get wet.
Usage
(1) Operating Environments
Charge the battery as soon as the battery power indicator gets down to its last bar.
If the orange charge LED goes off immediately or doesn’t light up when the motor handpiece is put into the charger, the battery is probably fully charged. To make
sure, take the motor handpiece out and put it back in again.
Make sure the contact areas for the motor handpiece and charger are free of debris, especially metal fragments. Wipe with ethanol (70 vol% to 80 vol%) to remove
any foreign debris. Do not press down too hard to wipe the charging areas; this could bend the electrical contacts.
Do not leave the charger where it will be exposed to direct sunlight.
Unplug the battery charger when it is not being used.
Do not use any charger; use only the one that comes with the device.
Connect the power cord to the charger and then plug it in.
Turn the charger on. The green Power LED will light up.
* Ambient (room) temperature for charging is from +10ºC to +35ºC (+50ºF to +95ºF).
Put the motor handpiece into the charger as far as it will go.
The orange Charge LED will light up to show that charging
has begun.
* Charging time is about 120 minutes.
Green LED
(2) Before Using the Ensostar Provider
Charging the Battery
Temperature: +10°C to +40°C (+50°F to +95°F)
Humidity: 30% to 80% (without condensation)
Atmospheric Pressure: 70 kPa to 106 kPa
* If the device has not been used for some time, make sure it works properly before using it again.

9Instructions for Use 2019-03-20
The number of bars shows how much battery power is left.
Recharge the battery when there is only one bar left.
If the battery runs almost completely out, the device will automatically turn itself off after about 10 sec-
onds. Recharge the battery as soon as possible.
If the battery power is very low and a large load is applied to the file, the motor may stop or the device
may turn itself off.
This is for safety; there may not be enough power to run the motor with sufficient stability.
Recharge the battery if the display shown to the left appears frequently.
Contra Angle Motor Handpiece
Approx. 290°
Do not force the contra angle to rotate beyond its limit.
The rotation range of the contra angle is about 290°. Set it
so that it reaches the treatment area and the display is easy
to see.
Push the contra angle onto the motor handpiece until there is an audible click.
* The contra angle must be lubricated with the LS OIL before using for the first time. p. 28 “Lubrication”
• Push the contra angle all the way onto the motor handpiece and then give it a light tug to make sure it is securely attached.
• Make sure the connection components for both the motor handpiece and the contra angle are not damaged. An improper connection could cause the motor to reverse unexpect-
edly and result in injuring the patient.
Connecting the Contra Angle
Charging the Battery

10
3
1
2
Instructions for Use 2019-03-20
• Use caution when inserting and removing files to avoid injury to fingers.
• Inserting and removing files without holding the file release button down will damage the chuck.
• Make sure the device is turned off before inserting or removing files.
• Do not connect the file electrode if the motor handpiece is not connected to the Endostar Navigator.
• Never use deformed or damaged files.
• Make sure the file goes all the way in. Give the file a light tug to confirm it is securely held in place. If the file is not securely placed, it could come out and injure the patient.
• Do not use reciprocal files (ones made to rotate back and forth). These could perforate the apical foramen when they reverse rotation.
It’s easiest to hold the button down if you put your index finger where
the head joints the body.
Use either Nickel-titanium or stainless steel files.
1. Hold down the file release button
2. Insert the file and turn it back and forth until it lines up with
the latch mechanism.
3. Push the file all the way into the latch. Release the file release
button.
* Before using right after purchase, whenever the motor handpiece or contra angle has been replaced, or if the motor alternates between for-
ward and reverse rotation outside the canal, calibrate the device in the following way:
1. Turn the device on.
2. Make sure the battery is fully charged (three bars are displayed).
3. Put a commonly used file into the contra angle.
4. Press the Plus or Minus Switch and then select memory M6.
5. Hold down the Select Switch for 2 seconds or more.
6. Set the rotation mode to “Rev”.
7. Turn the device off. (Hold the Select Switch and the press the Main Switch.)
8. Hold the Plus and Minus Switches and the press the Main Switch to turn the device back on.
9. When “CO-Adjst” appears in the display, press the Select Switch.
The motor will start running. Make sure there is no load on the file.
10. When “Finished” appears in the display, the motor will stop and the calibration will be completed.
Press the Main Switch to go to the standby display.
* Once calibration has been completed, you may change the M6 setting and you may turn the device off
with a setting other than M6.
* If the device uses a file electrode, calibrate the device by putting the electrode on the file and connecting
the device to a Endostar Navigator which is turned on.
File Release Button
File Installation
Calibration

11 Instructions for Use 2019-03-20
Main Switch
File Release Button
Plus and Minus Switches
• Stop using the device if you feel or notice anything unusual. The device cannot be used for every canal and should be used along with manual enlargement.
• File break more easily at fast speeds; always follow the file manufacturer’s usage recommendations. Also always check the speed settings before use.
• Do not use any type of files except nickel-titanium and stainless steel ones.
• Nickel-Titanium files are easily broken; note the following points.
• Open the canal up to the apical constriction manually before using a nickel-titanium file.
• Never use excessive force to insert the file.
• First remove all foreign matter, such as bits of cotton from the root canal.
• Never use excessive force to advance the file down the root canal.
• Do not use for extremely curved canals.
• Try not to trigger the auto torque reverse function when advancing the file down the canal.
• Do not skip file sizes; suddenly using a much larger file could break it.
• If you encounter resistance or the auto torque reverse is triggered, back the file up 3 or 4 mm and carefully advance it down the root canal again. Or replace the file with a
smaller size. Never use excessive force.
• Do not force the file down the root canal or press it against the root canal wall.
• Do not use the same file continuously in one position as this may create “steps” on the root canal wall.
• Always take file out of the contra angle after use.
• Operate the device outside the oral cavity to make sure it will operate properly before using it for treatment.
• Some canals may be impossible to enlarge; always take an X-ray to check.
• Nickel-titanium file may suddenly snap depending on the curvature and shape of the canal; stop using the file if you notice or feel anything amiss.
• Files will eventually break due to metal fatigue and should be replaced before they reach this point.
• Electric noise or a malfunction could interfere with the motor control. Do not depend entirely on the device controlling itself; always watch the display and be aware of tactile feed-
back.
• Files will jam and break if too much force is applied to them.
• Files may break even when the torque reverse is turned on, depending on the setting value. Never exert excessive force on the file.
• Files designed for use with engines break easily if too much force is applied. Also do not use these files for canals with excessive curvature.
• Always examine files for stretching and other deformities or damage before using them. Any type of deformity could result in the file breaking.
• Do not let the file release button on the contra angle press against the teeth opposite to the treatment area; this could cause the file to come out and result in an injury.
• Do not press the file release button while the motor is running. It could heat up and cause a burn, or the file could come out and cause an injury.

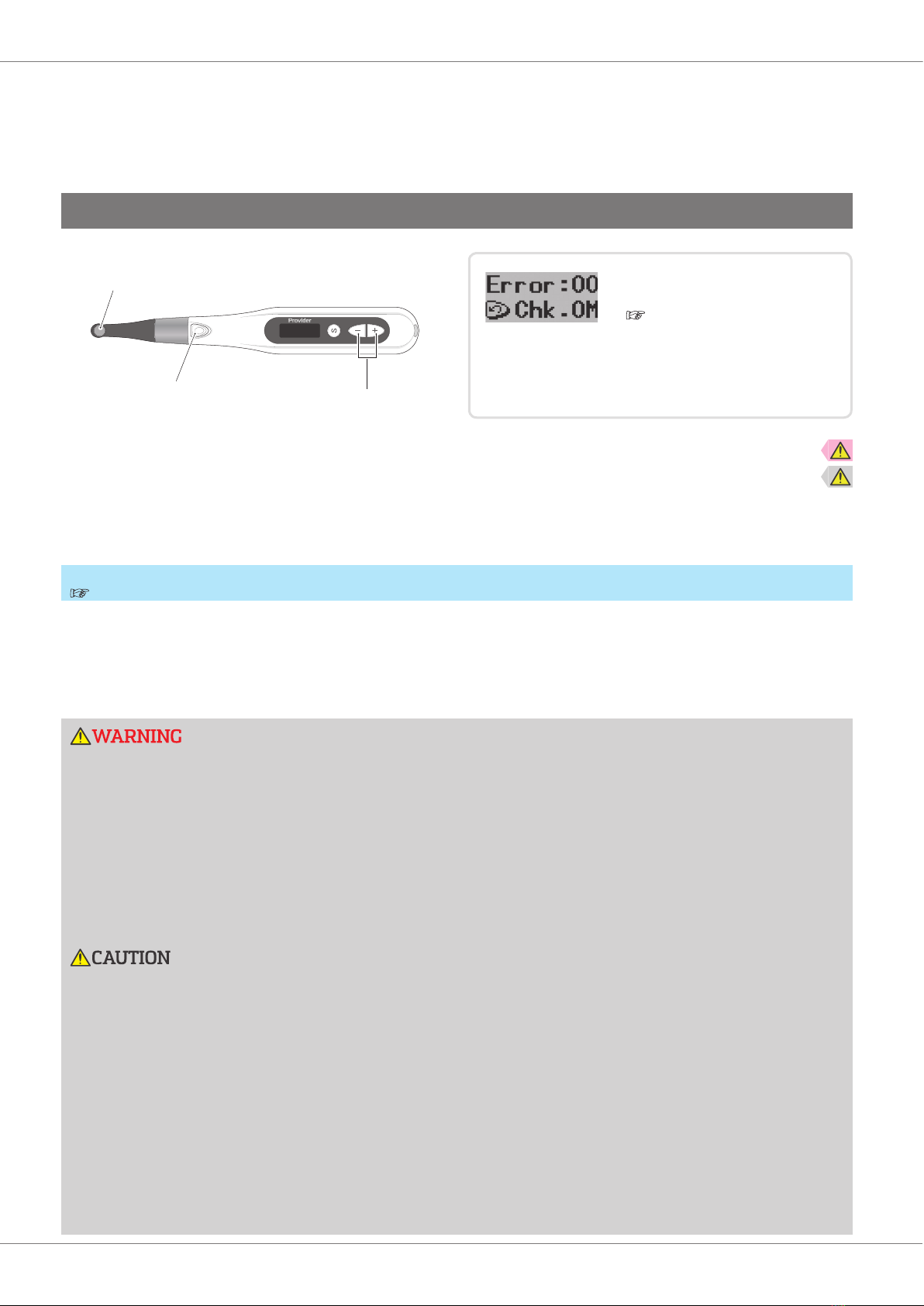

If a malfunction occurs, the device will
stop working.
p. 37 "Troubleshooting"
■Make sure the contra angle and motor handpiece are properly and securely connected.
■Make sure the file is securely installed; give it a light tug.
■Check switch operation.
Turn the Main Switch on and use the Plus or Minus Switch to select a memory. Then press the Main Switch again to see if the device
runs smoothly.
How to check device operation when it is connected to the Endostar Navigator,;
pp. 18 to 25 “Operation with Endostar Navigator”.
If this error display appears frequently, stop using the device
and contact Poldent Co. Ltd. The number that appears after
Error will depend on the type of malfunction.
Operation Check

12
Instructions for Use 2019-03-20
Torque Setting
Memory Number
Rotation Mode
Battery Power
Speed Setting
OTR Torque Setting
Torque Reverse Setting
Current Torque
Operation Mode
Standby Display (OTR Mode)
Standby Display (Normal Mode)
Torque Display
1. Turn Endostar Provider On: Press the Main Switch.
The standby display will appear.
When the standby display is being shown, you can turn the device off by holding down the Select Switch and pressing the Main Switch
2. Select Memory Number: Press the Plus or Minus Switch.
* There are six memories for various combinations of speed, torque reverse and rotation mode settings.
* The backlight will temporarily change color if changing the memory number changes anything other than the speed, torque reverse,
and rotation mode settings.
3. Start Motor: Press the Main Switch again.
The torque display will appear.
* If you hold the Main Switch down when you start the motor, it will run only while the switch is held down and stop when the switch is
released.
* You can temporarily change the torque reverse setting while the motor is running by pressing the Plus or Minus Switch. (This works only
for normal mode.)
* The color of the backlight changes depending on the load applied to the file.
* The backlight starts blinking when the load approaches the reverse setting. While the OTR is triggered, the backlight does not blink.
4. Stop Motor: Press the Main Switch again.
The standby display will reappear.
5. Turn Endostar Provider Off: Hold the Select Switch and then press the Main Switch.
* The device turns itself off automatically if it is not used for 3 minutes (initial setting).
For meter readings and operation connected to the Endostar Navigator; p. 20“Meter Display”
(3) Operation
Main Switch
(Turn power on and starts/stops rotation)
Liquid Crystal Display
Select Switch
Plus and Minus Switches
(Select memory and change settings)
Basic Operation
• Be sure to check the new settings whenever you change the Memory Number.
• The temperature at the position 8 cm from the contra angle tip rises up to +48.3°C (+118.9°F) when the ambient temperature is +35°C (+95°F).
• When the OTR seems to be triggered too frequently, or it is triggered immediately after starting the normal rotation, increase the torque setting by one level.
When the Apical Torque Reduction is set to “ON”, the torque setting cannot be temporarily changed.

13 Instructions for Use 2019-03-20
The initial settings are shown below. These settings can be changed.
Primary Functions:Speed, Rotation Mode
1. Select a memory number for the standby display by pressing the
Plus or Minus Switch.
2. Press the Select Switch to choose one of the primary functions.
3. Press the Plus or Minus Switch to change the setting.
* The display will go back to the standby display if 5 seconds (initial
setting) elapses without a switch being pressed.
Speed Settings:
< OTR Mode >
100, 300, and 500 rpm
< Normal Mode >
50, 100, 150, 200, 250, 300, 400, 500, 600, 800, and 1000
rpm
Torque Settings:
< OTR Mode >
0.2, 0.4, 0.6, 0.8, and 1.0 Ncm
< Normal Mode >
0.2, 0.4, 0.6, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0, 4.0, and 5.0 Ncm
This function can also be turned off: TRL (torque reverse-less).
Rotation Mode:
Normal (Fwd: Forward, Rev: Reverse) or OTR
Standby Display
Rotation Mode
Speed
Torque
** These functions are available only when connected to the Endostar Navigator.
• If the torque limit is too high, the file could jam inside the canal and break.
• The torque settings must be changed depending on the root canal condition and the file.
• If the torque reverse seems to be activated too frequently increase its value.
• When OTR mode (motor runs back and forth continuously) seems to be triggered too frequently, or it is triggered immediately after starting the normal rotation, increase the
torque setting by one line.
Setting Memory
M1 M2 M3 M4 M5 M6
Speed (rpm) 500 300 500 500 300 500
Reverse Torque (Ncm) 0.2 0.2 0.2 1.0 1.0 1.0
Rotation Mode OTR OTR OTR Normal
(Forward)
Normal
(Forward)
Normal
(Forward)
Torque Slow Down — — — Off Off Off
Linked Function** On On Off On On Off
Apical Reverse or Stop** Reverse Reverse —Reverse Reverse —
Auto Start or Stop** On On Off On On Off
Apical Slow Down** — — — Off Off Off
Apical Torque Reduction** — — — Off Off Off
Torque reverse values may differ somewhat depending on the motor and
contra angle.
Memory Settings: Initial Settings
Memory Settings: Primary Functions

14
Instructions for Use 2019-03-20
Additional Functions: Linked Function (Linked Func.**), Apical Reverse or Stop (APICAL ACT.**)
Auto Start or Stop (AUTO STT/STP**)
1. Select a memory number for the standby display; press the Plus or Minus Switch.
2. Hold down the Select Switch for at least 1 second to show the displays for additional operation settings.
3. Press the Select Switch to go from one display to the next.
4. Change the setting; press the Plus or Minus Switch.
* The display will go back to the standby display if 5 seconds (initial setting) elapses without a switch
being pressed.
Standby Display
Linked Function**:
When this is set to “ON”, Apical Reverse or Stop function be activated.
Apical Reverse or Stop**:
The file will reverse or stop when the file tip reaches the Flash Bar.
When Linked Function is set to “ON”, this display will be skipped.
Auto Start & Stop**:
When this is set to “ON”, the file starts rotating when it is inserted and stops when it is taken out of the
canal.
** These functions are available only when connected to the Endostar Navigator.
Memory Settings: Additional Operation Settings (OTR Mode)
Linked Funciton
Apical Reverse or Stop
Auto Start & Stop

15 Instructions for Use 2019-03-20
Memory Settings: Additional Operation Settings (Normal Mode)
Additional Functions: Torque Slow Down (TORQ.SL.D.), Linked to canal measurement (APICAL ACT.**),
Apical Reverse or Stop (APICAL ACT.**), Auto Start and Stop (AUTO STT/STP**),
Apical Slow Down (APICAL SL.D.**), Apical Torque Reduction (APICAL TRQ.D.**)
1. Select a memory number for the standby display; press the Plus or Minus Switch.
2. Hold down the Select Switch for at least 1 second to show the displays for additional operation settings.
3. Press the Select Switch to go from one display to the next.
4. Change the setting; press the Plus or Minus Switch.
* The display will go back to the standby display if 5 seconds (initial setting) elapses without a switch
being pressed.
Torque Slow Down:
When this is set to “ON”, the motor will slow down as the torque load increases.
Standby Display
Apical Torque Reduction
Linked Function**:
When this is set to “ON”, Apical Reverse or Stop function be activated.
Apical Reverse or Stop**:
The file will reverse or stop when the file tip reaches the Flash Bar.
When Apical Action Function is set to “OFF”, this display will be skipped.
Auto Start & Stop**:
When this is set to “ON”, the file starts rotating when it is inserted and stops when it is taken out of the
canal.
Apical Slow Down**:
When this is set to “ON”, the file slows down as it approaches the Flash Bar.
Apical Torque Reduction**:
When this is set to “ON”, the torque setting that triggers reverse rotation is reduced as the file tip ap-
proaches the apex.
** These functions are available only when connected to the Endostar Navigator.
Apical Slow Down
Auto Start & Stop
Apical Reverse or Stop
Torque Slow Down
Linked Function
Cannot be used along with Apical Torque Reduction function.
If the Torque Reverse Less (TRL) is turned on, the Torque Slow Down function is disabled.
Cannot be used along with Apical Torque Reduction function.
Cannot be used along with Apical Slow Down or Torque Slow Down functions.
If the Torque Reverse Less (TRL) is set to “ON”, the Apical Torque Reduction function is disabled.

16
Instructions for Use 2019-03-20
Other Settings: The initial settings are shown below.
1. With the device turned off, hold down Select Switch and then press the Main Switch.
2. Press the Select Switch to select one of the settings.
3. Press the Plus or Minus Switch to change the setting.
4. Press the Main Switch to return to the standby display.
Beeper (BEEP VOLUME) Big Right or Left Handed (DOMI. HAND) Right
Auto Power Off (AUTO PWR) 3 min. Backlight (B.L.COLOR CHANGE) On
Positive or Negative Display (DISP. TYPE) Posi Return to Standby Time (S.S.R TIME) 5 sec.
Beeper Volume
Auto Power Off Time
Positive Display Negative Display
Right Handed Left Handed
Backlight Color Change
Return to Standby Time
Beeper Volume:
Press Plus or Minus Switch to set beep volume used for switch operation and alarms at off, Low or Big.
Auto Power Off Time:
The time lapse for automatic shut off when the device is not used can be set from 1 to 15 minutes. Press
the Plus or Minus Switch to set the time.
Positive or Negative Display:
Set display for black on white background or vice versa.
Right or Left Handed:
Set display for right- or left-handed user. Display turns upside down
for left-handed users.
Backlight Color Change:
When this is set to “ON”, the backlight will change color depending on torque and file tip location. It also
changes color for setting displays. Does not change color when the setting is set to “OFF”.
Return to Standby Time:
Set the time that elapses before display returns to standby from settings displays. Set from 1 to 15 seconds
by pressing the Plus or Minus Switch.
Memory Settings: Other Settings

17
1
2
Instructions for Use 2019-03-20
Restore the initial settings for the memories in the following way.
* This will restore the original memory settings. You cannot restore settings for just one memory.
1. With the device turned off, hold down the Select Switch, the Plus Switch and the Minus Switch and then turn the device on with the Main
Switch.
2. The "MemClear" display will appear. Press the Select Switch to restore the default memories or press the Main Switch to cancel the operation.
3. Wait until the “Finished” display appears and then press the Main Switch to go to the standby display.
• Take care not to injure your fingers when inserting and removing files.
• Never insert or remove files without holding down the button; this will damage the chuck.
• Make sure the device is turned off before inserting or removing files.
1. Hold down the Select Switch and press the Main Switch to turn the power off.
* The power will go off automatically if the device is not used and no switches are pressed for 3 minutes.
2. Hold down the file release button and pull the file straight out.
(4) After Using the Endostar Provider
Removing the File
Restoring the Initial Settings

18
3
1
2
Instructions for Use 2019-03-20
Operation with Endostar Navigator
Installing the File Electrode
• Inserting and removing files without holding the file release button down will damage the chuck.
• Do not connect the file electrode if the motor handpiece is not connected to the Endostar Navigator.
• Use only Ni-Ti or properly designed stainless steel files.
• Use caution when inserting and removing files to avoid injury to fingers.
• Make sure the device is turned off before inserting or removing files.
• Do not let the cutting part of the file touch the electrode; this will wear it out very quickly.
• Some files cannot be used with this electrode.
(E.g., Those with a file diameter of more than 1.2 mm; Those with chuck shanks that are not perfectly round; Gates-Glidden Drills; and those that have cutting sections with large
diameters such as largo burs.)
• Do not use files shanks larger than the ISO standard: Diameter 2.334 to 2.350 mm
• After use, be sure to take the file out.
• Some files cannot use the built-in electrode to make measurement; always check for conductivity before using a file.
• Make sure the file goes all the way in. Give the file a light tug to confirm it is securely held in place. If the file is not securely placed, it could come out and injure the patient.
• Never use stretched, deformed or damaged files.
• Do not use reciprocal files (ones made to rotate back and forth). These could perforate the apical foramen when they reverse rotation.
• Make sure the screw is tight enough. Otherwise, it might come out and be swallowed. Also, measurements might not be accurate.
It’s easiest to hold the button down if you put your index finger where
the head joints the body.
Use either Nickel-titanium or stainless steel files.
1. Hold down the file release button
2. Insert the file and turn it back and forth until it lines up with
the latch mechanism.
3. Push the file all the way into the latch. Release the file release
button.
File Release Button

19
1 2
Instructions for Use 2019-03-20
Take off the cap and plug the cable’s white plug all the way
into the motor handpiece.
Plug the cable’s gray plug into the Endostar Navigator.
■Make sure file electrode is making good contact with the file.
■Touch the file with the contrary electrode and make sure the meter goes all the way to its end and there are no segments that do not
light up.
Plug: White
Plug: Gray
Do not mix up the cable plugs.
Do not put stress on the transmission cable by twisting, bending, or stretching by wrapping it around the device or Endostar Navigator.
Watch out because the motor might start up when you do this.
• Make sure the plugs go straight in.
• After insertion give plugs a light tug to make sure they are securely connected. Otherwise, data may not be transmitted accurately.
• Do not bump the plugs or drop anything on them when they are plugged in.
• Use only the special cable provided. Other cable could be electrically risky and result in damage or injury. Make sure the file goes all the way in. Give the file a light tug to make
sure it is properly installed.
• Check the meter activity before each patient and do not use the device if all the segments of the display do not light up. This suggests that the meter cannot make an accurate
reading.
* Refer to the user manual for the Endostar Navigator.
Operation Check
Connecting the Transmission Cable
