Polk Mono hinge User manual

Using
your
Headphones
Listen
opclk
..
But
first
...turn down the
volume
on
your
music
player
before
putting
on
your
headphones.
Connect
with
or
plug
the headphone
cable
into
the
1
/8"
(3.5
mm)
stereo
jack
on
your
music
player.
Important:
Headphones
have
a
left
and
right
orientation.
They
use
the markings
"L"
and
"R"
to indicate which earcup
goes
on
which
ear.
These
markings
can
be
found
on
the
inside
ofthe headband.
Adjusting
the
Hinge
wireless
headband
For
optimum performance
and
comfort,
you
want your headphones to
fit
snugly
and
create
a comfortable
yet
effective
seal
on
your
ears.
A proper
fit
ensures
the
best sound
as
well
as
some
effective
noise
reduction
from
outside
sources.
Working
together,
the headband
and
the pivoting earcups
will
fit
any
size
head,
even
yours.
•
The
headband
should
sit
flat
across the top of
your
head.
• Adjust the built
-in
headband
slider
as
necessary
•
The
pivoting headphone earcups
should
fit
on
your
ears
and
you
should
feel
an
even
snugness
all
the
way
around
and
against
your
ears.
This
indicates a good
fit,
which
means
outside sounds should
be
muffled.
Charging
your
headphones
Use
the Micro
USB
port to charge your headphone's
battery.
Charging
should take
no
longer
than
2
hours.
A
fully
charged battery should
provide
up
to
12
hours
of
listening.
When
fully
charged, the
LED
will
be
green.
Built-in
microphones
A chat microphone
and
a
noise
cancellation microphone
are
built
into
the
right
earcup.
These
microphones
use
Digital
Signal
Processing
to optimize
voice
clarity.
LED
Status
LED
Description
Flashes
white
Bluetooth
pairing
mode
Solid
white
8/uetooth
connected, battery charge good
Pulses
amber Headphones
charging
Solid
green
Headphones
fully
charged
Solid
amber Battery charge low
3

hinge wireless
Bluetooth ® Wireless Technology
To use your 8/uetooth wire l ess technology device
with the
Hinge wireless, you must first pairyour
device with your Hinge wireless.
You only have to pair your Hinge wireless with your
8/uetooth device one time. After that you simply
select the "Polk
Hinge" from your device
list to make the connection toyour headphones.
Connecting with NFC
Near Fie ld Communication gives you the ease
and convenience of simply "touching" your
Bluetooth!NFC compatible device to the
left
earcup to pair and connect.
Pa ir and Connect your 8/uetooth
device with the Hi nge wireless
4
1. Make sure your Bluetooth device
and
Hinge wireless are powered on.
2. Activate the Bluetooth function on
your Bluetooth source device.
3. Press and hold the 3-button control for
4 seconds to put
the Hinge wireless in
pairing mode. The LED will flash white
as it looks for adevice to pair with.
4. Your Hinge wireless will nowbe displayed
on your source device and available to pair
and/or connect. Select "Polk Hinge" on your
device to initiate the connection process.
5 Play your music from your devi c e!
0
touch NFC
enabled
devi ce here.

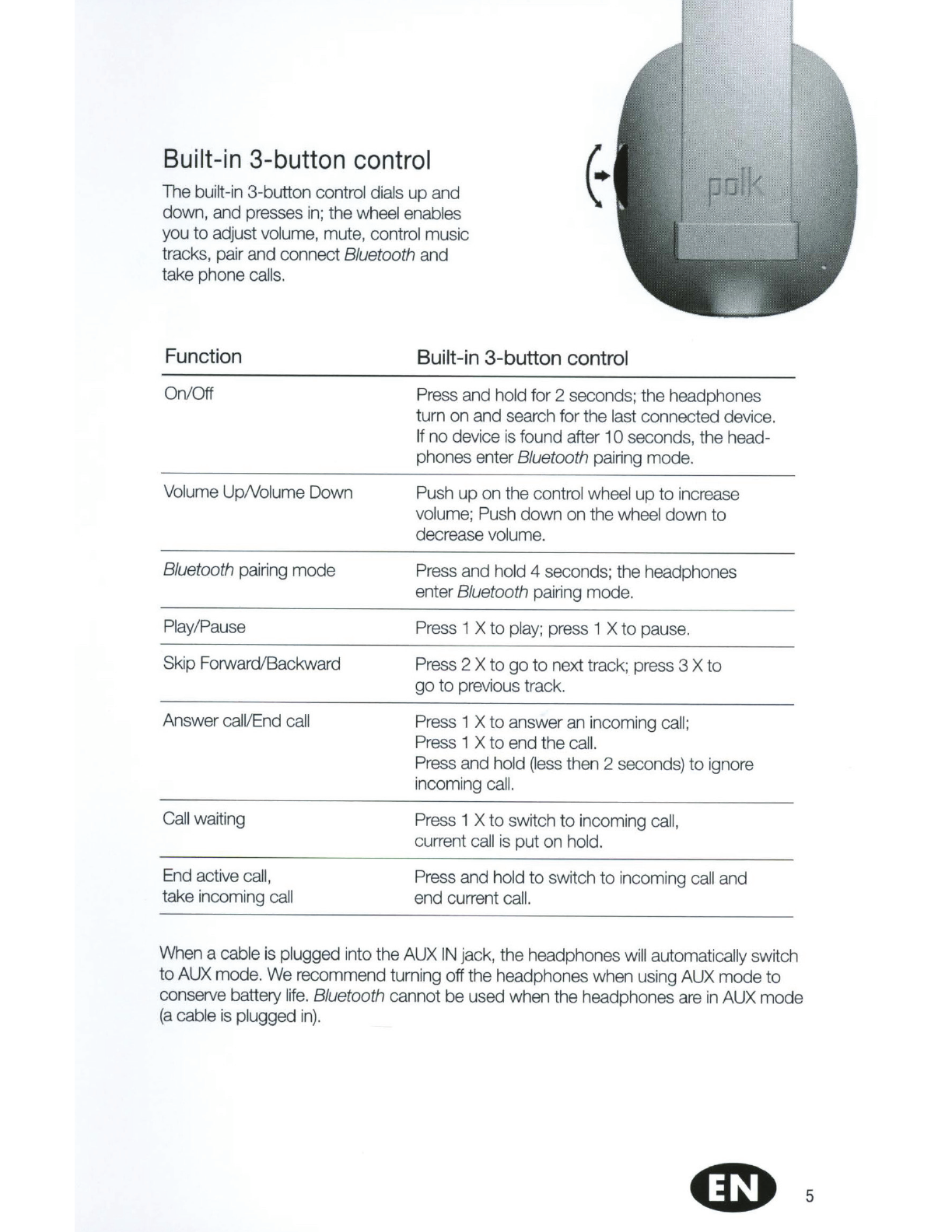

Built-in
3-button
control
The
built
-in
3-button control
dials
up and
down, and
presses
in;
the
wheel
enables
you
to adjust
volume,
mute,
control music
tracks, pair and connect
8/uetooth
and
take phone ca
ll
s.
Function
On/Off
Volume
UpNolume
Down
8/uetooth
pairing
mode
Play/Pause
Skip Forward/Backward
Answer
caiVEnd
call
Call
waiting
End
active
call,
take incoming
call
Built
-
in
3-
button
control
Press
and hold for 2 seconds; the headphones
turn
on
and
search
for the
last
connected
device.
If
no
device
is
found after 1
0 seconds,the head-
phones enter
8/uetooth
pairing
mode.
Push
up
on
the control
wheel
up to
increase
volume;
Push
down
on
the
wheel
down to
decrease
volume.
Press
and
hold 4 seconds; the headphones
enter
8/uetooth
pairing
mode.
Press
1Xto
play;
press
1Xto
pause.
Press
2Xto go to next track; press 3 Xto
go to
previous
track.
Press
1Xto answer
an
incoming
call;
Press
1Xto end the
call.
Press
and hold
Oess
then
2
seconds)
to
ignore
incoming
call.
Press
1Xto switch to incoming
call,
current
call
is
put
on
hold.
Press
and
hold to switch to incoming
call
and
end
current
call.
Wh
en
acable
is
plugged into the
AUX
INjack, the headphones
will
automatically switch
to
AUX
mode.
We
recommend turning off the headphones when
using
AUX
mode to
conserve
battery
life.
8/uetooth
cannot
be
used
when
the headphones
are
in
AUX
mode
(a
cable
is
plugged
in).
5

hinge
wireless
In-line Controls
Your
Hinge
wireless
also
comes
with
an
in-line
3-button
remote.
Care
&
Storage
How
to
Clean Headphones
Important:
Use
a damp cloth to
clean
the headphones.
DO
NOT
get
any
liquid
in
them.
Use
warm
water
and
a
mild
dish
soap
on
a damp cloth to
remove
dirt.
DO
NOT
use
harsh
cleaning
agents.
Storing
your
Headphones
Store
your headphones
in
their protective
case.
Store
the case
in
a
clean,
dry
environment.
DO
NOT
expose
your headphones to extreme
heat
orcold,
high
humidity
or
liquids.
Troubleshooting
6
Problem
There
is
no
sound.
Volume
is
low.
There
is
a lack of
bass
.
The
microphone
is
notworking.
The
telephone does not
respond
to
controls.
Apple
product does not
respond
to
controls.
Try
this
Turn
the music source
up.
Make
sure
the
cable
is
securely
connected.
Turn
the music source
up.
Make
sure
the
cable
is
securely
connected.
Adjust the headphones tofit properly.
Make
sure
the
cable
is
securely
connected.
Check the sound settings on your
device.
Ensure
the microph
ones
on the front and
rear
ofthe
right
ear
cup
are
not blocked.
Make
sure
the
cable
is
securely
connected.
Make
sure
you
'
re
using
acompatible product.
Make
sure
you
'
re
using
acompatible product.
Make
sure
the
cable
is
secure
ly connected.
x2

opolk
..
Technical
Assistance
Customer
Service
If
anything
is
missing or damaged, or
if
your headphones
fail
to operate, contact the
authorized Polk dealer where
you
made your purchase, or contact Polk Customer
Service
immediately at 1-800-377-7655
(M-F,
9:00
AM-5:30
PM
EST,
USA & Canada
only).
If,
after following the setup directions,
you
experience
difficulty,
please double check
that you followed the instructions
correctly.
Should you isolate the problem to a defect
in
the headphones, contact the authorized Polk dealer where
you
made your purchase,
or contact Polk Customer Service
by
phone or
via
email:
[email protected].
Outside the
USA
&Canada,
call
+
1-41
0-358-3600.
Product
Disposal
Certain
international, national and/or
local
laws and/or regulations may apply regarding
the disposal of this product.
For
further detailed information, please contact the
retailer
where
you
purchased this product or the Polk Importer/Distributor
in
your country.
Important
Performance
&
Safety
Tips
WARNING:
Listen
Carefully
Polk headphones
are
capable of
playing
at extremely
high
volume
levels,
which could
cause serious or permanent
hearing
damage.
Polk,
Inc.
accepts no liability for
hearing
loss,
bodily
injury
or property damage resulting from the misuse of its products. Besides,
we want you to keep your
hearing
so
you'll buy more Polk products.
Enjoy
your
Polk
Headphones
Responsibly
It's
a
very
bad
idea,
and
in
many jurisdictions against the
law,
to operate a vehicle
while
wearing headphones. Crossing streets without being able to hear what's going
on
around
you
can
be
dangerous
as
well.
Use
your good common sense and never
play
headphones
in
an
environment, or during
an
activity,
that
requires
your complete
attention.
The
sounds
you
hear around
you
could
save
your
life.
How
Loud
is
too
Loud?
Polk headphones
are
capable of reproducing excellent musical
detail,
even
at lower
volume
levels.
You
should limit prolonged exposure to volumes that exceed 85 decibels
(dB).
Regular
exposure to sound over 100 dB for more than 1 minute
risks
permanent
hearing
loss.
For
more about
safe
volume
levels,
go to the Occupational
Health
and
Safety Administration
(OSHA)
guidelines
at
www.osha.gov.
7

hinge
wireless

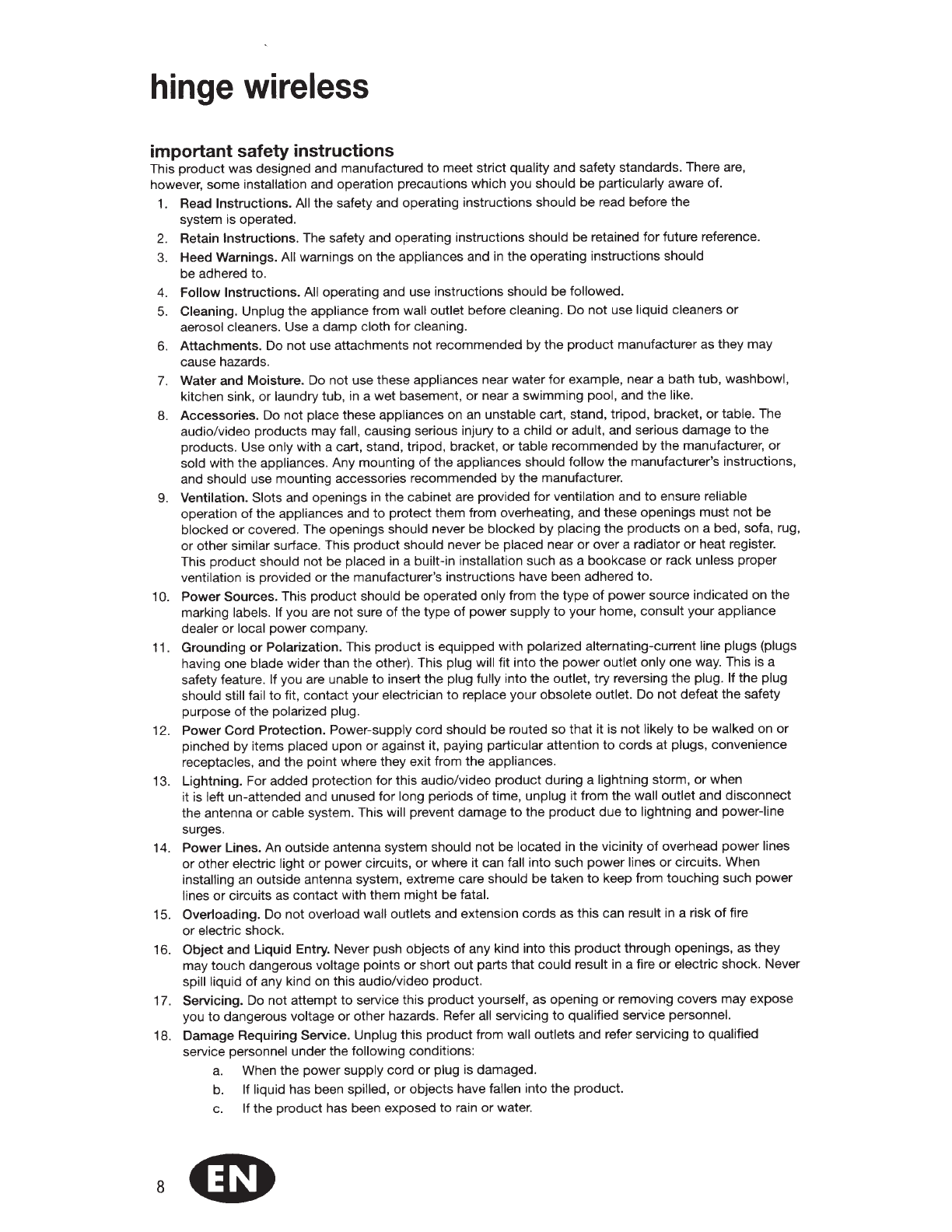

important safety instructions
This product was designed and manufactured
to
meet strict quality and safety standards. There
are,
however, some installation and operation precautions which you should be particularly aware of.
1. Read Instructions. All the safety and operating instructions should be read before the
system is operated.
2.
Retain Instructions. The safety and operating instructions should be retained for future reference.
3.
Heed Warnings. All warnings on the appliances and
in
the operating instructions should
be adhered to.
4.
Follow Instructions. All operating and use instructions should be followed.
5. Cleaning. Unplug the appliance from wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
6.
Attachments. Do not use attachments not recommended by the product manufacturer
as
they may
cause hazards.
7. Water and Moisture. Do not use these appliances near water for example, near a bath tub, washbowl,
kitchen sink, or laundry
tub
,
in
a wet basement, or near a swimming pool, and the like.
8. Accessories. Do not place these appliances on
an
unstable cart, stand, tripod, bracket, or table. The
audio/video products may fall, causing serious injury
to
a child or adult, and serious damage
to
the
products. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or
sold with the appliances. Any mounting
of
the appliances should follow the manufacturer's instructions,
and should use mounting accessories recommended by the manufacturer.
9. Ventilation. Slots and openings in the cabinet are provided for ventilation and to ensure reliable
operation of the appliances and
to
protect them from overheating, and these openings must not be
blocked or covered. The openings should never be blocked by placing the products on a bed, sofa, rug,
or other similar surface. This product should never be placed near or over a radiator or heat register.
This product should not be placed
in
a built-in installation such
as
a bookcase or rack unless proper
ventilation is provided or the manufacturer's instructions have been adhered to.
1
0.
Power Sources. This product should be operated only from the type of power source indicated on the
marking labels. If you are not sure
of
the type of power supply
to
your home, consult your appliance
dealer or local power company.
11. Grounding
or
Polarization. This product
is
equipped with polarized alternating-current line plugs (plugs
having one blade wider than the other). This plug will fit into the power outlet only one way. This is a
safety feature. If you are unable
to
insert the plug fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician
to
replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
12. Power Cord Protection. Power-supply cord should be routed so that it is not likely
to
be walked on or
pinched by items placed upon or against it, paying particular attention
to
cords at plugs, convenience
receptacles, and the point where they exit from the appliances.
13
. Lightning. For added protection for this audio/video product during a lightning storm, or when
it
is
left un-attended and unused for long periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage
to
the product due
to
lightning and power-line
surges.
14
. Power Lines.
An
outside antenna system should not be located
in
the vicinity
of
overhead power lines
or
other electric light
or
power circuits,
or
where it can fall into such power lines or circuits. When
installing
an
outside antenna system, extreme care should be taken
to
keep from touching such power
lines or circuits
as
contact with them might be fatal.
15. Overloading. Do not overload wall outlets and extension cords as this can result
in
a risk
of
fire
or electric shock.
16.
Object
and Liquid Entry. Never push objects
of
any kind into this product through openings, as they
may touch dangerous voltage points or short out parts that could result
in
a fire or electric shock. Never
spill liquid of any kind on this audio/video product.
17. Servicing.
Do
not attempt
to
service this product yourself, as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer
all
servicing
to
qualified service personnel.
18. Damage Requiring Service. Unplug this product from wall outlets and refer servicing
to
qualified
service personnel under the following conditions:
a.
When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c.
If the product has been exposed
to
rain or water.
8

opolk.
d.
If the product does not operate normally by following the operating instructions. Adjust only
those controls that are covered by the operating instructions, as
an
improper adjustment
of
other controls may result in damage and will often require extensive work by a qualified
technician to restore the product to its normal operation.
e. If the product has been dropped
or
the cabinet has been damaged.
f.
When the product exhibits a distinct change
in
performance this indicates
a need for service.
19. Replacement Parts. When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or that the parts have the same characteristics as the
original part. Unauthorized substitutions may result
in
fire, electric shock or other hazards.
A CAUTION: Danger
of
EXPLOSION if battery is incorrectly replaced.
WARNING: Do not expose batteries or battery pack
to
excessive
heat such as sunshine, fire or the like.
20. Safety Check. Upon completion
of
any service or repairs to this product,
ask the service technician to perform safety checks to determine that the
products are in proper operating condition.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for Class B digital device, pursuant
to Part 15
of
the FCC Rules. These limits are designed
to
provide reasonable protection against harmful
interference
in
a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used
in
accordance with the instructions, may cause harmful interference
to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
(1)
Reorient
or
replace the receiving antenna.
(2)
Increase the separation between the equipment and receiver.
(3)
Connect the equipment into
an
outlet on a circuit different from
that to which the receiver is connected.
(4)
Consult the dealer or
an
experienced radio/TV technician for help.
This device complies with Industry Canada license-exempt
RSS
standard(s). Operation is subject
to
the
following
two
conditions:
(1)
this device may not cause interference, and
(2)
this device must accept any interference, including interference that may cause undesired operation
of
the device.
product disposal
Certain international, national and/or local laws and/or regulations may apply regarding
the disposal
of
this product. For further detailed information, please contact the retailer where you
purchased this product or the Polk Importer/Distributor
in
your country.
A listing
of
Polk Audio Importer/Distributors can be found on the Polk website
'
www
.polkaudio.com or by contacting Polk Audio at:
5601
Metro Drive, Baltimore, Maryland
21215, USA. Phone:
+
1-410-358-3600;
in
California: 1-800-377-7655. -
9

hinge
wireless

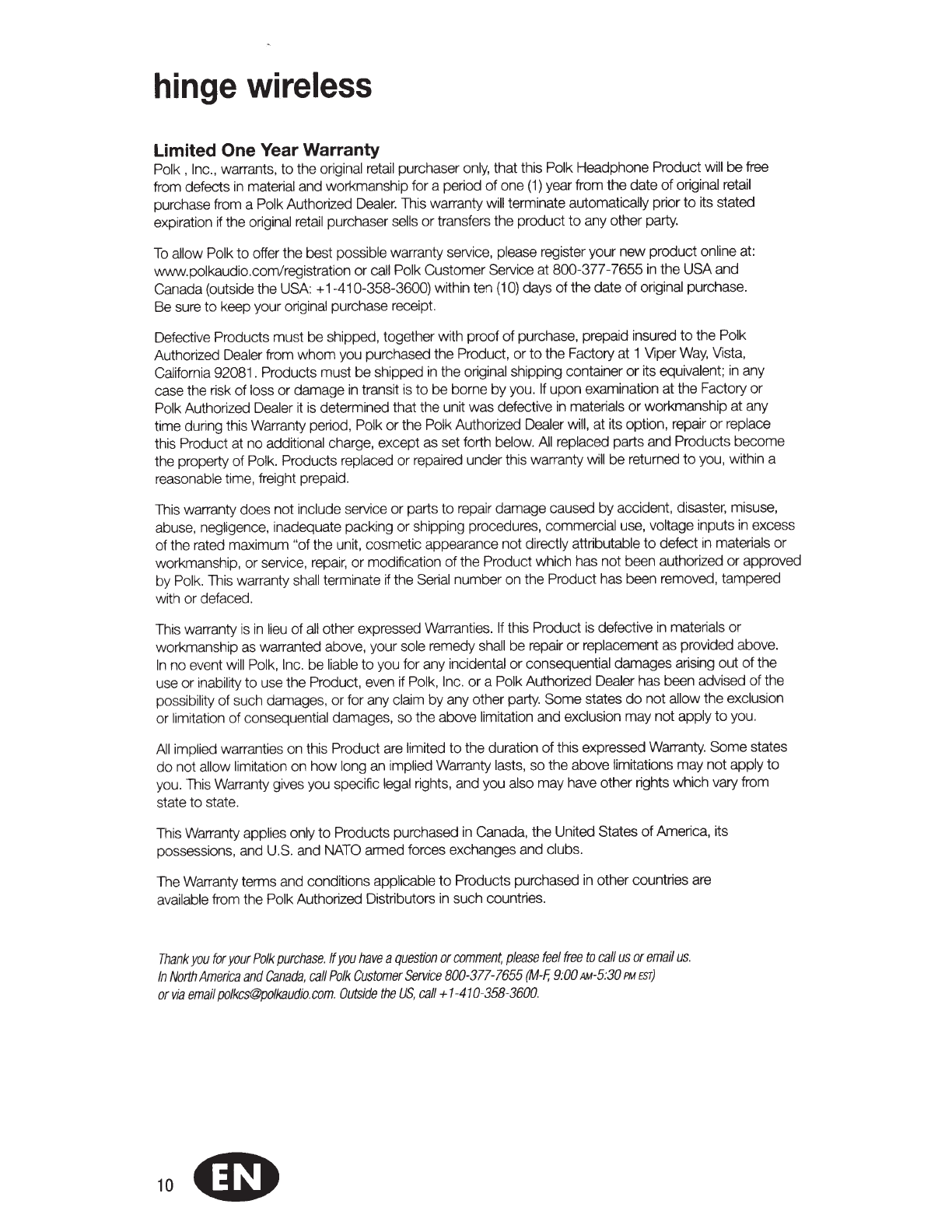

Limited One Year Warranty
Polk,
Inc.,
warrants,
to the
original
retail
purchaser
only,
that this
Polk
Headphone Product
will
be
free
from
defects
in
material
and
workmanship for a period of
one
(1)
year
from
the date of
original
retail
purchase
from
a
Polk
Authorized
Dealer.
This
warranty
will
terminate automatically prior to
its
stated
expiration
if
the
original
retail
purchaser
sells
or transfers the product to
any
other
party.
To
allow
Polk
to
offer
the best possible warranty
service,
please
register
your new product
online
at:

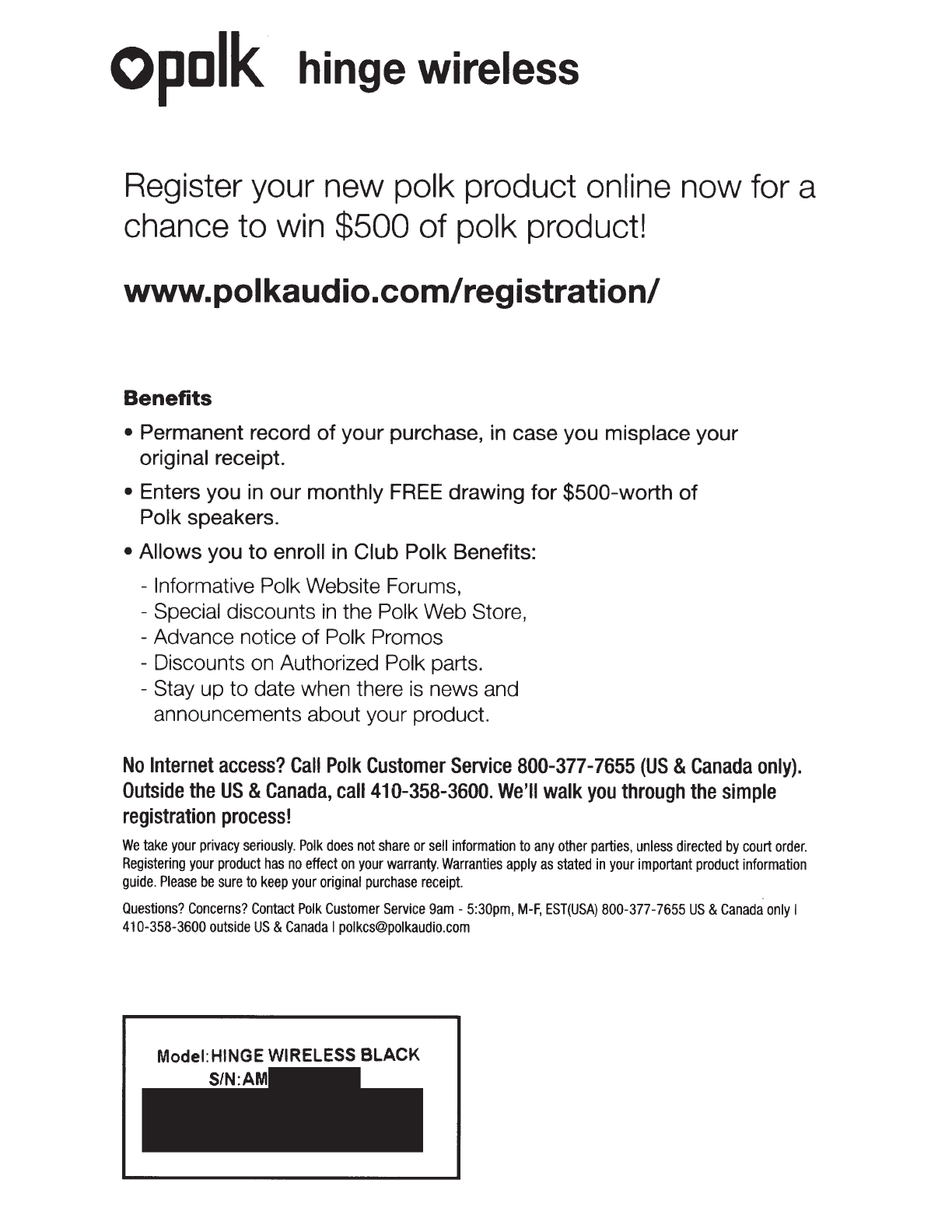

www.polkaudio.com/registration or
call
Polk
Customer
Service
at
800-377-7655
in
the
USA
and
Canada
(outside
the
USA:
+
1-41
0-358-3600)
within
ten
(1
0)
days
of
the
date of
original
purchase.
Be
sure
to
keep
your
original
purchase
receipt.
Defective
Products must
be
shipped, together
with
proof of
purchase,
prepaid
insured
to
the
Polk
Authorized
Dealer
from
whom
you
purchased the Product, or to the Factory
at
1
Viper
Way,
Vista,
California
92081. Products must
be
shipped
in
the
original
shipping container or
its
equivalent;
in
any
case
the
risk
of
loss
or damage
in
transit
is
to
be
borne
by
you.
If
upon examination
at
the Factory or
Polk
Authorized
Dealer
it
is
determined that the unit
was
defective
in
materials
or workmanship
at
any
time
during
this
Warranty
period,
Polk
or
the
Polk
Authorized
Dealer
will,
at
its
option,
repair
or
replace
this
Product
at
no
additional
charge,
except
as
set
forth
below.
All
replaced
parts
and
Products become
the
property of
Polk.
Products
replaced
or
repaired
under
this
warranty
will
be
returned
to
you,
within
a
reasonable
time,
freight
prepaid.
This
warranty does not
include
service
or parts to
repair
damage
caused
by
accident,
disaster,
misuse,
abuse,
negligence,
inadequate packing or shipping procedures, commercial
use,
voltage inputs
in
excess
of
the
rated
maximum
"of
the
unit,
cosmetic appearance not directly attributable to defect
in
materials
or
workmanship,
or
service,
repair,
or modification of
the
Product which
has
not
been
authorized or approved
by
Polk.
This
warranty
shall
terminate
if
the
Serial
number
on
the Product
has
been
removed,
tampered
with
or defaced.
This
warranty
is
in
lieu
of
all
other
expressed
Warranties.
If
this
Product
is
defective
in
materials
or
workmanship
as
warranted
above,
your
sole
remedy
shall
be
repair
or replacement
as
provided
above.
In
no
event
will
Polk,
Inc.
be
liable
to
you
for
any
incidental or consequential damages
arising
out ofthe
use
or
inability
to
use
the Product,
even
if
Polk,
Inc
.or a
Polk
Authorized
Dealer
has
been
advised
ofthe
possibility of
such
damages,
or
for
any
claim
by
any
other
party.
Some
states do not
allow
the exclusion
or
limitation
of
consequential
damages,
so
the above
limitation
and
exclusion
may
not apply to
you
.
All
implied
warranties
on
this
Product
are
limited
to the duration ofthis expressed
Warranty.
Some
states
do not allow
limitation
on
how
long
an
implied
Warranty
lasts,
so
the
above
limitations
may
not apply to
you
.
This
Warranty
gives
you
specific
legal
rights,
and
you
also
may
have
other rights which
vary
from
state to
state.
This
Warranty
applies
only
to Products purchased
in
Canada,
the
United
States of
America,
its
possessions, and U.
S.
and
NATO
armed
forces exchanges
and
clubs.
The
Warranty
terms
and
conditions applicable to Products purchased
in
other countries
are
available
from
the
Polk
Authorized Distributors
in
such
countries.
Thank
you
for
your
Polk
purchase
.If
you
have
a
question
or
comment,
please
feel
free
to
call
us
or
email
us
.
In
North
America
and
Canada
,
call
Polk
Customer
Service
800-377-7655
(M-F,
9:00
,w-5:30
PM
EST)
or
via
email
polkcs@polkaudio.
com.
Outside
the
US,
call
+
1-410
-
358-3600.
10

hinge TM
quick fit guide
what's in the box
not pictured:
• quick fit guide
• owner's manual
• online registration card
Connecting with NFC
Simply touch your enabled
device to the
NFC logo on
the left earcup.
8/uetooth®pairing
Press and hold for
4 seconds to pair.
o polk
touch NFC
enabled
device here .
Designed &engineered by Polk at i ts research facility in Baltimore, MD, USA. Made in China. Polk is a DEl Holdings, Inc.
Company.
Polk is a registered trademark of Polk Audio, Inc. Buckle is a trademark of Polk Audio, Inc . iPad, iPhone, iPod, iPod
classic, !Pod nano, !Pod shuffle, and iPod touch are trademarks
of Apple Inc., registered in the U.S. and other countries. The
remote and
mic are supported only by iPod nano (4th generation and later), iPod classic (120GB, 160GB), iPod touch (2nd
generation and later), !Phone 5S, iPhone
5C , !Phone5, !Phone 4S, !Phone 4, iPhone 3GS, iPad (3rd generation and later),
iPad mini, iPad 2 and !Pad.
The remote is supported by iPod shuffle (3rd generation and later). Audio is supported by all iPod
models.
"Made for iPod,• "Made for !Phone,• and "Made for iPad" mean that an electronic accessory has been designed to
connect spec ifically to !Pod, !Phone, or iPad, respectively, and hasbeen certified by the developer to meet Apple performance
standards.
Apple Is not responsible for the operation of this device or its compliance with safety andregulatory standards.
Please
note that the use of th is accessorywith iPod, !Phone, or iPad may affect wireless performance.

opclk
hinge wireless
Register your new polk product online now for a
chance to win $500 of polk product!
www.polkaudio.com/registration/
Benefits
• Permanent record
of
your purchase,
in
case you misplace your
original receipt.
• Enters you
in
our monthly
FREE
drawing for $500-worth
of
Polk speakers.
• Allows you
to
enroll
in
Club Polk Benefits:
-Informative Polk Website Forums,
-Special discounts
in
the Polk Web Store,
-Advance notice of Polk Promos
-Discounts on Authorized Polk parts.
-Stay up to date when there
is
news and
announcements about your product.
No
Internet
access?
Call
Polk
Customer
Service
800-377-7655
(US
&
Canada
only).
Outside
the
US
&
Canada,
call410-358-3600.
We'll
walk
you
through
the
simple
registration
process!
We
take
your
privacy
seriously
.
Polk
does
not
share
or
sell
information
to
any
other
parties,
unless
directed
by
court
order
.
Registering
your
product
has
no
effect
on
your
warranty.
Warranties
apply
as
stated
in
your
important
product
information
guide.
Please
be
sure
to
keep
your
original
purchase
receipt.
Questions?
Concerns?
Contact
Polk
Customer
Service
9am- 5:
30pm,
M-F,
EST(USA)
800-377-7655
US
&
Canada
only
I
410-358-3600
outside
US
&
Canada
I
[email protected]
Model:HINGE WIRELESS
BLACK
S/N:A
