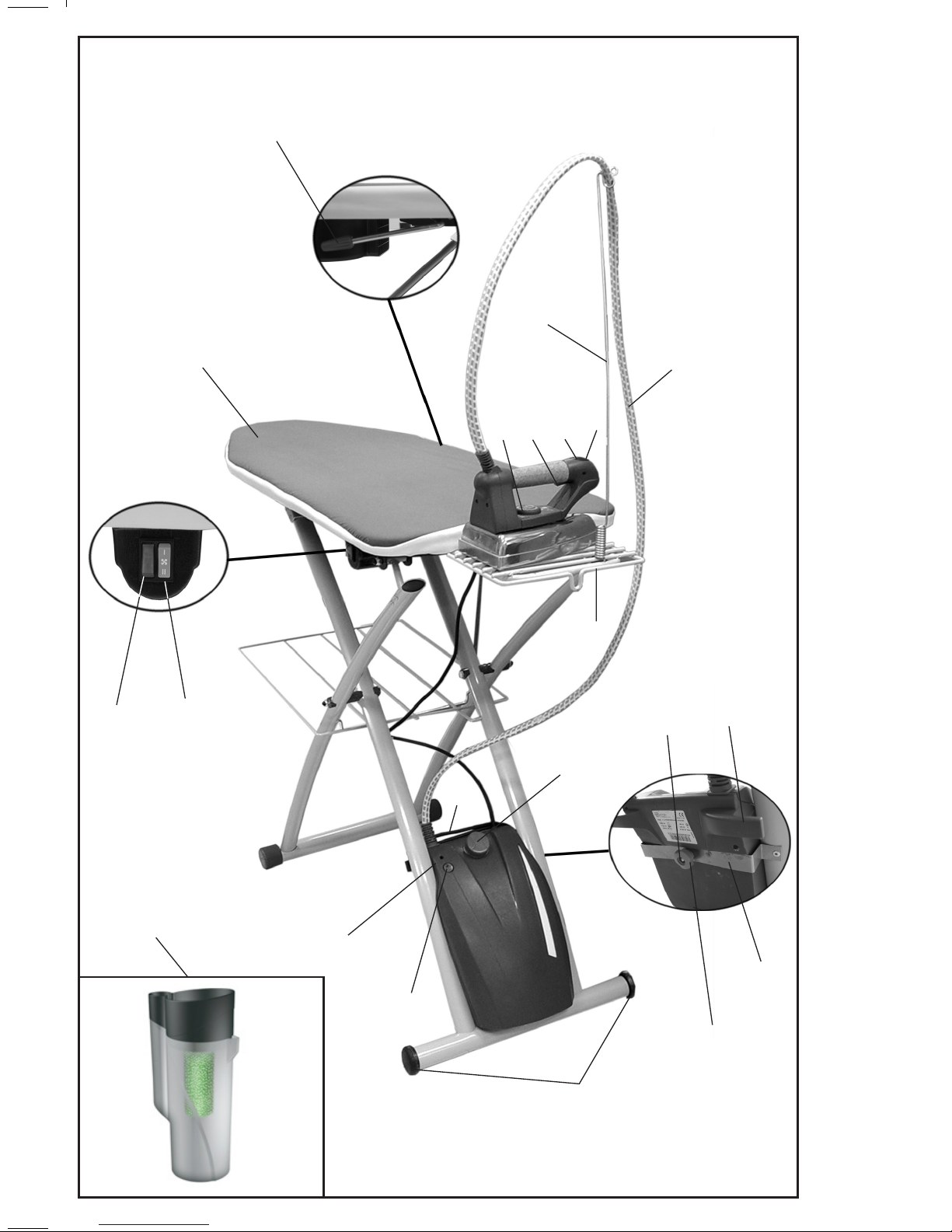

O) Opening lever
P) Function switch:
Oheating system
Iblow function + heating
II suction + heating
Q)Supply cable storage
R) Safety screw
S) Board connector (fig. 10)
S1) Safety device for connector (fig. 10)
T) Vaporella connector (fig. 10)
V) Iron fixing belt (fig. 8)
W) Vaporella lock pivot
X) Vaporella lock support
Polti S.p.A. reserves the right to change equipment
or accessory specification without prior notice.
A) Tank cap
B) Main switch
C) Board main switch
D) Power supply cable
E) Monoflex (power and steam)
F) Iron rest
G) Iron temperature control
H) Steam on/off button
J) Continuous steam jet button
J1) “Iron heating” indicator light
K) Pressure indicator light
I) KalFilter
L) Wheels
M) Flex holder
N) Ironing surface
ENGLISH Vaporella Advanced System
Advanced
System

Dear Customer,
thank you for the confidence you have placed in Polti buying this product.
Vaporella Advanced System is an ironing system designed for domestic use; its
ironing board is provided with a heated suction and blowing surface in order to
obtain at home professional ironing results.
Vaporella allows you to achieve perfect ironing, saving time and effort. With pro-
fessional iron it is not necessary to press or iron over repeatedly but just let the
iron slide gently over the fabric. Due to its pressure, Vaporella’s steam penetrates
into the fibres of the fabric clearing any creases at its first pass. The steam pow-
er is so strong that you can even iron more than one side of a fabric at a time
(making ironing sheets for example many times faster)
The ironing board has a sturdy and solid metal structure, an easy height adjust-
ment device and a broad working surface, providing the perfect complement to
the irons powerful steam. The heating function dries the fabrics and makes the
ironing easier, faster and effortless. The suction keeps the fabric sticked to the
board, preventing the formation of creases which rise up easily with other ironing
boards. The airing function inflate delicate fabrics so that it is possible to iron over
with steam power only.
Vaporella Advanced System helps you to work safely. This product conforms with
very strict regulations. Moreover, Vaporella is easy to use and has an unlimited
operating time.
Please read these usage instruction carefully before using this product, we hope
you enjoy using your Vaporella!
Vaporella Advanced System ENGLISH
This unit conforms with EC-directives 89/336 as amended by 93/68
(EMC) and 73/23 as amended by 93/68 (low voltage).

PP
PPLL LLEE EEAA AASS SSEE EE RR RREE EEAA AADD DD TT TTHH HHEE EE FF FFOO OOLL LLLL LLOO OOWW WWII IINN NNGG GG BB BBEE EEFF FFOO OORR RREE EE UU UUSS SSEE EE
•Before using your Vaporella carefully read these usage instructions.
•Before connecting Vaporella to the mains make sure that the current is the same as
indicated for the machine and that the plug is an earthed plug.
•Do not put any detergent or chemical substance in the water tank.
•Do not place the appliance in water or in any other liquids.
•Do not touch the appliance with wet hands or feet whilst the appliance is connected
to the mains.
•Never leave the appliance unattended whilst it is connected to the mains.
•Do not allow Vaporella to be used by children or by people who are not familiar with
the usage instructions.
•We recommend that the appliance is disconnected from the mains whenever it is not in use.
•Do not leave the appliance exposed to wind or rain.
•Do not lay the hot appliance on surfaces sensitive to heat.
•Do not use electric extension leads that are not authorized by the manufacturer, as
they may cause damage or fire.
•Never direct the jet of steam towards people, animals. Never direct the jet of steam
towards small particles of debris without towards small particles of debris without the
user's eyes.
•ATTENTION: if you iron sitting down, do not place your legs under the ironing board,
the steam can cause burns.
•Activate the automatic closing hook lever (O) only if the board is resting horizontally
on the ground; pay attention during board opening and closing procedures and always
guide the board up from the floor.
•If in the future you need replace the ironing board fabric cover or the lining, always be
sure that the replacement is permeable to humidity. Humidity resistant fabrics can be
damaged by heat or moisture.
•WARNING: to avoid problems created by limscale, it is essential to use KalFilter jug.
II
IIMM MMPP PPOO OORR RRTT TTAA AANN NNTT TT
Before leaving our factory all our products are rigorously tested.
Vaporella may still contain some water in its tank.
ENGLISH Vaporella Advanced System

PP
PPRR RREE EEPP PPAA AARR RRAA AATT TTII IIOO OONN NN FF FFOO OORR RR UU UUSS SSEE EE

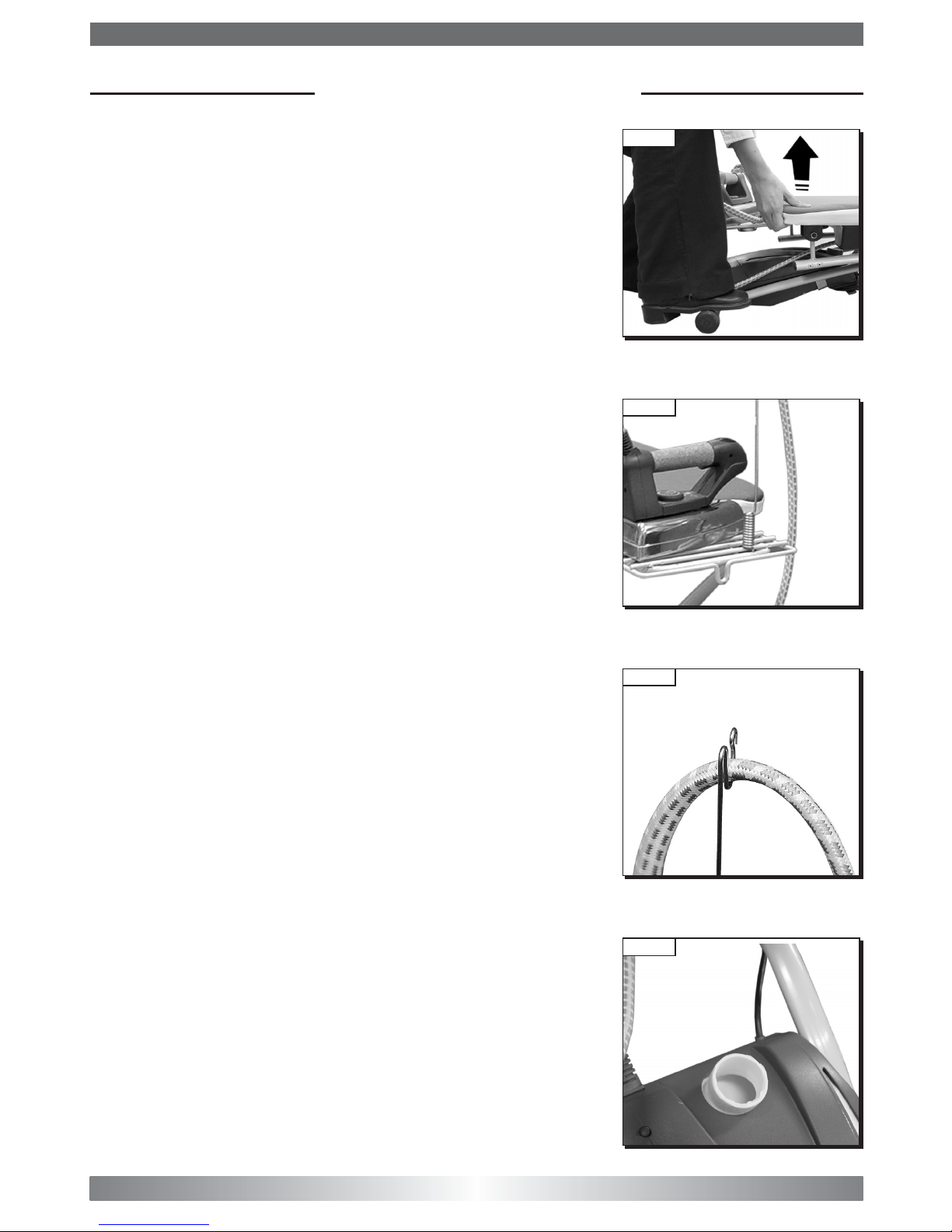

1a. Rest the board on the floor.
2a. To open the ironing board, just pull the ironing surface
upwards keeping a foot on Vaporella side leg of the
board until locking takes place (fig. A).
To adjust height, unfasten the lever (O) and move the
board upwards or downwards.
NOTE: Because of the weight of the ironing surface,
during closing and height adjustment hold the board
with both hands.
3a. Insert the flex holder (M) in its location (fig. 1).
4a. Place the cable (iron power supply - steam tube) (E) in
its support (fig. 2).
5a. Unscrew the tank cap (A) and fill the tank with approx.
800 cc. water, preventing overflowing, then screw the
cap on again.
Water by its nature contains magnesium and mineral
salts which form into limescale. To avoid this residue
causing problems to your unit, we recommend that
you always use this special jug KalFilter with anti-limes-
cale filter, which is provided with your appliance thanks
to its special filter made up with a mixture of two resins.
This jug, is the ideal solution to the problem of limes-
cale allowing you to change water straight from the tap
into water that is demineralized and silicon-free. In this
way you can prevent the incrustations and protect the
components of your unit.
Constant use of the jug extends the life to your appli-
ance and you will always have at your disposal a clean
jet of steam
To use the jug correctly, please read carefully the
instructions provided with this item.
6a. Connect the power supply cable (D) into an earthed
power supply of the correct voltage.

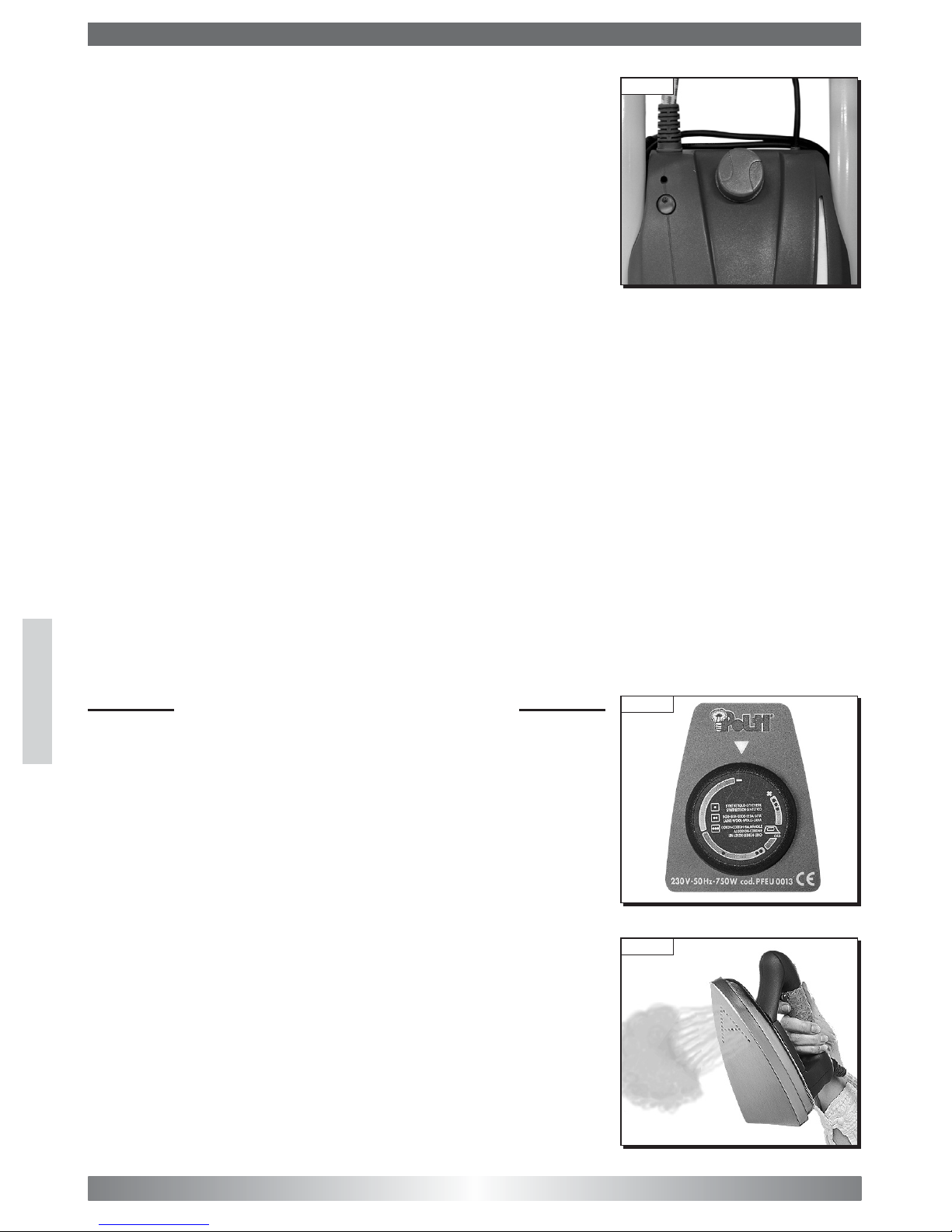

7a. Press the main switch (B); the steam pressure indica-
tor (K) and the “iron heating” indicator light (J1) will light
up (fig. 4).
8a. To operate the board, turn the main switch (C) on. In
this way the board heater will start operation.
Wait a few minutes to allow the heater to reach work-
ing temperature.
It is now possible to activate blowing and suction fea-
tures:
Vaporella Advanced System ENGLISH
Fig. 1
Fig. A
Fig. 2
Fig. 3

9a. BLOWING: By pushing the function switch (P) on posi-
tion (I), the board will allow you to swell the clothes with
a “hot blow”, in order to be able to gently skim with the
iron the most delicate clothes, ironing them with steam
only.
10a.SUCTION: By pushing the function switch (P) on posi-
tion (II), the board will hold the clothes to the surface
and eliminate the residual humidity.
Note: to avoid condensation inside the ironing board we recommend you always use
the suction function while steam ironing.
The sound emitted on switching on your appliance and periodically during use, is due
to the water refilling system and is quite normal.
During use you may hear some gurgling due to the backflow of hot water into the tank
saving energy (water preheating in the tank). This is quite normal and you can carry
on ironing. To reduce the gurgling we recommend to replenish before the water has
been used up.
At first steam request, or about 2 minutes after the last request, you will experince
a delay in steam delivery because steam inside the heat exchanger is excessively
rarefied. This is normal and no longer happens once the equipment has been used a
number of times. Press the steam release switch (H) for some seconds till steam is
released.
II
IINN NNSS SSTT TTRR RRUU UUCC CCTT TTII IIOO OONN NNSS SS FF FFOO OORR RR UU UUSS SSEE EE
STEAM IRONING
1b. Set the iron temperature to the “COTTON - LINEN”
steam position (fig. 5), by turning the knob (G). All types
of fabric can be ironed at this temperature.
2b. Wait for the steam pressure indicator light (K) and the
“iron heating” indicator light (J1) to switch off (about 3
minutes). Push button (H) on the iron to release bursts
of steam from the holes on the soleplate. Release the
button and the steam will stop (fig. 6).
NOTE: during initial operation of the iron, a few drops
of water mixed with steam may come out of the sole-
plate until the temperature stabilises. It is advisable to
direct the first jets of steam onto an old cloth until a uni-
form stable jet of steam is obtained.
ENGLISH Vaporella Advanced System
Fig. 5
Fig. 6
➠
Fig. 4

Vaporella Advanced System ENGLISH
3b. In order to have a continuous steam jet, move the but-
ton (J) forwards. Steam will keep on coming out, even
releasing the button (H). To interrupt the outlet, move the
button (J) backwards (fig. 7).
DRY IRONING
1c. For DRY ironing (without steam), adjust the temperature by turning the knob (G), set-
ting it to the temperature required for the fabric, as shown on the rotating indicator.
When dry ironing, be careful NOT TO PRESS THE STEAM RELEASE BUTTON (H) on
top of the iron, otherwise water may leak from the soleplate of the iron.
FF
FFII IILL LLLL LLII IINN NNGG GG TT TTHH HHEE EE TT TTAA AANN NNKK KK
It is necessary to refill the feeder tank with water before it
becomes empty.
If no steam is released when requested, and at the same
time a higher-pitched noise is heard from the pump, this sig-
nifies that the tank is out of water.
To keep on working, simply restore the water level in the feed-
er tank as described in the “Preparation for use” paragraph.
HH
HHOO OOWW WW TT TTOO OO CC CCLL LLOO OOSS SSEE EE TT TTHH HHEE EE MM MMAA AACC CCHH HHII IINN NNEE EE
NOTE: Before putting the board away, keep the board
heater (C) on for a few minutes to dry any ironing conden-
sation.
1d. Turn off switches (B-C-P).
2d. Disconnect the supply plug.
Wind the power supply cable (D) around its support (Q).
3d. Pull the opening lever (O) upwards and guide the board
(N) downwards.
NOTE: Because of the weight of the ironing surface,
during closing and height adjustment hold the board
with both hands.

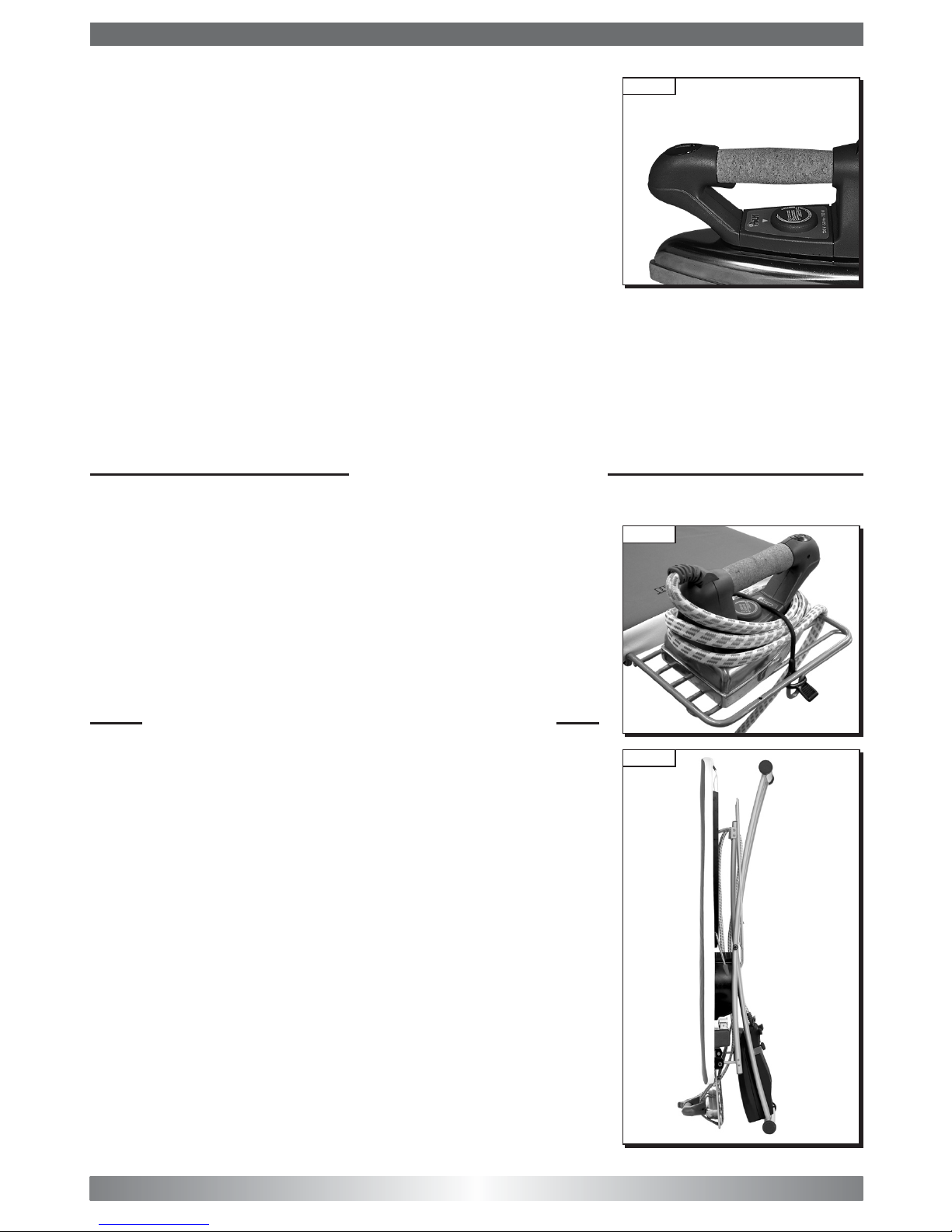

4d. To put away the ironing board vertically closed, it is sug-
gested to put the iron on its rest (F) securing it with the
ironing fixing belt (V), fastened to the support device
(fig. 8).
5d. The appliance stands vertically (fig. 9).
Fig. 9
Fig. 7
Fig. 8
➠
➠

VV
VVAA AAPP PPOO OORR RREE EELL LLLL LLAA AA CC CCOO OONN NNNN NNEE EECC CCTT TTII IIOO OONN NN// //DD DDII IISS SSCC CCOO OONN NNNN NNEE EECC CCTT TTII IIOO OONN NN
TT
TTOO OO TT TTHH HHEE EE BB BBOO OOAA AARR RRDD DD
For cleaning and maintenance operations, it is possible to
separate Vaporella from the board as follows:
•Unfasten the safety device (S1) on the board connector
(S) and separate Vaporella connector (T) from board
connector (S) (fig. 10).
•Unscrew the safety screw (R).
•Pull Vaporella outwards, so as to unlock the pivot (W)
placed on Vaporella back from the board support (X)
(fig. 11),
•Lift Vaporella up
•Turn Vaporella so that it can be unlocked from the iron-
ing board as shown in fig. 12.
•To connect Vaporella to the ironing board again, proceed
in the opposite way from what stated above.
NOTE: During connection and disconnection operations,
make sure that the cable (D) is not wound around its sup-
port (Q) and that the cap (A) is secured to prevent water leak-
ing.
TT
TTRR RRAA AANN NNSS SSPP PPOO OORR RRTT TT
The board can be easily transported thanks to its wheels (L);
hold it on the side facing Vaporella, lift it and push it (fig.13).
II
IIMM MMPP PPOO OORR RRTT TTAA AANN NNTT TT
•Do not leave the iron unattended whilst connected to the
mains.
•The lights (K) and (J1) go on and off during operation,
this is perfectly normal, indicating that the electric resis-
tances are operating to maintain the New Concept sys-
tem at a constant temperature. This indicates the machi-
ne maintaining the correct and constant pressure and is
quite normal.
•If no steam is released from the iron, check the following: the switch (K) is lit up; there
is water in the tank.
•If repairs or replacement parts are required.
ENGLISH Vaporella Advanced System
Fig. 10
Fig. 11
Fig. 12
Fig. 13
S1 ST
W
X

Vaporella Advanced System ENGLISH
•The appliance is fitted with a safety thermostat, which should only be replaced by an
authorised technician.
•If it is necessary to replace the power supply cable, please refer to the nearest Polti
authorised service centre, since the use of special tool is necessary.
•If you accidentally drop your iron, you should have it checked by an authorized Polti
Service Centre because some internal malfunctionings might have occured, limiting the
safety of the product.
•In the case of breakdown or malfunction do not attempt to repair the
appliance yourself but refer to your nearest authorised service centre.
CC
CCAA AARR RREE EE OO OOFF FF YY YYOO OOUU UURR RR VV VVAA AAPP PPOO OORR RREE EELL LLLL LLAA AA
•Before attempting any maintenance operation, be sure to always disconnect
the appliance from the mains.
•To clean the body of the appliance, simply use a moist cloth. Do not use solvents or
detergents which may harm the body material.
AA
AATT TTTT TTEE EENN NNTT TTII IIOO OONN NN
This appliance is built according to current regulations for recycling.
Do not throw the packing materials used to protect the appliance during transportation,
but take them to relevant collecting centers.
•Polti declines liability for any damage or accident derived from any use of
VAPORELLA which is not in conformity with the instructions contained in this
booklet.

ENGLISH Vaporella Advanced System
FOR YOUR OWN SAFETY READ FOLLOWING INSTRUCTIONS CAREFULLY
BEFORE ATTEMPTING TO CONNECT THIS UNIT TO THE MAINS.
MM
MMAA AAII IINN NNSS SS (( ((AA AACC CC)) )) OO OOPP PPEE EERR RRAA AATT TTII IIOO OONN NN (( ((oo oonn nnll llyy yy UU UU.. ..KK KK.. ..)) ))
This unit is designed to operate on 240V, 50 Hz current only. Connecting it to other
power sources may damage the unit.
WARNING - This appliance must be earthed.
This appliance may be fitted with a non rewirable plug, if it is necessary to change the fuse
in a non rewirable plug the fuse cover must be refitted. If the fuse cover is lost or dam-
aged, the plug must not be used until a replacement, available from the appliance manu-
facturer, is obtained. It is important that the colour of the replacement fuse cover corre-
sponds with the colour marking on the base of the plug.
If the plug requires to be changed because it is not suitable for your socket, or becomes
damaged, it should be cut off and an appropriate plug fitted following the wiring instruc-
tion (below). The plug removed must be disposed of safely as insertion into a 13A
socket is likely to cause an electrical hazard.
As the colours of the wires in the mains leads of this appliance may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug
which is marked with the letter “E” or by the earth symbol or green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with
the letter “N” or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with
the letter “L” or coloured red.
GREEN
&
YELLOW
(Earth)
BLUE
(Neutral)
FUSE
(13 amp)
BROWN
(Live)
IMPORTANT
This wires in this mains lead are coloured in accordance with the following code.
• Green-and-yellow: Earth • Blue: Neutral • Brown: Live
