poly-planar MA-1000R User manual

www.polyplanar.com
The Waterproof Marine Audio System
with the Concert Hall Sound™

2
STEREOS
3
ACCESSORIES
Stereo Accessories
MRD-70 AM/FM/CD/MP3 Multi-Zone Component System
Features of MRD-70
• AM/FM, CD and MP3 compatible
• Supports XM (With IXM-10 Module)
• Waterproof design (Front panel IP65)
• 2 Auxiliary inputs
• 1 Auxiliary output Fixed Line output
• No-Skip CD/MP3 with 10 sec. delay
The MRD-70 AM/FM/CD Receiver and RD-44 Display are the base foundation for an expandable
multi-zone system that offers independent control in up to 4 zones equipped with the RD-44
Remote Display and MZ-100 Amp in each zone. Easily connected through a single watertight
DIN type cable, each remote has independent control over the audio input source. The many
unique features include an intercom that will allow communication between stations. Two auxiliary
inputs on the receiver accommodate direct audio input from other audio sources/media players.
Just plug in your iPod®, TV or VCR and you have great audio throughout the system. The unique
mounting system for the waterproof display accommodates Panel, Pod or bracket mounting.
RT-20 Router
Connection module for
expanding the MRD-70 or
RD-44 to multi zones. The
watertight DIN connectors
are easy to connect. Just
plug and play up to 3
additional zones. This
Module also supports the
Intercom volume on the
Master zone.

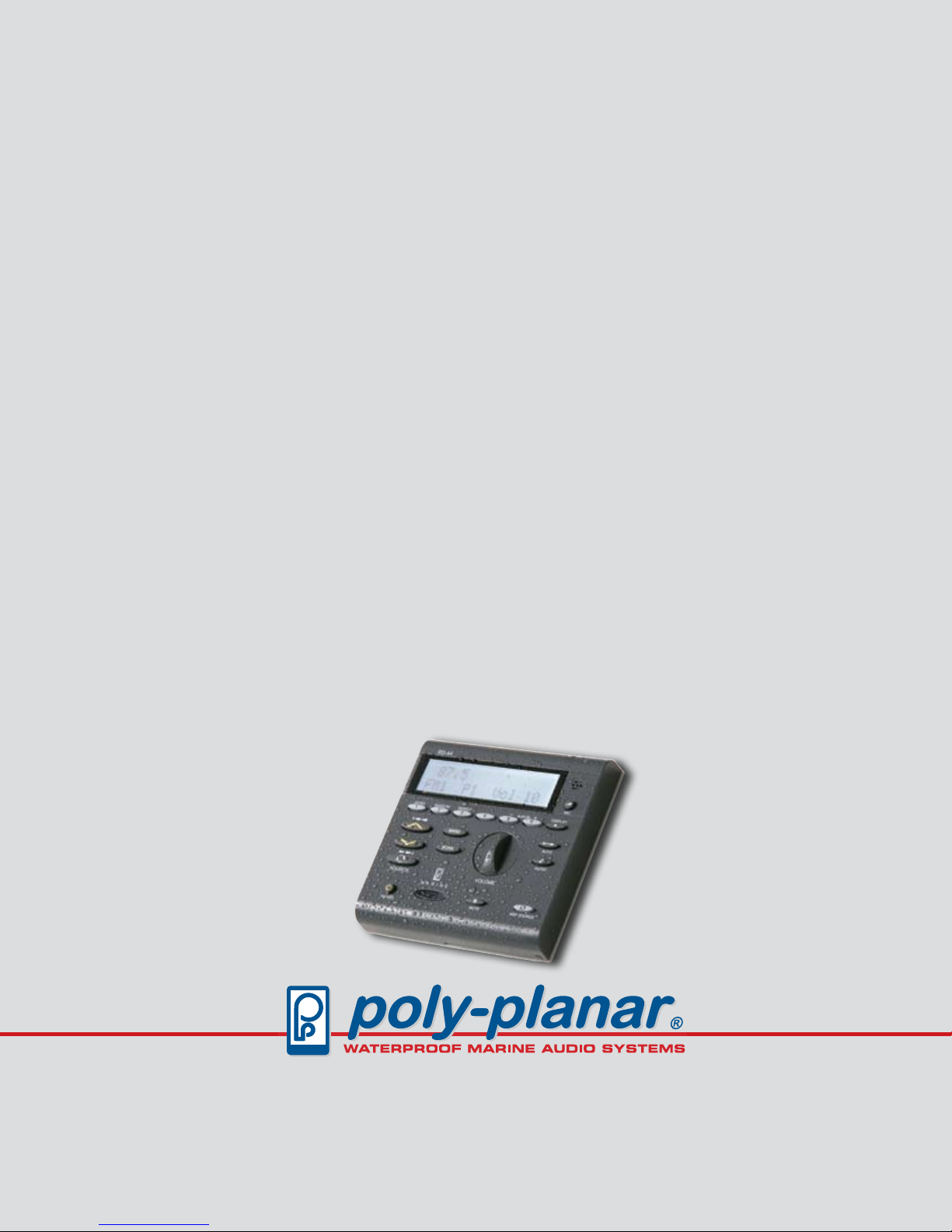

RD-44 Remote Head
The RD-44 is designed to control the
audio functions and sources of the
MRD-70 marine radio and the MZ-100
DSP Zone Amplier. With versatile
mounting options, the RD-44 can
be installed up to 60 feet away from
the radio or amplier in a variety of
positions. In addition, the built-in
intercom function allows communication
between the vessel’s audio zones.
Extension Cables for MRD-70
Allows the remote installation
of RD-44 heads, up to 60’ from
the MRD-70 source. Features
waterproof connectors with our
exclusive “pull-thru” caps.
10’ – ICC-10
20’ – ICC-20
60’ – ICC-60
See page 13 for configuration examples
Convenient front
panel CD loading.
Innovative Waterproof
“pull-thru” end connectors
Completely Waterproof
Features of RD-44 Remote Display
• Full control of audio functions and sources
• 32 character back lighted display
• Self dimming for night use
• Back lighted key pad
• Flush panel or gimbal bracket mount options
• Integral intercom with speaker
• Infrared remote control
• DIN cable connection for MRD-70 or MZ-100
MRD-70 Component Stereo System
includes CD, Tuner, XM Radio option, 20’
extension cable and 4x4 Display suitable
for flush or bracket mounting.
IXM-10 Interface
XM Radio Interface
module for MRD-70
system. Controls your
XM receiver from
the RD-44 Display
(Requires customer
supplied XM Tuner
and antenna)
MRD-60 AM/FM/CD Watertight Receiver
• Designed for the marine environment
• Includes Controller for CD changer
• Waterproof ip down faceplate - no
need for a splash cover
• Custom equalizer optimizes sound for
boat acoustics
• Convenient front panel control
• Patented waterproof volume control
knob
• Proprietary circuits prevent distortion
at high volumes
• Dynamic loudness automatically
adjusts bass level
• 18 FM and 12 AM Presets
• 180 Watts Total Power (4 x 45
Watts)
• Expansion Port supports custom
systems and future enhancements
• All electronic circuits conformal
coated for reliable performance in
the marine environment
• Shock-resistant CD mechanism
• US/Europe switchable tuner
frequencies
• Hard wired and wireless remote
available
• Fits standard DIN cutout
The MRD-60 AM/FM/CD is designed exclusively for the marine environment.
From the watertight faceplate to the custom equalizer designed specically for
boats, this high power receiver is loaded with features to enhance your listening
and boating experience. Convenient front panel controls, a large display that
can be viewed even in direct sunlight. High-power, distortion-limiting ampliers
make this an outstanding Marine Audio System. A unique feature of the MRD-60
AM/FM/CD is the expansion port. It allows you to upgrade your system, without
buying a whole new one. The Poly-Planar Expansion Port enables you to add
additional features and future enhancements.
MCD-6 CD Changer
The MCD-6 CD Changer holds
six of your favorite CDs for your
uninterrupted listening pleasure.
And with the shock resistant CD
mechanism you can still hear your
favorite music even while crashing
the big ones.
MRR-2 Wireless Infrared Remote
The MRR-2, Wireless Infrared Remote
gives you the freedom to control your
Poly-Planar System from any area of
your boat. This small, oating remote
comes with an attached lanyard and a
convenient storage hook (3”x4.5”x.75”).
MRR-7 Volume Control and Remote Intercom
The MRR-7 Wired Remote Keypad offers Multi-Zone
Volume Control combined with an intercom that
enables you to communicate with people in other areas
of the boat. Requires an IMR-2 interface shown below.
WC-70 Weather Cover
Protect your Marine Audio Center from damage
and exposure to the elements without overheating
with a Weather Cover. This watertight gimbal-
mounted cover is designed to t above your dash
or under your electronics box . Available in black
or white. (For use only with MRD-60 Stereo).

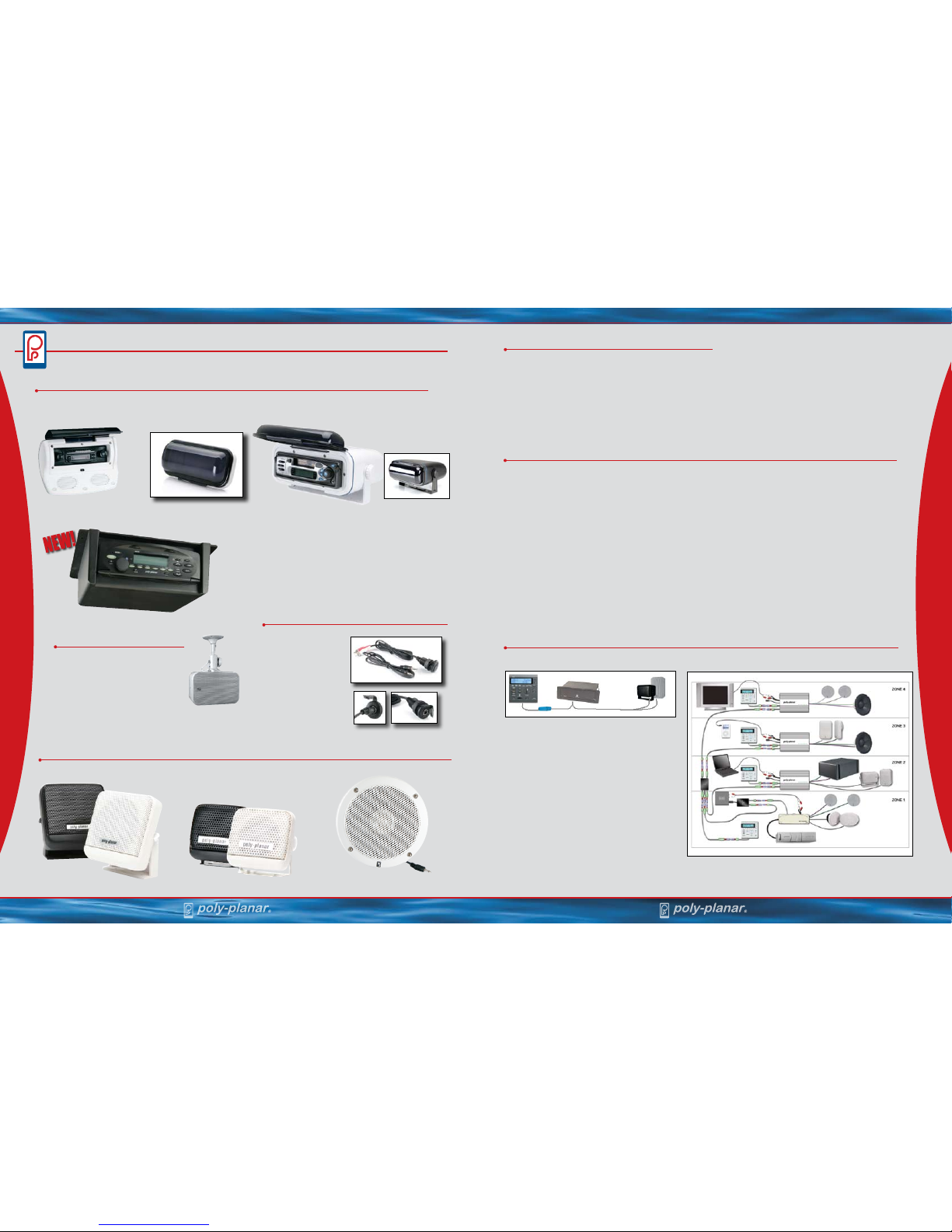

See page 12 for more accessories.
IMR-4 Auxiliary Input/
Output Interface
Module
Connects a TV, VCR, CD
player , VHF radio, DVD
or portable MP3 player
to your Marine Audio
Center with Expansion
Port. It provides output for an external
subwoofer or loudspeakers, and a separate
audio zone with independent volume (For use
only with MRD-60 Stereo).
IMR-2 Remote
Interface Module
Connects up to two
remote keypads (MRR-7)
to your Marine Audio
Center with Expansion
Port.
IP-100 Interface for iPod®
An all-in-one solution designed
to interface an iPod with a
PolyPlanar MRD-60 or MRD-70
Stereo. This unique device
allows full track-up, track-down,
FFWD and RRWD control of an
iPod directly from the stereo or
remote, just like a factory CD
changer. (iPod not included).

4
5
SPEAKERS
Marine Audio Systems
Setting the standard for
Marine-Grade Amplifiers
Poly-Planar Marine Ampliers are waterproof (IP65) units designed for harsh marine environments.
These ampliers can be used as stand alone units or as part of an expansion system.
MS-55 Compact Box Subwoofer
The MS-55 subwoofer is a compact, high efciency bass enclosure optimized for marine applications. It’s small size enables it to
be easily mounted below seats, under the gunwale area, behind the instrument panel, or any convenient location. The MS-55
is a self contained bass unit requiring no cutting of panels or holes in the boat interior. It produces solid, deep bass extending
down to 40Hz and is the perfect addition to any audio system.
Features:
• Dual Voicecoil, high-excursion, 5.25” woofer
• High density, UV stable enclosure
• Water resistant
• Bass-reex, high-efciency acoustic design
• Side vented output ports
• Compact size and molded-in mounts provide for convenient
installation nearly anywhere.
• Acoustically matched for use with Poly-Planar ME-51, MZ-100
and ME-400 ampliers or can be used with any amplier
25 - 100 watts.
Specications:
• Power Handling . . . . . . . . .100 Watt RMS
• Speaker Impedance . . . . . .4 ohm x 2 inputs
• Frequency Range . . . . . . . .40 Hz - 300 Hz
• Weight ................8.5 lb (3.8g)
• Dimensions .............Width - 8.85” (225mm)
Length - 11.8” (300mm)
Height - 4.75” (120mm)
Compact Box Speakers - MA-3030
MA-3013 Speakers
3-1/2” • Completely Waterproof
• Powder coated stainless
bracket
• Gold-plated Binding Posts
• Powder coated aluminum grill.
• Mounting hardware and
speaker wire included.
• 3” 60 watt, 2-way box speaker
• Available in White or Metallic
Gray
AMPLIFIERS
• 3” Cone
• 60 watt, Flush Mount, Midrange
Speaker
• White or Metallic Gray
• Low Magnetic Field
• Waterproof construction
throughout.
• Powder coated aluminum grill.
• Mounting Hardware & Speaker
Wire Included
• Quick Connect Terminals
MZ-100 DSP Amplifier
The MZ-100 is a 4 channel 100 watt amp that uses digital signal
processing. This unique feature allows multiple EQ settings as well as
system integration with the RD-44 and MRD-70.
Features include:
• 8 preset equalization settings for application conguration
• 4 channel output can power up to 4 speakers and 1 subwoofer
• DIN cable inputs for connection to RD44 direct or MRD-70 system
• Separate waterproof volume control.
• 1 Auxiliary input (RCA Type)
ME-50 Expansion Amplier The ME-50 is a compact 2-channel 50-watt
audio amplier with separate volume control. This unit is designed for
adding additional speakers to an existing system or as a separate Zone
amp.
Features include:
• Accepts line level or speaker level inputs
• Powers up to 4, 4 Ohm speakers.
• Separate waterproof Volume control (10 ft lead)
ME-50 Expansion Amplifier
The ME-400 is a high power 4 channel (Bridgeable) marine amplier
designed to power the most demanding systems. Features include:
• MOSFET Switches and power supply for low noise and reliability
• Adjustable level input, high and low pass lters
• Variable bass boost circuit
• Integral protection for thermal overload, short and reverse polarity
• Gold plated connections for corrosion resistance
ME-400 Amplifier
MS-551 includes ME-51 Amplier

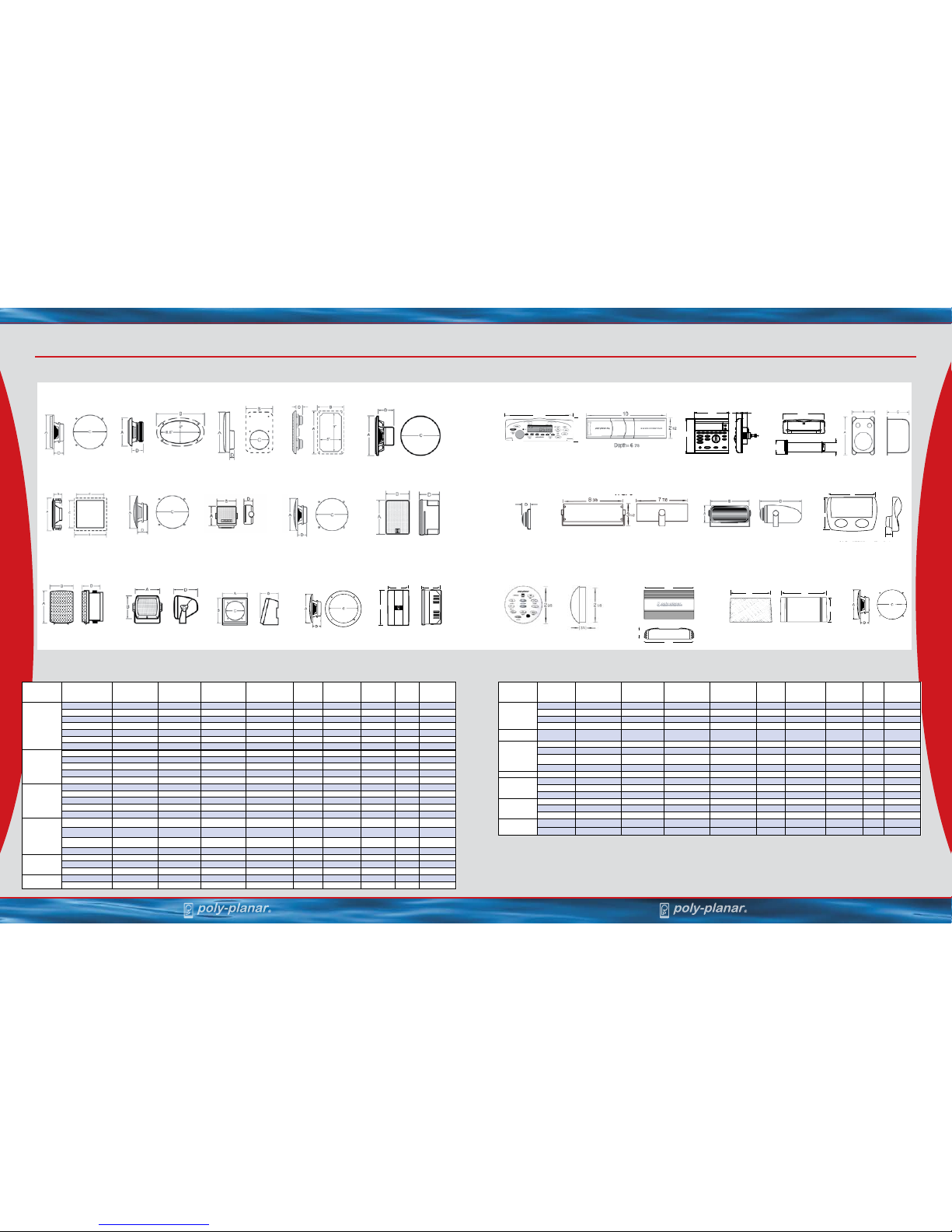

See pages 14-15 for specifications.
A waterproof, entry level MP3 player based sound system kit for small
craft & off road vehicles. Easily installed where space is a premium,
this kit was designed for yacht tenders, ats boats, and other small
craft. Also a perfect solution for Motorcycles, ATV’s and Golf carts.
Kit includes:
• ME-50 50 watt waterproof Amplier with separate
panel mount waterproof volume control
• IC3.5-PM Panel mount 3.5mm MP3 connector for
IPod or other MP3 players
• MA-4055 5” coaxial waterproof speakers with
speaker wires included.
MP3-KIT A
MS-250 Panel Mount Subwoofer
The MS-250 is a powered 10” subwoofer capable of delivering a true 50 watts
RMS of bass power to compliment any serious audio system. Easy to install,
the amplier may be conveniently mounted remotely or directly onto the back
of the speaker. Since it has its own amp, it won’t drain power from the primary
system. (For Subwoofer without amplier, order MS-150).
photo courtesy Zodiac Boats

6
7

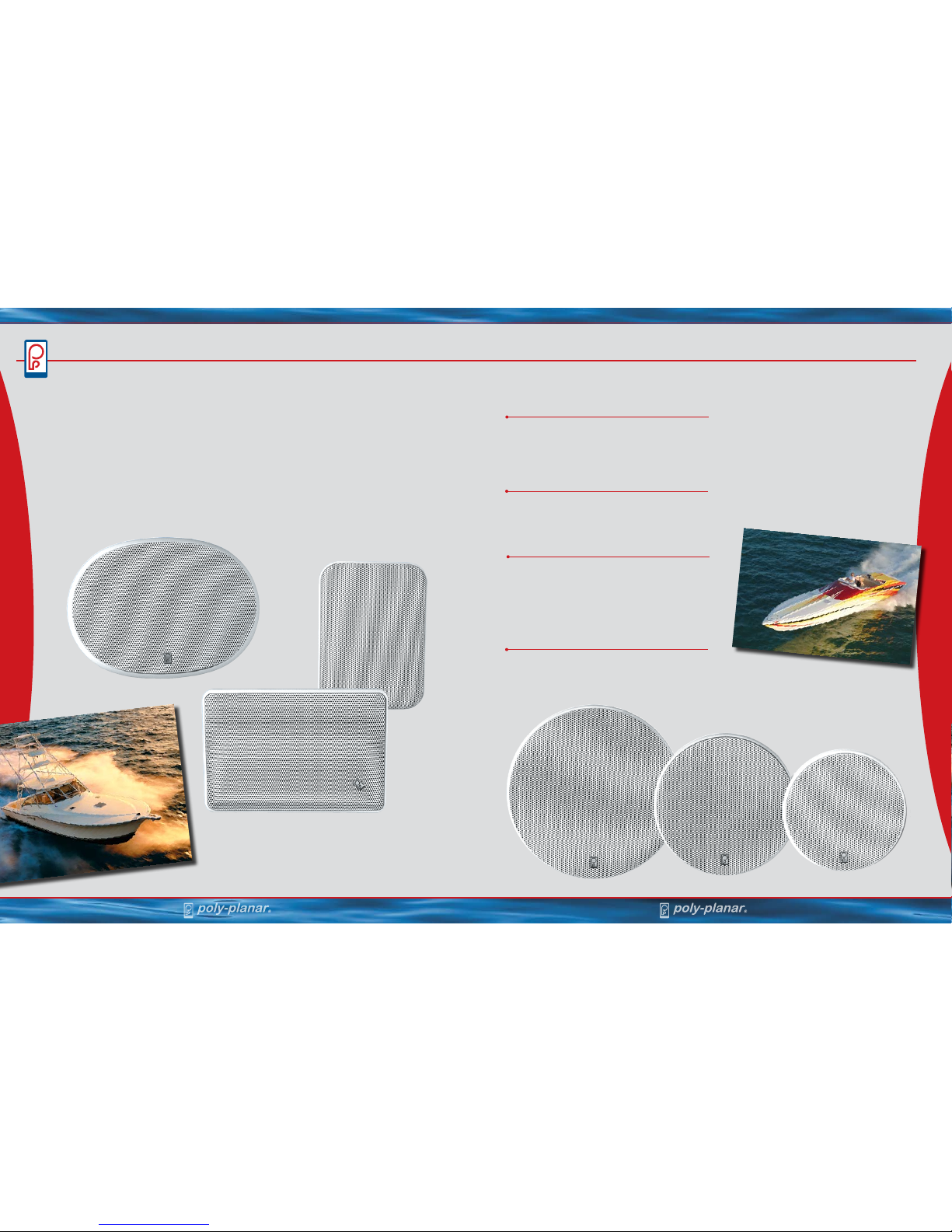

Platinum
Platinum Series speakers are high-powered
performers that offer superior sound for discriminating
listeners who demand the very best quality audio.
They are the rst truly waterproof, full-range marine
speakers to offer the performance of a home stereo
system.
Constructed to withstand the most severe effects
of sun and saltwater, Platinum speakers are ideal
replacement or upgrade speakers for those who
want increased audio power, smooth response and
minimum distortion.
Series
Three Sizes Available
High power, multi-component, round speakers with a clean low prole
and a full range of audio performance. Flush mount.
MA-6800 and MA-6600 are 400 watts/pair. MA-6500 are 320 watts/ pair.
With a sleek, contemporary style that is beautifully
proportioned and meticulously nished, Platinum
Series speakers complement any salon, stateroom
or above-deck mounting. Aluminum grills, coated
internal wires, polypropylene cones and mylar
tweeters assure you of long-lasting performance and
good looks.
These speakers are guaranteed to provide the best-
sounding marine audio in their class.
MA-6900
MA-5500
MA-905
MA-6800 MA-6600 MA-6500
HIGH POWER, HIGH PERFORMANCE
MARINE SPEAKERS
Rugged and reliable speakers for the world’s
most demanding environment!
Platinum Oval - MA-6900
Performance Advantage
The MA-6900 three-way speaker is designed to deliver your favorite music with a
peak power capability of 400 watts/pair.
Platinum Panel - MA-5500
Low Magnetic Field
These low magnetic eld three-way speakers have a unique dual woofer design that
handles up to 240 watts/pair. The perfect upgrade for the popular Slim Line Speakers.
Platinum Panel - MA-905
Big Sound from Small Speakers
The MA-905 panel speakers feature a shallow 1” mounting depth for
those tight places. The two-way speakers handle peak power of 400
watts/pair. Available in black and white.
Platinum Round
MA-6800, MA-6600, MA-6500
SPEAKERS
See pages 14-15 for specifications.
photo courtesy Albemarle Boats photo courtesy Hustler Powerboats
SPEAKERS

8
STEREOS
9
SPEAKERS
PremiumSeries
Rugged and reliable speakers for the world’s
most demanding environment!
MID POWER WATERPROOF
MARINE SPEAKERS
Premium Round
MA-5104, MA-5106, MA-5107 Premium Oval - MA-5950
Low Magnetic Field
These 5-1/4” two-way speakers can be conveniently used as freestanding enclosed
speakers or simply remove the back covers and mount ush. Peak power 140 watts/pair.
Premium Enclosed Flush - MA-1610
Low Magnetic Field, Three Sizes Available
These two way mid power speakers are ideal for high power stereos or mid power ampliers. They feature powder coated
aluminum grills and a power handling capability of 140 watts/pair. Available in 5-1/2”, 7” or 8-1/2”.
Contemporary Design
These easy-to-mount two-way, panel speakers have a low mounting prole of only 3/4
inch with clean, contemporary styling. Power handling capability is 280 watts/pair.
Premium Panel - MA-7060
Low Magnetic eld
Medium powered three-way speakers designed for full range sound capability.
Maximum peak power 160 watts/pair. Fits most 6” x 9” speaker cutouts.
MA-5104
MA-5106
MA-5107
MA-7060
See pages 14-15 for specifications.
TitaniumSeries
The Titanium Series are waterproof, ultra low magnetic field 200 watt/pr. speaker
is available in white or black color to compliment the exterior or interior of any
yacht . These three way speakers are perfect for replacement or upgrade of
existing speakers and the magnets will not interfere with navigation equipment.
Features:
• 5” or 6”
• Colorfast plastic frame
withstands UV rays.
• Anti-magnetic design
• Waterproof construction
throughout.
• Rugged powder coated
aluminum grill.
• 3-way design with mylar
tweeter & midrange.
• Available in Black & White.
SPEAKERS
photo courtesy Hatteras Yachts
MA-5950
MA-8505 - 5” Speakers
MA-8506 - 6” Speakers

10
11
MA-4056 / MA-4600
MA-4055 MA-4054
PerformanceSeries
Rugged and reliable speakers for the world’s
most demanding environment!
MID-POWER BASIC DESIGN MARINE SPEAKERS
Box Speakers - MA-9060
Low Magnetic Field
Mount these full-sized speakers
out of the way under the gunwale,
where they’re protected from the
elements, yet close enough to
deliver rich, full sound. The molded,
one-piece plastic grill protects the
speaker components from splash
and spray. The two-way vented port
design offers full range response.
Peak power 200 watts /pair.
Gunwale Mount Speaker - MA-9020
INVISIBLE!
Low Magnetic Field
Two-way bass reex box speakers. Will handle 100 watts/pair.
Stainless steel gimble bracket included. Available in black and white.
Compact Box Speakers - MA-800
Available in four sizes and your choice of black or white, the MA-4000 series of low
magnetic eld speakers are ideal as initial, upgrade, or replacement speakers. The
MA-4600 is a dual cone speaker. Other models are two-way coaxial congurations.
Peak power handling capability 80 watts/pair. MA-4600 available in white only.
Integral Grill Speakers - MA-4600, MA-4055, MA-4056
See pages 14-15 for specifications.
Contemporary design, low magnetic eld, 100 watts/pair. The
MA-7500 offers good sound in those locations where the MA-
9060 will not t. Bracket included. Available in black and white.
Compact Box Speakers - MA-7500
Ideal for locations where other speakers won’t t. Only 4” x 4”. Speakers
feature low magnetic eld and will handle 80 watts/pair. Stainless steel grill
and bracket. Available in black and white.
Subcompact Box Speakers - MA-840
Low magnetic eld, full range, bass reex box speakers offer top quality sound. Will
handle 200 watts/pair. Gimbal mounting bracket included. Available in black and white.
Infrared Remote Speakers
Poly-Planar’s Integral Grill Speakers are also available in Infrared Remote
models that lets you control the volume, the source, the station—even
the power—of your audio center by pointing a handheld remote control
directly at the speaker. Control the sound from the cockpit or another
cabin, while your audio center remains protected below deck. No need to
go below to change the station, mute the sound so you can take a call on
your VHF, or cue up your favorite CDs. You can even power down from the
dock as you leave the boat. Specify ‘RC’ after above part #s for remote
versions (available in white only).
SPEAKERS
SPEAKERS
photo courtesy Hatteras Yachts photo courtesy Southport Boatworks

12
13
INSTALLATION
Surface Mount - MB-21
Protect your stereo from the harsh marine environment. These gasketed covers are designed to keep moisture away
from your stereo. All accommodate dual post, removable and DIN-style stereos. The WC-700 Housing includes two 3”
integrated waterproof speakers. (Stereos not included).
WC-400 Enclosure
Conveniently changes the angle of your
stereo speaker. Fits Poly-Planar box
speakers - MA-9060, MA-800, MA-7500
and MA-1610. Also convenient for
marina, dock and home installations.
Pivot Mount - M-1
No more missed calls! These waterproof communication speakers can be mounted where you can hear your VHF
radiotelephone. Available in surface or ush mount and in black or white.
Flush Mount
Extension Speaker
MA-1000R
WC-3 Panel Mount
VHF Extension Speakers
Accessories
Stereo
Stereo Enclosures
Surface Mount - MB-41
WC-700 Housing
WC-400W
WC-400B
The IC-3.5PM allows you
to connect your MP3
player, iPod® or satellite
radio to any audio
device with RCA inputs.
It features a waterproof
panel/dash mount with
rubber cover and a 4’
extension cable. Also
included is a 4’ patch
cord for connecting
MP3 player to adapter
plug.
IC-3.5PM MP3 Adapter
ACCESSORIES
See pages 14-15 for specifications.
RM-10 Overhead/Under Dash Stereo Housing
The new Poly Planar RM-10 Radio Mount is designed to accommodate
today’s larger front panel format Marine radios as well as older DIN
style and Post mount. Made from heavy wall ABS plastic, the RM-10 has
room for all the accessory cables found on the newest radios. Accepts
Poly Planar, Sony, Jensen, Marine AV and even Clarion CMD4!
Give your stereo some air. Properly installed, your stereo will be well ventilated so the heat sink can dissipate heat into the
surrounding air. Make sure the unit is properly sealed to the dash so water cannot leak into the chassis or the connectors behind
the dash. Pay particular attention if your unit is mounted below instrument gauges, as they are a common source of leaks.
Always keep the front panel rmly closed. Use only UL-approved power connections and fuses with the proper ratings. The
yellow memory B+ requires a 1A fuse (supplied); the red ACC line requires a 10A fuse (supplied).
The built-in audio Expansion Port on the MRD-60 is designed to allow you to easily upgrade your Marine Audio Center.
To increase the functionality of your system, you can add interface cards (IMR-4 or IMR-2) to allow the addition of optional
accessories, such as remote controls, MP3, CD disc changers, iPod adapters, subwoofer ampliers, boosters, zone expansion
ampliers, etc.
Stereo Installation Considerations
Speakers are directional—point them at your ears. When mounting, consider where your ears will be when listening, and
point the speakers’ central axis in that direction.
Don’t choke your sound. Flush-mount speakers need air behind them. More air is better. Allow at least one cubic foot of air
behind your speakers so as not to compromise the bass response.
Separate the air in front of the speaker from the air behind it. If there is no bafe (wall) separating the front of the speaker
from the back, the positive air pressure at the front of the cone will rush around to ll in the vacuum behind the cone, instead
of reaching your ears, which dramatically reduces bass response. This “free air response” explains why unmounted speakers
may sound “tinny.”
Don’t blow your speakers. Make sure your speakers can handle more power than your stereo can produce. The power
specication on a stereo is the maximum amount of power the stereo will produce. The power specication on a speaker is
the maximum amount of power the speaker can handle. If the stereo can produce more power than the speakers can handle,
you may blow your speakers at high volume. Use RMS power for comparison purposes. Compare the per channel power of the
stereo with the per speaker power of the speakers. You cannot gain sound quality by increasing the maximum power handling
of your speakers. A one-watt signal will not sound any better on 100-watt speakers than it will on 10-watt speakers.
Use proper wiring. Use 18-gauge wire to connect your stereo to your speakers. Doorbell wire works well, it’s inexpensive,
comes in pairs, and isn’t stranded, so there’s less surface area to corrode. Seal all wires between the insulation and soldered
area. Make sure positive terminals on speakers are matched with the positive side of the stereo output.
Speaker Installation Considerations
MRD-70 Stereo Installation Configuration Examples
Basic MRD-70 System, Single Zone Multi-Zone System using RT-20 Router
The MRD-70 can be congured as a single
zone or up to 3 additional zones can be added.
This will allow each cabin or bridge zone to access
the master receiver or use local zone input. Each
zone has separate volume control. Inputs such as
iPod®, PC, and TV/DVD are all possible.
The innovative intercom allows anyone in a
zone to call all the other zones while muting the
stereo. This is both a convenience and a safety
feature.
With an MZ-100 as the base for each
expansion zone, up to 4 speakers and a subwoofer
can be installed in each zone. Each zone
must be supplied with 12v power, however, all
communication between zones is accomplished
using a single cable through the RT-20 Router.

14
15
SPECS & DIMS
Specifications and Installation Dimensions
A B C D Impedance
(OHMS)
Max RMS
Power per
Speaker (watts)
Max Peak
Power per
Speaker
(watts)
Main
Cone
Size
Conguration
6000 Series /
MS-150
MA-6500 - ROUND 6-1/4” / 158MM — 4-11/16” / 119MM 2-1/2” / 63.5MM 4 80 180 4-1/2” 2 WAY
MA-6600 - ROUND 7-1/2” / 190MM — 5-7/8” / 149 MM 3” / 76MM 4 100 200 6-1/2” 2 WAY
MA-6800 - ROUND 9-1/8” / 231 MM — 7-1/4” / 184MM 88MM 4 100 200 8” 3 WAY
MA-6900 - OVAL 8” / 203MM 10-1/4” / 260MM — 3-1/2” / 88MM 4 100 200 6” X 9” 3 WAY
MA-905 - PANEL 9” / 228MM 6” / 152MM 4-1/2 / 114MM 1” / 25MM 4 100 200 5-1/4” 2 WAY
MA-5500 - PANEL* 10-1/8” / 257MM 6-1/4” / 158MM — 1-1/2” / 38MM 4 60 140 3-1/4 3 WAY
MS-150/ MS-250 12-5/8” / 320MM -— 9” / 228MM 4-1/2” / 114MM 4 150 300 10” SINGLE
Premium Series
Low Magnetic
Field
MA-5104 - ROUND* 5-1/2” / 139MM — 3-7/9” / 98MM 2-1/8” / 53MM 4 35 70 4” 2 WAY
MA-5106 - ROUND* 7” / 177MM -— 5-3/4” / 146MM 2-1/2” / 63MM 4 35 70 5-1/2” 2 WAY
MA-5107 - ROUND* 8-1/2” / 215MM — 7-3/8” / 187MM 3-3/4” / 95MM 4 35 70 7” 2 WAY
MA-5950 - OVAL* 8” / 203MM 10-1/4” 260MM — 3-1/2” / 88MM 4 40 80 6” X 9” 3 WAY
MA-7060 - PANEL 8-3/4” / 222MM 8-3/4” / 222MM 7-3/8” / 187MM 2-1/2” / 63MM 4 70 70 6” 2 WAY
Box Speakers
Low Magnetic
Field
MA-800* 7-1/2” / 190MM 5” / 127MM — 5” / 127MM 4 25 50 3-1/2” 2 WAY
MA-840* 4” / 101MM 4” / 101MM — 4-1/2” / 114MM 4 20 40 3” DUAL CONE
MA-1610* 6-1/2” / 165MM 6-3/8” / 161MM 5” / 127MM 4-1/2” / 114MM 4 35 70 5-1/4” 2 WAY
MA-7500* 7” / 177MM 5” / 127MM — 4-1/4” / 107MM 4 35 50 3-1/2” 2 WAY
MA-9060* 9” / 228MM 6” / 152MM — 5-1/2” / 139MM 4 60 100 5-1/4” 2 WAY
Integral Grill
Low Magnetic
Field & Remote
Control
Speakers
MA-4054/4054RC -
ROUND* 5-1/4” / 133MM — 4-1/8 / 104MM 2” / 50MM 4 20 40 4” 2 WAY
MA-4055/4055RC -
ROUND* 5-7/8 / 149MM — 4-7/8” / 123MM 2-1/8” / 53MM 4 20 40 5” 2 WAY
MA-4056/4056RC -
ROUND* 7-1/8” / 180MM — 6” / 152MM — 4 20 40 6” 2 WAY
MA-4600 - ROUND* 7-1/8” / 180MM — 5-5/8” / 142MM 2” / 50MM 4 20 40 6” DUAL CONE
VHF Extension
MB-21 2-1/2” / 63MM 2-1/2{“ / 63MM — 1-1/4” / 31MM 4 5 10 2-1/2” SINGLE
MB-41 4-1/2” / 114MM 4-1/2” / 114MM — 2” / 50MM 4 5 10 4” SINGLE
MA-1000R 6” / 152MM — 4-5/8” / 117 1-1/2” 38MM 4 5 10 2-1/2” SINGLE
Component
Speakers
MA-3013 3-1/2” / 90MM — 3” / 75MM - 4 40 60 3” 2 WAY
MA-3030 6-1/4” / 160MM 3-7/8” / 98MM — 4-3/4” / 120MM 4 40 60 1” COAXIAL
"
!
$
SPECS & DIMS
6000 Series MA-5950/6900 MA-905 MA-5500 MA-5100 Series
MA-7060 4000 Series VHF Extension MA-1000R Box Speakers
MA-7500 MA-840 MA-1610 MA-3013 MA-3030
A B C D Impedance
(OHMS)
Max RMS
Power per
Speaker (watts)
Max Peak
Power per
Speaker
(watts)
Main
Cone
Size
Conguration
Stereo/
CD Players
MRD-60 2-3/4” / 69MM 8-1/4” / 209MM — 7-5/8” / 193MM — — — — —
MCD-6 2-1/2” / 63MM 10” / 254MM — 6-7/8”/174MM — — — — —
RD-44 4.4” / 112MM 4.4” / 112MM — — — — — — —
MRD-70 2-3/4” / 69MM 8-1/4” / 209MM 7-5/8” / 193MM — — — — —
Gunwale Mount
Speakers MA-9020 10-1/2” 266MM 6-1/8” / 155MM 5-1/4” / 133MM - 4 60 100 5-1/4” 2 WAY
Covers
WC-3 4” / 101MM 9-1/8” / 231MM — 2” / 50MM — — — — —
WC-70 3-1/2” / 88MM 8-3/8” / 212MM — 7-7/8” / 200MM — — — — —
WC-400 4” / 101MM 9-1/8” / 231MM — 10-1/2” / 266MM — — — — —
WC-700 7” / 178MM 11” / 279MM — 1-1/2” / 38MM — — — — —
Remote MRR-7 2-3/8” / 60MM 2-1/8” / 53MM — 3/4” / 19MM — — — — —
Ampliers
ME-50 5” / 127MM 4”/ 240MM — 1-1/2” / 38MM — — — — —
MZ-100 4-1/8” / 105MM 6-1/8” / 156MM — 1-1/2” / 38MM — — — — —
ME-400 16.185 / 415MM 9.432 / 240MM — 2” / 50MM — — — — —
Subwoofers
MS-55 8-7/8” / 225MM 11-7/8” / 300MM — 4-3/4” / 120MM — — 100 — —
MS-150 12.5” / 318MM — 9” / 230MM 4-1/2” / 115MM — 150 300 9” SINGLE
MS-250 12.5” / 318MM — 9” / 230MM 6” / 152MM — 150 300 9” SINGLE
Titanium Series
Speakers
MA-8506 7” / 178MM — 5.5” / 140MM 2-7/16” / 62MM 4 50 200 6” 3 WAY
MA-8505 6” / 152MM — 4-5/8” / 116.5MM 2-3/8” / 60MM 4 50 200 5” 3 WAY
Poly-Planar WC-700 W a terproof Stereo Housing
B
D
A
AB
C
D
A
B
D
B
A
MRD60
8 1/4
2 3/4
Depth= 7 5/8
Visit www.polyplanar.com for further information
A
D
B
MRD-60 MCD-6 RD-44 MRD-70 MA-9020
WC-3 WC-70 WC-400 WC-700
MRR-7 ME-50 / MZ-100 / ME-400 MS-55 MS-250
D
B
A
Cutout templates are provided with most units.

PO Box 409
Hanover, MD 21076
Tel [phone] Fax [phone]
www.polyplanar.com
Copyright The Poly-Planar Group, LLC - 1/08
