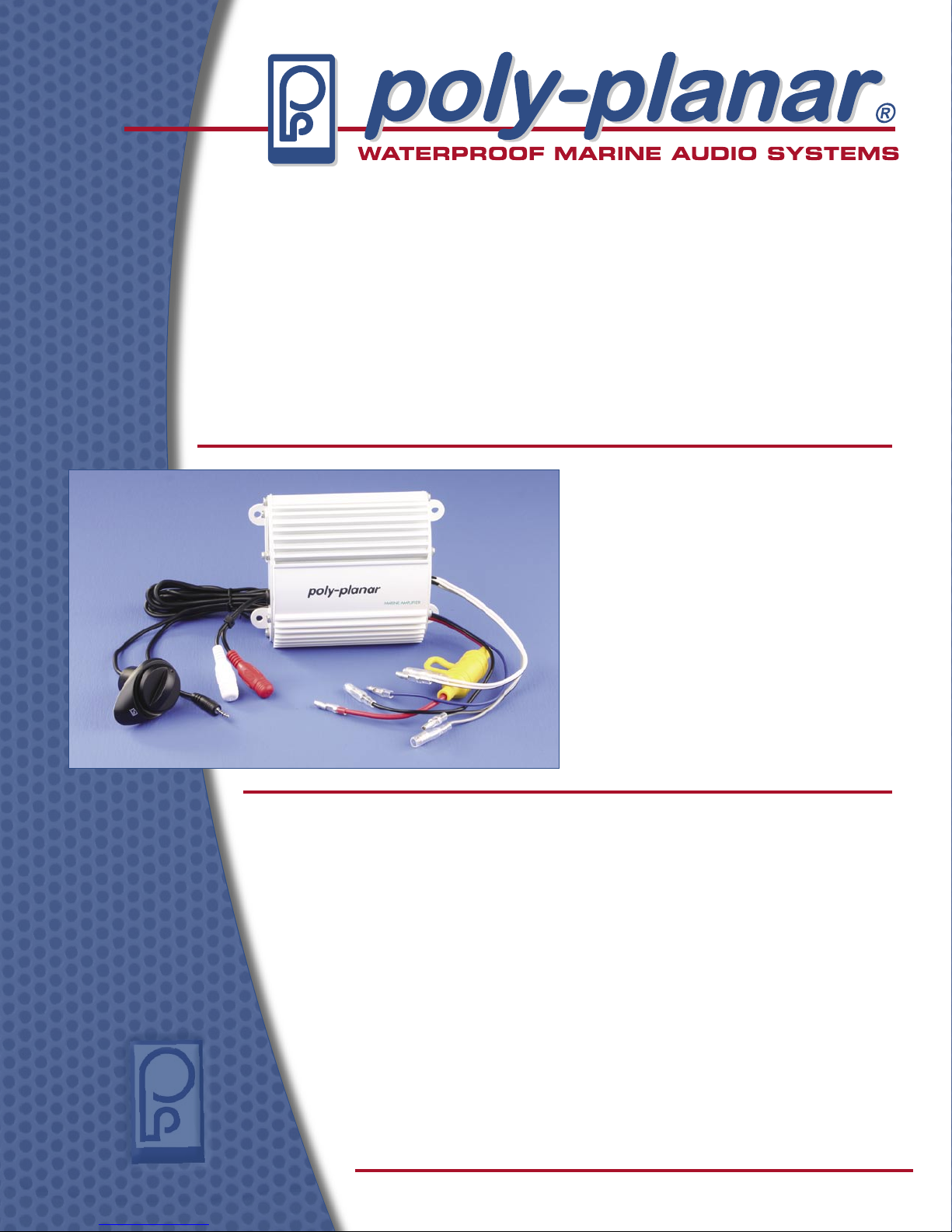

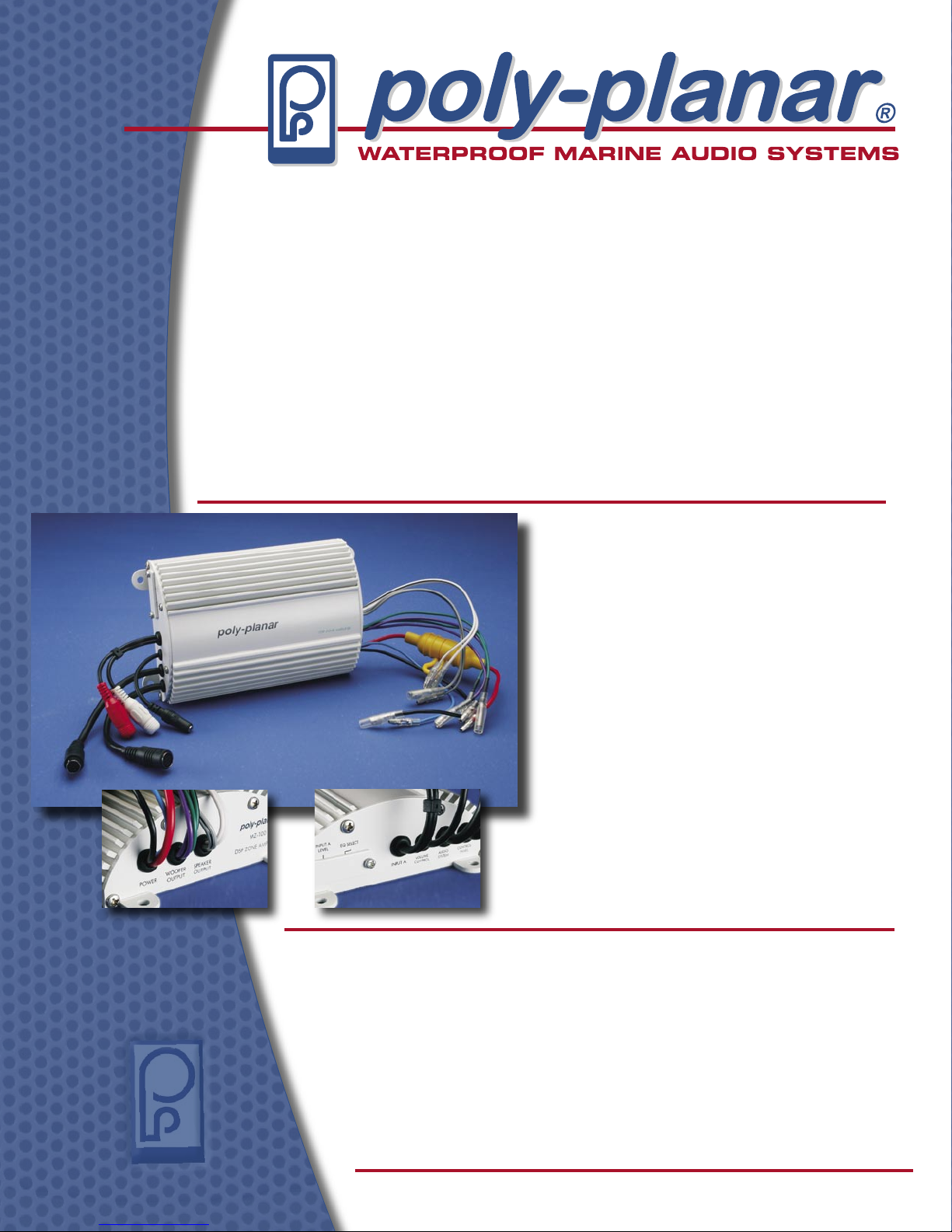

poly-planar ME-50 User manual

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
The ME-50 is a two channel audio amplifier capable of delivering up to 25W
RMS per channel. It has a compact, waterproof design that allows for flexible
mounting possibilities, and makes it simple to expand the audio system
capabilities for any installation.
Uses:
• To add additional loudspeakers to a current audio system
• To provide amplification for a separate audio zone
• As a stand-alone system amplifier for any audio source
Features:
• Powers up to (4) 4ohm
speakers
• Internal distortion limiting
circuits
• Dedicated gain level control
• External volume control
included
• Waterproof design for
marine use
Specifications:
• Speaker Impedance ------------------------------------- 2-8 ohm
• Output Power ---------- 2ohm load - 25W RMS/Channel
4ohm load - 15W RMS/Channel
• Frequency Response ----------------------------- 20Hz-20kHz
• Operating Voltage ---------------------13.8V DC (10V-16V)
• Idle Current (no signal) -----------------------------------10mA
• Maximum Current Draw (full power) ------------7 amps
* Remote Wire Current ----------------------------------------4mA
• Dimensions (approx. w x h x d) --- 105mm x 40mm x 120mm
4.15” x 1.5” x 4.75”
• Weight ------------------------------------------------- .425Kg /15oz
• Volume Control Cable Length ---------------290cm/114”
ME-50 Marine Amplifier

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com

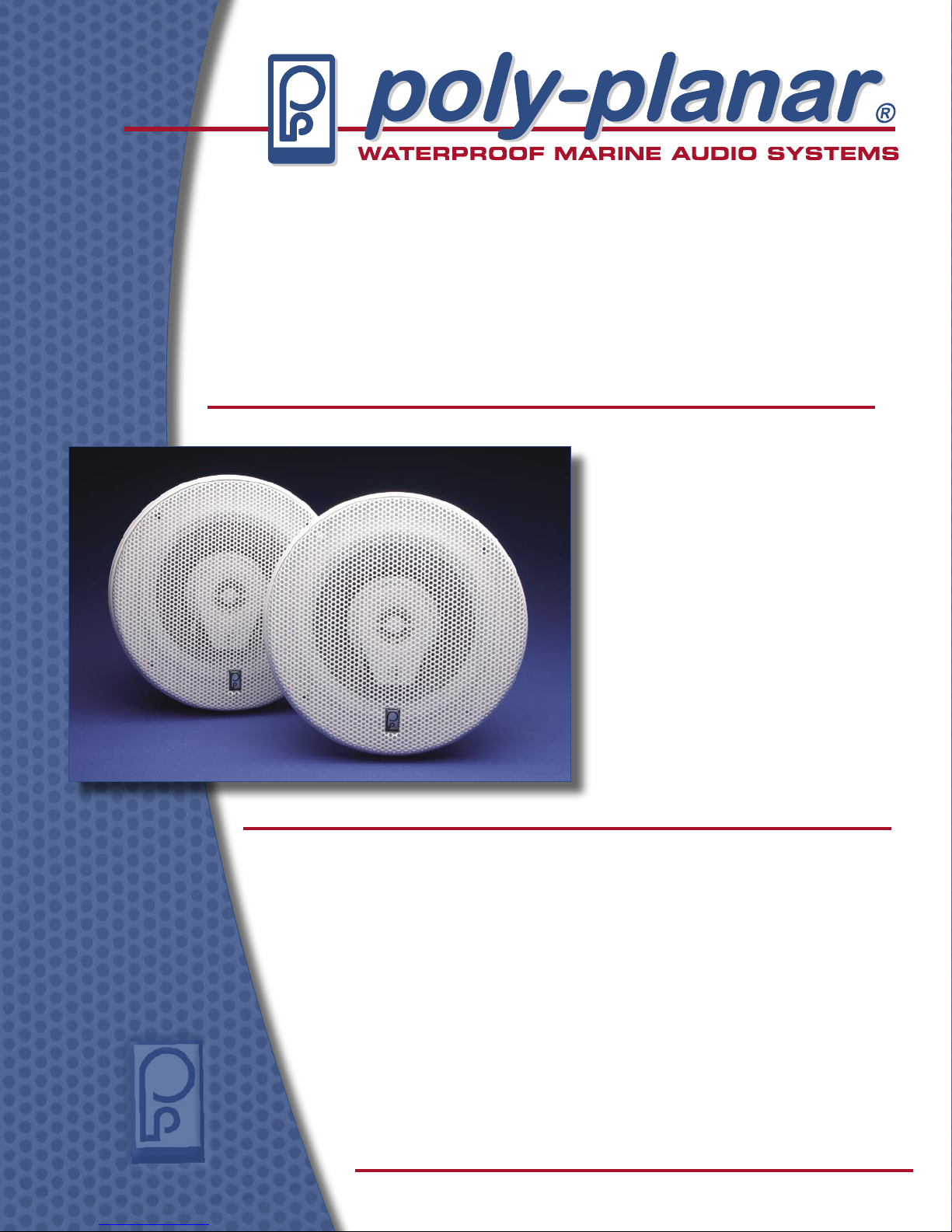

MA-8506 Titanium Series
6” 3-Way Marine Speakers
The MS-8506 is a waterproof, ultra low magnetic field 300 watt/pr. speaker with
titanium plated cone. These three way speakers are perfect for replacement or
upgrade of existing speakers and the magnets will not interfere with naviga-
tion equipment.
Features:
• Colorfast plastic frame
withstands UV rays.
• Anti-magnetic design
• Waterproof construction
throughout.
• Rugged powder coated
aluminum grill.
• 3-way design with mylar
tweeter & midrange.
Specifications:
• Peak Power -------------------------------150 W RMS/speaker
• Continuous Power ----------------------50 W RMS/speaker
• Speaker Impedance ---------------------------------------- 4 ohm
• Meets or Exceeds 600hrs ASTM UV & Salt Spray Test
• Weight (each) ---------------------------------------------1lb 13 oz
• Dimensions ------------ Mounting Depth 2-1/2” (64mm)
Outside Grill - 6-3/4” (171mm)
Cutout - 5-1/2” (140mm)

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
MA-4000RC Series Infrared
Remote Control Speakers
Poly-Planar’s innovative Infrared Remote Control Speakers let you control the
volume, the source – even the power – of your PolyPlanar audio center by pointing
a waterproof, floating handheld remote control directly at the speaker. Control the
sound from the cockpit or another cabin while your audio center remains protected
below deck.
They combine
a midrange
polycarbonate
cone with a 1”
mylar tweeter
for full range
frequency
response and
handle 80 watts
of peak power per
pair. The optional
waterproof
remote features
a convenient
lanyard and
floats if dropped
overboard.

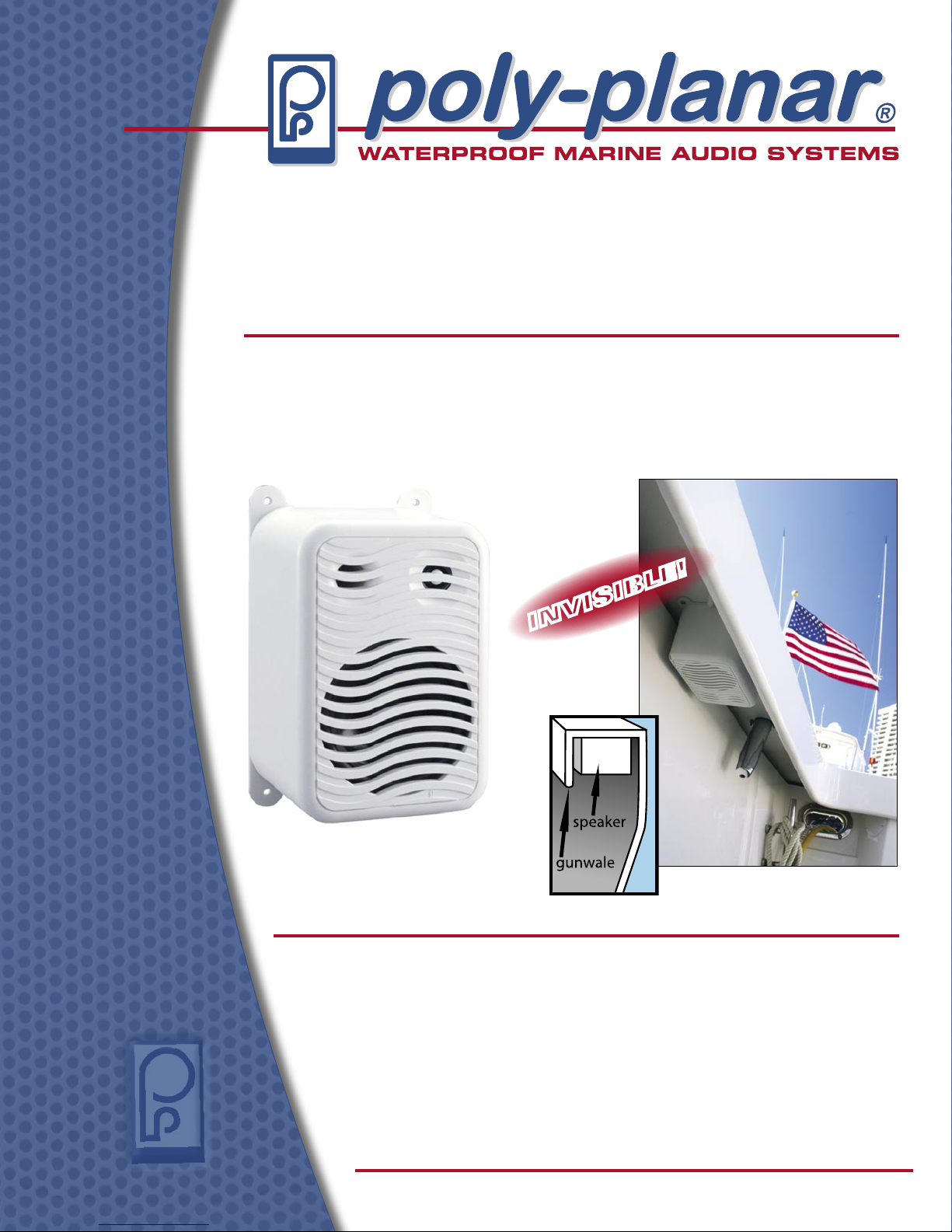

MA-9020 Gunwale-Mount Speakers
Mount these full-sized speakers out of the way under the gunwale, where they’re
protected from the elements, yet close enough to deliver rich, full sound. The
molded, one-piece plastic grill protects the speaker components from splash and
spray. The two-way vented port design offers full range response. Peak power 200
watts/pair.
MA-4056RC
MA-4055RC
MA-4054RC
MA-9020
MRR-2
INVISIBLE!

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com

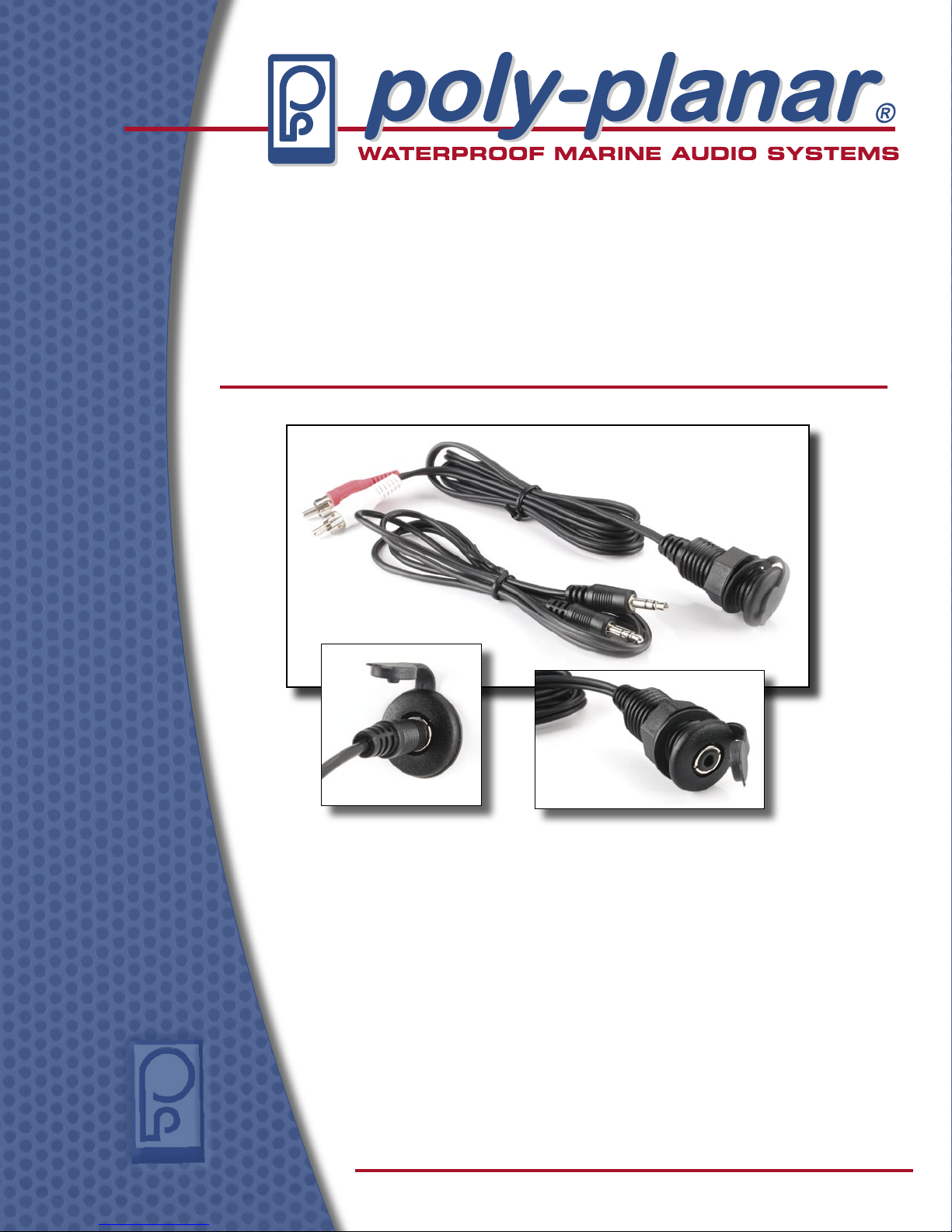

IC-3.5PM MP3 Adapter
The IC-3.5PM allows you to connect your MP3 player, iPod® or satellite radio to
any audio device with RCA inputs. It features a waterproof panel/dash mount
with rubber cover and a 4’ extension cable. Also included is a 4’ patch cord for
connecting MP3 player to adapter plug.
Features:
• Dashboard / panel mount waterproof female 3.5mm
stereo jack.
• 4’ long extension cable with RCA plugs.
• Rubber Plug keeps water out when not in use.
• Can be installed on panels up to 1.25” thick.
• 4’ long 3.5mm to 3.5mm stereo headphone jack
extension cord included.
• Easily installed with commonly available 3/4” paddle
drill bit.
• Can be used as remote headphone jack.

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
WC-700 Waterproof Stereo
Housing with 3” Speakers
The WC-700 is a waterproof stereo housing with two 3” built-in marine speakers.
This housing allows the convenient mounting of a stereo or CD player without
the need for remotely mounted speakers. It is ideal for small boat applications
or where space is limited.
Features:
• Two 3” full range waterproof
speakers.
• UV stabilized plastic housing
• Flip-up translucent polycarbonate
front panel.
• Two applications for DIN type and
Shaft type radio/CD player.
• Can be installed near driver’s seat
for easy control.
• Easy mounting design - great for
small boat applications.
• Stainless Steel Screws
• EVA Gasket included
Specifications:
• Peak Power ----------------------------------40w RMS/speaker
• Continuous Power -----------------------20w RMS/speaker
• Speaker Impedance ---------------------------------------- 4 ohm
• Meets or Exceeds 600hrs ASTM UV & Salt Spray Test
• Weight ----------------------------------------------------9 oz (260g)
• Dimensions -----------Mounting Depth* 1-1/2” (38mm)
Width - 11” (279mm)
Height - 7” (178mm)
* Mounting depth not including stereo. Stereo not included.

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
MS-250 10” Powered Subwoofer
The MS-250 is a powered 10” subwoofer capable of delivering a true 50 watts
RMS of bass power to compliment any serious audio system. Engineered for
the demanding marine environment, this speaker will provide many years of
full rich bass sound. A dedicated amplifier is included. (For Subwoofer without
amplifier, order MS-150).
Features:
• Corrosion proof design and
construction for marine use.
• Internal crossover and
equalization matched to
marine acoustics.
• Internal distortion limiting
circuit.
• Will accept line or speaker
level input.
• Gain level control to match
output to main system.
Specifications:
• True 50 watts RMS power.
• Frequency Response ------ 20 Hz - 200 Hz (Crossover)
• Operating Voltage -------------- 13.8V DC (12V nominal)
• Input Impedance -----------------------40 K ohm line input
2.5K ohm speaker level input
• Maximum Current Draw ---------------------------------7 Amp
• Idle Current -----------------------------------------------------10mA
• Dimensions ---------- Mounting Depth 4-1/2” (114mm)
Outside Grill - 12-5/8” (321mm)
Cutout - 9” (229mm)

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com

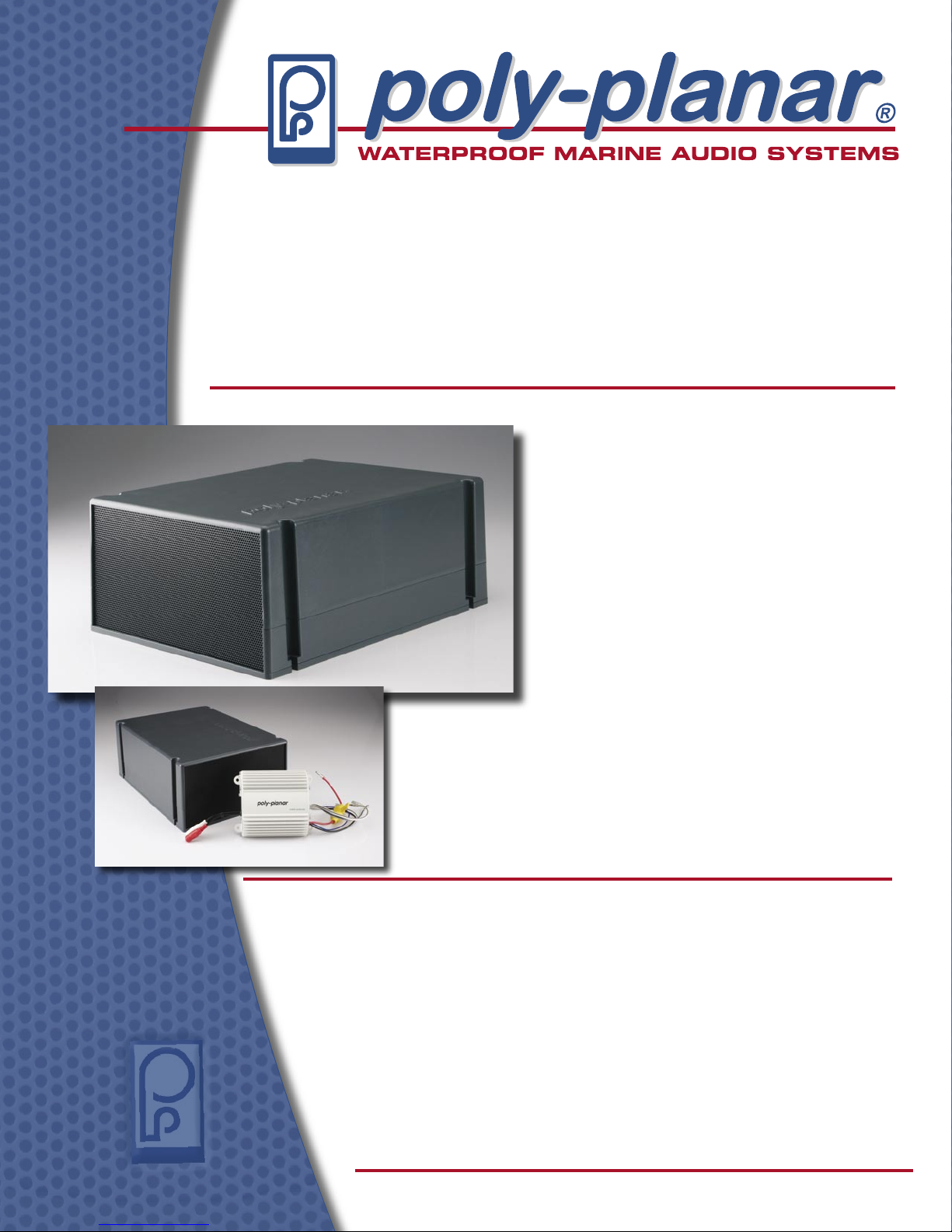

MS-55 Compact Box Subwoofer
The MS-55 subwoofer is a compact, high efficiency bass enclosure optimized for
marine applications. It’s small size enables it to be easily mounted below seats,
under the gunwale area, behind the instrument panel, or any convenient location.
The MS-55 is a self contained bass unit requiring no cutting of panels or holes in the
boat interior. It produces solid, deep bass extending down to 40Hz and is the perfect
addition to any audio system.
Features:
• Dual Voicecoil, high-excursion,
5.25” woofer
• High density, UV stable enclosure
• Water resistant
• Bass-reflex, high-efficiency acoustic
design
• Side vented output ports
• Compact size and molded-in mounts
provide for convenient installation
nearly anywhere.
• Acoustically matched for use with
Poly-Planar ME-51, MZ-100 and
ME-400 amplifiers or can be used
with any amplifier 25 - 100 watts.
Specifications:
• Power Handling -----------------------------------100Watt RMS
• Speaker Impedance ----------------------- 4 ohm x 2 inputs
• Frequency Range ------------------------------- 40 Hz - 300 Hz
• Weight -------------------------------------------------- 8.5 lb (3.8g)
• Dimensions -------------------------- Width - 8.85” (225mm)
Length - 11.8” (300mm)
Height - 4.75” (120mm)
MS-551 includes ME-51 Amplifier

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
ME-400 Marine Amplifier
The ME-400 Four Channel, marine grade amplifier provides 400 watts of crisp, clean audio
power. The amplifier can be easily configured to enhance your listening pleasure. Both cross-
over circuits and high pass and low pass filters are fully adjustable so you can power your
subwoofer as well as your standard speakers. Gold plated connections resist corrosion. Rub-
ber mounting feet isolate vibration. Efficient heat sink design ensures uninterrupted operation.
Built from the ground up to withstand the rigors of the marine environment, the ME-400 will be
an outstanding addition to your vessel’s audio system.
FEATURES
• Circuit board and connectors optimized for
marine use
• Mosfet PWM power supply
• 2 ohm stable stereo outputs
• Bridgeable outputs
• Variable input level controls for each pair
of channels
• Variable High-pass, Low-pass and All-pass
crossover.
• Variable Bass Boost circuit
• Thermal and overload protection circuitry
• Gold-plated RCA jacks and terminals
• Rubber isolation mounting feet
Specifications:
• Rated Power @4ohm , THD 1% ------------------- 100W x 4CH
• Rated Power @2ohm , THD 1% ------------------- 150W x 4CH
• Rated Power @4ohm Bridged, THD 1% ------ 300W x 2CH
• Maximum Output Power ---------------------------- 800W
• T.H.D @4ohm ---------------------------------------------- 0.05%
• T.H.D @2ohm ---------------------------------------------- 0.08%
• T.H.D @4ohm Bridged --------------------------------- 0.1%
• Frequency Response @-1dB ----------------------- 10Hz ~ 35KHz
• Signal to Noise Ratio @ A weighted ----------- >90dB
• Input Sensitivity ----------------------------------------- 200mV ~ 6.0V
• Input Impedance ---------------------------------------- 20Kohm
• Low Pass Filter ------------------------------------------- Variable 40Hz ~ 250Hz
• High Pass Filter ------------------------------------------ Variable 40Hz ~ 250Hz
• Bass Boost @45Hz -------------------------------------- 0 ~ 18 dB
• Fuse Rating ------------------------------------------------ 20A x 2
• Dimensions ------------------------------------------------ Length - 16.375” (415mm)
Width - 9.5” (240mm)
Height - 2.25” (55mm)

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
MZ-100 DSP Zone Amplifier
The MZ-100 is a versatile audio control system designed specifically for marine applications.
It contains a powerful Digital Signal Processor (DSP) for crisp clear audio reproduction. The
DSP continually monitors the output signal eliminating distortion and maximizing output
power. Four amplifier channels are capable of driving up to 2 subwoofers and 4 high-range
loudspeakers providing full, rich, stunning sound. The MZ-100 can be configured to operate as
an equalized fixed-gain booster amplifier, or connect the included remote volume control for
independent zone operation.
When combined with the Poly-Planar MRD-70 series/RD44 remote display audio controller,
the MZ-100 allows for multiple zones, (different cabins, fly bridge, cockpit, saloon) with
independent volume and source control, intercom, and local auxiliary input. The MZ-100 can
accept audio feed from any source. (iPod, MP3, any audio source) Coupled with a pair of
our marine grade speakers and a subwoofer, and you can create a stand-alone system for any
marine application.
Features:
• Custom Equalization for optimized
sound (select up to 8 pre-programmed
audio environments).
• Digital Signal Optimization eliminates
distortion and maximizes output
• Water and corrosion resistant
enclosure
• Connect up to 4 loudspeakers and 2
subwoofers
• Supports Intercom feature
• Supports wireless and wired remote
control
• Expandable for multi-zone use
• Dual audio inputs
• Includes rotary volume knob option
Specifications:
• Power Supply ------------------------- 12V operation (10.5V-15.5V DC)
15A Max Current Draw
• Fuse -------------------------------------------------------------------------------------20A
• Continuous Power ----------- 100 Watts RMS (25Wx4) into 2ohms
• Speaker Impedance ----------4ohm nominal (2ohm - 8ohm stable)
• Weight -----------------------------------------------------------------1.5lbs (0.7kg)
• Dimensions ---------------------------------------- Length - 6-1/8” (156mm)
Width - 4-1/8” (105mm)
Height - 1-1/2” (38mm)

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
MA-9020
Gunwale-Mount Speakers
Mount these full-sized speakers out of the way under the gunwale, where they’re
protected from the elements, yet close enough to deliver rich, full sound. The
molded, one-piece plastic grill protects the speaker components from splash and
spray. The two-way vented port design offers full range response. Peak power 200
watts/pair.
INVISIBLE!
Specifications:
• Impedence _____________________________________________ 4 ohms
• Configuration ____________________________________________2 way
• Max RMS Power per Speaker _________________________60 watts
• Max Peak Power per Speaker ______________________ 100 watts
• Main Cone Size _____________________________ 5-1/4” (133.4mm)
• Dimensions ________________________ Length - 6-1/8” (155.5mm)
Width - 10-1/2” (266.7mm)
Depth - 5-1/4” (133.4mm)

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
MA-3030
3” 2-Way Box Speakers
The MA-303 3” 60 watt Component Speaker is available in white or metallic
gray color and would be the perfect companion to the MS-55 subwoofer.
They are easily mounted in either the horizontal or vertical orientation with
the supplied bracket.
Specifications:
• Impedence _____________________________________________ 4 ohms
• Configuration ____________________________________________2 way
• Max Power per Speaker ______________________________60 watts
* Continuous Power ____________________________________40 watts
• Dimensions __________________________ Length - 6-1/2” (165mm)
Width - 3-7/8” (98.5mm)
Depth - 4-1/4” (108mm)
FEATURES
• Completely Waterproof
• Powder coated stainless
bracket
• Gold-plated Binding Posts
• Powder coated aluminum
grill.
• Mounting hardware and
speaker wire included.
• 3” 60 watt, 2-way box
speaker
• Available in White or
Metallic Gray
MA-3030W
MA-3030G

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
MA-3013 3” Round
Flush-Mount Speakers
The MA-3013 3” round flush-mount speakers are great for installations
where mounting space is limited. When used in conjuction with Poly-
Planar’s MS-55 Box Subwoofers, these speakers give bright, clear sound
with minimal intrusion. Ideal for mounting in flybridge overheads,
smaller cabins or wherever space is at a premium.
Features:
• 3”, 60 watt, Flush Mount,
Midrange Speaker.
• White or Metallic Gray color
• Low Magnetic Field
• Waterproof construction
throughout.
• Powder coated aluminum grill.
• Mounting Hardware & Speaker
Wire Included
• Quick Connect Terminals
Specifications:
• Maximum Power ---------------------------------------- 60 watts
• Continuous Power ------------------------------------- 40 watts
• Speaker Impedance ---------------------------------------4 ohms
• Meets or Exceeds 600hrs ASTM UV & Salt Spray Test
• Weight (each) ------------------------------------------------------8oz
• Dimensions ------------ Mounting Depth 1-1/2” (38mm)
Outside Grill - 3-5/2” (92mm)
Cutout - 2-7/8” (73mm)
MA-3013W
MA-3013G

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
MP3 Kit
for Small Watercraft
Poly-Planar’s MP3 Kit provides the ability to have stereo sound on small watercraft such
as Jet Skis, inflatables or tenders. The waterproof* ME-50 Amplifier can be mounted
underneath a seat or inside the boat’s structure. The IC-3.5 MP3 Adapter and Volume
Control can be mounted on the dash or inside the stowage compartment. This provides a
convenient input for portable MP3 or CD players. And with your choice of properly matched
Poly-Planar Waterproof Speakers, you’ll have crisp, clear stereo sound on the go!
IC-3.5
MP3 Adapter
Volume Control
ME-50 Amplifier Waterproof Speakers
(sold separately)
MP3 Player
(customer supplied)
12V Power
Supply
ME-50 Amplifier IC-3.5 MP3 Adapter
Great for Jet Skis, Golf
Carts & ATVs Too!
See opposite side for
speaker recommendations
* To IP-65

POLY-PLANAR • PO Box 409 • Hanover, MD 21076 • [phone]
www.polyplanar.com
MA-3013W
MA-3013G
Recommended Speakers for
MP3 Kit Setup
MA-3013 Speakers:
• 3” Cone
• 60 watt, Flush Mount,
Midrange Speaker
• White or Metallic Gray
• Low Magnetic Field
• Waterproof construction
throughout.
• Powder coated aluminum
grill.
• Mounting Hardware &
Speaker Wire Included
• Quick Connect Terminals
MA-4054 Speakers:
• 4” Cone
• 60 watt, Flush Mount
• 2-way
• White or Black color
• Low Magnetic Field
• Waterproof
construction
throughout.
• Powder coated
aluminum grill.
• Mounting Hardware &
Speaker Wire Included
• Quick Connect
Terminals
MA-4054W MA-4054B
5-1/4”
3-1/2”
