PolyJohn HandStand 2 PSW2-1000 User manual

PSW2-1000 - HandStand
March - 2012
Page 1 of 4
PSW2-1000
HandStand™2
Wash Stand with Wheels
User Manual

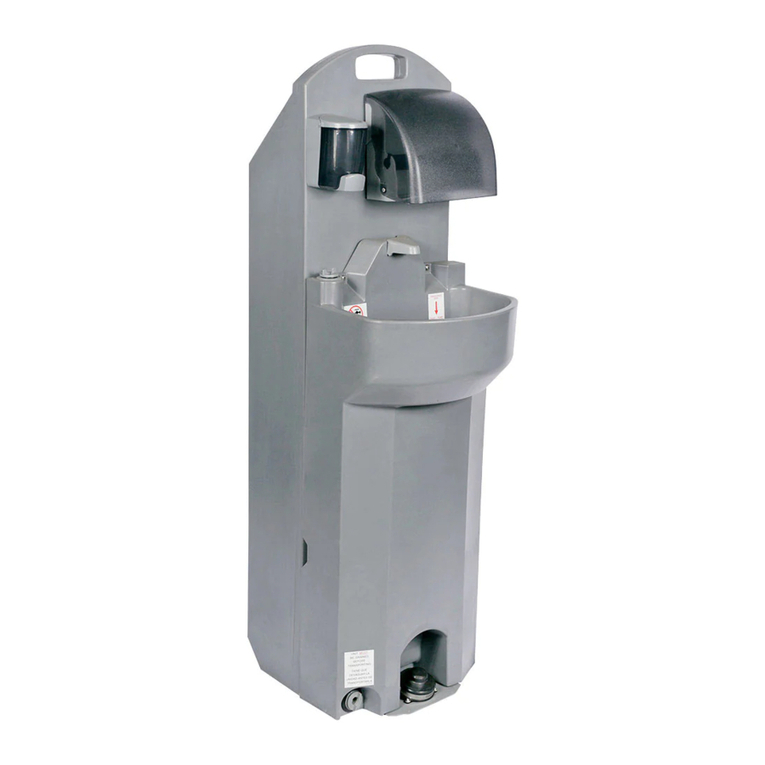

The PSW2-1000 HandStand™2 sink is eas-
ily transportable with a built-in handle
and rubber treaded wheels. Designed for
use where convenient hand washing is
desired or required, such as oces, class-
rooms, construction sites, festivals, food
service locations, etc., to be used indoors
or out. The compact design allows it to be
used most anywhere. Ideal where space is
limited. Shipped fully assembled.
General Overview
Allmaterials,includingresin,pigmentsand
additives used to make the plastic compo-
nents as well as the plumbing components
that come in contact with the fresh water
are U.S. FDA food grade compliant.
Height 62 in 157.5 cm
Width 18 in 45.5 cm
Depth 22 in 55.9 cm
Fresh Water Capacity 17 gal 64.4 L
Gray Water Capacity 19 gal 72 L
Pump Capacity
(per stroke) 2  oz 59.14 ml
Soap Dispenser
Capacity 30  oz 887 ml
Number of Single
Dispenses 1088 1088
Paper Towel
Capacity 1 Roll or 500 Single Fold
(2 packs - Georgia Pacic 23504)
Weight Empty 47 lb 21.3 kg
Weight Full 189 lb 85.7 kg
Specications
POLYJOHN
USA
PolyJohn Enterprises Corp
2500 Gaspar Ave.
Whiting, IN 46394
Phone: [phone]
Fax: [phone]
www.polyjohn.com
[email protected]
POLYJOHN
WORLDWIDE
PolyJohn (UK) Ltd.
Equinox 1 Audby Lane
Wetherby, England LS22 7RD
Phone: [phone]
Fax: [phone]
www.polyjohn.co.uk
[email protected].uk
POLYJOHN
CANADA
PolyJohn Canada
P.O. Box 2300
199 Forest Plain Rd.
Orillia, Ontario LV3 6S2
Phone: [phone]
Fax: [phone]
www.polyjohncanada.ca
[email protected]

PSW2-1000 - HandStand
March - 2012
Page 2 of 4
Parts Drawing - Exploded View
Important Decals
NOT FOR COOKING OR DRINKING,required by law in certain areas of the U.S. Other geographi-
cal areas require that the materials used to manufacture the sinks comply with the U.S. Federal
Food and Drug Administration (FDA) guidelines 21 CFR 175.300 (resins), 177.1520 (olen polymers)
and 178.3297 (colorants for polymers). The materials also comply with the U.S. Public Health Ser-
vice Drinking Water Standards, 42 CFR part 72 and U.S. Environmental Protection Agency Interim
Primary Drinking Water Regulations 40 CFR part 141.
HANDS FREE SINK, instruction for user to use foot pump to operate the sink.
UNIT MUST BE DRAINED BEFORE TRANSPORTING,reminds service operator to fully drain both
the fresh water and waste water tanks before transporting.
PC-000581G - Sink Tap
(2) PC-000107 - Rivet
(2) PC-000106 - Washer
PC- 000339
Elbow 3/8" Tube x 3/8" Npt PC-000554 - 1" Fill Plug
PC-000345 - 1” O-Ring
PC-000325 - Straight
1" Npt x 3/4" Barb
PC-000351 - #10
Hose Clamp
CH075-037 - 3/4"
Drain Hose 37" Long
PSE2-0001
Sink Tank
PC-000415
Rubber UniSeal
CT38-046 - Tubing
3/8" O.D. x 46" Long
CT38-003
3/8" Tubing x 3" Long
PC-000551 - 1/2" Drain Plug
PC-000346 - 1/2” O-Ring
PC-000600 - Baby Foot Pump
(4) PC-000102 - Rivet Small Flange
(4) PC-000106 - Washer
PS02-0003 - Foot Pump Plate
(2) PC-000147 - Screw
PSE2-0002
Cover Plate
(4) PC-000158 - Screws

PSW2-1000 - HandStand
March - 2012
Page 3 of 4
Parts Drawing - Exploded View
Paper Towel Dispenser
The dispenser is designed to accept single or multi fold, as well as roll towels. The
recommended towels are the Georgia Pacic #23504 - single fold or the Baywest Ecosoft
#46200 - roll towel. NOTE: When using other towels, be sure the width does not exceed
9-1/2”.
Emptying Fresh Water
Drain the fresh water by unscrewing the 1/2” plug located at the bottom of the sink, to
the left of the foot pump. Tighten the plug when nished.
Emptying Gray Water
Wheel the sink to a proper and approved drain location. Pull the hose out from the rib
on the back of the holding tank, remove the hose cap and empty the gray water. Re-
place the cap when nished.
Filling with Fresh Water
Unscrew the 1” ll plug located at the top, right hand side of the wash basin. Insert a
standard 1” garden or similar type hose and ll with a few gallons of fresh water to per-
form a system check. Depress the pump a few times to“prime”it (the pump has a built-in
check valve that will hold a prime between uses). If needed, continue lling to the top
(which is the 17 gallon water level capacity). Tighten the plug when nished.
LS04-0001 Soap
Dispenser
(3) PC-000105 - Rivet
(3) PC-000106 - Washer
TD04-1000 - Paper Towel
Dispenser
(4) PC-000105 Rivet
(4) PC-000106 Washer
PC-000550 3” Gray Plug
PSW1-0001P
- Wash Stand W/Wheels Tank
PC-000377
- 3/4” Garden Hose Cap
PC-000313
- Rubber Hose Washer
PC-000376
- Fitting 1”x 3/4”MGHT
PC-000352
- Hose Clamp
CH100-0435
1”I.D. x 43.5” Long
PC-000352 - Hose Clamp
PC-100316 - Elbow
1” Barb x 1” Barb
PC-000417 - 3/4” Uni-Seal
PC-000417
3/4” Uni-Seal
(Replaces the 1/2”
spinweld tting
and elbow in
previous models)
PSW1-0021 - Axle
PC-000213 - Wheel,
Rubber Tread
PSE2-1000
Euro Wash Stand
Complete
(2) PC-000158 - Screw

PSW2-1000 - HandStand
March - 2012
Page 4 of 4
CLEANING AND MAINTENANCE
Use a mild soap to clean all surfaces and component parts.
Minor scratches and abrasions can be lightly sanded or scrubbed with a mild abrasive
cleaner (such as “Soft Scrub”) that contains calcium carbonate, hypochlorate bleach and
detergents. Be sure to follow the cleaning product directions since these ingredients
may cause hazardous gases when mixed with other chemicals. Rinse the cleaned area
and bu with a conventional wax.
Some light scratches may also be hidden by using an industrial hot air gun.
To keep the water fresh add a “Fresh Sink Tablet” (chlorinated tablet)(our part number
CK01-0030) each time the sink is lled with water.
For a source of cleaning, deodorizing and paper products contact:
POLYJOHN
2500 GASPAR AVE.
WHITING, IN 463942175
8002921305
www.sinksnmore.com
MISSION STATEMENT
“PolyJohn is a family owned, state of the art, plastics manufacturing company dedicated
to providing its employees with a work environment committed to excellence, and its
customers with innovative products, services and technology that meet or exceed their
requirements.”
THANK YOU FOR PURCHASING POLYJOHN PRODUCTS!
Look for us on the Web @ www.PolyJohn.com
Winterizing
• Drain all water from the tanks.
• Depress the foot pump to clear lines.
• Flush tank with a solution of chlorine and water.
Soap Dispenser
To ll the soap dispenser, open it by placing your hands on both sides of the dispenser
and pressing up on the tabs at the rear of the lid. Fill with 30 uid ounces (or desired
amount) of liquid soap and snap the lid back on. To remove the dispenser for transport-
ing the unit, remove the lid, and locate the tab on the middle of the mounting plate at
the rear of the dispenser. Push in on it, and slide the dispenser up, and o. Snap the
lid back onto the dispenser. IMPORTANT: Do not lie at or transport your GrandStand
before either removing or completely draining the soap dispenser to avoid accidental
spillage of liquid soap as a slip/drop hazard may occur.
