Pond Boss DWF16 User manual

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
16 in. Waterfall Spillway
ITEM #DWF16

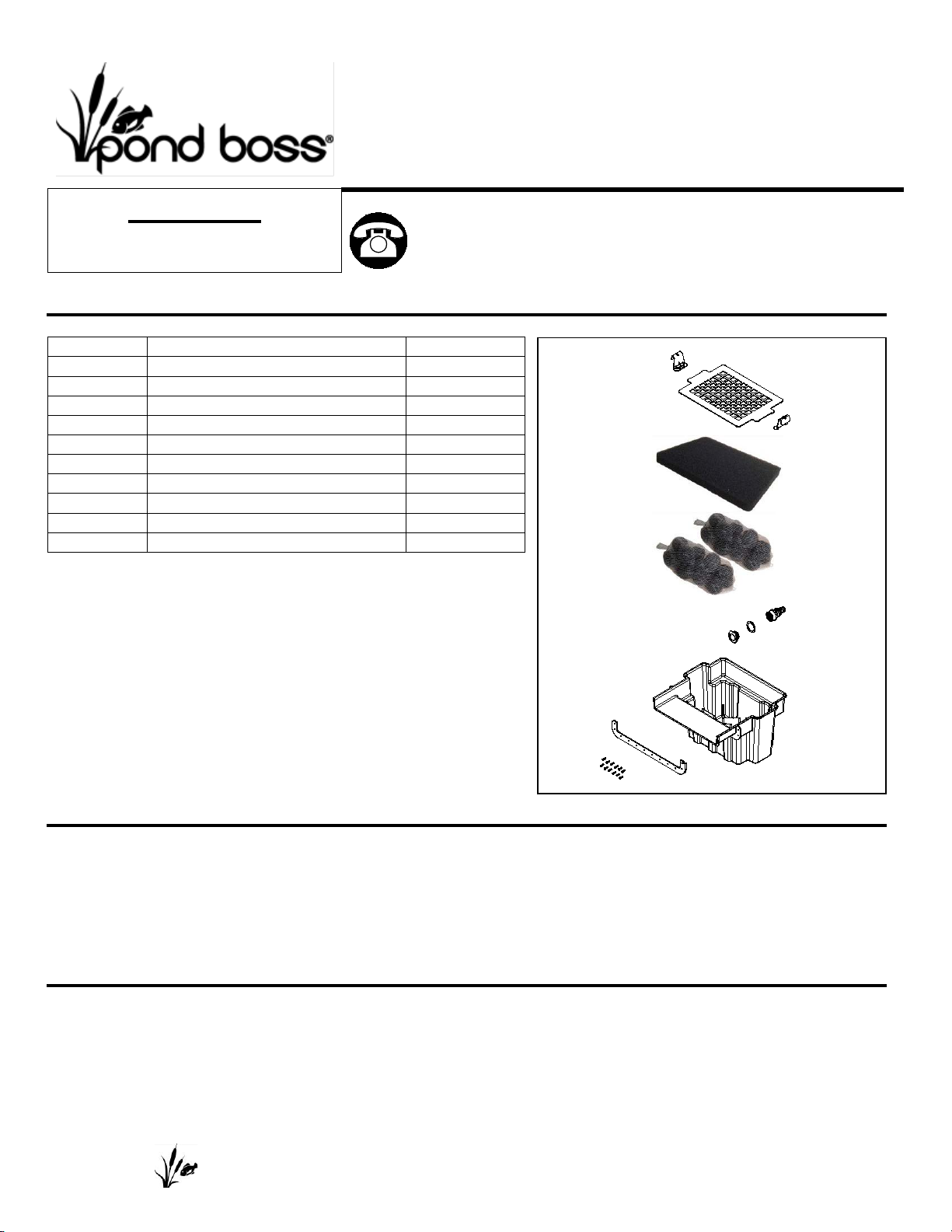

PACKAGE CONTENTS
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or
operate the product. Contact customer service for replacement parts.
•Estimated Assembly Time: 45 minutes
•Tools required for assembly: Carpenter’s level, marker,utility knife , temporary nail, philipshead
screwdriver, hacksaw,.
PRODUCT DESCRIPTION
Waterfall spillway is specifically design to maximize the natural processes that remove ammonia from the
water. Water pumped into tank brings the dissolved wastes into contact with bacterial colonies on the
many surfaces of the filter pad and bio ball. These colonies digest, or metabolize the ammonia. Some
types of bacteria turn it into nitrites; others take the still toxic nitrites and dissolved oxygen and turn them
into less toxic nitrates, a natural fertilizer that is easily taken up by plants. When water filter and back into
pond likes a beautiful waterfall, it will help to aerate the water. When the proper balance of fish, plants and
aeration is reached, you don't have to clean your pond for the entire season. This waterfall spillway is
designed to work with a water pump that can circulate of 1200 to 3750 gallons per hour.
Part
Description
Quantity
A
Tank
1
B
Coupler
1
C
Gasket
1
D
Adapter
1
E
Bio media balls with bag
2
F
Filter pad
1
G
Clip
2
H
Cover
1
I
Anchoring Flange
1
J
Screw
12
A
B
REMINDER
CALL 1-888-755-6750
BEFORE RETURNING TO STORE.
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-755-6750, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at [e-mail] visit our
website www.thepondboss.net.
C
D
E
E
F
G
H
G
I
J

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
ASSEMBLY INSTRUCTIONS
1. Choose a location for your waterfall spillway, it can sit inside
the liner or at the liner perimeter. Most of the time it is placed
at the beginning of a stream. The important thing to remember
is that all of the water coming out of the filter must stay within
the pond liner to avoid water loss. Fig. 1
Fig. 1
2. Place the tank in the place that you prepared for it and check
that it is level before burying. Fig. 2
Fig. 2
3. Check the liner will sit freely up your tank without wrinkling or
pulling. Carefully clean and rinse the liner inside and out with
water, then dry it with paper towels or a clean cloth. The
surface to be sealed must be clean and dry for the sealer to
bond properly. Mark the liner with the shape of the spillway. A
white or yellow marker works well to do this. Fig. 3
Fig. 3
Waterfall returning directly to pond
Waterfall with stream

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
4. Carefully cut and remove the section of liner in the spillway
opening. Fig. 4
Fig. 4
5. Apply a continuous 1/4" bead of sealer around the flange of
tank. Make sure there are no spaces or voids in the bead
between the holes and the edge of the cut-out on the flange
of the tank. Fig. 5
Fig. 5
6. Align the liner on the flange of tank, make sure the liner sit flat
on the flange of tank without wrinkling or pulling. Fig. 6
Fig. 6
7. Insert 2 temporary nail into the flange top corner hole of tank,
then holding the nails in place with hand, push the nail
through the liner Fig. 7
Fig. 7
Apply silicone on this surface
Temporary nail
Temporary nail

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET

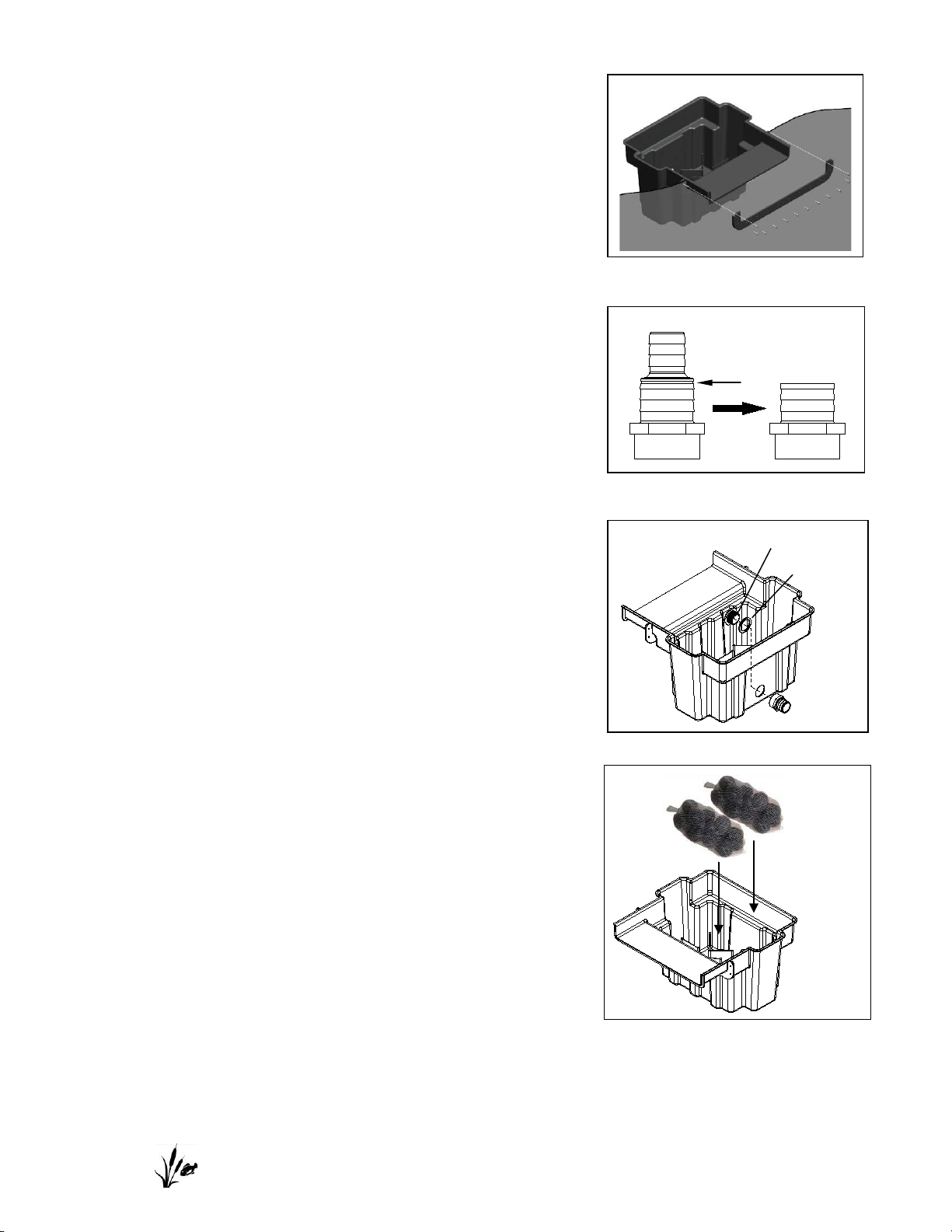

8. Assembly the anchoring Flange into the tank flange to
securely seal the liner to the tank, carefullly install the
screws snug, finally remove the temporary nails and attach
the last two screw. Fig. 8
Fig. 8
9. For maximum water flow, it is recommended that the largest
tubing size for your pump is used. If using 1 in. ID tubing,
proceed to step 10. If using 1-1/2 in. ID tubing, cut the
adapter as shown using a hacksaw. Fig. 9
Fig. 9
10. Assembly coupler, gasket and adpter to tank. Fig. 10
Fig. 10
11. Put bio media balls with bag inside tank Fig. 11
Fig. 11
Diverter valve
Coupler
Cut ring
Adapter
Tank
Gasket
Bio media
ball
s with
bag

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
12. Place the filter pad over bio media ball bags and tank. Fig. 12
Fig. 12
13. Slide 2 clips to cover, then snap them to tank. Fig. 13
Fig. 13
14. Connect tubing to the outlet adapter, then use hose clamp
hold it tight. Connect other side to your pump, and use hose
clamp hold it tight too. Carefully cover the waterfall spillway
and tubing with natural material for a professional look.
Fig. 14
NOTE: Tubing, hose clam and pump are NOT INCLUDED.
Fig. 14
15. Connect pump to a proper power source. Fig. 15
NOTE: Pump is NOT INCLUDED.
Fig. 15
GFCI
Filter pad
Clip
Clip
Cover

PLEASE CALL 1-888-755-6750 BEFORE RETURNING TO THE STORE.
WWW.THEPONDBOSS.NET
CARE AND MAINTENANCE
•Before cleaning, always disconnect the pump connect to this waterfall spillway from the power
source.
•Occasional cleaning of the filter pads will be necessary to ensure the proper functioning of the
system. The filter pad is a designed to trap debris and particles. Filter pads should be removed and
washed with clean water when they are visibly soiled.
•Filter pads should be replaced annually. The exterior surface of the cover may also need
occasional cleaning. Particularly if the openings in the top of the cover are obstructed. When
cleaning the cover use warm water only. Do not use any chemicals that may destroy the beneficial
bacteria.
•The bio media balls in you filter system and the inside surfaces of the waterfall spillway contain the
beneficial bacteria. At least once a year the entire system should be disassembled and cleaned
thoroughly using warm, soapy water (mild detergent). This should not be done during the warm
season as it may take up to 8 weeks to re-establish the environmental balance. The best time of
the year to “breakdown” your system is in early spring before the water temperatures begin to rise.
This is also the ideal time to replace the filter pads.

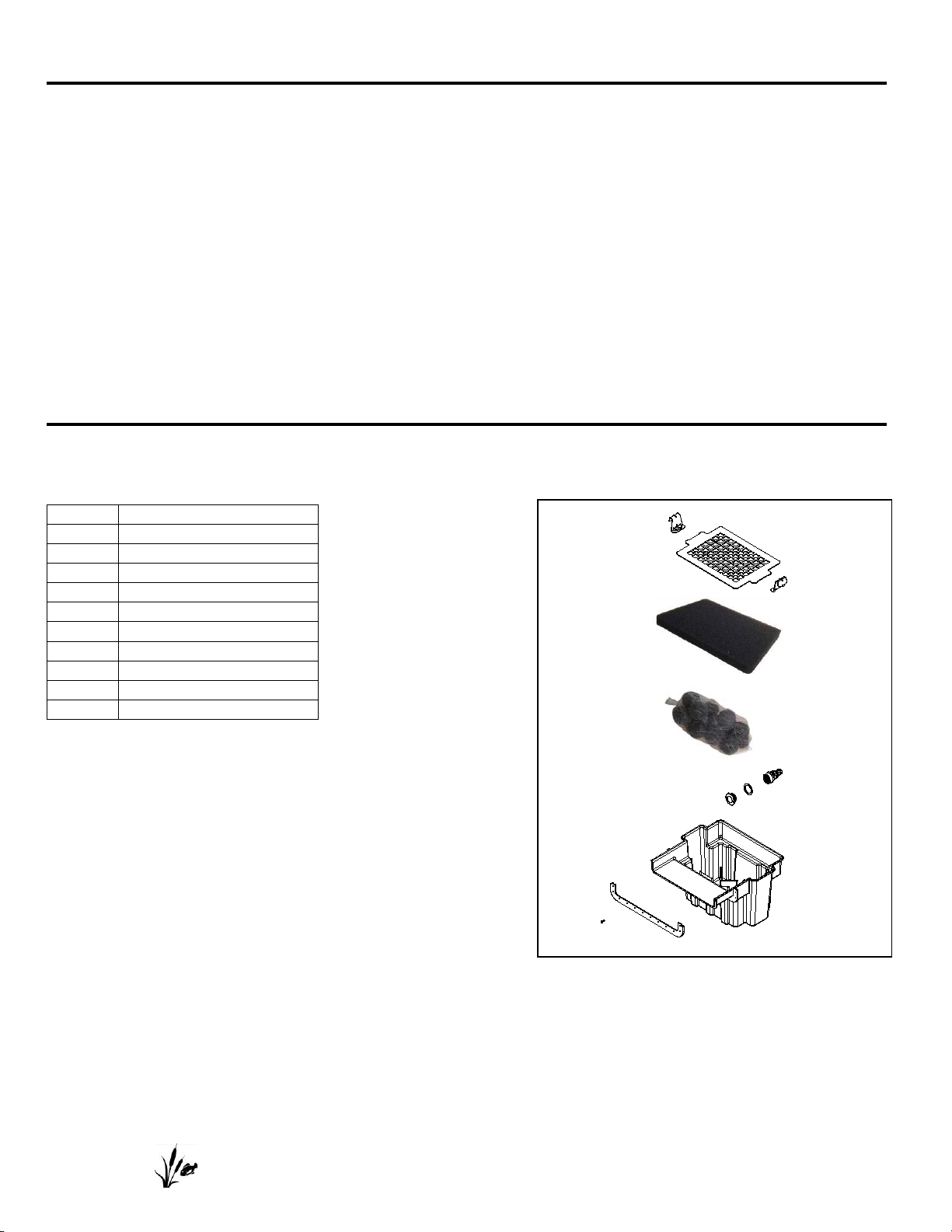

REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-888-755-6750, 8 a.m.-6 p.m., EST,
Monday-Friday, or email us at [e-mail].
Printed in China
Part
Description
A
Tank
B
Coupler
C
Gasket
D
Adapter
E
Bio media balls with bag
F
Filter pad
G
Clip
H
Cover
I
Anchoring Flange
J
Screw
A
B
C
D
E
F
G
H
G
I
J
