Ponovo PNS630 User manual

PONOVO POWER CO., LTD
No. 139 Jinghai Third Road, BDA, Beijing, China, 100176
Office Tel. [phone]
E-mail [e-mail]
Website www.relaytest.com / www.ponovo.com.cn
PNS630 User Manual
VERSION: PNS630-AE-1.00
DATE: SEPTEMBER 2017
This manual is the publisher of PONOVO POWER CO., LTD. To make any kind of copy of
this manual please contact PONOVO POWER CO., LTD in advance.

PNS630 Handheld Analyzer User Manual
2
Content
1. General........................................................................................................5
1.1 Introduction.......................................................................................................... 5
1.2 Features............................................................................................................... 5
2. Technical Specifications ..............................................................................7
2.1 Specifications....................................................................................................... 7
2.1.1Dimension and weight................................................................................. 7
2.1.2 Interfaces................................................................................................... 7
2.1.3 Power supply ............................................................................................. 8
2.1.4 Environment............................................................................................... 8
2.2 Performance ........................................................................................................ 9
3. Panel description .......................................................................................10
3.1 Front panel......................................................................................................... 10
3.2 Top panel ........................................................................................................... 12
3.3 Left panel........................................................................................................... 13
4. Operations .................................................................................................14
4.1 Power on/ Power off........................................................................................... 14
4.2 Main interface .................................................................................................... 14
5. System.......................................................................................................16
5.1 Basic settings..................................................................................................... 16
5.2 Help ................................................................................................................... 17
5.3 About.................................................................................................................. 18
6. Parameter..................................................................................................19
6.1 Parameter.......................................................................................................... 19
6.2 SMV output........................................................................................................ 21
6.3 GOOSE publish ................................................................................................. 27
6.4 GOOSE Subscribe............................................................................................. 33
6.5 Binary................................................................................................................. 36
7. Quick Test..................................................................................................37
7.1 Extended............................................................................................................ 40
7.1.1 SMV Mapping .......................................................................................... 41
7.1.2 BI Mapping............................................................................................... 42
7.1.3 Basic setting ............................................................................................ 43
7.1.4 Parameter................................................................................................ 44
7.1.5 Result....................................................................................................... 45
8. Sequence...................................................................................................46

PNS630 Handheld Analyzer User Manual
3
8.1 Sequence edit.................................................................................................... 47
8.2 Extended............................................................................................................ 50
9. SMV...........................................................................................................51
9.1 SMV detect ........................................................................................................ 52
9.2 RMS................................................................................................................... 52
9.3 Waveform........................................................................................................... 56
9.4 Vector................................................................................................................. 57
9.5 Sequence component........................................................................................ 58
9.6 Power................................................................................................................. 59
9.7 Harmonic............................................................................................................ 60
9.8 Dual AD.............................................................................................................. 62
9.9 Phase-check ...................................................................................................... 63
9.10 Polarity............................................................................................................. 65
9.11 Statistics........................................................................................................... 66
9.12 Monitor............................................................................................................. 68
10. GOOSE....................................................................................................69
10.1 GOOSE detect................................................................................................. 70
10.2 Real value........................................................................................................ 70
10.3 Bit-Change list.................................................................................................. 72
10.4 Statistics........................................................................................................... 74
10.5 Message monitor ............................................................................................. 76
10.6 GOOSE method............................................................................................... 77
11. Time.........................................................................................................78
12. Waveform record .....................................................................................80
13. Optic power..............................................................................................81
14. Network....................................................................................................82
15. IED...........................................................................................................83
16. Network flow ............................................................................................87
17. MU Delay.................................................................................................88

PNS630 Handheld Analyzer User Manual
4
Notes:
Disconnect the external circuit of the relay to assure precision.
Do not block the ventilation outlets.
Avoid the equipment being wet by rain.
Do not switch-on and operate the equipment in the place having explosive gas or
water vapor
Put the kit in the transportation case after testing.
Please don’t remove the cover by yourself.
It should be connected grounded.

PNS630 Handheld Analyzer User Manual
5
1. General
1.1 Introduction
PNS630 portable Analyzer was designed for smart substation maintenance.
IEC61850-8-1(Goose), IEC61850-9-2, IEC60044-7/8 messages can be monitored and
analyzed, digital relay test function also equipped. SMV, GOOSE message numerical
and status analysis were realized and displayed visually by its numerical analyzing
function. Message sending (IEC61850-9-2, IEC60044-8, GOOSE message) and
GOOSE subscribe function can meet the requirement of digital relay test. B code,
IEC61588 and optical power measurement are supported. Portable, stable, humanized
PNS630 is the effective device for smart substation maintenance.
1.2 Features
1) Support IEC 61850-9-2, IEC 60044-7/8 (FT3), GOOSE, IRIG-B and IEEE1588
standards.
2) Support SCD, ICD, CID files analysis to get sampling value, sampling channel and
GOOSE signal configuration.
3) Support SCD displayed in graphics.
4) Support SMV ang GOOSE monitor, and record the abnormal messages.
5) Support IEC60044-7/8 (FT3) receving and sending. The baud rates 2.5Mbps,
5Mbps, 10Mbps is available.
6) Support IEC 61850-9-2/9-2LE receiving and sending. ASDU 1-8 is available.
7) Support message monitor and record (PCAP format) for analysis.
8) Support network load analysis.
9) Support phase check.
10) Support IRIG-B and IEEE 1588 synchronization to provide time synchronization and
clock source.
11) Simulate MU to output IEC61850-9-2, IEC 60044-7/8 to test digital relays.
12) Support IED time delay and SOE test.
13) Support MU time delay test, synchronization and time test.
14) Support to output messages in different flow.
15) Support SMV in different status in maximum 10.

PNS630 Handheld Analyzer User Manual
6
16) Support DC testing to test digital voltage, CT and PT’s polarity.
17) Support dBm test within -31dbm~-14dbm at wavelength 1310nm.
18) Large LCD screen to operate.
19) Chargeable battery for continuous working 6 hours above.

PNS630 Handheld Analyzer User Manual
7
2. Technical Specifications
2.1 Specifications
2.1.1Dimension and weight
Dimension: 190mm (W)× 210mm (H)× 64 mm (D)
Weight ≤1.35 kg
2.1.2 Interfaces
Interface Function
Optical Ports
2 ports to receive FT3 messages or receive IRIG-B code.
2 ports to send FT3 messages or send IRIG-B code.
Port Type: ST
Wavelength: 850nm, supporting baud rate 2.5M, 5M, 10M
Power ≥--15dBm
Sensitivity≥-30dBm
Optical Ethernet
Ports
4 pairs of 100Mbps optical Ethernet.
Send or receive IEC61850-9-2 and GOOSE messages.
Port type: LC
Wavelength: 1310nm
Power ≥--20dBm
Sensitivity≥-30dBm
LAN port 100Mbps Ethernet
Port type: RJ-45
Binary Input: 1 pair
Output: 1 pair
Micro SD card Used to import configuration file, save record file and screen shot
pictures.
USB Connect with PC or Pad.
Power socket Inject power supply

PNS630 Handheld Analyzer User Manual
8
2.1.3 Power supply
Battery: 12.6V 4400mAh lithium battery
Power adaptor:
Input: AC 100~240V, 50/60Hz
Output: DC 15V, 1.66A
Battery charge:
4~6 charging time per once
The charging time is suggested more than 12 hours in the first three times.
Working time: Continuously working more than 6 hours after full charging.
2.1.4 Environment
Operation temperature: -10~50°C
Storage temperature: -25~70°C
Relative humidity: 5%~95%
Atmosphere pressure: 80~110kPa

PNS630 Handheld Analyzer User Manual
9
2.2 Performance
1) Dynamic response time < 2s
2) Remote measurement response < 2s
3) Remote information response time < 2s
4) Transimission distance > 1km，output accuracy 0.5 class
5) The average largest error of sending SMV < 1us.
6) 30.0Hz~70.0Hz:
SMV voltage: 0.01Ue~2Ue, measurement accuracy > 0.05% and phase accuracy >
0.01°.
SMV current: 0.01Ie~40I, measurement accuracy > 0.05% and phase
accuracy >0.01°, frequency accuracy > 0.002Hz.
7) Resolution of GOOSE receiving < 1ms
8) Error≤1us in IRIG-B mode
9) Measurement range of the optical power -31dbm~-14dbm, wavelength 1310nm
10) Support SCL import.

PNS630 Handheld Analyzer User Manual
10
3. Panel description
3.1 Front panel
This is the PNS630 front panel. The keys and its functions are as below information.
PNS630 Front panel
1. Color touch-screen 7 inches.
2. Function keys: Each key has its own functions that are indicated in each module.
3. Direction keys: Choose the item required by control the keys.
4. Esc: Exit from the present testing or page.
5. Enter: Enter into the testing or page chosen.
6. Home Key: press it to go back to the main interface or screen shot
7. Power: On/Off

PNS630 Handheld Analyzer User Manual
11
8. Power indicator: The indicator is on when PNS630 is power on.
9. Charge indicator: The indicator is on while charing. When it is charged full, it is off.

PNS630 Handheld Analyzer User Manual
12

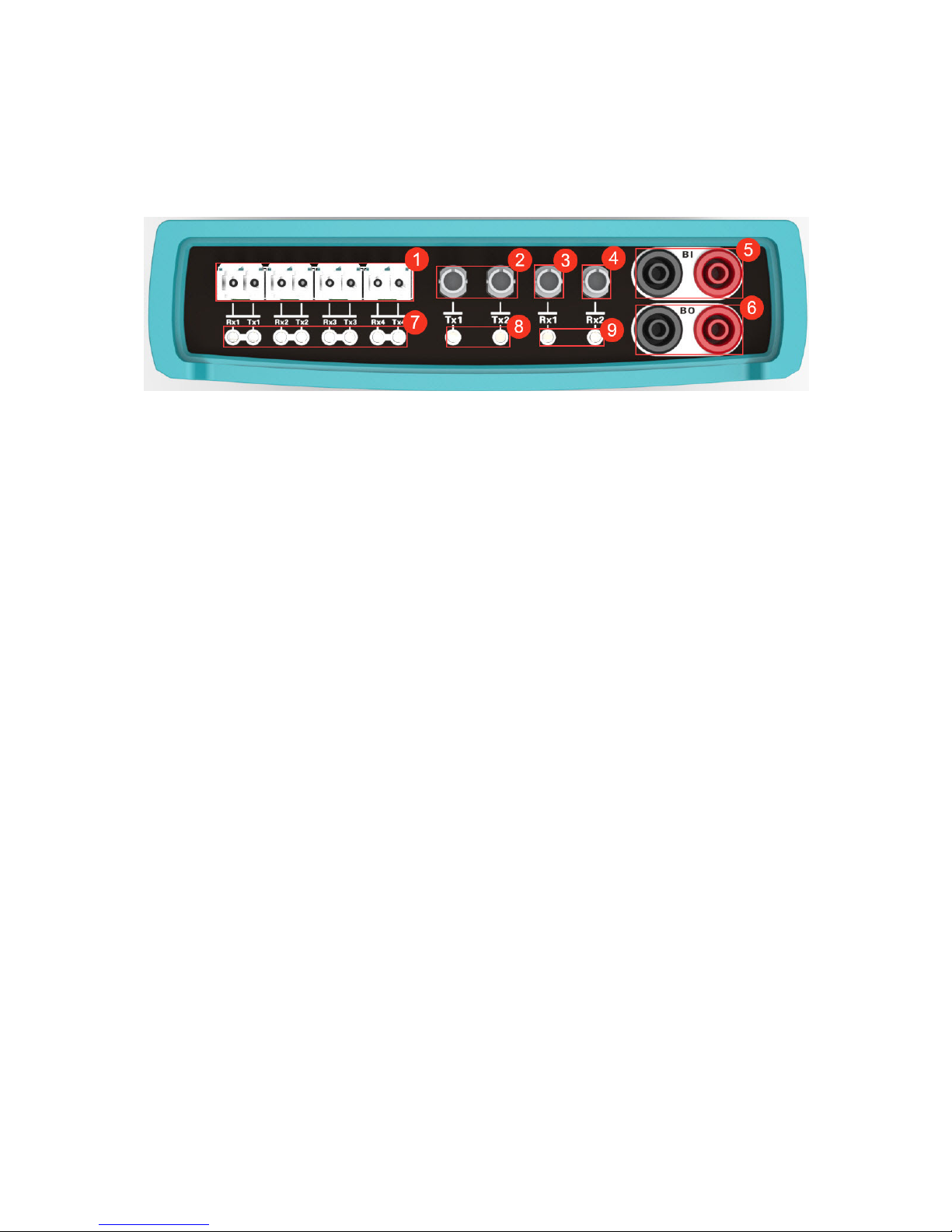

3.2 Top panel
PNS630 Top panel
1. Optical Ethernet port 1-4: LC Rx port to send and receive IEC61850-9-2, GOOSE and IEEE1588.
2. Optical serial port TX1-2: ST port to send IEC60044-7/8 and IRIG-B code.
3. Optical serial port RX1: ST port to receive IEC60044-7/8 and IRIG-B time.
4. Optical serial port RX2: ST port to receive IEC60044-7/8 and PPS signal
5. Binary input (BI): Receive binary input signal
6. Binary output (BO): Send binary output signal
7. Optical Ethernent port indicator TX1-4 and Rx1-4: When data is in transmit, it is on.
8. Optical serial port TX1-2 indicator: It is on when there is data received.
9. Optical serial port RX1-2 indicator: It is on when there is data sent.

PNS630 Handheld Analyzer User Manual
13

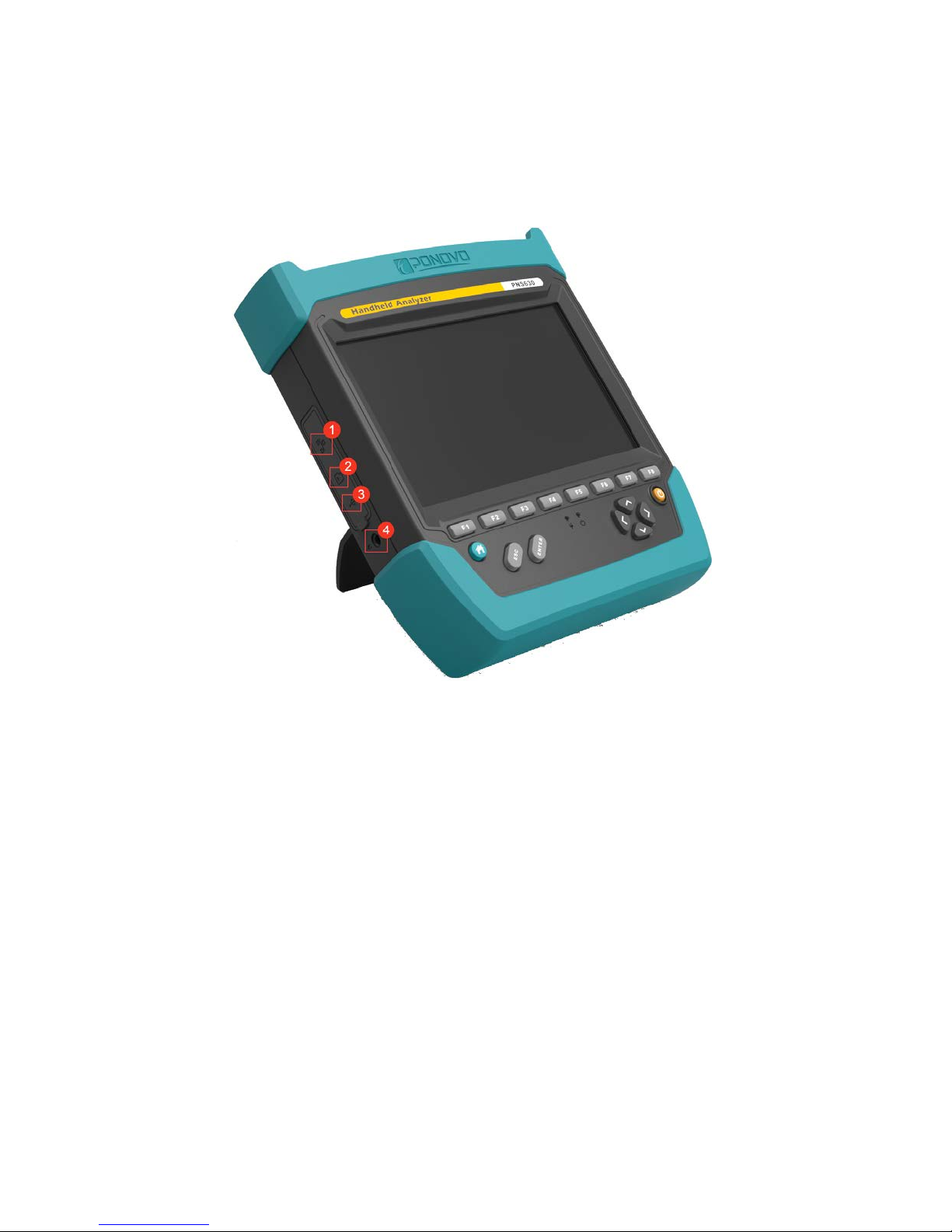

3.3 Left panel
1. Ethernet port RJ45: Receive and send MMS messages by Ethernent.
2. SD card: Used to import the configuration file, save record file and screenshot
pictures.
3. USD device: Connect with computer.
4. Charge hole:

PNS630 Handheld Analyzer User Manual
14
4. Operations
4.1 Power on/ Power off
Press power button to power on or power off.
4.2 Main interface
There are 12 modules: SMV, GOOSE, Quick Test, Sequence, Time, Net Flow, IED,
Waveform, Optical Power, Network, MU Delay and SCD visualization.
Press navigator key to change between modules.
Main interface
SMV: Receive SMV messages and display the analysis results in rms, waveform,
sequence, phase, power, phase-check, polarity, harmonic and real-time messages and
make a record on the drop-frame messages.
GOOSE: Receive GOOSE messages and show the real-time value, bit-change,
message record, monitor and test GOOSE sending mechanism.
Quick Test: Send SMV and GOOSE message, simulate MU to output IEC61850-9-2,
IEC60044-7/8(FT3), and GOOSE; Receive GOOSE or binary from test object to test the
relay test, MU or IED.

PNS630 Handheld Analyzer User Manual
15
Sequence: Output SMV and GOOSE as prefault settings, receive the GOOSE or binary
sent by the test object, like relays, MU and IED.
Time: Show the IEEE1588, IRIG-B code or time source to send IRIG-B code.
Net flow: Monitor SMV, GOOSE, IEEE1588 and other types of messages’ quantity, flow
and percentage.
IED: Send GOOSE message and receive binary or send binary and receive GOOSE
message. Test IED delay or SOE.
Waveform: Detect and record the messages received.
Optical power: Show the real value, average value, max value and min value received
by each port.
Network: Control the present flow by sending SMV, GOOSE and network in each port
MU delay: Receive time signal, test MU time delay, time accuracy and synchronization
accuracy.

PNS630 Handheld Analyzer User Manual
16
5. System
In the main interface, press “settings” or F1 to enter into the setting page to set PNS630.
Screen touches the setting item or press navigor button to swtich between different
settings to finish the setting information.
Press Esc to cancel or change the setting information.
5.1 Basic settings
In the setting page, choose “Settings” showing below to start settings.
System settings
Backlight time: Set the backlight time, PNS630 will be staying saver state without no
operation during the setting time.
Home: two choices are available, home and PrintScreen
Home: Press Home to get back to the main interface.
PrintScreen: Press Home button to get present screenshot and save it in the folder file
printscreen.
Time Zone: Set the correct time zone at site.
Optic port in: Screen touches or press Enter key to activate it.

PNS630 Handheld Analyzer User Manual
17
Series series in: Screen touches or press Enter key to activate it.
5.2 Help
Press Help to check the help instructions.
At present, this part is reserved.
Help

PNS630 Handheld Analyzer User Manual
18
5.3 About
Select About to get the kit information.
About

PNS630 Handheld Analyzer User Manual
19
6. Parameter
In the main interface, screen touches “Parameter” or press F8 to enter into the parameter
page.
There are SMV output, GOOSE publish, GOOSE subcribe and binary for option.
6.1 Parameter
In parameter, there is the configuration file, frequency, voltage, current channel and
primary/secondary value, time synchronization plan and message send method as
below.
Parameter
Import SCL: Select the SCL configuration file used in present station and touch Import
or press F2 to import.
Note: The SCL files should be saved in the SD card in advance.
Rated frequency Fn, voltage and current: the rated frequency, voltage and current
based to analyze the messages.
PT1-PT4: the default primary/ secondary voltage in four channels.

PNS630 Handheld Analyzer User Manual
20
CT1-CT4: the default primary/ secondary current in four channels.
Note: The default voltage and current can be set according to the test IED.
Time method: +B code (IRIG-B positive), -B code (IRIG-B negative), IEEE1588
Send method: hold send option is available.
When it is chosen, the tester will keep SMV and GOOSE sending until the message
becomes 0.
When it is not chosen, all the messages will be stopped sending.
