Poolrite Gemini sq twin User manual

Location

•The pump can be installed up to 12m from the pool or spa and up to 1m above or below the water surface level.

•The pump should be installed on a secure and level concrete (or similar) base at least 600mm x

300mm in size, in a location that cannot be ooded by storm water or accidental immersion.

•The rear of the motor should be no closer than 150mm from a wall, fence or barrier to allow adequate air ow.

•The pump is weatherproof. However if installed in an enclosure, the enclosure must have inlet and outlet

ventilation with each opening at least 200mm² as close as practically possible to the pump motor.

Water Connection

•Suction and Discharge Ports are provided with Union Adaptors for quick connection to

PVC pipes and should be sealed with ABS + PVC compatible gluing agent.

•The Suction Port is to be connected to the pool’s skimmer box or suction outlet from the pool. For best

performance a straight length of 450mm long pipe should be connected prior to the Suction Port.

•The Discharge Port is to be connected to the Inlet Port of the Filter Valve.

• When connecting the pump below the pool surface level, ensure that Shut-off Valves are tted to the Suction & Discharge Ports.

Power Connection

•The pump is supplied with a 1.8m lead and 3 pin plug to be connected to a 220V- 240V/50Hz

1 phase power supply, in accordance with National Wiring rules (AS/NZS 3000).

•The pump is to be supplied through a Residual Current Device (RCD) having a rated residual current not exceeding 30mA.

• Weatherproof power point if outdoors, must be installed by an electrician.

DO NOT USE EXTENSION LEADS OR POWERBOARDS TO RUN POOL EQUIPMENT AS THEY ARE UNSAFE AROUND THE POOL ZONE.



Priming the Pump

•Before starting your pump for the rst time, ensure the pump is primed by checking that the hair and lint pot is full of

water and there is sufcient water supply in the suction line.

• Connect the pump to the power supply and switch onto HIGH SPEED using MODE button.

• If ow is not established within approx one (1) minute, switch the pump to STANDBY using the MODE button and

repeat the above steps to prime the pump.

Pairing the Pump with the Remote Control

• Your remote control has been factory paired to your Gemini Twin pump, however the pairing procedure can be repeated.

a) Press and Hold the MODE button on the pump for approx 5 seconds until the AUTO light begins to ash.

b) Then Press and Hold the STOP button on the remote control until the AUTO light on the pump turns off.

Your pump and remote are now paired.

DO NOT ALLOW THE PUMP TO RUN DRY AS THIS MAY CAUSE DAMAGE TO THE IMPELLOR AND MECHANICAL SEAL,

VOIDING WARRANTY. THE OPERATING TEMPERATURE RANGE FOR THE PUMP IS BETWEEN 5-40˚C.

Any water ingress will not be covered by warranted.

Location

•The pump can be installed up to 12m from the pool or spa and up to 1m above or below the

water surface level.

•The pump should be installed on a secure and level concrete (or similar) base at least 600mm x

300mm in size, in a location that cannot be ﬂooded by storm water or accidental immersion.

•The rear of the motor should be no closer than 150mm from a wall, fence or barrier to allow

adequate air ﬂow.

•The pump is weatherproof. However if installed in an enclosure, the enclosure must have inlet and

outlet ventilation with each opening at least 200mm² as close as practically possible to the pump motor.

Water Connection

•Suction and Discharge Ports are provided with Union Adaptors for quick connection to PVC pipes and

should be sealed with ABS + PVC compatible gluing agent.

•The Suction Port is to be connected to the pool’s skimmer box or suction outlet from the pool. For best

performance a straight length of 450mm long pipe should be connected prior to the Suction Port.

•The Discharge Port is to be connected to the Inlet Port of the Filter Valve.

•When connecting the pump below the pool surface level, ensure that Shut-off Valves are ﬁtted to the

Suction & Discharge Ports.

DO NOT USE EXTENSION LEADS OR POWERBOARDS TO RUN POOL EQUIPMENT AS THEY ARE UNSAFE AROUND THE POOL ZONE.

Priming the Pump

• Before starting your pump for the ﬁrst time, ensure the pump is primed by checking that the hair and

lint pot is full of water and there is sufﬁcient water supply in the suction line.

•Connect the pump to the power supply and switch onto HIGH SPEED using MODE button.

•If ﬂow is not established within approx one (1) minute, switch the pump to STANDBY using the MODE

button and repeat the above steps to prime the pump.

DO NOT ALLOW THE PUMP TO RUN DRY AS THIS MAY CAUSE DAMAGE TO THE IMPELLOR AND MECHANICAL SEAL,

VOIDING WARRANTY. THE OPERATING TEMPERATURE RANGE FOR THE PUMP IS BETWEEN 5-40˚C.

Any water ingress will not be covered by warranted.

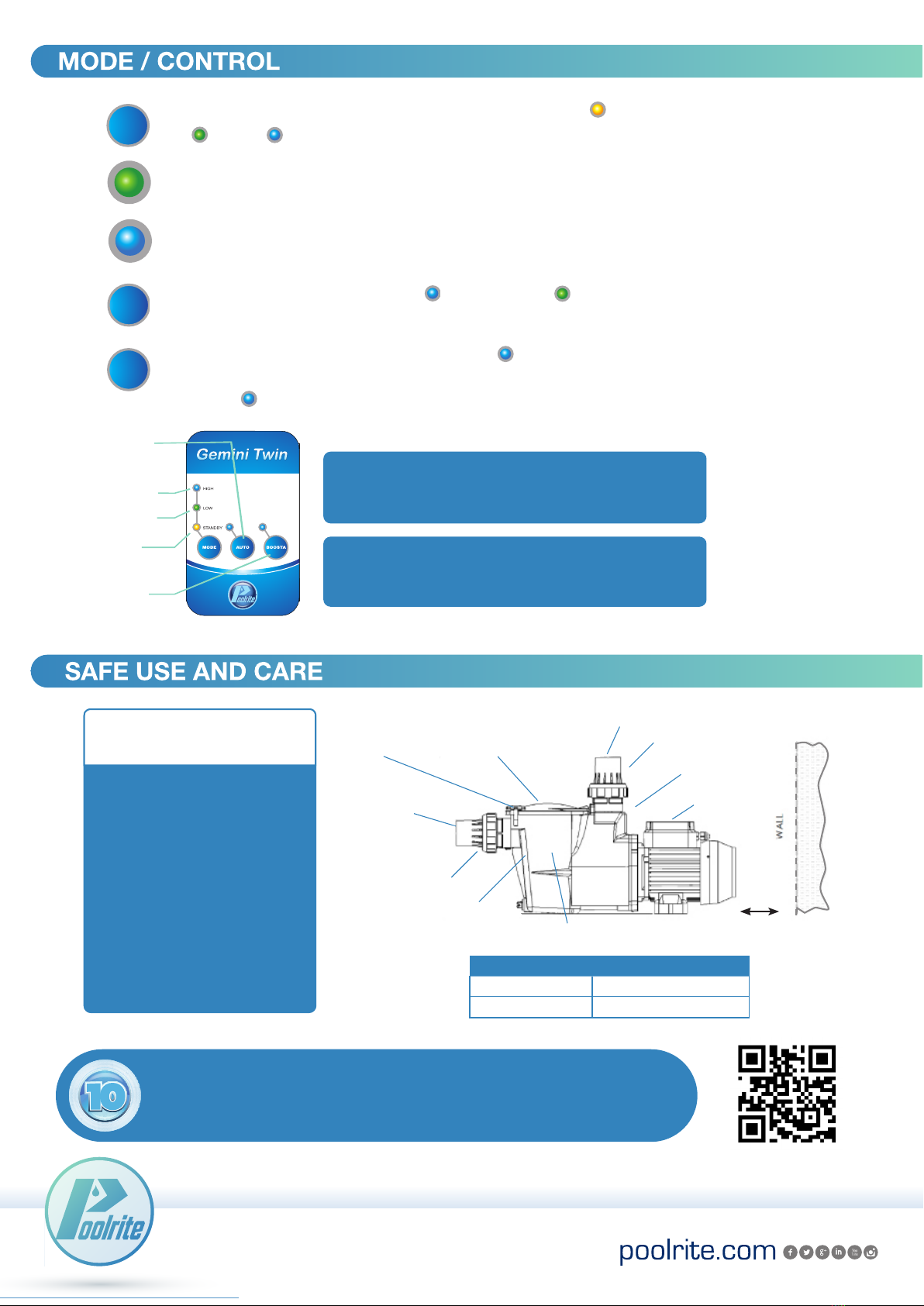

Gemini SQ Twin™

The pump always starts in high speed to ensure

pump priming. When low speed is selected

pump will start in high speed for 2 minutes.

INDICATOR LIGHTS.

A solid light shows the current mode of operation, a ﬂashing

light indicates the mode the pump is changing to.

MODE button on the pump, allows you to switch the pump to

The pump always starts in high speed to ensure

pump priming. When low speed is selected

pump will start in high speed for 2 minutes.

INDICATOR LIGHTS.

A solid light shows the current mode of operation, a ashing

light indicates the mode the pump is changing to.

MODE button on the pump, allows you to switch the pump to STANDBY (STOP),

LOW or HIGH speed mode.

LOW Speed is the recommended normal operating mode for skimming, pool ltration and

sanitation, with signicantly lower energy consumption and operating costs.

HIGH Speed is the recommended mode for Filter Backwashing and the operation of all Pool Cleaners or

any additional equipment requiring signicant water ow.

AUTO MODE will alternate between HIGH speed and LOW speed each time the pump is turned on. This

patented feature is best used with a chlorinator’s timer to sync in with ltration and cleaning cycles.

SYNC-AUTO will pause operation of the pump for 15 secs (this time will also allow a

synchronisation to any Triphibians installed for either skimming or vacuum cleaning).

BOOSTA MODE immediately runs the pump on HIGH speed for 30 minutes (no matter what

the pump is doing) for rapid cleaning prior to or after swimming. Following the 30 minute

HIGH speed operation the pump will revert to its previous operating state.

AUXILIARY button is only compatible with the Poolrite Surechlor 4500 Controller.

This can be used to operate extra features for your pool (eg. Water Feature or Pool Light).

The Pump Motor is an electrical device and as such

should not be disassembled or serviced by anyone

other than an authorised Poolrite Service Technician

or qualied Electrical Service Company.

This appliance is not intended for use by young

children or inrm persons unless they have been

adequately supervised by a responsible person to

ensure that they can use the appliance safely.

Young children should be supervised to ensure that

they do not play with the appliance. If the supply cord

is damaged, it must be replaced by an Authorized

Poolrite Service Technician in order to avoid a hazard.

Any other problems that cannot be corrected by

routine maintenance should be attended to by an

approved service agent.

WARNING!

Sync-Auto

High Speed

Low Speed

Stop

Auxiliary

Boosta

PumpRemote

Auto

Pump Speed Max Total Head

Low 4.8m

High 18.2m

Discharge Port

Clamp Knobs

Suction Port

Pump Body

Control Panel

Union Adapter

Hair & Lint Pot

Union Adapter

Clear Lid

Strainer Basket

150mm

BOOSTA

AUTO

MODE

BOOSTAAUTO

MODE

BOOSTA

AUTOMODE

Warranty

UP TO 10 YEARS ON PUMP HOUSING,

3 YEARS ON MOTOR, 2 YEARS ON

INTERNALS AND 1 YEAR ON ELECTRONICS*

For full warranty terms and conditions,

Poolrite is an Australian made and owned product of The Evolve Group of companies

P+61 7 3803 6222 F+61 7 3803 6353 E[email protected]

See the full range of products at

* Terms and conditions apply, please visit www.poolrite.com/pages/warranty for more information.
