poolstar FASTER User manual

Robot automatic pool cleaner
User manual
WIT 400
WIT 400

Safety warnings and instructions
Components
Before operation, please carefully read the manuals, to be sure it is understood, otherwise,
it may cause serious damages.
WIT 400
X1
X1
X2
X1
X11
X1
Keep away from children and pets.
Repair the vinyl first, when there is broken /
damages .
If you find any damage to the cleaner,
please stop using it.
Keep away from hairs, cloths, or body, to
avoid injury.
WARNING!
Do not clean in new pools without firstly
manual cleaning .
Remove the cleaner before chemically
shocking your pool.
Do not swim with cleaner together.
Pipe out the water and store the cleaner
under the roof safely.
Remove cleaner when filter backwash.
Note: The above warnings do not avoid all risks or serious injuries. Please operate
carefully with common sense.
1
B
C
D
E
F
G
A
A. Cleaner
B. Adjustable
Regulator valve
C. Teeth joint
D. 45℃Elbow
E. Hose weight
F. Female-Female hose
G. Male-Female hose

Installing the cleaner
STEP 1: Preparing your pool.
1.Manually remove very large debris from
pool (ie. post storm, spring cleaning/pool
opening situations).
2.Backwash your filter, skimmer baskets and pump basket.
3.make sure your chemical balance is correct. If not, now is
the time to correct it . Use the pool after 4 hours of adjustment.
4. Returning devices pointing down .
5. Close pump.
b.
c.

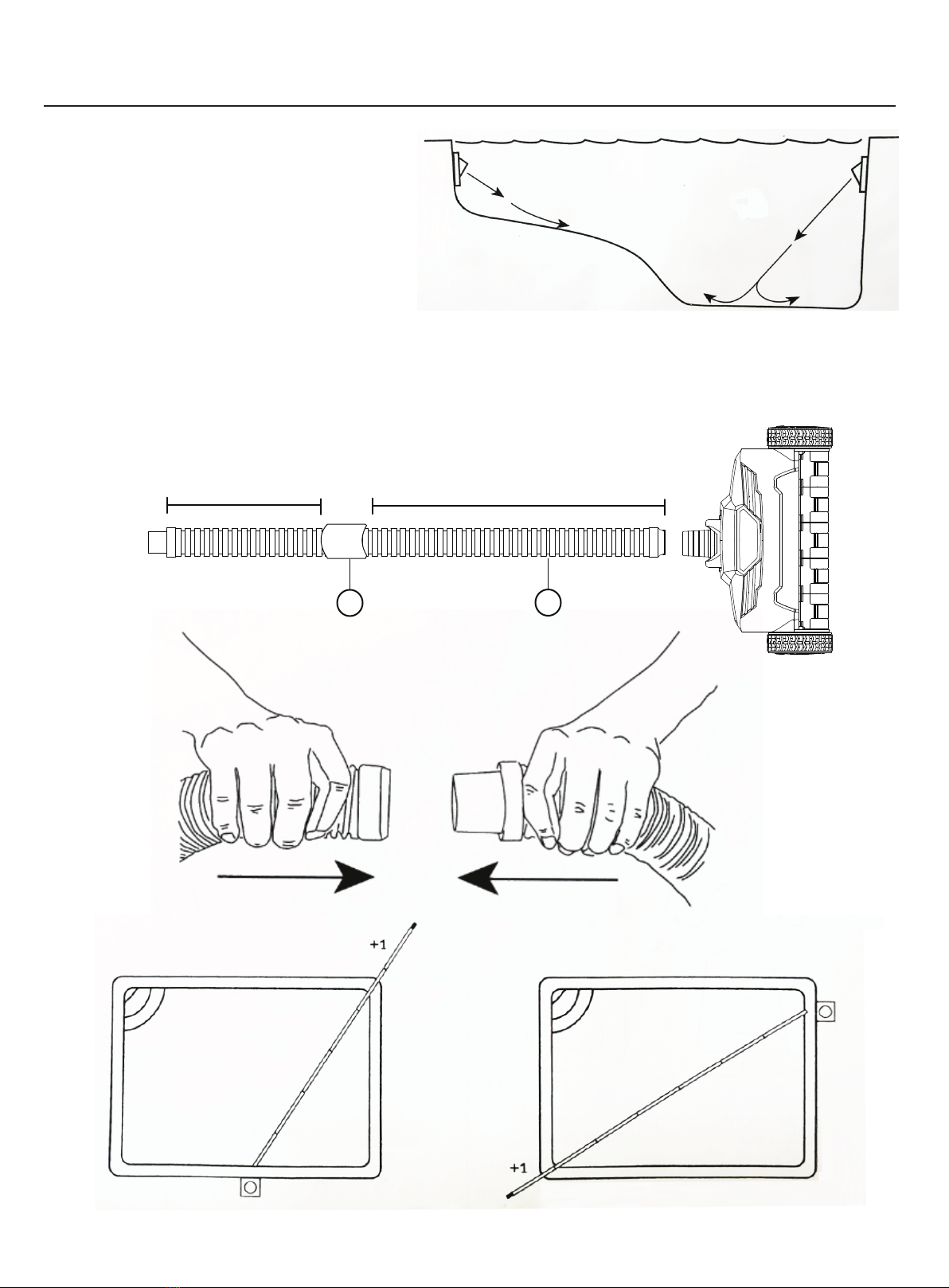

STEP 2: Connecting the hoses.
1/3 2/3
a.
WIT 400
2
EG

WIT 400

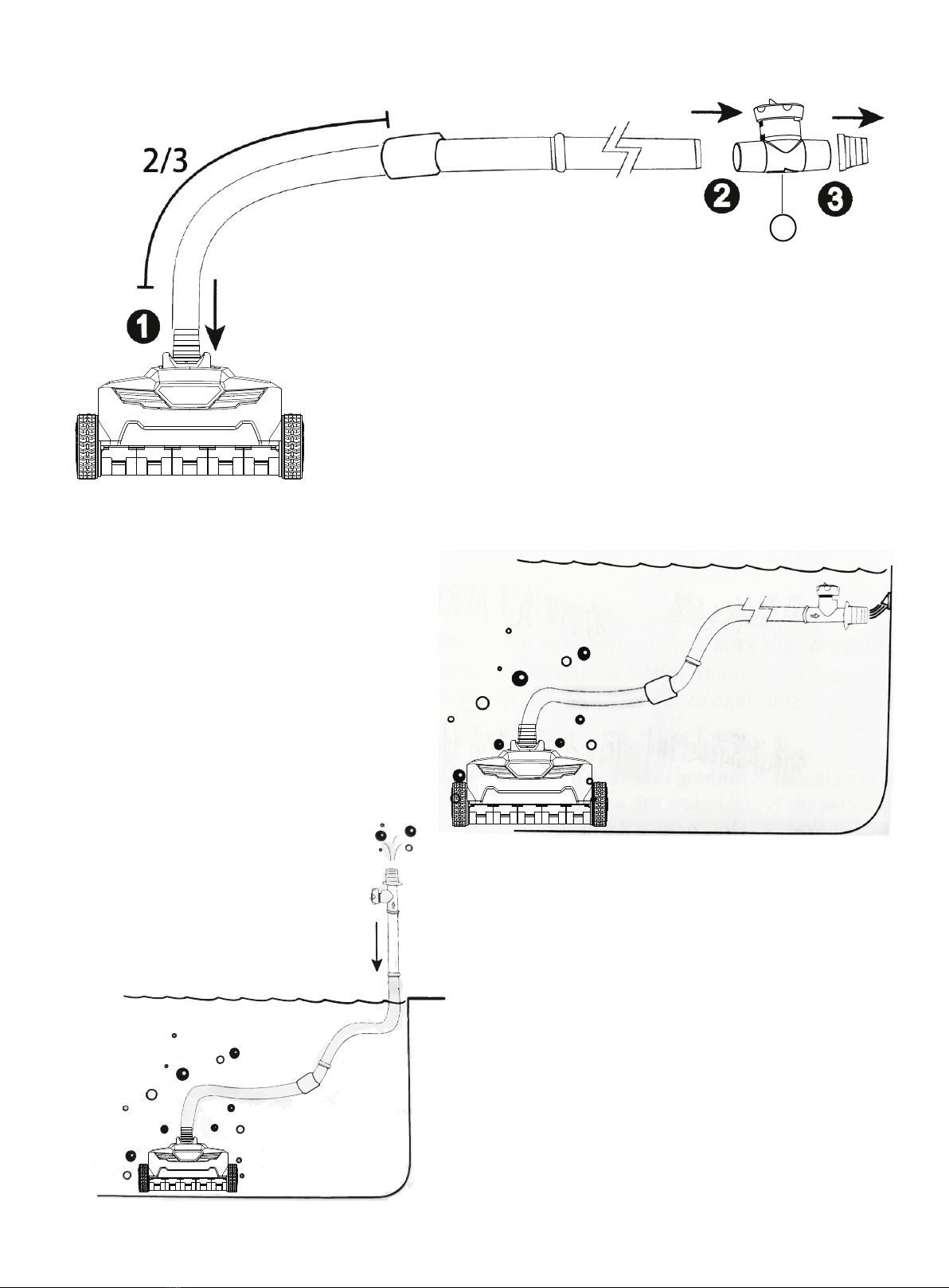

STEP 3: Connect with the cleaner.
STEP 4: Cleaner into the water .
WIT 400
WIT 400
Put the cleaner into the water, turn on your
pump ,and make one hose connect with the
regular valve, to pipe out the air from
cleaner and hoses.
OR
Turn off the pump, put the cleaner into water,
and the vertically draw the hose down into the
water till the hose is completely filled with water.
3
B

STEP 5: Connecting to pump.
In order to ensure the service life of the cleaner
and achieve the best cleaning effect, we must
control the water flow through the cleaner. The
flow through the cleaner is measured by
counting the RPM of the wheel.
For best results, the number of revolutions
per minute (RPM) of the wheel should be
between 30 and 32.
When the cleaner is running, hold the
bellows and lift it up, keeping the
cleaner in the water. (keep the cleaner
below the water level, or it will breathe
air, now marked by the ring on the right
wheel.). Calculate the RPM of the front
right wheel. If the number of revolutions
is between 30 and 32, that's fine.

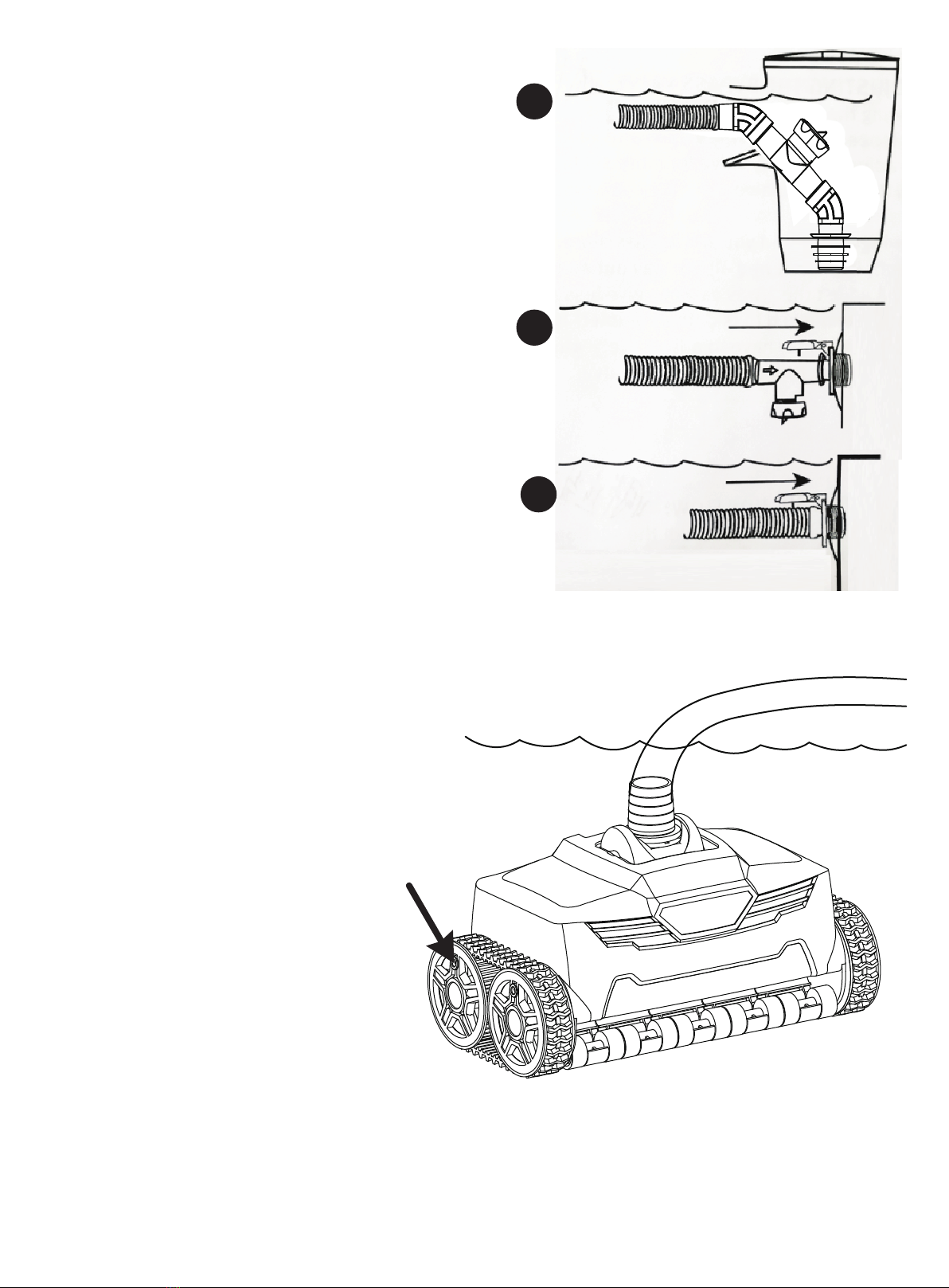

If your cleaner speed is not in this range, there are two ways to adjust it.
1.Make sure that the filtration pump is turned off.
2.If you are hooking into a skimmer, tightly press the
Regulator Valve and the Hose Cone (valve adapter) end
into the bottom of your skimmer (see image 1).
3.If you are hooking into a designated threaded suction
Port/line then unscrew in the Vac Lock and insert the
Regulator Valve (see image 2).
Or
Insert the hose directly into the vac Lock tightly
(see image 3).
4.Switch the pump ON.
STEP 6: Adjusting the cleaner working .
WIT 400
1
2
3
4

Adjust the amount of flow from the suction
line/skimmer line to obtain the proper flow.

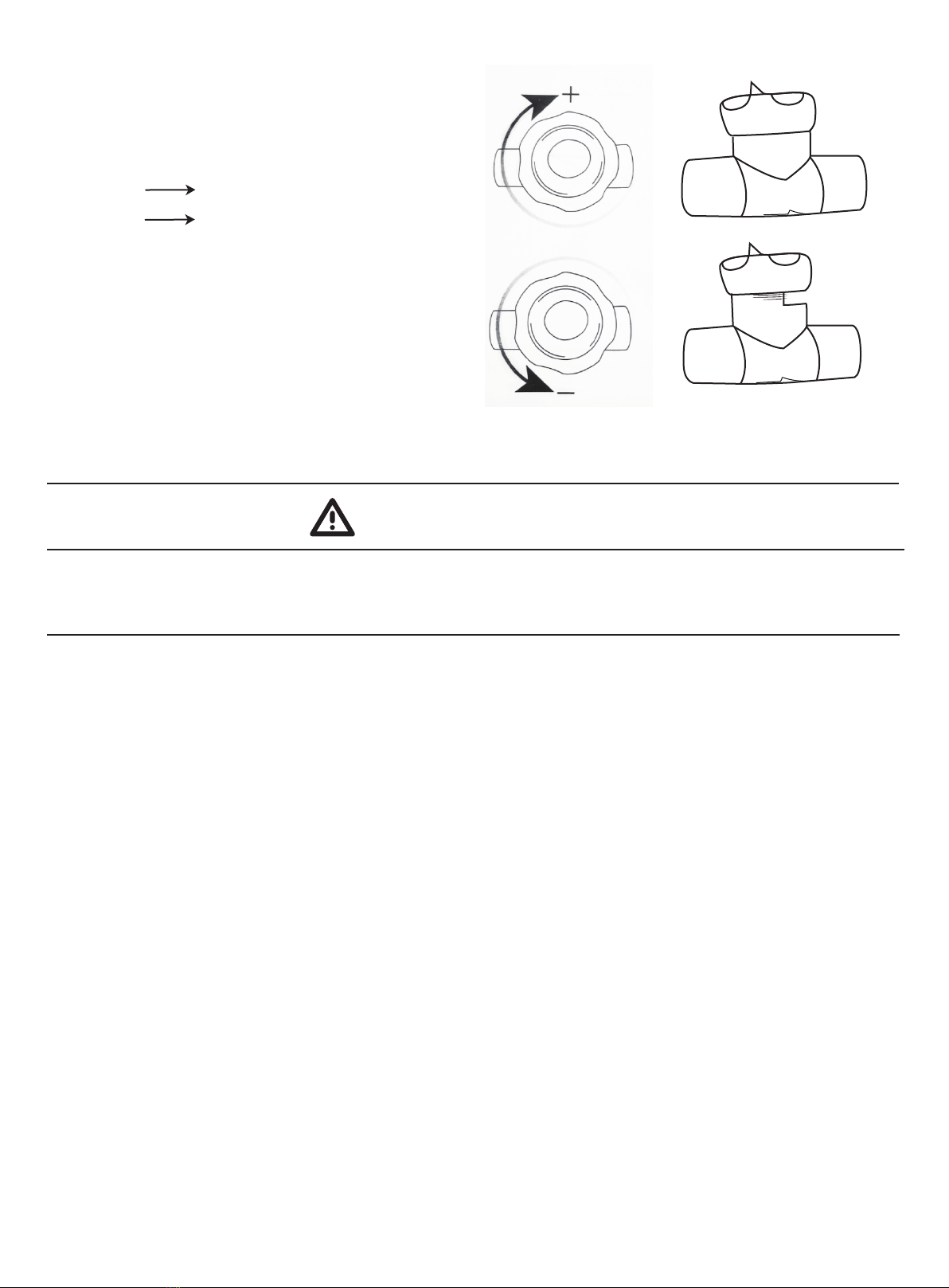

1. Adjusting the Adjustable Regulator valve
If the count is:
2. Adjusting suction flow:
Daily Maintenance
RMP < 30 Increase Flow（+）
RMP > 32 Increase Flow（-）
To avoid serious injury, make sure that the cleaner is disconnected from the bellows and turn off the
water pump before starting operation.
WARNING!
5
The cleaning capacity of the cleaner depends on the shape of the pool and the amount of water
available. If the cleaner does not climb up your pool wall, check the wheel speed to make sure the
flow is correct. At the same time, make sure that the pool surface is not covered with algae, as a
smooth surface can affect the grip of the cleaner
Empty the pump basket:
In order to operate the cleaner with the best efficiency, empty the pump basket regularly. The more
debris there is in the pool, the more often the basket is cleaned.
Backwash the pool filter:
Disconnect the cleaner from the water circulation system before backwashing the filter. After cleaning
or backwashing, allow the filtration system to run at least 5 minutes to flush out dirt, and then
reconnect the washer.
Add chemicals to the pool:
When adding chemicals, it will take at least 4 hours before use the cleaner.
Storage and winterizing:
Do not store the cleaner under sunlight. When storing in winter, drain out all water (frozen damage
is not covered by warranty). When temperate storage, do not roll up the hoses, otherwise, it will
affect with cleaner working performance. The hoses need to be flat lying.
MAX
MIN
MAX

1 2
345
6

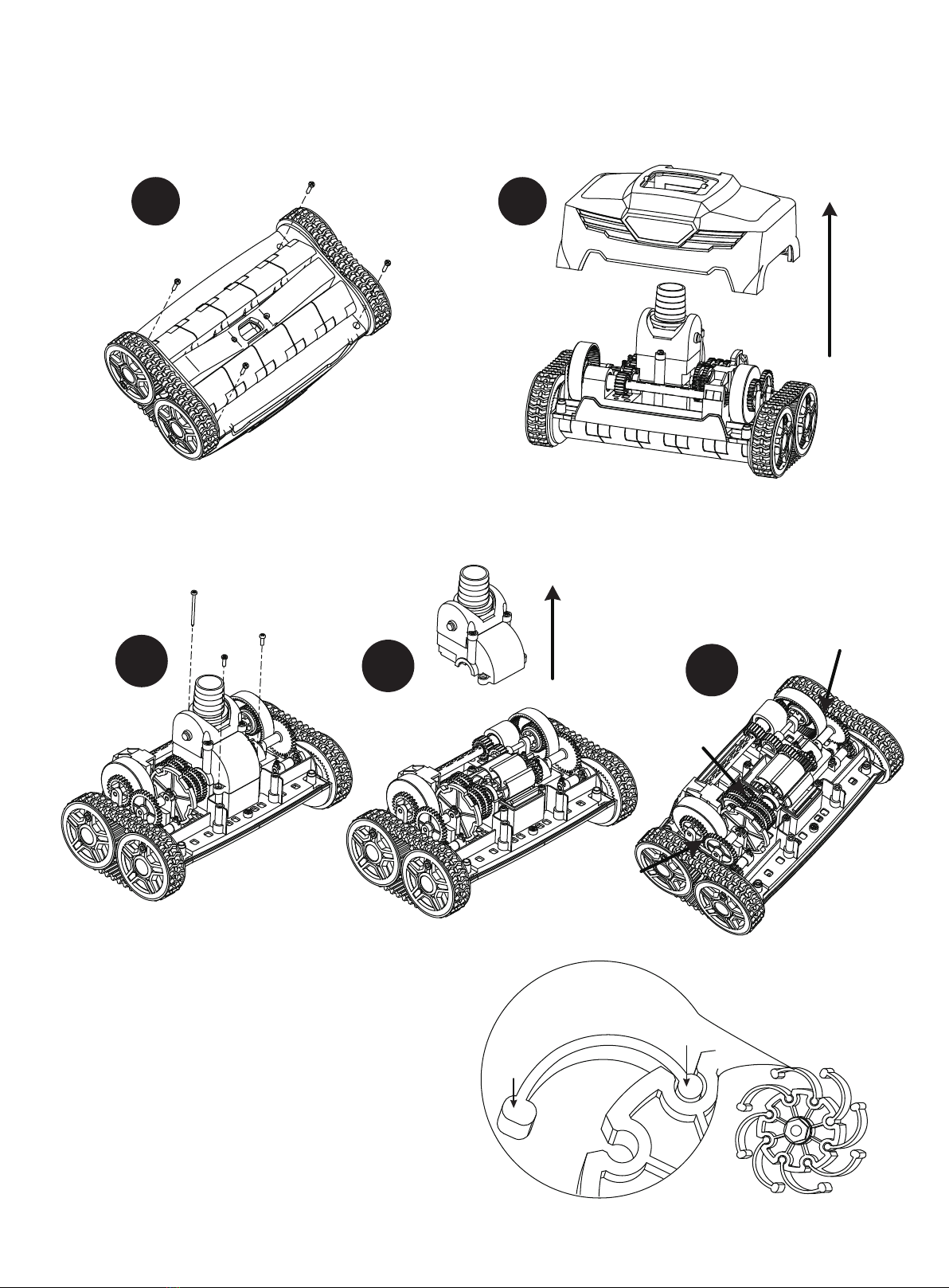

Remove Debris
Turbine blade replacement
The turbine blades must be placed in one
direction of the turbine hub (as shown in the
right figure) .
Note: the cylindrical end of the blade is
placed in the groove of the hub.
Ellipse
Cylinder

Troubleshooting:
Disassemble or replace the wheels / tracks
12
34
Cleaner doesn’t move or moves too slow Check wheel RPM. Please refer to " adjusting the cleaner " in the user
manual .
There is blockage inside the cleaner product, remove the internal blockage.
The water pump is off or running slowly. Restart or replace the water pump.
Check whether there is air in the pump circulating system. If the water level
in the water pump basket drops, or too many bubbles are seen in the pump
basket, or air is emitted from the return pipe, there is air in the circulation.
Check the hoses connections and tighten all connections on the pump.
And check whether the O-ring on the water pump basket is worn.
Filter for backwash filter unit and water pump.
The internal turbine blades of the cleaner are installed incorrectly. Refer to
" Turbine blade replacement" in the user manual.
Internal drive mechanism blockage. Refer to " Remove Debris" in the user
manual .
The track is too loose. It falls off the wheel. Track replacement.
There are other obstacles to the cleaner itself. Please contact your local
dealer.
7
If you have problems with your cleaner, follow the troubleshooting steps below to restore performance.
Note: turn off the filter pump before making any repairs.
Problem Solution

8
When you rotate the right wheel forward by hand, the
right wheel will teeth jump
Hub or right drive gear is worn out. Please contact your local dealer.
The cleaner turns in circles, it won’t go straight at all.
The area of cleaning pool with cleaner is small.
The internal drive is damaged. Please contact your local dealer.
Make sure that the hose is not bent or coiled.
The hose is too short. Please refer to "connecting the hose " in the user
manual.
The hose weight may be in the wrong position. Refer to "connecting the
hose" in the user manual. It should be 2 / 3 of the single pipe from the
cleaning head.
The rotating joint of hose connection (on the turbine top ) may be dirty, which
may cause the rotation to be stuck, and the dirt needs to be removed.
The return water may push the hose away, so that the return water direction
is downward.
Check wheel RPM. Please refer to " adjusting the cleaner " in the user
manual Device speed.
Observe the cleaner for more than 5 minutes, make sure that the cleaner
has 3 steering angles of different sizes, about (180 °, 270 ° and 450 °), if not,
contact your local dealer.
The cleaner climbs the wall too much or climbs out. Excessive suction or flow. Check the rotation speed of the wheel, Please
refer to " adjusting the cleaner " in the user manual .
Do not use the bypass Valve (if connected with wall skimmer).
Adjust the wall skimmer plate.
The cleaner won’t climb the wall. Check wheel RPM. Please refer to " adjusting the cleaner " in the user
manual .
The hose weight may be in the wrong position. Refer to "connecting the
hose" in the user manual. It should be 2 / 3 of the single pipe from the
cleaning head.
The track is too loose. It falls off the wheel. Track replacement.
The swing of the skirt is not flexible. During operation, some end skirts do
not stick to the surface of the pool. Swing the inactive group of skirts back
and forth by hand to make it freely ; Or, contact the local supplier.
Wheels Swaying . The button of the wheel is not in place. Please refer to " Wheel or track
folding and replacement " in the user manual.
The wheels are worn, please replace them. Please refer to " Wheel or track
folding and replacement" in the user manual.
The cleaner falls upside down, and no back. The hose weight may be in the wrong position. Refer to "connecting the
hose" in the user manual. It should be 2 / 3 of the single pipe from the
cleaning head.
The hose is too short. Please refer to "connecting the hose " in the user
manual.
The return water may push the hose away, so that the return water direction
is downward.
The turbine hub may be worn. Please contact your local dealer.
Turbine blades may be worn. Please contact your local dealer.
The turbine blades fall off the hub.
