Pop-A-Shot OUTDOOR I DUAL SHOT User manual

SKU# PASOut19-02 WWW.POP-A-SHOT.NET
OUTDOOR I DUAL SHOT
OWNER’S MANUAL

Remove all the parts from the box and verify that you have all of the listed parts as shown on the parts list page.
Find a clean, level place to begin assembling your Pop-A-Shot game.
Like most things in life, putting together your Pop-A-Shot is better when done with a friend.
Tip:
(we’ll tell you when).
If you can’t find someone to help for the entire time, at least try to get help at certain times
Storage: The Outdoor Dual Shot is built for outdoor use but is not designed for use in extreme
(hot or cold) conditions. Avoid excessive moisture by moving the game to a covered space or
covering with the Outdoor Dual Shot Cover (sold seperately).
Read all instructions: All the safety and operating instructions should be read carefully before this
product is operated or played.
Caution: This is not a toy and is intended for use by or under the supervision of adults. Adults should
review safety guidelines with children to avoid possible risk of electric shock or other injuries.
Recommend:The game should be periodicallyexamined for conditions that may result in the risk of fire,
electrical shock or injury to persons. In the event such conditions exist, the game should not be used
until properly repaired.
Tip: Before putting your game together, please visit our Support Page at www.pop-a-shot.net/support
There you’ll find more hints and hacks to help you put together your new game, as well as assembly videos.
We hope you love your Pop-A-Shot Home Dual Shot and will let your friends and family (and any review sites)
know how you feel. If you do have a problem (and it happens), please let us know first and give us a chance to fix it.
E: [email protected]
Required
Phillips Head Screwdriver (Not included)
Flat Head Screwdriver (Not included)
Allen Wrench (Included)
Wrench (Included)
4 AA Batteries (Not included)
Recommended (but not required)
Electric Screwdriver
Tip: Make sure to set the tool to a very
low torque to prevent damage to the game.
Socket Wrench Set
Level
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 2/16
Tip: The included tools will certainly do the job,
but you probably have better tools of your own.

10
Extra Long Bolt
Extension Tube Connector Tube Cross Tube
Top Tube Board Tube Base Tube
Cross Bar Side Arm Forward Tube
Side Tube
Allen Wrench
RampTube
Back Board
Balls
Nut
Bolt
Bolt
Short Bolt Medium Bolt
Screw for
Scoreboard Washer
Look
for parts
#15, #16, #20,
#32 & #34
in brown box
Pump Rim Net
Score Unit Score Unit Cover Screws Ball Return Ramp
Lean Bar
Sensors
Wrench
Diagonal Tube
x2 x2 x2 x4 x2 x2
123456
7 8 9 11
10 12
13 14 15 16 17
19 20 21 22 23 24
x1 x2 x2x2 x2 x1
x1 x1 x1 x8 x1x2
x7 x1 x2 x2 x2
x1 x1
x4
x16 x10 x1 x64 x32
x1
x6
x4
25 26
31
27 28 29 30
32 33 34 35
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 3/16
Control Panel x8 Sensor Screw

Fig.1A
Fig. 2A
3
Attach the Base Tubes (#3) with one Connector Tube (#5) using
a Bolt (#25), two Washers (#29) and a Nut (#30) (Fig. 1A).
Note: The upper
holes on the Board Tubes (#2)
should face forward.
Insert the Board Tubes (#2) into the Base Tubes (#3) (Fig. 2A).
3
3
3
4
2
2
25 29
29 30
5
STEP 2
Hole
Hole
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 4/16

Attach the Board Tubes (#2) and Base Tubes (#3)
with a Connector Tube (#5) using a Bolt (#26), two Washers (#29)
and a Nut (#31) (Fig. 3A).
Fig. 4A
Fig. 4B
30
26
29
29
13
2
2
13
Take the two dangling
Diagonal Tubes (#13) and
attach them to the horizontal
Connector Tube (#5) using
the Medium Bolt (#27), two
Washers (#29) and a Nut (#30)
(Fig. 4B).
Tip: Your game includes
just one Medium Bolt (#27).
Attach the Diagonal Tubes (#13) to the Board
Tubes (#2) using a Bolt (#26), two Washers (#29)
and a Nut (#30) (Fig. 4A)
Fig. 3A
2
2
26 29 31
5
3
3
29
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 5/16

Fig. 5A
Attach the TopTubes (#1) to the Board Tubes (#2) using the spring locks
(Fig. 5A). Attach a Cross Tube (#6) using a Bolt (#25), two Washers (#30),
and a Nut (#31).
1
1
2
2
6
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 6/16

Fig. 6A
Fig. 6B
12
1
1
11
8
Fig. 7A
8
7
7
Locking Pin
29
25
30
11
12
Attach the Side Arms (#11) to the
Board Tubes (#2) using a Bolt (#25), two Washers (#29)
and a Nut (#30) (Fig. 6A). Make sure the Arm is on the
outside of the Board Tube (#2).
Attach the Forward Tubes (#12)
to the Top Tubes (#1) using
the spring locks (Fig. 6B). Make
sure the Top Tubes flare outward.
Attach the Side Tubes (#7) to the
Ramp Tubes (#8) using the spring locks (Fig. 7A).
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 7/16
12

29
29
Fig. 8A 7
7
23
29
30
3
3
11
11
29
Attach the Side Tubes (#7),
Base Tube (#3) and Side Arms
(#11) using an Extra Long Bolt
(#23), two Washers (#29) and a
Nut (#30) (Fig. 8A).
Loop the Nets (#22) through the Net Hooks on the Rims (#21).
Make sure the longer strands are on top and go through the net hooks.
Attach the Rims (#21) to the Backboard (#14) using a Short Bolt (#26)
and a Washer (#29) on the front and a Washer (#29) and Nut (#30) on the back.
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 8/16
22
30
26
21 14

Note: The Sensors must
be attached level and
screwed all the way
into the Backboard (Fig 11B).
Fig 11C
Fig 11A Fig 11B
Put 4 AA Batteries into Score Unit (#15) (Batteries not included).
Attach the Score Unit (#15) to the Backboard (#14) with Screws (#28) through the back
of the backboard. Attach the Score Unit Cover (#16) to the front of the Score Unit (#15)
Tighten the 6 screws.
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 9/16
15
28
14
16
15
15
32
32
35 35
Step 11: Attach the Sensors (#32) with Screws (#35) to the front of the Backboard (Fig. 11A).
Connect the Sensors (#32) to the Score Unit (#15) by aligning and twisting the cap over the
Sensor connector (Fig 11C).
32

29
25
29
30
Attach the Backboard (#14) to the Top Tubes (#1)
using a Bolt (#25), two Washers (#29) and a Nut (#30)
for each of the top two holes.
Don’t attach the bottom of the Backboard yet.
Fig.13C
Fig.13B
Tip: If you can, grab a helper for this part.

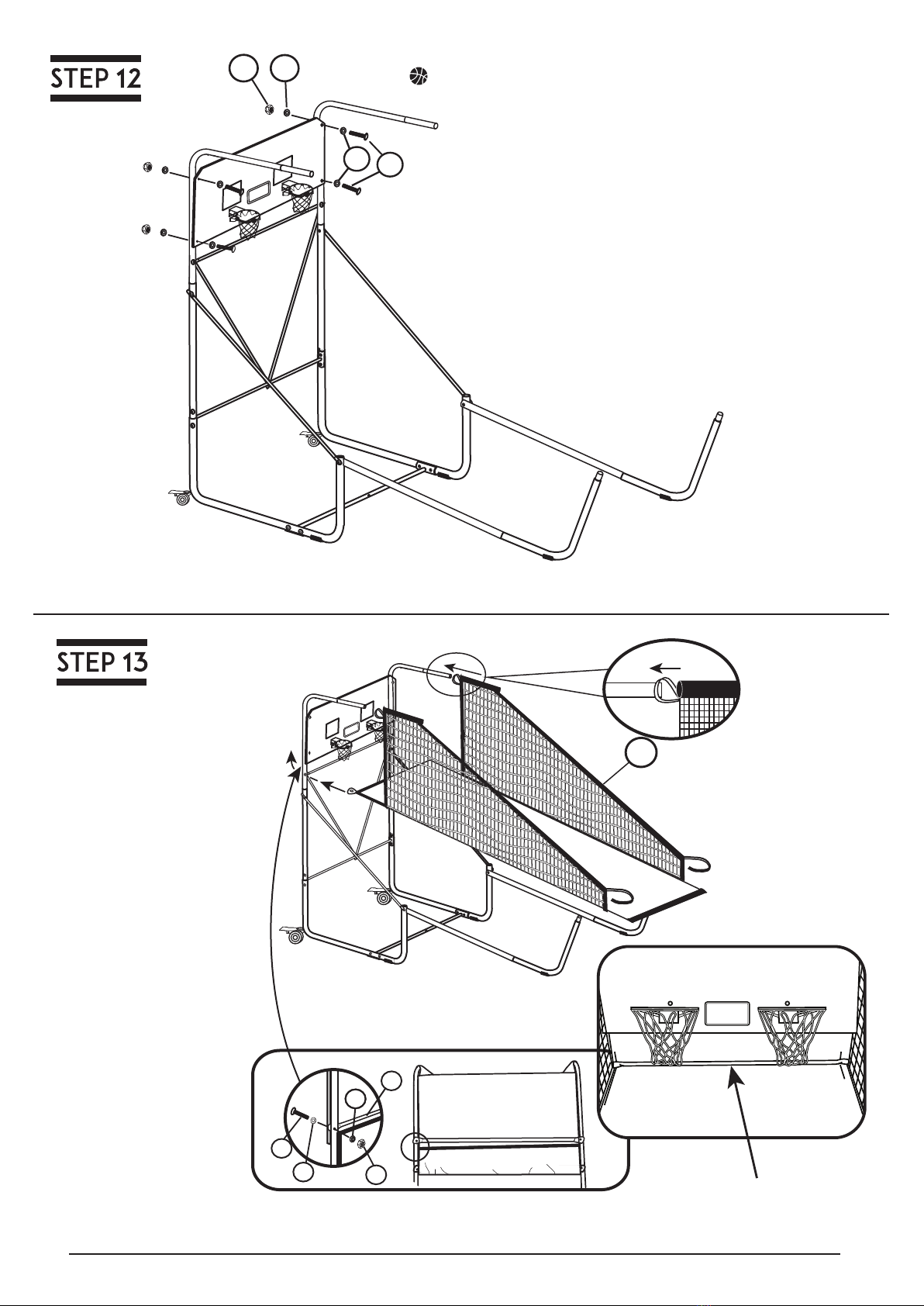

Take the Ball Return
Ramp (#18) and pull each
of the sleeves over the
Forward Tubes (#12)
(Fig. 13A).
Pull the Ramp under the
Cross Tube (#6). The
Cross Tube should be in
front of the ramp (Fig. 13B).
Slide the Cross Bar (#10)
through the sleeve on the
Ramp and attach to the
bottom of the scoreboard
with a Bolt (#24), two
Washers (#29) and a Nut
(#30) (Fig. 13C).
24
29
29
10
30
18
Fig.13A
Cross Tube (#6)
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 10/16

Slide the Lean Bar (#9) through the sleeve of the
Ball Return Ramp.
Then attach the Lean Bar to the Ramp
Tubes (#8) using the Spring Locks (Fig 14A).
6
26
29
30
29
Attach a Cross Tube (#6) across the Ball Return Ramp (#18)
to the Lean Bar (#9) using a Bolt (#26), two Washers (#29)
and a Nut (#30) (Fig. 15A). Pull the straps around the Lean bar
and snap it into the buckle (Fig. 15B). If neccesary, wrap the
straps around the bar before buckling.
Fig. 15A
Fig. 15B
STEP 14
STEP 15
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 11/16
Fig 14A

Snap the Control Panel (#34) onto the middle of the Lean Bar (#9) (Fig 16A).
Thread the control panel wire through the hole of the laminated Game Operations
“Cheat Sheet” until the cheat sheet is next to the Control Panel wire. Weave the wire through
the loops of the right side of the ramp towards the back of the backboard.
Plug the Control Panel wire into the outlet labeled “Control Panel” in the Scoring Unit.
Tip: You’ll find complete game directions and operations in this booklet.
The “Cheat Sheet” is intended as a quick reference guide.
Fig. 16A
Loops
Wire
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 12/16

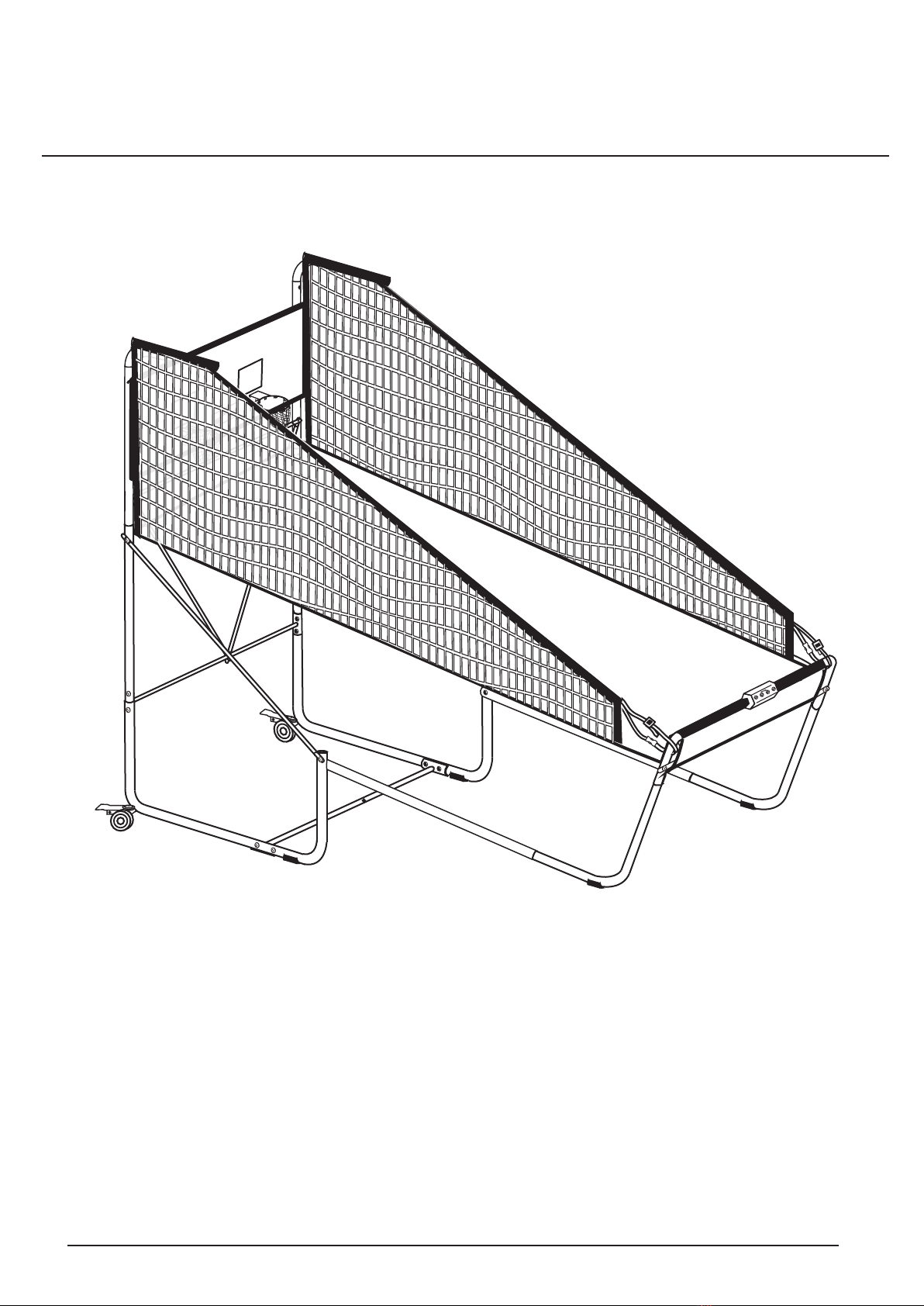

COMPLETED GAME
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 13/16
To Fold Game: Pick up the front of the game and walk towards the Rims.
Tuck the Lean bar under the Rims.

16
Now that you’ve put your Outdoor Dual Shot together, let’s get started playing!
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 14/16

OUTDOOR DUAL GAME OPTIONS
Push GAME until desired Game Number is displayed, then press START to begin.
For Games 1-9 (except 6) and Game 16
Announcer and clock will count down to start
Baskets are 2 points until final :10 when they’re 3 points
1. Standard: 2 Players/:30
Bonus: :15 extra at 30 points; :10 extra at 60 points
2. Overtime: 2 Players/1:00
Bonus: :15 extra at 50 points; :10 extra at 80 points
3. Sudden Death: 2 Players/:15
Bonus: :15 extra at 20 points; :10 extra at 40 points
4. Intermediate: 2 Players/:45
Bonus: :15 extra at 40 points; :10 extra at 70 points
5. Solo: 1 Player/:30
Only left basket is active
Bonus: :15 extra at 30 points; :10 extra at 60 points
6. Free Play: 1-2 Players/No clock
All baskets count 2 points
7. Team: 2 Players/:30
Combined score of players is shown on both scoreboards
Bonus: :15 extra at 30 points; :10 extra at 60 points?
8. Cross Court: 2 Players/:30
Player 1 goes first and shoots at basket displaying score/active basket will
change
Bonus: :15 extra at 30 points; :10 extra at 60 points?
9. Crisscross: 2 Players/:30
Players shoot at their opponent’s basket
Score is displayed on shooter’s side
10. Skeet Shooting: 1 or 2 Players
Announcer says “Shoot”, then have :03 to make basket
More Games on next page
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 15/16

TROUBLESHOOTING
If one side isn’t counting baskets
• Make sure you have chosen a multi-player game (such as Game 1) on your Control Panel.
• Make sure the sensors are securely plugged into the correct outlets in the
scoreboard (Step 11).
• Make sure the sensors are attached level, with the screws tightened all the way.
If the sensors are misaligned or angled at all, they will not correctly read the shots (Step 11).
• Check the connection between the sensors and the scoreboard (Step 11).
If neither side is counting baskets
• Make sure the sensors are securely plugged into the correct outlets in the
scoreboard (Step 11).
• Make sure the sensors are attached level, with the screws tightened all the way.
If the sensors are misaligned or angled at all, they will not correctly read the shots (Step 11).
• Check the connection between the sensors and the scoreboard (Step 11).
• Make sure the nets are correctly attached to the rims (incorrect placement can
block the sensors). The net’s longer loops should go through the hooks of the rim (Step 9).
Please visit www.pop-a-shot.net/support for more troubleshooting tips and hacks.
OUTDOOR DUAL GAME OPTIONS
11. Sharp Shooter: 1 Player
Announcer says “Left” or “Right”, then have :03 to make a shot in that basket
12. Double or Nothing: 2 Players/:30
First basket counts for 2 points, then each subsequent basket counts for
double
If no basket is made within :03, next basket is 2 points
13. Scoring Streak: 2 Players/:30
If no shot made during :03, streak is broken
14. Tug of War: 2 Players
For each made basket, that player gets 2 points and other player gets -2;
first player to 10 points wins
15. Around the World: 2-4 Players
First player to make 10 shots wins
16. Tournament: 2-4 Players
Player 1 vs. Player 4, then Player 2 vs. Player 3; winners play in Finals
SKU# PASOUT19-02
WWW.POP-A-SHOT.NET Pop-A-Shot Outdoor | Dual Shot Page 16/16
© Copyright 2019 Pop-A-Shot
