Portfolio Outdoor P1012B User manual

Serial Number Purchase Date
ATTACH YOUR RECEIPT HERE
XXXXXX Lowes.com/portfolio
Español p. 17
Français p. 9
WALL DOCK LIGHT
ITEM #0398483
#0398486
MODEL #P1012B/P1012W
Portfolio® is a registered trademark
of LF, LLC. All Rights Reserved.
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 1-800-562-5625, 7 a.m. - 5 p.m., PST, Monday - Friday.
1

2
Lowes.com/portfolio

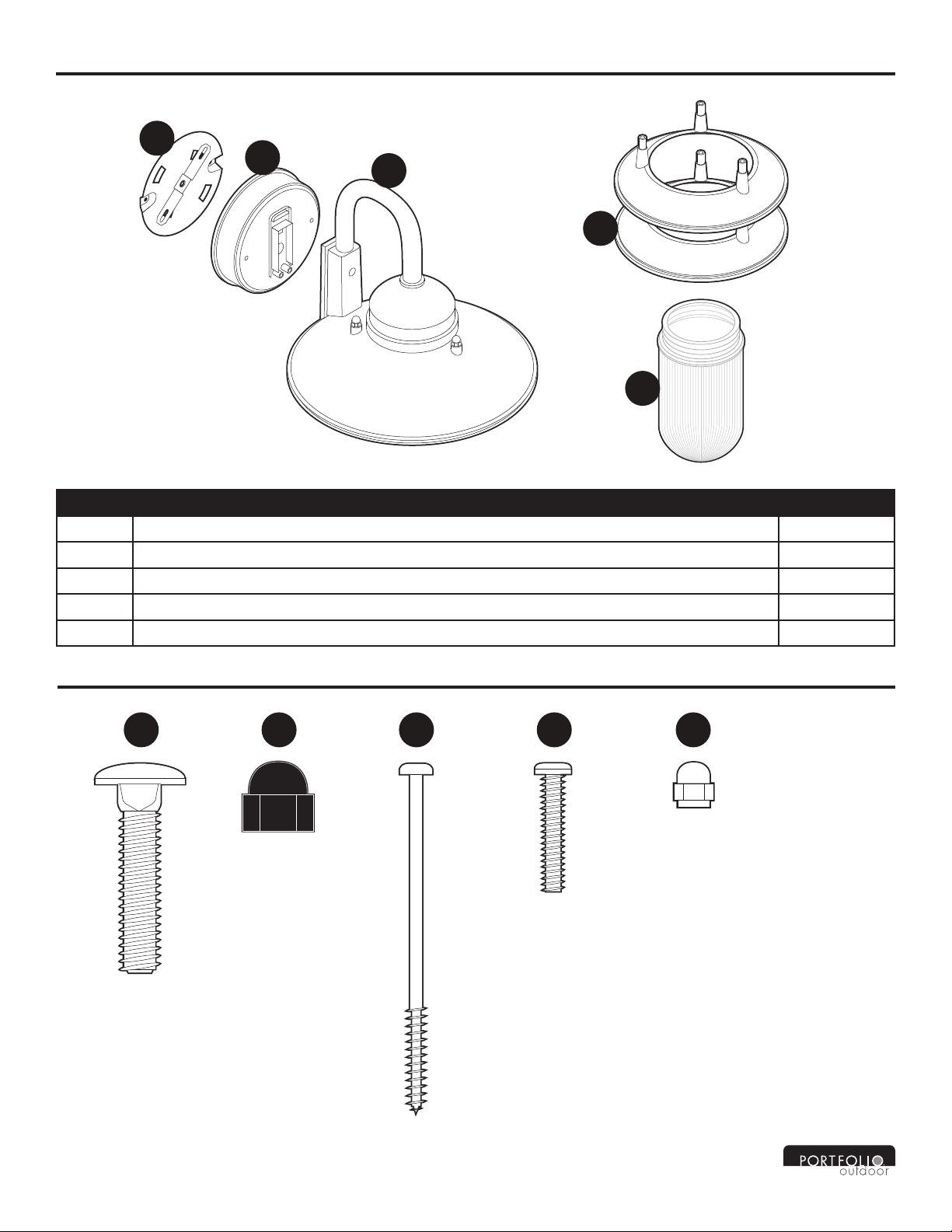

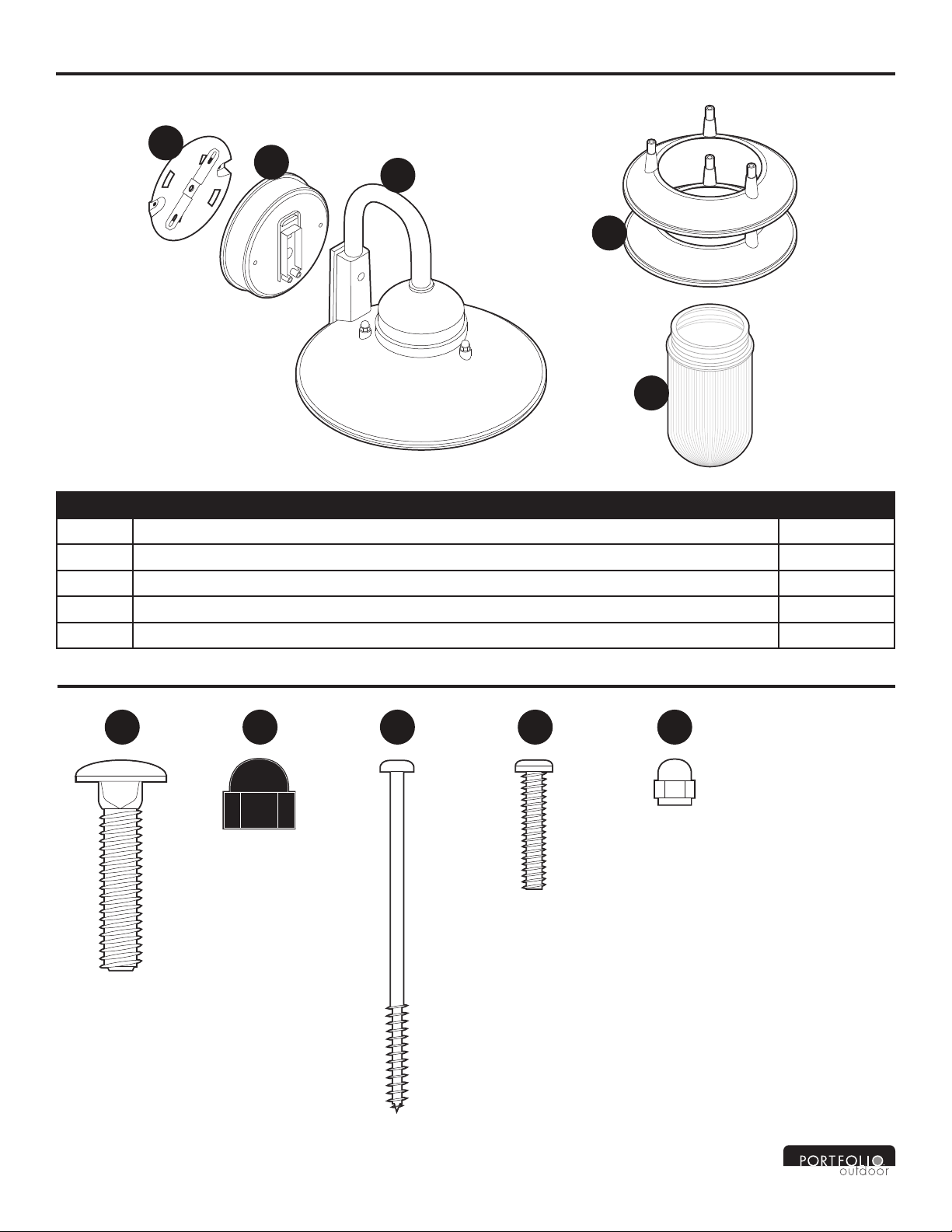

PACKAGE CONTENTS
A
D
BC
E
Carriage Bolt
x1
Acorn Nut
x1
3 in. Screw
x3
1 in. Screw
x2
Thumb Nut
x2
AA BB CC DD EE

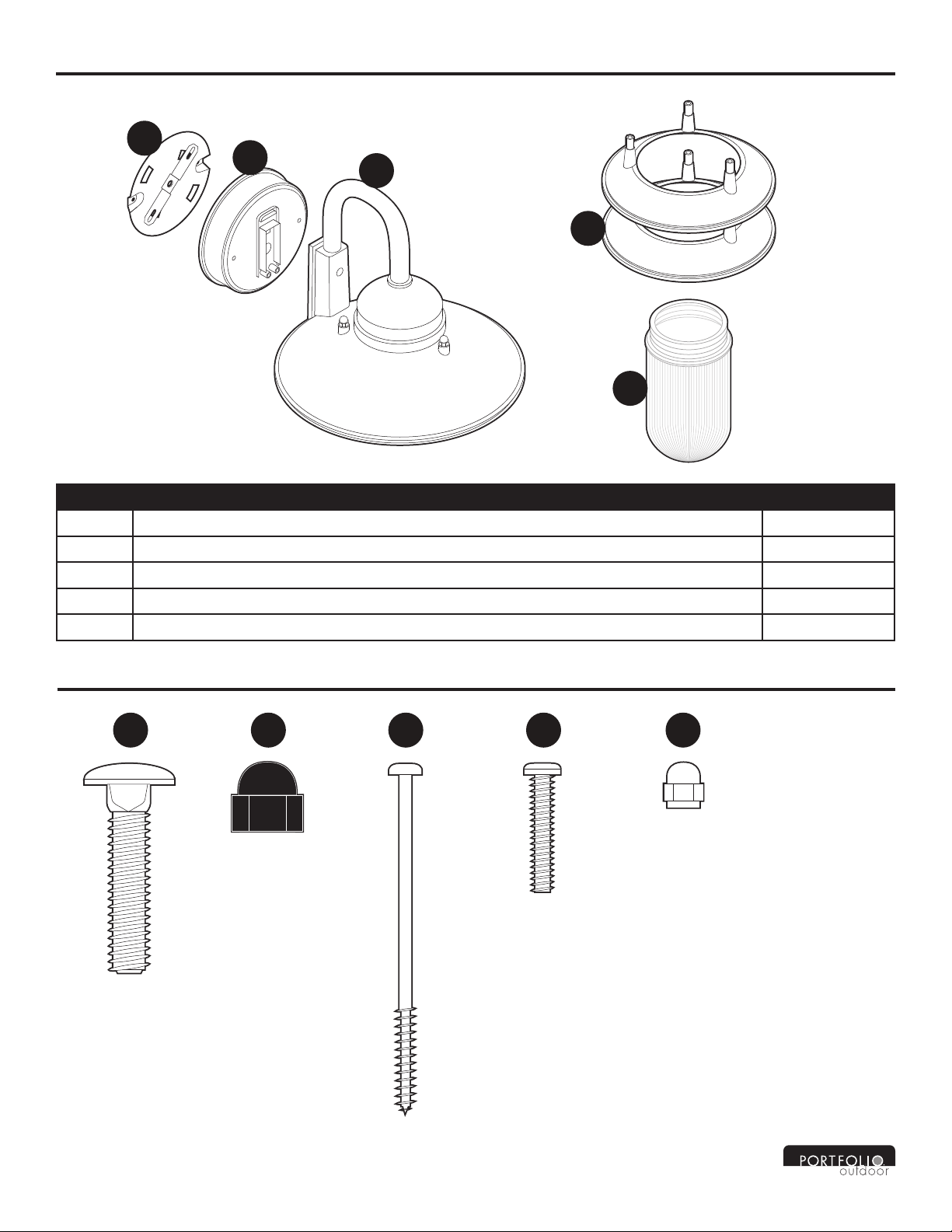

HARDWARE CONTENTS (shown actual size)
PART DESCRIPTION QUANTITY
A Mounting Plate and Swivel Bar (pre-assembled) 1
B Canopy 1
C Fixture 1
D Louvers 2
E Diffuser 1

3
Lowes.com/portfolio
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
This product must be installed in accordance with all applicable installation codes.
WARNING
• Be sure power is off at main power panel/fuse box before installing or replacing xture. This product
must be installed in accordance with the applicable installation codes by a person familiar with the
construction and operation of the product and the hazards involved.
• If you are not familiar with electrical wiring, it is recommended that you secure the services of a
well-qualied electrician who can assure that this installation meets local, state, and national codes.
• Before installing this xture, be sure to check with local ordinances regarding approved outdoor
lighting. This xture style may not be allowed in some areas.
• This xture is for outdoor use only.
• This xture should be mounted to a grounded junction box marked for use in wet locations.
• The electrical system and the method of connecting this unit to the system must be in accordance
with local, state and national electric codes.
• This product is to be connected to an AC 120 volt, 60 Hz power source. Connecting to a different
power source or wired incorrectly may create a hazard, damage the unit, and will void the warranty.
• This xture is suitable for wet locations.
• DO NOT use around ammable/combustible material or liquids.
• When replacing the lamp (bulb), only use a type A medium base lamp (bulb) – 60 watt maximum.
Never use a lamp (bulb) with a higher wattage than the stated maximum allowed on the xture.
Using a higher wattage lamp (bulb) may cause a re hazard and/or damage the unit.
OFF
OFF
20
OFF
20
OFF
20
OFF OFF
100
1
2
123
SAFETY INFORMATION

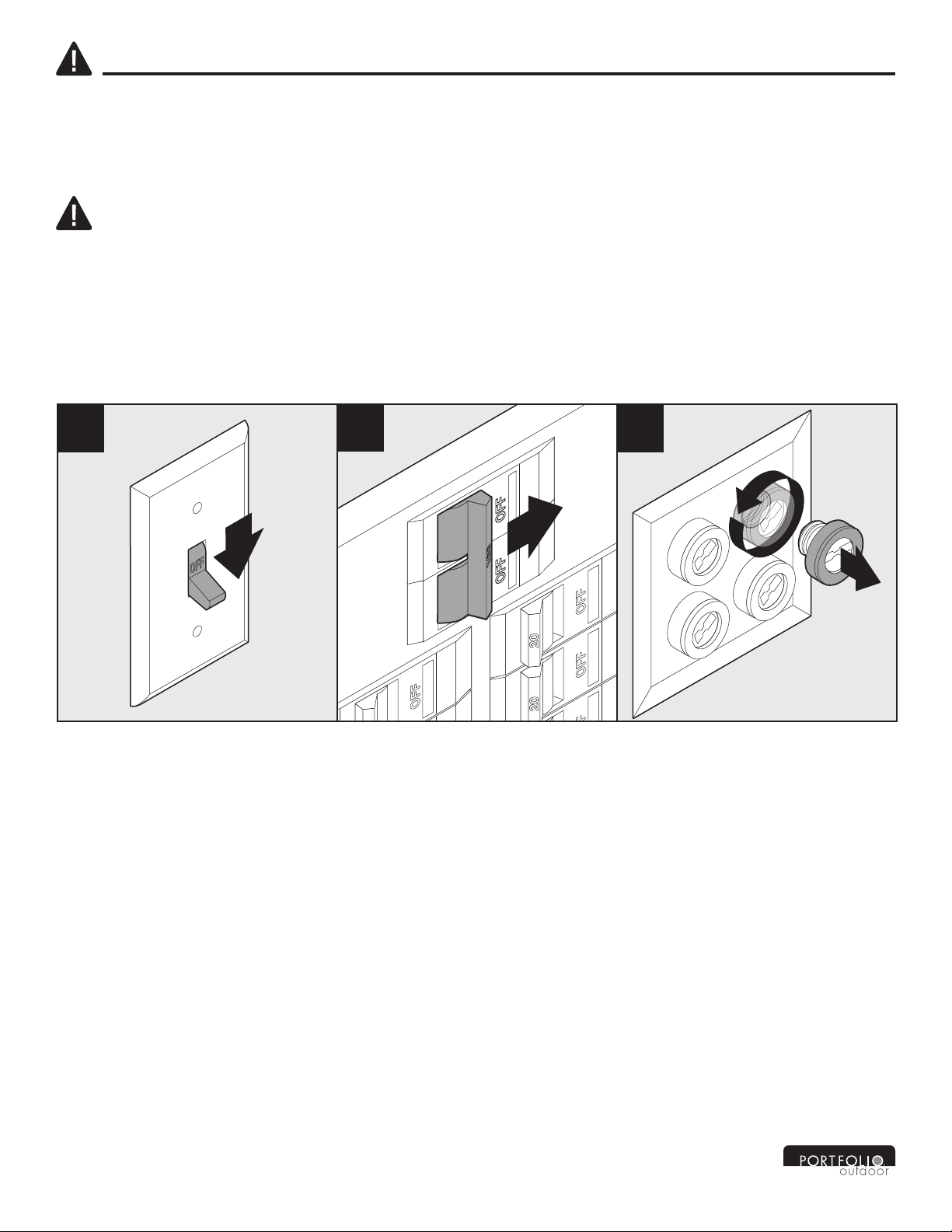

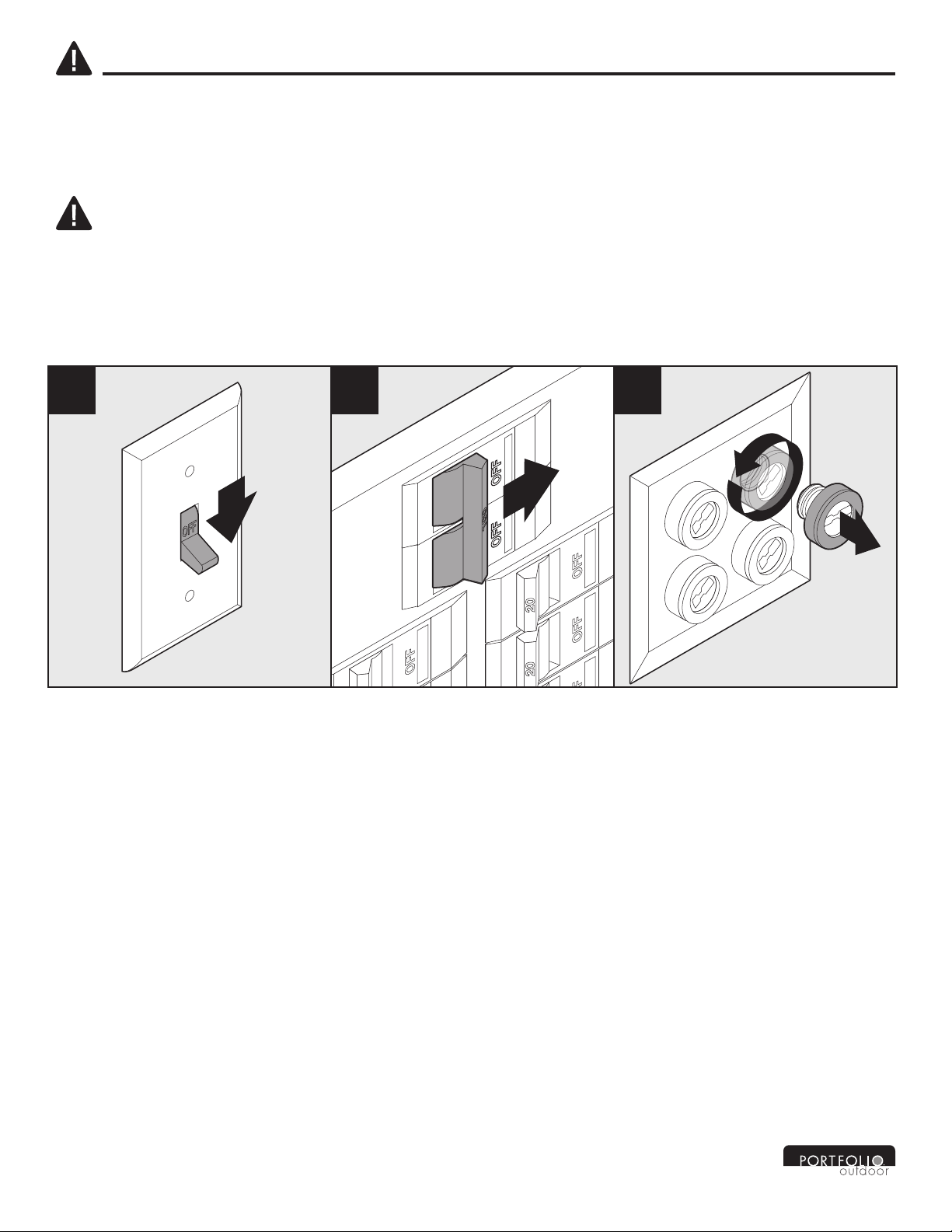

1. Place wall switch in OFF position. If xture has built-in switch or chain pull, switch or pull chain so
xture is OFF.
2. Next, if the main fuse box has an ON/OFF switch, place main power switch in OFF position.
3. For screw-in type fuses, unscrew fuse or fuses that control the power to the xture or room.

4
Lowes.com/portfolio
CAUTION
• Compact Fluorescent Lamps (CFLs) contain mercury. Manage in accordance with disposal laws.
• CFLs are not recommended for extreme cold weather.
• CFLs are not to be used with a dimmer.
• A CFL is fragile and may be hot. Always use safety precautions. Handle lamp by base. Safety
glasses and gloves should be worn during installation.
• The lamp (bulb) and xture can get hot during use. Turn off the power and allow the xture to cool
for at least 10 minutes prior to working on the unit.
• DO NOT attempt to open the product housing. There are no serviceable parts inside.
SAFETY INFORMATION
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 15 minutes
Tools Required for Assembly (not included): Flathead screwdriver, Phillips screwdriver, acrylic caulk.
Hardware Required for Assembly (not included): 8/32 in. screws x 2, wire connectors x 3.

5
ASSEMBLY INSTRUCTIONS
Lowes.com/portfolio
Hardware Used
Hardware Used
Hardware Used
1 in. Screw
Carriage
Bolt
3 in. Screw
Acorn Nut
x 2
x 1
x 3
x 1
DD
AA
CC
BB

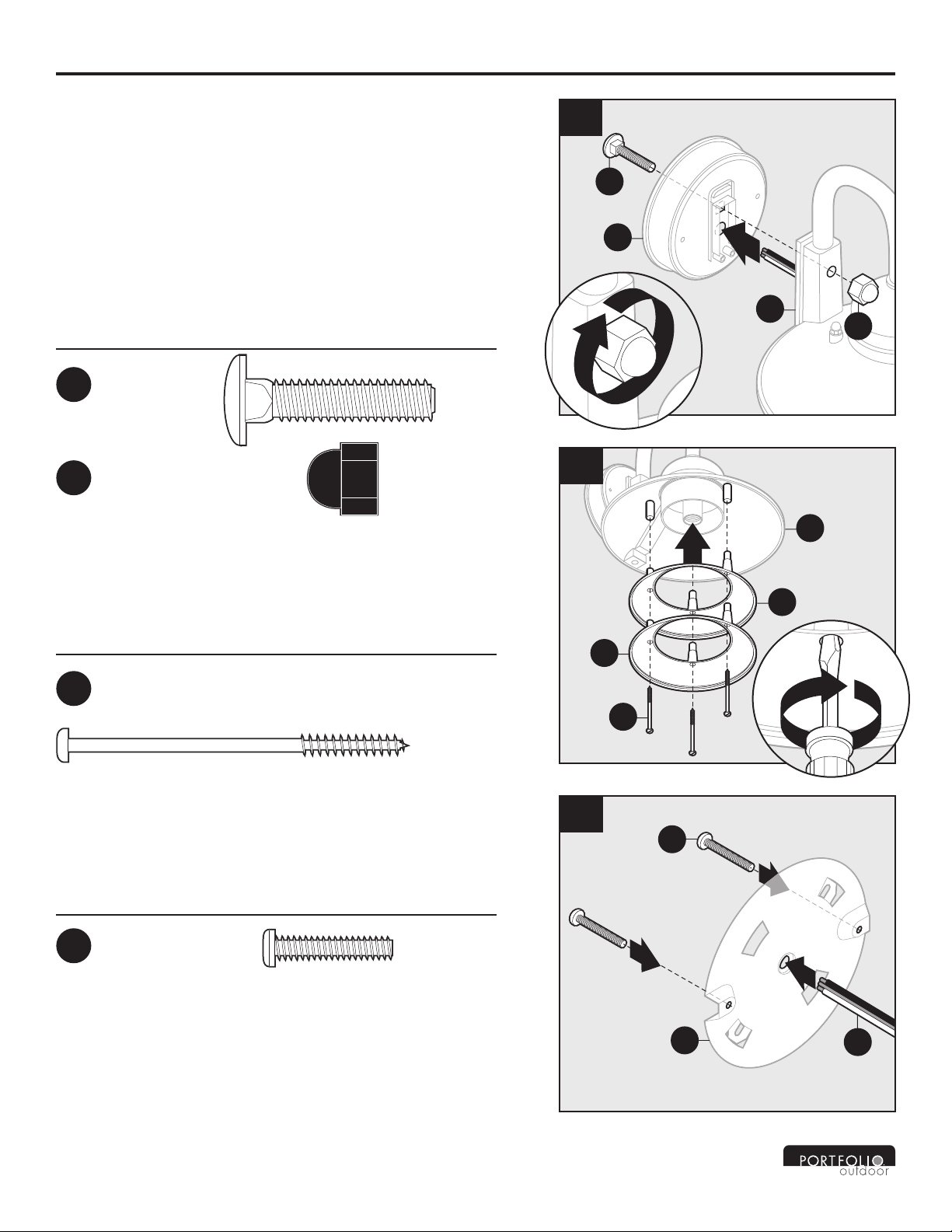

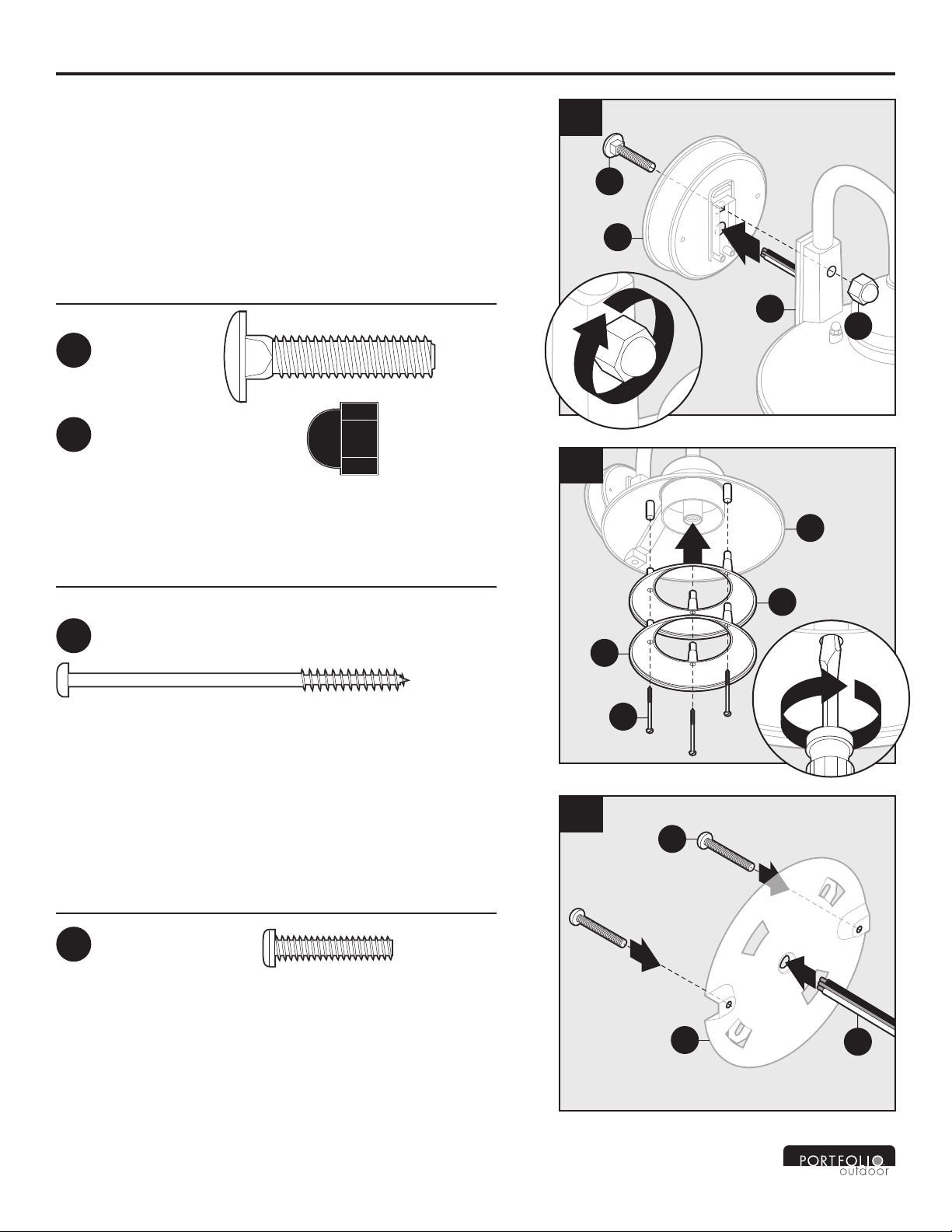

3. Thread two 1 in. screws (DD) into the mounting
plate (A) and feed the xture (C) wires through
the hole in the center.
2. Align posts on both louvers (D) with posts on
xture (C). Secure all with three 3 in. screws (CC).
1. Feed wires from xture (C) through round hole
in canopy (B). Attach canopy (B) to xture (C)
by inserting carriage bolt (AA) through square
opening and securing with acorn nut (BB).
Note: Make sure canopy (B) ts ush with
xture (C).
1
1
2
DD
AC
3
1
2
C
D
D
CC
2
1
2
AA
BB
B
C
1
Carriage Bolt
x1
Acorn Nut
x1
3 in. Screw
x3
1 in. Screw
x2
Thumb Nut
x2
AA BB CC DD EE
Carriage Bolt
x1
Acorn Nut
x1
3 in. Screw
x3
1 in. Screw
x2
Thumb Nut
x2
AA BB CC DD EE
Carriage Bolt
x1
Acorn Nut
x1
3 in. Screw
x3
1 in. Screw
x2
Thumb Nut
x2
AA BB CC DD EE
Carriage Bolt
x1
Acorn Nut
x1
3 in. Screw
x3
1 in. Screw
x2
Thumb Nut
x2
AA BB CC DD EE
