PNA-3303 User’s Manual
1
Table of Contents
Table of ContentsTable of Contents
Table of Contents
Chapter 1 Introduction ......................................................................................................... 2
1.1 About This Manual ......................................................................................... 2
1.2 Manual Organization ...................................................................................... 2
1.3 Technical Support Information........................................................................ 2
Chapter 2 Get Started........................................................................................................... 3
2.1 Included Hardware ......................................................................................... 3
2.2 Before You Begin........................................................................................... 3
2.3 The Chassis ................................................................................................... 4
2.4 Open the Chassis........................................................................................... 4
2.5 Install or Remove a SODIMM......................................................................... 5
2.6 Remove and Install DOM ............................................................................... 5
2.7 Remove and Install Battery ............................................................................ 6
2.8 Remove and Install HDD................................................................................ 6
2.9 Remove and Install PCI card.......................................................................... 7
2.10 Install VGA module (V-100)............................................................................ 8
2.11 Complete the Installation................................................................................ 9
2.12 Product Specifications.................................................................................. 10
2.13 Hardware Configuration Setting ................................................................... 11
Jumpers .................................................................................................. 11
Connectors.............................................................................................. 12
Pin Assignments of Connectors............................................................... 12
2.14 Install a Different Processor ......................................................................... 16
Install CPU .............................................................................................. 16
Remove CPU .......................................................................................... 17
Configure Processor Speed..................................................................... 17
2.15 Use a Client Computer................................................................................. 17
Connection Using Hyper Terminal ........................................................... 17
Chapter 3 Operation Guide ............................................................................................... 19
3.1 Brief Guide of PPAP-200.............................................................................. 19
3.2 System Architecture ..................................................................................... 20

PNA-3303 User’s Manual
2
Chapter 1 Introduction
1.1 About This Manual
This manual describes all required information for setting up and using the PNA-3303.
PNA-3303 provides the essential components for delivering optimal performance and
functionality in the value communications appliance market segment. This manual should
familiarize you with PNA-3303 operations and functions. PNA-3303 has three on-board LAN
ports to serve communication appliances, such as Firewall, which needs three LAN ports to
connect external network (internet), demilitarized zone and internal network.
Features of PNA-3303 includes:
 Versatile networking and I/O capabilities: 3 Ethernet ports
 Two USB ports
 One COM port
 Up to 256 Mbyte of SODIMM memory
 Two on-board DMA/33/66/100 IDE channel to support up to four IDE devices
 One PCI right-angle connector for ease of connectivity to the PCI bus
1.2 Manual Organization
The manual describes how to configure your PNA-3303 system to meet various operating
requirements. It is divided into three chapters, with each chapter addressing a basic concept
and operation of this whole system.
Chapter 1: Introduction. This section briefly talks about how this document is organized. It includes
some guidelines for users who do not want to read through everything, but still helps
you find what you need.
Chapter 2: Hardware Configuration Setting and Installation. This chapter shows how the hardware
is put together, including detailed information. It shows the definitions and locations of
Jumpers and Connectors that you can easily configure your system. Descriptions on
how to properly mount the CPU and main memory are also included to help you get a
safe installation. Reading this chapter will teach you how to set up PNA-3303.
Chapter 3: Operation Information. This section gives you illustrations and more information on the
system architecture and how its performance can be maximized.
Any updates to this manual, technical clarification and answers to frequently asked questions
would be posted on the web site: http://isc.portwell.com.tw
1.3 Technical Support Information
Users may find helpful tips or related information on Portwell's web site: http://www.portwell.com.tw.
A direct contact to Portwell's technical person is also available. For further support, users may
also contact Portwell’s headquarter in Taipei or your local distributors.
Taipei Office Phone Number: [phone]

PNA-3303 User’s Manual
3
Chapter 2 Get Started
This section describes how the hardware installation and system settings should be done.
2.1 Included Hardware
The following hardwares are included in your kit:
 PPAP-200 Communication Appliance System Board
 AC to 15V DC adapter
 One null serial port cable
2.2 Before You Begin
To prevent damage to any system board, it is important to handle it with care. The following
measures are generally sufficient to protect your equipment from static electricity discharge:
When handling the board, use a grounded wrist strap designed for static discharge elimination
and touch a grounded metal object before removing the board from the antistatic bag. Handle
the board by its edges only; do not touch its components, peripheral chips, memory modules or
gold contacts.
When handling processor chips or memory modules, avoid touching their pins or gold edge
fingers. Put the value communications appliance system board and peripherals back into the
antistatic bag when they are not in use or not installed in the chassis.
Some circuitry on the system board can continue operating even though the power is switched
off. Under no circumstances should the Lithium coin cell used to power the real-time clock be
allowed to be shorted. The coin cell can heat under these conditions and present a burn hazard.
Warning: This guide is for technically qualified personnel who have experience installing and
configuring system boards Disconnect the system board power supply from its power
source before you connect/disconnect cables or install/remove any system board
components. Failure to do this can result in personnel injury or equipment damage.
Warning: Avoid short-circuiting the lithium battery; this can cause it to superheat and cause
burns if touched.
Warning: Do not operate the processor without a thermal solution. Damage to the processor can
occur in seconds.

PNA-3303 User’s Manual
4
2.3 The Chassis
The system is integrated in a customized 3U chassis (Fig. 2-1, 2-2). On the front panel you will
find a LED panel .The back panel has three LAN ports, two USB ports, one COM port and one
reserved outlet for D-SUB 9-pin or VGA connector (for V-100 VGA module)
Fig. 2-1 Front View of the Chassis Fig. 2-2 Rear View of the Chassis
2.4 Open the Chassis
1. Unscrew the two screws on the bottom (Fig. 2-3)
2. Pull out the inner steel case harder. It is normal, if you find it a little tight (Fig. 2-4, 2-5)

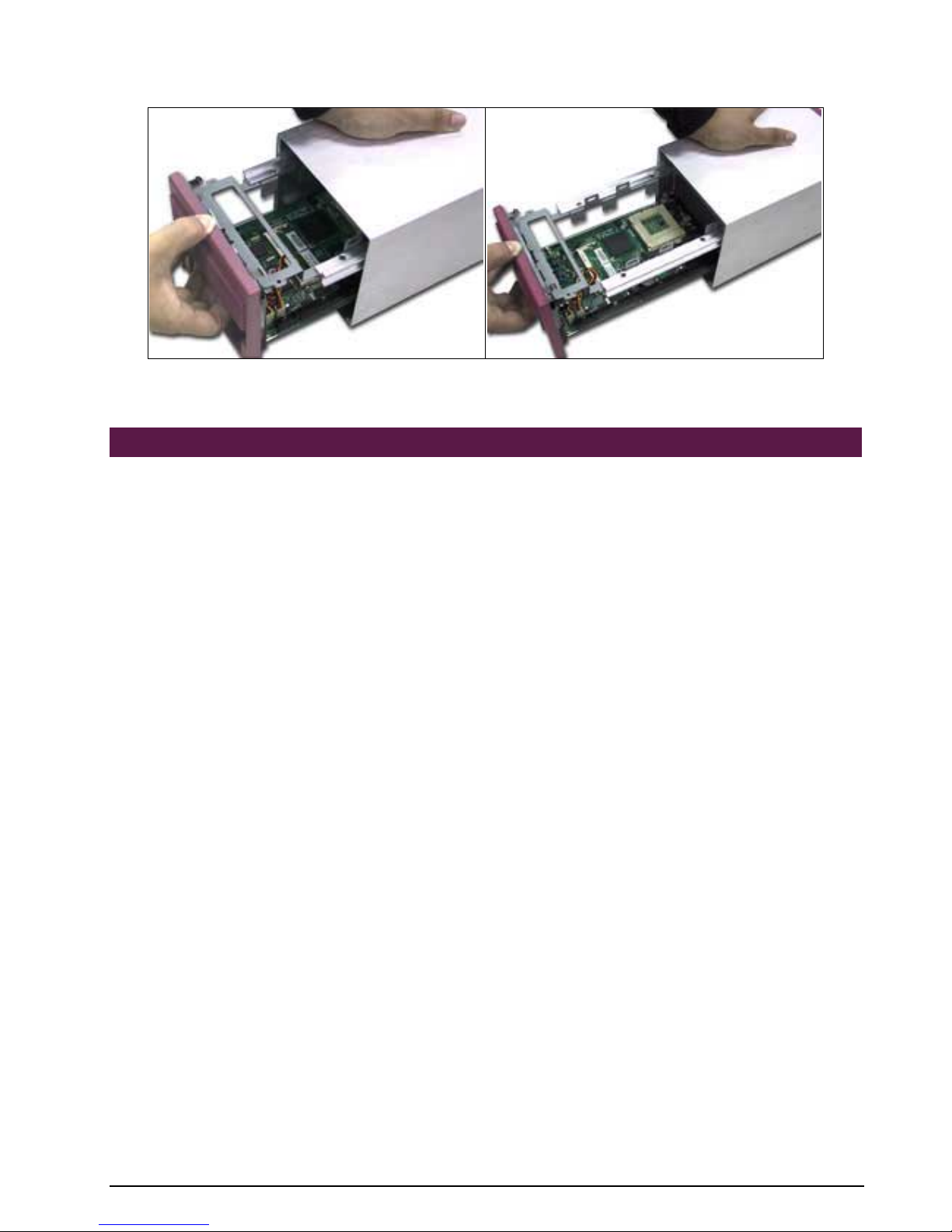

Fig. 2-3 Unscrew the screws on the bottom Fig. 2-4 Pull out the inner steel case (step 1)
3. The inner case then can be removed from the outer one. (Fig. 2-6)
Fig. 2-5 Pull out the inner steel case (step 2) Fig. 2-6 The inner and outer steel case

PNA-3303 User’s Manual
5
2.5 Install or Remove a SODIMM
Follow these steps to upgrade RAM module:
1. Install the system memory by pulling the socket’s arm and pressing it into the slot gently.
(Fig. 2-7, 2-8)
Fig. 2-7 The memory slot Fig. 2-8 Install SODIMM
2. By pulling the arms, the SODIMM can
eject itself (Fig. 2-9).
Fig. 2-9 Eject a SODIMM module
2.6 Remove and Install DOM
1. Insert the DOM (Fig. 2-10) into the IDE interface (Fig. 2-11).
Fig. 2-10 DiskOnModule Fig. 2-11 Insert DOM into IDE interface

PNA-3303 User’s Manual
6
2. Connect the power source to DOM (Fig. 2-12, 2-13).
Fig. 2-12 Connect power to DOM Fig. 2-13 DOM power connection
2.7 Remove and Install Battery
1. Press the metal clip back to eject the button battery (Fig. 2-14).
2. Replace it with a new one by pressing the battery with fingertip to restore the battery (Fig. 2-15).
Fig. 2-14 Eject the battery Fig. 2-15 Restore the battery

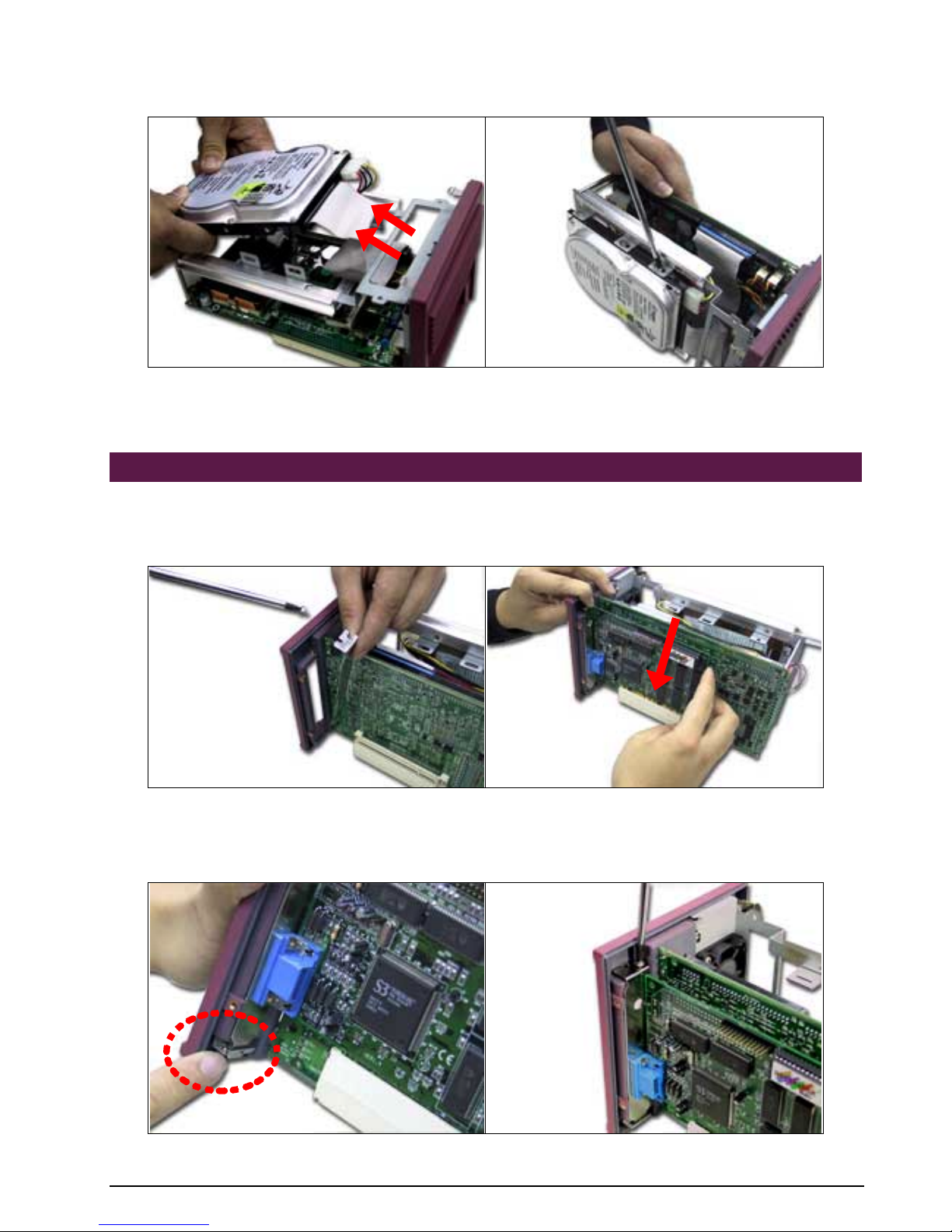

2.8 Remove and Install HDD
The system has an internal drive bay for two 3.5" hard disk drives. If the HDD is not pre-installed,
you can install it by yourself. Follow the steps below to install the HDD:
Before a HDD can be installed onto PNA-3303. PPAP-200 must be taken off from the chassis.
1. Connect power cable (Fig. 2-16) and IDE cable (Fig. 2-17).
Fig. 2-16 Connect power cable Fig. 2-17 Connect IDE cable

PNA-3303 User’s Manual
7
2. Connect the IDE cable and power connector to HDD (Fig. 2-18).
3. Fasten the screws to lock HDD and bracket together (Fig. 2-19).
Fig. 2-18 Connect power and IDE cable to
HDD
Fig. 2-19 Fasten the screws to fix HDD with
bracket
2.9 Remove and Install PCI card
One PCI slot is available to PNA-3303. Follow the steps below for installation:
1. Remove the PCI slot bracket (Fig. 2-20) and plug the PCI card into the PCI slot (Fig. 2-21).
Fig. 2-20 Remove the PCI slot bracket Fig. 2-21 Plug in the PCI board
2. The PCI card’s bracket tip is placed in the chassis corner (Fig. 2-22). Fix the screws back to
the PCI card (Fig. 2-23).
Fig. 2-22 The PCI card’s bracket tip is placed
outside of the chassis corner
Fig. 2-23 Fix the screws back to the PCI card

PNA-3303 User’s Manual
8
2.10 Install VGA module (V-100)
The system has an internal VGA connector. The VGA module (V-100) is not pre-installed, but
you can follow the steps below to install the VGA module yourself.

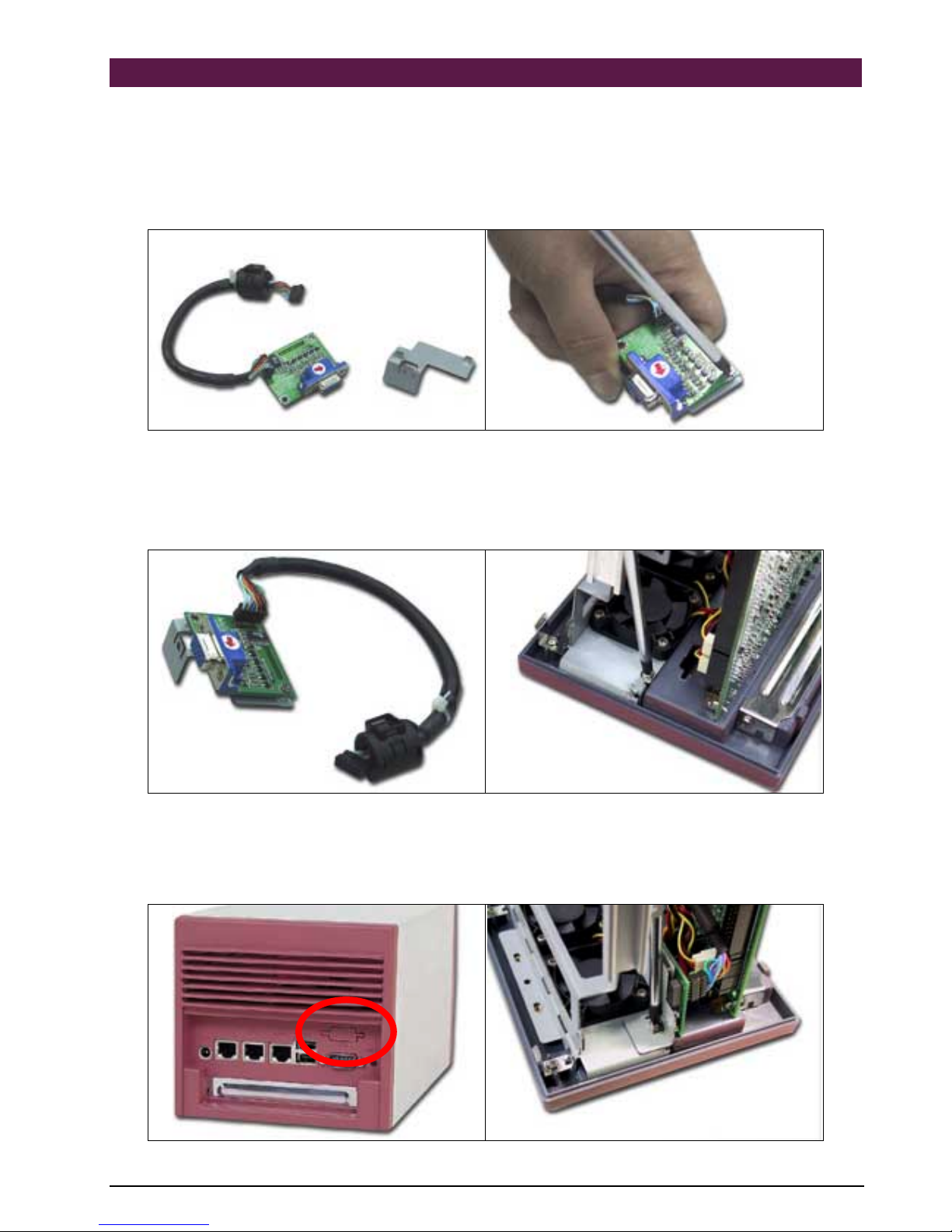

3. The complete V-100 module kit is shown as Fig. 2-24.
4. Fix the V-100 module onto the specific socket with screws (Fig. 2-25).
Fig. 2-24 The complete V-100 module kit Fig. 2-25 Fix the V-100 module onto the
specific device with screws
5. The completion of V-100 kit combination (Fig. 2-26).
6. Unscrew the screws on the back panel of PNA-3303 (Fig. 2-27).
Fig. 2-26 The completion of V-100 module kit
combination
Fig. 2-27 Fix the V-100 module onto the
specific socket with screws
7. Take off the cover on the reserved outlet for VGA connector on the back panel of PNA-3303
(Fig. 2-28), fixing the V-100 kit with screws to the outlet (Fig. 2-29).
Fig. 2-28 Take off the VGA outlet cover Fig. 2-29 Fix the V-100 kit to the outlet

PNA-3303 User’s Manual
9

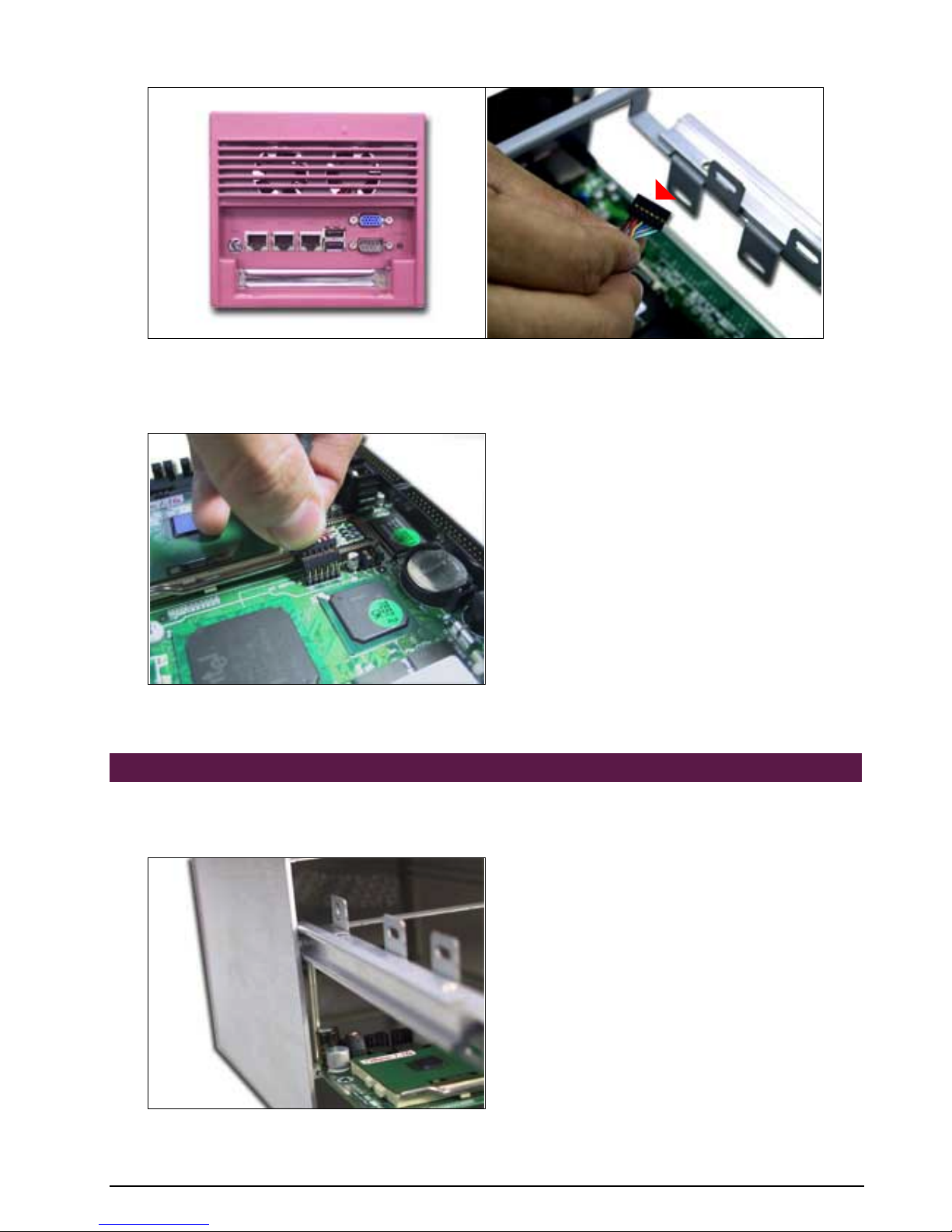

8. Fix the two screws on the back of PNA-3303 (Fig. 2-30)
Fig. 2-30 Take off the VGA outlet cover Fig. 2-31 The triangle sign
9. Connect the V-100 connector to PPAP-200. The triangle sign (Fig. 2-30) on the connector
indicates the position where pin 2 should be connected o (Fig. 2-31).
Fig. 2-32 Plug the V-100 kit to the PPAP-200
2.11 Complete the Installation
1. Pull in the inner steel case along the sliding rail (Fig. 2-33). If not correctly allocated, it would
be difficult to install.
Fig. 2-33 Pull in the inner steel case along the
sliding rail

PNA-3303 User’s Manual
10
2. Pull the inner steel case to the end of the case (Fig. 2-34) and fix the screws on the bottom
tightly (Fig. 2-35).
Fig. 2-34 Pull the inner steel case to the end Fig. 2-35 Fix the screws on the bottom
2.12 Product Specifications
Model: PNA-3303
Main Processor: •Intel®socket 370 FC-PGA Celeron®/Pentium®III processors
(66, 100 or 133MHz system bus)
BIOS: •Award system BIOS with 512KB flash ROM to support DMI,
PnP, APM function
Main Memory: •One SODIMM socket supports up to 512MB of 3.3V SODIMM
L2 Cache Memory: •128/256KB PBSRAM built in (Celeron/Pentium III) CPU module
Chipset: •Intel®815E
PCI IDE Interface: •Two 3.5” hard disk bay for DMA/33/66/100 IDE hard disk
Serial Ports: •Support two high-speed 16C550 compatible UARTs with 16-byte
T/R FIFOs
•(Optional) Support LCD/Key pad module (Portwell proprietary)
USB Interface: •Support two USB ports for high speed I/O peripheral devices
Auxiliary I/O Interfaces: •System reset switch, power OK LED, Ethernet activity LED, Ethernet
speed LED, general purpose LED, alert LED and HDD LED interface
Power Input: •Support one DC input jack (power requirement: DC 15V, 4.6A)
PCI Slot: •One PCI slot for add-on PCI card
On-board Ethernet: •Two Intel®82559ER 10/100 Base-T fast Ethernet controller with
RJ-45 interface
•One Intel®82801BA (Internal MAC) + 82562ET (PHY) 10/100
Base-T fast Ethernet controller with RJ-45 interface
Hardware Monitor: Support on-board hardware monitor for
•CPU fan x 1
•Chassis fan x 2
•System voltages: Vcore, 3.3V, 1.8V, +5V and +12V
Power Good: •On-board power good interval: 140ms ~ 300ms; typical 200ms

PNA-3303 User’s Manual
11
Environmental
Requirements:
•Operating Temperature: 5°C ~ 45°C
•Storage Temperature: 5°C ~ 70°C
•Relative Humidity: 5% ～95%, non-condensing
Dimension: •5.12"(L) x 8.5"(W)
2.13 Hardware Configuration Setting
This section gives the definitions and shows the positions of jumpers, headers and connectors.
All of the configuration jumpers on PPAP-200 are in the proper position. The default settings set
by factory are marked with a star ( ★).
Jumpers
In general, jumpers on PPAP-200 system board are used to select options for certain
features. Some of the jumpers are configurable for system enhancement. The others are
for testing purpose only and should not be altered. To select any option, cover the jumper
cap over (Short) or remove (NC) it from the jumper pins according to the following
instructions. Here NC stands for “Not Connected”. (Please refer to Fig. 2-36 for detailed
jumper positions.)
Jumper Setting Table (JP1/JP2/JP3)
JP1 Clear CMOS RAM Default Setting
1-2 Normal ★
2-3 Clear CMOS RAM
JP2 CPU Frequency Strapping Default Setting Default Setting
Short Force CPU Frequency to safe mode
N/C Use CPU Frequency strapping in ICH2 Register ★
Figure 2-36 Jumper Position

PNA-3303 User’s Manual
12
Connectors
Devices are connected through these connectors which includes IDE, COM Port etc…
Connector Function Remark
J1 Serial ports connector Shrouded pin header
J2 Reset push button
J3 FDC connector
J4 Secondary IDE connector
J5 Primary IDE connector
J6 Parallel port connector
J7 Chassis fan connector
J8 Chassis fan connector
J9 Serial ports connector D-SUB 9
J10 Power output connector Supply power to
IDE/FDC Interface
J11 Dual USB port connector
J12 VGA board connector Need a CRT module
for VGA display
J13 Ethernet connector
J14 Ethernet connector
J15 Ethernet connector
J16 CPU fan
J17 Power jack
J18 Right angle PCI bus connector
Pin Assignments of Connectors
J1/J9: Serial Port Connector
PIN No. Signal Description
1 DCD
2 RXD
3 TXD
4 DTR
5 SGND
6 DSR
7 RTS
8 CTS
9 RI
10 N/C (J1 only)
J2: Reset Push Button (Momentary)
PIN No. Signal Description
1 Reset signal
2 Ground

PNA-3303 User’s Manual
13
J3: FDC Connector
PIN No. Signal Description PIN No. Signal Description
1 Ground 2 Density0#
3 Ground 4 N/C
5 Ground 6 Density1#
7 Ground 8 INDEX#
9 Ground 10 MOA#
11 Ground 12 DSB#
13 Ground 14 DSA#
15 Ground 16 MOB#
17 Ground 18 DIR#
19 Ground 20 STEP#
21 Ground 22 WD#
23 Ground 24 WE#
25 Ground 26 TRACK0#
27 Ground 28 WP#
29 N/C 30 RDATA#
31 Ground 32 HEAD#
33 N/C 34 DSKCHG#
J4/J5: IDE Connector
PIN No. Signal Description PIN No. Signal Description
1 RESET# 2 Ground
3 Data 7 4 Data 8
5 Data 6 6 Data 9
7 Data 5 8 Data 10
9 Data 4 10 Data 11
11 Data 3 12 Data 12
13 Data 2 14 Data 13
15 Data 1 16 Data 14
17 Data 0 18 Data 15
19 Ground 20 +5V
21 DMAREQ 22 Ground
23 IOW# 24 Ground
25 IOR# 26 Ground
27 IOCHRDY 28 Ground
29 DMAACK# 30 Ground
31 IRQ15/14 32 N/C
33 SA1 34 PDIAG#1CSEL
35 SA0 36 SA2
37 HDCCSO# 38 HDCCS1#
39 HDDACTIVE# 40 Ground

PNA-3303 User’s Manual
14
J6: Parallel Connector
PIN No. Signal Description PIN No. Signal Description
1 Strobe# 14 AFD#
2 Data 0 15 ERR#
3 Data 1 16 INIT#
4 Data 2 17 SLIN#
5 Data 3 18 Ground
6 Data 4 19 Ground
7 Data 5 20 Ground
8 Data 6 21 Ground
9 Data 7 22 Ground
10 ACK# 23 Ground
11 BUSY 24 Ground
12 PE 25 Ground
13 SLCT 26 N/C
J7/J8/J16: Fan Connector
PIN No. Signal Description
1 Ground
2 +12V
3 TachoMeter Signal
J10 : Power Output Connector (To
provide IDE, FDC Interface power)
PIN No. Signal Description
1 +12V
2 Ground
3 Ground
4 +5V
J11: Dual USB Port Connector
PIN No. Signal Description PIN No. Signal Description
1 +5V 5 +5V
2 USBD0- 6 USBD0-
3 USBD0+ 7 USBD0+
4 Ground 8 Ground
J12: VGA Connector
PIN No. Signal Description PIN No. Signal Description
1 VID_RED 2 Ground
3 VID_GREEN 4 +1.8V
5 VID_BLUE 6 Ground
7 Ground 8 3VDDCDA
9 3VDDCCL 10 CRT_HSYNC
11 CRT_VSYNC 12 +5V

PNA-3303 User’s Manual
1
5
J13/J14/J15: Ethernet Connector
PIN No. Signal Description PIN No. Signal Description
1 TX+ 2 TX-
3 RX+ 4 Termplane
5 Termplane 6 RX-
7 Termplane 8 Termplane
J17: Power Jack Connector
PIN No. Signal Description
1 +15V
2 Ground
3 Ground
J18: PCI Bus Connector
PIN No. Signal Description PIN No. Signal Description
B1 N/C A1 PTRST#
B2 PTCK A2 +12V
B3 Ground A3 PTMS
B4 N/C A4 PTDI
B5 +5V A5 +5V
B6 +5V A6 PIRQ#B
B7 PIRQ#C A7 PIRQ#D
B8 PIRQ#A A8 +5V
B9 N/C A9 N/C
B10 N/C A10 +5V
B11 N/C A11 N/C
B12 Ground A12 Ground
B13 Ground A13 Ground
B14 N/C A14 N/C
B15 Ground A15 PCIRST#
B16 PCICLK A16 +5V
B17 Ground A17 PGNT#0
B18 PREQ#0 A18 Ground
B19 +5V A19 N/C
B20 AD31 A20 AD30
B21 AD29 A21 N/C
B22 Ground A22 AD28
B23 AD27 A23 AD26
B24 AD25 A24 Ground
B25 N/C A25 AD24
B26 C_BE#3 A26 IDSEL (Connected to AD31)
B27 AD23 A27 N/C
B28 Ground A28 AD22
B29 AD21 A29 AD20
B30 AD19 A30 Ground
B31 N/C A31 AD18

PNA-3303 User’s Manual
16
B32 AD17 A32 AD16
B33 C_BE#2 A33 N/C
B34 Ground A34 FRAME#
B35 IRDY# A35 Ground
B36 N/C A36 TRDY#
B37 DEVSEL# A37 Ground
B38 Ground A38 STOP#
B39 PLOCK# A39 N/C
B40 PERR# A40 SDONE
B41 N/C A41 SBO#
B42 SERR# A42 Ground
B43 N/C A43 PAR
B44 C_BE#1 A44 AD15
B45 AD14 A45 N/C
B46 Ground A46 AD13
B47 AD12 A47 AD11
B48 AD10 A48 Ground
B49 Ground A49 AD9
KEY KEY
KEY KEY
B52 AD8 A52 C_BE#0
B53 AD7 A53 N/C
B54 N/C A54 AD6
B55 AD5 A55 AD4
B56 AD3 A56 Ground
B57 Ground A57 AD2
B58 AD1 A58 AD0
B59 +5V A59 +5V
B60 ACK64# A60 REQ64#
B61 +5V A61 +5V
B62 +5V A62 +5V
2.14 Install a Different Processor
Install CPU
1. Lift the handling lever of CPU socket outwards and upwards to the other end.
2. Align the processor pins with holes on the socket. Make sure that the notched corner or dot
mark (pin 1) of the CPU corresponds to the socket's bevel end. Then press the CPU gently
until it fits into place. If this operation is not easy or smooth, don't do it forcibly. You need to
check and rebuild the CPU pin uniformly.
3. Push down the lever to lock processor chip into the socket.
4. Follow the installation guide of cooling fan or heat sink to mount it on CPU surface and lock it
on the socket 370.
5. Be sure to follow particular CPU speed and voltage type to adjust the jumper settings properly
for all boards.

PNA-3303 User’s Manual
1
7
Remove CPU
1. Unlock the cooling fan first.
2. Lift the lever of CPU socket outwards and upwards to the other end.
3. Carefully lift up the existing CPU to remove it from the socket.
4. Follow the steps of CPU installation to change to another one or place handling bar to close
the opened socket.
Configure Processor Speed
The system was designed to self-detect its CPU speed. So it does not require any system
adjustment.
2.15 Use a Client Computer
Connection Using Hyper Terminal
If users use a headless PNA-3303, which has no mouse/keyboard and VGA output
connected to it, the console may be used to communicate with PNA-3303.

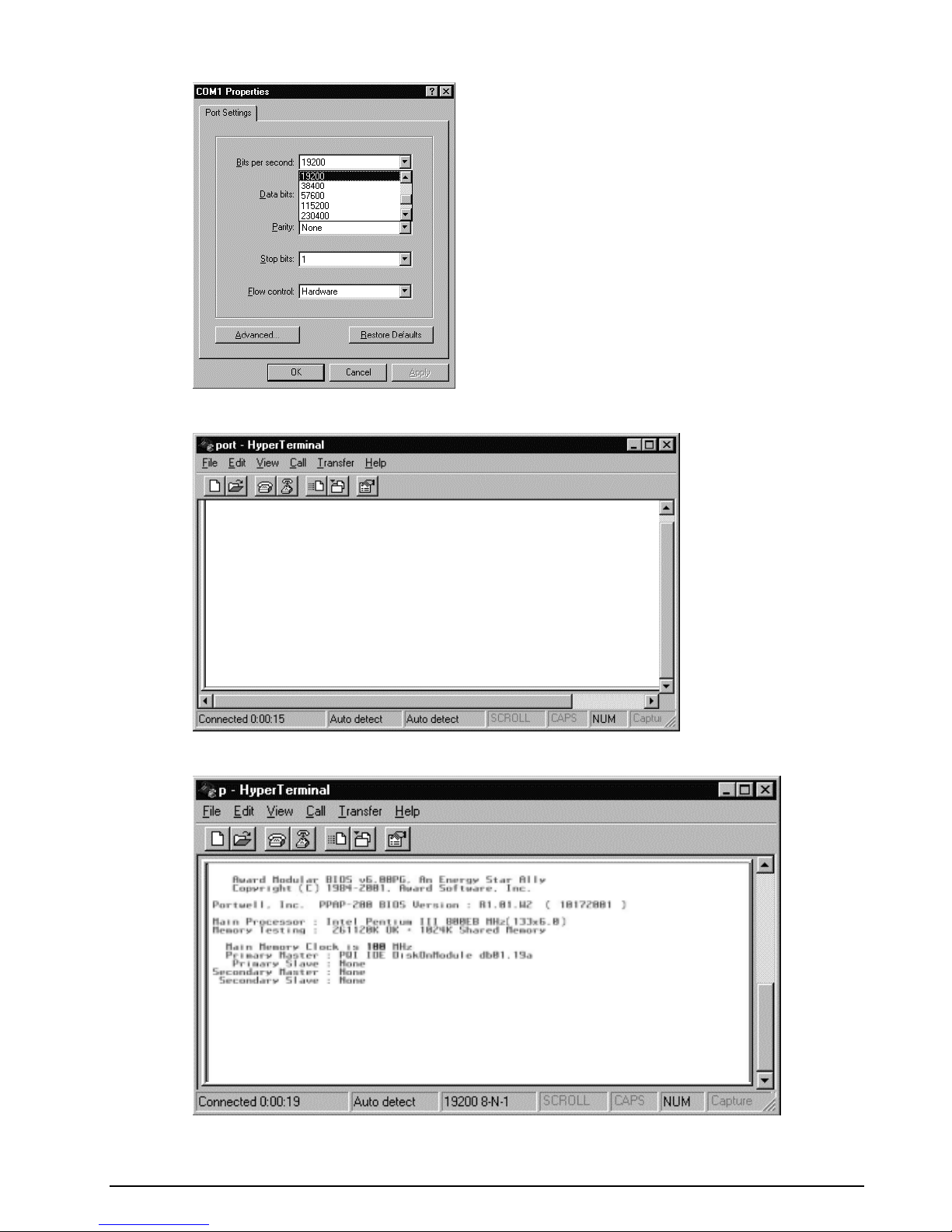

To access PNA-3303 via the console, Hyper Terminal is one of the choices. Follow the
steps below for the setup:
1. Execute HyperTerminal under C:\Program Files\Accessories\HyperTerminal
2. Enter a name to create new dial
3. For the connection settings, make it Direct to Com1.

PNA-3303 User’s Manual
18
4. Please make the port settings to Baud rate 19200, Parity None, Data bits 8, Stop bits 1
5. Turn on the power of PNA-3303, after following screen was shown
6. You can then see the boot up information of PNA-3303
7. This is the end of this section. If the terminal did not port correctly, please check the previous
steps.

PNA-3303 User’s Manual
19
Chapter 3 Operation Guide
3.1 Brief Guide of PPAP-200
PPAP-200 is a Communication Appliance computing board based on Intel 815E chipset
technology. PPAP-200 has three on-board LAN ports to serve communication appliances, such
as Firewall, which needs three Ethernet ports to connect external network (internet),
demilitarized zone and internal network. Different I/O management policies can be applied
respectively to individual network to achieve the highest security level. One built-in PCI slot
permits further expansion for WAN connection, backup connection or even customized function
card. The target market segment is communication appliance including Virtual Private Network,
Load Balancing, Quality of Service, Intrusion Detection, Virus Detection, Firewall and Voice
Over IP.
This PPAP-200 system board is eligible with Intel®FC-PGA Celeron®and Intel®FC-PGA
Pentium®III processors, and 144-pin SODIMM up to 256MB DRAM. The enhanced on-board
PCI IDE interface supports 2 drives up to PIO mode 4 timing and Ultra DMA/100 synchronous
mode feature. The on-board super I/O chipset integrates two serial ports driven by two high
performance 16C550-compatible UARTs to provide 16-byte send/receive FIFOs. Besides, the
two Universal Serial Bus ports provide high-speed data communication between peripherals and
PC.
The on-board flash ROM is used to make the BIOS update easier. An AC/DC adaptor power
input jack is provided for AT mode operation. The high precision Real Time Clock/Calendar is
built to support Y2K for accurate scheduling and storing configuration information. All of these
features make PPAP-200 excellent in stand-alone applications.
If any of these items is damaged or missing, please contact your vendor and save all packing
materials for future replacement and maintenance.
Figure 3-1 PPAP-200 Board
