Hayden Pressure Balance
Shower Trim and Hand Shower Kit
Hayden –Shower Trim and Hand shower kit Page 1
FEATURES
Diaphragm cartridge maintains water
temperature within ± 2°
Compensates for water pressure
fluctuations preventing scalding
Flow rate: 6-7 gpm at 80 psi
Solid brass construction
Warranty:
oLimited lifetime warranty
(residential use)
oOne year (commercial use)
Standard finishes:
opolished chrome
osatin nickel
opolished nickel
oantique bronze
Listed by IAPMO, CSA, NSF, and
other municipalities
Shipping weight (lbs.): 15.7
Shipping dimensions(in.): 12 x 22.5
x13
IMPORTANT INSTALLATION INFORMATION
USE TEFLON TAPE OR PIPE SEALANT FOR THREADED CONNECTIONS
DO NOT USE PLUMBER’S PUTTY ON ANY OF THE BRASS COMPONENTS
This will cause the finish to tarnish and void the warranty. A non-corrosive Alkoxy Silicone is
recommended.
DURING SWEATING OF LINES DO NOT OVERHEAT CASTING
Overheating may cause damage to internal mechanism
COPPER ADAPTORS MAY BE REQUIRED TO COMPLETE YOUR INSTALLATION

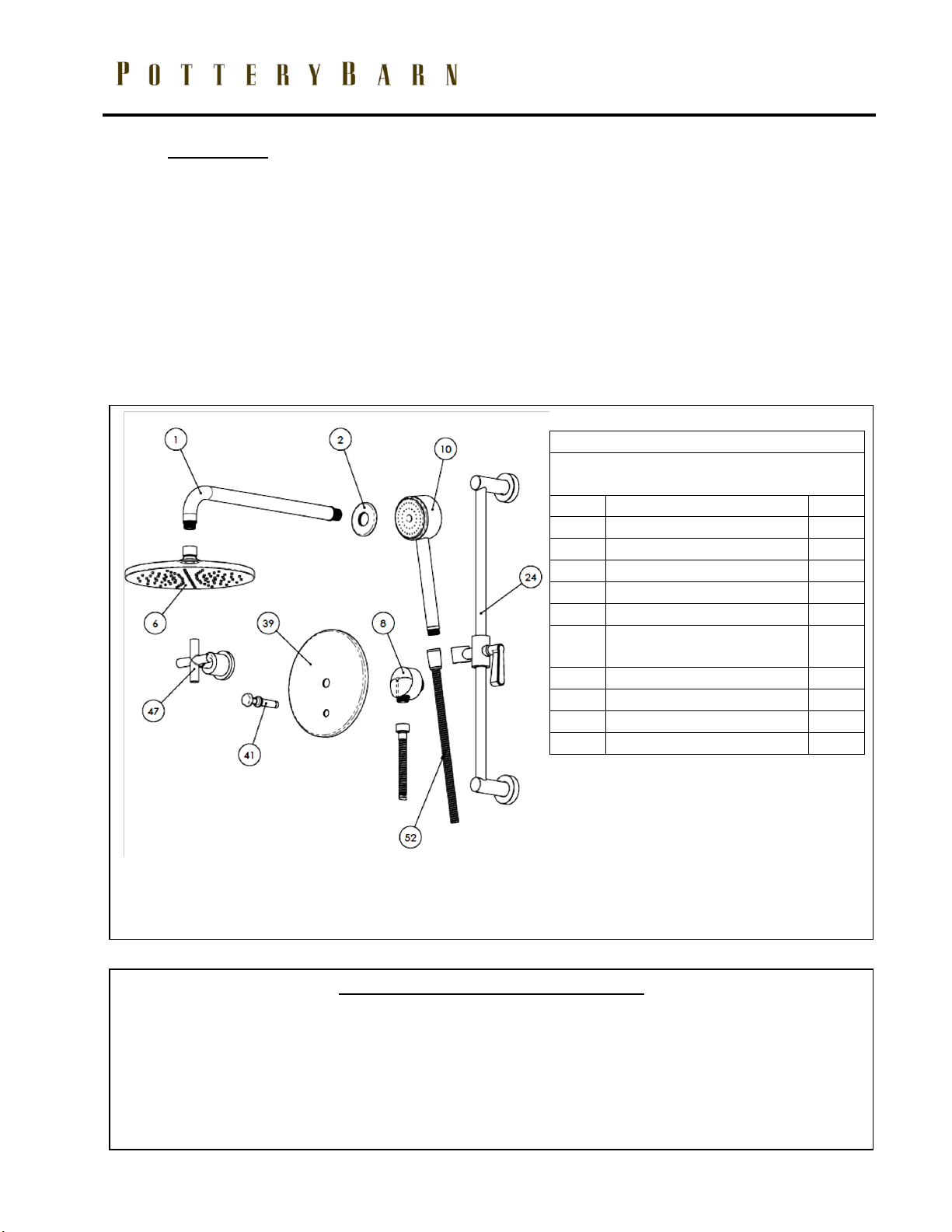

Parts Checklist
Carefully remove all parts from the box.
The following parts should be included.
ID #
Description
Qty
1
Shower arm
1
2
Shower arm flange
1
6
SH-TIT50 Shower head
1
8
ELB-8001 elbow
1
10
SH-LFT30 hand shower
1
24
PB-6524-24 Positioning
Bar
1
39
Face plate SS-PFP925
1
41
Diverter knob and post
1
47
Handle and escutcheon
1
52
DS-4079 shower hose
1

Hayden Pressure Balance
Shower Trim and Hand Shower Kit
Hayden –Shower Trim and Hand shower kit Page 2
1. Ensure valve is properly installed according to Installation Sheet provided with valve.
Note: Specification from finished wall to tip of broached stem is 4”.
2. Fit faceplate onto valve.
Note: for shower valves with diverter, screw diverter knob and post (33) onto diverter stem.
3. Insert handle trim onto stem broach so that escutcheon (36) rests against faceplate (31) and slight
clearance is left for handle (36) to rotate freely.
Note: When fitting handle it may be necessary to shorten broach stem and/or threaded nipple to
eliminate gap between handle and escutcheon.
4. Install the handshower assembly . Thread wall elbow onto ½” male NPT nipple. Secure mounting
kits (already assembled into Positioning bar posts (11,15) onto wall. Connect conical shape
connection of hose onto hand shower and round connection onto elbow.
Rev. 6/12
For technical support, please call 1-888-779-5176
Ø 7”
