Pottinger NOVACAT 302 CF User manual

Operator‘s manual
Translation of the original Operating Manual
Nr. 99+3784.EN.80U.0
Disc mower
NOVACAT 302 CF
(Type PSM 3786 : + . . 0001)

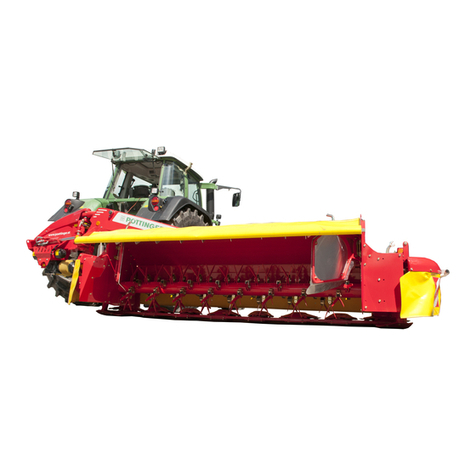

NOVACAT 352 ED/RCB/CF
(Type PSM 3784 : + . . 0291)
NOVACAT 402 ED
(Type PSM 3785 : + . . 0001)

1900_GB-PAGE 2
Product liability, information obligation
Product liability obliges manufacturers and dealers to issue operating instructions for the machine at the point of sale and to instruct
the customer on the operation, safety and maintenance regulations governing the machine.
Confirmation is required to prove that the machine and the operating instructions have been properly handed over. For this purpose
you have received a confirmation e-mail from Pöttinger. If you have not received this mail, please contact your local dealer. Your
dealer can fill in the handover declaration online.
For the purposes of product liability law, every farmer is an entrepreneur.
In the terms of product liability law, damage to property is any damage arising due to the machine, but not to the machine, and an
excess (500 euros) exists for this liability.
Corporate damage to property within the terms of the product liability law is excluded from this liability.
Be advised! The operating instructions must also be handed over with any subsequent machine sale or transfer and the transferee
must be instructed in the regulations stated.
3|WWLQJHU7UXVWFUHDWHV$IÀQLW\VLQFH
"Quality pays for itself." Therefore we apply the highest quality standards to our products which are constantly monitored by our
in-house quality management and our management board. Because the safety, perfect function, highest quality and absolute
reliability of our machines in operation are the core competencies for which we stand.
There may be deviations between these instructions and the product as we are constantly developing our products. Therefore no
claims may be derived from the data, illustrations and descriptions. Please contact your Specialist Service Centre for any binding
information about specific features of your machine.
We would ask you to please understand that changes to the scope of supply with regard to form, equipment and technical
specifications are possible at any time.
Any form of reprint, translation or reproduction, including excerpts, requires the written approval of Pöttinger Landtechnik GmbH.
All rights according to copyright laws remain expressly reserved by Pöttinger Landtechnik GmbH.
© Pöttinger Landtechnik GmbH – 31st October 2012
Refer to PÖTPRO for additional information about your machine:
Are you looking for suitable accessories for your machine? No problem! All the information you require is here at your disposal.
Scan the QR code on the machine's type plate or look under www.poettinger.at/poetpro
And if we don't have what your looking for, then your Specialist Service Centre is there for you with help and advice.

DE-1901 Dokum D Attachments - 3 -
PÖTTINGER Landtechnik GmbH
Industriegelände 1
4710 Grieskirchen, Austria
Tel. 07248 / 600 -0
Telefax 07248 / 600-2511
Please place a cross where appropriate. X
According to the product liability please check the above mentioned items.
INSTRUCTIONS FOR PRODUCT HANDOVER
Confirmation is required to prove that the machine and the operating instructions have been properly handed over. For this purpose you have
received a confirmation e-mail from Pöttinger. If you have not received this mail, please contact your local dealer. Your dealer can fill in the hand-
over declaration online.
TMachine checked according to delivery note. All attached parts removed. All safety equipment, drive shaft and operating
devices at hand.
TOperation, commissioning and maintenance of the machine or device discussed and explained to the customer on the basis
of the operating instructions.
TCheck tyres for correct air pressure.
T*OLJR^OLLSU\[ZMVY[PNO[Ä[
TCorrect PTO shaft speed indicated.
TAdaptation to the tractor carried out: Three point adjustment
TCardan shaft correctly cut to length.
TTest run carried out and no defects detected.
TFunction explanation during test run.
TSwivel in transport and working position explained.
TInformation about optional equipment is given.
TIndication of unconditional reading of the operating instructions.
EN

- 4 -
TABLE OF CONTENTS
1700_GB-Inhalt_3784
EN
Attention!
Safety hints to
observe in
supplement!
Table of contents
Introduction................................................................ 5
SYMBOLS USED
CE mark..................................................................... 6
Safety hints: ............................................................... 6
WARNING SIGNS
Meaning of warning signs.......................................... 7
Position of the warning signs ..................................... 9
OVERVIEW
Overview.................................................................. 10
Variations................................................................. 10
TRACTOR REQUIREMENTS
Tractor.......................................................................11
Ballast weights..........................................................11
Lifting unit (three-point linkage) ................................11
Hydraulic control on the lifting gear ..........................11
Hydraulic connections required ............................... 12
Power connections required .................................... 12
ATTACHING TO TRACTOR
Safety advice ........................................................... 13
Hitching implement to tractor................................... 13
TRANSPORT AND WORKING POSITION
Safety advice ............................................................17
Changing from working position to field transport
position .....................................................................17
Changing from field transport to transport position...17
Changing from transport to working position ........... 18
UNHITCHING AND PARKING
General tips ............................................................. 19
Unhitching implement from tractor........................... 19
OPERATION
Safety advice ........................................................... 21
Important notes prior to starting work ...................... 21
Mowing .................................................................... 22
Reversing................................................................. 22
Protective covers ..................................................... 22
Settings for operation............................................... 23
Comfort control ........................................................ 23
Remove clogging ..................................................... 23
WORKING ON SLOPES
Working on slopes ................................................... 25
ED TINE CONDITIONER
Operation mode....................................................... 26
Possible settings...................................................... 26
Correct V-belt tension .............................................. 27
Rotor tines position .................................................. 27
Rotor tine maintenance............................................ 27
Swath width when mowing with conditioner............. 27
Uncoupling and coupling the conditioner................. 28
Position of the rotor tines on the conditioner............ 31
RC = ROLLER CONDITIONER
Safety advice ........................................................... 32
Operation mode....................................................... 32
Overview.................................................................. 32
Possible settings...................................................... 33
Operation................................................................. 34
Maintenance ............................................................ 35
CROSS FLOW
Overview - Device with mechanical tailgate
opening.................................................................... 38
Overview - Device with hydraulic tailgate opening... 38
Safety advice ........................................................... 39
Mode of operation.................................................... 40
CF unit operation ..................................................... 40
Mechanical tailgate .................................................. 40
Hydraulic tailgate (option).........................................41
Scraper bar...............................................................41
Swath apron..............................................................41
Spare belt .................................................................41
Maintenance ............................................................ 42
MOWING WITHOUT A CONDITIONER
Mowing without a conditioner .................................. 44
Optional equipment:................................................. 44
Swath width when mowing without a conditioner..... 45
Conveying cones (optional) ..................................... 45
Reverse the three screws in the centre bearing....... 45
COLLISION PREVENTION
Collision Prevention ................................................. 46
GENERAL MAINTENANCE
Safety advice ........................................................... 47
General maintenance information............................ 47
Cleaning of machine parts....................................... 47
Parking in the open.................................................. 47
Winter storage.......................................................... 47
Articulated shafts ..................................................... 48
Hydraulic unit........................................................... 48
Cutter bar oil level check ........................................ 49
Cutter bar oil change ............................................... 50
Oil change angular gear 1 ....................................... 50
Oil change angular gear 2 .......................................51
Installing cutter blades..............................................51
Lubricating the hydraulic relief ..................................51
MAINTENANCE
Wear control of mowing blades and holder.............. 52
Storing of the lever................................................... 53
Changing the Cutter Blades (from 2004 model) ...... 54
Storing the lever....................................................... 54
TECHNICAL DATA
Technical data.......................................................... 55
Necessary connections:........................................... 55
Optional equipment:................................................. 55
The defined use of the mower unit........................... 56
Type plate position................................................... 56
Type plate position................................................... 56
SUPPLEMENT
SAFETY ADVICE
Lubrication chart ...................................................... 63
Lubricants ................................................................ 65
TAPER BUSHES
Taper bushes installation instructions...................... 68
SERVICE
Hydraulic plan.......................................................... 69
Combination of tractor and mounted implement...... 70

- 5 -
EN
INTRODUCTION
1700_GB-Introduction
Introduction
Dear Customer
These Operating Instructions are intended to allow you
to familiarise yourself with the implement and provide
you with clear information on safe and correct handling,
care and maintenance. Thus please take the time to read
these Instructions.
These Operating Instructions comprise part of the imple-
ment. They are to be kept at a suitable location and acces-
sible to staff over the entire service life of the implement.
Instructions based on the national provisions regarding
protectionagainst accidents, roadtraffic andenvironmental
protection are also to be applied additionally.
Anypersons commissionedwiththeoperation,maintenance
or transport of the implement must read and understand
these Instructions, in particular the safety information, prior
to starting work. Any warranty claims lapse on non-obser-
vance of these Instructions.
Incase youhavequestionsrelatedtothis operationmanual
or further questions about this implement, please contact
your dealer.
Care and maintenance performed in good time and scru-
pulously according to the maintenance intervals specified
ensureoperational and traffic safetyas well asthereliability
of the implement.
Use only the original spare parts and accessories from
Pöttinger or accepted by Pöttinger. For those parts relia-
bility, safety and suitability for Pöttinger machines can be
assured. Warranty claims lapse if non-approved parts are
used. The use of original parts is also recommended after
thewarrantyperiodhas expiredtomaintaintheperformance
of the implement in the long term.
Product liability legislation obliges the manufacturer and
the authorised dealer to issue Instructions when selling
implements and to instruct customers in the use with refer-
ence to the safety, operating and maintenance regulations.
Confirmation in the form of a declaration of transfer is
required to verify that the implement and Instructions have
been transferred correctly. The declaration of transfer was
attached to the implement on delivery.
Every self-employed person and farmer is an entrepreneur
within the meaning of the product liability legislation. In
accordance with the laws of product liability, entrepre-
neurial property damages are excluded from the liability.
All damage to property within the meaning of the product
liability legislation is regarded as damage caused by the
implement but not to the implement.
These Operating Instructions are integral part of the imple-
mentdeliveryscope. Youshouldthereforehand themoverto
the new owner if ownership of the implement is transferred.
Train and instruct the new owner in the regulations stated.
The Pöttinger Service-Team wishes you good luck.

- 6 -
1801_EN-Sicherheit ANSI
EN
SYMBOLS USED
CE mark
The CE mark, which is affixed by the manufacturer, indicates outwardly that this machine conforms to the engineering
guideline regulations and the other relevant EU guidelines.
EU Declaration of Conformity (see Attachment)
By signing the EU Declaration of Conformity, the manufacturer declares that the machine that
is brought into service complies with all relevant fundamental safety and health requirements.
Safety hints:
These Operating Instructions contain the
following Figures:
DANGER
If you do not follow the instructions in a text section
with this marking, there is a risk of fatal or life-
threatening injury.
t All instructions in such text sections must be
followed!
WARNING
If you do not observe the instructions marked this
way, there is the risk of a severe injury.
t All instructions in such text sections must be
followed!
CAUTION
If you do not observe the instructions marked this
way, there is the risk of an injury.
t All instructions in such text sections must be
followed!
NOTE
If you do not observe the instructions marked this
way, there is the risk of material damage.
t All instructions in such text sections must be
followed!
TIP
The text sections marked in this way provide you with
special recommendations and advise regarding the
economical use of the implement.
ENVIRONMENT
The text sections marked in this way provide practices
and advice on environmental protection.
The features marked as (optional) are only available as
standard with specific implement versions or are only
offered for specific versions as optional equipment or are
only offered in certain countries.
Figures may deviate from your implement in detail and are
to be taken as illustrations of operating principle.
Designations such as right and left always apply as the
direction of travel unless the text or illustrations clearly
show otherwise.

- 7 -
1900_GB-Warning signs_3784
EN
WARNING SIGNS
Meaning of warning signs
1
(1x)
Secureyourrighttoproductwarrantybysigningthedelivery declaration.
2
(1x)
Read the operating instructions before working with the device.
494,529
3
(6x)
Lubricating position
494,646
4
(1x)
Shut engine off and remove key before carrying out maintenance or
repair work.
495,165
5
(7x)
Never reach into the crushing danger area as long as parts can move
there.
495,171
6
(3x)
Suspension point for transport
495,404

- 8 -
1900_GB-Warning signs_3784
EN
WARNING SIGNS
7
(1x)
Mounting position
495,726
8
(1x)
434.960 434.961
434.969.999 434.970.999
495.855/19
Blade equipment
495,855
9
(2x)
495.197/19
N[bar]
○ 25
○ 40
○ 50
○ 60
○ 80
○ 90
○ 100
○ 120
○ _____
Pressure in gas storage tank
495,197
10
(1x)
Blade changing
495,725
11
(1x)
Open protection position
495,727

- 9 -
1900_GB-Warning signs_3784
EN
WARNING SIGNS
12
(1x)
Operation hoist unit
495,823
Position of the warning signs
113-18-06
7
10
113-18-05
9
9
8
8
8
1

- 10 -
2000-EN_ÜBERSICHT_3784
EN
OVERVIEW
Overview
Descriptions:
(1) Headstock
(2) Hydraulic relief
(3) Cutter bar
(4) Conditioner
(5) Folding lateral protection
Variations
Description Description
NOVACAT 302 CF Working width 3.04 m
NOVACAT 352 ED / RC /CF Working width: 3.46 m
NOVACAT 402 ED Working width: 3.88 m
15 4 3 2

- 11 -
2000-EN_TRACTOR PREREQUISITE_3784
EN
TRACTOR REQUIREMENTS
Tractor
To operate this machine the following tractor requirements
are necessary:
- Tractor power:
NOVACAT 302 CF from 74 kW / 100 PS
NOVACAT 352 ED / RC / CF from 96 kW / 130 PS
NOVACAT 402 ED from 96 kW / 130 PS
- Attaching:
NOVACAT 302 CF lower link cat. II or III /
width 2 or 3
NOVACAT 352 ED / RC
/ CF
lowerlinkCat. III/ Width3
NOVACAT 402 ED lowerlinkCat. III/ Width3
- Connections:
Seetable "Necessary hydraulicandpowerconnections"
Ballast weights
20%
Kg
Ballast weights
The front of the tractor must have sufficient ballast weights
to guarantee braking and steering capabilities.
DANGER
Life hazard - Steering or brake system failure due to
inadequate weight distribution between the tractor
axles.
t Make sure that when the implement is
hitched, at least 20% of the tractor weight is
placed on the front axle.
Lifting unit (three-point linkage)
371-08-16
371-08-16
- The tractor’s lifting unit (three-point linkage) must be
designed for the occurring load. (See technical data)
- The lifting struts are to be set at the same length (4)
using the appropriate adjusting device
(See the tractor manufacturer’s operating manual)
- Select the rear position if the lifting rods can be set in
various positions on the lower link. This relieves the
pressure on the tractor’s hydraulic system.
- The limiting chain or lower link stabilisers (5) are to
be set so that the attached machine CANNOT move
sideways. (Safety measure for transportation)
Hydraulic control on the lifting gear
The lifting hydraulics shall be switched on
position control:

- 12 -
2000-EN_TRACTOR PREREQUISITE_3784
TRACTOR REQUIREMENTS EN
Hydraulic connections required
Design Consumer
Single-action
hydraulic
connection with
floating position
Dual-action
hydraulic
connection
Identification
(on the
implement)
Standard Lift-out cylinder X
with 3-way valve on top
Hydraulic lower link rocker or
swivel cylinder (with active
steering line)
with3-wayvalvebelowHydraulic
relief
X
Optional Cross Flow
(NOVACAT 352 CF only) X
Operating pressure
NOTE
Material hazard - Friction wear on the piston of the control or hydraulic
block due to incompatible hydraulic oils.
t Check the compatibility of the hydraulic oils before connecting
the implement to the hydraulic system of your tractor.
t Do not mix mineral oils with bio oils!
Minimum operating
pressure
170 bar
Maximum operating
pressure 200 bar
Power connections required
Design Consumer Pin Volt Powerconnection
Standard Lighting 7-pin 12 V DC According to DIN-
ISO 1724
Terminal(NOVACAT302 CF only) 3-pin 11-16 VDC According to DIN-
ISO 1724

- 13 -
2000_DE-ANBAU_3784
EN
ATTACHING TO TRACTOR
Safety advice
DANGER
Life-threateningdanger throughoperatinga machine
that is unroadworthy or damaged
t Check the vehicle for roadworthiness prior
to every operation (lights, brakes, protective
panels …)!
DANGER
Life-threateningdanger through implementoperation
with self-driven machines. The field of vision during
a transport journey is restricted when the device is
attached.
t Operate the machine only with tractors
whose field of vision remains unaffected by
the unit during transport.
For further safety instructions see Supplement A1, pt. 7),
8a. - 8h.)
Hitching implement to tractor
1. Set lower link on tractor
- Fix the lower linkage so that the implement cannot
swivel out to the side and the headstock is centrally
positioned.
2. Attaching implement to tractor
WARNING
Riskof injuryresulting indeathorother serious injury
from driving over or rolling over a person located
between the implement and the tractor.
t Before approaching the tractor, direct all
persons out of the danger area between
tractor and implement.
t After approaching the tractor, secure it
against rolling away (braking in, wheel
chocks) before anyone is allowed to enter
the danger area.
- Connect the lower linkage with the implement lower
linkage bolt, and secure. The hydraulic lower linkage
compensator can be fitted in the left lower linkage
arrester hooks by activating the dual-acting servo unit.
- Adjust the lower link bolts (1) on the bearing frame,
according to the three-point category, and the track
width using the fixing screw. The mower must not touch
the rear tractor tyres.
NOTE
Risk of property damage due to falling of the device.
t Make sure you hit the desired hole on the
bolt with the fixing screw! Otherwise the
device may come loose from the coupling
and fall to the ground.
3 drilled holes
Locating screw
- Connect upper link and secure.
- Connect cardan shaft.

- 14 -
2000_DE-ANBAU_3784
EN
ATTACHING TO TRACTOR
2. Move the lifting gear in the appropriate direction until
the indicator arrow points (1) on the relief cylinder
point directly at each other.
This setting means an approx. 700 mm
ground clearance to the right lower linkage bolt.
1
3. Adjust mounting frame:
TIP
The mower is to be swivelled into field transport position.
Bring mounting frame into horizontal position by adjusting
hydraulic lower link rocker.
1. Adjust 3-way-valve on headstock down to select the
"Hydraulic lower linkage" function.
2. Activate dual-acting servo on tractor until the mounting
frame is horizontal.
3. Closethe 3-way-valve ontheheadstock(movetomiddle
position)
4. Adjust upper link
- Turning upperlinkspindle (16)adjuststhe cuttingheight.
DANGER
Life-threatening danger exists when cardan shaft
length is unadapted
t Before initial operation, check the length of
the cardan shaft and adapt if necessary.
t A tractor change is considered to be an
initial operation.
t See chapter "Adapting the Cardan shaft" in
Appendix B.
025-05-04
L2
- JenachAusrüstungdieHydraulikschläuche anschließen.
- Connect the 7-pin plug of the lighting to the tractor.
- Lay control line in tractor cabin.
- Fold up support stands and secure!
CAUTION
Risk a slight or moderate injury due to squeezing.
t Do not actuate the tractor's lifting hydraulics
until you have directed persons out of the
danger area between tractor and implement.
- Swivel safety flap!
a. Setsingle-actinghydraulicservoto"floating"position!
b. Raise the tractor's lifting gear until the safety flaps
can be moved easily.
c. Move safety flap (1) position B before lifting to field
transport position.
Pos. A
Pos. B
1
- Set the right lower link.
1. Set the mowing unit in "floating" position using the
single-acting servo

- 15 -
2000_DE-ANBAU_3784
EN
ATTACHING TO TRACTOR
TIP
The mower is to be swivelled into field transport position.
TIP
A hydraulic upper link is recommended (double-acting
implement).
5. Control of hydraulic relief
TIP
The degree of soiling influences the weight with which
the tractor presses on the ground.
1. Settherightlowerlinkpinatthecorrectgroundclearance.
Arrowheads point to each other. (see "Attaching
implement to tractor")
2. Move single-acting servo to "Float" position.
3. Check the bearing pressure:
byliftingthecutter baronone side. Theweight
on the cutter bar, inside and outside, should
be 75 kg.
517-10-07
75 kg
6. Adjustment of the hydraulic relief
1. Adjust the 3-way-valve on the headstock up to set the
"Hydraulic relief" function .
2. Activate dual-acting servo
3. Read the preload pressure on the manometer.
Repeat steps 2 and 3 until the required pressure can
be read on the manometer.
4. Closethe 3-way-valve ontheheadstock(movetomiddle
position)
- Reference values for preload pressure ex works:
Display value on manometer
for machine without a conditioner: 110 bar
for implement with conditioner: 145 - 150 bar
7. Set right lower link ground clearance
WARNING
Risk of injury resulting in death or other serious
injury from squeezing.
t Stay outside the machine area during the
setting process.
t Direct third persons out of the danger area
during the setting procedure.
- Set the right lower link.
1. Set the mowing unit in "floating" position using the
single-acting servo
2. Move the lifting gear in the appropriate direction,
until the indicator arrowheads on the relief cylinder
point directly to each other.
For NOVACAT 302, NOVACAT 352 and NOVACAT
402 this setting means approx. 700 mm ground
clearance to the right lower link bolt;
8. Set power take-off r.p.m.
- Set appropriate power take-off r.p.m. on tractor
TIP
A transfer placed near the transmission gives information
about the rpm for which the disc mower is designed.
9. Check rotation direction
- The power take-off rotation direction is suitable when,
looking from the front, the outer cutting discs rotate
inward.
504-12-01

- 16 -
2000_DE-ANBAU_3784
EN
ATTACHING TO TRACTOR
10. Checking the lighting
DANGER
Life-threateningdanger throughoperatinga machine
that is unroadworthy or damaged
t The lights and corresponding reflector plates
are to be checked for functioning, complete-
ness and cleanness before any driving on
public roads.

- 17 -
1900 EN_TRANSPORT_POSITION_3784
EN
TRANSPORT AND WORKING POSITION
Safety advice
DANGER
Life-threatening danger through the mower tipping
over
t Change from the working to the transport
position only on level, solid ground.
DANGER
Life-threatening danger through rotating or ejected
components
t Switch off the cutter bar drive.
t Wait until the cutter bar has stopped moving
before swivelling it up.
WARNING
Risk of injury resulting in death or other serious
injury when the mower is swivelled.
t Ensure that no one is standing in the mow-
er’s swivel range
Changing from working position to field
transport position
Procedure:
WARNING
Risk of injury resulting in death or other serious
injury when the mower is swivelled.
t Ensure that no one is standing in the mow-
er’s swivel range
1) Raise the mower into field transport position using the
single-action control unit
Changing from field transport to
transport position
NOTE
Dangerofdamagetocardanjoint orcardan shaft
stub at the angular gear input point!
The cardan shaft may break if the brake is
engaged whenchanging the transport position.
t Disengage the cardan shaft brake before
changing the transport position.
Procedure:
1)Turn drive off and wait for mower discs to come to a
standstill
WARNING
Risk of injury resulting in death or other serious
injury when the mower is swivelled.
t Ensure that no one is standing in the mow-
er’s swivel range
2) Pull control line
3) Atthesame time swivelthemowerintotransportposition
using the dual-action control unit
TIP
If the double-acting control unit is actuated without pulling
the control line at the same time, the horizontal position
of the mounting frame changes.

- 18 -
1900 EN_TRANSPORT_POSITION_3784
TRANSPORT AND WORKING POSITION EN
Changing from transport to working
position
Procedure:
WARNING
Risk of injury resulting in death or other serious
injury when the mower is swivelled.
t Ensure that no one is standing in the mow-
er’s swivel range
1) Pull control line
2) At the same time swivel the mower into field transport
position until the swivel cylinder is completely extended
using the dual-action control unit
TIP
If the double-acting control unit is actuated without pulling
the control line at the same time, the horizontal position
of the mounting frame changes.
3) Set the single-action control unit to floating position and
thus lower the mower into working position.
4) Set the dual-action control unit to floating position so
that the collision safety device works to the optimum.

- 19 -
1900_EN_MAEHENOHNECR_3784
EN
UNHITCHING AND PARKING
General tips
DANGER
Life-threatening danger should the tractor start
moving on its own.
t Before carrying out maintenance and repair
work, switch off the engine and remove the
key and apply the tractor's brakes.
t Secure the machine with chocks if neces-
sary.
DANGER
Danger to life - by tilting the device
t Make sure the machine is standing securely.
t Park the implement only on flat, firm ground.
t Use the support feet provided for this pur-
pose.
DANGER
Life-threateningdanger existsifanotherperson starts
up the tractor and drives away or actuates the control
lever of the hydraulic system while you are engaged
in maintenance.
t Before carrying out maintenance and repair
work, switch off the engine and remove the
key and apply the tractor's brakes.
Unhitching implement from tractor
Depending on parking situation, mower can be unhitched
in the transport position (H) or working position (R).
H
r
The following procedure applies to both situations:
1. Set the single-action control unit to floating position to
lower the implement to the required parking position
(H, R).
2. Swivel safety flap (1) into (item A).
Pos. A
Pos. B
1
WARNING
Risk of an injury resulting in death or other serious
injury due to the failure of the safety flap (1).
t The safety lever (1) is a safety fixture. It
should not be changed in its form and
functions.
t The safety flap is designed in such a way
that it does not jump out of the locking posi-
tion when the cutter bar is folded up hydrau-
lically, therefore do not actuate the hydraulic
cylinder for folding up when the safety flap is
in the locking position. (Pos. A)
t Damaged safety flaps must be replaced
immediately with new ones.
3. Extend or fold out and secure the support feet (2).
4. Lower implement onto support stands.
2

- 20 -
1900_EN_MAEHENOHNECR_3784
UNHITCHING AND PARKING EN
CAUTION
Risk of slight or moderate injury due to jerky lifting
of the mower attachment frame when uncoupling
from the lower links.
t Check that the safety flap (1) is swivelled to
position A before uncoupling the device.
5. Release the catch hook of the lower links by adjusting
thehydrauliclowerlinkrocker(withdoubleacting control
valve).
CAUTION
Risk of minor or moderate injury due to the use of
force on the lower link hook.
t Relieve the load on the lower link hooks
using the hydraulics of the lower link rocker.
t Observe any tensions on the device.
t Never use a hammer to release the lower
link hooks.
6. Uncoupling the upper link
7. Remove the steering line from the tractor cab and place
it rolled up on the mower's hose deposit.
8. Untension and cap off the hydraulic hoses and place
them on the hose rest of the mower
9. Disconnect the 7-pin plug of the lighting at the tractor.
10.Uncouple the PTO shaft and place it on the PTO shaft
mounting.
11. Separate the tractor lower link from the lower link pins
of the implement.
12. Carefully drive safely with the tractor.
