Poulan Pro 418794 Owner's manual

REPAIR PARTS MANUAL
MODEL:
PBGT26H54X
GARDEN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
WARNING:
Read this Manual and follow all Warnings
and Safety Instructions. Failure to do so can
result in serious injury.
IMPORTANT MANUAL Do Not Throw Away
Printed in U.S.A.
03090
418794 12.07.07 SBW

2
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel
_
art
_
1-v
g
t
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
3
10
4
13
1 59192 Cap, Valve, Tire
2 65139 Stem, Valve
3 106228X421 Rim Assembly, Front
4 8134H Tube, Front (Service Item Only)
5 106230X Tire, Front
6 278H Fitting, Grease (Front Wheel Only)
7 9040H Bearing, Flange (Front Wheel Only)
8 104757X421 Cap, Axle (Front Wheel Only)
9 105588X Tire, Rear
10 7154J Tube, Rear (Service Item Only)
11 124074X421 Rim Assembly, Rear
- - 144334 Sealant, Tire (10 oz. Tube)
8
6
1 411658 Decal, Operator's
2 402355 Decal, Hood RH
3 402525 Decal, Dash Lower
4 411140 Decal, Replacement
5 172743 Decal, Strg Whl
6 408843 Decal, Engine HP
8 198785 Decal, Mower Sch.
9 145005 Decal, Battery Dnge/Poi
10 402357 Decal, Hood LH
11 178502 Decal, Mower Caution
1
12 170563 Decal,MowerWarningKeepHandAway
13 172740 Decal, Fender
14 408796 Decal, Panel SD
15 408948 Decal, Fender SD LH
16 408949 Decal, Fender SD RH
- - 166960 Decal, Bypass
- - 193279X428 Pad, Footrest, LH
- - 193101X428 Pad, Footrest, RH
- - 418793 Manual, Operator's (Eng & French)
- - 418794 Manual, Parts
3
5
16
14
9
12
11
15
2

3
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
SCHEMATIC
NOTES
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
SM
B
GL
2
3
1
6
A2
A1
M
6
3
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
9-16AMPDC@3600 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH12
IGNITION SWITCH
CIRCUIT
POSITION
OFF B+A1
RUN/OVERRIDE
B+S+A1
START
M+G+A1
B+A1
RUN
“MAKE”
L+A2
POWER OUTLET
(OPTIONAL)
12V
A
AMMETER
(OPTIONAL)
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED
RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
B
A
G
H
D
FC
E
PTO SWITCH
B
A
H
D
C
E
BLUE BLACK

4
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
ELECTRICAL
8
1
99
100
91
227
90
28
55
26
43
41
24
27
25
30 33
22
79 21
101
40
71
34
With Service Minder Option
4646
With 12V Outlet Option
59
103
16
42
T11S
102
29

5
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 144927 Battery
2 74760412 Bolt Hex Head 1/4-20 x 3/4
8 186491 Box Battery
16 176138 Switch Interlock Push-In
21 175688 Harness Socket Light w/4152J
22 4152J Bulb Light
24 400253 Cable Battery
25 198893 Cable Start Red 17.5"
26 175158 Fuse
27 73510400 Nut Keps Hex 1/4-20 unc
28 145491 Cable, Ground
29 401545 Switch, Seat
30 193350 Switch, Ignition
33 411935 Key/Chain
34 110712X Switch Light / Reset
40 401104 Harness Ign. Dash
41 17720408 Screw Thd Cut 1/4-20 x 1/2
42 131563 Cover, Terminal
43 192507 Solenoid
46 401763 Gauge Hourmeter
50 174653 Switch, PTO
55 17060512 Screw Thdrol 5/16-18 x 3/4 TYTT
59 400303 Outlet 12-Volt
71 194276 Harness Ignition, Chassis
79 175242 Bulbholder Asm. Incan Descent
90 400724 Cover Terminal Battery
91 190270 Strap Battery Mount Front
99 17670412 Screw Hexwsh Thdrol 1/4-20 x 3/4
100 19091416 Washer 9/32 x 7/8 x 16 Ga.
101 198317 Pigtail MATNLK
102 404454 Harness Pigtail K46
103 407962 Harness Pigtail 12V Outlet
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
CHASSIS
153
130
14
122
150
130
18
175
177
5
176
176
182
176
176
chassis-tex_Stealth II PL_1_r1
205
205
178
68
68
68
183
183
236
236
34
68
68
139 139
235
235
189
189
152
228
228
194
165
37
181
181
58
189
189
161
196
162
222 162
198
199
194
194
36
36
148
278

7
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
CHASSIS
KEY PART
NO. NO. DESCRIPTION
5 195102X428 Dash
14 175260X428 Hood
18 175289X428 Grille
34 196125 Plate Engine
36 17060512 Screw 5/16-18 x 3/4
37 400009X428 Fender
58 194314 Bracket Fender
68 17490508 Screw Thdrol 5/16-18 x 1/2
122 192512 Screw WSHD Hex 10-32 x 5/8
130 416358 Screw #10 x 0.750 BOS Thread
139 171873 Shoulder Bolt
148 164655 Bumper
150 175351 Duct Heat Hood
152 199535 Shield Browning/Debris
153 161840 Lens Bar
161 193097X428 Console Fuel Window
162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2
165 196826 Bracket Support Tank
175 193236 Crossmember
176 400776 Screw #10-24 x 5/8 Rnd Qudrx
177 195227 Bushing Steering
178 195651 Cargo Asm. Net
180 195477 Chassis
181 193102X428 Bushing Mtg. Fender Crgo.
182 192551 Dash Lower
183 74780520 Bolt Fin Hex 5/16-18 unc x 1-1/4
189 17000512 Screw 5/16-18 x 3/4
194 73900500 Nut Lock Hex Flange 5/16-18
196 193098X428 Console Asm. Deck Lift
198 197300X421 Indicator Deck Lift
199 196377 Plate Deck Lift
205 169847X428 Skirt Hood RH
206 169848X428 Skirt Hood LH
222 137729 Screw Thd Roll 1/4-20 x 5/8
228 195161 Stud Fastener
235 406129 Spacer Fender
236 73930500 Nut Center Lock 5/16-18 unc
278 196394 Bracket Pickoff Hood
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

8
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71

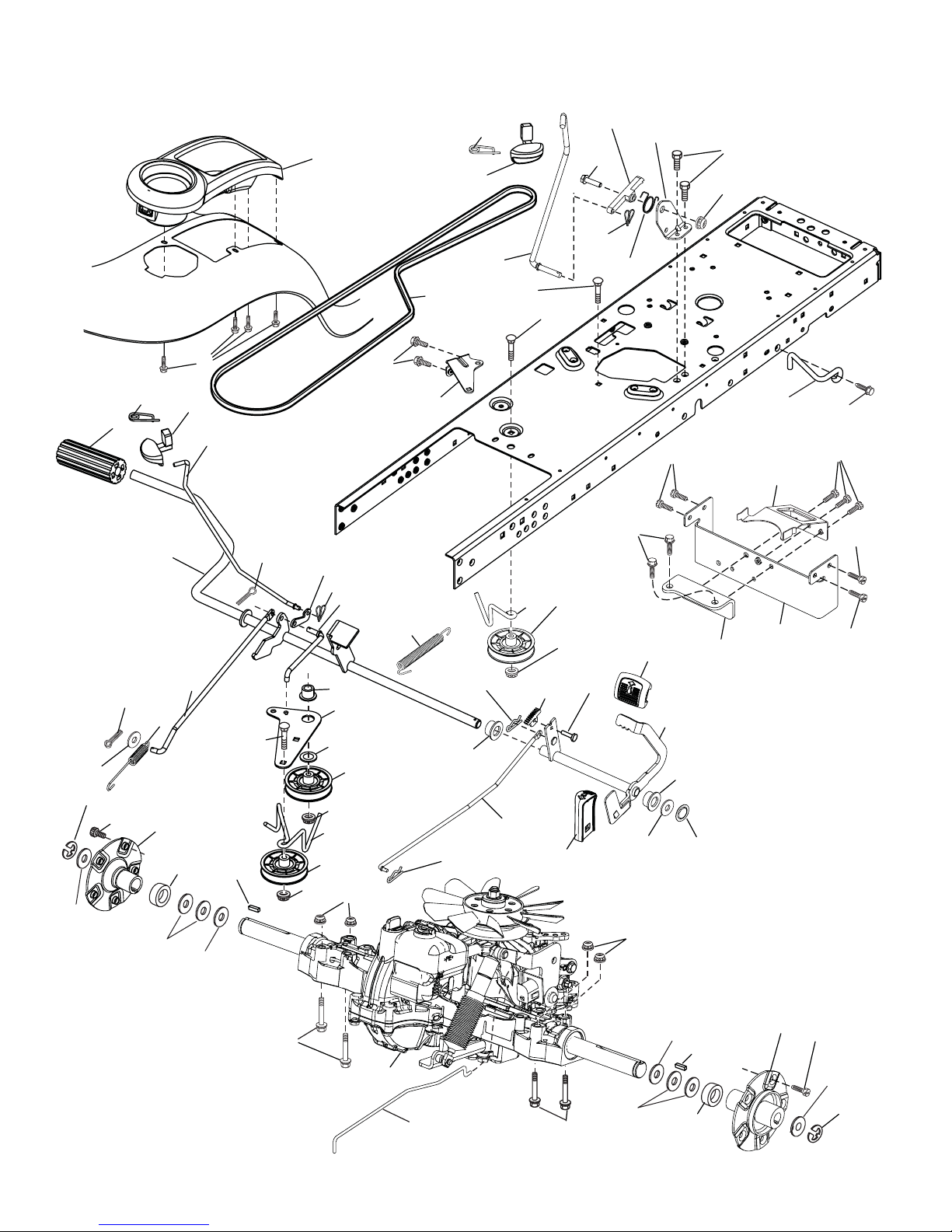

DRIVE
56
197 196
186
189
49 187
50
51
190
52
51
64
188
17
161
35
184
74
167
160
42
224
221
51
52
170
29
159
159
15
Drive-tex_K66_pedal_2
69
116
73
69
99
2
3
33
183
116
73
2
7
9
33
183
169
69
3
171
208
210
163
214
125
215
153
153
166
211
211
222
213
221
160
206
26
207
209
92 125
116
216
143
80
226
225
125
196
125
125
125
79
185

9
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 199973 Transaxle, TuffTorq K66Y
2 7070E Key
3 7563R Hardened Washer
7 199837 Hub Asm. Wheel
9 140080 Bolt Hub Wheel
15 19131316 Washer 13/32 x 13/16 x 16 Ga.
17 401072 Spring, Brake
26 199679 Spring Return Cruise
29 407245 Rod, Brake
33 12000053 Ring E
35 197275 Rod, Brake, Park
42 8883R Cover, Foot Pedal
49 72110614 Bolt
50 194327 Pulley Idler Flat
51 73900600 Lock Nut 3/8-16
52 194326 Idler V-Groove 910" Offset
56 125907X V-Belt, Drive
64 197865 Shaft Asm. Pedal Brake Control
69 123800X Washer 1 1/32 x 1 5/8 x 16 Ga.
73 74490544 Bolt Hex Flghd 5/16-18 Gr. 5
74 142432 Screw Hx Wsh Hi-Lo 1/4 x 1/2 unc
80 407182 Strap Torque
92 74760520 Bolt Fin Hex 5/16-18 unc x 1.25
99 415744 Rod Bypass
116 73900500 Nut Lock Hex Flange 5/16-18
125 17000512 Screw 5/16-18 x 3/4
143 17490508 Screw 5/16-18 x 1/2
153 4497H Retainer Spring
159 76020412 Pin Cotter 1/8 x 3/4
160 169484 Retainer Clip
161 105709X Spring, Return, Clutch
163 407246 Rod Pedal Control
166 197290 Nut Push .625
167 405257 Latch Brake Parking
170 194322 Keeper Belt Centerspan
171 72110616 Bolt
183 197357 Spacer Axle
184 195361X505 Handle Parking Brake
185 72110620 Bolt
186 194321 Spacer Retainer
187 19133210 Washer
188 194323 Link Clutch Ground Drive
189 194317 Bellcrank Ground Drive
190 194318 Keeper Bellcrank Ground Drive
196 17000616 Screw 3/8-16 x 1
197 199769 Bracket Clutch Anti-Rotation
206 197867 Bracket Mount Latch Cruise
207 197868 Latch Control Cruise
208 197869 Bolt Sector Control Cruise
209 199466 Rod Conrtrol Cruise
210 197860 Rocker Asm. Pdeal Control
211 120183X Bearing Nylon
213 195352X428 Knob Control Cruise
214 197302X428 Pad Pedal Forward
215 197301X428 Pad Pedal Reverse
216 196131 Bracket Pulley Idler
221 403187 Retainer Spring Clip Handle
222 79212010 Washer 21/32 x 1-1/4 x 10 Ga.
224 193099X428 Console Toolbox
225 407311 Keeper Belt Trans.
226 407109 Bracket Mount Torque
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

10
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
ENGINE
1
84
84
29
SPARK ARRESTER KIT
84
45
18
15
37
28
37
22
21
20
62
71
70
79
69
87
2
engine-tex_bs-2cyl_2_r1
81
82
12
11
41
42
90
85
9
91
31

11
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 - - - - - - Engine B&S Model No. 445877-0760-E1
2 149723 Muffler
9 194320 Keeper Belt Engine
11 179335 Clutch Electric
12 194343 Pulley Engine
15 193499 Tank Fuel 4.0
18 195951 Cap Asm
20 175437X421 Control Throttle
21 416358 Screw #10 x 0.750 BOS Thread
22 187767X428 Control Choke
28 401135 Fuel Line
29 137180 Spark Arrester Kit
31 145006 Clip Push-In Hinged
37 123487X Clamp Hose
41 126197X Washer 1-1/2 OD x 15/32 ID x .250
42 10040700 Washer Lock 7/16
45 73510400 Nut Keps Hex 1/4-20 unc
62 146629 Shield Heat Muffler
69 165391 Gasket
70 159955 Tube Exhaust LH
71 160589 Tube Exhaust RH
79 183906 Screw Socket Head
81 148456 Tube Drain Oil Easy
82 181654 Plug Drain Oil
84 17060620 Screw 3/8-16 x 1-1/4
85 179953 Bolt Hex 7/16-20 x 3.75 Gr. 5
87 198239 Bolt 5/16-18 unc x 1 w/Sems
90 17000616 Screw 3/8-16 x 1
91 187495 Bushing 1.375 OD
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
ENGINE
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi-
neers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be lower and is affected by,
among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of prod-
ucts on which engines are placed and the variety of environmental issues applicable to operating the equipment, the gas
engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or net
horsepower). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust,
charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature, humid-
ity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may sub-
stitute an engine of higher rated power for this Series engine.

12
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
STEERING ASSEMBLY
6
5
13
13
53 8
9
9
8
8
7
7
62
4
35
16 19
63
63
60
59
58
28
13 22
64
70
68
69
67
67 66
15
15
14
14
21
51
26
1
20
45
61
2
6
steering-tex_Prem2_4

13
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
STEERING ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
1 186093X428 Wheel, Steering
2 195968 Axle Asm., Front
4 403089 Spindle Asm., LH
5 403090 Spindle Asm., RH
6 6266H Bearing, Race Thrust Harden
7 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring, Clip #T5304-75
9 121232X Cap, Spindle
13 121749X Washer 25/32 x 1-1/4 x 16 Ga.
14 10040600 Washer, Lock Hvy Hlcl Spr 3/8
15 73540600 Nut, Crown Lock 3/8-24 unf
16 408219 Shaft Steering
19 194729 Plate Steering
20 195626X428 Boot, Steering
21 186737 Adapter, Wheel Steering
22 194845 Bushing, Strg. Blk
26 186095X428 Insert, Wheel Steering
28 17000612 Screw 3/8-16 x 3/4
35 194732 Gear, Sector Plate
45 19183812 Washer 9/16 x 2-3/8 x 12 Ga.
51 73940800 Nut Hex Jam Toplock 1/2-20 unf
53 188967 Washer Hardened .793 x 1.637 x .060
57 197246 Bracket Upstop
58 194747 Bolt Shoulder Sector Pivot CFM
59 194748 Washer Thrust Sector Steering
60 73971000 Nut Flange Lock 5/8-11
61 194740 Draglink, LH
62 194741 Draglink, RH
63 17000512 Screw 5/16-18 x 3/4
64 199849 Retainer Clip Spring Steering
66 71020748 Bolt Hex Fghd 7/16-14 x 3 Serr
67 194737 Bushing PM Front Axle
68 73900700 Nut Lock Flange 7/16-14 Gr. 5
69 199162 Washer 1.5 x .505 x .118
70 196197 Bracket Deck Susp. Front
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

14
mower_deck 54-tex_9
47
7
49
46
32
33
31
30
133
198
52
52
43
196
97
33
192
49
34
39
185
46
46
6
21
122
114
98
31
32
25 26
24
27
58
60
59
18
21
194
113
49
187
190
184
190
187
50
120
117
116
21
18
189
21
18
13
14
15
11
8
29
12 16 19
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
MOWER DECK

15
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71
MOWER DECK
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 195632X421 Deck Weldment Mower
6 196066 Cover Mandrel LH
7 197181 Cover Mandrel RH
8 174365 Bolt 7/16 Asm. Blade
11 187256 Blade Bagging
- - 187255 Blade Mulching
12 400337 Rod Anti-Sway
13 187291 Shaft Asm. w/Lower Bearing
14 187281 Housing, Mandrel
15 110485X Bearing, Ball, Mandrel
16 19131312 Washer 13/32 x 13/16 x 12 Ga.
18 72140505 Bolt Carr. 5/16-18 x 5/8
19 194208 Pin Cotter 5/16 Bow Tie Lock
21 73680500 Nut, Crownlock 5/16-18 unc
24 105304X Cap Sleeve
25 178102 Spring, Torsion
26 110452X Nut, Push
27 187257X428 Deflector Shield
29 131491 Rod, Hinge
30 173984 Screw, Thdroll Washer Head
31 187690 Washer, Spacer Mower Vented
32 153535 Pulley, Mandrel
33 400234 Nut, Flg. Top Lock
34 73680600 Nut Crownlock 3/8-16 unc
39 197380 Pulley, Idler, Stationary
43 196065 Arm, Idler
46 137729 Screw, Thdroll. 1/4-20 x 5/8
47 196103 V-Belt, Mower
49 73900600 Nut, Lock Flg. 3/8-16 unc
50 72110616 Bolt Rdhd Sqnk 3/8-16 unc x 2
52 197379 Pulley Idler 4.50
58 187342 Baffle Right
59 187344 Baffle Left
60 187607 Baffle Center
97 178515 Washer Hardened
98 196105 Spring Drive
113 72110508 Bolt Rdhd Sqnk 5/16-18 x 3/4
114 187556 Rod Tension Relief
116 193406 Bolt, Shoulder
117 174873 Gauge Wheel
120 19132012 Washer 13/32 x 1-1/4 x 12 Ga.
122 187557 Bushing Tension Relief
185 73900700 Nut Lock Flange 7/16-14 Gr. 5
187 195161 Stud Fastener w/"D" Anti-Rotation
188 73900500 Nut Lock Hex Flange 5/16-18
189 195185 Arm Susp. Mower Rear
190 196539 Bolt Shoulder
192 198468 Keeper Belt Idler
194 72140716 Bolt Carr Sqnk 3/8-16 x 2-1/4
196 72140620 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5
198 17670608 Screw THDROL 3/8-16 x 1/2
- - 187292 Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not included)
- - 197701 Replacement Mower, Complete
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

16
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71

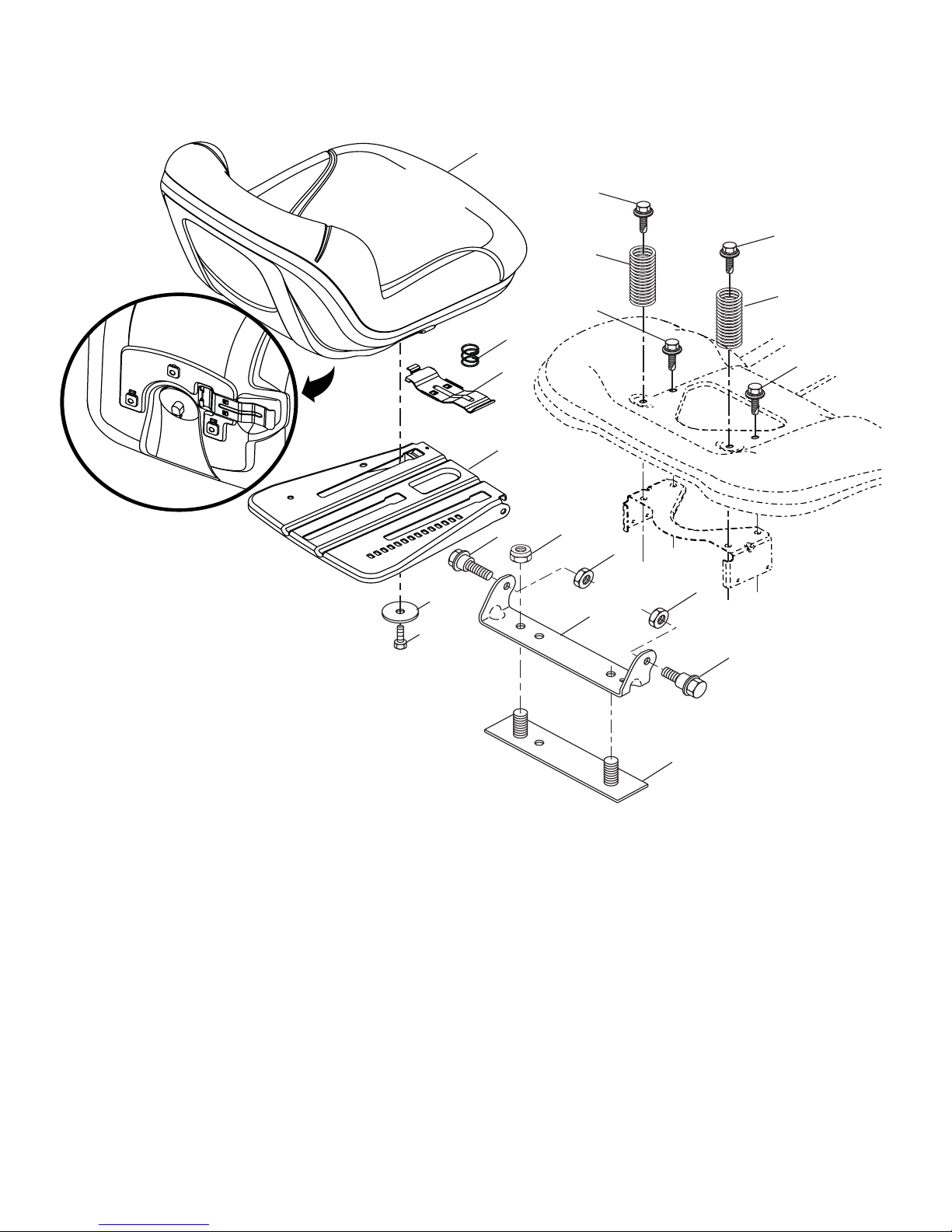

SEAT ASSEMBLY
1 406623 Seat
2 180166 Bracket Pivot Fender
3 140675 Strap, Asm Fender
6 73800600 Nut, Lock w/Ins. 3/8-16 unc
7 124181X Spring, Seat Cprsn
8 171877 Bolt 5/16-18 unc x 3/4 w/Sems
10 196977 Pan, Seat
21 171852 Bolt, Shoulder 5/16-18
37 73800500 Nut, Lock 5/16-18 unc
40 197661 Handle Slide Seat
41 198200 Spring Latch Seat
43 74760612 Bolt Fin Hex 3/8-16 unc x 3/4
44 19133812 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6-tex LT
44
43

17
TRACTOR - - MODEL NUMBER PBGT26H54X (96042007100), PRODUCT NO. 960 42 00-71

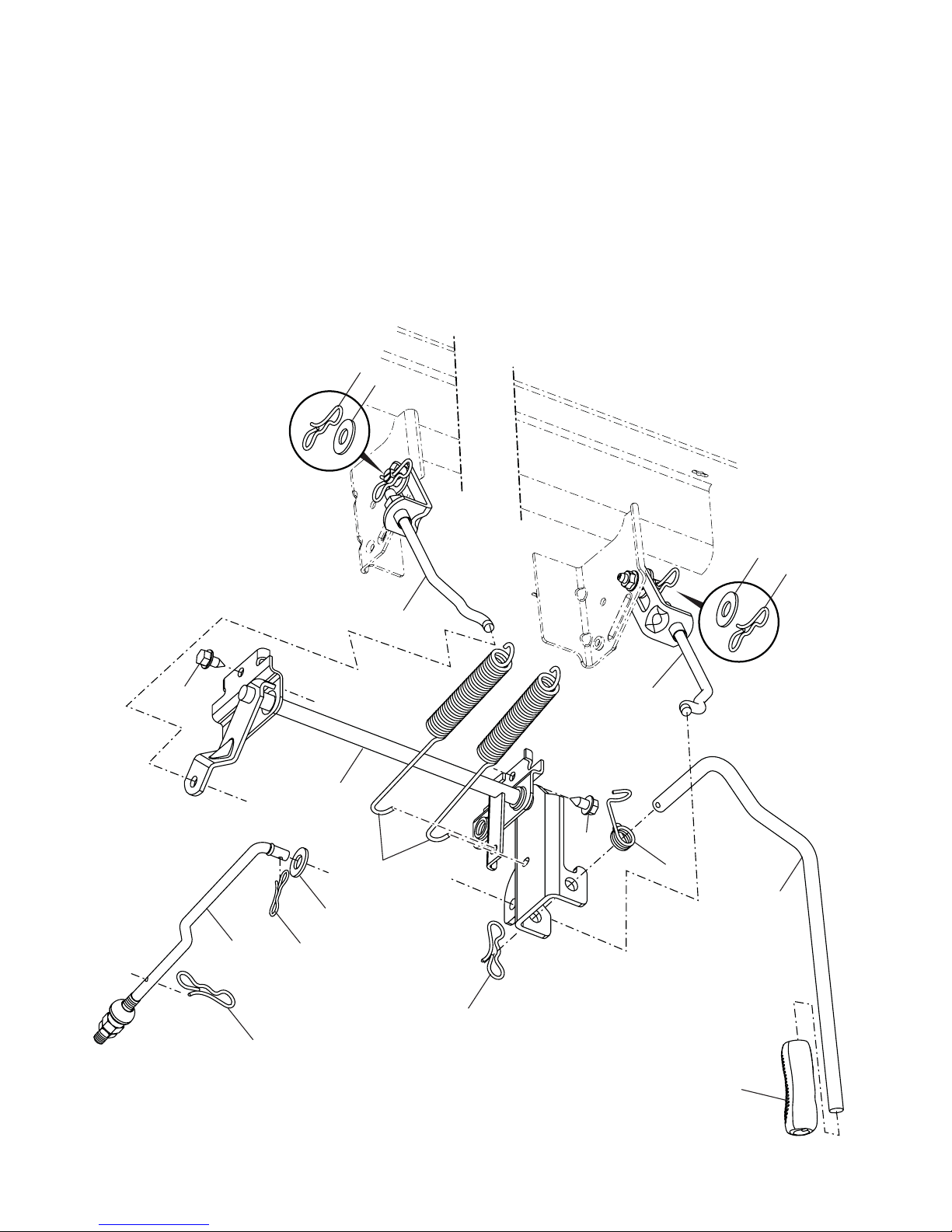

MOWER LIFT
7
3
87
10 88
2
89
90
87
98
97
97
91
lift-tex_3
91
89
87
89
87
2 195223 Shaft Asm., Lift
3 195230 Lever Asm., Lift RH
7 196492X421 Grip, Lever
10 196314 Spring Torsion
87 194209 Pin Cotter 7/16 Bow Tie Lock
88 195304 Spring Lift Assist
89 19191912 Washer Clear Zinc
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
90 194208 Pin Cotter 5/16 Bow Tie Lock
91 403407 Link Lift Susp Mower Rear
97 17000612 Screw 3/8-16 x .75
98 195264 Link Lift Susp. Front Mower

17
TRACTEUR - NO. DE MODÈLE PBGT26H54X (96042007100), NO. DE PRODUIT 960 42 00-71
LEVAGE DE TONDEUSE
7
3
87
10 88
2
89
90
87
98
97
97
91
lift-tex_3
91
89
87
89
87
NO. NO
DE DE
RÉF. PIÈCE DESCRIPTION
REMARQUE: Toutes les dimensions de composant sont don-
nées en pouces É.-U. --1 pouce = 25,4 mm.
NO. NO
DE DE
RÉF. PIÈCE DESCRIPTION
2 195223 Ensemble de l’arbre
3 195230 Ensemble de l’arbre de levage C.D.
7 196492X421 Poignée cannelée du levier
10 196314 Ressort de Torsion
87 194209 Goupille fendue 7/16
88 195304 Ressort de retenue
89 19191912 Rondelle
90 194208 Goupille fendue 5/16
91 403407 Raccord de levage
97 17000612 Vis 3/8-16 x .75
98 195740 Raccord de levage
