Poulan Pro 96042008800 Owner's manual

REPAIR PARTS MANUAL
MODEL:
PB18542LT
LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan-pro.com
WARNING:
READ THIS MANUAL AND FOLLOW
ALL WARNINGS AND SAFETY IN-
STRUCTIONS. FAILURE TO DO SO
CAN RESULT IN SERIOUS INJURY.
IMPORTANT MANUAL DO NOT THROW AWAY
426324 01.22.09 BAD Printed in the U.S.A.
03076

2
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
DECALS
KEY PART
NO. NO. DESCRIPTION
1 408948 Decal, Fenser SD LH
2 426688 Decal, Replacement
3 408820 Decal, Engine HP
4 170563 Decal, Warning
5 408949 Decal, Fender SD RH
6 411658 Decal, Fender Warning (E&F)
7 423398 Decal, Ins Str Wh
8 408794 Decal, Side Panel
9 172740 Decal, Fender
10 160396 Decal, V-Belt Sch.
11 402436 Decal, Dash Lower
12 186163 Decal, Hood RH
14 186164 Decal, Hood LH
15 145005 Decal, Caution, Battery
- - 193226X428 Pad Footrest LH
- - 193227X428 Pad Footrest RH
- - 426797 Manual,Operator's,English&French
- - 426324 Manual, Parts, English & French
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap, Tire Valve
2 65139 Stem, Valve
3 106222X Tire, Front
4 59904 Tube, Front (Service item only)
5 106732X421 Rim Assembly, 6" Front
6 278H Fitting, Grease (Front wheel only)
7 9040H Bearing, Flange (Front wheel only)
8 106108X421 Rim Assembly, 8" Rear
9 420531 Tire, Rear
10 7152J Tube, Rear (Service item only)
11 104757X421 Cap, Hub Axle
- - 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
6
2
1
5,8
4,10
3,9
11
7
wheel_1
KEY PART
NO. NO. DESCRIPTION
WHEELS & TIRES
712
10
14 615
3
4
2
9
5
11 11
1
88

3
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
SCHEMATIC
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
SM
B
GL
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH11
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
D
E
R
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5 AMP AC @ 3600 RPM ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3AMPDC@3600RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.

4
30
33
34
22
79 21
41
42
26
43
27
40
71
16
87
25
T02K
90
28
55
With 12V Outlet Option
59
103
With Service Minder Option
4646
94
92
29
93
2
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88

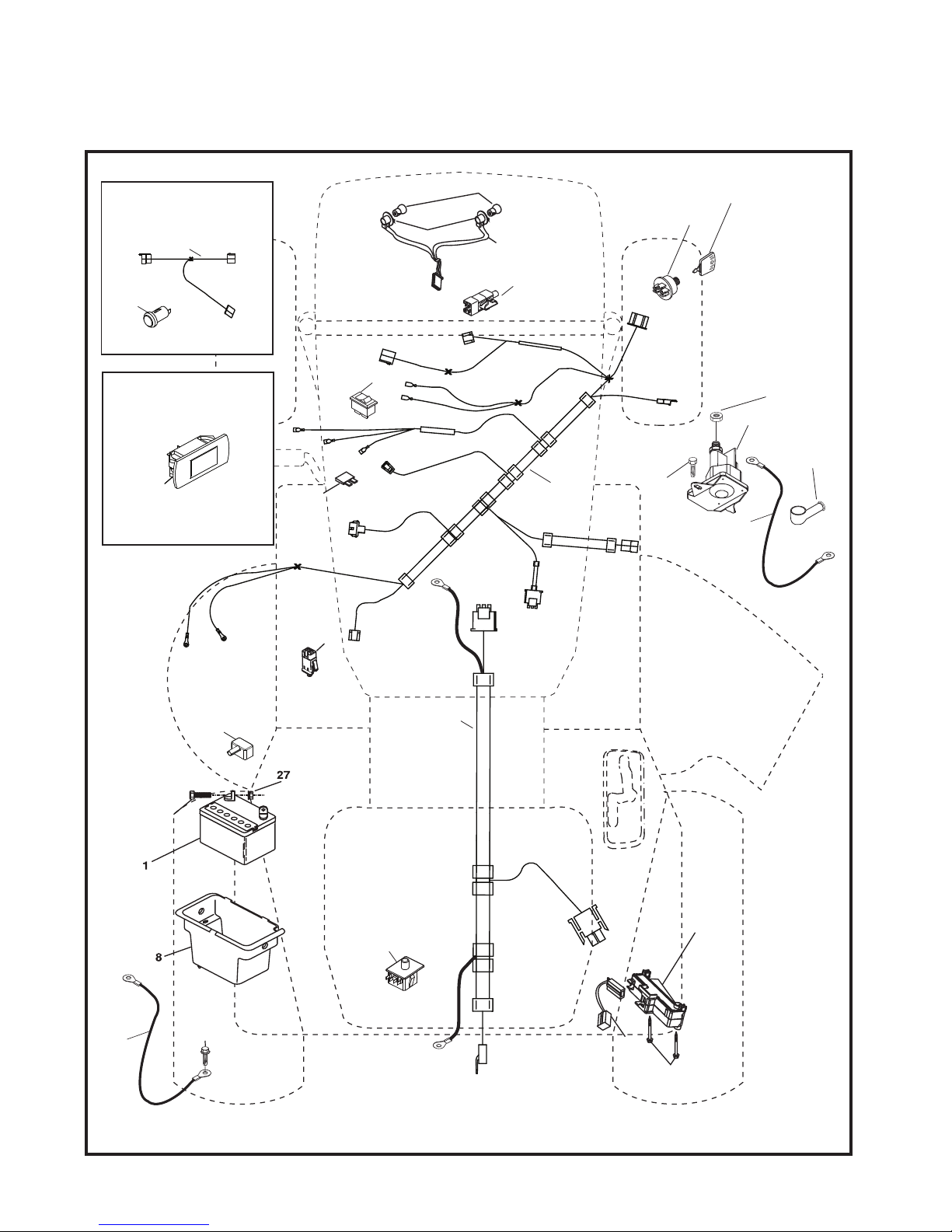

ELECTRICAL

5
1 163465 Battery
2 74760412 Bolt Hex Hd 1/4-20 unc x 3/4
8 193228 Box Battery
16 176138 Switch Interlock
21 183759 Harness Asm Light w/4152j
22 4152J Bulb Light #1156
25 421894 Cable Starter
26 175158 Fuse 20 AMP
27 73510400 Nut Keps Hex 1/4-20 unc
28 198885 Cable Ground 22" Black
29 192749 Switch Seat
30 193350 Switch Ign
33 411935 Key/Chain
34 110712X Switch Light/Reset
40 401098 Harness Ign Dash
41 17720408 Bolt Blk Fin Hex 1/4-20 x 1/2
42 131563 Cover Terminal Red
43 192507 Solenoid
55 17060512 Screw 5/16-18 x 3/4
71 400449 Harness IGN Chassis
79 175242 Socket Asm. Bulb Twistlock
87 197802 Switch Interlock Clutch Cable
90 400725 Cover Terminal Battery
92 196615 Harness Pigtail
93 192540 Screw Plastite 10-14 x 2.0
94 191834 Module Reverse ROS
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm.
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
ELECTRICAL

6
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88

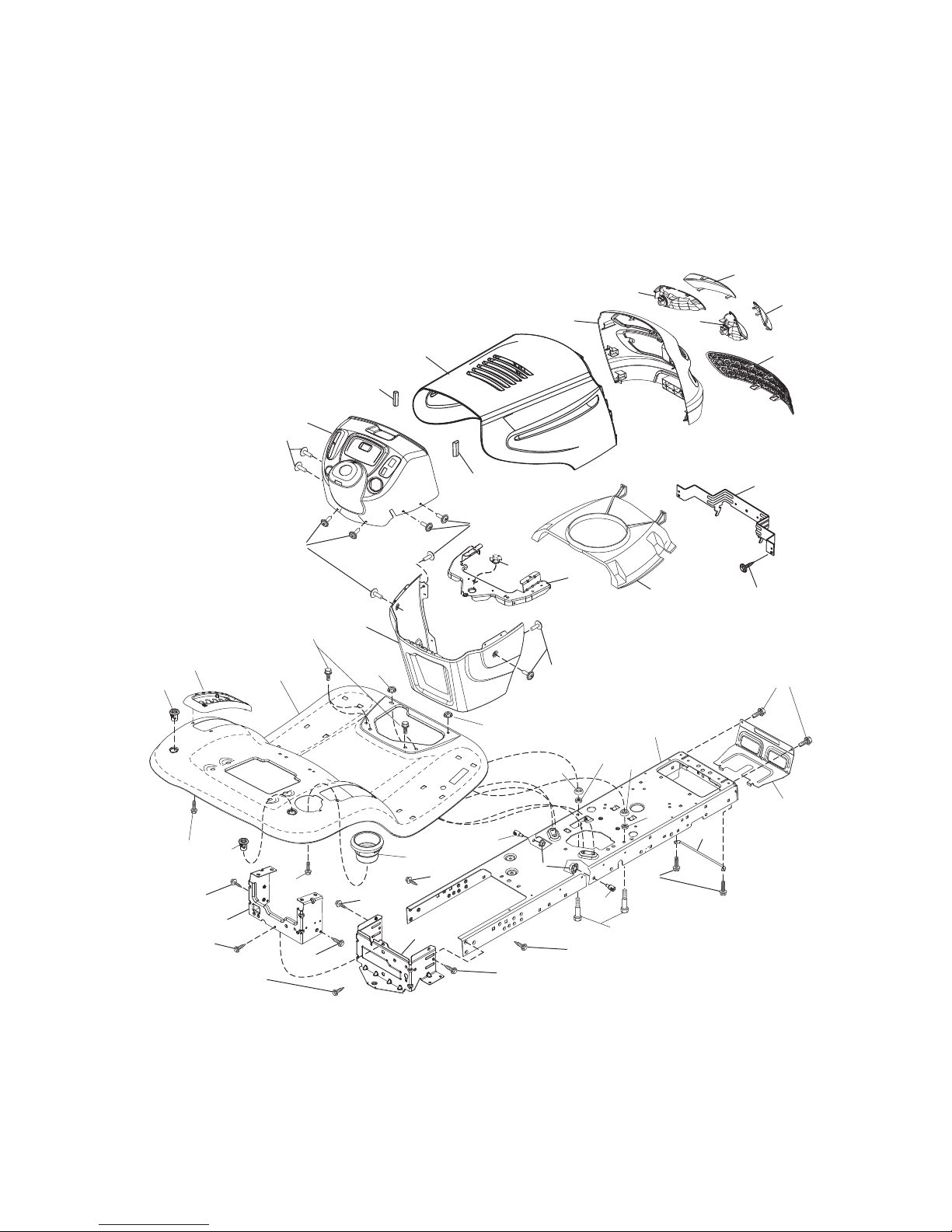

CHASSIS
37
181
181
194
194
36
236
236
183
152
159
180
162
196
287 138
182
176
175
177
130
151
2
159
159
159
159
58
189
189
189
159
228
194
228
137
137
14
18
208
207
15
25
186
176
5
176
176
235
235
150
68
217
Chassis-tex_ELITE-SV PRO_11_r3

7
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
CHASSIS
2 412282 Drawbar Lower
5 197783X428 Dash
14 183393X428 Hood
15 183834X599 Lens Grille LH
18 183395X428 Grille
25 183835X599 Lens Grille RH
36 17060512 Screw 5/16-18 x 3/4
37 414872X428 Fender
58 412280 Drawbar Upper
68 17490508 Screw Thdrol 5/16-18 x 1/2
130 416358 Screw #10 x 0.750
137 184921 Bumper Hood
138 193224X428 Cupholder
150 184322 Duct Heat Hood
151 407807 Bracket Pivot
152 194329 Shield Browning/Debris
159 17000612 Screw Hexwsh Thdrol 3/8-16 x 3/4
162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2
175 193243 Crossmember
176 400776 Screw 10-24 x 5/8 Wshd Qdrx
177 195228 Bushing Steering
180 194260 Chassis
181 193102X428 Bushing Mtg. Fender Crgo.
182 193057 Dash Lower
183 74780520 Bolt Fin Hex 5/16-18 x 1-1/4
186 183829X428 Insert Grille
189 17000512 Screw 5/16-18 x 3/4
194 73900500 Nut Lock Hex Flange 5/16-18
196 414581 Console Asm. Deck Lift
207 183833 Bezel Grille RH
208 183832 Bezel Grille LH
217 409167 Rod Pivot Hood
228 195161 Stud Fastener
235 406129 Spacer Fender
236 73930500 Nut Center Lock 5/16-18
287 17600406 Screw 1/4-20 x 3/8
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

8
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
DRIVE
56
185
165 166
64 188
172
172
125
125
161
35
203
184 221
167
160
160
42
134
192
157
141
140
139 202
70
74
232
175
192 176
178
174
22 166
23
29
15 159
195
125
2
17
26
158
2
1183
37
205
33
155
61
193
73
73
186
189
49
187
50
51
52
51
190
116
116
drive-tex_peerless_fender_28
233

9
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
DRIVE
KEY PART
NO. NO. DESCRIPTION
1 - - - - - - Transaxle, Peerless 206-565
2 123583X Key Square
15 19131316 Washer 13/32 x 13/16 x 16 Ga.
17 197297 Spring, Brake
22 197660 Rod Shift
23 171674 Knob
26 197455 Spring Brake RTN
29 197267 Rod, Brake
33 12000001 Ring E
35 197722 Rod, Brake, Park
37 121749X Washer 25/32 x 1-1/4 x 16 Ga.
42 8883R Cover, Foot Pedal
49 72110614 Bolt
50 194327 Pulley Idler Flat
51 73900600 Lock Nut 3/8-16
52 194326 Idler V-Groove
56 194346 V-Belt, Drive
61 123666X Pulley Transaxle
64 196200 Shaft Asm. Pedal Brake Control
70 193225X428 Console
73 74490544 Bolt 5/16-18 Gr. 5
74 142432 Screw 1/4 x 1/2
116 73900500 Nut Lock Hex Flange 5/16-18
125 17000512 Screw 5/16-18 x 3/4
134 197857 Arm Shift
139 74550412 Bolt 1/4-20 unf Gr. 8 w/Patch
140 10040400 Washer Lock Hvy Helical 1/4
141 19091210 Washer 9/32 x 3/4 x 10 Ga.
155 12000028 Ring Retainer
157 105701X Washer Plate Shf
158 194352 Keeper T/A
159 76020412 Pin Cotter 1/8 x 3/4
160 169484 Retainer Clip
161 105709X Spring, Return, Clutch
165 196212 Busing Shaft Brake Hand Control
166 197290 Nut Push .625
167 405257 Latch Brake Parking
172 197657 Strap Torque LH
174 197289 Nut Push
175 197858 Shaft Asm Shift
176 196214 Arm Clevis Rod Shift
178 197456 Spring Shift
183 137057 Spacer, Axle
184 198403X505 Handle Parking Brake
185 72110622 Bolt
186 194321 Spacer Retainer
187 19133210 Washer
188 194323 Link Clutch Ground Drive
189 194317 Bellcrank Ground Drive
190 194318 Keeper Bellcrank Ground Drive
192 150360 Nut Lock Center 1/4-28
193 17060512 Screw 5/16-18 x 3/4
195 197332 Bracket Brake Rod
202 197859 Link Shift
203 19111116 Washer 11/32 x 11/16 x 16 Ga.
205 121748X Washer 25/32 x 1-5/8 x 16 Ga.
221 403187 Retainer Spring Clip Handle
232 74780716 Bolt 7/16-14 x 1 Gr. 5
233 405296 Washer Serrated
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

10
6
5
13
13
53 8
62
4
35
19
63
57
60
59
58
50
50
70
65
68
69
67
15
15
14
14
61
6
steering-tex_STDHRS_7
74 74
74
57
55
98
7
54
67
66
54
65
55
2
78
74
9
87
16
71
28
13 22
64
21
26
1
20
45
33
72
63
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
STEERING

11
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
STEERING
1 414803X428 Wheel, Steering
2 418168 Axle Asm., Front
4 403087 Spindle Asm., LH
5 403088 Spindle Asm., RH
6 6266H Washer Thrust 0.75 x 1.23
7 121748X Washer 25/32 x 1-5/8 x 16 Ga.
8 12000029 Ring, Clip #T5304-75
9 121232X Cap, Spindle
13 121749X Washer 25/32 x 1-1/4 x 16 Ga.
14 10040600 Washer Lock 3/8
15 73540600 Nut, Crown Lock 3/8-24 unf
16 408220 Shaft Steering
19 194729 Plate Steering
20 198375X428 Boot, Steering
21 186737 Adapter, Wheel Steering
22 194845 Bushing, Strg. Blk
26 414854X428 Insert, Wheel Steering
28 17000612 Screw 3/8-16 x 3/4
33 10040500 Washer Lock 5/16
35 194732 Gear, Sector Plate
45 19113812 Washer 11/32 x 2-3/8 x 12 Ga.
50 73900600 Nut Lock Flg 3/8-16 unc
53 188967 WasherHardened.793x1.637x.060
54 74760636 Bolt Hex HS 3/8-16 unc x 2-1/4
55 414736 Spacer Brace Axle
57 407465 Bracket Upstop
58 194747 Bolt Shoulder Sector Pivot CFM
59 194748 Washer Thrust Sector Steering
60 73971000 Nut Flange Lock 5/8-11
61 194740 Draglink, LH
62 194741 Draglink, RH
63 17000512 Screw 5/16-18 x 3/4
64 199849 Retainer Clip Spring Steering
65 194734 Brace Axle Front
66 71020748 Bolt Hex Fghd 7/16-14 x 3 Serr
67 194737 Bushing PM Front Axle
68 73900700 Nut Lock Flange 7/16-14 Gr. 5
69 199162 Washer 1.5 x .505 x .118
70 196197 Bracket Deck Susp. Front
71 196075 Shaft Ext. Steering
72 74780572 Bolt 5/16-18 x 4.5 Gr. 5
74 3366R Bearing Col. Strg.
78 57079 Washer Thrust
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION

12
21
20
OPTIONAL EQUIPMENT
Spark Arrester
29
18
15
37
28
engine-tex_BS_12
37
12
42
85
9
90
84
45
1
81
82
69 2
79
97
96
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
ENGINE

13
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
ENGINE
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi-
neers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be lower and is affected by,
among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of prod-
ucts on which engines are placed and the variety of environmental issues applicable to operating the equipment, the
gas engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or
net horsepower). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, ex-
haust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature,
humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton
may substitute an engine of higher rated power for this Series engine.
1 - - - - - - Engine B&S Model No. 31N707
2 137352 Muffler
9 194319 Keeper Belt Engine
12 401985 Pulley Engine
15 407545 Tank Fuel 1.50
18 197725 Cap Asm
20 176636X421 Control Throttle/Choke
21 416358 Screw #10 x 0.750
28 401137 Fuel Line
29 137180 Spark Arrester Kit
37 123487X Clamp Hose
42 10040700 Washer Lock 7/16
45 73510400 Nut Keps Hex 1/4-20 unc
69 165291 Gasket
79 192334 Screw Socket Hd 5/16-18 x .75
81 148456 Tube Drain Oil Easy
82 181654 Plug Drain Oil
84 17060620 Screw 3/8-16 x 1-1/4
85 173937 Bolt Hex 7/16-20 x 4 x Gr. 5-1.5
90 17000616 Screw 3/8-16 x 1.0
96 19091416 Washer 9/32 x 7/8 x 16 Ga.
97 17670412 Screw 1/4-20 x 3/4
KEY PART
NO. NO. DESCRIPTION

14
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
MOWER DECK
30
43
42
60
38
63
46
147
55
64
47
192
56
56 57
62
188
189
1
69
21
21
69 69
20
40
145
42_D_man-Tex_LT_31
21
24
25
26
27
29
23
189 188
144
36
113
113
113
40
57
19
19
6
6
68
30
30
32
38
195
122
123
195
31
33
34
59
15
14
13
11
8
208
70
7
7
37
67
152

15
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
MOWER DECK
1 199911 Mower Housing
6 195186 Arm Suspension
7 416358 Screw #10 x 0.750 BOS Thread
8 193003 Bolt/Washer Asm 7/16-20 unf
- - 139775 Blade, 42" Mulching Premium (For
better wear when mulching)
11 138971 Blade, 42" Hi-Lift
(For bagging or discharge)
- - 134149 Blade, 42" Mulching Std
(For mulching mowers only)
13 192872 Shaft Assembly, Mandrel
14 187281 Housing, Mandrel
15 110485X Bearing, Ball, Mandrel
19 196539 Bolt, Shoulder
20 159770 Baffle, Vortex
21 73680500 Nut, Crownlock 5/16-18 unc
23 192557 Bracket, Deflector
24 105304X Cap, Sleeve
25 197026 Spring, Torsion, Deflector
26 110452X Nut, Push
27 193108X428 Shield, Deflector
29 131491 Rod, Hinge
30 173984 Screw Thdrol Rolling Wsh Hd
31 187690 Washer, Spacer
32 197473 Pulley, Mandrel
33 400234 Nut, Toplock, Flanged
34 72110612 Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5
36 197379 Pulley, Idler 4.50 RAW
37 19131316 Washer 13/32 x 13/16 x 16 Ga.
38 199189 Keeper Belt LH Mandrel
40 73900600 Nut, Lock Flg. 3/8-16 unc
42 197256 Spring Torsion Retainer
43 198410 Spring Torsion Brake
46 137729 Screw Thd Roll 1/4-20 x 5/8
47 197250 Bracket Clutch Cable
55 197249 Arm, Idler
56 199092 Spacer, Retainer
57 17000616 Screw Hexwsh Thd 3/8-16 x 1
59 141043 Guard, Tuv Idler (94)
60 197261 Arm Brake Mower
62 72110616 Bolt Rdhd Sqnk 3/8-16 unc x 2
63 199477 Arm Brake Mower
64 199790 Linkage Brake
67 198398X421 Handle, Clutch Cable
68 197253 V-Belt
69 72140505 Bolt Rdhd Sqnk 5/16-18 x 5/8
70 198332 Clutch Asm. Manual
113 17000510 Screw 5/16-18
122 197258 Keeper Belt Eng. LH
123 197259 Keeper Belt Eng. RH
144 199204 Keeper Belt
145 193197 Pulley Idler Primary
147 401971 Spring Return
152 408714 Cable Clutch Manual w/Spr.
188 195161 Stud Fastener
189 73900500 Nut Lock Hex Flange
192 197260 Bracket Brake Stand LH
195 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
208 17670608 Screw THDROL 3/8-16 x 1/2
- - 192870 Mandrel Assembly (Includes hous-
ing, shaft assembly, and bearing
only - pulley/nut/washer and blade
bolt/washers not
included)
- - 415241 Replacement Mower, Complete
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

16
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88
MOWER LIFT
7
3
87
10
88
2
113
90 98
97
97
lift-tex_17
91
91
87
100
89
87
2 195223 Shaft Asm., Lift
3 195231 Lever Asm., Lift RH
7 196492X421 Grip, Lever
10 196314 Spring Torsion
87 194209 Pin Cotter 7/16 Bow Tie Lock
88 410710 Spring Lift Assist
89 19191912 Washer Clear Zinc
90 194208 Pin Cotter 5/16 Bow Tie Lock
91 195181 Link Lift Susp Mower Rear
97 17000612 Screw 3/8-16 x .75
98 195270 Link Lift Susp. Front Mower
100 73930600 Nut Lock 3/8-16 unc
113 19171912 Washer 17/32 x 1-3/16 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

17
REPAIR PARTS
TRACTOR - MODEL NUMBER PB18542LT (96042008800), PRODUCT NO. 960 42 00-88

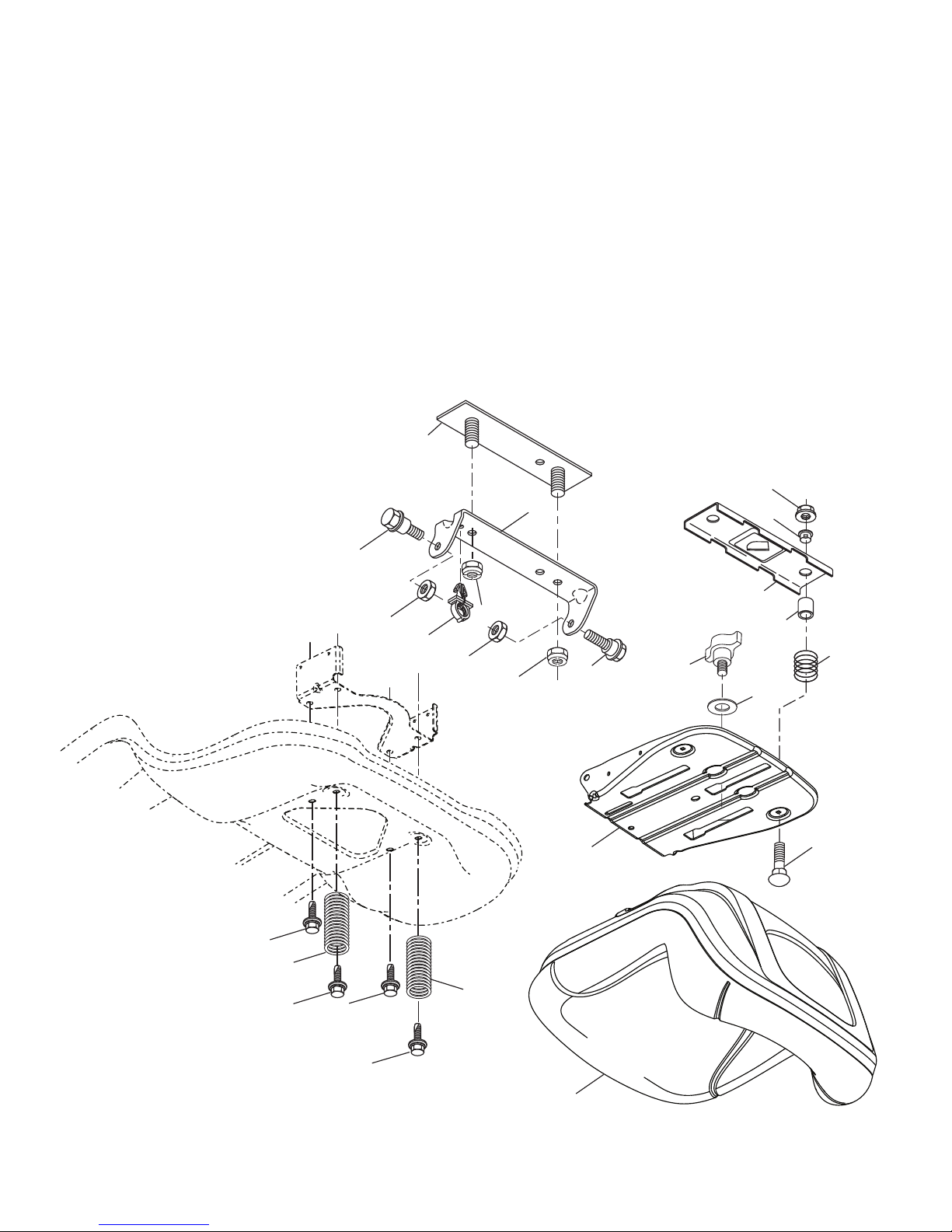

SEAT
2
6
6
1
14 10
37
37
21
21
42
19
3
5
16
15
12
17
13
7
8
8
78
8
seat-tex_knob_1
1 197514 Seat
2 180166 Bracket Pivot Fender
3 140675 Strap, Asm Fender
5 145006 Clip Push-In Hinged
6 73800600 Nut, Lock w/Ins. 3/8-16 unc
7 124181X Spring, Seat Cprsn
8 171877 Bolt 5/16-18 unc x 3/4 w/Sems
10 199180 Pan, Seat
12 199370 Bracket Seat
13 121248X Bushing Snap
14 72050412 Bolt RDHD SHT NK 1/4-20 x 1-1/2
15 134300 Spacer Split 28 x .96
16 123740X Spring CRPSN Plate SW 1.310
17 123976X Nut Lock 1/4
19 199372 Knob Seat
21 171852 Bolt, Shoulder 5/16-18
37 73800500 Nut, Lock 5/16-18 unc
42 199371 Washer Cup
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

17
2
6
6
1
14 10
37
37
21
21
42
19
3
5
16
15
12
17
13
7
8
8
78
8
seat-tex_knob_1
PIÈCES DE RECHANGE
TRACTEUR - - NO. DE MODÈLE PB18542LT (96042008800),NO. DE PRODUIT 960 42 00-88
ENSEMBLE DU SIÈGE
1 197514 Chaise
2 180166 Support le Pare-chocs de Pivot
3 140675 Sangler, le Pare-chocs ensemble
5 145006 Collier
6 73800600 Écrou frein 3/8-16 unc
7 124181X Ressort du siège
8 171877 Boulon 5/16-18 unc x 3/4
10 199180 Bac du siège
12 199370 Chaise support
13 121248X Douille de bouton-pression
14 72050412 Boulon 1/4-20 x 1-1/2
15 134300 Entretoise
16 123740X Ressort
17 123976X Écrou frein 1/4
19 199372 Bouton
21 171852 Boulon à épaulement 5/16-18
37 73800500 Écrou frein 5/16-18 unc
42 199371 Rondelle godet
NO. NO.
DE DE
RÉF. PIÈCE DESCRIPTION
NO. NO.
DE DE
RÉF. PIÈCE DESCRIPTION
REMARQUE: Toutes les dimensions de composant sont
données en pouces E.-U. -- 1 pouce = 25,4 mm.
