Poulan Pro PO12530LT Owner's manual

REPAIR PARTS MANUAL
MODEL:
PO12530LT
LAWN TRACTOR
ALWAYS WEAR EYE PROTECTION DURING OPERATION
Visit our website: www.poulan.com
WARNING:
Read this Manual and follow all Warnings
and Safety Instructions. Failure to do so
can result in serious injury.
IMPORTANT MANUAL DO NOT THROW AWAY
532 43 83-68 Rev. 8
5000

2
HOW TO USE THIS MANUAL
This manual is designed to provide the customer with a means to identify the parts on his/her tractor
when ordering parts. The illustrations may or may not represent the actual assemblies; therefore, it
is not recommended to use this manual as a guide to assemble or disassemble the tractor. Some
hardware and parts are drawn larger in order to more readily identify them.
Each tractor has its own model number.
The model number for your tractor can be found on the fender under the seat.
When ordering parts, always give the following information:
• Product - “TRACTOR”
• MODEL NUMBER - “PO12530LT (96041021300)”
• Part Number
• Part Description
TABLE OF CONTENTS
SCHEMATIC ................................................................................................................3
ELECTRICAL............................................................................................................4-5
CHASSIS ..................................................................................................................6-7
DRIVE........................................................................................................................8-9
ENGINE.................................................................................................................10-11

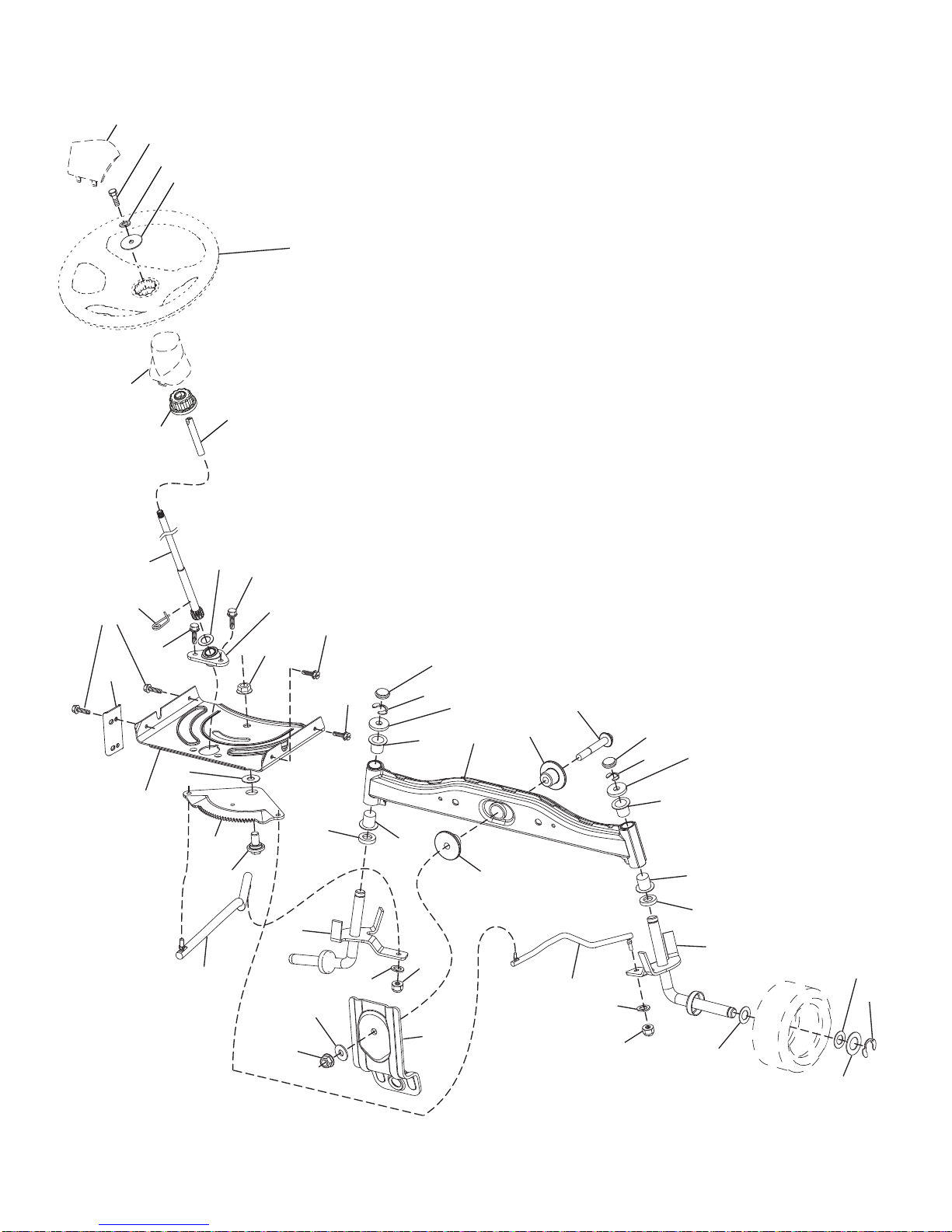

STEERING............................................................................................................12-13
MOWER DECK.....................................................................................................14-15
MOWER LIFT.............................................................................................................16
SEAT..........................................................................................................................17

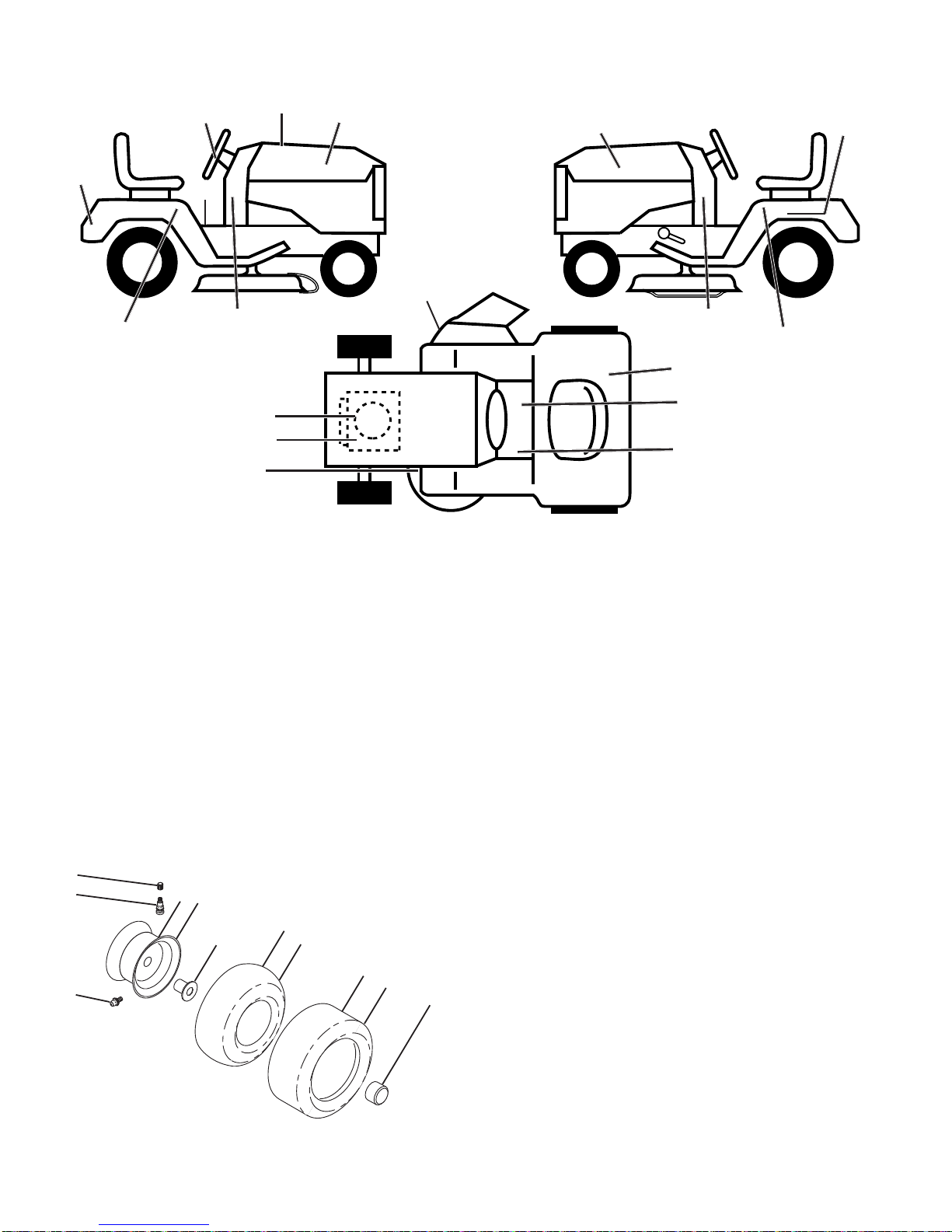

DECALS.....................................................................................................................18
WARRANTY...............................................................................................................19

3
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13

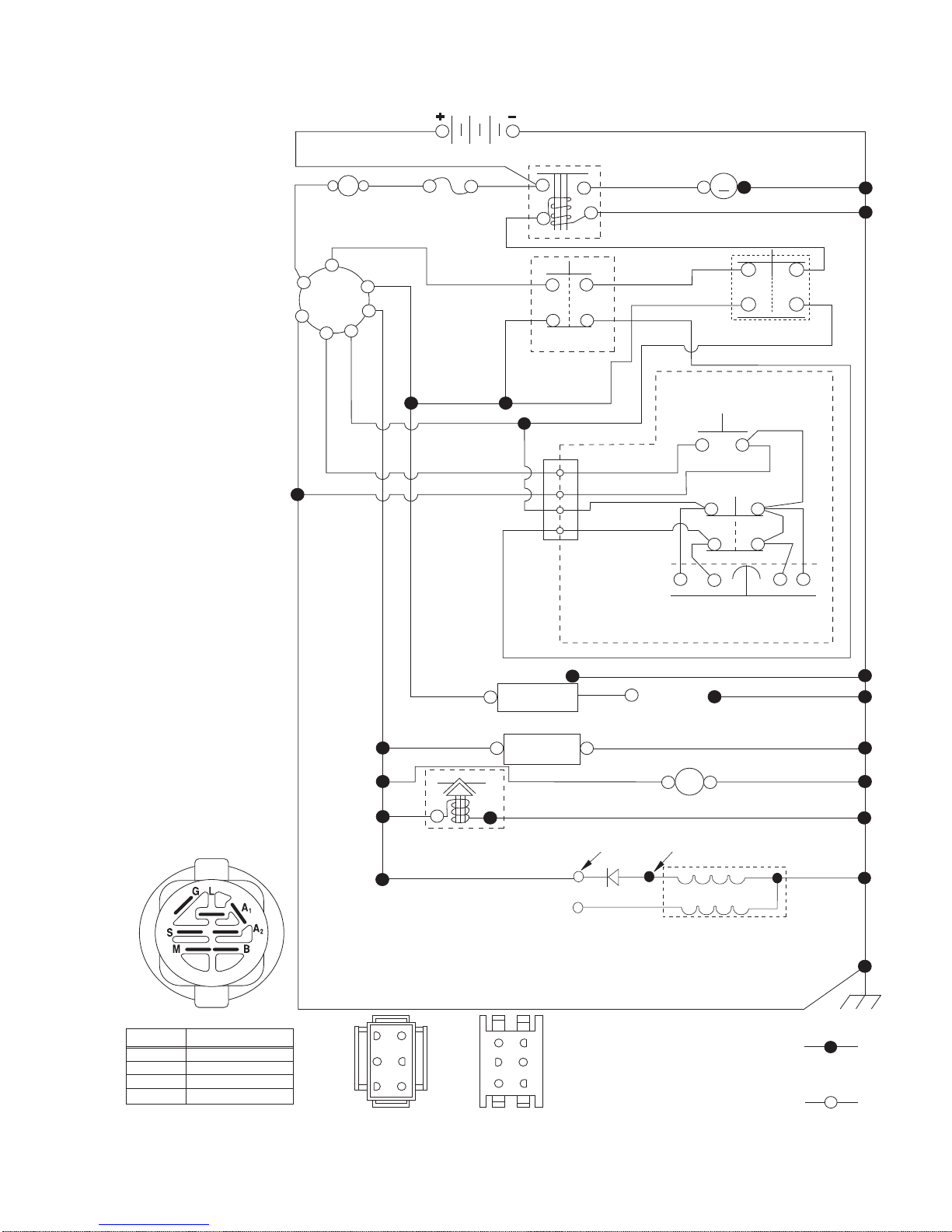

SCHEMATIC
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
SM
B
GL
2
3
1
6
A2A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH18
IGNITION SWITCH
CIRCUITPOSITION
OFF B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
ALTERNATOR
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.

4
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13

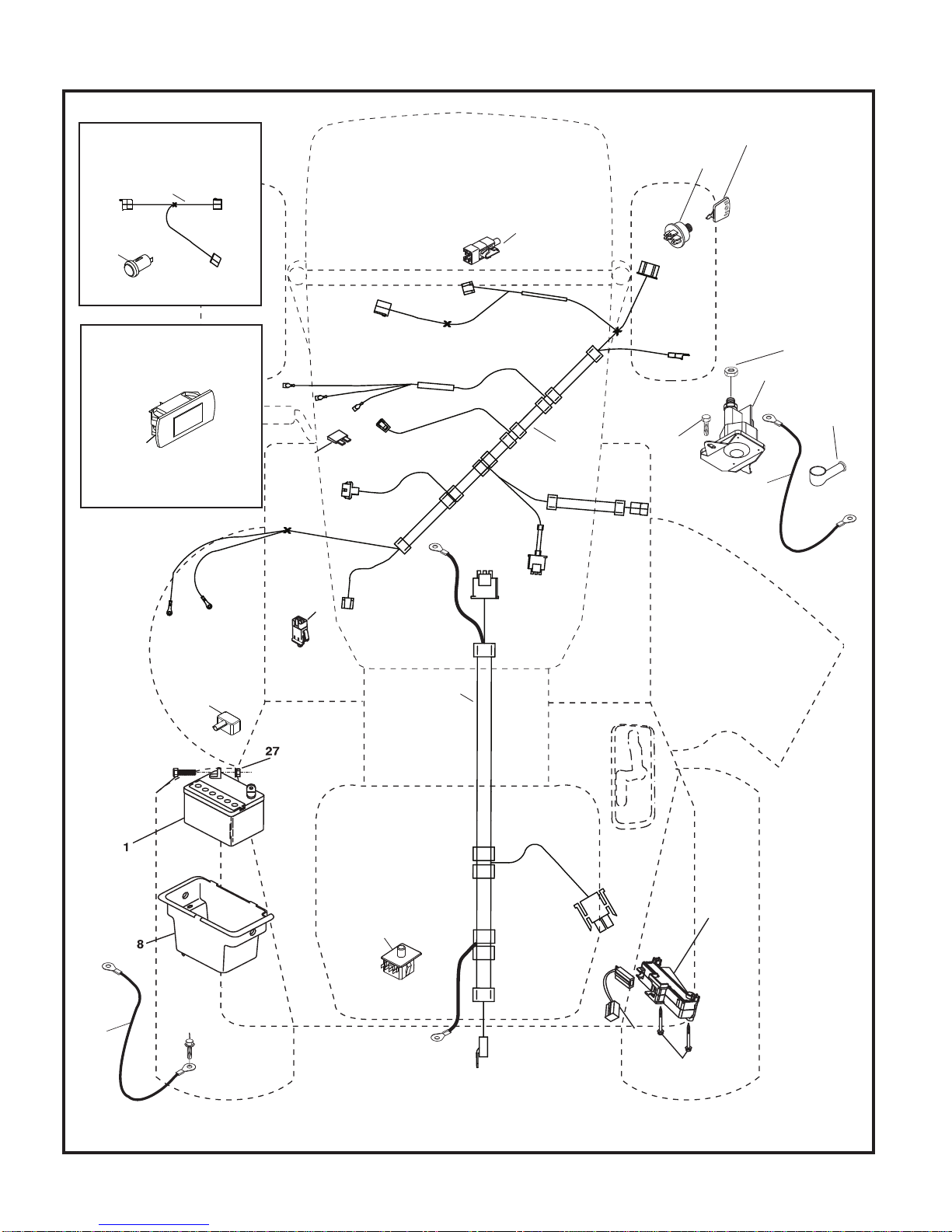

ELECTRICAL
30 33
41
42
26
43 27
40
71
16
87
25
T31K
90
28
55
With 12V Outlet Option
59
103
With Service Minder Option
4646
94
92
29
93
2

5
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-24 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock
25 532 41 28-94 Cable Starter Battery 6 Ga. BL/Red 14.5
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 19 88-85 Cable Ground 18" Rear Battery Blk 6 Ga.
29 532 19 27-49 Switch Seat
30 532 19 33-50 Switch Ign
33 532 41 19-33 Key/Chain
40 532 40 10-98 Harness Ign
41 817 72 04-08 Screw 1/4-20 unc x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 19 25-07 Solenoid
55 817 06 05-12 Screw 5/16-18 x 3/4
71 532 40 04-49 Harness Ign. Chass.
87 532 19 78-02 Switch Interlock Clutch
90 532 43 53-95 Cover Terminal
92 532 19 66-15 Harness Pigtail Reverse Switch
93 532 19 25-40 Screw Plastic 10-14 x 2.0
94 532 19 18-34 Modual Reverse ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
Chassis-tex_ALPHA_1
37
181 194
194
36
162 181
196
287
138
182
176
175
177
176
5
176
176
180
52
217
58
189
189
189
189
189
152
228
228
194
68 68
68
68
183
183
236
236 34
235
235
68
213
218
68
130
151
137
14 18
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13

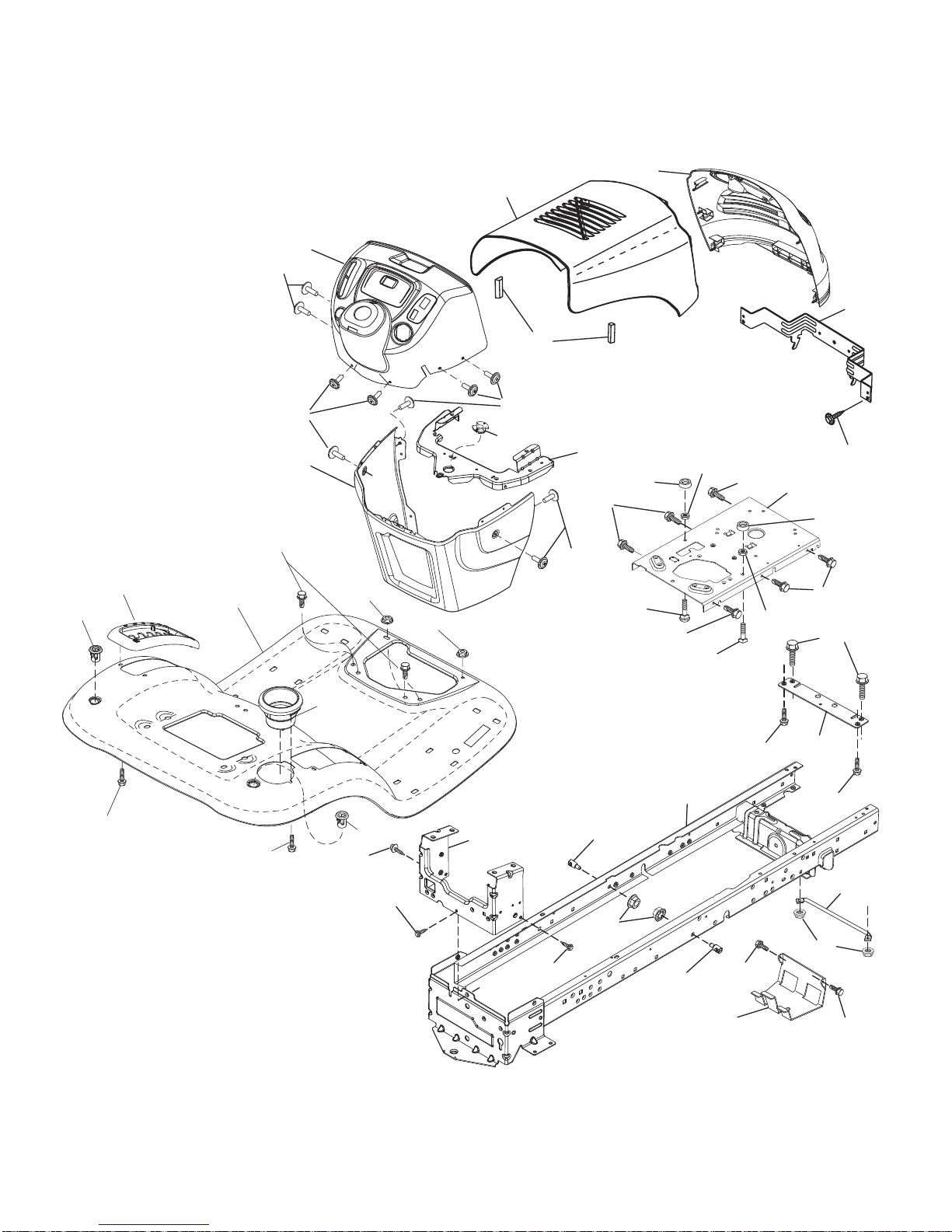

CHASSIS

7
5 532 41 17-64 Dash
14 532 40 61-79 Hood
18 532 43 85-44 Grille
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 42 09-86 Fender
52 873 68 05-00 Nut Lock 5/16-18
58 532 41 22-80 Drawbar Upper
68 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
130 532 41 63-58 Screw #10 x 0.750
137 532 18 49-21 Bumper Hood
138 532 40 97-30 Cupholder
151 532 18 75-68 Bracket Pivot
152 532 19 95-35 Shield Browning/Debris
162 532 14 24-32 Screw Hex Wsh Hi-Lo 1/4 x 1/2
175 532 19 32-43 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8 Wshd Qdrx
177 532 19 52-28 Bushing Steering
180 532 41 46-85 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo.
182 532 19 30-57 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
196 532 41 45-79 Console Asm. Deck Lift
213 874 76 05-12 Bolt 5/16-18 x 3/4
217 532 40 91-67 Rod Pivot Hood
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastener
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Center Lock 5/16-18
287 817 60 04-06 Screw 1/4-20 x 3/8
- - - 532 19 39-35 Plug Switch Light
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
CHASSIS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

8
56
29
232
233 165166
64
188
17
195125
161
35
175
192
134
192
157
141
140
139
23
178
174
176
22
15
203
184
167
160
160
42
159
166
155
61
202
drive-tex_peerless_fender_39_r1
116
193
2
73 26
158
1
2
37
205 33
1
221
186
189
49 187
50
51
52
51
190
70
74
183
287
185
172
172
125
125
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13

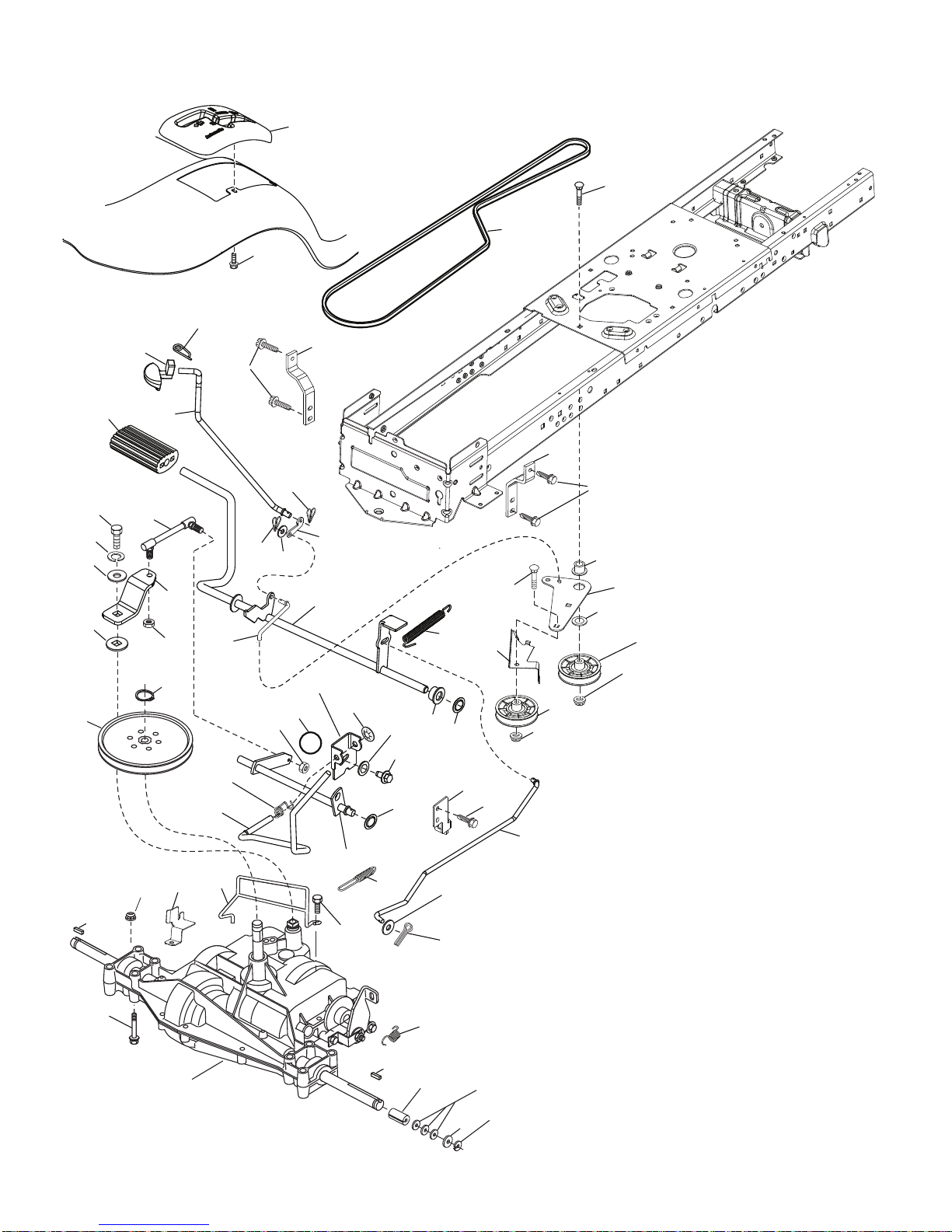

DRIVE

9
KEY PART
NO. NO. DESCRIPTION
1 – – – – – – Transaxle,Peerless203-569(Order
partsfromtransaxlemanufacturer.)
2 532 12 35-83 Key Square
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 19 72-97 Spring, Brake
22 532 19 76-60 Rod Shift
23 532 10 69-33 Knob
26 532 19 74-55 Spring Brake RTN
29 532 19 72-67 Rod, Brake
33 812 00 00-01 Ring E
35 532 19 77-22 Rod, Brake, Park
37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove
56 532 13 82-55 V-Belt, Drive
61 532 16 59-99 Pulley Transaxle
64 532 19 62-00 Shaft Asm. Pedal Brake Control
70 532 43 85-43 Console
73 874 49 05-40 Bolt 5/16-18 x 2-1/2 G5
74 532 14 24-32 Screw 1/4 x 1/2
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
134 532 19 78-57 Arm Shift
139 874 55 04-12 Bolt 1/4-20 unf Gr. 8 w/Patch
140 810 04 04-00 Washer Lock Hvy Helical 1/4
141 819 09 12-10 Washer 9/32 x 3/4 x 10 Ga.
155 812 00 00-28 Ring Retainer
157 532 10 57-01 Washer Plate Shf
158 532 19 43-52 Keeper T/A
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
165 532 19 62-12 Busing Shaft Brake Hand Control
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
172 532 19 76-57 Strap Torque LH
174 532 19 72-89 Nut Push
175 532 19 78-58 Shaft Asm Shift
176 532 19 62-14 Arm Clevis Rod Shift
178 532 19 74-56 Spring Shift
183 532 13 70-57 Spacer, Axle
184 532 41 12-89 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
192 532 15 03-60 Nut Lock Center 1/4-28
193 817 06 05-12 Screw 5/16-18 x 3/4
195 532 19 73-32 Bracket Brake Rod
202 532 19 78-59 Link Shift
203 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
221 532 40 31-87 Retainer Spring Clip Handle
232 874 78 07-16 Bolt 7/16-14 x 1 Gr. 5
233 532 40 52-96 Washer Serrated
287 532 42 16-48 Keeper Pulley T/A
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
DRIVE
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

10
21
20
OPTIONAL EQUIPMENT
Spark Arrester
29
18
15
37
28
engine-tex_BS_30
12
42
85
9
90
69 2
79
84
45
1
97
96
122
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13

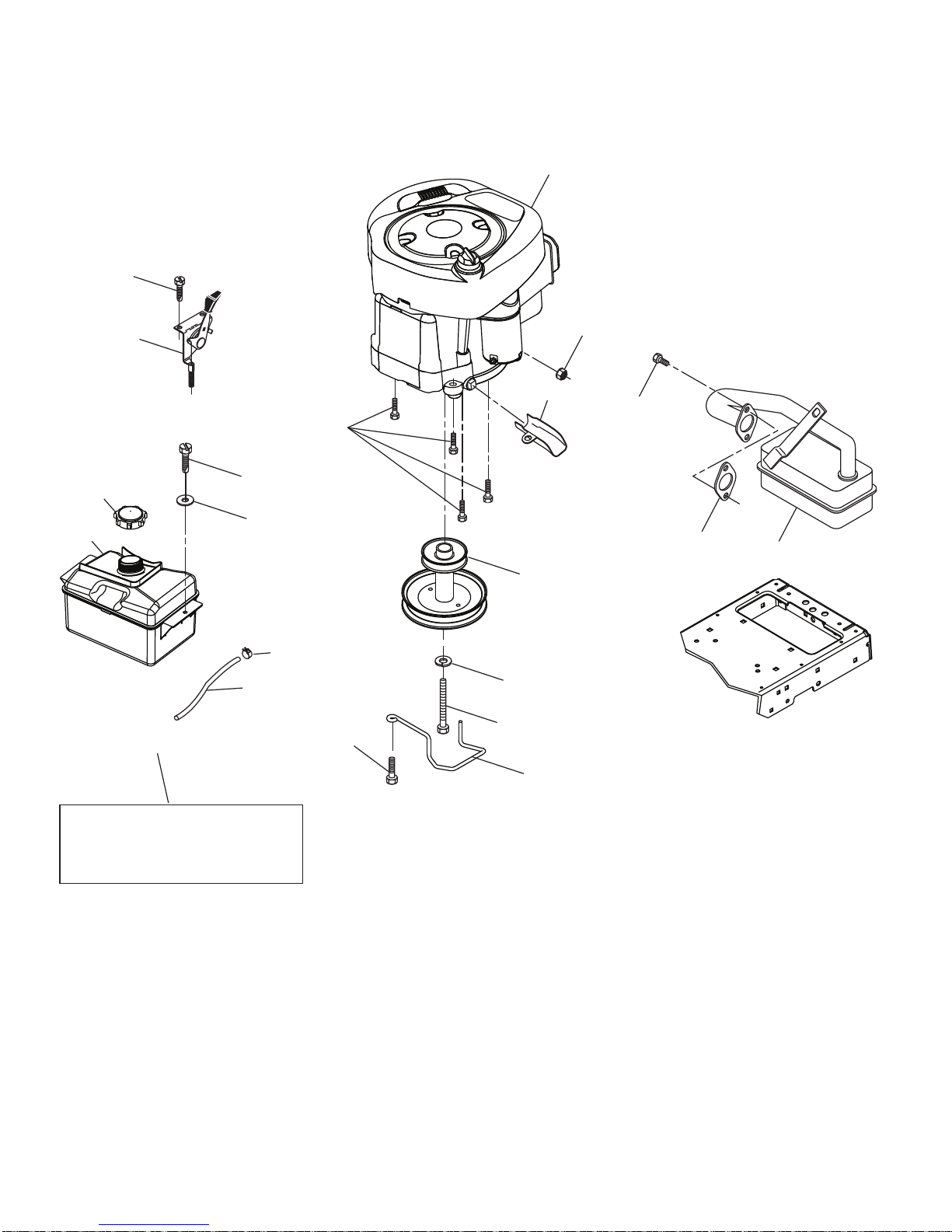

ENGINE

11
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
ENGINE
KEY PART
NO. NO. DESCRIPTION
1 – – – – – – Engine Briggs Model No. 219807-3389-G1 (438203)
(Order parts from engine manufacturer.)
2 532 17 97-58 Muffler
9 532 19 43-19 Keeper Belt Engine
12 532 14 01-86 Pulley Engine
15 532 40 75-45 Tank Fuel 1.5
18 532 43 02-20 Cap
20 532 17 05-45 Control Throttle
21 532 41 63-58 Screw #10 x 0.750
28 532 13 70-40 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw 5/16 - 18 x .75
84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 39-37 Bolt Hex 7/16-20 x 4 Gr. 5
90 817 00 06-16 Screw 3/8-16 x 1
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
122 532 42 19-22 Extension Drain Oil
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi-
neers) code J1940 (Small Engine Power 8 Torque Rating Procedure), and rating performance has been obtained and cor-
rected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower values are
derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambient operating
conditions and engine-to-engine variability. Given both the wide array of products on which engines are placed and the va-
riety of environmental issues applicable to operating the equipment, the gas engine will not develop the rated gross power
when used in a given piece of power equipment (actual “on-site” or net power). This difference is due to a variety of factors
including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor, fuel pump, etc.), application
limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability. Due to manu-
facturing and capacity limitations, Briggs 8 Stratton may substitute an engine of higher rated power for this Series engine.

12
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
STEERING
61
steering-tex_STDHRS_10
19
60
59
58
5
62
15
14
13
13
53
8
70
68
69
16
28
28
13
22
64
4
15
14
35
6
74
9
8
74
7
9
87
67
67
66
74
74
6
2
63
63
57
63
1
21 71
72
33
45
20
26

13
1 532 42 45-43 Wheel, Steering
2 532 41 81-68 Axle Asm., Front
4 532 41 68-45 Spindle Asm., LH
5 532 41 68-46 Spindle Asm., RH
6 532 12 49-31 Washer Thrust 0.75 x 1.23
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Clip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer Lock 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 42 93-74 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 41 12-91 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Support, Strg. Lower
26 532 42 46-91 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 x 2-3/8 x 12 Ga.
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 41 70-65 Bracket Deck Susp. Front
71 532 19 07-52 Shaft Ext. Steering
72 532 42 89-82 Bolt 5/16-18 x 4 w/Patch
74 532 12 49-37 Bearing
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
STEERING
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION

14
6
38
2
4
3
33
34
35
36
2631
39
30 29
1
28
5
17
43
18
19 20
21
25
24
22
23
20
32
9
10 11
12 14
15
16
13
8
tex-deck_SRD_25_r1
27
40
42
42
41
38
11
76
26

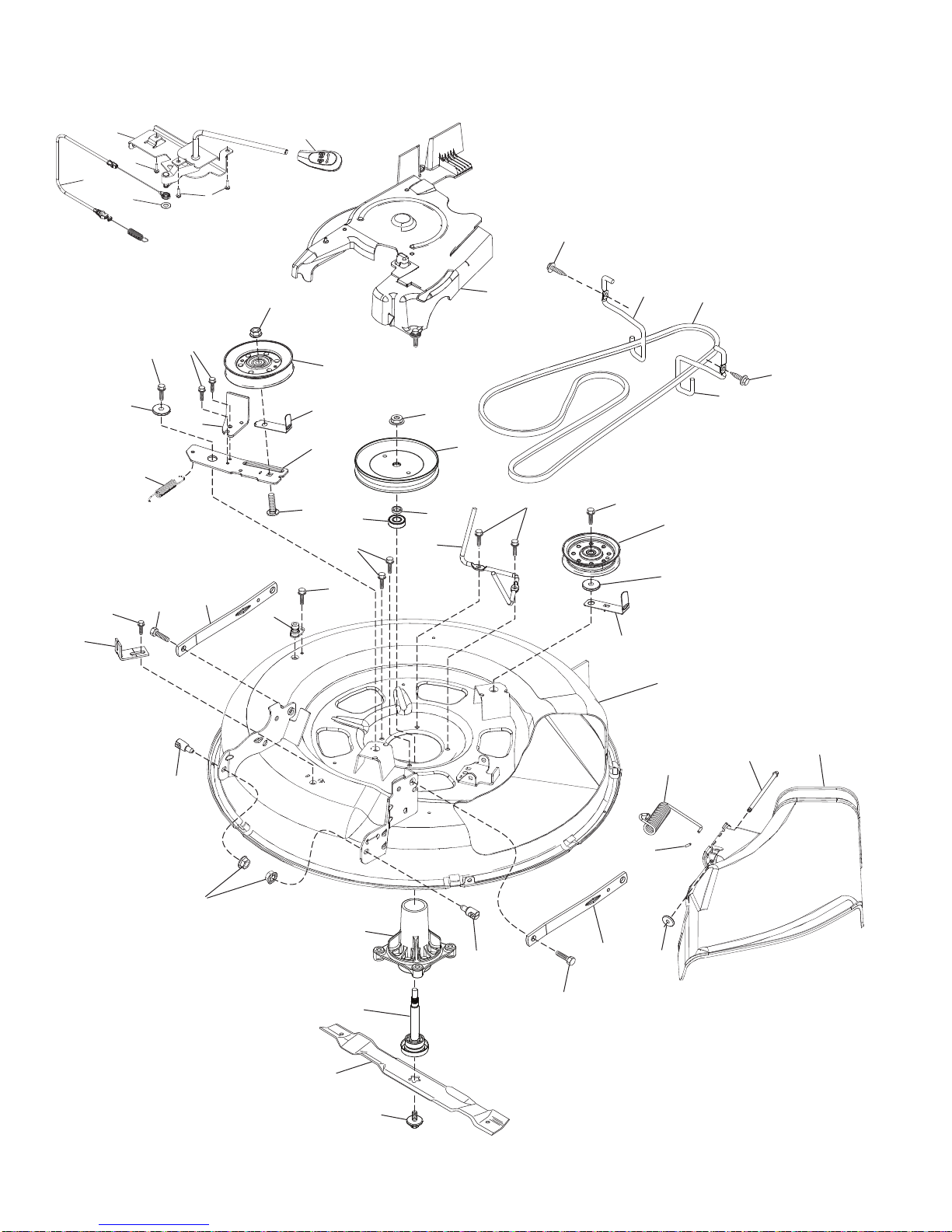

TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
MOWER DECK
70
7
7
37
67
152

15
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
MOWER DECK
1 532 41 92-72 Deck Weldment 30"Srd
2 532 19 51-61 Stud Fastner w/'d'anti-Rotatio
3 873 90 05-00 Nut Lock Hex Flange 5/16 - 18
4 532 41 76-45 Bracket Clutch Cable
5 817 00 05-10 Bolt 5/16-18
6 532 41 88-63 Arm Susp Mower Rear Srd
7 532 41 63-58 Screw #10 x 0.750 BOS Thread
8 532 42 02-52 Arm Idler 30"Srd
9 532 19 90-92 Spacer Retainer
10 817 00 06-16 Screw3/8-16X1SmgmlTap/RBlk
11 532 13 77-29 Screw Thd Roll 1/4 - 20 X 5/8
12 532 19 94-70 Arm Brake Mower 38" RH Tex
13 872 11 06-12 Bolt Carr Sh 3/8 - 16 X 1 - 1/2 Gr5
14 532 15 60-85 Keeper Belt Idler
15 532 14 67-63 Pulley Idler V-Groove Dim 4.25
16 873 90 06-00 Nut Lock FlG 3/8 - 16 unc
17 532 40 02-34 Nut Flange Lock Top
18 532 18 76-90 Washer Spacer Mandrel
19 532 11 04-85 Bearing Ball Mandrel
20 532 17 39-84 Screw Thd Roll Dod Pt Hex
21 532 41 69-10 Keeper Belt Mandrel 30"
22 532 19 31-98 Pulley Idler Flat Unplated
23 817 49 06-28 Screw Thdrol 3/8 - 16 X 1-3/4
24 819 13 20-12 Washer 13/32 X 1 - 1/4 X 12 Ga
25 532 42 02-53 Keeper Belt 30"Srd
26 532 42 02-55 Cover Mandrel Mwr 30"Black
27 532 41 92-71 Drive, Belt
28 532 41 73-44 Deflector
29 532 42 08-95 Hinge Pin NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
30 532 19 70-26 Spring Torsion
31 532 11 04-52 Nut Push
32 532 40 18-72 Spring Return Deck 38/46"
33 532 18 72-81 Housing Mandrel 4pt Service
34 532 19 28-72 Shaft Asm Mndrl N/Greaseable 38
35 532 41 92-74 Blade Mower Bagging Srd
36 532 19 30-03 Bolt/Washer Asm 7/16 - 20 unf
37 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
38 532 19 65-39 Bolt Shoulder
39 532 10 53-04 Cap Sleeve
40 532 41 92-70 Keeper Belt Engine LH
41 532 41 92-65 Keeper Belt Engine RH
42 817 00 06-12 ScrewHexwshTHDR3/8-16x3/4BL
43 532 41 68-77 Pulley Mandrel 6 5 Pd 30"
67 532 40 30-12 Handle clutch cable
70 532 19 83-32 Clutch Asm. Manual
71 817 67 06-08 Screw 3/8-16 x 1/2
152 532 43 51-11 Manual Clutch Cable
- - 532 19 28-70 MandrelAssembly(IncludesHous-
ing, Shaft Assembly, And Bearing
Only-Pulley/Nut/WasherAndBlade
Bolt/Washers Not Included)
- - 532 42 16-96 Replacement Mower Complete

16
2 532 42 20-27 Shaft Asm.,Cross Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 19 51-81 Link Lift Susp Mower Rear

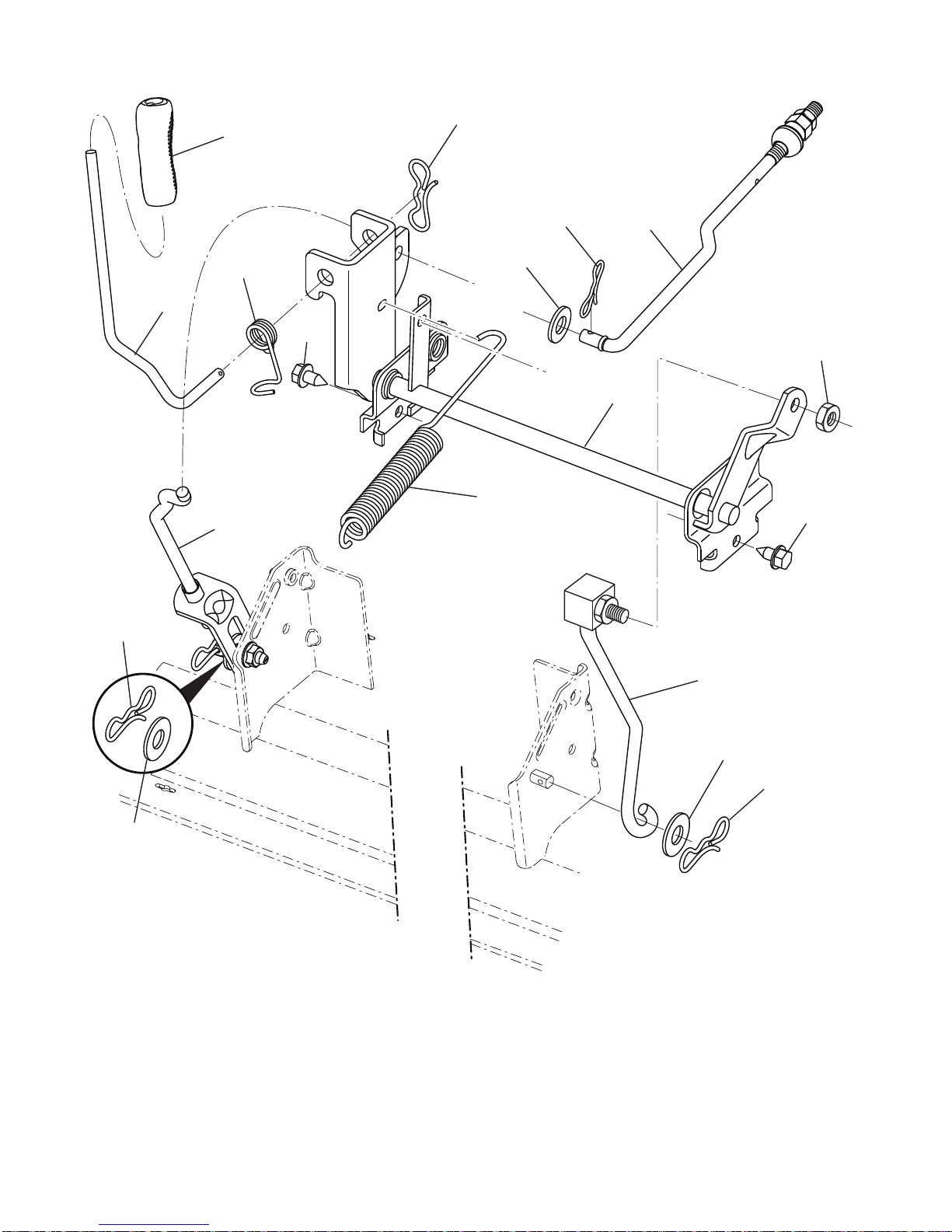

TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
MOWER LIFT
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
97 817 00 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-64 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8 -16 unc
101 532 40 70-03 Link Asm Lift Fixed
113 819 17 19-12 Washer 17/32 x 1-3/16 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
7
3
87
10
88
2
113
90 98
97
97
lift-tex_18_r4
91
87
100
89
87
89
101*
*Key 91 may be substituted for Key 101

17
2
6
6
1
14 10
37
37
21
21
42
19
3
5
16
15
12
17
13
7
8
8
7
8
8
seat-tex_knob_1
1 532 40 30-17 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
5 532 14 50-06 Clip Push-In Hinged
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 44 18-05 Pan, Seat
12 532 19 93-70 Bracket Seat Mounting
13 532 12 12-48 Bushing Snap
14 872 05 04-12 Bolt 1/4 - 20 X 1-1/2
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
SEAT
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
15 532 13 43-00 Spacer Split
16 532 12 37-40 SpringCPRSNPlateSW1.310Ga.
17 532 12 39-76 Nut Lock 1/4 Gr.5
19 532 19 93-72 Knob Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
42 532 19 93-71 Washer Cup Seat

18
TRACTOR - MODEL NO. PO12530LT (96041021300), PRODUCT NO. 960 41 02-13
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 43 85-38 Rim Asm Front
4 532 42 16-52 Tube Front (Service Item Only)
5 532 12 34-10 Tire F T
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 43 25-10 Cap Axle
9 532 10 62-30 Tire R T
10 532 00 71-54 Tube Rear (Service Item Only)
11 532 43 85-40 Rim Asm 8" Rear Service
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 40 88-08 Decal Engine HP
2 532 43 38-18 Decal Fender RH/LH
3 532 43 19-83 Decal Hood RH/LH
4 532 43 38-17 Decal LWD. Dash
5 532 19 68-41 Decal Warning Engine Symbol
6 532 42 51-12 Decal Warning Dflect/Cut Finger
7 532 43 88-04 Decal Replacement Parts
8 532 40 03-89 Decal Fender Warn
9 532 43 19-86 Decal Fender Logo
10 532 15 97-37 Decal Brake/Clutch Symbol
11 532 43 19-82 Decal Ins Strg Whl
12 532 14 08-37 Decal Saddle Brake Parking
13 532 18 04-32 Decal Fender 100 DB/CE
14 532 42 15-43 Decal V-Belt Schematic
20 532 14 50-05 Decal Bat Dan/Psn
- - 532 16 25-98 Decal Drawbar Load Limit
- - 532 40 95-05 Pad Footrest LH
- - 532 41 12-73 Pad Footrest RH
- - 532 43 83-66 Manual Operator's (Eng/Span.)
- - 532 43 83-67 Manual Operator's (Portuguese)
- - 532 43 83-68 Manual Parts (English)
3
2
24 4
3
9
20
14
13
12
10
1
5
7
11
6
8

19
LIMITED WARRANTY
The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in mate-
rials and workmanship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair
or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we find to be defective
due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.
1. This warranty does not apply to the engine, transaxle/transmission components, battery (except as noted below) or com-
ponents parts thereof. Please refer to the applicable manufacturer's warranty on these items.
2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchas-
er. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser un-
less such return is requested by the manufacturer.
3. Battery Warranty: On products equipped with a Battery, we will replace, without charge to you, any battery which we find
to be defective in manufacture, during the first ninety (90) days of ownership. After ninety (90) days, we will exchange the
Battery, charging you 1/12 of the price of a new Battery for each full month from the date of the original sale. Battery must
be maintained in accordance with the instructions furnished.
4. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of origi-
nal purchase.
5. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac-
cordance with the instructions furnished. This Warranty does not apply to any product which has been subjected to altera-
tion, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.
6. Exclusions: Excluded from this Warranty are belts, blades, blade adapters, normal wear, normal adjustments, standard
hardware and normal maintenance.
7. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.
Should you have any unanswered questions concerning this Warranty, please contact:
giving the model number, serial number and date of purchase of your product and the name and address of the authorized
dealer from whom it was purchased.
THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRAN-
TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas
do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above
limitations or exclusions may not apply to you. This Warranty gives you specific legal rights, and you may have other rights
which vary from locale to locale.
This is a limited Warranty within the meaning of that term as defined in the Magnuson-Moss Act of 1975.
In Canada contact:
HOP
5855 Terry Fox Way
Mississauga, Ontario
L5V 3E4
HOP
Outdoor Products Customer Service Dept.
9335 Harris Corners Parkway
Charlotte, NC 28269 USA

08.26.11 CL Printed in the U.S.A.
Thisproducthasbeenexpertlyengineeredandcarefullymanufacturedtorigidqualitystandards. Aswithallmechanical
products, some adjustments or part replacement may be necessary during the life of your unit.
For Parts and service, contact our authorized distributor: call 1-800-849-1297
• For replacement parts, have available the following information:
a. Model Number/Manufacturer's I.D. Number
b. Description of part.
For Technical Assistance: call 1-800-829-5886
For a Parts Manual, go to our website: www.poulan.com/support.asp
NOTE: HOP provides parts and service through its authorized distributors and dealers; therefore, all
requestsforparts andserviceshould be directedtoyour localdealer(s). Thephilosophyof HOP
is to continually improve all of its products. If the operating characteristics or the appearance
of your product differs from those described in this Manual, please contact your local dealer
for updated information and assistance.
PARTS AND SERVICE
