Power bass 2XL series User guide

2XL SPEAKER SERIES
Application Guide

Thank you and Congratulations
Congratulations on your purchase of Powerbass Xtreme speakers.
You now own a speaker of uncompro-mising design and engineering from a factory that truly believes
in the relentless pursuit of perfection. Incorporating the highest quality parts and state-of-the-art
materials, these speakers display the ultimate balance between high fidelity, extreme performance and
long-lasting reliability.
At PowerBass USA, Inc. we are confident you will have many years of outstanding enjoyment from this
great SPEAKER investment. For maximum performance we recommend that you have your new Power-
Bass Xtreme product installed by an Authorized PowerBass Xtreme Dealer. Doing so will also automati-
cally extend your warranty to a full THREE YEAR Period.
∆Warning ∆
Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Xtreme Speakers
are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your
PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result
of use or misuse of this product.property damage due to the result of use or misuse of this product.

POWERBASS XTREME 2XL SPEAKER FEATURES
Stamped Steel Non-resonant Basket: These rigid baskets are designed to give the moving parts
of the speaker a solid platform to perform. Each basket has been treated with an acoustical sound reduc-
tion coating that greatly reduces sound transmission and reflection which dampens ringing and tinning
making the basket acoustically “dead”.
Wool /Paper Composite Cone: The premium grade cones contain the optimum ratio of paper to
wool resulting in a transducer that is strong and rigid, yet lightweight. This offers increased performance
and improved low end bass reproduction.
High Damping Butyl Rubber Surround: Selected for efficiency and minimum distortion the sur-
round material is impervious to harsh elements such as salt air, heat and smog. Offers improved output
throughout the entire frequency range.
Emperors Silk Soft Dome Tweeter: Very large premium grade hand spun silk tweeters are a full
1-inch (25mm) for most models.* The neodymium motor structure and edge wound ribbon wire voice coil
provide an extremely wide bandwidth.
Mylar High Pass 6dB Crossover: Audiophile grade mylar crossover capacitors were selected for a
smoother high frequency response and increased power handling.
High Powered Muti-Layer 3-ohm Voice Coil: Kapton® is a high temperature voice coil former
that is light weight and designed for greater efficiency and increased power handling that provides loud
and clean output. The 3-ohm impedance allows the speaker to operate more efficiently and make better
use of amplifier power.
Additional Features: PBX custom mesh grill, gold plated input terminals, customized rubber boot to
protect the magnet, professional mounting hardware and speaker lead harness adds further value to your
investment.

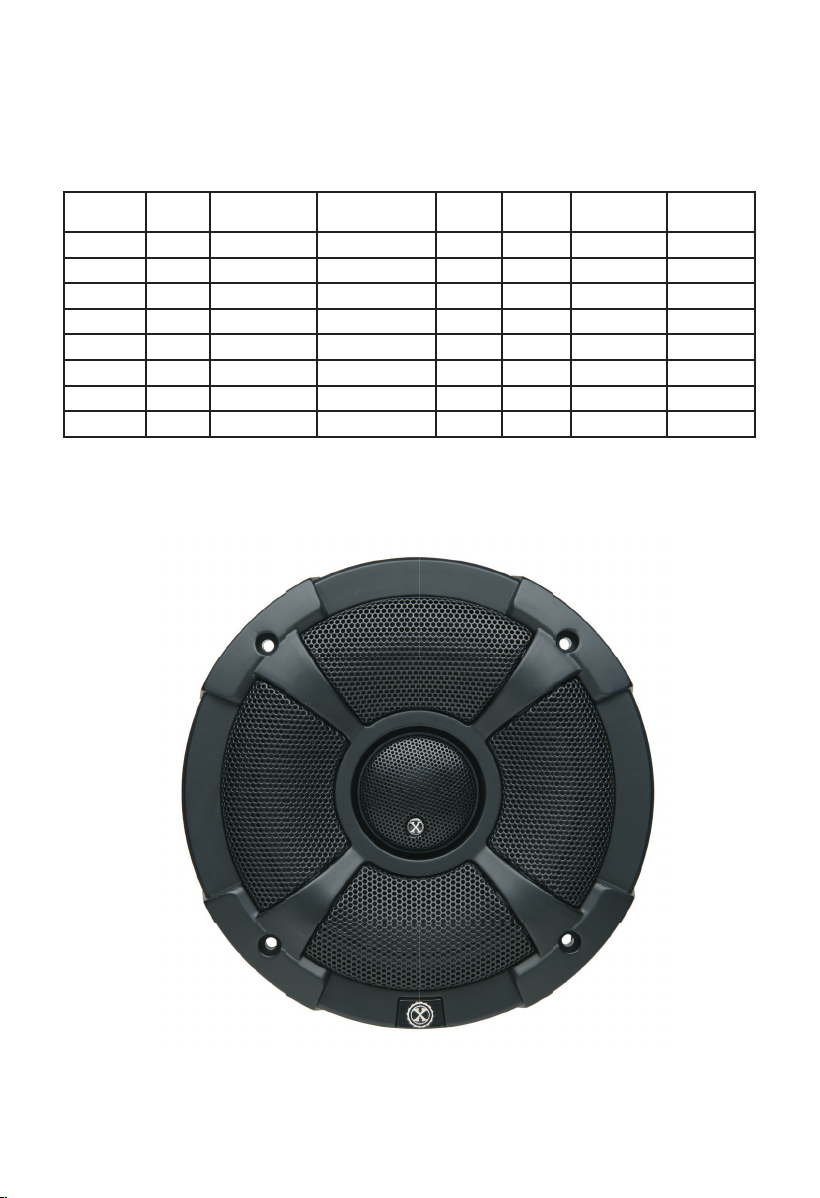

SPECIFICATIONS FOR POWERBASS 2XL SPEAKERS
(due to Constant Improvement, Specification and Parameter are subject to change without notice)
Model Size Nominal Impedance Frequency Response Sensitivity
1W/1M
Magnet Size Mounting Depth Power
RMS/Max
2XL-403 4” 3 Ohm 68 Hz - 20 kHz 88 dB 10 oz. 2.2” 50 W / 100 W
2XL-463* 4 x 6” 3 Ohm 68 Hz - 20 kHz 88 dB 10 oz. 2.3” 50 W / 100 W
2XL-523 5.25” 3 Ohm 62 Hz - 20 kHz 89 dB 12 oz. 2.2” 60 W / 120 W
2XL-653T 6.5” thin 3 Ohm 60 Hz - 20 kHz 89 dB 12 oz. 2.13” 60 W / 120 W
2XL-653 6.5” 3 Ohm 58 Hz - 20 kHz 90 dB 14 oz. 2.5” 75 W/ 150 W
2XL-673* 6.75” 3 Ohm 58 Hz - 20 kHz 89 dB 12 oz. 1.9” 75 W / 150 W
2XL-683* 6 x 8” 3 Ohm 53 Hz - 20 kHz 91 dB 14 oz. 2.6” 75W / 150 W
2XL-693 6 x 9” 3 Ohm 40 Hz - 20 kHz 92 dB 30 oz. 3.4” 100 W / 200 W
*Grills Not Included On Some Models.

INSTALLATION EXPERIENCE
Installation of PowerBass Xtreme Speakers requires experience with a variety of mechanical and electri-
cal procedures. This manual only provides general installation and operation instructions. If you have any
reservations about your installation skills or lack of the proper tools, please contact your local PowerBass
Xtreme dealer for assistance.
TIPS TO GET THE MOST OUT OF YOUR POWERBASS
SYSTEM
Your PowerBass Xtreme speakers have been meticulous engineered and designed to handle high power
musical reproduction. Despite their rugged construction, it is possible to damage your speaker if they are
improperly used. In general, you will hear distortion as a so-called warning before any damage occurs.
If you hear distortion in your system, immediately reduce the musical level to the point where the sound
retains its clarity.
1. Be sure you supply the speakers with enough unclipped amplifier power to drive them properly.
(More damage can be done to a speaker by under-powering and clipping your amplifier
than any other way!)
2. Where possible, a separate amplifier just for your speaker should be used with an electronic cross-
over to set the frequency range. One amplifier with passive crossovers will work (Tri-Way Setup), but
the system will do more with less stress on the amplifier by using two amps.
3. To avoid any possible sound cancellation from the front of the speaker to that of the rear of the
speaker, cut a panel of Masonite or MDF to firmly mount the speaker if the vehicle’s original cutout
is too big.
4. When connecting speaker wires from the amplifier or head unit to that of the speaker itself, pay
attention to the polarity of the connection. This will insure optimum sound reproduction and per-
formance.
5. For maximum dynamic performance use weather stripping to insure a tight seal.
6. Do not mount any speakers or external crossovers where they will get wet.
7. Remember the Golden Rule “Measure twice…cut once.”

PREPARING FOR INSTALLATION
NOTE: The tools listed below may be required for proper installation.
•An electric drill with drill bits
•Phillips-head and standard screwdrivers
•Wire strippers
•Crimping tool and needle-nose pliers
•Silicone sealant or closed cell weather-stripping
•Metal file
•Hole saw
•Tin Snips
INSTALLATION PRECAUTIONS
NOTE: Proceed only if you are a qualified installer otherwise; let your dealer do it.
•Always wear protective eyewear when using tools.
•Turn off all stereo and other electrical devices before you begin.
•Disconnect the (-) negative lead from your vehicle’s battery.
•Keep the speakers in the package until final installation.
•Locate all fuel lines, brake lines, oil lines, and electrical cables when planning your installation.
•Check to see if there is enough clearance behind the mounting surface before installing the speakers.
•When running speaker wires through sheet metal, be sure to use grommets to properly insulate the wires
from metal edges.
EXAMPLES OF MOUNTING
Mounting Options
•A: Rear Deck Mounting
•B: Multiple Mounting

ILLUSTRATION OF REAR DECK MOUNT INSTALLATION
INSTALLATION PROCEDURES
•Since these speakers utilize a unique low profile tweeter housing that has minimal tweeter protrusion,
original factory mounting cutouts can still be used with the factory grills in many cases.
•These PowerBass Autosound speakers can be used above or below the mounting hole. Typically, your
vehicle factory’s speaker cutouts will accommodate these new speakers without any modifications.
When the speaker has been correctly installed, there should be no air leaks between the front and back
of the speaker.
•For door installations, check the clearance of the window and roll-up mechanisms throughout the entire
range of the window’s travel to make sure that all obstacles clear the speaker structure.
•Check the available mounting depth before installing the speaker. Use care when removing factory grills,
door panels and factory speakers.
This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions
is strictly prohibited without the express consent of PowerBass USA, Inc. ©Copyright 2013 PowerBass USA, Inc.

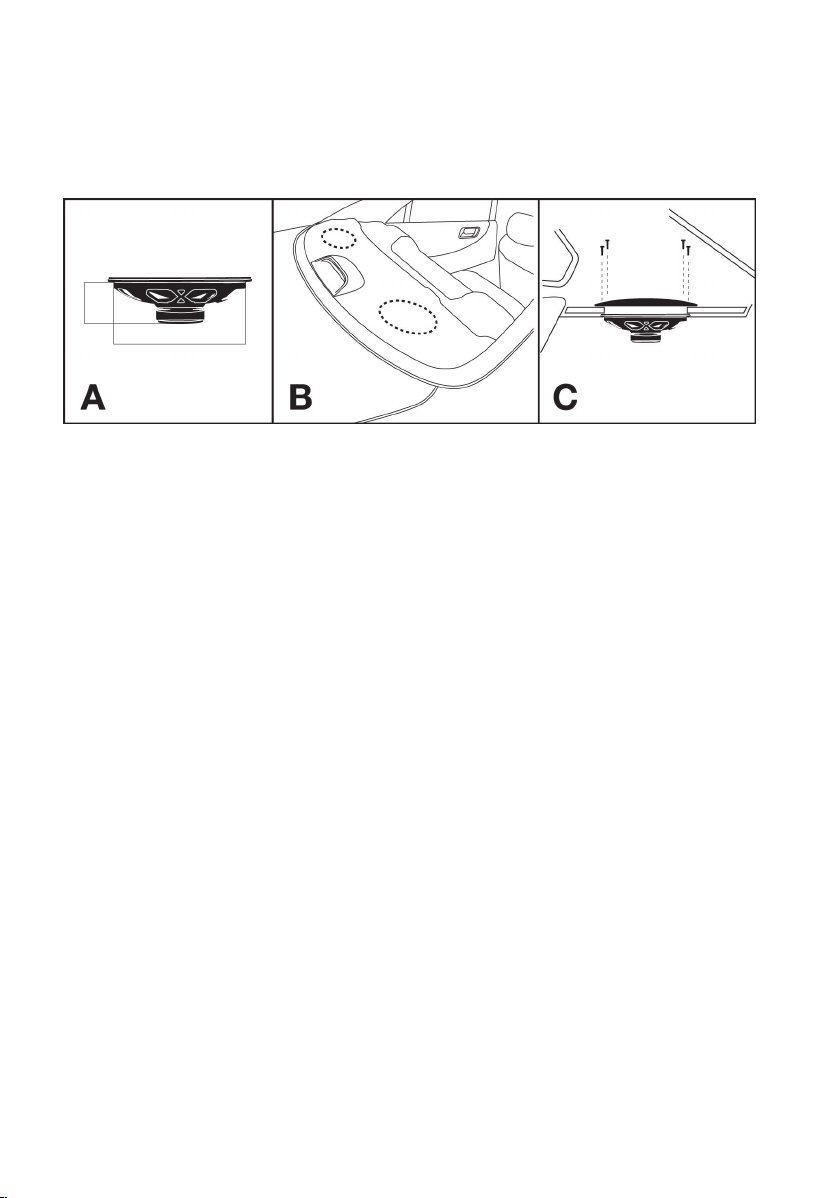

•A: Speaker mounting depth and hole cutout diameter.
•B: Cut hole using saber saw/ utility knife.
•C: Connect wiring to speaker terminals. Make sure of polarity (+)positive (-)ground.
Using a philips screwdriver secure speakers and attach grille, if applicable.

POWERBASS XTREME LIMITED WARRANTY POLICY
PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms:
PowerBass Xtreme Speakers are to be free of defects in material and workmanship for a period
of one (1) year. The warranty is extended to three (3) years for parts and labor, if an Authorized
PowerBass Xtreme Dealer completes the installation.
This warranty applies only to PowerBass products sold to consumers by Authorized PowerBass Dealers in the
United States of America. Products purchased by consumers from a PowerBass dealer in another country are
covered only by that country’s Distributor and not by PowerBass USA.
This warranty covers only the original purchaser of PowerBass product. In order to receive service, the
purchaser must provide PowerBass with the receipt stating the consumer name, dealer, product and date of
purchase.
Products found to be defective during the warranty period will be repaired or replaced (with a product deemed
to be equivalent) at PowerBass’s discretion and will not be liable for incidental or consequential damages.
PowerBass will not warranty this product under the following situations:
• Speakers received with bent frames or water damage
• Abuse such as holes in the cone, surround or ripped spider
• Voice coil damage due to amplier clipping or distortion
• Product that has not been installed according to this owners manual
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the
period of the express warranty set forth above. Some states do not allow limitations on the length of an implied
warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability
in connection with the sale of this product.
