Power bass XPRO-65CX User guide

XPRO PROFESSIONAL MID-RANGE DRIVERS
Application Guide
XPRO-65CX
XPRO-8CX

Thank you and Congratulations
Congratulations on your decision to purchase a PowerBass Xtreme™ XPRO Mid Range driver. This series
offers incredible value and performance. By incorporating the highest quality parts and state-of-the-art
materials, these speakers display the ultimate balance between high fidelity, extreme performance and
long-lasting reliability.
At PowerBass USA, Inc. we are confident you will have many years of outstanding enjoyment from this
great SPEAKER investment. For maximum performance we recommend that you have your new Power-
Bass Xtreme product installed by an Authorized PowerBass Xtreme Dealer. Doing so will also automati-
cally extend your warranty to a full THREE–YEAR Period.
To learn more about PowerBass Xtreme, please visit us on the World Wide Web at
http://www.powerbassusa.com
∆Warning ∆
Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Xtreme Speakers
are capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your
PowerBass Xtreme system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result
of use or misuse of this product.property damage due to the result of use or misuse of this product.
3

FEATURES
Over Built Pro Audio Design Y-35 high grade Strontium Ferrite magnet with vented pole piece al-
lowing air in to keep the voice coil cooler at high power levels
Triple Roll Cloth Surround
for precise linear controlled excursion
Large Heat Dissipating Voice Coil
2” TFG Former with CCAW Winding (1.5” Voice Coil on XPRO-65CX)
Chrome Push Input Terminal
accepts up to 8-ga speaker wire for maximum current transfer
Die-Cast Aluminum Basket And Protective Grill Included
Must use proper crossover settings
see page 8 for the crossover settings
4

WIRING EXAMPLES
Your PowerBass Xtreme XPRO Mid Range driver uses a single 4-OHM voice coil. It is important to know
the limits of your amplifier to optimize its performance. You can vary the impedance by altering the wiring
configurations: Series, Parallel, or Series-Parallel. Choose the wiring diagram below that corresponds to
the number of speakers in your system and the impedance stability of your amplifier.
One 4-ohm speaker @ 4 ohm
Two 4-ohm speakers @ 2-ohm
in parallel
Eight 4-ohm speakers @ 2-ohm
series parallel
Two 4-ohm speakers @ 8-ohm
in series
Four 4-ohm speakers @ 4-ohm
series parallel
5
Fig. 1
Examples of 4-OHM speakers in Series,
Parallel and Series-Parallel wiring

6
INSTALLATION EXPERIENCE
Installation of PowerBass Xtreme speakers requires experience with a variety of mechanical procedures
including enclosure construction. This manual only provides general installation and operation instruc-
tions. If you have any reservations about your installation skills, please contact your local Authorized
PowerBass Xtreme dealer for assistance.
CHOOSING SPEAKER MOUNTING LOCATIONS
Choosing the correct speaker mounting location will have the greatest effect of the sound quality of the
system. There are many different considerations needed when choosing the location(s) that best meet
your needs. The locations must be large enough for the speakers to fit. Care is needed to ensure that the
desired location will not affect either the mechanical or electrical operation of the vehicle.
WARNING! The use of silicone rubber to seal in a speaker will void the Warranty! If any sealing is needed
in addition to the speaker’s gasket, use caulking cord or vinyl weather strip.
PREPARING FOR INSTALLATION
NOTE: The tools listed below may be required for basic installation.
• An electric drill with bits
• Saber and jig saw
• Phillips-head and standard screwdrivers
• Wire strippers
• Crimping tool and needle-nose pliers
• Silicone sealant (for enclosures), closed cell weather-stripping (for the speakers)
INSTALLATION PRECAUTIONS
NOTE: Proceed only if you are a qualified installer otherwise; let your dealer do it.
• Always wear protective eyewear when using tools.
• Turn off all stereo and other electrical devices before you begin.
• Disconnect the (-) negative lead from your vehicle’s battery.
• Keep the speakers in the package until final installation, and always rest it with the cone facing up.
Never use force when installing a speaker.
• Locate all fuel lines, brake lines, oil lines, and electrical cables when planing your installation.

7
• Check to see if there is enough clearance behind the mounting surface before drilling holes or install-
ing screws for proper speaker ventilation.
• Also make sure there’s enough front clearance for speaker cone excursion. Failure to do this could
cause the cone to vibrate against any obstructing object damaging the speaker.
• Use a utility knife to trim away fabric from the speaker mounting hole location before drilling. It is
hard to get a good seal if you have both the carpet & subwoofer gasket between the speaker and
the enclosure.
• When running speaker wires through sheet metal, be sure to use grommets to properly insulate the
wires from metal edges.
DOOR MOUNTING
When checking for possible speaker locations in the doors, check the operation of the window and all
assemblies. There is also a stabilizer stop bar in between the door and the door jam. This bar prevents the
door from opening too far.
REAR DECK MOUNTING
In rear deck installations, check the operation of the trunk suspension springs or tension bars. These tension
bars move in the opening and closing of the trunk. You cannot be too cautious during this part of the instal-
lation. In addition do not locate the speakers too close to the back of the rear deck. Installing the far screws
may not be possible without removing the rear window.

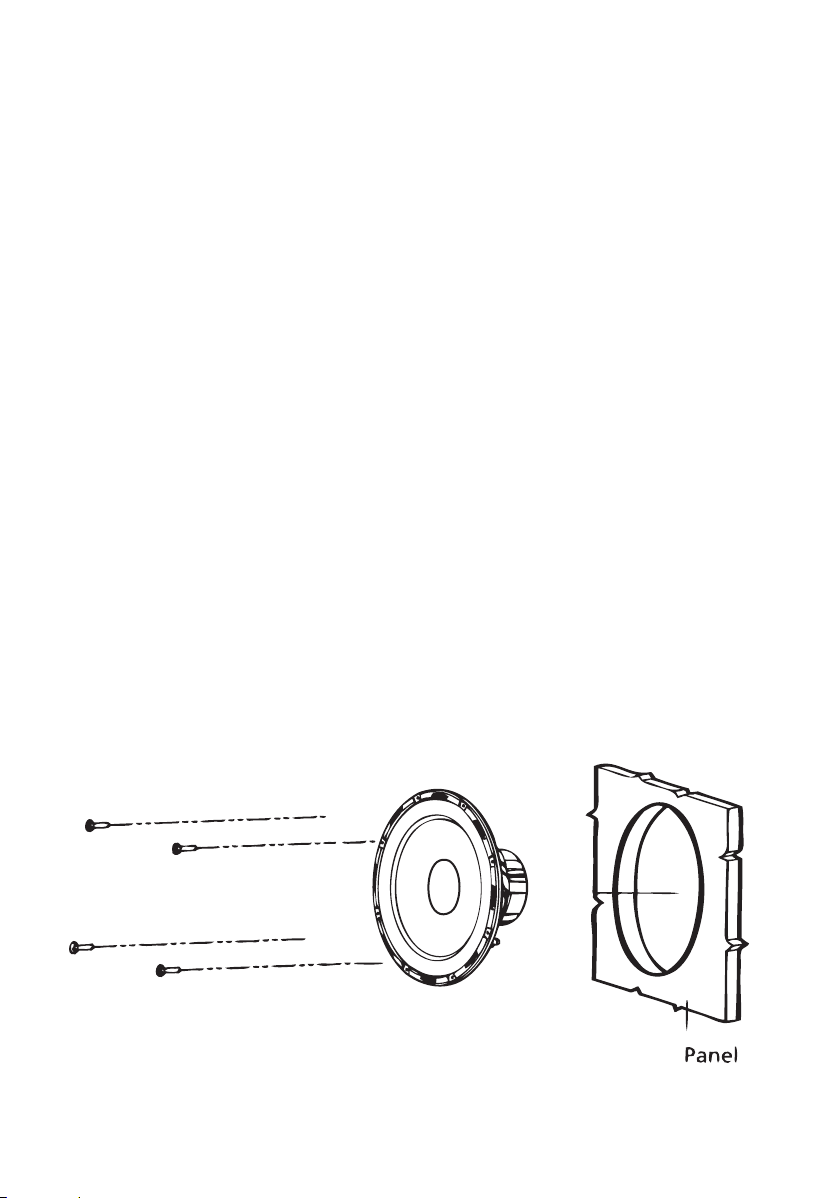

Fig. 3 Mounting Surface must be flat

8
INSTALLING THE MID RANGE DRIVER
1. Determine where the speaker will be mounted. Make sure there is a flat area large enough for the
speaker to fit properly. An uneven mounting surface can damage the driver.
2. Check to make sure the space you have selected for the speaker will not interfere with the operation of
the vehicle.
3. Using the supplied template, mark the hole with a pen.
4. Cut the hole for the speaker. A hole can be cut either with a pair of metal tin snips, a saber or jig saw.
5. Run speaker wire (not included) to the speaker. Make sure to keep wires away from sharp metal or other
rough edges. When passing through metal, use a grommet to protect the wires from sharp edges.
6. Pre drill the mounting holes using a 1/8” (3mm) drill bit.
7. Pull the wire though the speaker opening and connect to the speaker. Be sure to observe proper polarity.
8. Mount the speaker using the supplied screws.
RECOMMENDED ELECTRONIC CROSSOVER SETTINGS
For optimum performance of your range driver we recommend the following crossover frequency point setting
on each model. NOTE: Crossover settings will vary based on the speaker size.
XPRO-6.5CX (6.5 inch) mid range driver, set the crossover control at 200Hz in high pass (HPF) and 5 KHz in
low pass (LPF) for a 3 way application, OR set the crossover control at 200 Hz in high pass (HPF) for 2 way
application. A slope at each crossover will be at least 12dB/per Octave, or better .
XPRO-8CX (8 inch) mid range driver, set the crossover control at 150Hz in high pass (HPF) and 5 KHz in low
pass (LPF) for a 3 way application, OR set the crossover control at 150 Hz in high pass (HPF) for 2 way ap-
plication. A slope at each crossover will be at least 12dB/per Octave, or better .

9
PARAMETERS FOR XPRO MID RANGE DRIVERS
(due to Constant Improvement, Specification and Parameter are subject to change without notice)
VC Impedance (OHMs) 4 4
Test Impedance (OHMs) 5.5 5.5
Fs (Hz) 85 91
SD (sqCM) 136.85 213.82
Vas (Ltr) 10.12 10.03
Cms (μM/N) 380.43 154.5
Mms (g) 9.35 19.45
BL™8.56 13.22
Qms 7.45 7.45
Qes 0.979 0.336
Qt 0.865 0.342
Spl (dB) 93 95
Xmax (mm) - -
Voice Coil Size (inches) 38mm (1.5”) 50mm (2”)
Frequency Response (Hz) 120Hz - 10kHz 100Hz - 5kHz
Magnet Weight (ounces) 25 oz 56 oz
Mounting Depth (inches) 71mm (2.8”) 83mm (3.25”)
Power (RMS/Peak) 150W / 300 W 225W / 450W
XPRO-65CX XPRO-8CX

10
POWERBASS XTREME LIMITED WARRANTY POLICY
PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms:
PowerBass Xtreme Speakers are to be free of defects in material and workmanship for a period
of one (1) year. The warranty is extended to three (3) years for parts and labor, if an Authorized
PowerBass Xtreme Dealer performs the installation.
This warranty applies only to PowerBass products sold to consumers by Authorized PowerBass Dealers in the
United States of America. Products purchased by consumers from a PowerBass dealer in another country are
covered only by that country’s Distributor and not by PowerBass USA.
This warranty covers only the original purchaser of PowerBass product. In order to receive service, the
purchaser must provide PowerBass with the receipt stating the consumer name, dealer, product and date of
purchase.
Products found to be defective during the warranty period will be repaired or replaced (with a product deemed
to be equivalent) at PowerBass’s discretion and will not be liable for incidental or consequential damages.
PowerBass will not warranty this product under the following situations:
• Speakers received with bent frames or water damage
• Abuse such as holes in the cone, surround or ripped spider
• Voice coil damage due to amplier clipping or distortion
• Product that has not been installed according to this owners manual
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the
period of the express warranty set forth above. Some states do not allow limitations on the length of an implied
warranty, so this limitation may not apply. No person is authorized to assume for PowerBass any other liability
in connection with the sale of this product.
Please call [phone] for PowerBass Customer Service. You must obtain an RA# (Return Authori-
zation Number) to return any product to PowerBass. The RA number must be prominently marked on the
outside of the shipping carton or the delivery will be refused. Please pack your return carefully; we are
not responsible for items damaged in shipping. Return the defective product along with a copy of the original
dated retail sales receipt, plus $12.00 for handling and diagnostic evaluation to:
PowerBass USA, Inc., Attn: Returns (RA#__________)
2133 South Green Privado, Ontario, CA 91761
Residents of HI, AK and US territories will be charged for return shipping. All inquires regarding service and
warranty should be sent to the above address.

This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its
intentions is strictly prohibited without the express consent of PowerBass USA, Inc.
Copyright 2016 PowerBass USA, Inc.

PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc.
2133 South Green Privado – Ontario, CA 91761
Tel. [phone] – Fax [phone]
www.powerbassusa.com
