Power Solid PS-PGU1500VA#2B9A User manual

INSTALLATION & OPERATION
①Package Contents
Before installation, please read and understand the following items are inside the box:
·UPS unit
·User manual
·Communication cable
·Software for UPS
②Connect to Utility Power
Connect AC power cord to utility power. Then, the UPS will start to charge inside battery. For
best result, charge the battery for 24 hours prior to initial use.
③Plug in Equipment
Plug your equipment to Battery Backup Outlets on the rear panel of the UPS.
NOTE: Make sure that the UPS is powered on to protect all important devices from data
loss during power failure.
CAUTION: NEVER connect a laser printer or scanner to the battery backup outlets of UPS.
This way cause the damage of the unit.
④Connect Communication Cable
To allow for unattended UPS shutdown/start-up and status monitoring, connect the
communication cable one end to the USB port and the other to the communication port of
your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up
and monitor UPS status through PC.
⑤Turn On/Off the UPS
Turn on the UPS unit by pressing the power switch. Then, the LCD will display UPS status.
Turn off the UPS unit by pressing again the power switch. Then, LCD display will shut off.
⑥Turn On/Off the LCD screen
When the UPS in AC mode. Press on the power switch once, the LCD screen will shut off.
Press on the power switch once again, the LCD screen will be on.
⑦Mute function
In battery mode, press on the power switch once, the buzzer will be off. But when the UPS is
low battery or overloaded, the buzzer will be on to remind the UPS will be shut down
immediately.

⑧RGB Lights.
All RGB lights will be lighting when the UPS in AC mode. The RGB light on above will be
lighting when the UPS in battery mode. Press on the power switch twice, the RGB lights will
be off. Press on the power switch twice again, the RGB lights will be on.
PLACEMENT & STORAGE
①Placement
Install the UPS in a protected area that is free of excessive dust and has adequate air flow.
Place the UPS away from other units at least 20 cm to avoid interference. For best
performance, keep the indoor temperature between 0° C and 40° C.
②Storage
All connected equipment should be turned off, then disconnect from the UPS to avoid battery
drain. Unplug the UPS from the wall outlet. Then turn off the UPS for storage. Store the UPS
unit covered and upright in environments where the ambient temperature is -20° C to 50° C
with its battery fully charged.

PRODUCT OVERVIEW
FRONT PANEL
1)LCD display
2)RGB lights
3)Power switch
4)5V USB port

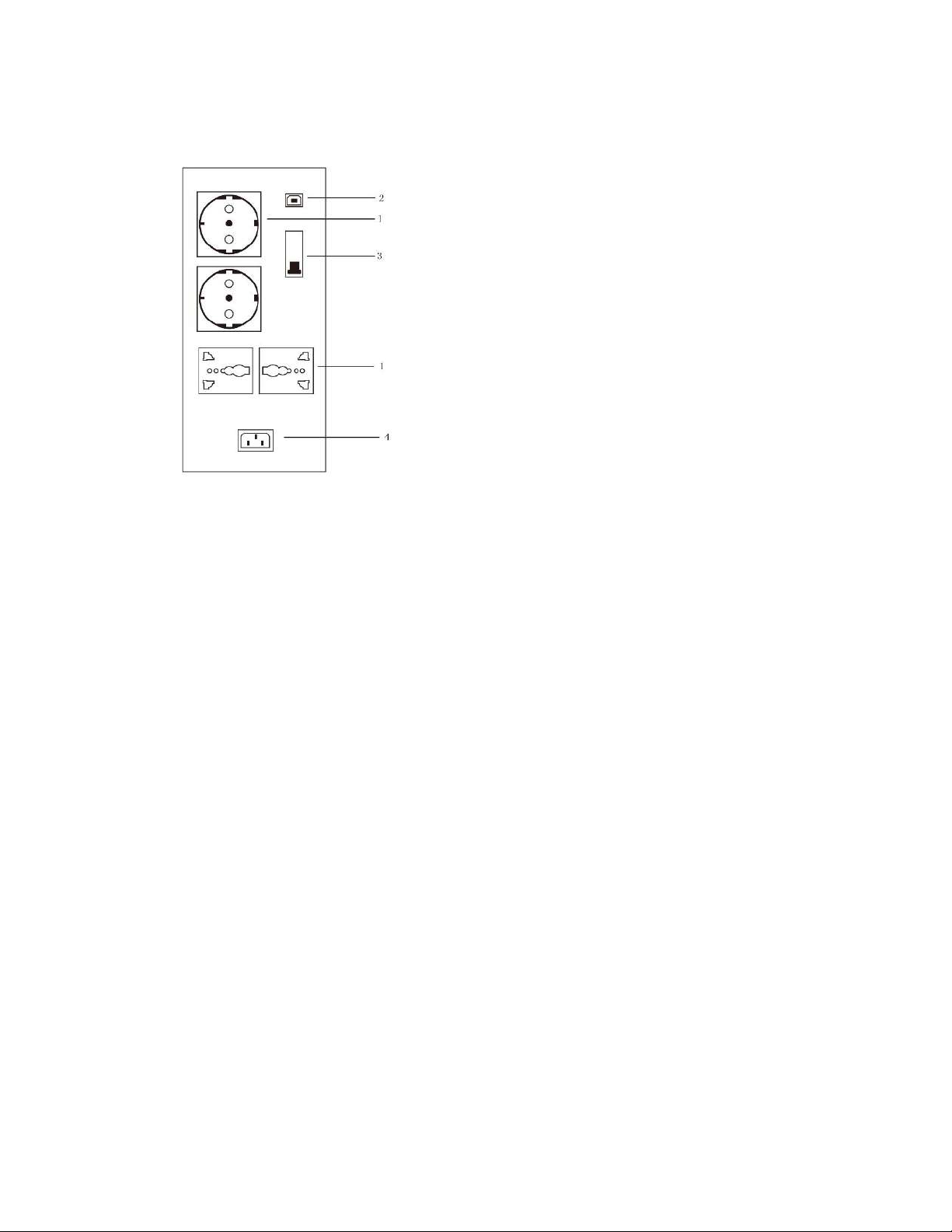

REAR PANEL

1)Output socket
2)USB port
3)Circuit breaker
4)AC input

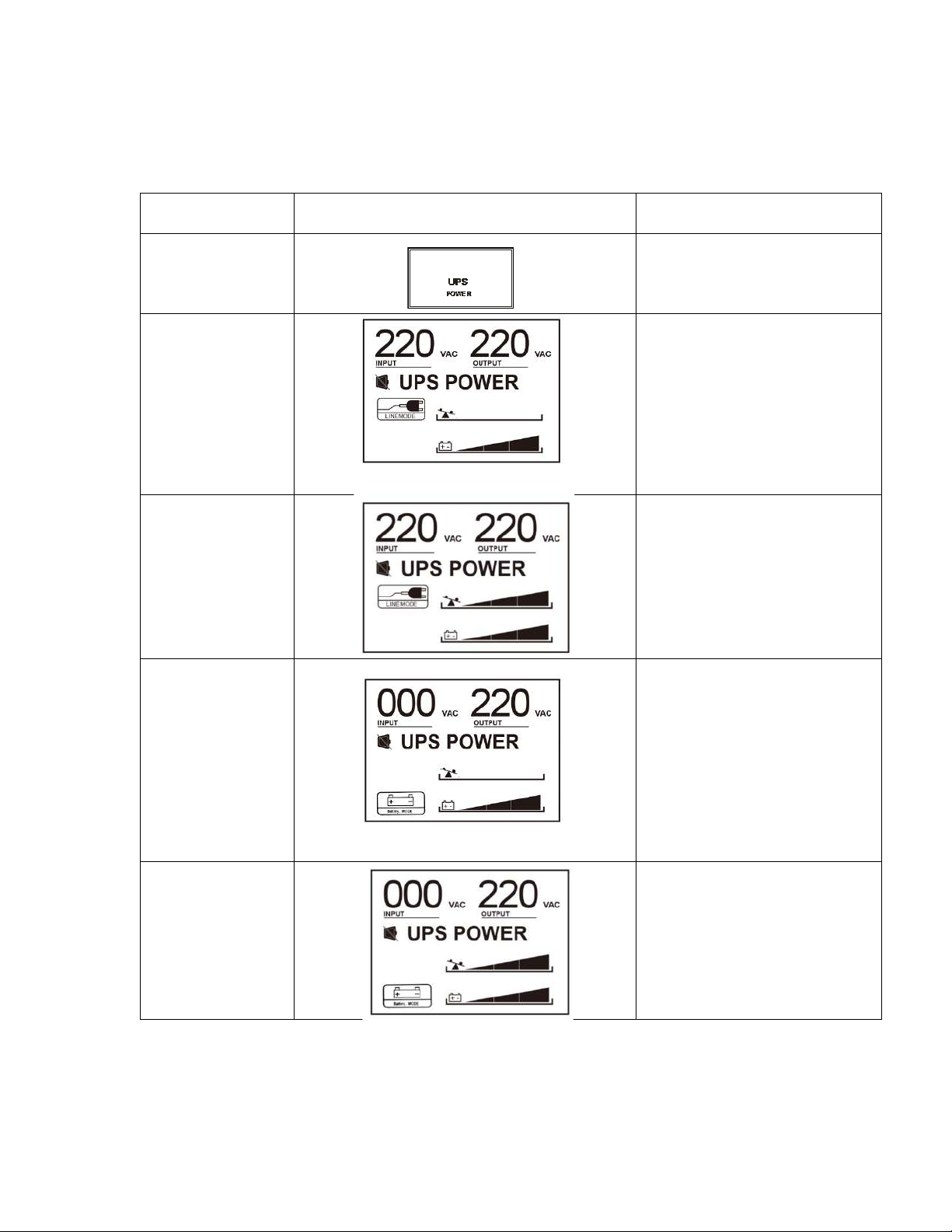

LCD DISPLAY
Operation Display
UPS Mode
LCD
Description
UPS Power on
UPS is powered on.
AC Mode
LCD information will be
displayed in the following order
when LCD is touched.
1)Output voltage
2)Input voltage
3)Load level
4)Battery capacity
Overload in AC
mode
When overload occurs, alarm
will beep every 0.5 second.
Battery Mode
Alarm will beep every 10
seconds and LCD information
will be displayed in the
following order when LCD is
touched.
1)Output voltage
2)Input voltage
3)Load level
4)Battery capacity
Overload in
Battery mode
When overload occurs, alarm
will beep every 0.5 second.

SAFETY CAUTION
SAVE THESE INSTRUCTION-This manual contains important instructions that should be
followed during installation and maintenance of the UPS and batteries.
1) This UPS utilizes voltage that may be hazardous. Do not attempt to disassemble the unit.
The unit contains no user replaceable parts. Only factory service personnel may perform
repairs.
2) This pluggable type a equipment with battery already installed by the supplier is operator
installable and may be operated by laymen.
3) The mains socket outlet that supplies the UPS shall be installed near the UPS and shall
be easily accessible.
4) During the installation of this equipment it should be assured that the sum of the leakage
currents of the UPS and the connected loads does not exceed 3.5mA.
5) Connection to any other type of receptacle other than a two-pole, three-wire grounded
receptacle may result in shock hazard as well as violate local electrical codes.
6) In the event of an emergency, press the "OFF" button and disconnect the power cord from
the AC power supply to properly disable the UPS.
7) Do not allow any liquids or any foreign object to enter the UPS. Do not place beverages or
any other liquid-containing vessels on or near the unit.
8) This unit intended for installation in a controlled environment (temperature controlled,
indoor area free of conductive contaminants). Avoid installing the UPS in locations where
there is standing or running water, or excessive humidity.
9) Do not plug the UPS input into its own output.
10) Do not attach a power strip or surge suppressor to the UPS.
Do not attach non-computer-related items, such as medical equipment, life-support
equipment, microwave ovens, or vacuum cleaners to UPS.
11) Do not dispose of batteries in a fire as they may explode.
12) A battery can present a risk of electrical shock and high short circuit current. The
following precautions should be observed when working on batteries:
①Remove watches, rings, or other metal objects from the hands.
②Use tools with insulated handles.
③Wear rubber gloves and boots.
④Do not lay tools or metal parts on top of batteries.
⑤Disconnect charging source prior to connecting or disconnecting batteries terminal.

13) Servicing of batteries should be performed or supervised by personnel knowledgeable of
batteries and the required precautions. Keep unauthorized personnel away from batteries.
14) When replacing batteries, replace with the same number and type of sealed lead-acid
battery.
15) Do not open or mutilate the battery or batteries. Release electrolyte is harmful to the skin
and eyes. It may be toxic.
16) Attention, hazardous through electric shock. Also with dis- connection of this unit from
the mains, hazardous voltage still may be accessible through supply from battery. The
battery supply should be therefore disconnected in the plus and minus pole at the connectors
of the battery when maintenance or service work inside the UPS is necessary.
17) To reduce the risk of overheating the UPS, do not cover the UPS' cooling vents and
avoid exposing the unit to direct sunlight or installing the unit near heat emitting appliances
such as space heater or furnaces.
18) Unplug the UPS prior to cleaning and do not use liquid or spray detergent.

Specification
Model
PS-PGU1500VA#2B9A
Capacity(VA)
1500VA/900W
Input Voltage range(V)
145Vac-290Vac
Input Frequency(Hz)
50Hz±1% OR 60Hz±1%
Output Voltage range(V)
220V±10%
Transfer time
Typical 4-6ms
Waveform
Simulated Sine Wave
Battery Type
12V9AH*2
Typical recharge time
8 hours recover to 90% capacity
Dimension(mm)
330*115*265
Weight(Kg)
20kg
Humidity
0-90%RH @ 0-40℃(non-condensing)
Noise Level
Less than 50dB
USB Communication Port
YES
5V USB
2pcs
RGB light
2pcs

TROUBLESHOOTING
Problem
Possible Cause
Solutions
Nothing is
displayed on LCD
panel.
The UPS is not on.
Press the power switch
again to turn on the UPS.
Battery voltage is too low.
Charge the battery at least 6
hours.
Battery fault.
Replace the battery.
The UPS always
on battery mode.
Power cord loose.
Re-plug the power cord.
Backup time too
short.
Battery voltage is too low.
Charge the battery at least 6
hours.
Overload.
Remove some unnecessary
loads. Before reconnecting
equipment, please verify
that the load matches the
UPS capability specified in
the specs.
Battery defect.
Replace the battery.
If any abnormal situations occur that are not listed above, please call for service
immediately.
