Power YP PW-5KW User manual

POWER INTERNATIONAL ENTERPRISE LIMITED
User Manual
For On / Off Hybrid Solar Storage System
YP5KWH UNIT (15S 48V-4.8Kwh /16S 51.2V-5.12Kwh)
YP7KWH UNIT (15S 48V-7.2Kwh / 16S 51.2V-7.68Kwh)
YP10KWH UNIT (15S 48V-9.6Kwh / 16S 51.2V-10.24Kwh)
YP15KWH UNIT ( 51.8V 300AH –15Kwh )
YP20KWH UNIT ( 51.2V 400AH –20Kwh )

version 3.0 : 2021/7/29 - 1 -www.youth-power.net
Version: 3.0 2021/07/29
Contents
1. Safety Precautions..........................................................................................................................................................- 2 -
1.1. Before Connecting.................................................................................................................................................... - 2 -
1.2. During operation....................................................................................................................................................... - 2 -
2. Battery Specifications.....................................................................................................................................................- 3 -
3. Introduction to the battery ..............................................................................................................................................- 6 -
3.1. Key Features............................................................................................................................................................. - 6 -
3.2. Interface Introduction............................................................................................................................................... - 6 -
3.3. SOC Indicator & Status Indicator Guides............................................................................................................... - 7 -
3.4. Connectors................................................................................................................................................................ - 8 -
3.5. Wake Up button ........................................................................................................................................................ - 8 -
3.6. Display function instruction .................................................................................................................................... - 9 -
4. Safe handling guide......................................................................................................................................................- 10 -
4.1. System Diagram...................................................................................................................................................... - 10 -
4.2. Tools........................................................................................................................................................................ - 10 -
4.3. Safety Gear.............................................................................................................................................................. - 11 -
5. Installation......................................................................................................................................................................- 11 -
5.1. Inventory of items................................................................................................................................................... - 11 -
5.2. Installation Location............................................................................................................................................... - 12 -
5.3. Installing the Battery Pack..................................................................................................................................... - 13 -
5.4. Parallel use of battery ............................................................................................................................................ - 14 -
6. Product Warranty ..........................................................................................................................................................- 23 -
6.1. .................................................................................................................................................................................. - 23 -
6.2. .................................................................................................................................................................................. - 23 -
6.3.................................................................................................................................................................................... - 23 -
6.4. Factory Warranty Scope ........................................................................................................................................ - 23 -
6.5. Warranty conditions............................................................................................................................................... - 23 -

version 3.0 : 2021/7/29 - 2 -www.youth-power.net
1.Safety Precautions
⚫It is very important and necessary to read the user manual carefully before installing or using the
battery. Failure to follow any of the instructions or warnings in this document can result in
electrical shock, serious injury, death, or may damage the battery and the whole system.
⚫If the battery is stored for a prolonged time, it is requirement that they are charged every three to
six months, and the SOC should be no less than 80%.
⚫The battery needs to be recharged within 12 hours, after fully discharging.
⚫Do not expose cable outside.
⚫All battery terminals must be disconnected before maintenance.
⚫Do not use cleaning solvents to clean the battery.
⚫Do not expose the battery to flammable or harsh chemicals or vapors.
⚫Do not paint any part of the battery, include any internal or external components.
⚫Do not connect battery with PV solar wiring directly.
⚫Any foreign object is prohibited to be inserted into any part of the battery.
⚫Any warranty claims are excluded for direct or indirect damage due to items above.
1.1.Before Connecting
⚫After unpacking, please check the battery and packing list first, if the battery is damaged or spare
parts are missing, please contact the dealer.
⚫Before installation, be sure to cut off the grid power and make sure the battery is in the turned-off
mode;
⚫Wiring must be correct, do not mix-connect the positive and negative cables, and ensure no short
circuit with the external device;
⚫It is prohibited to connect the battery with AC power directly;
⚫The embedded BMS in the battery is designed for 48VDC, please DO NOT connect battery
in series;
⚫It is prohibited to connect the battery with different type of battery;
⚫Please ensure the electrical parameters of battery system are compatible to inverter;
⚫Keep the battery away from fire or water.
1.2.During operation
⚫If the battery system needs to be moved or repaired, the power must be cut off first and the
battery is completely shut down;
⚫It is prohibited to connect the battery with different type of battery;
⚫It is prohibited to put the batteries working with faulty or incompatible inverter;
⚫In case of fire, only dry powder fire extinguisher can be used, liquid fire extinguishers are
prohibited;
⚫Please do not open, repair or disassemble the battery. We do not undertake any consequences
or related responsibility due to violation of safety operation or violating of design, production and
equipment safety standards.

version 3.0 : 2021/7/29 - 3 -www.youth-power.net
2.Battery Specifications
Battery Specifications
Model No
YP PW-5KW
YP PW-7KW
YP PW-10KW
Nominal Parameters
Voltage
48 V
48 V
48 V
Capacity
100Ah
150Ah
200Ah
Energy
4.8 KwH
7.2 KwH
9.6 KwH
Dimensions (L x W x H)
740*530*200mm
740*530*200mm
740*530*200mm
Weight
58.5kg
75.0 kg
96.5kg
Basic Parameters
Life time(25°C)
20 years
Life cycles(80% DOD, 25°C)
6000 Cycles
Storage time / temperature
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature
-20°C to 60°C @60+/-25% Relative Humidity
Storage temperature
0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard
UL1642(Cell) , IEC62619,UN38.3, MSDS ,CE-EMC
Enclosure protection rating
IP21
Electrical Parameters
Operation voltage
48 Vdc
48 Vdc
48 Vdc
Max. charging voltage
54 Vdc
54 Vdc
54 Vdc
Cut-off Discharge Voltage
42 Vdc
42 Vdc
42 Vdc
Max. charging and discharging
current
100A(4800W)
120A(5760W)
120A(5760W)

version 3.0 : 2021/7/29 - 4 -www.youth-power.net
Battery Specifications
Model No
YP PW5KW
YP PW-7KW
YP PW-10KW
Nominal Parameters
Voltage
51.2V
51.2V
51.2V
Capacity
100Ah
150Ah
200Ah
Energy
5.12KwH
7.68KwH
10.24KwH
Dimensions (L x W x H)
740*530*200mm
740*530*200mm
740*530*200mm
Weight
60.50kg
78.0 kg
105.5kg
Basic Parameters
Life time(25°C)
20 years
Life cycles (80% DOD, 25°C)
6000 Cycles
Storage time / temperature
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature
-20°C to 60°C @60+/-25% Relative Humidity
Storage temperature
0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard
UL1642(Cell), IEC62619, UN38.3, MSDS, CE-EMC
Enclosure protection rating
IP21
Electrical Parameters
Operation voltage
51.2 Vdc
51.2 Vdc
51.2 Vdc
Max. charging voltage
58 Vdc
58 Vdc
58 Vdc
Cut-off Discharge Voltage
46 Vdc
46 V dc
46 Vdc
Max. charging and discharging
current
100A(5120W)
120A(5760W)
120A(5760W)

version 3.0 : 2021/7/29 - 5 -www.youth-power.net
Battery Specifications
Model No
YP4850-2.4KWH
YP 51300-15KWH
YP51400-20KWH
Nominal Parameters
Voltage
48V
51.2V
51.2V
Capacity
50Ah
300Ah
400Ah
Energy
2.4KwH
15.36KwH
20.48KwH
Dimensions (L x W x H)
535 x 442 x 190 mm
920 x 220 x 730 mm
920 x 220 x 730 mm
Weight
30kg
150 kg
250 kg
Basic Parameters
Life time(25°C)
20 years
Life cycles(80% DOD, 25°C)
6000 Cycles
Storage time / temperature
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature
-20°C to 60°C @60+/-25% Relative Humidity
Storage temperature
0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard
UL1642(Cell), IEC62619,UN38.3, MSDS ,CE-EMC
Enclosure protection rating
IP21
Electrical Parameters
Operation voltage
48 Vdc
51.2 Vdc
51.2 Vdc
Max. charging voltage
54 Vdc
58 Vdc
58 Vdc
Cut-off Discharge Voltage
40 Vdc
46 V dc
46 Vdc
Max. charging and discharging
current
50A
200A
200A

version 3.0 : 2021/7/29 - 6 -www.youth-power.net
3.Introduction to the battery
3.1.Key Features
⚫LiFePO4 composition –provides exceptional safety and longevity
⚫High safety and reliability
⚫6,000cycles / 20 year service life
⚫Consistent performance over wide temperature range
⚫Wall-mounted, convenient installation
⚫Integrated state-of-the-art BMS to manage and monitor battery information including voltage,
current and temperature as well as balance cell charging/discharging rates
⚫5-10 years warranty
3.2.Interface Introduction

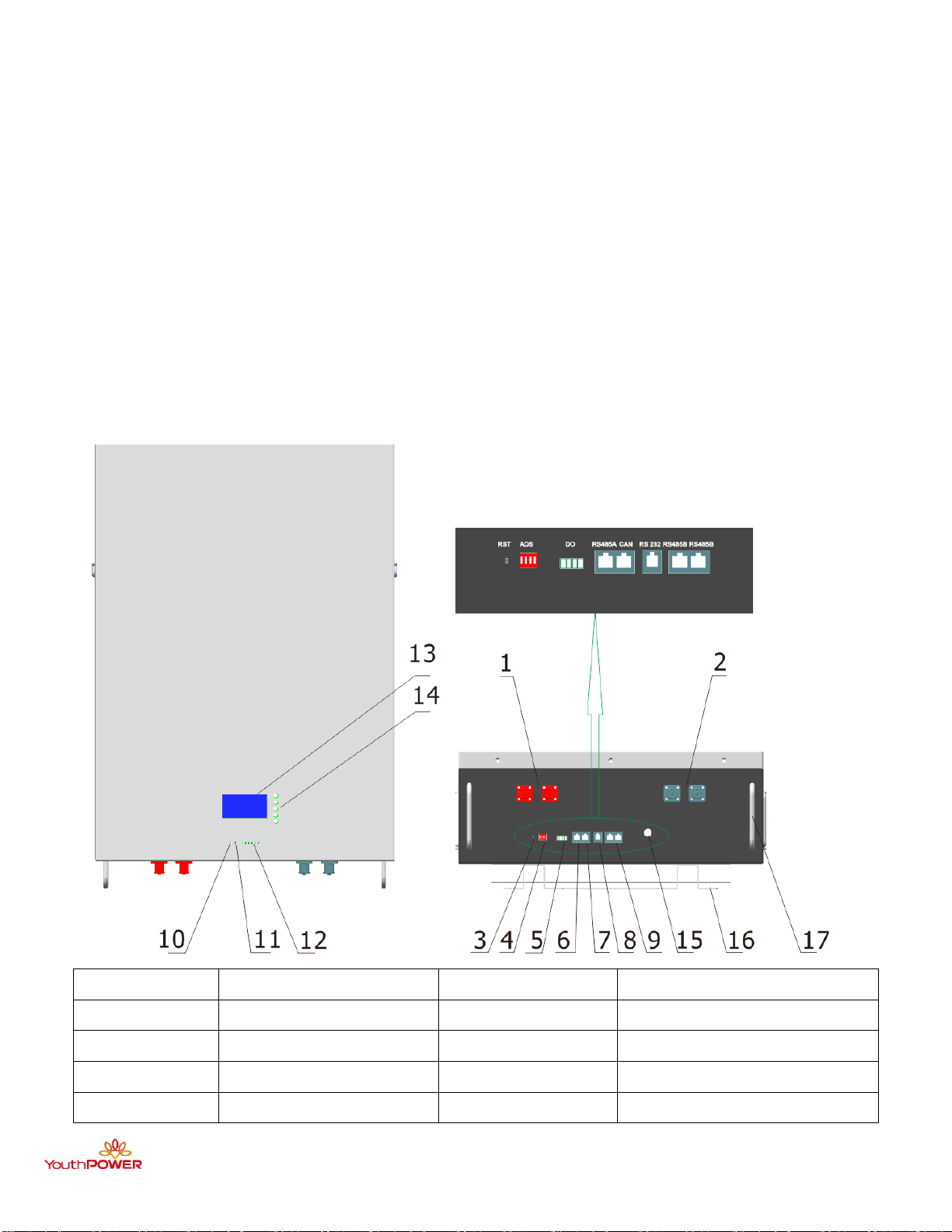

⚫This section details the interface functions of front and back panel.
⚫Front interface:
⚫No.
⚫Description
⚫Silk-screen
⚫Remark
⚫1
⚫UES0600
⚫P+ P+
⚫Output terminal
⚫2
⚫UES0600
⚫P- P-
⚫Output terminal
⚫3
⚫port Reset button
⚫RST
⚫For reset the batter
⚫4
⚫Dial switch
⚫ADS
⚫Set the address

version 3.0 : 2021/7/29 - 7 -www.youth-power.net
⚫5
⚫Do
⚫
⚫
⚫6
⚫CANbus Port
⚫CANbus
⚫CANbus and inverter
connection port
⚫7
⚫RS485A Port
⚫RS485
⚫RS485 and inverter
connection port
⚫8
⚫RS232 Port
⚫RS232
⚫RS232 communication port
⚫9
⚫RS485B port
⚫RS485
⚫RS485 parallel
communication interface
⚫10
⚫LED
⚫RUN
⚫Operation indicator
⚫11
⚫LED
⚫ALM
⚫Alarm indicator
⚫12
⚫LED
⚫CAPACITY
⚫Capacity indicator
⚫13
⚫LCD
⚫
⚫
⚫14
⚫LCD Key
⚫
⚫
⚫15
⚫switch
⚫
⚫
⚫16
⚫Bracket
⚫
⚫
⚫17
⚫Handle
⚫
⚫
3.3.SOC Indicator & Status Indicator Guides
⚫Chart 1: Battery Status
Status
Normal/
Warning/
Protection
RUN
ALM
Capacity（SOC）LED
Description
Shut Down
Shut down
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
All OFF
Standby
Normal
Flash
OFF
Based on capacity
Standby
Warning
Flash
Flash
Charge
Normal
ON
OFF
Based on capacity
ALM light
does not
flash when
overcharge
alarm
Warning
ON
Flash
Over Charge
Protection
ON
OFF
ON
ON
ON
ON
ON
ON
Switch to
standby when
there is no
charging
Temperature,
Current, Failure
protection
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
Stop charging
Discharge
Normal
Flash
OFF
Based on capacity
Warning
Flash
Flash
Over discharge
protection
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
Stop
discharging

version 3.0 : 2021/7/29 - 8 -www.youth-power.net
Temperature, Over
current, Short
circuit, Reverse
connection, Failure
protection
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
Stop
discharging
Fault
/
OFF
ON
OFF
OFF
OFF
OFF
OFF
OFF
Stop charging
or
discharging
⚫Chart 2: Battery Capacity
Status
Charging
Discharging
Capacity LED Indicator
L6
L5
L4
L3
L2
L1
L6
L5
L4
L3
L2
L1
Capacity
0～16.6%
OFF
OFF
OFF
OFF
OFF
Flash
OFF
OFF
OFF
OFF
OFF
ON
16.6～33.2%
OFF
OFF
OFF
OFF
Flash
ON
OFF
OFF
OFF
OFF
Flash
ON
33.2～49.8%
OFF
OFF
OFF
Flash
ON
ON
OFF
OFF
OFF
Flash
ON
ON
49.8～66.4%
OFF
OFF
Flash
ON
ON
ON
OFF
OFF
Flash
ON
ON
ON
66.4～83.0%
OFF
Flash
ON
ON
ON
ON
OFF
Flash
ON
ON
ON
ON
83.0～100%
Flash
ON
ON
ON
ON
ON
Flash
ON
ON
ON
ON
ON
RUN Status
NO
Flash
3.4.Connectors
Charge / Discharge connectors: to connect the positive pole (+) and negative pole (-) from the battery
to the inverter via DC isolator.
Canbus / RS485: Active communication portal between battery and inverter.
USB To RS232: to get dynamic monitoring data of the battery from upper computer.
Address: Reserved Address portal for multiple parallel connections.
3.5.Wake Up button
⚫Battery On: When battery is shut down, press this RST button for 3 seconds. It is activated
when the LED lights flicker from RUN light to the lowest capacity indicator.
⚫Battery off: When battery is activated, press this button for 3 seconds. It will be shut down
when the LED lights flicker from lowest capacity indicator to RUN light.
⚫Different LCD version can be applied as per request --- Normal press LCD or finger touch
LCD.

version 3.0 : 2021/7/29 - 9 -www.youth-power.net
3.6.Display function instruction ( Press Key LCD Type / Finger Touch LCD )
3.6.1.Reference of real figure / Press Key LCD Type
3.6.2. Reference of real figure / Finger Touch LCD
⚫Interface introduction
⚫Main menu page
⚫Electricity/dormancy activated, will show the welcome screen, press the MENU button to
enter the main menu page.
⚫Battery parameters collection page
When the cursor“》”is point to “Battery Parameters Acquisition”，press ENTER key will enter
into the page of “Battery Parameters Acquisition”
⚫Battery status page
When the cursor “》”is point to “Battery Status”，press ENTER key will enter into the page of
“Battery Status”
⚫Key description
1) SW1----NEMU，SW2----ENTER，SW3----UP，SW4----DOWN，SW5----ESC.
2) Each item is “》”or“--”as a beginning，among them“》”shows the current cursor position，
press UP or DOWN key can move the cursor position；with“》”end of the project，the
content of the said project has not shown, press ENTER key can enter the corresponding
page.
3) Press ESC key can be returned at the next higher level directory；In any position，press

version 3.0 : 2021/7/29 - 10 -www.youth-power.net
MENU key can return to the main menu page.
4) In a dormant state, press any key, can activate the screen.
⚫Dormancy/shutdown
Under normal operation condition, with no keystrokes 1 minutes later, system will enter a
state of dormancy/shutdown.
Shutdown/dormancy state，press any key，screen can be activated.
4.Safe handling guide

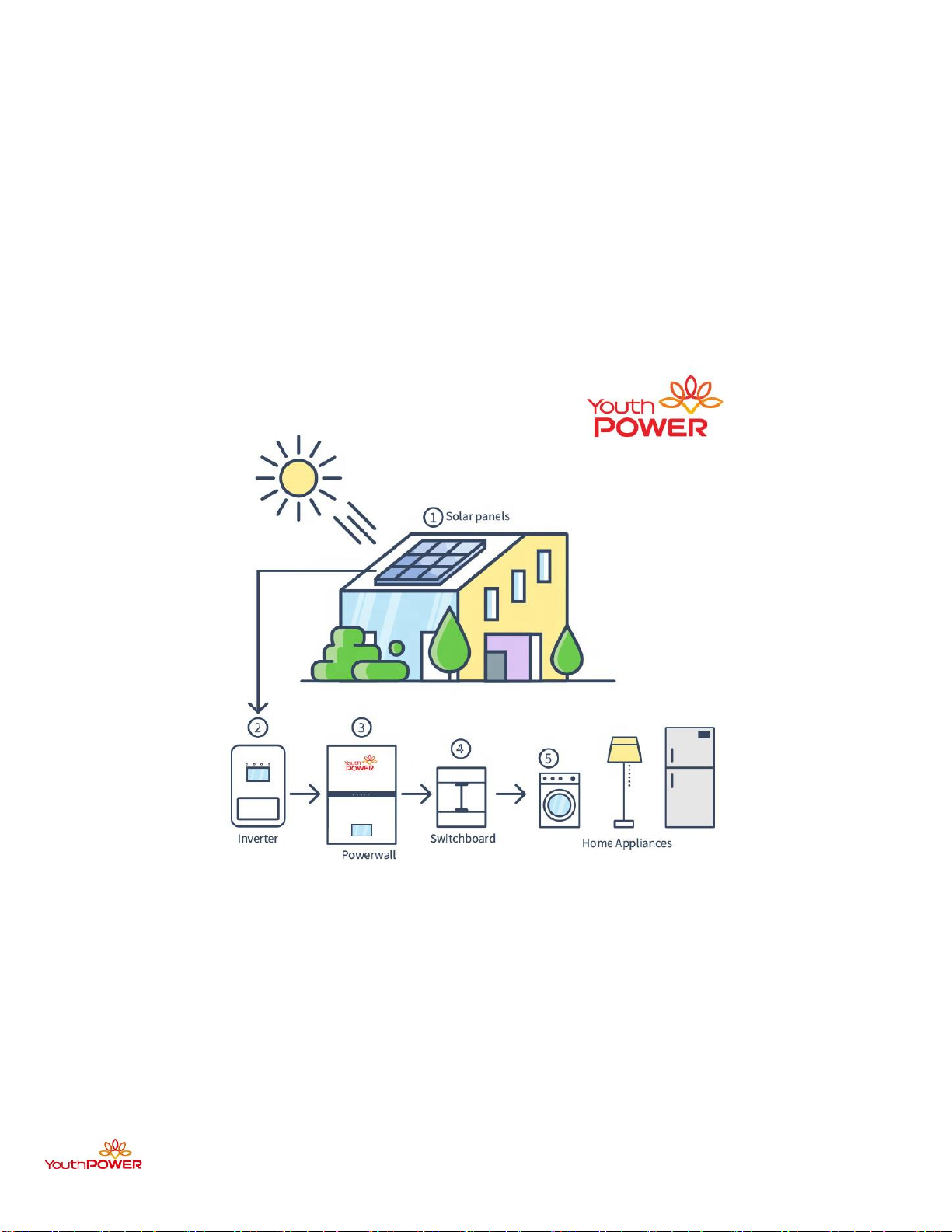

4.1.System Diagram
4.2.Tools
The following tools are required to install the battery pack:
⚫Wire cutter
⚫Crimping Modular Plier
⚫Screw Driver
NOTE
⚫Use properly insulated tools to prevent accidental electric shock or short circuits.

version 3.0 : 2021/7/29 - 11 -www.youth-power.net
⚫If insulated tools are not available, cover the entire exposed metal surfaces of the available
tools, except their tips, with electrical tape.
4.3.Safety Gear
It is recommended to wear the following safety gear when dealing with the battery pack:
⚫Insulated gloves
⚫Safety goggles
⚫Safety shoes
5.Installation

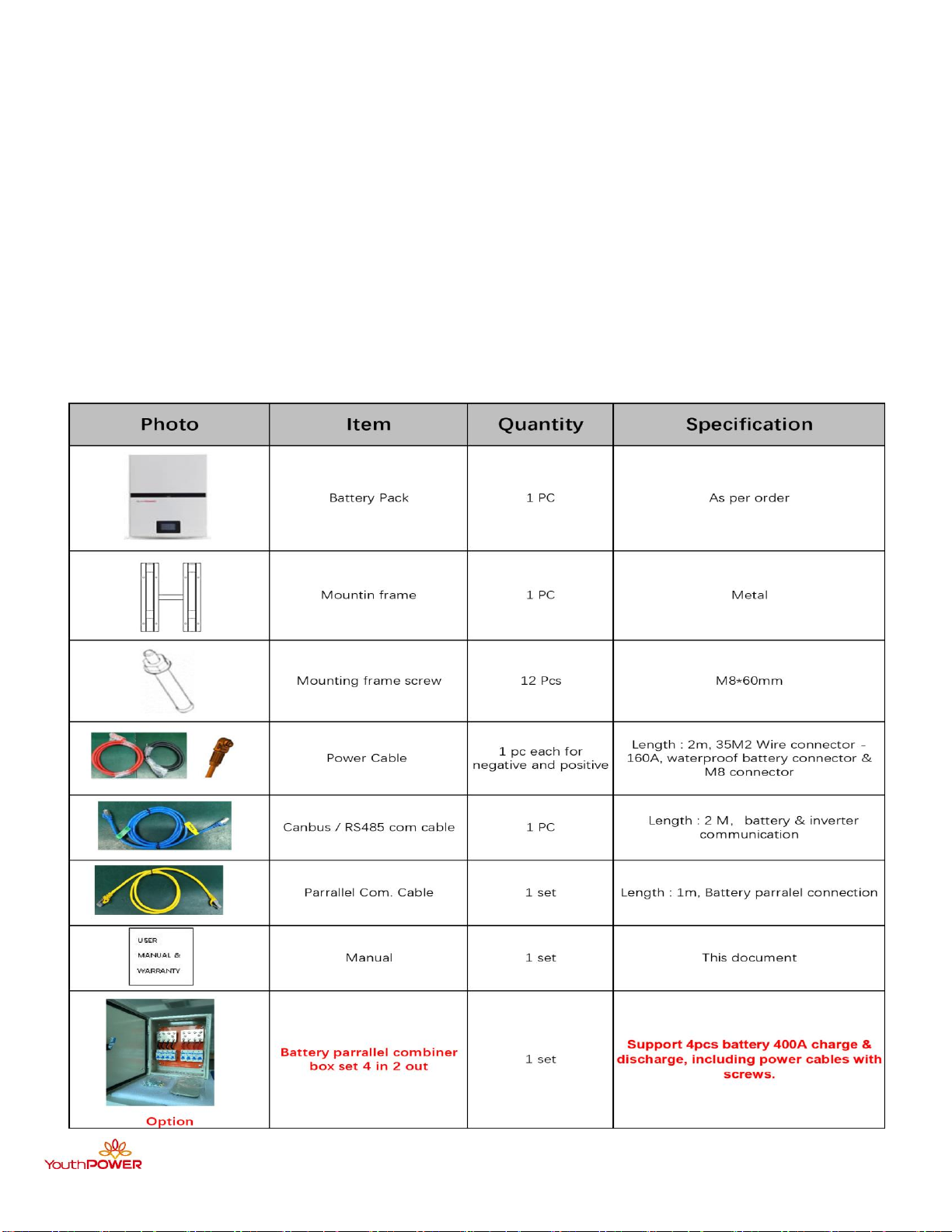

5.1.Inventory of items
Thoroughly inspect the packaging upon receipt of goods.If there is any item missing or if there is any
damage to the external packaging or to the unit itself upon unpacking, please contact us immediately.

version 3.0 : 2021/7/29 - 12 -www.youth-power.net
5.2.Installation Location
Make sure that the installation location meets the following conditions:
⚫The installation site must be suitable for the size and weight of the battery.
⚫Must be installed on a firm surface to sustain the weight of battery.
⚫The area is water proof.
⚫There are no flammable or explosive materials in proximity
⚫The ambient temperature is within the range from 0°C to 45°C.
⚫The temperature and humidity is maintained at a constant level.
⚫There is minimal dust and dirt in the area.
⚫Installation must be vertical or tilted backwards by maximum 15°- avoid forward or sideway
stilt.
CAUTION
If the ambient temperature is outside the operating range, the battery pack stops operating to protect
itself. The optimal temperature range for the battery pack to operate is 0°C to 45°C. Frequent exposure
to harsh temperatures may deteriorate the performance and life of the battery pack.

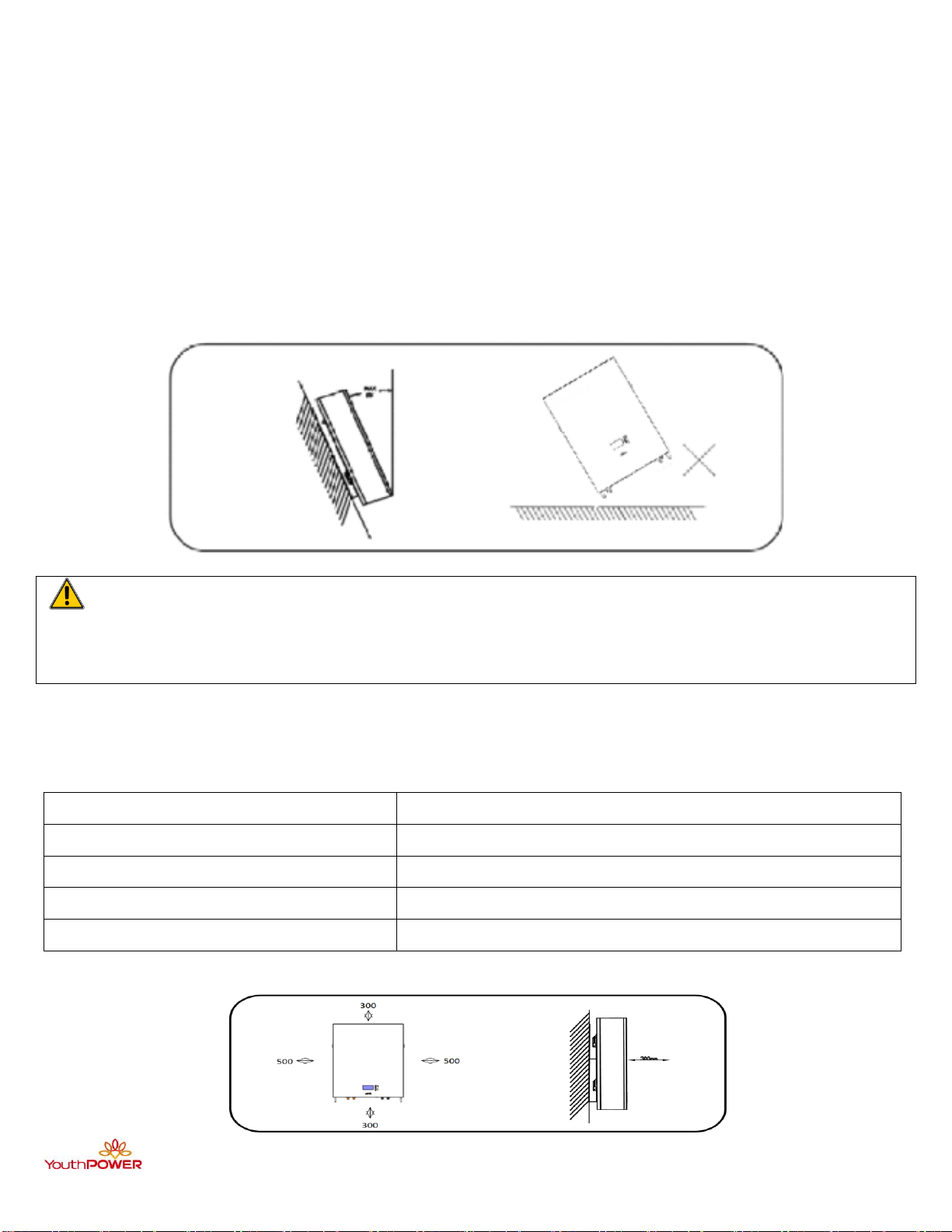

5.2.1.Minimum clearances
Observe the minimum clearances to walls, other batteries or objects as shown in the diagram and
picture below in order to guarantee sufficient heat dissipation
Direction
Minimum clearance (mm)
Above
300
Below
300
Sides
500
Front
300

version 3.0 : 2021/7/29 - 13 -www.youth-power.net
5.3.Installing the Battery Pack
5.3.1.Mounting to a wall
WARNING
In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations
before drilling holes.
The battery is heavy, please handle with care to avoid damage to the product or injury to the installer.
1.Choose suitable firm wall with thickness greater than 80mm.
2.Use the mounting frame as a template, mark the hole position.
3.Drill 8 holes according to the hole position, it is ø10 with depth 60mm.
4.Hammer the M8 screws to the above holes, and screw the nut. Note: Do not position screws
flush to the wall - leave 10 to 20 mm exposed.
5.Fix the mounting frame to the 8 screws.
6.Raise the battery a little higher than the mounting frame whilst maintaining the balance of the
battery. Hang the battery on the frame through the match hooks.
WARNING
Falling equipment can cause serious or even fatal injury: never mount the inverter on the bracket unless
you are sure that the mounting frame is firmly mounted on the wall after thorough checking.

version 3.0 : 2021/7/29 - 14 -www.youth-power.net
5.4.Parallel use of battery for 5-10KWH battery

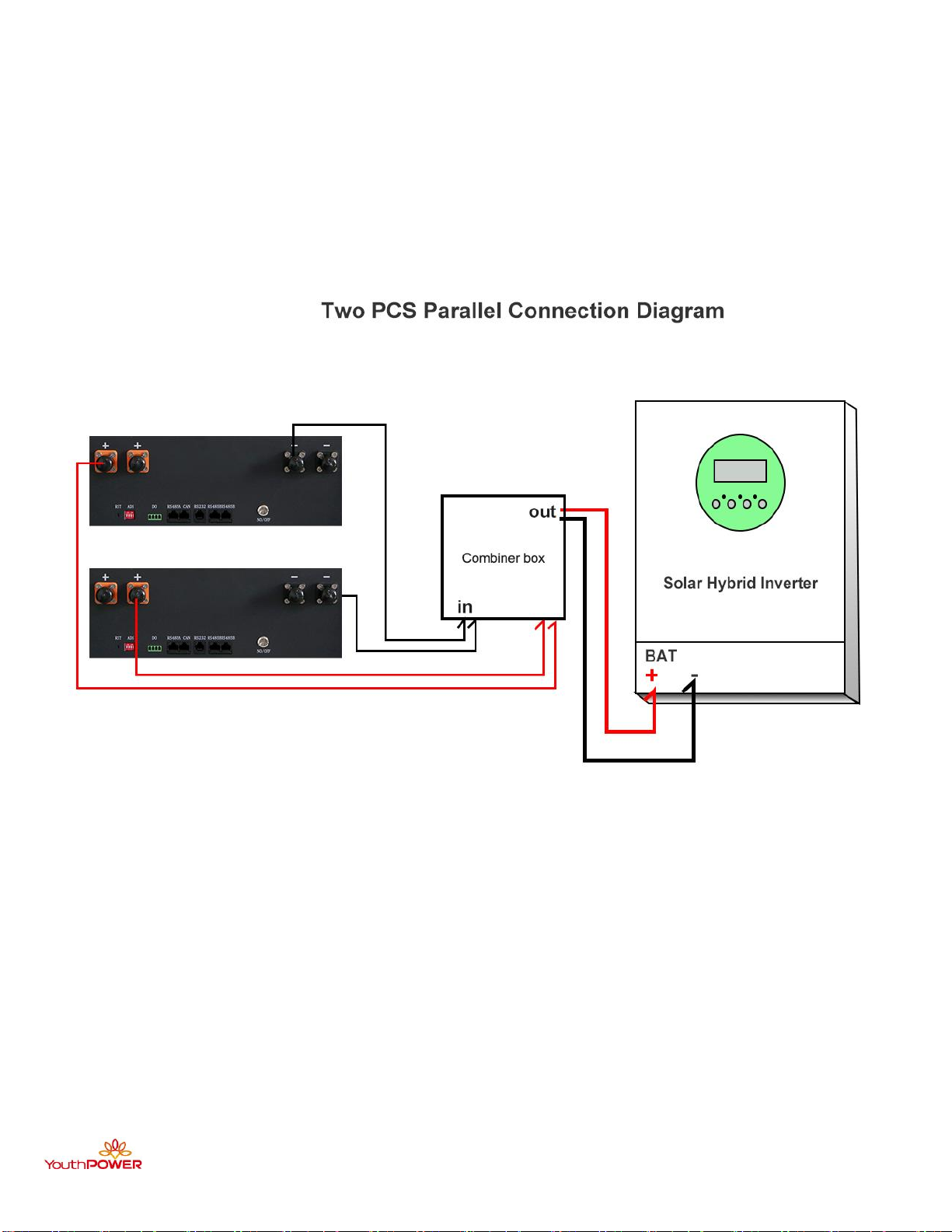

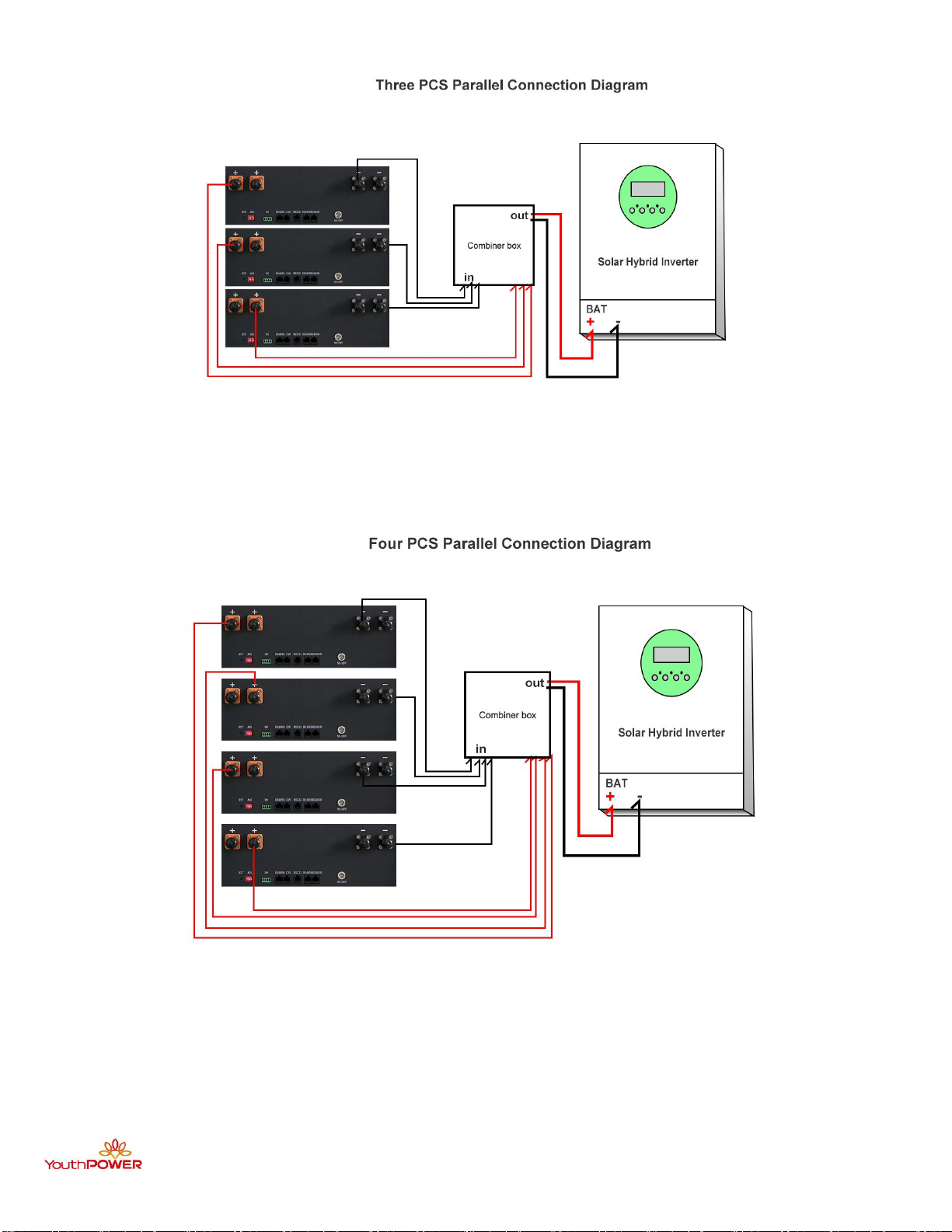

5.4.1.Parallel use of battery ( All off grid solar inverters )
YOUTH POWER wall battery is a smart battery to match all off grid solar inverter ( 48VDC) types. When
the battery needs to be used in parallel, the maximum connection is 15 units, but we recommend 2-4
units according to application. When connecting with off grid 48VDC solar inverters, it does not need
to add Canbus/RS485 communication cables with inverters, if inverter brand factory does not have
Canbus/RS485 port, just plug and play use as lead acid type
Remarks: If just connect 2 batteries, or we can also connect without the combiner box. Just
working with 2 positive and 2 negative cable connectors with the inverter ports directly.

version 3.0 : 2021/7/29 - 15 -www.youth-power.net
5.4.2. Connection Diagram and ADS guide Line
If you start to connect hybrid inverter, make sure you should consult with YOUTH POWER sales
manager before connection.

version 3.0 : 2021/7/29 - 16 -www.youth-power.net

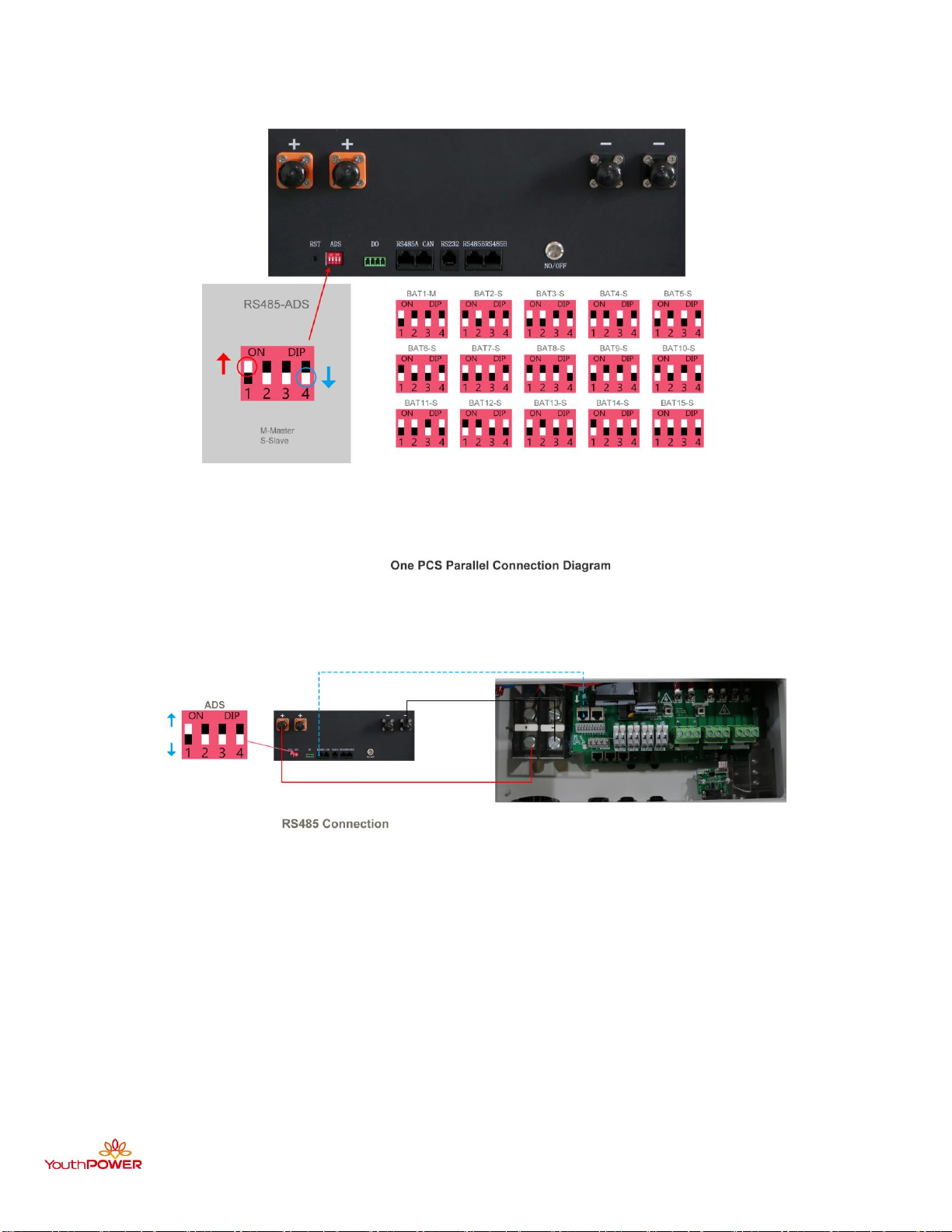

RS485 Version –Max 15 pcs
One pc connect diagram

version 3.0 : 2021/7/29 - 17 -www.youth-power.net

version 3.0 : 2021/7/29 - 18 -www.youth-power.net

version 3.0 : 2021/7/29 - 19 -www.youth-power.net
