Powerhorse 41709 User manual

Operator's Manual
Original Operating Instructions
4-Cycle Cultivator
GAS/OIL
RATIO
50:1
WARNING
READ CAREFULLY AND UNDERSTAND RULES FOR SAFE OPERA-
TION AND INSTRUCTIONS BEFORE OPERATING. FAILURE TO
FOLLOW THE SAFETY RULES AND OTHER BASIC SAFETY PRE-
CAUTIONS MAY RESULT IN SERIOUS PERSONAL INJURY.
Item # 41709

Operator's Manual
4-Cycle Cultivator
866-443-2576
2
INTRODUCTION
Thank you for purchasing a 4-cycle cultivator from Powerhorse™. We have worked to ensure that your Powerhorse Cultivator meets
the highest standards for usability and durability. With proper care, your cultivator will provide many years of service.
Please read this entire manual before assembly and use. The manufacturer reserves the right to change, alter or improve
the product and this document at any time without prior notice.
CONTENTS
Introduction .......................................................................................................................................................................................................................................2
Registration ........................................................................................................................................................................................................................................2
Warnings and Safety Precautions...........................................................................................................................................................................................3-7
Features/Specications..................................................................................................................................................................................................................8
Unpacking and Assembly .............................................................................................................................................................................................................9
Operating Your Cultivator .......................................................................................................................................................................................................9-13
Maintenance & Storage.........................................................................................................................................................................................................13-16
Troubleshooting and Repair................................................................................................................................................................................................16-17
Parts Diagrams & Parts Lists.................................................................................................................................................................................................18-22
15073 Border-Edger Kit Installation.........................................................................................................................................................................................23
Warranty ..................................................................................................................................................................................................................................... 24-26
FEDERAL EMISSIONS INFORMATION
The distributor warrants to the retail purchaser, that this small, o-road engine was designed, built and equipped to conform at
the time of initial sale to all applicable regulations of the U.S. Environmental Protection Agency (EPA).
Read and keep this manual for future reference. This manual contains important information on SAFETY, ASSEMBLY, OPERA-
TION, AND MAINTENANCE. The owner must be certain that all the product information is included with the unit. This informa-
tion includes the MANUAL, the REPLACEMENT PARTS and the WARRANTIES. This information must be included to make sure
state laws and other laws are followed. This manual should remain with the product even if it is resold.
OWNERSHIP RECORDS
Owner’s Name:
Owner’s Address:
City: State/Province:
Zip Code/Postal Code:
Serial Number:
Model Number: Date of Purchase:
Notes:
serial
number
location

Operator's Manual
4-Cycle Cultivator
866-443-2576 3
WARNINGS AND SAFETY PRECAUTIONS
OWNER’S RESPONSIBILITY
Accurate assembly and safe and eective use of the machine is
the owner’s responsibility.
• Readandfollowallsafetyinstructions.
• Carefullyfollowallassemblyinstructions.
• Maintainthemachineaccordingtodirectionsandschedule
included in this Powerhorse operator’s manual.
• Ensurethatanyonewhousesthemachineisfamiliarwithall
controls and safety precautions.
SPECIAL MESSAGES
Your manual contains special messages to bring attention to
potential safety concerns, machine damage as well as helpful
operating and servicing information. Please read all the infor-
mation carefully to avoid injury and machine damage.
NOTE: General information is given throughout the manual
that may help the operator in the operation or service of the
machine.
This symbol points out important safety instruc-
tions which if not followed could endanger your
personal safety. Read and follow all instructions
in this manual before attempting to operate this
equipment.
BEFORE OPERATING ENGINE:
Please read this section carefully. Read entire operating and
maintenance instructions for this product. Failure to follow
instructions could result in serious injury or death. Operate the
machine according to the safety instructions outlined here and
inserted throughout the text. Anyone who uses this machine
must read the instructions and be familiar with the controls.
WARNING
WARNING INDICATES A HAZARD WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH OR SERIOUS IN
JURY AND/OR PROPERTY DAMAGE.
CAUTION
CAUTION INDICATES YOU CAN BE HURT OR YOUR
EQUIPMENT DAMAGED IF THE SAFETY INSTRUC
TIONS THAT FOLLOW THIS SIGNAL WORD ARE NOT
OBEYED.
WARNING
CALIFORNIA PROPOSITION 65 WARNING
ENGINE EXHAUST FROM THIS PRODUCT CONTAINS
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA
TO CAUSE CANCER, BIRTH DEFECTS, OR OTHER RE
PRODUCTIVE HARM.
IMPORTANT
INDICATES HELPFUL INFORMATION FOR PROPER AS
SEMBLY, OPERATION, OR MAINTENANCE OF YOUR
EQUIPMENT.
WARNING
YOU MUST READ, UNDERSTAND AND COMPLY WITH
ALL SAFETY AND OPERATING INSTRUCTIONS IN
THIS MANUAL BEFORE ATTEMPTING TO SETUP AND
OPERATE YOUR MACHINE.
FAILURE TO COMPLY WITH ALL SAFETY AND
OPERATING INSTRUCTIONS CAN RESULT IN LOSS OF
MACHINE CONTROL, SERIOUS PERSONAL INJURY TO
YOU AND/OR BYSTANDERS, AND RISK OF EQUIPMENT
AND PROPERTY DAMAGE. THE TRIANGLE IN THE TEXT
SIGNIFIES IMPORTANT CAUTIONS OR WARNINGS
WHICH MUST BE FOLLOWED.

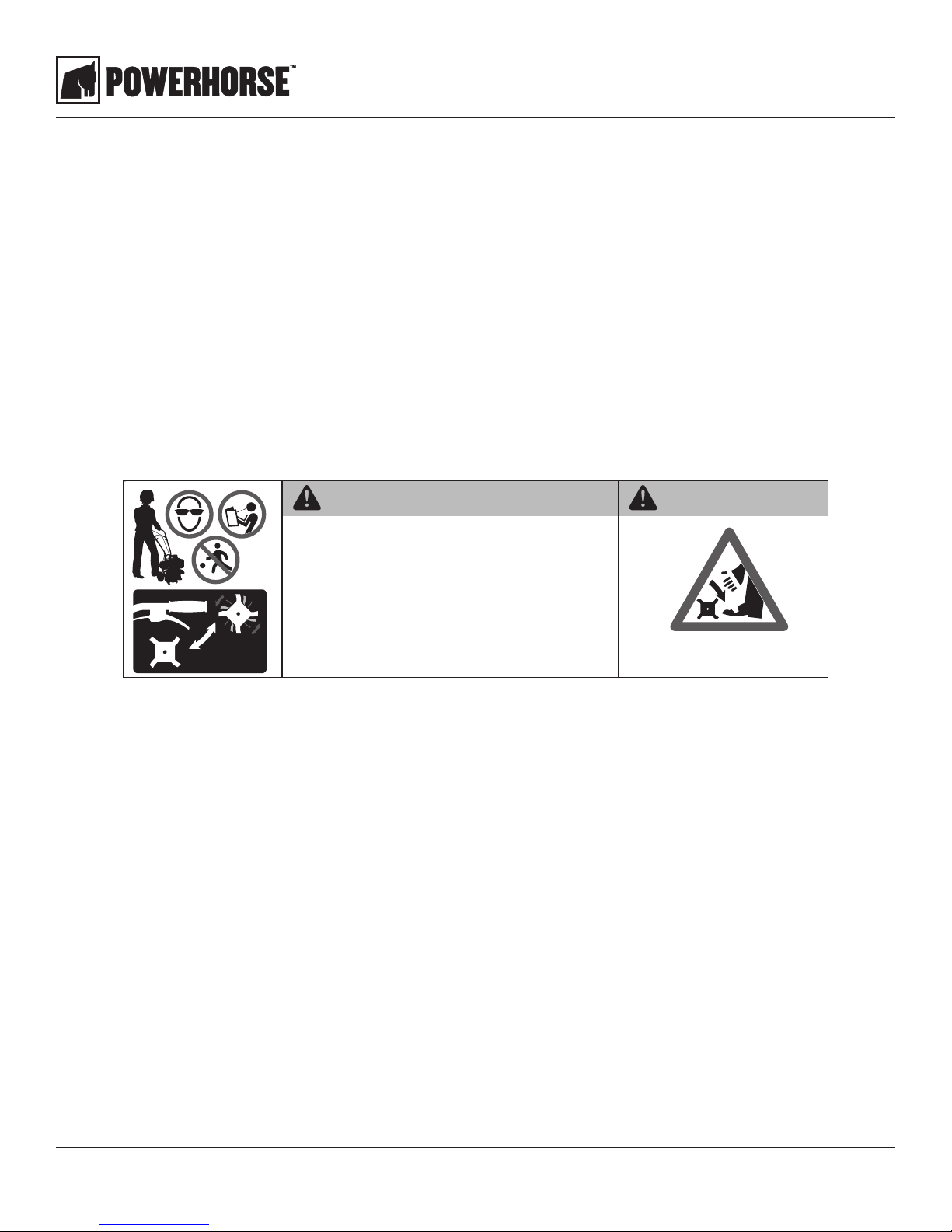

Intended Use / Foreseeable Misuse
IMPORTANT: This is a motorized rotary cultivator that works
the soil by means of rotating tines. It is pedestrian-controlled,
but not self-propelled, with a gasoline-fueled internal combus-
tion engine to power the tines. It shall not be used for any other
purpose.
DANGER
SRT CRT

Operator's Manual
4-Cycle Cultivator
866-443-2576
4
GENERAL SAFETY RULES
• Read, understand, and follow all instructions on the machine
and in the manual(s). Be thoroughly familiar with the controls
and the proper use of the machine before starting.
• Use this equipment for its intended purpose only.
• Familiarize yourself with all of the safety and operating
decals on this equipment and on any of its attachments or
accessories.
• Do not put hands or feet near or under rotating parts.
• Only allow responsible individuals who are familiar with the
instructions to operate the machine. Do not allow children
to operate this machine. Do not allow adults to operate the
machine without proper instruction.
• Thoroughly inspect the area where the machine is to be
used and remove all foreign objects. Your equipment can
propel small objects at high speed causing personal injury
or property damage. Stay away from breakable objects, such
as house windows, automobiles, greenhouses, etc.
• Wear appropriate clothing such as a long-sleeved shirt or
jacket. Also wear long trousers or slacks. Do not wear shorts.
Never wear sandals, sneakers or open shoes, and never
operate the machine with bare feet.
• Do not wear loose clothing or jewelry. They can get caught in
moving parts. Always keep hands, feet, hair and loose clothing
away from any moving parts on engine and machine.
• Always wear safety goggles or safety glasses with side shields
when operating the machine to protect your eyes from
foreign objects which can be thrown from the unit. Always
wear a protective hearing device.
• Always wear work gloves and sturdy footwear. Wear
footwear that will improve footing on slippery surfaces.
Leather work shoes or short boots work well for most people.
These will protect the operator’s ankles and shins from small
sticks, splinters, and other debris.
• It is advisable to wear protective headgear to prevent the
possibility of being struck by small ying particles, or being
struck by low hanging branches, twigs, or other objects
which may be unnoticed by the operator.
• Do not operate the machine without proper guards or other
safety protective devices in place.
• See manufacturer’s instructions for proper operation and
installation of accessories. Only use accessories approved
by the manufacturer.
• Operate only in daylight or good articial light.
• Do not operate product when fatigued or under the
influence of alcohol, drugs or other medication which
can cause drowsiness or aect your ability to operate this
machine safely.
• Never operate machine in wet grass. Always be sure of your
footing; keep a rm hold on the handle and walk; never run.
• Watch for trac when operating cultivator near, or when
crossing roads.
• If the equipment should start to vibrate abnormally, stop the
engine (motor), ip the ON/OFF switch to the OFF position.
Check immediately for cause. Vibration is generally a warning
of trouble. If the noise or vibrations of the machine increase,
stop immediately and perform an inspection.
• Never leave the machine unattended when the engine is
running. Flip the ON/OFF switch to the OFF position.
• Regularly inspect the machine. Make sure parts are not bent,
damaged or loose.
• Temperature of muer and nearby areas may exceed 150°
F (65° C). Allow muer and engine areas to cool before
touching. Never pick up or carry the machine while the
engine is running.
• Prolonged exposuretonoise andvibrationfromgasoline engine-
powered equipment should be avoided. Take intermittent
breaks and/or wear ear protection from engine noise as well as
heavy work gloves to reduce vibration in the hands.
• Keep all screws, nuts and bolts tight.
• Do not transport the machine from one place to another
with the engine running.
• When moving the packaged machine, always do so with a
partner.
• Check local regulations for age restrictions on use of this
machine.
PRODUCTSPECIFIC SAFETY RULES
• Do not cultivate above underground utilities, including water
lines, gas lines, electric cables, or pipes. Do not operate the
machine on terrain/soil with large rocks and foreign objects
which can damage the equipment.
• After striking a foreign object, stop the engine. Flip the ON/
OFF switch to the OFF position. Inspect the machine for
damage. If damaged, repair before starting and operating
the machine.
• The tines of the cultivator should not rotate when the engine
is idling. If it does rotate when engine is idling, contact
Powerhorse technical service for instruction.
• If an object becomes lodged in the tines, ip the ON/OFF
switch to the OFF position, then allow the machine to cool
before attempting to remove the foreign object.
• The clutch will transfer maximum power after about two
hours of normal operation. During this break-in period clutch
slippage may occur. The clutch should be kept free of oil or
other moisture for ecient operation.

Operator's Manual
4-Cycle Cultivator
866-443-2576 5
CAUTION
HOT GASES ARE A NORMAL BYPRODUCT OF A FUNC
TIONING INTERNAL COMBUSTION ENGINE. FOLLOW
ALL SAFETY INSTRUCTIONS TO PREVENT BURNS AND
FIRES.
DO NOT ALTER/MODIFY ENGINE:
NEVER ALTER OR MODIFY THE ENGINE FROM THE
FACTORY. SERIOUS INJURY OR DEATH MAY OCCUR IF
ENGINE IS MODIFIED OR ALTERED.
WHEN WORKING ON OR REPLACING PARTS FOR THE
ENGINE OR PRODUCT, YOU MUST ALWAYS FLIP THE
ON/OFF SWITCH TO THE OFF POSITION.
ENGINE SAFETY PRECAUTIONS
Warning Carbon Monoxide Poisoning
Engines give off carbon monoxide, an odorless, colorless,
poisonous gas. Carbon monoxide may be present even if you do
notsmell orsee anyengine exhaust. Breathing carbonmonoxide
can cause nausea, fainting or death, in addition to drowsiness,
dizziness and confusion. If you experience any of these
symptoms, seek fresh air and medical attention immediately.
Preventing Carbon Monoxide Poisoning
• Always start and run engine outdoors. Do not start or run
engine in an enclosed area, even if doors or windows are open.
• Never try to ventilate engine exhaust indoors. Carbon
monoxide can reach dangerous levels very quickly.
• Never run engine outdoors where exhaust fumes may be
pulled into a building.
• Never run engine outdoors in a poorly ventilated area where
the exhaust fumes may be trapped and not easily taken
away. (Examples include: in a large hole or areas where hills
surround your working area.)
• Never run engine in an enclosed or partially enclosed area.
(Examples include: buildings that are enclosed on one or
more sides, under tents, car ports or basements.)
• Always run the engine with the exhaust and muer pointed
in the direction away from the operator.
• Never point the exhaust muer towards anyone. People
should always be a minimum of ten feet away from the
operation of the engine and its attachments.
• Do not change the engine governor settings or over-speed
the engine.
WARNING
ENGINES GIVE OFF CARBON MONOXIDE, AN ODOR
LESS, COLORLESS, POISONOUS GAS. CARBON MON
OXIDE MAY BE PRESENT EVEN IF YOU DO NOT SMELL
OR SEE ANY ENGINE EXHAUST. BREATHING CAR
BON MONOXIDE CAN CAUSE NAUSEA, FAINTING OR
DEATH, IN ADDITION TO DROWSINESS, DIZZINESS
AND CONFUSION.
IF YOU EXPERIENCE ANY OF THESE SYMPTOMS, SEEK
FRESH AIR AND MEDICAL ATTENTION IMMEDIATELY.
Gasoline Fires and Handling Fuel Safely
Use extra care in handling gasoline and other fuels. They are
ammable and vapors are explosive.
• When storing extra fuel be sure that it is in an appropriate
container and away from any re hazards.
• Prevent re and explosion caused by static electric discharge.
Use only nonmetal, portable fuel containers approved by the
Underwriter’s Laboratory (U.L.) or the American Society for
Testing & Materials (ASTM).
• Always ll fuel tank outside in a well ventilated area. Never
fill your fuel tank with fuel indoors. (Examples include:
basement, garage, barn, shed, house, porch, etc.) Never
ll tank near appliances with pilot lights, heaters, or other
ignition sources. If the fuel has to be drained, this should
be done outdoors. The drained fuel should be stored in a
container specically designed for fuel storage or it should
be disposed of carefully.
• Never remove the fuel cap or add fuel with the engine
running. Stop engine and allow to cool before lling.
• Do not smoke.
• Never drain fuel from engine in an enclosed area.
• Always wipe up excess (spilled) fuel from engine before
starting. Clean up spilled fuel immediately. If fuel is spilled,
do not start the engine but move product and fuel container
from area. Clean up spilled fuel and allow to evaporate and
dry after wiping and before starting.
• Allow fuel fumes/vapors to escape from the area before
starting engine.
• Test the fuel cap for proper installation before starting and
using engine.
• Always run the engine with fuel cap properly installed on
the engine.
• Never smoke while relling engine fuel tank.
• Do not store engine with fuel in fuel tank indoors. Fuel and
fuel vapors are highly explosive.
• Never pour fuel from engine fuel tank.
• Never siphon fuel by mouth to drain fuel tank.

Operator's Manual
4-Cycle Cultivator
866-443-2576
6
• Always have an adult fill the fuel tank and never allow
children to ll the engine.
• Never allow an adult or anyone under the inuence of drugs
or alcohol to ll engine.
• When storing gasoline or equipment with fuel in the tank,
store away from furnaces, stoves, water heaters or other
appliances that have a pilot light or other ignition source
because they can ignite gasoline vapors.
BURNS AND FIRES
The muer, muer guard and other parts of the engine be-
come extremely hot during the operation of the engine. These
parts remain extremely hot after the engine has stopped.
Prevention of Burns and Fires
• Neverremovethemuerguardfromtheengine.
• Nevertouchthemuerguardbecauseitisextremelyhot
and will cause severe burns.
• Nevertouchpartsofthe engine that becomehotafter
operation.
• Alwayskeepmaterialsanddebrisawayfrommuerguard
and other hot parts of the engine to avoid res.
CHILDREN AND BYSTANDERS
Tragic accidents can occur if the operator is not alert to the
presence of children and/or bystanders. Never assume that
others will remain where you last saw them.
• Keep the area of operation clear of all persons, especially
small children and pets. Keep children under the watchful
care of a responsible adult.
• Be alert and turn machine o if children enter the area.
• Before and while moving backwards, look behind and down
for small children.
• Never allow children to operate the machine.
• Use extra care when approaching blind corners, shrubs, trees,
or other objects that may obscure vision.
SERVICE
• Always stop the engine whenever you leave the equipment,
before cleaning, repairing or inspecting the unit. Engine
should be turned o and cool. Never make adjustments or
repairs with the engine (motor) running. Flip the ON/OFF
switch to the OFF position to prevent accidental starting.
• Always wear eye protection when you make adjustments or
repairs.
• Keep all nuts and bolts tight and keep equipment in good
condition.
• Never tamper with safety devices. Check their proper
operation regularly.
• When servicing or repairing the machine, do not tip the
machine over or up unless specically instructed to do so in
this manual. Service and repair procedures can be done with
the machine in an upright position. Some procedures will be
easier if the machine is lifted on a raised platform or working
surface.
• To reduce re hazard, keep machine free of grass, leaves or
other debris build-up. Clean up oil or fuel spillage. Allow
machine to cool before storing.
• Stop and inspect the equipment if you strike an object.
Repair, if necessary, before restarting.
• Clean and replace safety and instruction decals as necessary.
• To guard against engine over-heating, always have engine
debris lter mounted and clean.
• Inspect machine before storage. When not in use, ip the
ON/OFF switch to the OFF position and store indoors in a
dry place locked or otherwise inaccessible to children.
• Use only original equipment parts from the factory, including
all nuts and bolts.

Operator's Manual
4-Cycle Cultivator
866-443-2576 7
SAFETY DECALS
This cultivator has been designed and manufactured to provide you with the safety and reliability you would expect from an industry
leader in outdoor power equipment manufacturing.
Reading this manual and the safety instructions it contains will provide you with the necessary basic knowledge to operate this
equipment safely and eectively. We have placed a safety decal on the cultivator to remind you of some of this important information
while you are operating the unit.
These important safety decals are illustrated below, and are shown here to help familiarize you with the location and content of
the safety messages you will see as you perform normal cultivating operations. Please review these decals now, and if you have
any questions regarding its meaning or how to comply with these instructions, reread the complete safety instruction text in this
manual, or contact your local dealer.
Should a decal become unreadable because of being worn, faded, or otherwise damaged during the use of your cultivator, please use
the part number information provided to order a replacement label. These decals are easily applied, and will act as a constant visual
reminder to you, and others who may use the equipment, to follow the safety instructions necessary for safe, eective operation of
your cultivator.
Part No. LBLMC43W
Warning Decal
Tine Shield Decal
LBLMC43W
WARNING
TO AVOID SERIOUS INJURY
• Read the Operator’s Manual.
• Know the location and functions of all controls.
• Keep all safety devices and shields in place and working.
• Never allow children or uninstructed adults to operate machine.
• Shut off engine before manually unclogging tines or making repairs.
• Keep bystanders away from machine.
• Keep away from rotating parts.
• Use extreme caution when reversing or pulling the machine towards you.
WARNING
KEEP AWAY FROM ROTATING TINES
Rotating tines will cause injury.
DIELINE SIZE: 8” x 2.25”

Operator's Manual
4-Cycle Cultivator
866-443-2576
8
ENGINE DISPLACEMENT 40cc
FUEL TANK CAPACITY 0.75 L
FUEL TYPE Minimum 92 octane gasoline with
10% or less ethanol content. Not
ethanol content preferred.
NOTE: If using an ethanol blended
fuel, a fuel stabilizer, mixed to
manufacturer specifications, is
recommended. DO NOT use E85
fuel blend.
OIL TANK CAPACITY 3.72 ounces
OIL TYPE OIL VIPER 4 CYCLE (p/n 13235)
10W-30
SPARK PLUG NGK CMR6A
SPARK PLUG GAP 0.6 mm
TRANSMISSION GEAR DRIVE
GEAR RATIO 32:1
TILLING WIDTH 6” minimum - 10” maximum
TILLING DEPTH 8” maximum
TINE SPEED 288 rpm
WHEEL SIZE 7.1” x 1.5” diameter
WEIGHT OF UNIT 33 lbs.
UNIT SIZE L xW xH inches) 33.6” x 17.8” x 40.6”
*For technical questions, please call 866-443-2576
SPECIFICATIONS
FEATURES
removable tines
adjustable height
transport wheels
throttle control lever
handlebar
on/o switch
comfort
handle grips
easy pull-start
location

Operator's Manual
4-Cycle Cultivator
866-443-2576 9
UNPACKING AND ASSEMBLY
UNPACK CULTIVATOR
1. Carefully lift the cultivator out of the box, remove any packing
material and cut any ties holding the handlebar pieces to the
cultivator assembly.
2. Find parts packet. Parts packet contains:
4 - T-Handle Nuts (4640)
4 - Curved Washers (4641)
4 - Handle Clamp Bolts (4642)
ASSEMBLY
1. Stand the cultivator assembly upright with tines and wheels
on a level surface. Wheels should be set in the lowest position
(See Operation Section for wheel adjustment instructions).
DO NOT place the cultivator on a high surface where it can
fall and cause property damage or personal injury.
2. Using two T-handle nuts, two handle clamp bolts, and two
curved washers, attach the middle handlebar to the lower
handlebar that is already connected to the cultivator assembly
(SEE FIGURE 1. Make sure the pull cord is in the center of
the middle handle bar when attaching.The middle handlebar
can be installed in one of two positions, one high and one
low. DO NOT overtighten the T-handle nuts.
3. Attach the upper right and left handlebars to the middle
handlebar using the two remaining T-handle nuts, handle
clamp bolts, and curved washers (SEE FIGURE 1. DO NOT
overtighten the T-handle nuts.
4. The drag stake is shipped with point facing upwards. Before
using, remove detent pin and turn the drag stake around
so the point is directed in the downward position facing to-
wards the tines. Re-insert detent pin. SEE FIGURE 2.
FIGURE 2
drag stake
detent pin
FIGURE 1
handle clamp
bolt
lower
handlebar
upper right
handlebar
upper left
handlebar
middle
handlebar
curved
washer T-handle
nut
OPERATION

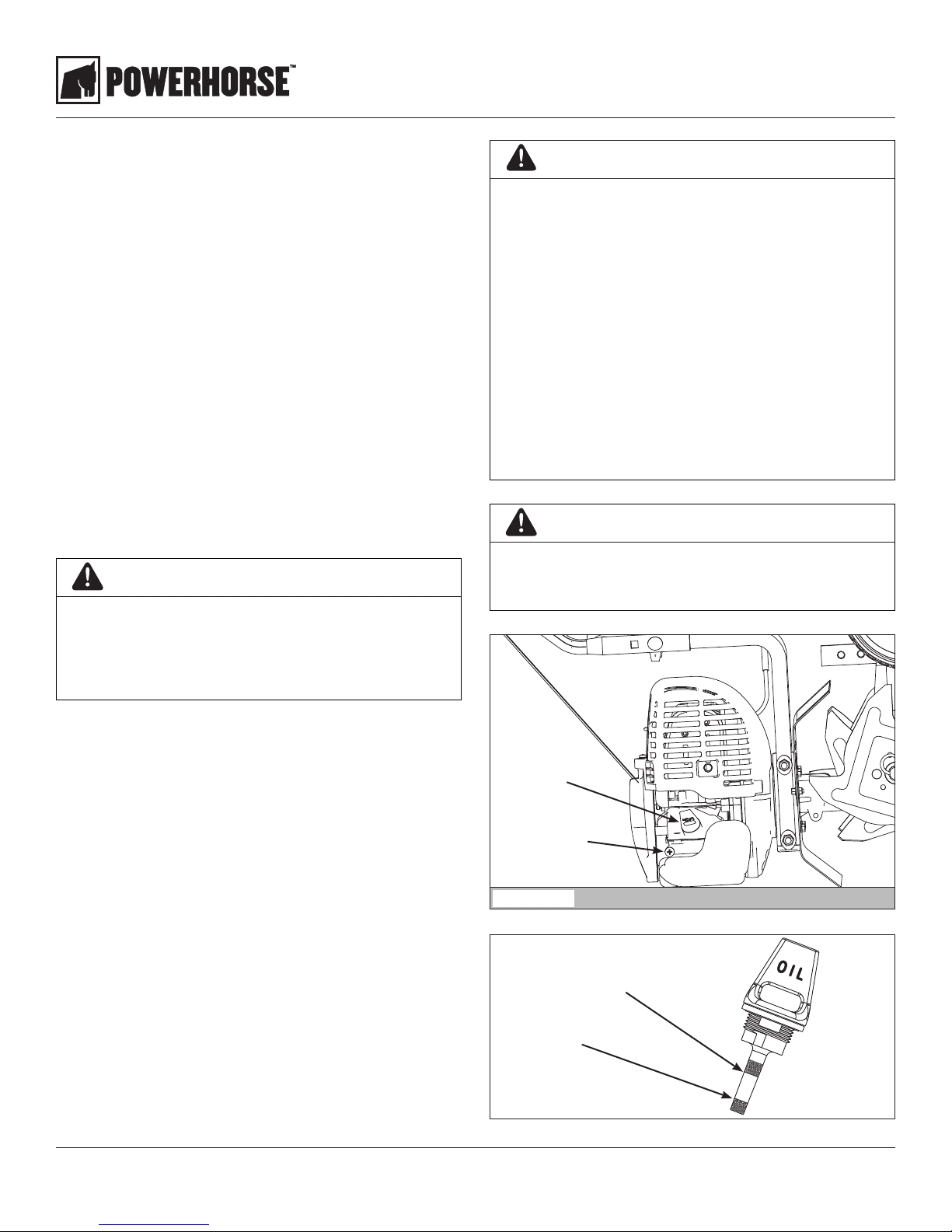

PREPARING ENGINE FOR STARTING
GAS AND OIL
NOTE: Engine is shipped from factory without oil. You must add
engine oil before starting engine. If engine is started without oil,
engine may be damaged beyond repair and will not be covered
by warranty.
To operate the engine, we recommend using Viper® brand 4-cy-
cle oil (13235), included with each new cultivator, or an equiva-
lent 10W-30 engine oil to ensure that the engine operates cor-
rectly throughout the life of the engine. Use straight unleaded
premium 92 octane gasoline with no ethanol, or 10% or less
ethanol content.

Operator's Manual
4-Cycle Cultivator
866-443-2576
10
CAUTION
ENGINE IS SHIPPED FROM FACTORY WITHOUT OIL. YOU
MUST ADD ENGINE OIL BEFORE STARTING ENGINE.
IF ENGINE IS STARTED WITHOUT OIL, ENGINE MAY BE
DAMAGED BEYOND REPAIR AND WILL NOT BE COVERED
BY WARRANTY.
NEVER STORE ENGINEWITH FUEL INTHE TANK INDOORS.
FUEL AND FUEL VAPORS ARE HIGHLY FLAMMABLE.
AN ADULT ONLY MUST ALWAYS HANDLE AND FILL
THE ENGINE WITH FUEL.
ALWAYS HANDLE GAS IN A WELL VENTILATED AREA,
OUTDOORS, AWAY FROM FLAMES OR SPARKS.
DO NOT START ENGINE IF FUEL IS SPILLED. WIPE OFF
EXCESS FUEL AND ALLOW TO DRY. REMOVE ENGINE
FROM AREA TO AVOID SPARKS.
IMPORTANT
DO NOT SPRAY WATER ON OR NEAR THE ELECTRON
ICS OF THE CULTIVATOR ASTHIS MAY RESULT IN DAM
AGE TO THE ELECTRICAL COMPONENTS.
oil dipstick
FIGURE 3A
oil drain
screw
Cultivator Tipped Forward on Level, Horizontal Surface
Filling Fuel Tank
1. Shut-o engine and allow engine to completely cool before
relling the fuel tank.
2. Move to a well ventilated area, outdoors, away from ames
and sparks.
3. Clean debris from area around the fuel cap.
4. Loosen fuel cap slowly. Prevent the cap from coming in
contact with dirt or debris.
5. Carefully add fuel without spilling.
6. Do not ll gas tank completely full, allow space for fuel to
expand.
7. Immediately replace fuel cap and tighten. Wipe o spilled
fuel and allow to dry before starting engine.
Checking and Adding Oil
Be sure the engine is located on a level surface before checking
or relling oil. Proper position for checking oil level or relling
oil is face down, with the gas tank of the cultivator down on a
horizontal surface. SEE FIGURE 3A
IMPORTANT
ENGINE MUST BE TIPPED FORWARD WITH GAS TANK
DOWN WHEN CHECKING OIL LEVEL OR FILLING WITH
OIL. FAILURE TO DO SO CAN RESULT IN OVERFILLING
THE ENGINE WITH OIL WHICH WILL IMPAIR THE EN
GINE’S PERFORMANCE.
1. Clean around oil ll area.
2. Unscrew dipstick and wipe clean with cloth.
3. Reinsert dipstick (must be fully threaded for accurate reading).
4. Unscrew and check dipstick. If no oil shows on the dipstick,
rell so that the oil level appears between the low and high
marks on the dipstick. SEE FIGURE 3B
5. Change oil if contaminated.
OPERATION TIPS
1. The clutch will transfer maximum power after about two
hours of normal operation. During this break-in period clutch
slippage may occur. The clutch should be kept free of oil and
other moisture for ecient operation.
2. Cultivate without placing excessive body weight on the unit.
The cultivator operates most eciently with the weight of the
unit itself.
3. Never run engine indoors. Exhaust fumes are deadly.
high oil mark
FIGURE 3B
low oil mark

Operator's Manual
4-Cycle Cultivator
866-443-2576 11

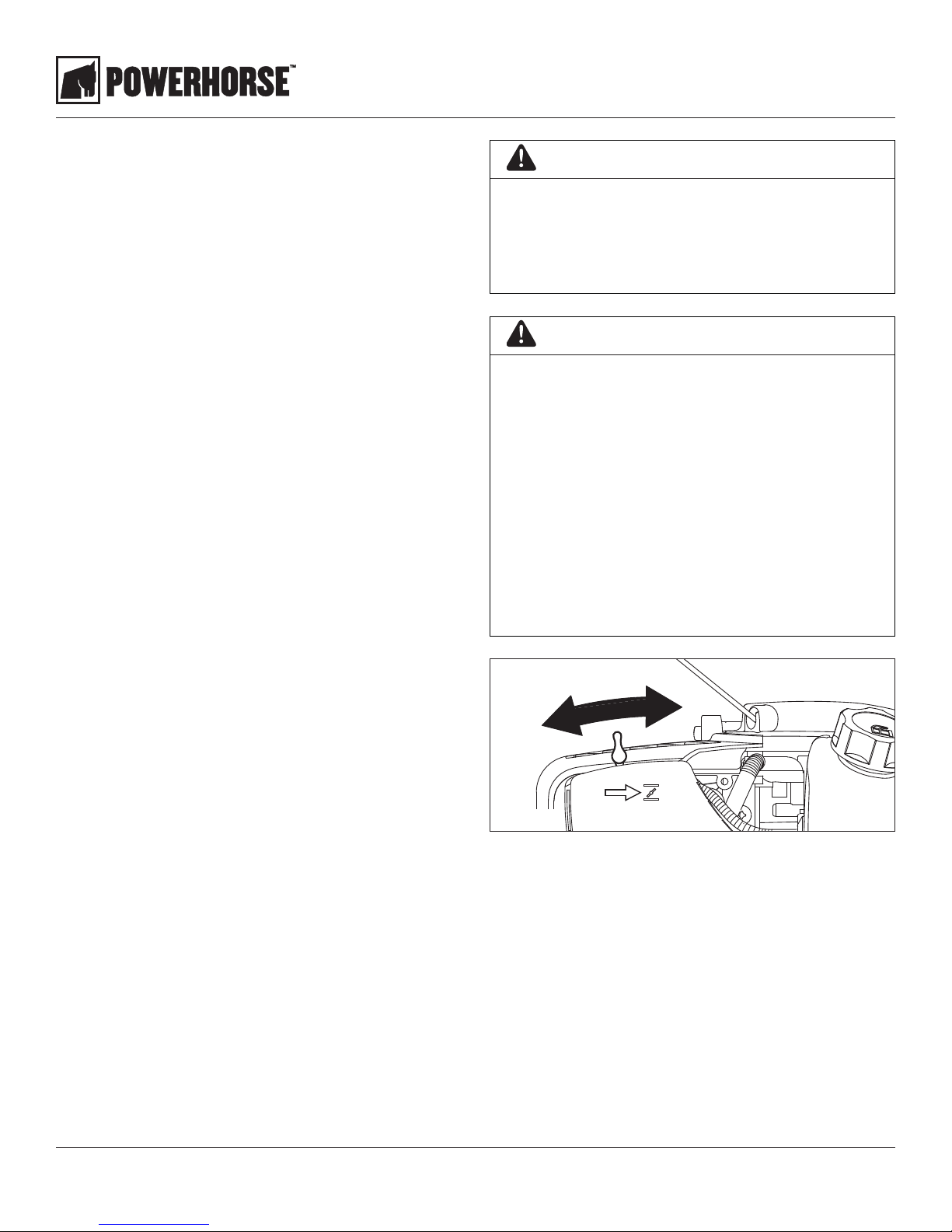

STARTING AND STOPPING ENGINE
• Moveenginetoawellventilatedarea,outdoors,toprevent
carbon monoxide poisoning.
• Movetoanareaawayfromflamesorsparks,toavoid
ignition of vapors if present.
• Removealldebrisfromaircleanerholesandgascapto
ensure proper air ow.
• Ifitisthersttimestartingthecultivator,makesurethein-
cluded 4-cycle oil has been poured into the oil ll area.
COLD ENGINE START:
Starting engine for rst time or after engine has cooled o or
after running out of fuel.
1. Move choke lever to CHOKE position. SEE FIGURE 4
NOTE: CHOKE position is dened by moving the choke le-
ver as far to the right, towards gas tank, as possible.
2. Prime unit until primer hose is lled with gas.
NOTE: When using the primer bulb, allow the bulb to
return completely to its original position between pushes.
3. Push ON/OFF switch to the ON position.
4. Hold handle bar rmly. Grasp starter handle and pull out
slowly until it pulls slightly harder. Without letting starter
handle retract, pull rope with a rapid full arm stroke. Let it
return to its original position slowly. Repeat this step every
time the starter rope is pulled until unit res or runs.
NOTE: If engine fails to start after 5-6 pulls, push primer 1
time and pull starter rope again.
5. After engine starts running, move choke lever to HALF
CHOKE position until unit runs smoothly.
NOTE: Half choke is defined when the choke lever is
between CHOKE and RUN positions. SEE FIGURE 4
6. Move choke lever to RUN position and squeeze throttle to
desired speed. SEE FIGURE 4
NOTE: Run at full throttle when possible. Do not let unit
idle for extended periods of time.
8. To stop engine, push ON/OFF switch to OFF position.
WARM ENGINE START:
1. Move choke lever to CHOKE position. SEE FIGURE 4
2. Continue with Step 3 of Cold Engine Starting.
HOT ENGINE START:
1. Begin with Step 3 of Cold Engine Starting.
2. If engine does not re, refer to Step 1 of Warm Engine Starting.
CAUTION
IF ENGINE FAILS TO START AFTER FOLLOWING START
ING PROCEDURES, PLEASE CONTACT OUR CUSTOMER
SERVICE DEPARTMENT AT 8664432576.
STARTER ROPE CAN CAUSE AN UNANTICIPATED JERK
TOWARDS ENGINE. PLEASE FOLLOW INSTRUCTIONS
TO AVOID INJURY.
NEVER LEAVE ENGINE RUNNING WHILE UNATTEND
ED. TURN OFF AFTER EVERY USE.
NEVER CARRY CULTIVATOR FROM ONE LOCATION TO
ANOTHER WHILE ENGINE IS RUNNING.
ALWAYS WEAR A PROTECTIVE HEARING DEVICE.
DO NOT START ENGINE IF FUEL IS SPILLED. WIPE OFF
EXCESS FUEL AND ALLOW TO DRY.
DO NOT attempt to start engine in the following ways:
• DO NOT use starting uid.
• DO NOT spray ammable liquids or vapors into air cleaner,
carburetor or spark plug chamber.
• DO NOT remove spark plug and attempt to start engine.
Flammable fuel can spray out & ignite from a spark from spark
plug.
TO STOP ENGINE:
Push the ON/OFF switch to the OFF position.
C
H
O
K
E
R
U
N
FIGURE 4
WARNING
MAKE SURE THE UNIT IS IN A STABLE POSITION BE
FORE PULLING THE STARTER HANDLE.
WHEN THE UNIT STARTS TO FIRE OR RUN, RETURN
BOTH HANDS TO THE HANDLEBAR POSITION TO
MAINTAIN CONTROL AND STABILITY OF THE UNIT.

Operator's Manual
4-Cycle Cultivator
866-443-2576
12
ADJUSTING WHEELS AND DRAG STAKE
The wheels on the cultivator can be adjusted to one of three
positions. The LOW wheel position is used for transporting the
cultivator across a smooth level surface while the engine is not
running.The HIGH and HIGHEST wheel positions are used when
cultivating in soil and help stabilize the unit when cultivating at
dierent depths. (SEE FIGURE 5
To adjust wheels up or down (SEE FIGURES 6 AND 7:
1. Pull the locking metal sleeve against the spring, away from the
vertical guide until it releases from one of the three notched
positions in the vertical guide.
2. Slide the wheel set up or down to the desired position, and
release the locking metal sleeve until it locks into desired
notch in the vertical guide.
The drag stake is used to help regulate cultivating depth and
control the cultivator from leaping forward during operation.
Resistance to forward motion is greatest when the drag stake is
set in its lowest position allowing for deeper cultivation.
To adjust the drag stake (SEE FIGURE 7:
1. Pull the pin out of the drag stake mount hole.
2. Position the drag stake so the pointed tip is directed
downward.
3. Insert the pin into the hole that achieves desired depth.
FIGURE 5
HIGHEST position
HIGH position
LOW position
drag stake
vertical guide
detent pin
locking metal sleeve
(LOCKED position)
expanded spring
FIGURE 7
compressed spring
FIGURE 6
locking metal sleeve
(UNLOCKED position)
TINE REMOVAL AND INSTALLATION
To Remove Tines (SEE FIGURE 8)
1. Remove the hairpins from each end of the tine shaft.
2. Slide the four tines o the shaft.
To Install Tines
1. First slide the inside tines onto each end of the tine shaft.
One inside tine is stamped with a Band the other is
stamped with a C.
2. Slide the outside tine Aand tine Donto each end of the
shaft next. The tines should be installed in the correct order
so that they are positioned left to right A, B, C, D, as viewed
from the user’s position on the cultivator. Make sure that
the hub collars on both the right and left pairs of tines face
each other so that there is adequate spacing between the
tine blades. SEE FIGURE 8
3. Insert the hairpins into the holes at each end of the tine
shaft to lock the tines into place.
NOTE: Tines can be reversed so the pointed tip of the tines
are directed forward - for more aggressive digging. In this
arrangement, tines are positioned left to right D, C, B, A as
viewed from the user’s position

Operator's Manual
4-Cycle Cultivator
866-443-2576 13
CAUTION
PRACTICE SAFETY AT ALL TIMES. ENGINE MUST
BE TURNED OFF AND ALLOWED TO COOL BEFORE
ATTEMPTING ANY MAINTENANCE OR REPAIR.
TO PREVENT ACCIDENTAL STARTING:
ENGINE MUST BE TURNED OFF AND COOL BEFORE
CHECKING AND ADJUSTING ENGINE OR EQUIPMENT.
TEMPERATURE OF MUFFLER AND NEARBY AREAS
MAY EXCEED 150° F 65° C. AVOID THESE AREAS.
CHECK CULTIVATOR OFTEN FOR LOOSE NUTS AND
BOLTS. KEEP THESE ITEMS TIGHTENED.
NEVER STORE ENGINEWITH FUEL IN THE TANK INSIDE
A BUILDING. POTENTIAL SPARKS MAY BE PRESENT
FOR IGNITION OF FUEL AND FUEL VAPORS.
AN ADULT ONLY MUST DO MAINTENANCE AND
REPAIR ON ENGINE AND CULTIVATOR.
ENGINE MUST BE TURNED OFF AND COOL BEFORE
ANY REPAIR OR MAINTENANCE CAN BE DONE.
FIGURE 8
inner tine
hub collars
tine shaft
inner hole
DCBA
hairpin
ENGINE MAINTENANCE
Please read the maintenance schedule and observe these
recommendations to extend the life of your engine.
Good maintenance is essential for safe, economical, and trouble-
free operation. It will also help reduce air pollution. To help
you properly care for your engine, the following pages include
a maintenance schedule, routine inspection procedures, and
simple maintenance procedures using basic hand tools. Other
service tasks that are more dicult, or require special tools, are
best handled by professionals and are normally performed by a
technician or other qualied mechanic.
Maintenance, replacement or repair of the emissions control
devices and systems may be performed by any non-road
engine repair establishment or individuals. However, items
must be serviced by an authorized dealer to obtain“no charge”
emissions control warranty service.
The maintenance schedule applies to normal operating conditions.
If you operate your engine under unusual conditions, such as
sustained high-load or high-temperature operation, or use in
unusually wet or dusty conditions, consult your servicing dealer
for recommendations applicable to your individual needs and use.
MAINTENANCE AND STORAGE
STEPS FOR WORKING ON EQUIPMENT
1. Flip the ON/OFF switch to the OFF position.
2. Replace or repair the part on the cultivator.
3. Check all parts that were repaired, or removed during repair,
that they are secure and t correctly.
NOTE: All repair parts must come from the manufacturer
or an authorized service center. Never replace parts that
are not specically designed for the cultivator.
CULTIVATOR MAINTENANCE
1. The transmission case has grease installed at the factory. It
is recommended that once a year the gear case be split by a
qualied service professional and the grease level checked.
Add a molylithium type grease only if level of grease is below
top of the gears. DO NOT OVERFILL.
2. Keep all screws, nuts, and bolts tight.
3. For cold weather operation, store the unit in a cool environment.
Transferring the unit from a cold to a warm place can cause the
build up of harmful condensation.
NOTE: To reduce cultivating width from 10” to 6”, remove
both outer tines and reinsert hairpins through the two inner
holes on the tine shaft to secure both inner tines in place.
outer tine

Operator's Manual
4-Cycle Cultivator
866-443-2576
14
MAINTENANCE SCHEDULE
Maintenance Item Every 8 hours
(daily)
Every 50 hours
or seasonally
Every 100 hours
or seasonally
Each
Year
Clean Engine and Check Bolts & Nuts X
Engine Oil
(See Lubrication section)
Check X
Change* (initial 5 hours) X
Air Filter
(See Air Filter section)
Check X X
Clean** (20 hours)
Replace X
Spark Plug (0.6mm)
(See Spark Plug section)
Check/Adjust X
Replace X
Fuel Filter
(See Fuel Filter section)
Clean*** X
Replace X
Gas Tank Clean*** X
Valve Clearance -
Intake: 0.15mm (0.006”)
Exhaust: 0.20mm (0.008”)
Check/Adjust X
* Perform initial oil change after rst 5 hours of operation, then every 50 hours or every season
** Service more frequently under dusty conditions
*** These items should only be performed by a mechanically procient person or by the servicing dealer
LUBRICATION
Choose engine oil that meets or surpasses the latest API service
classication. For temperatures higher than 32º F, use 10W-30
motor oil. Use SAE 5W-30 if temperatures are below 32º F.
OIL MAINTENANCE
After the rst ve hours of operating a new Viper® engine the oil
should be replaced, and every 50 hours of operating time there-
after. The oil should be changed every 25 hours if used under
severe conditions, such as in high temperatures or under heavy
loads. Check oil periodically; do not overll!
CHANGING OIL
Be sure the engine is not operating and is located on a level
surface before checking or relling oil. Engine should be warm
for easy removal of oil.
IMPORTANT
PROPER POSITION FOR CHECKING OIL LEVEL OR RE
FILLING OIL IS FACE DOWN, WITH THE GAS TANK OF
THE CULTIVATOR DOWN ON A HORIZONTAL SUR
FACE. SEE OPERATION SECTION FOR CHECKING AND
ADDING OIL. FAILURE TO MAINTAIN THIS POSITION
CAN RESULT IN OVER FILLING THE ENGINE WITH OIL
WHICH WILL IMPAIR THE ENGINE’S PERFORMANCE.
STEPS FOR CHANGING OIL
1. Flip the ON/OFF switch to the OFF position.
2. Unscrew oil drain screw and empty oil into suitable oil
container (See Operation Section for checking and adding
oil). Dispose of oil properly.
3. Reinsert drain screw and remove oil dipstick.
4. Fill with appropriate oil to “FULL“ or top line of dipstick (See
Operation Section for checking and adding oil).
5. Reinsert dipstick or oil ll cap and tighten.

Operator's Manual
4-Cycle Cultivator
866-443-2576 15
SPARK PLUG
The recommended spark plug is a NGK CMR6A.
CARBURETOR
Never tamper with factory setting of the carburetor.
COOLING FINS
Cooling ns, air inlets and linkages must be free from any debris
before each use.
AIR FILTER
Never run engine without air cleaner properly installed. Added
wear and engine failure may occur if air cleaner is not installed
on engine.
Service air cleaner every 3 months or after 20 hours of operation.
Clean lter daily in extremely dusty conditions.
Steps for Replacing and Cleaning Air Filter
(Block Style Foam Filter)
1. Before removing the air lter cover, move the choke lever to
the CHOKE position.
2. To remove air lter cover, unscrew the cover bolt with a screw
driver and gently pop out the front latch tab. The cover then
can be slid o the back latch tabs and away from the engine.
SEE FIGURE 9
3. Remove the foam lter and ber lter elements. Replace with
a new ber lter and a new oiled foam lter (SEE FIGURE 10),
or clean the original foam and ber lters with warm water
and mild soap. Remember to thoroughly oil the foam lter
with 30 or 40 weight motor oil and squeeze out any excess oil
before reinstalling it. Make sure to press the foam lter evenly
into place over the ber lter to ensure that the foam is fully
seated into its sealed position.
4. Replace the air lter cover by rst connecting the back latch tabs
then swinging the cover, making sure the foam lter block stays
fully seated and in its proper position, and connect the front latch
tab so that it is secured into place.
5. Screw the cover bolt back into place. Check that the cover is
securely attached by pulling slightly on the cover. If the cover
doesn’t move when pulled, it is secure.
IMPORTANT
NEVER TWIST AIR FILTERS WHEN CLEANING. ALWAYS PRESS.
FIGURE 9
front latch
tab
back
latch
tabs air lter
cover
FIGURE 10
air lter
cover
cover
bolt
foam lter
element
CAUTION
TO AVOID INJURY OR DEATH, NEVER SIPHON FUEL BY
MOUTH.
NEVER STORE CULTIVATOR WITH FUEL IN THE FUEL
TANK INSIDE AN ENCLOSED AREA OR BUILDING.
ber lter
element

Operator's Manual
4-Cycle Cultivator
866-443-2576
16
TROUBLESHOOTING AND REPAIR
This Powerhorse cultivator is built with quality for long-lasting
durability; but no amount of careful design by us, and careful
maintenance by you, can guarantee a repair-free life for your
machine. Most repairs will be minor, and easily xed by following
the suggestions in the troubleshooting guide in this section.
The guide will help you pinpoint the causes of common problems
and identify remedies.
For more complicated repairs, contact your place of purchase or
an authorized service center in your area.
ORDERING REPLACEMENT PARTS
Parts can be obtained from Powerhorse customer service (866-
443-2576) or an authorized service center.
LONGTERM STORAGE
If your cultivator will not be used for more than one month,
prepare it for long-term storage.
Steps for Long-Term Storage
1. Mix an appropriate amount of fuel stabilizer, such as STA-
BIL®, to fresh gasoline, in the ratio recommended on the sta-
bilizer packaging. Run the engine for ve minutes to distrib-
ute the stabilizer mixture throughout the fuel system. This
will prevent gum, varnish and corrosion build up in your fuel
system during long-term storage for up to 12 months.
2. Store 4-cycle cultivator engine in a vertical position.
3. Remove all debris from cultivator tines and engine.
TRANSPORTING YOUR CULTIVATOR
1. After using the cultivator, and before transporting it in a truck
bed, check that the gas cap is screwed on (clockwise) tightly.
The gas cap will not leak during transporting if gas cap is tight.
Never transport engine inside an enclosed space within a
vehicle. Fuel or fuel vapors may ignite causing serious injury
or death.
2. If fuel is present in the fuel tank, transport in an open vehicle
in an upright position.
3. If an enclosed vehicle must be used, remove gas into an
approved red fuel container. DO NOT siphon by mouth.
4. Wipe away any spilled fuel from engine and cultivator. Allow
to dry.
5. Run engine to use up the fuel in the carburetor and fuel tank.
Always run engine in a well ventilated area.
6. Gas cap should be screwed down tightly before transporting
your cultivator in a vehicle.

Operator's Manual
4-Cycle Cultivator
866-443-2576 17
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE REMEDY/ACTION
Engine will not start 1. Power switch in o position 1. Flip switch to ON position
2. Spark plug wire disconnected 2. Connect spark plug wire to spark plug
3. Out of fuel 3. Refuel
4. Spark plug wet, faulty or improperly gapped 4. Clean, replace or gap spark plug
5. Fuel line hose not positioned in bottom of gas
tank
5. Push fuel line down into fuel in gas tank
Engine runs rough,
oods during opera-
tion
1. Dirty air lter 1. Clean or replace air lter
2. Choke partially engaged 2. Turn o choke
3. Carburetor out of adjustment 3. Call service provider
Engine is hard to start 1. Stale fuel 1. Drain old fuel and replace with fresh. Use gas
stabilizer at end of season
2. Spark plug wire loose 2. Make sure spark wire is securely attached to spark
plug
3. Dirty carburetor 3. Clean carburetor, use gas stabilizer, new gas can
Engine misses or lacks
power
1. Clogged gas tank 1. Remove and clean gas tank
2. Clogged air lter 2. Clean or replace air lter
3. Carburetor out of adjustment or bad 3. Call service provider
4. Spark plug wet, faulty or improperly gapped 4. Clean, replace or gap spark plug
Engine runs, then
quits
1. Gas cap not venting 1. Clean or replace gas cap, check vent
2. Plugged fuel lter 2. Clean or replace fuel lter
3. Carburetor out of adjustment or bad 3. Call service provider
Engine revs too high 1. Carburetor out of adjustment 1. Call service provider
Tines turn at idle 1. Idle speed too high 1. Adjust idle speed lower
2. Broken clutch spring 2. Replace spring
Contact service provider at 866-443-2576 if above remedies fail.

Operator's Manual
4-Cycle Cultivator
866-443-2576
18
HANDLEBAR PARTS EXPLOSION
KEY PART # DESCRIPTION QT Y.
1 17430 UPPER LEFT HANDLEBAR ASSEMBLY BLACK 1
2 17428 UPPER RIGHT HANDLEBAR ASSEMBLY BLACK 1
3 13309 KNOB TEXTURED HANDLE GRIP 2
4 4640 THANDLE NUT 4
5 4641 WASHER 4
6 4642 HANDLE CLAMP BOLT 4
7 17431 MIDDLE HANDLEBAR ASSEMBLY BLACK 1
8 4814 BOLT 1024 X 1 1/4 1
9 12633 HANDLEBAR RUBBER PAD 15MM X 28.5MM 1
10 4819 TRIGGER ASSEMBLY LONG 1
11 1021CE ON/OFF SWITCH WIRE ASSY 1
12 4667 THROTTLE CABLE 1
13 64131 NUT M6 X 1.0 1
14 10800 CURVED WASHER M6 1
15 400025 EYEBOLT M6 X 12 X 25 1
16 13804 THROTTLE TRIGGER KIT WITH CABLE 1
6
1
1, 3
2, 11
2, 10, 16
2, 9
2, 8
2
7
4
5
4
5
6
2, 3
7, 13
7, 14
7, 15
2, 12, 16

Operator's Manual
4-Cycle Cultivator
866-443-2576 19
KEY PART # DESCRIPTION QT Y.
1 46146PH TINE SHIELD 2
2 46138 TRANSMISSION ASSEMBLY 1
3 4602 TINE C ASSEMBLY 1
4 4604 TINE D ASSEMBLY 1
5 4652 HAIRPIN 5/83/4 2
6 4603 TINE B ASSEMBLY 1
7 4601 TINE A ASSEMBLY 1
8 4673 WHEEL HOLDER 1
9 4600 DRAG STAKE 1
10 4674 TUBE WHEEL AXLE 1
11 4634 WHEEL 180 X 38MM DIAMOND TREAD
WHITE HUB
2
12 4687 BOLT M10 X 1.5 X 225 MM 1
13 4678 TUBE WHEEL GUIDE 1
14 4684 TUBE WHEEL LOCK 1
15 4685 SPRING WHEEL LOCK 1
KEY PART # DESCRIPTION QT Y.
16 46142 BOLT M6 X 1.0 X 20 2
17 4650 NUT M6 X 1.0 2
18 46145 PIN QUICKRELEASE M8 X 25 1
19 4625 BOLT M6 X 1.0 X 42 FLANGE 4
20 13230 WASHER 21MM X 16MM X 1MM 1
21 17427 LOWER HANDLEBAR BLACK 1
22 46141 BOLT M8 X 1.25 X 160MM 2
23 400023 NUT M8 NYLOCK 2
24 4641 CURVED WASHER M8 4
25 11614 ENGINE 40CC 4 CYCLE OHV 1
26 13048 NUT M10 X 1.5 1
27 176 BOLT M5 X 0.8 X 10 2
28 400020 NUT M5 X 0.8 TOPLCK 2
29 2431 FLAT WASHER M10 X 20 X 2 2
HOOD & TINES PARTS EXPLOSION
5
7
12
11
6
25
24
23
24
22
13
2
5
4
3
20
29 26
11
15
27
14
1
19
28
18
17
16
89
21
10

Operator's Manual
4-Cycle Cultivator
866-443-2576
20
ENGINE PARTS EXPLOSION
13, 51
31, 50,
60
20, 51
21A, 51
45, 51
4, 51
42, 50,
60
1, 50
13, 48
35, 48
25, 49,
52
38, 49,
52
29, 52
30, 52
12, 53
19, 53 13
41, 55
3, 55
6
13, 56
15, 56
36, 56,
60
44, 48
28, 52
11, 52
27, 52
7, 55,
60
10, 57
43, 57,
60
8
13
32, 49,
52
17, 49,
52
12, 53
37, 59
14
12, 53
18
22, 54
2, 54
24, 54
47
5, 59
34
33 46
26, 58
39, 58 9
16, 58
23, 54
40
21B, 51
