Powerhouse Fitness Bodymax T200ti User manual

A

2
Thank you
Thanks for purchasing this product. The product will help you exercise your muscles in
the correct way and to improve your fitness – and all this in a familiar environment.
Implied Warranty
The importer of this machine assures that this device was manufactured from high quality
materials.
Prerequisite for the implied warranty is the proper setup in accordance with the operating
instructions. Improper use and /or incorrect transportation can render the warranty void.
The implied warranty is for 1 years, eginning with the date of purchase. If the device you
acquired is defective, please contact our Customer Service (Inset page) within the
guarantee period of 12 months as of purchase date. The warranty applies to the following
parts (as far as included in the scope of delivery): Frame, ca le, electronic devices, foam,
wheels. The guarantee does not cover:
1.Damage effected y outer force
2. Intervention y unauthorized parties
3. Incorrect handling of the product
4. Non-compliance of the operating instructions
Wear parts and expenda le items are also not covered(such as running elt) .
The device is only intended for private use. The warranty does not apply to professional
usage.
Spare parts can e ordered from Customer Services (Inset page) as needed.
Please make sure you have the following information on hand when ordering spare parts.
1. Operating instructions
2. Model num er (located on the cover sheet of these instructions)
3. Description of attachments
4. Attachment num er
5. Proof of purchase with purchase date
Please do not send the device to our firm without eing requested to do so y our Service
team. The costs of unsolicited shipments will e orne y the sender.

3
General safety instructions
A great deal of emphasis was placed on safety in the design and manufacture of this
fitness device. Still, it is very important that you strictly adhere to the following safety
instructions. We cannot e held lia le for accidents that were caused due to disregard.
To ensure your safety and to avoid accidents, please read through the operating
instructions thoroughly and attentively efore you use the sports device for the first time.
1) Consult your GP efore starting to exercise on this device. Should you want to exercise
regularly and intensively, the approval of your GP would e advisa le. This is especially
true for users with health pro lems.
2) We recommend that handicapped people should only use the device when a qualified
care is present.
3) When using the fitness device, wear comforta le clothing and prefera ly sports or
aero ic shoes. Avoid wearing loose clothing which could get caught in the moving parts of
the device.
4) Stop exercising immediately should you feel unwell or if you feel pain in your joints or
muscles. In particular, keep an eye on how your ody is responding to the exercise
program. Dizziness is a sign that you are exercising too intensively with the device. At the
first signs of dizziness, lay down on the ground until you feel etter.
5) Ensure there are no children near y when you are exercising on the device. In addition,
the device should e stowed in a place that children or house pets cannot reach.
6) Ensure that only one person at a time uses the fitness device.
7) After the sports device has een set up according to operating instructions, make sure
all screws, olts and nuts are correctly fitted and tightened. Use only attachments
recommended and/or supplied y the importer.
8) Do not use a device that is damaged or unservicea le.
9) Always place the device on a smooth, clean and sturdy surface. Never use near water
and make sure there are no pointed o jects in the direct vicinity of the fitness device. If
necessary, place a protective mat (not included in scope of delivery) to protect your floor
underneath the device and keep a free space of at least 0.5 m around the device for
safety reasons.
10) Take care not to put your arms and legs near moving parts. Do not place any material
in openings in the device.
11) Use the device only for the purposes descri ed in these operating instructions. Use
only attachments recommended y the manufacturer
12) If the supply cord is damaged ,it must e replaced y the manufacturer, its service
agent or similarly persons in order to avoid a hazard.

4
Special Safety recautions
● ower source:
●Choose a place in reach of a socket when placing the treadmill.
●Always connect the appliance to a socket with a grounded circuit and no other
appliances connected to it. It is recommended not to use any extension cords.
●A faulty grounding of the appliance can cause the risk of electrical shocks. Ask a
qualified electrician to check the socket in case you do not know if the appliance is
grounded appropriately. do not modify the plug provided with the appliance if it is not
compati le with your socket. ask a qualified electrician to install a suita le socket.
●Sudden voltage fluctuations can seriously damage the treadmill. Weather changes or
switching on and off other appliances can cause peak voltages, over-voltage or
interference voltage. To limit the danger of damage to the treadmill, it should e equipped
with an over-voltage protective device (not included).
●Keep power cord away from the carrying roller. Do not leave the power cord elow the
striding elt. Do not use the treadmill with a damaged or worn out power cord.
●Unplug efore cleaning or engaging in maintenance work. Maintenance should only e
done y authorized service technicians, unless otherwise stated y the manufacturer.
Ignoring those instructions would automatically void the warranty.
●Inspect the treadmill efore every use to make sure that every part is operational.
●Do not use the treadmill outdoors, in a garage or under any kind of canopy. Do not
expose the treadmill to high humidity or direct sunlight.
●Never leave the treadmill unattended.
Make sure the striding elt is always tense. Start the striding elt efore stepping on it.

5
Assembly
●Before starting with the assem ly of this fitness device, carefully read through the set
up steps as of page 8 We also recommend that you view the assem ly drawing prior to
assem ly .
● Remove all packaging material and place the individual parts on a free surface. This will
provide you with an overview and will simplify assem ly.
● Please consider that there is always the risk of injury when using tools and carrying out
technical activities. Please proceed with care when assem ling the device.
●Make sure you have a hazard-free working environment and do not, for example, leave
tools lying around. Deposit the packaging material in such a way that it does not pose a
danger. Foil/plastic ags are a potential risk of suffocation for children!
●Take your time when viewing the drawings and then assem le the device according to
the series of illustrations.
●The device must e carefully assem led y an adult person. If necessary, request aid
from another technically talented person.

6
Unpacking & Assembly
WARNING!: Use extreme caution when assem ling this treadmill. Failure to do so could
result in injury.
NOTE: Each step num er in the assem ly instructions tells you what you will e doing.
Read and understand all instructions thoroughly efore assem ling the treadmill.
UN ACK AND VERIFY THE CONTENTS OF THE BOX:
● Lift up and remove the ox that surrounds the Treadmill.
● Check the following items are present. If any of the parts are missing, contact with the
dealer.
Silicon ottler Manual
Safety key
Hardware pack
Upright post
Console
Hardware bag
Display
Lateral cover(left right)

7
Main art
Motor cover Console Display
Handle bar (left) Handle bar (right) Running belt
Running board Side rail Lateral cover(left right)
Front roller Rear roller Incline motor
Motor Motor belt Rear cover Cylinder

8
Treadmill instruction
Technical Value
SIZE
UNFOLD:1980*920*1500mm
FOLD: 1400*920*1720mm
RUNNING BOARD 1450*510mm
SPEED 1.0
－ 20Km/h
*WE RESERVES THE RIGHT TO AMEND THE PRODUCT WITHOUT PRIOR NOTICE.
Motor cover
Running elt
Touch button
Handle
pluse
PU handle bar
console
Upright post
Lateral
cover
Platform frame
Base frame
Rear cover
Side rail

9
Hardware bag
Allen C.K.S. full thread screw M8×15(8PCS) Allen socket full thread screw M8×40(4PCS)
T shape wrench(1PC) Cross wrench (1PC)
Philips C.K.S self-tapping screw(ST4*16)6pcs Allen socket full thread screw (M8*15)4pcs
If the
supply
cord
is
damaged,
it
must
be
replaced
by
the manufacturer, its
service
agent
or
similarly
qualified
persons
in
order
to avoid a hazard.
This appliance is not intended for use by persons (including children) with
reduced
physical,sensory
or
mental capabi
If
the
supply
cord
is damaged,
it
must
be
replaced
by
the manufacturer, its service
Children should
be
supervised
to ensure that
they
do
not
play
with the
appliance

10
Step 1:. Take the machine from the package ， put on the flat floor. Connect the signal wire
which etween the ase frame and upright post, then fix the upright post (right) on
the main frame with 4pcs M8*40 Allen socket full thread screws and 4 pcs M8*15 Allen
C.K.S full thread screw .
Step 2:. Connect the console signal wire with the upright post signal wire, put the
console on the upright post, using 4pcs screw (M8*15) to fix the monitor on the upright
post(left and right).(Please e caution do not clamp the signal wire )
ASSEMBLY
INSTRUCTIONS

11
Step 3: Connect the console signal wire with the display signal wire, then fix it with 4pcs
M8*15 Allen socket full thread screw.
Step 4: Insert the lateral cover along the upright post then use 6PCS ST4*16 Philips
C.K.S self-tapping screw to lock it . Tighten up all the screws for the whole
treadmill .Finished.

12
SETTING U YOUR TREADMILL
LACEMENT IN YOUR HOME
To make exercise a desira le daily activity for you, the treadmill should e placed in a
comforta le and convenient setting. This treadmill is designed to use minimal floor space
and to go nicely in your home.
Do not place the treadmill outdoors.
Do not place the treadmill near water or in high moisture content environment.
Make sure power cord is not in the path of heavy traffic.
If your room is carpeted, check the clearance to make sure there is enough space
etween the carpet fi er and the treadmill deck. If you are uncertain, it is est to
place a mat eneath your treadmill.
Locate the treadmill at least 4 feet from walls or furniture.
Allow a safety area of 2m X 1m ehind the treadmill so that you can easily get on and
off the treadmill without getting trapped during an emergency.
Occasionally after extended use you will find a fine lack dust elow your treadmill. This
is normal wear and DOES NOT mean there is anything wrong with your treadmill. This
dust can e easily removed with a vacuum cleaner. If you wish to prevent this dust from
getting on your floor or carpet, place a mat eneath your treadmill.
USE DEDICATED CIRCUIT
The outlet selected should e a dedicated circuit. It is particularly important that No
sensitive electrical equipment, such as computer or TV, share the same circuit.
CAUTION!
Make sure the running deck is level to the ground. If the deck is positioned on uneven
surface, it would cause premature damage to the electronic system.
Read this manual efore operating this treadmill.

13
GETTING STARTED
TURN OWER ON

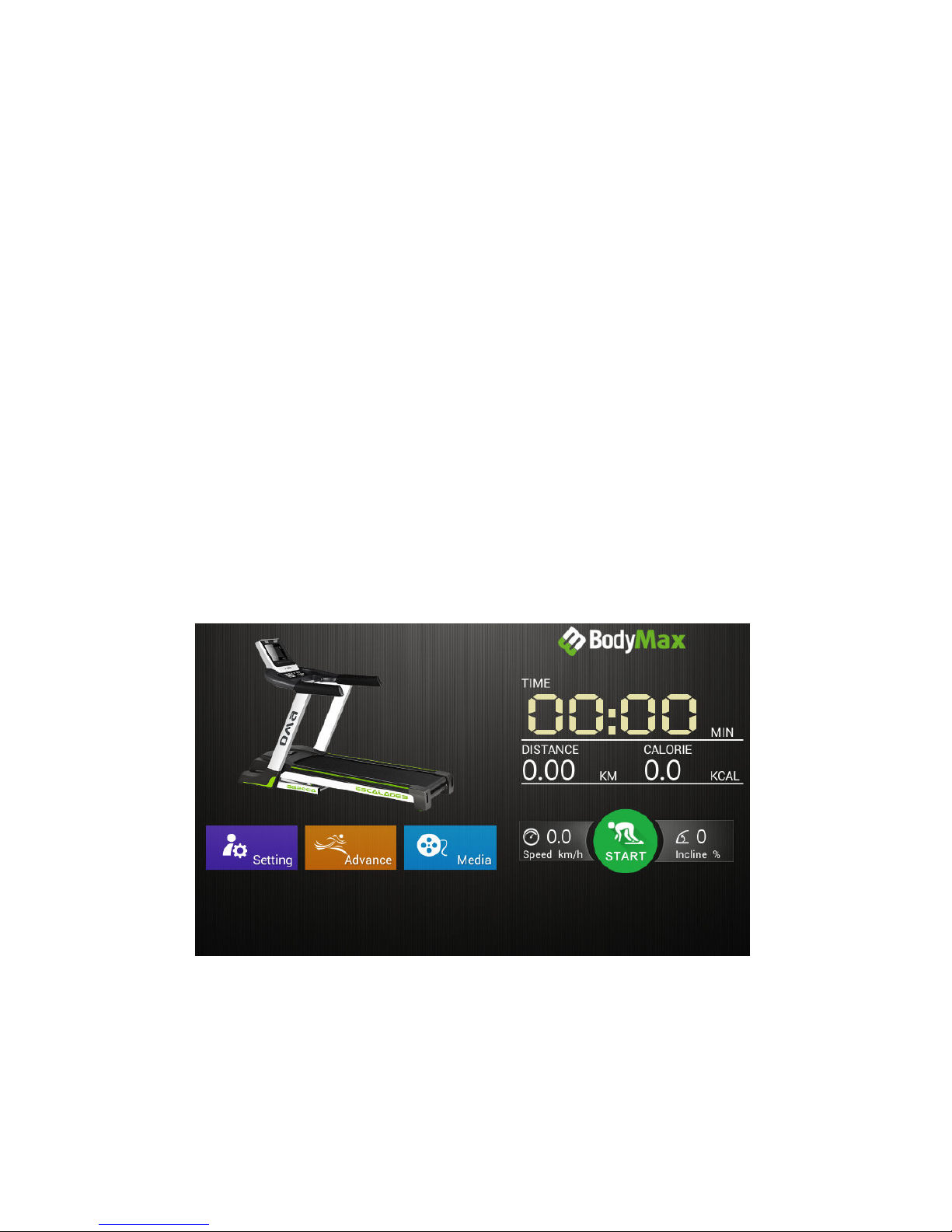

Put the power cord into the electrical outlet with 10A. Flip this switch to the “ON” position.
The screen shine with prompt sound.
SAFETY KEY AND CLI
The safety key is designed to cut the main power to the treadmill should your fall.
Therefore, the safety key is designed to ring the treadmill to an immediate stop. At high
speeds, it may e uncomforta le and somewhat dangerous to come to a complete stop
immediately. So, use the safety key as emergency top only. To ring the treadmill to a
complete stop safely and comforta ly, use the red stop utton.
Your treadmill will not start unless the safety key is properly inserted into the key holder in
the middle of the console. The other end of the safety key should e securely clipped to
your clothing so that in the case that you fall, you will pull the safety key from the console,
which will stop the treadmill immediately to minimize injury. For your safety, never use the
treadmill without securing the safety key clipped to your clothing. Pull on the safety key
clip to make turn it will not come off your clothing.
GETTING ON AND OFF THE TREADMILL
Handle with care when getting on or off the treadmill. Try to use the handle ars while
getting on or off. While you are preparing to use the treadmill, do not stand on the running
elt. Straddle the running elt y placing your feet on oth side rails of the treadmill deck.
Place your foot on the elt only after the elt has egun to move at a consistent slow
speed.
During exercise, keep your ody and head facing forward at all times. Never attempt to
turn around on the treadmill when the running elt is still moving. When you have finished
exercising, stop the treadmill y pressing the red stop utton. Wait until the treadmill
comes to a complete stop efore attempting to get off the treadmill.
WARNING!
Never use this treadmill without first securing the safety tether clip to our clothing.
CAUTION!
For your safety, step onto the elt when the speed is no more than 3km/h.

14
FOLDING THE TREADMILL
1. Restore the incline to flat (0) position .
2. Unplug from power point efore folding
3. Lift deck until it's parallel to the upright post and cylinder locks into position
4. Caution: check to ensure cylinder locking device has engaged
UNFOLDING THE TREADMILL
1. Place one hand on handle ar, use the other to push top of the running deck forward
2. Press one foot on the middle section of the cylinder to dis-engage the locking
mechanism
3. Allow deck to egin slowly dropping efore releasing hands
MOVING THE TREADMILL
The treadmill can e moved around in house safely in its fold-up position y using the
transport wheels
Firmly hold onto handle ars with oth hands, pull the treadmill towards you, then porta le
on wheels, drag or push slowly
Foot pedal
Inner ezfit linking part
Outer ezfit
linking part
Four wheel mo ile
plate wheel

15
Computer function instruction
1. Icon function description
2.Before you start the treadmill you must notice the following issue:
Notes
Press utton instruction
Gesture
Setting center
Language choice
Enter into network setting center
Adjust rightness
Registration and management of user
3.How to use your treadmill
Data window
Speed adjustment
Inclination adjustment
4.How to play media
Play music
Play movie
Watch the online TV
Surf the Internet
Streetscape
5.High-level mode
Aero ic exercise
Clim ing mode
Time Countdown
User-defined
6.Software upgrade and recover
Remote automatic upgrade function
Software support offline upgrade
7.Pro lem shooting
Error message and solution
Help online
1,Icon function description

16
Wifi
WifiWifi
Wifi
Click into network
connecting
Switch
SwitchSwitch
Switch between
betweenbetween
between Chinese
ChineseChinese
Chinese
and
andand
and English
EnglishEnglish
English
Brightness
BrightnessBrightness
Brightness button
buttonbutton
button
Click into adjust the
rightness
Version
VersionVersion
Version information
informationinformation
information
Click to view the version
information
New
NewNew
New user
useruser
user
Set up a new user
Returns
ReturnsReturns
Returns the
thethe
the Android
AndroidAndroid
Android
interface
interfaceinterface
interface
Speed
SpeedSpeed
Speed control
controlcontrol
control
Click on the speed of
addition and subtraction
Incline
InclineIncline
Incline control
controlcontrol
control
Click on the inclination
of addition and
subtraction
Music
MusicMusic
Music
Enter into adjust music
mode
Online
OnlineOnline
Online music
musicmusic
music
Click in and listen to
online music
Previous
PreviousPrevious
Previous track
tracktrack
track Ne t
Ne tNe t
Ne t track
tracktrack
track
Play
PlayPlay
Play
Local
LocalLocal
Local audio
audioaudio
audio and
andand
and video
videovideo
video
data
datadata
data
Loading audio and
video files in U disk
Video
VideoVideo
Video
Enter into video adjust
mode
Live
LiveLive
Live television
televisiontelevision
television
Click in live television

17
Stop
Click this button ,the
video play will stop
Pause
PausePause
Pause
Video pause
Internet
Surf internet
Loading
LoadingLoading
Loading
Click into website
loading
Recommend
RecommendRecommend
Recommend hot
hothot
hot site
sitesite
site
Display the system
recommended website
Custom
CustomCustom
Custom Webpage
WebpageWebpage
Webpage
The custom Webpage is
added to Favorites
Backward
Go
GoGo
Go forward
forwardforward
forward
Streetscape
StreetscapeStreetscape
Streetscape mode
modemode
mode
Enter the real map training
selection
High-level
High-levelHigh-level
High-level mode
modemode
mode
Click into high-level
mode
Aerobic
AerobicAerobic
Aerobic exercise
exerciseexercise
exercise
Enter into aerobic fitness
training program
M
MM
Mountain-climbing
ountain-climbingountain-climbing
ountain-climbing
Enter into
mountain climbing
training program
Self-setting
Self-settingSelf-setting
Self-setting mode
modemode
mode
Enter into self setting
running mode
Time
TimeTime
Time countdown
countdowncountdown
countdown mode
modemode
mode
Enter into time
countdown setting
Start
StartStart
Start
Start the treadmill
Stop
StopStop
Stop
Stop the treadmill

18
2.Before you start the treadmill you must notice the following issue:
Notes
The display screen is glass material,do not use keen o ject to
inscri e the screen to avoid damage the screen.
Do not wear too long, too loose clothing when exercising in
order to prevent the hanging to the treadmill.Please usually
wear ru er soled shoes when running.
When you use the treadmill for the first time,you must grasp the
handle ar y hand until you adapt to it .Then you can release
the handle ar .
When the treadmill is running , please do not let the child or pet
get close.
After running,please shut off the power supply in time.Energy
saving is a virtue.
Add lu ricating oil onto the running deck at least once a
month that can extend the lifespan of the treadmill.
Press utton instruction
FAN:press once,turn on or turn off the fan
QUICK INCLINE:quick setting the inclination of the treadmill
INCLINE:set the inclination of the treadmill ,press once adjust 1%
QUICK SPEED:quick setting the speed of the treadmill
SPEED :set the speed of the treadmill ,press once adjust
0.1.Long press can quickly adjust speed.
PROG:fast enter program interface ( It is invalid after treadmill
started)
VOLUME:press once,turn on or turn off the loudspeaker
START/STOP:start or stop the treadmill.

19
Gesture
Through your gestures, you can operate the icon, utton, menu,
input key oard etc.
Click: use your finger touch the screen once.
Long press:press and hold the target on the desktop or list area,will
enter edit mode.
Slide: gently point screen and slide, the target area such as a list
or We page will slide according to the direction of finger
movement .” Zoom with two finger”: in some programs, support
with two fingers.
Dou le click: click the screen twice. When you viewing the picture,
dou le click on the picture to enlarge view, dou le-click again can
reduce.
If you want to open the application ,please click the icon on the
screen.If you want to switch to the other main screen ,click on the
rectangle icon ,move its ottom to left and right function area .

20
Setting center
Click the setting icon on the main screen enter into setting.In the
set center,you can set up new user account,connect WIFI, adjust
the rightness .
Language choice
The product support Chinese &English language vision.
Setting method
Click the Chinese &English setting utton to choose the
appropriate language.
