POWERMATE
OWNER’S MANUAL
This equipment is intended for commercial use only
1800AC-100
1800AC-200
1753 Blake Avenue □Los Angeles, CA 90031 □(800) 338-EDIC or (323) 660-1635 □Fax (323)667-0144
BEFORE OPERATING THE MACHINE
Read the manual carefully and completely before attempting to operate the unit. This manual has important
information for the use and safe operation of the machine. Keep this manual handy at all times. This
machine will ensure years of satisfactory service if operated and maintained to recommendations in the
manual. If additional information is needed, please contact your local distributor or write to:
EDIC
1753 Blake Avenue
Los Angeles, CA 90031-1006
All information and specifications printed in the manual and parts list are current at the time of printing.
However, because of EDIC’s policy of continual product improvement, we reserve the right to make any
changes at any time without notice.
WARNING!
•The machine was designed for the use and instructions and recommendations written in this manual.
Any deviation from its proper use or purpose and the consequential damage that may occur is the sole
responsibility of the end user.
•Disconnect the power cord from the outlet before servicing. Do not leave the machine connected to any
electrical outlet when unattended.
•The cord on this machine should not be used to pull or carry the machine. Keep the cord away from hot
surfaces, sharp edges or corners. Do not close door on cord or run machine over cord.
•Do not immerse or use this machine in standing water. Such use may cause electric shock.
•This machine is not designed to handle or use combustible/ volatile substance such as gasoline or
kerosene, in, or near the machine. The use of such materials will cause an extreme hazard condition.
•To unplug the machine, grasp the plug, not the cord. Avoid pulling on cord.
•When using an extension cord, use only a 3-conductor grounding cord, 14 ga. wire or heavier.
•Keep openings free of any objects, such as dust, lint or hair, which may reduce airflow. Avoid use if
openings are blocked.
•To avoid electric shock, do not expose the unit to rain. Store it indoors only.
•Avoid picking up cigarettes, matches, hot ashes or anything that is smoking or burning.
•Do not expose machine to freezing temperatures.
•Do not use replacement parts other than those specified in the parts list.
FAILURE TO COMPLY WITH THE ABOVE WARNING INSTRUCTIONS WILL
VOID THE WARRANTY.
OPERATING THE MACHINE
1. Connect the cord on the power wand to the optional receptacle on the back of the machine or use the
optional adaptor cord to plug directly into a wall outlet. Turn on the vacuum and pump switches on the
extractor.
2. The motor of the rotating power brush is operated with your right hand controlling a long toggle switch.
Pull it up for momentary use, push it down for continuous brush action (center is off). Solution
application is controlled by depressing the flow switch lever with your right hand fingertips.
3. To adjust the handle into operating position, pull up the grip on the locking lever located near the base of
the handle. Move handle to waist level height and push down grip handle on lever to lock into place.
4. To move the power wand forward, push handle downward to raise the front end and move the wand into
position. To pre-spray, depress the flow switch (solution control) while moving wand forward or
backward over the area to be cleared with the front end raised.
5. To clean, depress the solution flow lever while pulling the power wand towards you.
Here’s how it works- The solution is jet sprayed deep into the carpet to loosen dirt. The rotating brush
scrubs the fiber and breaks up surface and deep rooted dirt. It fluffs the nap without distortion to the pile.
With the weight of the base on the suction head, the vacuum picks up the dirt and solution. Make
overlapping passes to prevent streaking.
6. Make a pass over the path you just cleaned without depressing the solution flow lever (vacuum only)
and with the brush still on, to remove as much dirt and solution as possible.
PERIODIC MAINTENANCE
All EDIC machines are engineered and built to require a minimum amount of maintenance. But like any
machine, it does require some care to keep it in optimum working condition. Careful attention to these
maintenance instructions will give you maximum operating performance and will increase the life
expectancy of your machine.
1. Always keep the machine clean inside and out. Keep brush clean.
2. Flush the machine at least once a month with a solution of 3 parts water to 1 part white vinegar in
order to neutralize the alkaline residue left by the cleaning solution.
3. Spray a light lubricant on the quick connect coupler to prevent sticking.
1
2 3
4
5
11
6
10
7
89
13
14
15
16
17
18
19
20
12
22
23
24
26
25
27
28
29
30
31
3432 33 35 37 3836 39 40 41 42 43 44
46
47
48
49
50
52
57
58
59
60

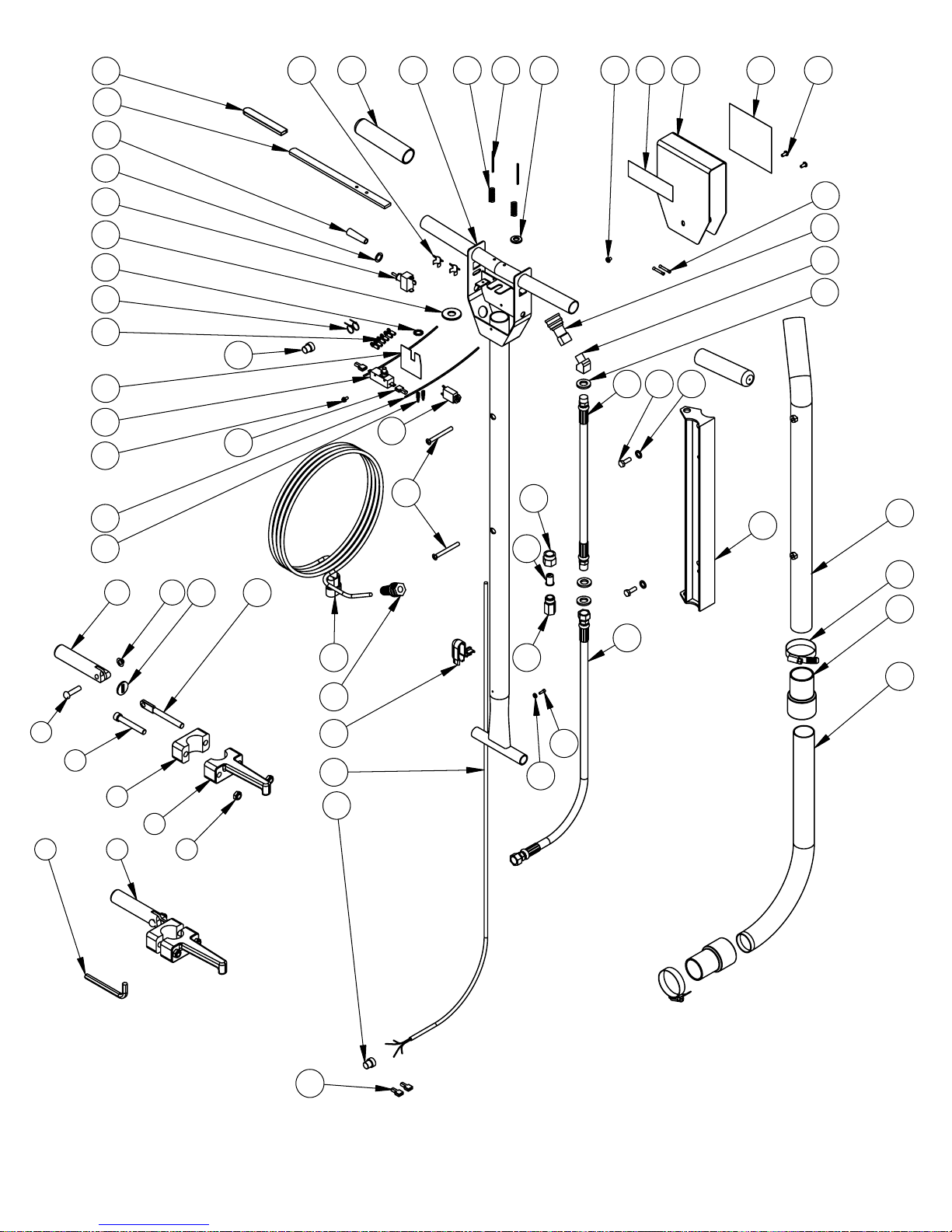

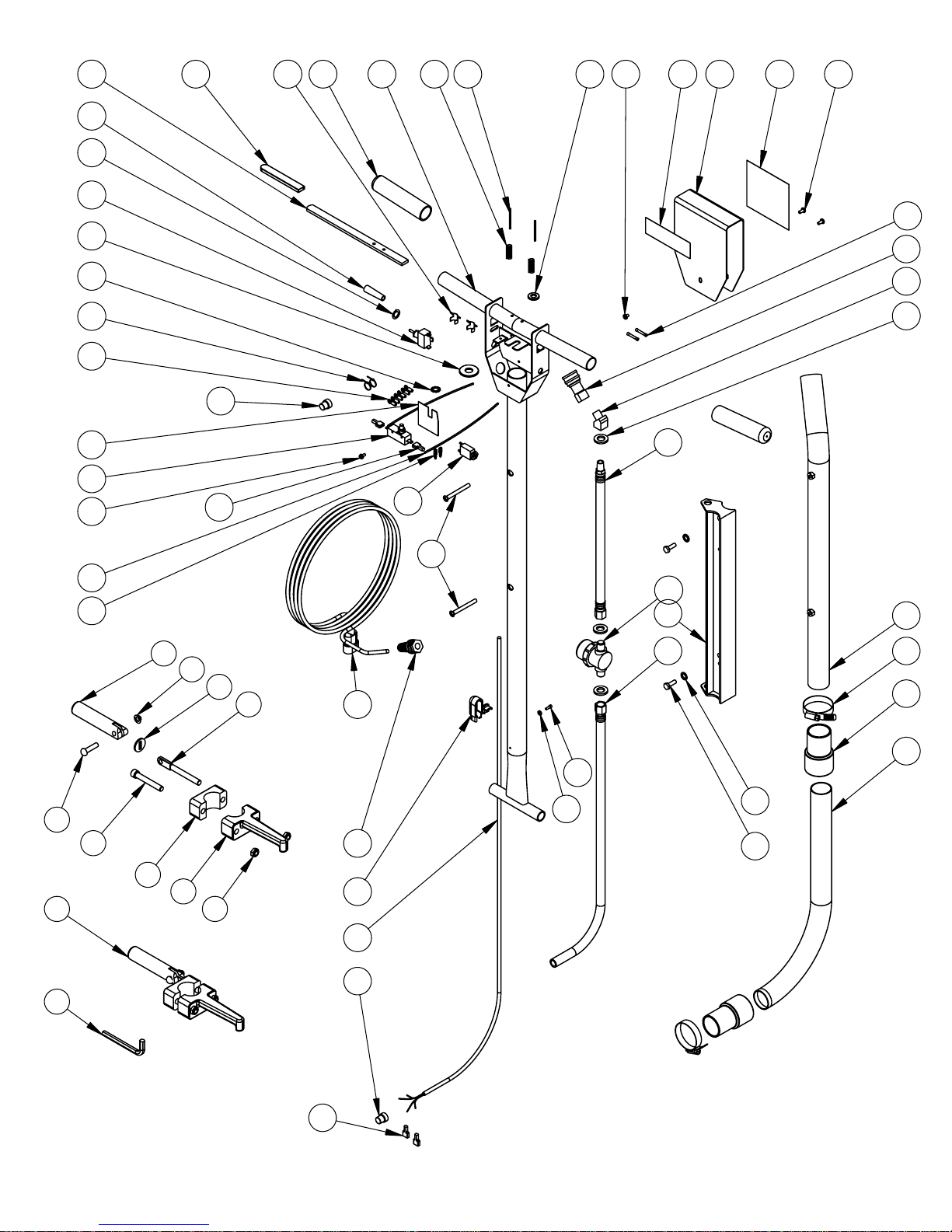

1800AC-100
Handle
3-20-08
1800AC-100 Handle
3-20-08
21
13
45
12
55
56
53
54
51
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY.
1
C11619 Allen Wrench, .31 in
1
2
11507A Assembled Locking Handle, Cord Hook
1
3
C11558 Locknut, Black Oxide, Thin
2
4
D11507-2 Cord Hook Body
1
5
D11507 Cord Hook Clamp
1
6
C11502 Socket Cap Screw, .375-16 X 2.5 in
1
7
C11537 Dowel Pin, .31 X 1.5 in
1
8
D11497 Handle, Locking Clamp
1
9
C11538 Cap Nut, .31 in, Push-On
1
10
C00259 Washer, Slotted, Zinc
1
11
C11536 Spade Bolt, .375-16 X 4 in
1
12
B00177 Terminal Lug, Female, QD, .25 X .032, 16-14 AWG, Fully Insulated
4
13
B00179-1 Closed End Cntr, 16-3
2
14
B00222 Cable, 18-4 X 44 in, SJTO
1
15
B10734 Strain Relief, Handle
1
16
B11199 Strain Relief, Pigtail
1
17
B00218-1 Powercord, British, 25'
1
18
C00323 Screw, .25-20 X 2.25 in. Oval Head
2
19
B02191 Circuit Breaker, 1.5 Amp
1
20
B02199 Female Connector, .110, Red, Fully Insulated
2
21
B00185-41 Wire, 16 Ga Black, ULCSA, 600V, -60C to + 200C
2
22
C00284 Screw, 10-32 X .375 Ground
1
23
B00209 Momentary Microswitch
1
24
B11518 Switch Insulation
1
25
B00180-10-1 Ring Terminal, #10 Center
6
26
B00190 Nylon Tie, 4 in
2
27
C11541 Washer, .375 in, Star
1
28
C00239 Washer, .5 in, Flat
1
29
B00208 Switch, Toggle, Mom Off-On
1
30
C00249 Washer, Non-Rotational
1
31
B00210 Toggle Lever, Black
1
32
D00339 PW18 Solution Lever
1
33
K00722 Solution Grip, 1800AC
1
34
D00410-1 Cord Clamp, 18-3
2
35
K11498 Handle Grip, Floor Machine
2
36
D11479-1 Handle, PW-18
1
37
D00361 Spring, Switch, Lever, 1800AC
2
38
C00306 Roll Pin, .125 X 1.75
2
39
C00252 Washer, .375 in, Flat
1
40
C11528 Screw, 10-32 X .25 in
1
41
H00556-1 Label, EDIC, Blue & White
1
42
D11496B Switch Box Cover, Black
1
43
H00559 Label, Instruction, 1800AC
1
44
C11529 Screw, 10-32 X .375 in
2
45
B00181 Wire Splice, Blue, 1 Wire
2
46
A00102 QD, 1-4F X 1-4FP
1
47
A00053 45 Elbow, .25MP X .25 FP
1
48
C00240 Washer, Shoulder, Nylon
3
49
13115A Upper Hose Assembly, 13 in
1
50
K11935 Strainer, Inline, .5 in
1
51
D02425 Tube, Bracket, PW 18
1
52
13116A Lower Hose Assembly, 23 in
1
53
C02328 Screw, Allen Head, 10-24 X .375 in
1
54
C02249 Lockwasher, #10 Int. Str, SS
1
55
C00254 Lockwasher
2
56
C00313 Hex Bolt, .25-20 X .75 in
2
57
D00354 Vactube, PW18, 45 X 1.5 in
1
58
J00650 Screw Clamp, #24, 1.25in
2
59
J00625 Cuff, 1.5 in, Grey
2
60
J00616-10 Vacuum Hose, 1.5 X 19 in
1
1800AC-100 HANDLE
ITEM # PART # DESCRIPTION QTY
1C11619 ALLEN WRENCH, .31 IN 1
211507A ASSEMBLED LOCKING HANDLE, CORD HOOK 1
3C11558 LOCKNUT, BLACK OXIDE, THIN 2
4D11507-2 CORD HOOK BODY 1
5D11507 CORD HOOK CLAMP 1
6C11502 SOCKET CAP SCREW, .375-16 X 2.5 IN 1
7C11537 DOWEL PIN, .31 X 1.5 IN 1
8D11497 HANDLE, LOCKING CLAMP 1
9C11538 CAP NUT, .31 IN, PUSH ON 1
10 C00259 WASHER, SLOTTED, ZINC 1
11 C11536 SPADE BOLT, .375-16 X 4 IN 1
12 B00177 TERMINAL LUG, FEMALE, QD, .25 X .032, 16-14 AQG 4
13 B00179-1 CLOSED END CNTR, 16-3 2
14 B00222 CABLE, 18-4 X 44 IN, SJTO 1
15 B10734 STRAIN RELIEF, HANDLE 1
16 B11199 STRAIN RELIEF, PIGTAIL 1
17 B00218-1 POWERCORD, BRITISH, 25' 1
18 C00323 SCREW, .25-20 X 2.25 IN OVAL HEAD 2
19 B02191 CIRCUIT BREAKER, 1.5 AMP 1
20 B02199 FEMALE CONNECTOR, .110 FED, FULLY INSULATED 2
21 B00185-41 WIRE, 16 GA BLACK, ULCSA, 600V, -60C TO +200C 2
22 C00284 SCREW, 10-32 X .375 GROUND 1
23 B00209 MOMENTARY MICROSWITCH 1
24 B11518 SWITCH INSULATION 1
25 B00180-10-1 RING TERMINAL, #10 CENTER 6
26 B00190 NYLON TIE, 4 IN 2
27 C11541 WASHER, .375IN, STAR 1
28 C00239 WASHER, .5 IN, FLAT 1
29 B00208 SWITCH, TOGGLE, MOM OFF-ON 1
30 C00249 WASHER, NON- ROTATIONAL 1
31 B00210 TOGGLE LEVER, BLACK 1
32 D00339 PW 18 SOLUTION LEVER 1
33 K00722 SOLUTION GRIP, 1800AC 1
34 D00410-1 CORD CLAMP, 18-3 2
35 K11498 HANDLE GRIP, FLOOR MACHINE 2
36 D11479-1 HANDLE, PW-18 1
37 D00361 SPRING, SWITCH, LEVER, 1800AC 2
38 C00306 ROLL PIN, .125 X 1.75 2
39 C00252 WASHER, .375 IN, FLAT 1
40 C11528 SCREW, 10-32 X .25 IN 1
41 H00556-1 LABEL, EDIC, BLUE & WHITE 1
42 D11496B SWITCH BOX COVER, BLACK 1
43 H00559 LABEL, INSTRUCTION, 1800AC 1
44 C11529 SCREW, 10-32 X .375 IN 2
45 B00181 WIRE SPLICE, BLUE, 1 WIRE 2
46 A00102 QD, 1-4F X 1-4FP 1
47 A00053 45 ELBOW, .25MP X .25FP 1
48 C00240 WASHER, SHOULDER, NYLON 3
49 13115A UPPER HOSE ASSY, 13 IN 1
50 K11935 STRAINER, INLINE, .5IN 1
51 D02425 TUBE, BRACKET, PW 18 1
52 13116A LOWER HOSE ASSY, 23 IN 1
53 C02328 SCREW, ALLEN HEAD, 10-24 X .375 IN 1
54 C02249 LOCKWASHER, #10INT, STR, SS 1
55 C00254 LOCKWASHER 2
56 C00313 HEX BOLT, .25-20 X .75 IN 2
57 D00354 VACTUBE, PW18, 45 X 1.5 IN 1
58 J00650 SCREW CLAMP, #24, 1.25 IN 2
59 J00625 CUFF, 1.5IN, GREY 2
60 J00616-10 VACUUM, HOSE, 1.5 X 19 IN 1
1
2
4
3
56 7
89
10
11
13
12
14
15
16
17
23
24
25
26
27
28
29
30 31 32
33
34
35
36
37
38
39
42
41
40
43
45 44
11
46
48
49
16
50
51
52
53
54
55
57
56
58
59 61
60
62
63
64
65 66 67 68
69
70
71
72
47

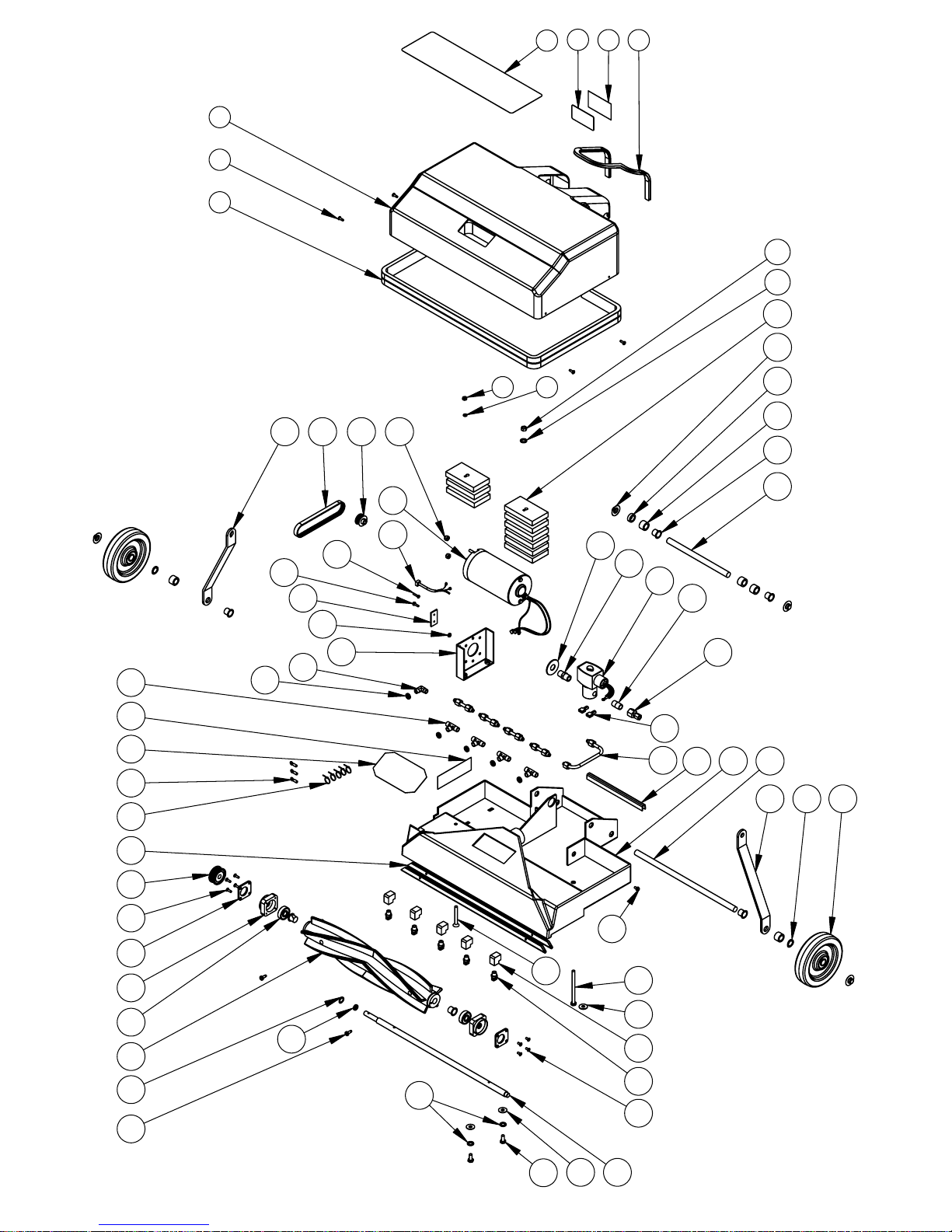

1800AC-100 Base 10-31-07
1800AC-100
Base
10-31-07
18
20
21 22
19
15
15
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY.
1
E00440 Bumper Extrusion, 52 in
1
2
C00293 Screw, .50 in, Black
4
3
F00480B Cover, Black, 1800AC
1
4
H00547-12 Label, 1800AC
1
5
H00565-5 Label, Serial Number
1
6
H03545 Cover, Serial # Label
1
7
E00445-19A Bumper, .50 in X 19 in
1
8
C00264 Hex Nut, 10-32, SS
1
9
C02315 Lockwasher, #10 Int. Str, SS
1
10
C00261 Nut, .25-20, Hex
1
11
C00254 Lockwasher
3
12
D00356-2 Counter-Weight, PW18
9
13
C02305 Cap Nut, .5in Push-on
4
14
K11561 Spacer, .25 lg, Nylon, Natural
1
15
K00662-50 Spacer, .50 lg, Nylon, Natural
5
16
K00674 Bushing, .50 in, Nylon
6
17
D00418-9 Axle, Handle, .5 X 7.56 in
1
18
B00178 Terminal Lug, Male, QD
1
19
B00185-31 Wire, 16 Ga White, UL1015
1
20
B00185-41 Wire, 16 Ga Black, UL-CSA
1
21
B00185-61 Wire, 16 Ga Grn-Yel, UL1015
1
22
B00177 Terminal Lug, Female, QD, .25 X .032
4
23
J11508 Screw Clamp #6, .43 to .875 in
1
24
A00077 .375 Barb X .125 MP
1
25
C00252 Washer, .375 in, Flat
1
26
G02536 Solenoid Valve
1
27
A00076 .25 Barb X
1
28
J00635 Oetiker Clamp, 1-2in
10
29
J00596 Hose, Braided, .25 X 21 in
1
30
E00445-7A Bumper, .50 in X 7 in
1
31
00404 Brush Chamber Assy, 1800AC
1
32
D00418-12 Axle, Wheel, .5 X 12.5 in
1
33
D11481 Handle Brace, Left, Black
1
34
C00246 Washer, .5 in, Wave
2
35
G11943 Wheel, 5 in Saturn
2
36
C00284 Screw, 10-32 X .375 Ground
1
37
C00327-212 Screw, 10-32 X 2.5 in Flat Head Machine Slotted, SS
1
38
C00319 Screw, .25 - 20 X 3.5 lg, Hex
1
39
C00233 Washer, Flat, .25 in
1
40
A00073 90 Elbow, .125 FP X .125 PF Brass
5
41
A00089-2 Spray Tip, 110015 X .125 in MP
5
42
C00307-38 Screw, 8-32 X .375 Flathead
4
43
D00417 Axle, Brush, 0.50 in CRS, PW18
1
44
C00233-1 Washer, Flat, .25 in, SS
2
45
C00313-58 Bolt, .25 - 20 X .5 lg, Hex
2
46
C00298-12 Screw, #10 X .50 in, Pan Head
2
47
D00362 Spacer, .5 in OD
1
48
C00245 Washer, .375 in, Wave
1
49
F00508 Brush, 18 in, PW18
1
50
G00528 Bearing, 10MM, PW18
2
51
G00529 Bearing Cover, 1800AC
2
52
D00408 Brush Spacer, PW18
2
53
C00307-12 Screw, 8-32 X .5 Flathead
4
54
D00398-393 Pulley, .393 Diameter
1
55
D00369 Runner, 18 in, 1800AC
2
56
B00190 Nylon Tie, 4 in
5
57
B00180-10-1 Ring Terminal, #10 Center
3
58
F00496 PW12, PW18 Window
1
59
H02564-2 Label, Caution, Risk Of
1
60
A00129 Tee
4
61
A00130 90 Deg Elbow, .125MP X .25 in Barb, Nylon
1
62
D02370 Bracket, Brush Motor, PS
1
63
C02281 Hex Nut, 6-32, Nylon
1
64
B02171 Mounting Board, Rectifier
1
65
C02245 Screw, 6-32 X .5 in, Hex Head, Slotted, Self Tap
1
66
C02280 Screw, 6-32 X .625 in, Nylon
1
67
00843A Bridge Rectifier
1
68
82538-1A Brush Motor, PSN, 115VDC
1
69
C00278 Locknut, 10-32, Nylon, SS
2
70
D00398-1 Pulley, Motor, Polaris
1
71
L00779-2 Belt, 1800AC
1
72
D11482 Handle Brace, Right, Black
1
1800AC-100 BASE
ITEM # PART # DESCRIPTION QTY
1E00440 BUMPER EXTRUSION, 52 IN 1
2C00293 SCREW, 50 IN, BLACK 4
3F00480B COVER, BLACK 1
4H00547-12 LABEL, 1800AC 1
5H00565-5 LABEL, SERIAL NUMBER 1
6H03545 COVER, SERIAL # LABEL 1
7E00445-19A BUMPER, .50 IN X 19IN 1
8C00264 HEX NUT, 10-32, SS 1
9C02315 LOCKWASHER, #10 INT, STR, SS 1
10 C00261 NUT, .25-20, HEX 1
11 C00254 LOCKWASHER 3
12 D00356-2 COUNTER-WEIGHT, PW18 9
13 C02305 CAP NUT, .5IN PUSH-ON 4
14 K11561 SPACER, .25LG, NYLON, NATURAL 1
15 K00662-50 SPACER, .50LG, NYLON, NATURAL 5
16 K00674 BUSHING, .50IN, NYLON 6
17 D00418-9 AXLE, HANDLE, .5 X 7.56 IN 1
18 B00178 TERMINAL LUG, MALE, QD 1
19 B00185-31 WIRE, 16 GA, WHITE, UL1015 1
20 B00185-41 WIRE, 16 GA, BLACK, UL-CSA 1
21 B00185-61 WIRE, 16 GA, GRN-YEL, UL1015 1
22 B00177 TERMINAL LUG, FEMALE, QD, .25 X .032 4
23 J11508 SCREW CLAMP, #6, .43 TO .875 IN 1
24 A00077 .375 BARB X .125 MP 1
25 C00252 WASHER, .375 IN, FLAT 1
26 G02536 SOLENOID VALVE 1
27 A00076 .25 BARB X 1
28 J00635 OETIKER CLAMP, 1-2 IN 10
29 J00596 HOSE, BRAIDED, .25 X .21 IN 1
30 E00445-1A BUMPER, .50 IN X 7 IN 1
31 D00404 BRUSH CHAMBER ASSY 1
32 D00418-12 AXLE, WHEEL, .5 X 12.5 IN 1
33 D11481 HANDLE, BRACE, LEFT, BLACK 1
34 C00246 WASHER, .5IB, WAVE 2
35 G11943 WHEEL, .5IN SATURN 2
36 C00284 SCREW, 10-32 X .375 GROUND 1
37 C00327-212 SCREW, 10-32 X 2.5 IN FLAT HEAD MACHINE SLOTTED, SS 1
38 C00319 SCREW, .25-20 X 3.5 LG, HEX 1
39 C00233 WASHER, FLAT, .25 IN 1
40 A00073 90 ELBOW, .125FP X .125 PF, BRASS 5
41 A00089-2 SPRAY TIP, 110015 X .125 IN MP 5
42 C00307-38 SCREW, 8-32 X .375 FLATHEAD 4
43 D00417 AXLE, BRUSH, .50 IN CRS, PW18 1
44 C00233-1 WASHER, FLAT, .25 IN, SS 2
45 C00313-58 BOLT, .25-20 X .5 LG, HEX 2
46 C00298-12 SCREW, #10 X .50 IN, PAN HEAD 2
47 D00362 SPACER, .5 IN OD 1
48 C00245 WASHER, .375 IN WAVE 1
49 F00508 BRUSH, 18 IN, PW 18 1
50 G00528 BEARING, 10MM 2
51 G00529 BEARING COVER 2
52 D00408 BRUSH SPACER 2
53 C00307-12 SCREW, 8-32 X .5 FLATHEAD 4
54 D00398-393 PULLEY, .393 DIAMETER 1
55 D00369 RUNNER, 18 IN 2
56 B00190 NYLON TIE, 4 IN 5
57 B00180-10-1 RING TERMINAL, #10 CENTER 1
58 F00496 WINDOW 1
59 H02564-2 LABEL, CAUTION, RISK OF 1
60 A00129 TEE 4
61 A00130 90 DEG. ELBOW, .125 MP X .25 IN BARB, NYLON 1
62 D02370 BRACKET, BRUSH MOTOR 1
63 C02281 HEX NUT, 6-32 NYLON 1
64 B02171 MOUNTING BOARD, RECTIFIER 1
65 C02245 SCREW, 6-32 X .5 IN HEX HEAD, SLOTTED, SELF TAP 1
66 C02280 SCREW, 6-32 X .625 IN, NYLON 1
67 00843A BRIDGE RECTIFIER 1
68 82538-1A BRUSH MOTOR, 115VDC 1
69 C00278 LOCKNUT, 10-32 NYLON, SS 2
70 D00398-1 PULLEY, MOTOR 1
71 L00779-2 BELT 1
72 D11482 HANDLE, BRACE, RIGHT, BLACK 1
1
8 9 10 11
5
4
6
7
2
13
14
15
16
17
19
24
23
22
18
13
26
25
27
28
29
30
31
34
32
33 35 383736 41 42 43 44
46
47
48
49
52
62
60
53
54
55
56
57
3
1800AC-200 Handle
3-20-08
1800AC-200 Handle
3-20-08
39 40
20 61
12
58
59
45
50 51
21
12
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY.
1
C11619 Allen Wrench, .31 in
1
2
11507A Assembled Locking Handle, Cord Hook
1
3
C11558 Locknut, Black Oxide, Thin
2
4
D11507-2 Cord Hook Body
1
5
D11507 Cord Hook Clamp
1
6
C11502 Socket Cap Screw, .375-16 X 2.5 in
1
7
C11537 Dowel Pin, .31 X 1.5 in
1
8
D11497 Handle, Locking Clamp
1
9
C11538 Cap Nut, .31 in, Push-On
1
10
C00259 Washer, Slotted, Zinc
1
11
C11536 Spade Bolt, .375-16 X 4 in
1
12
B00177 Terminal Lug, Female, QD, .25 X .032, 16-14 AWG, Fully Insulated
4
13
B00179-1 Closed End Cntr, 16-3
2
14
B00222 Cable, 18-4 X 44 in, SJTO
1
15
B10734 Strain Relief, Handle
1
16
B11199 Strain Relief, Pigtail
1
17
B00217-1 Powercord, Powermate, 25'
1
18
C00323 Screw, .25-20 X 2.25 in. Oval Head
2
19
B02192 Circuit Breaker, 3 Amp
1
20
B02199 Female Connector, .110, Red, Fully Insulated
2
21
B00185-41 Wire, 16 Ga Black, ULCSA, 600V, -60C to + 200C
2
22
C00284 Screw, 10-32 X .375 Ground
1
23
B00209 Momentary Microswitch
1
24
B11518 Switch Insulation
1
25
B00180-10-1 Ring Terminal, #10 Center
6
26
B00190 Nylon Tie, 4 in
2
27
C11541 Washer, .375 in, Star
1
28
C00239 Washer, .5 in, Flat
1
29
B00208 Switch, Toggle, Mom Off-On
1
30
C00249 Washer, Non-Rotational
1
31
B00210 Toggle Lever, Black
1
32
D00339 PW18 Solution Lever
1
33
K00722 Solution Grip, 1800AC
1
34
D00410-1 Cord Clamp, 18-3
2
35
K11498 Handle Grip, Floor Machine
2
36
D11479-1 Handle, PW-18
1
37
D00361 Spring, Switch, Lever, 1800AC
2
38
C00306 Roll Pin, .125 X 1.75
2
39
C00252 Washer, .375 in, Flat
1
40
C11528 Screw, 10-32 X .25 in
1
41
H00556-1 Label, EDIC, Blue & White
1
42
D11496B Switch Box Cover, Black
1
43
H00559 Label, Instruction, 1800AC
1
44
C11529 Screw, 10-32 X .375 in
2
45
B00181 Wire Splice, Blue, 1 Wire
2
46
A00102 QD, 1-4F X 1-4FP
1
47
A00053 45 Elbow, .25MP X .25 FP
1
48
C00240 Washer, Shoulder, Nylon
3
49
00580-15 in-A Hose Asm, 15 in X .25 in, High Pressure
1
50
C00313 Hex Bolt, .25-20 X .75 in
2
51
C00254 Lockwasher
2
52
D02425 Tube, Bracket, PW 18
1
53
00580-24 in-MF-A Hose Asm, 24 in X .25 in, High Pressure
1
54
D00354 Vactube, PW18, 45 X 1.5 in
1
55
J00650 Screw Clamp, #24, 1.25in
2
56
J00625 Cuff, 1.5 in, Grey
2
57
J00616-10 Vacuum Hose, 1.5 X 19 in
1
58
C02249 Lockwasher, #10 Int. Str, SS
1
59
C02328 Screw, Allen Head, 10-24 X .375 in
1
60
A00097B Filter, Inline, Body
1
61
A00097C Checkvalve, 100 Mesh
1
62
A00097A Cap, Inline Filter
1
1800AC-200 HANDLE
ITEM # PART # DESCRIPTION QTY
1C11619 ALLEN WRENCH, .31 IN 1
211507A ASSEMBLED LOCKING HANDLE, CORD HOOK 1
3C11558 LOCKNUT, BLACK OXIDE, THIN 2
4D11507-2 CORD HOOK BODY 1
5D11507 CORD HOOK CLAMP 1
6C11502 SOCKET CAP SCREW, .375-16 X 2.5 IN 1
7C11537 DOWEL PIN, .31 X 1.5 IN 1
8D11497 HANDLE, LOCKING CLAMP 1
9C11538 CAP NUT, .31 IN, PUSH ON 1
10 C00259 WASHER, SLOTTED, ZINC 1
11 C11536 SPADE BOLT, .375-16 X 4 IN 1
12 B00177 TERMINAL LUG, FEMALE, QD, .25 X .032, 16-14 AQG 4
13 B00179-1 CLOSED END CNTR, 16-3 2
14 B00222 CABLE, 18-4 X 44 IN, SJTO 1
15 B10734 STRAIN RELIEF, HANDLE 1
16 B11199 STRAIN RELIEF, PIGTAIL 1
17 B00217-1 POWERCORD, POWERMATE, 25' 1
18 C00323 SCREW, .25-20 X 2.25 IN OVAL HEAD 2
19 B02192 CIRCUIT BREAKER, 3 AMP 1
20 B02199 FEMALE CONNECTOR, .110 FED, FULLY INSULATED 2
21 B00185-41 WIRE, 16 GA BLACK, ULCSA, 600V, -60C TO +200C 2
22 C00284 SCREW, 10-32 X .375 GROUND 1
23 B00209 MOMENTARY MICROSWITCH 1
24 B11518 SWITCH INSULATION 1
25 B00180-10-1 RING TERMINAL, #10 CENTER 6
26 B00190 NYLON TIE, 4 IN 2
27 C11541 WASHER, .375IN, STAR 1
28 C00239 WASHER, .5 IN, FLAT 1
29 B00208 SWITCH, TOGGLE, MOM OFF-ON 1
30 C00249 WASHER, NON- ROTATIONAL 1
31 B00210 TOGGLE LEVER, BLACK 1
32 D00339 PW 18 SOLUTION LEVER 1
33 K00722 SOLUTION GRIP, 1800AC 1
34 D00410-1 CORD CLAMP, 18-3 2
35 K11498 HANDLE GRIP, FLOOR MACHINE 2
36 D11479-1 HANDLE, PW-18 1
37 D00361 SPRING, SWITCH, LEVER, 1800AC 2
38 C00306 ROLL PIN, .125 X 1.75 2
39 C00252 WASHER, .375 IN, FLAT 1
40 C11528 SCREW, 10-32 X .25 IN 1
41 H00556-1 LABEL, EDIC, BLUE & WHITE 1
42 D11496B SWITCH BOX COVER, BLACK 1
43 H00559 LABEL, INSTRUCTION, 1800AC 1
44 C11529 SCREW, 10-32 X .375 IN 2
45 B00181 WIRE SPLICE, BLUE, 1 WIRE 2
46 A00102 QD, 1-4F X 1-4FP 1
47 A00053 45 ELBOW, .25MP X .25FP 1
48 C00240 WASHER, SHOULDER, NYLON 3
49 00580-15IN-A HOSE ASSEMBLY, 15 IN X .25 IN, HIGH PRESSURE 1
50 C00313 HEX BOLT, .25-20 X .75IN 2
51 C00254 LOCKWASHER 2
52 D02425 TUBE, BRACKET, PW 18 1
53 00580-24IN-MF-A HOSE ASSEMBLY, 24 IN X .25 IN, HIGH PRESSURE 1
54 D00354 VACTUBE, PW18, 45 X 1.5IN 1
55 J00650 SCREW CLAMP, #24, 1.25 IN 2
56 J00625 CUFF, 1.5IN, GREY 2
57 J00616-10 VACUUM HOSE, 1.5 X 19 IN 1
58 C02249 LOCKWASHER, #10 INT, STR, SS 1
59 C02328 SCREW, ALLEN HEAD, 10-24 X .375 IN 1
60 A00097B FILTER, INLINE, BODY 1
61 A00097C CHECKVALVE, 100 MESH 1
62 A00097A CAP, INLINE FILTER 1
1
2
3
456 7
10
11
12
13
14
15
16
17
18
21
20
24 25 26
22
27
28 29 30
33
32
35
36
38
42
39
40
37
43
44
45
46
47
48
31
49
51
52
53
54 55 56 57
58
59
62
60
6566
41
1800AC-200
BASE
11-6-07
1800AC-200 BASE
11-6-07
64
63
34
55
50
67
98
19
61
11
23
ITEM
NO.
PART NUMBER
DESCRIPTION
QTY.
1
E00440 Bumper Extrusion, 52 in
1
2
C00293 Screw, .50 in, Black
4
3
F00480B Cover, Black, 1800AC
1
4
H00547-12 Label, 1800AC
1
5
H00565-5 Label, Serial Number
1
6
H03545 Cover, Serial # Label
1
7
E00445-19A Bumper, .50 in X 19 in
1
8
C00264 Hex Nut, 10-32, SS
1
9
C02315 Lockwasher, #10 Int. Str, SS
1
10
C00261 Nut, .25-20, Hex
1
11
C00254 Lockwasher
3
12
D00356-2 Counter-Weight, PW18
9
13
C02305 Cap Nut, .5in Push-on
4
14
K11561 Spacer, .25 lg, Nylon, Natural
1
15
K00662-50 Spacer, .50 lg, Nylon, Natural
5
16
K00674 Bushing, .50 in, Nylon
6
17
D00418-9 Axle, Handle, .5 X 7.56 in
1
18
C11244 Washer
1
19
A12960 Solenoid
1
20
G00527-1 Solenoid Valve, 200 PSI
1
21
A00111 Nipple, .25 in, Close, Brass
1
22
A00145 .25FP X .25C
1
23
B00177 Terminal Lug, Female, QD, .25 X .032, 16-14 AWG, Fully Insulated
2
24
A00085 Copper Tubing, .25 in
1
25
E00445-7A Bumper, .50 in X 7 in
1
26
00404 Brush Chamber Assy, 1800AC
1
27
D00418-12 Axle, Wheel, .5 X 12.5 in
1
28
D11481 Handle Brace, Left, Black
1
29
C00246 Washer, .5 in, Wave
2
30
G11943 Wheel, 5 in Saturn
2
31
C00284 Screw, 10-32 X .375 Ground
1
32
C00327-212 Screw, 10-32 X 2.5 in Flat Head Machine Slotted, SS
1
33
C00319 Screw, .25 - 20 X 3.5 lg, Hex
1
34
C00233 Washer, Flat, .25 in
1
35
A00073 90 Elbow, .125 FP X .125 PF Brass
5
36
A00089-2 Spray Tip, 110015 X .125 in MP
5
37
C00307-38 Screw, 8-32 X .375 Flathead
4
38
D00417 Axle, Brush, 0.50 in CRS, PW18
1
39
C00233-1 Washer, Flat, .25 in, SS
2
40
C00313-58 Bolt, .25 - 20 X .5 lg, Hex
2
41
C00298-12 Screw, #10 X .50 in, Pan Head
2
42
C00245 Washer, .375 in, Wave
1
43
F00508 Brush, 18 in, PW18
1
44
G00528 Bearing, 10MM, PW18
2
45
G00529 Bearing Cover, 1800AC
2
46
D00408 Brush Spacer, PW18
2
47
C00307-12 Screw, 8-32 X .5 Flathead
4
48
D00398-393 Pulley, .393 Diameter
1
49
D00369 Runner, 18 in, 1800AC
2
50
B00190 Nylon Tie, 4 in
5
51
B00180-10-1 Ring Terminal, #10 Center
3
52
F00496 PW12, PW18 Window
1
53
H02564-2 Label, Caution, Risk Of
1
54
A00143 Tee, .125MP X .25C X .25C
4
55
D00362 Spacer, .5 in OD
6
56
A00132 90 Elbow, .125MP X .25C
1
57
D02370 Bracket, Brush Motor, PS
1
58
C02281 Hex Nut, 6-32, Nylon
1
59
B02171 Mounting Board, Rectifier
1
60
C02245 Screw, 6-32 X .5 in, Hex Head, Slotted, Self Tap
1
61
C02280 Screw, 6-32 X .625 in, Nylon
1
62
00843A Bridge Rectifier
1
63
82538-1A Brush Motor, PSN, 115VDC
1
64
C00278 Locknut, 10-32, Nylon, SS
2
65
D00398-1 Pulley, Motor, Polaris
1
66
L00779-2 Belt, 1800AC
1
67
D11482 Handle Brace, Right, Black
1
1800AC-200 BASE
ITEM # PART # DESCRIPTION QTY
1E00440 BUMPER EXTRUSION, 52 IN 1
2C00293 SCREW, 50 IN, BLACK 4
3F00480B COVER, BLACK 1
4H00547-12 LABEL, 1800AC 1
5H00565-5 LABEL, SERIAL NUMBER 1
6H03545 COVER, SERIAL # LABEL 1
7E00445-19A BUMPER, .50 IN X 19IN 1
8C00264 HEX NUT, 10-32, SS 1
9C02315 LOCKWASHER, #10 INT, STR, SS 1
10 C00261 NUT, .25-20, HEX 1
11 C00254 LOCKWASHER 3
12 D00356-2 COUNTER-WEIGHT, PW18 9
13 C02305 CAP NUT, .5IN PUSH-ON 4
14 K11561 SPACER, .25LG, NYLON, NATURAL 1
15 K00662-50 SPACER, .50LG, NYLON, NATURAL 5
16 K00674 BUSHING, .50IN, NYLON 6
17 D00418-9 AXLE, HANDLE, .5 X 7.56 IN 1
18 C11244 WASHER 1
19 A12960 SOLENOID 1
20 G00527-1 SOLENOID VALVE, 200 PSI 1
21 A00111 NIPPLE, .25, CLOSE, BRASS 1
22 A00145 .25FP X .25C 1
23 B00177 TERMINAL LUG, FEMALE, QD, .25 X .032, 16-14 AWG 2
24 A00085 COPPER TUBING, .25 IN 1
25 E00445-7A BUMPER, .50IN X 7IN 1
26 D00404 BRUSH CHAMBER ASSY, 1800AC 1
27 D00418-12 AXLE, WHEEL, .5 X 12.5 IN 1
28 D11481 HANDLE BRACE, LEFT, BLACK 1
29 C00246 WASHER, .5IN, WAVE 2
30 G11943 WHEEL, 5 IN SATURN 2
31 C00284 SCREW, 10-32 X .375 GROUND 1
32 C00327-212 SCREW, 10-32 X 2.5 IN FLAT HEAD MACHINE SLOTTED, SS 1
33 C00319 SCREW, .25-20 X 3.5LG, HEX 1
34 C00233 WASHER, FLAT, .25IN 1
35 A00073 90 ELBOW, .125 FP X .125 PF BRASS 5
36 A00089-2 SPRAY TIP, 110015 X .125 IN MP 5
37 C00307-38 SCREW, 8-32 X .375 FLATHEAD 4
38 D00417 AXLE, BRUSH, .50 IN CRS, PW18 1
39 C00233-1 WASHER, FLAT, .25IN, SS 2
40 C00313-58 BOLT, .25-20 X .5LG, HEX 2
41 C00298-12 SCREW, #10 X .50IN PAN HEAD 2
42 C00245 WASHER, .375IN, WAVE 1
43 F00508 BUSH, 18 IN, PW18 1
44 G00528 BEARING, 10 MM, PW18 2
45 G00529 BEARING COVER, 1800AC 2
46 D00408 BRUSH SPACER, PW18 2
47 C00307-12 SCREW, 8-32 X .5 FLATHEAD 4
48 D00398-393 PULLEY, .393 DIAMETER 1
49 D00369 RUNNER, 18 IN, 1800AC 2
50 B00190 NYLON TIE, 4 IN 5
51 B00180-10-1 RING TERMINAL, #10 CENTER 3
52 F00496 WINDOW, PW 18 1
53 H02564-2 LABEL, CAUTION, RISK OF 1
54 A00143 TEE, .125 MP X .25 C X .25 C 4
55 D00362 SPACER, .5 IN OD 6
56 A00132 90 ELBOW, .125 MP X .25C 1
57 D02370 BRACKET, BRUSH MOTOR, PS 1
58 C02281 HEX NUT, 6-32, NYLON 1
59 B02171 MOUNTING BOARD, RECTIFIER 1
60 C02245 SCREW, 6-32 X .5IN, HEX HEAD, SLOTTED, SELF TAP 1
61 C02280 SCREW, 6-32 X .625 IN, NYLON 1
62 00843A BRIDGE RECTIFIER 1
63 82538-1A BRUSH MOTOR, 115VDC 1
64 C00278 LOCKNUT, 10-32, NYLON, SS 2
65 D00398-1 PULLEY, MOTOR 1
66 L00779-2 BELT, 1800AC 1
67 D11482 HANDLE BRACE, RIGHT, BLACK 1
This manual suits for next models
1
Table of contents
