PowerNet HomePNA3.0 User manual

HomePNA3.0 (with 802.11g)
ADSL2+ Firewall Router
User’s Manual
Version Release 1.04 8/15/2006

T
Ta ab bl le e o of f C Co on nt te en nt ts s
CHAPTER 1: INTRODUCTION ............................................................................................................. 3
INTRODUCTION TO YOUR ROUTER ............................................................................................................. 3
FEATURES .................................................................................................................................................. 3
CHAPTER 2: INSTALLING THE ROUTER ......................................................................................... 6
IMPORTANT NOTE FOR USING THIS ROUTER ................................................................................................ 6
PACKAGE CONTENTS ................................................................................................................................. 6
THE FRONT LEDS...................................................................................................................................... 7
THE REAR PORTS....................................................................................................................................... 8
CABLING.................................................................................................................................................... 8
CHAPTER 3: BASIC INSTALLATION.................................................................................................. 9
CONNECTING YOUR ROUTER ................................................................................................................... 10
CONFIGURING PC IN WINDOWS XP..........................................................................................................11
CONFIGURING PC IN WINDOWS 2000 ...................................................................................................... 12

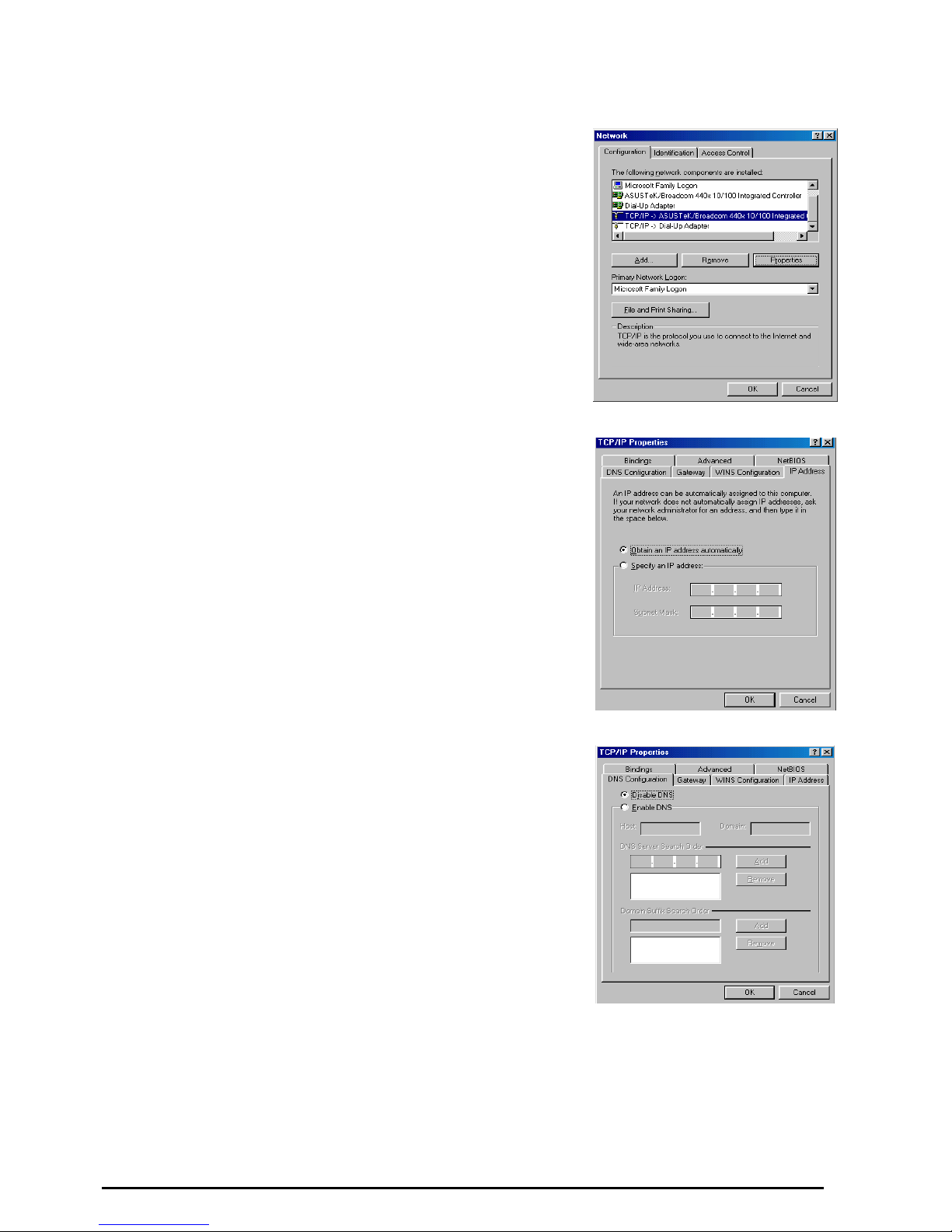

CONFIGURING PC IN WINDOWS 95/98/ME.............................................................................................. 13
CONFIGURING PC IN WINDOWS NT4.0.................................................................................................... 14
FACTORY DEFAULT SETTINGS .................................................................................................................. 15
Web Interface (Username and Password) .......................................................................................... 15
LAN Device IP Settings ...................................................................................................................... 15
ISP setting in WAN site ....................................................................................................................... 15
DHCP server ...................................................................................................................................... 15
LAN and WAN Port Addresses............................................................................................................ 15
INFORMATION FROM YOUR ISP ................................................................................................................ 16
CONFIGURING WITH YOUR WEB BROWSER .............................................................................................. 17
CHAPTER 4: CONFIGURATION......................................................................................................... 18
STATUS .................................................................................................................................................... 19
ARP Table ........................................................................................................................................... 19
Wireless Association Table (Wireless model only).............................................................................. 20
Routing Table...................................................................................................................................... 20
DHCP Table........................................................................................................................................ 21
HomePNA ........................................................................................................................................... 22
Email Status........................................................................................................................................ 22
Event Log............................................................................................................................................ 23
Error Log............................................................................................................................................ 23
NAT Sessions ...................................................................................................................................... 23
Diagnostic........................................................................................................................................... 24
UPnP Portmap ................................................................................................................................... 24
QUICK START ........................................................................................................................................... 25
CONFIGURATION ...................................................................................................................................... 27
LAN (Local Area Network)................................................................................................................. 27
Bridge Interface .............................................................................................................................. 27
Ethernet........................................................................................................................................... 28
IP Alias............................................................................................................................................ 28
Ethernet Client Filter ...................................................................................................................... 29
Wireless (Wireless model only)...................................................................................................... 30
Wireless Security (Wireless model only) ....................................................................................... 31
Wireless Client (MAC Address) Filter (Wireless model only)....................................................... 33
Port Setting ..................................................................................................................................... 34
Table of Contents i

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
HomePNA ...................................................................................................................................... 34
DHCP Server .................................................................................................................................. 35
WAN (Wide Area Network) ................................................................................................................. 36
ISP .................................................................................................................................................. 36
DNS ................................................................................................................................................ 44
ADSL.............................................................................................................................................. 45
System ................................................................................................................................................. 46
Time Zone....................................................................................................................................... 46
Remote Access................................................................................................................................ 47
Firmware Upgrade.......................................................................................................................... 47
Backup / Restore............................................................................................................................. 48
Restart Router................................................................................................................................. 48
User Management........................................................................................................................... 49
Firewall and Access Control .............................................................................................................. 50
General Settings.............................................................................................................................. 51
Packet Filter.................................................................................................................................... 52
Intrusion Detection ......................................................................................................................... 59
URL Filter....................................................................................................................................... 61
Firewall Log ................................................................................................................................... 63
QoS (Quality of Service)..................................................................................................................... 64
Prioritization ................................................................................................................................... 64
Outbound IP Throttling (LAN to WAN)......................................................................................... 66
Inbound IP Throttling (WAN to LAN) ........................................................................................... 67
Example: QoS for your Network.................................................................................................... 68
Virtual Server (“Port Forwarding”) .................................................................................................. 71
Add Virtual Server.......................................................................................................................... 71
Edit DMZ Host ............................................................................................................................... 73
Edit One-to-One NAT (Network Address Translation) .................................................................. 74
List of some well-known and registered port numbers. ................................................................. 76
Time Schedule..................................................................................................................................... 77
Configuration of Time Schedule .................................................................................................... 78
Advanced ............................................................................................................................................ 79
Static Route..................................................................................................................................... 79
Dynamic DNS ................................................................................................................................ 80
Check Email ................................................................................................................................... 81
Device Management....................................................................................................................... 82
IGMP .............................................................................................................................................. 85
VLAN Bridge ................................................................................................................................. 86
SAV E CONFIGURATION TO FLASH............................................................................................................. 90
LOGOUT................................................................................................................................................... 90
CHAPTER 5: TROUBLESHOOTING .................................................................................................. 91
PROBLEMS STARTING UP THE ROUTER...................................................................................................... 91
PROBLEMS WITH THE WA N INTERFACE ................................................................................................... 91
PROBLEMS WITH THE LAN INTERFACE.................................................................................................... 92
APPENDIX A: PRODUCT SUPPORT AND CONTACT INFORMATION...................................... 93
Table of Contents ii

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 1: Introduction
Introduction to your Router
Welcome to the Router. The router is an “all-in-one” unit, combining an ADSL modem, IEEE 802.11g
wireless access point (Wireless model only), HomePNA3.0 over exiting in-house phoneline. ADSL router
with four-port 10/100M auto-crossover Switch and Firewall that enabling you to maximize the potential of
your existing resources. The router can provide everything you need to get the machines on your
network connected to the Internet over your ADSL broadband connection. It supports the latest
ADSL2/2+ technology enabling high-speed data rates of up to 24Mbps, Its powerful QoS feature for
traffic priority and bandwidth management, and security features make the device a perfect mate to the
office user or for anyone who has the compelling needs to transmit sensitive data more securely. With
integrated 54Mbps 802.11g Access Point in this device (Wireless model only), the router brings up the
productivity and mobility to office users.
With the latest HomePNA3.0 technology, the router supports up to 128Mbps high-speed transmission
rate for IPTV and Triple Play over the existing phoneline networking at home. The glossaries HomePNA
and HPNA are synonyms.
With features such as an ADSL Quick-Start wizard and DHCP Server, you can be online in no time at all
and with a minimum of fuss and configuration, catering for first-time users to the guru requiring
advanced features and control over their Internet connection and network.
Features
The HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router combines high-speed Internet access,
networking, HomePNA3.0 and advanced security for office local area network. It provides:
Express Internet Access
The router complies with ADSL worldwide standards. It supports downstream rate up to 12/24
Mbps with ADSL2/2+, 8Mbps with ADSL. Users enjoy not only high-speed ADSL services but also
broadband multimedia applications such as interactive gaming, video streaming and real-time
audio much easier and faster than ever. It is compliant with Multi-Mode standard (ANSI T1.413,
Issue 2; G.dmt (ITU G.992.1); G.lite (ITU G.992.2); G.hs (ITU G994.1); G.dmt.bis (ITU G.992.3);
G.dmt.bisplus (ITU G.992.5)).
802.11g Wireless AP with WPA Support (Wireless model only)
With integrated 802.11g Wireless Access Point in the router, the device offers a quick and easy
access among wired network, wireless network and broadband connection (ADSL) with single
device simplicity, and as a result, mobility to the users. In addition to 54 Mbps 802.11g data rate, it
also interoperates backward with existing 802.11b equipment. The Wireless Protected Access
(WPA) and Wireless Encryption Protocol (WEP) supported features enhance the security level of
data protection and access control via Wireless LAN.
128Mbps HomePNA3.0 Connection
Compliant with ITU G.9954 HomePNA3.0 standard, use existing telephone line for high speed
Home Networking LAN. This newest Ethernet compatible technology is designed to operate on the
telephone wires installed in home. Cooperate with the HomePNA3.0 Ethernet Bridge (like PET-320
as Endpoint or EP) to extract the PSTN signal and Ethernet packets.
Chapter 1: Introduction
3

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
No Additional Wiring
Users can utilize the existing phoneline network to enjoy ADSL WAN services. And adopt
HomePNA3.0 that uses the in-house phone lines as Home Networking physical wiring LAN. Just
connect the phoneline to the router, and you can extend high-speed applications without extra
setting and new wiring. With this plug-and-play device, you don’t need to make extra efforts to re-
build your home network environment. In addition, you can keep your PSTN signal and Ethernet
LAN with the built-in HPNA connector.
IPTV and Triple Play
Users enjoy not only high-speed ADSL services but also broadband multimedia applications such
as interactive gaming, video streaming and real-time audio much easier and faster than ever.
Particularly, the router also supports the latest ADSL2/2+ Annex M technology for higher upload
speed by doubling the upstream data rate. Through HomePNA3.0, users can enjoy watching IPTV
as well as high-speed Internet services, interactive gaming and real-time audio in every room.
Fast Ethernet Switch
A 4-port 10/100Mbps fast Ethernet switch is built in with automatic switching between MDI and
MDI-X for 10Base-T and 100Base-TX ports. An Ethernet straight or crossover cable can be used
directly for auto detection.
Multi-Protocol to Establish a Connection
Supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 1483 encapsulation over
ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a
connection with the ISP. The product also supports VC-based and LLC-based multiplexing.
Quick Installation Wizard
Supports a WEB GUI page for install this device quickly. With this wizard, end users can enter the
information easily which they get from their ISP, then surf the Internet immediately.
Universal Plug and Play (UPnP) and UPnP NAT Traversal
This protocol is used to enable simple and robust connectivity among stand-alone devices and
PCs from many different vendors. It makes network simple and affordable for users. UPnP
architecture leverages TCP/IP and the Web to enable seamless proximity networking in addition to
control and data transfer among networked devices. With this feature enabled, users can now
connect to Net meeting or MSN Messenger seamlessly.
Network Address Translation (NAT)
Allows multi-users to access outside resources such as the Internet simultaneously with one IP
address/one Internet access account. Many application layer gateway (ALG) are supported such
as web browser, ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting, IP phone and
others.
SOHO Firewall Security with DoS and SPI
Along with the built-in NAT natural firewall feature, the router also provides advanced hacker
pattern-filtering protection. It can automatically detect and block Denial of Service (DoS) attacks.
The router is built with Stateful Packet Inspection (SPI) to determine if a data packet is allowed
through the firewall to the private LAN.
Domain Name System (DNS) relay
Provides an easy way to map the domain name (a friendly name for users such as
www.yahoo.com) and IP address. When local machine sets its DNS server with this router’s IP
address, every DNS conversion request packet from the PC to this router will be forwarded to the
real DNS in the outside network.
Chapter 1: Introduction
4

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 1: Introduction
Dynamic Domain Name System (DDNS)
The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname. This
dynamic IP address is the WAN IP address. For example, to use the service, you must first apply
for an account from a DDNS service like http://www.dyndns.org/. More than 5 DDNS servers are
supported.
Quality of Service (QoS)
QoS gives you full control over which types of outgoing data traffic should be given priority by the
router, ensuring important data like gaming packets, customer information, or management
information move through the router ay lightning speed, even under heavy load. The QoS features
are configurable by source IP address, destination IP address, protocol, and port. You can throttle
the speed at which different types of outgoing data pass through the router, to ensure P2P users
don’t saturate upload bandwidth, or office browsing doesn’t bring client web serving to a halt. In
addition, or alternatively, you can simply change the priority of different types of upload data and let
the router sort out the actual speeds.
Virtual Server (“port forwarding”)
Users can specify some services to be visible from outside users. The router can detect incoming
service requests and forward either a single port or a range of ports to the specific local computer
to handle it. For example, a user can assign a PC in the LAN acting as a WEB server inside and
expose it to the outside network. Outside users can browse inside web servers directly while it is
protected by NAT. A DMZ host setting is also provided to a local computer exposed to the outside
network, Internet.
Rich Packet Filtering
Not only filters the packet based on IP address, but also based on Port numbers. It will filter
packets from and to the Internet, and also provides a higher level of security control.
Dynamic Host Configuration Protocol (DHCP) client and server
In the WAN site, the DHCP client can get an IP address from the Internet Service Provider (ISP)
automatically. In the LAN site, the DHCP server can allocate a range of client IP addresses and
distribute them including IP address, subnet mask as well as DNS IP address to local computers. It
provides an easy way to manage the local IP network.
Static and RIP1/2 Routing
Supports an easy static routing table or RIP1/2 routing protocol support routing capability.
Simple Network Management Protocol (SNMP)
It is an easy way to remotely manage the router via SNMP.
Web based GUI
Supports web based GUI for configuration and management. It is user-friendly and comes with on-
line help. It also supports remote management capability for remote users to configure and
manage this product.
Firmware Upgradeable
Device can be upgraded to the latest firmware through the WEB based GUI.
Rich management interfaces
Supports flexible management interfaces with local console port, LAN port, Phoneline port and
WAN port. Users can use terminal applications through the console port to configure and manage
the device, or Telnet, WEB GUI, and SNMP through LAN or WAN ports to configure and manage
the device.
5

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 2: Installing the Router
Chapter 2: Installing the Router
Important note for using this router
Warnin
g
Do not use this router in high humidity or high temperatures.
Do not use the same power source for this router as other
equipment.
Do not open or repair the case yourself. If this router is too hot,
turn off the power immediately and have it repaired at a qualified
service center.
Avoid using this product and all accessories outdoors.
Attention
Place this router on a stable surface.
Only use the power adapter that comes with the package. Using
a different voltage rating power adaptor may damage this router.
Package Contents
HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
CD-ROM containing the online manual
RJ-11 ADSL/telephone cable
Ethernet (CAT-5 LAN) cable
A detachable antenna (Wireless model only)
AC-DC power adapter (12VDC, 1A)
Quick Start Guide
6

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 2: Installing the Router
The Front LEDs
LED Meaning
1 Power Lit when power is ON.
2 SYS Lit when the system is ready.
4 Wireless
(Wireless model only)
Lit green when the wireless connection is established.
Flashes when sending/receiving data.
5 Link/Act
Lit when HPNA port is connected to other HPNA device(s) via in-
house phoneline.
Flashing when HPNA is receiving or transmitting data
6 SyncMode Lit when HPNA is running on Synchronous mode
7-10
LAN Port
1X — 4X
(RJ-45 connector)
Lit when the LAN link is connected to an Ethernet device.
Green for 100Mbps; Orange for 10Mbps.
Blinking when data is transmitted or received.
12 ADSL When lit, it indicates that the ADSL (Line) port is connected to the
DSLAM and working properly.
13 Internet Lit steady when there is a PPPoA / PPPoE connection.
Lit and flashed periodically when there is email in the Inbox.
7

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 2: Installing the Router
The Rear Ports
1
3
4
5
2
Port Meaning
1 Power Switch Power ON/OFF switch
2 PWR (DC 12V/1A) Connect the supplied power adapter to this jack.
3 RESET
After the device is powered on, press it to reset the device or restore to
factory default settings.
0-3 seconds: reset the device
6 seconds above: restore to factory default settings (this is used when
you cannot login to the router. E.g.: forgot the password)
4ADSL /HPNA Connect to ADSL/HPNA Splitter, then to in-house phoneline wiring and
ADSL/telephone network.
5
LAN
1X — 4X
(RJ-45 connector)
Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four
LAN ports when connecting to a PC or an office/home network of
10Mbps or 100Mbps.
Cabling
One of the most common causes of problems is bad cabling. Make sure that all connected devices are
turned on. On the front of the product is a bank of LEDs. Verify that the relevant HPNA link(Link/Act),
LAN link and ADSL line LEDs are lit. If they are not, verify that you are using the proper cables.
Ensure that all other devices connected to the same telephone line as your router (e.g. telephones, fax
machines, analogue modems) have a line filter connected between them and the wall socket (unless
you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and
ensure that all line filters are correctly installed and the right way around. Missing line filters or line filters
installed the wrong way around can cause problems with your ADSL connection, including causing
frequent disconnections.
8

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 3: Basic Installation
Chapter 3: Basic Installation
The router can be configured with your web browser. A web browser is included as a standard
application in the following operating systems: Linux, Mac OS, Windows 98/NT/2000/XP/Me, etc. The
product provides a very easy and user-friendly interface for configuration.
PC must have an Ethernet interface installed properly and be connected to the router either directly or
through an external repeater hub. PC needs TCP/IP installed and be in the same subnet as the router.
The default IP address of the router is 10.0.0.138 and the subnet mask is 255.0.0.0 (i.e. any attached
PC must be in the same subnet, and have an IP address like 10.0.0.xxx). The best and easiest way is to
configure the PC to get an IP address automatically from the router using DHCP. If you encounter any
problems accessing the router’s web interface it may also be advisable to uninstall any kind of software
firewall on your PCs, as they can cause problems accessing the 10.0.0.138 IP address of the router.
Users should make their own decisions on how to best protect their network.
Please follow the steps below for your PC’s network environment installation. First of all, please check
your PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be
installed. If not, please refer to your Windows-related or other operating system manuals.
Any TCP/IP capable workstation can be used to communicate with or through
the router. To configure other types of workstations, please consult the
manufacturer’s documentation.
9

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 3: Basic Installation
Connecting your Router
1. Connect the Router to LAN (Local Area Network) and the splitter, then to in-house phoneline
wiring (HPNA) and ADSL/telephone network. The splitter should specially support HomePNA
band between Modem port and Phone port.
2. Power on the device.
3. Make sure the Power, SYS, and Wireless (Wireless model only)LEDs are lit steadily and that
the relevant LAN and HPNA (Link/Act) LED is lit.
10

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 3: Basic Installation
Configuring PC in Windows XP
1. Go to Start / Control Panel (in Classic View). In the Control
Panel, double-click Network Connections.
2. Double-click Local Area Connection. (See Figure 3.1)
3. In the LAN Area Connection Status window, click
Properties. (See Figure 3.2)
4. Select Internet Protocol (TCP/IP) and click Properties.
(See Figure 3.3)
5. Select the Obtain an IP address automatically and Obtain
DNS server address automatically radio buttons. (See
Figure 3.4)
6. Click OK to finish the configuration.
Figure 3.1: LAN Area Connection
Figure 3.2: LAN Connection Status
Figure 3.3: TCP / IP
Figure 3.4: IP Address & DNS
Configuration
11

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 3: Basic Installation
Configuring PC in Windows 2000
1. Go to Start / Settings / Control Panel. In the Control Panel,
double-click Network and Dial-up Connections.
2. Double-click Local Area (“LAN”) Connection.(See Figure
3.5)
3. In the LAN Area Connection Status window, click
Properties. (See Figure 3.6)
4. Select Internet Protocol (TCP/IP) and click Properties.
(See Figure 3.7)
5. Select the Obtain an IP address automatically and Obtain
DNS server address automatically radio buttons. (See
Figure 3.8)
6. Click OK to finish the configuration.
Figure 3.5: LAN Area Connection
Figure 3.6: LAN Connection Status
Figure 3.7: TCP / IP
Figure 3.8: IP Address & DNS
Configuration
12

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 3: Basic Installation
Configuring PC in Windows 95/98/ME
1. Go to Start / Settings / Control Panel. In the Control Panel,
double-click Network and choose the Configuration tab.
2. Select TCP / IP -> NE2000 Compatible, or the name of any
Network Interface Card (NIC) in your PC. (See Figure 3.9)
3. Click Properties.
4. Select the IP Address tab. In this page, click the Obtain an
IP address automatically radio button. (See Figure 3.10)
5. Then select the DNS Configuration tab. (See Figure 3.11)
6. Select the Disable DNS radio button and click OK to finish
the configuration.
Figure 3.9: TCP / IP
Figure 3.10: IP Address
Figure 3.11: DNS Configuration
13

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 3: Basic Installation
Configuring PC in Windows NT4.0
1. Go to Start / Settings / Control Panel. In the Control
Panel, double-click Network and choose the Protocols tab.
2. Select TCP/IP Protocol and click Properties. (See Figure
3.12)
3. Select the Obtain an IP address from a DHCP server radio
button and click OK. (See Figure 3.13)
Figure 3.12: TCP / IP
Figure 3.13: IP Address
14

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 3: Basic Installation
Factory Default Settings
Before configuring your, you need to know the following default settings.
Web Interface (Username and Password)
Username: Admin
Password: Admin
The default username and password are “Admin” and “Admin” respectively.
Attention
Attention
If you ever forget the password to log in, you may press the RESET button up to
6 seconds to restore the factory default settings.
LAN Device IP Settings
IP Address: 10.0.0.138
Subnet Mask: 255.0.0.0
ISP setting in WAN site
PPPoE
DHCP server
DHCP server is enabled.
Start IP Address: 10.0.0.1
IP pool counts: 137 (10.0.0.1~10.0.0.137)
LAN and WAN Port Addresses
The parameters of LAN and WAN ports are pre-set in the factory. The default values are shown below.
LAN Port WAN Port
IP address 10.0.0.138
Subnet Mask 255.0.0.0
DHCP server function Enabled
IP addresses for
distribution to PCs
137 IP addresses continuing from
10.0.0.1 through 10.0.0.137
The PPPoE function is enabled
to automatically get the WAN
port configuration from the ISP,
but you have to set the
username and password first.
15

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 3: Basic Installation
Information from your ISP
Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind of
service is provided such as PPPoE, PPPoA, RFC1483, or IPoA.
Gather the information as illustrated in the following table and keep it for reference.
PPPoE VPI/VCI, VC-based/LLC-based multiplexing, Username, Password, Service
Name, and Domain Name System (DNS) IP address (it can be automatically
assigned by your ISP when you connect or be set manually).
PPPoA VPI/VCI, VC-based/LLC-based multiplexing, Username, Password, and
Domain Name System (DNS) IP address (it can be automatically assigned by
your ISP when you connect or be set manually).
RFC1483 Bridged VPI/VCI, VC-based/LLC-based multiplexing to use Bridged Mode.
RFC1483 Routed VPI/VCI, VC-based/LLC-based multiplexing, IP address, Subnet mask,
Gateway address, and Domain Name System (DNS) IP address (it is fixed IP
address).
IPoA VPI/VCI, VC-based/LLC-based multiplexing, IP address, Subnet mask,
Gateway address, and Domain Name System (DNS) IP address (it is fixed IP
address).
16

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 3: Basic Installation
Configuring with your Web Browser
Open your web browser, enter the IP address of your router, which by default is 10.0.0.138, and click
“Go”, a user name and password window prompt will appear. The default username and password
are “Admin” and “Admin”. (See Figure 3.14)
Figure 3.14: User name & Password Prompt Widonw
Congratulation! You are now successfully logon to the Router!
17

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 4: Configuration
Chapter 4: Configuration
At the configuration homepage, the left navigation pane where bookmarks are provided links you directly
to the desired setup page, including:
Status (ARP Table, Wireless Association Table(Wireless model only), Routing Table, DHCP Table,
HomePNA, Email Status, Event Log, Error Log, NAT Sessions, Diagnostic and UPnP Portmap)
Quick Start
Configuration
(LAN, WAN, System, Firewall, QoS, Virtual Server, Time Schedule and Advanced)
Save Config to FLASH
Language (provides user interface in English and French languages)
Please see the relevant sections of this manual for detailed instructions on how to configure the router.
18

HomePNA3.0 (with 802.11g) ADSL2+ Firewall Router
Chapter 4: Configuration
Status
The status page gives a global view of the router.
ARP Table
This section displays the router’s ARP (Address Resolution Protocol) Table, which shows the mapping of
Internet (IP) addresses to Ethernet (MAC) addresses. This is useful as a quick way of determining the
MAC address of the network interface of your PCs to use with the router’s Firewall – MAC Address
Filter function. See the Firewall section of this manual for more information on this feature.
19
