Powr-Flite PDS1 User manual

OPERATOR’S MANUAL & PARTS LIST
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
©Tacony, Inc., All rights reserved
Save These Instructions

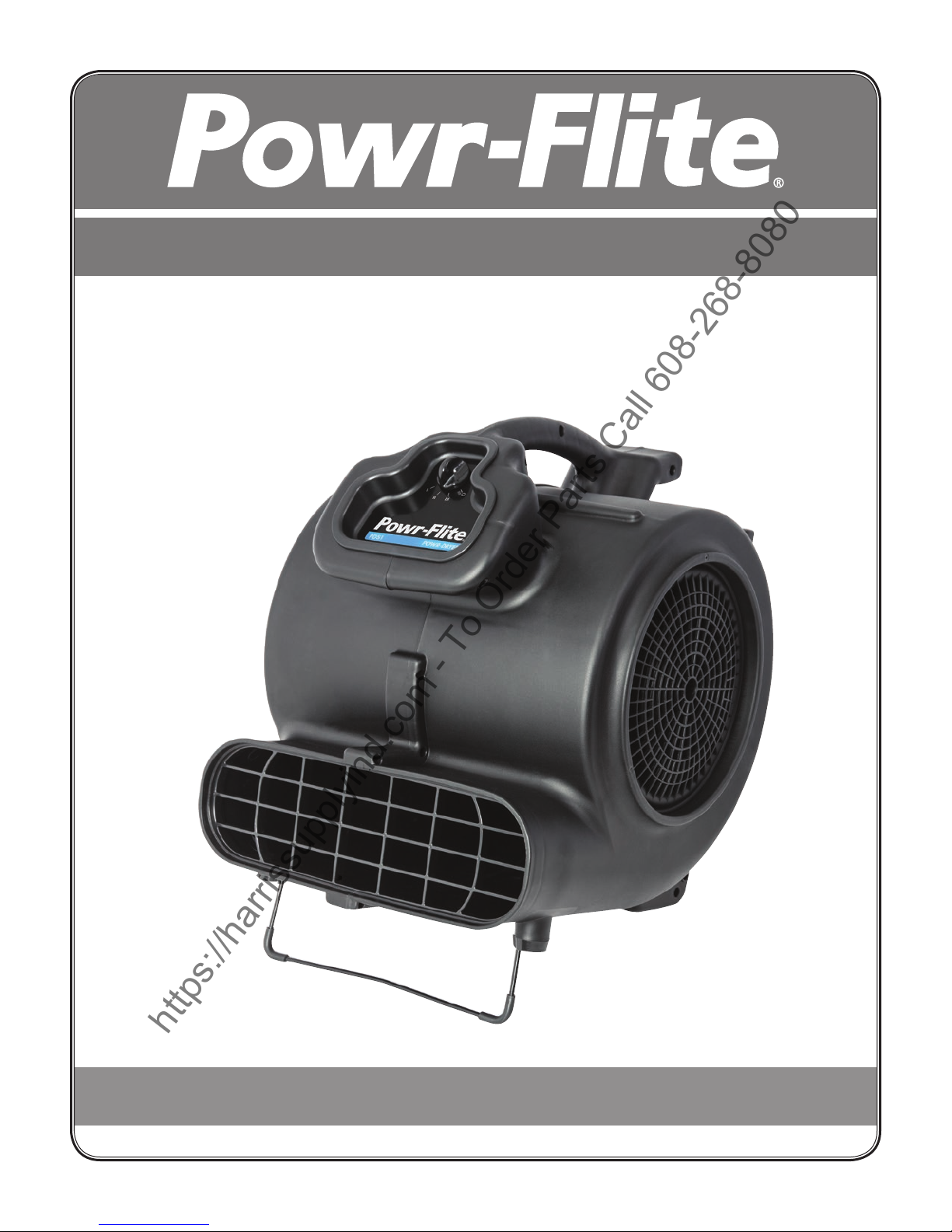

COMMERCIAL AIR MOVER
PDS1 and PDS1DX Models
X1505 11/2016
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

2
IntroductIon
reference InformatIon
Check the carton for shipping damage. Carefully unpack and
inspect your new Powr-Flite dryer for shipping damage. Each
unit is tested and thoroughly inspected prior to shipping. If
damage is discovered, immediately notify the transportation
company that delivered your machine and request an
inspection. As a manufacturer, we are unable to act upon any
claim for concealed damage; you must originate the claim.
Be sure to keep the carton, packing inserts, packing lists, and
carrier’s receipt until the inspector has verified your claim.
MANUAL
This manual has important information for the use and safe operation of the dryer. Read this
manual carefully before starting the machine. Keep the manual available at all times and instruct
all operators to read this manual.
Reference Information
Model Number _____________________________
Serial Number _____________________________
Date Purchased _____________________________
Retain this manual as a permanent record of your purchase.
Introduction ...................................................2
Safety Instructions ........................................3
Grounding Instructions.................................5
Operating Instructions..................................6
Maintenance...................................................6
Troubleshooting ............................................6
Storage ...........................................................6
Machine Specications.................................6
Schematic and Parts List..............................7
Warranty .........................................................8
PROTECT THE ENVIRONMENT
Please dispose of packaging materials in an
environmentally-safe way according to local
waste disposal regulations.
Always remember to recycle.
Powr-Flite.com
Your Model Number and Serial Number can be found
on the rating plate on the housing.
Volts: 120 HZ: 60
HP: 1/2 AMPS: 4.4
Model No: PDS1
Serial No: 0000000
Powr-Flite Inc.
A Tacony Co.
Ft Worth, TX 76140
Assembled in China
Intertek
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

3
Safety WarnIngS and PrecautIonS
Read all instructions before using. Save These Instructions.
Following the cleaning instructions will prolong the life of your Powr-Flite Dryer.
To reduce the risk of fire, explosion, electric shock, or injury, the following precautions should always be followed.
1. Use only as described in this manual. Use only manufacturer’s recommended attachments.
2. Do not operate this machine near flammable liquids, vapors, combustible dusts or material capable of catching fire
such as drapes, etc.
3. Connect only to an outlet provided with a ground fault circuit interrupting device.
4. Unplug cord from outlet when not in use and before cleaning or servicing machine.
5. Do not allow to be used as a toy. Close attention is necessary when used near children.
6. This machine is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge.
7. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left
outdoors, or dropped in water, return it to a service center for repair.
8. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners.
Keep cord away from heated surfaces.
9. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
10. Do not handle plug or appliance with wet hands.
11. Do not use an extension cord with this appliance.
12. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything
that may reduce air flow.
13. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
14. Always operate appliance on a stable, flat surface such as the floor.
15. Do not use this appliance with any solid-state speed control device.
16. Do not operate appliance without safety devices in place.
17. Turn off all controls before unplugging.
18. All repairs must be must be performed by a qualified service person. Use only manufacturer-supplied or equivalent
replacement parts.
19. Do not use outdoors. Do not expose appliance to rain or moisture. Store indoors.
20. Connect to a properly grounded outlet only. See Grounding Instructions.
21. This appliance is thermally protected.
22. To avoid severe or fatal shock, all electrical cords and components must be kept dry at all times.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state
speed control device.
WARNING!
WARNING!
800.880.2913
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

4
Safety WarnIngS and PrecautIonS
Français
INSTRUCTIONS IMPORTANTES RELATIVES À LA SÉCURITÉ
Lors de l’utilisation d’un appareil électrique, des précautions de base doivent être observées, notamment les suivantes :
LISEZ TOUTES LES INSTRUCTIONS AVANT D’UTILISER CETTE MACHINE
AVERTISSEMENT - Pour réduire le risque d’incendie, d’explosion, de choc électrique ou de blessure:
1. Utilisez uniquement la machine comme indiqué dans ce manuel. Utilisez uniquement les accessoires recommandés
par le fabricant.
2. N’utilisez pas près de liquides, vapeurs ou poussières inflammables ou matériel susceptible de prendre feu tels que
les rideaux, etc.
3. Reliez seulement à une sortie équipée d’un dispositif de sécurité.
4. Débranchez le cordon de la prise de courant lorsque la machine n’est pas utilisée ou avant de la nettoyer ou de la
réparer.
5. Ne permettez pas à quiconque d’utiliser la machine comme un jouet. Une attention particulière est exigée lorsqu’elle
est utilisée à proximité d’enfants.
6. Cette machine n’est pas conçue pour être utilisée par des personnes dont les capacités physiques, sensorielles ou
mentales sont réduites, ou des personnes dénuées d’expérience ou de connaissance.
7. N’utilisez pas avec un cordon ou une fiche endommagés. Si l’appareil ne fonctionne pas comme il le devrait,
s’il a subi une chute, s’il est endommagé, laissé à l’extérieur ou immergé dans l’eau, retournez- le à un centre
d’assistance aux fins de réparation.
8. Ne tirez pas sur le cordon, ne transportez pas l’appareil par le cordon, n’utilisez pas le cordon comme une poignée,
ne coincez pas le cordon dans une porte et ne tirez pas sur le cordon autour de coins ou rebords coupants.
Éloignez le cordon des surfaces chauffées.
9. Ne débranchez pas en tirant sur le cordon. Pour débrancher, saisissez la fiche et non le cordon.
10. Ne manipulez pas la fiche ou l’appareil avec des mains mouillées.
11. N’utilisez pas de cordons prolongateurs avec la machine.
12. Ne mettez pas de quelconques objets dans les ouvertures. N’utilisez pas l’appareil avec une quelconque ouverture
bloquée. Maintenez toute ouverture exempte de poussières, fibres, cheveux ou de tout autre matériau susceptible
de réduire le flux d’air.
13. Éloignez les cheveux, les vêtements, les doigts et toutes les parties du corps des ouvertures et des pièces mobiles.
14. Utilisez toujours le ventilateur sur une surface plate et stable telle que le plancher.
15. N’utilisez pas ce ventilateur avec aucun dispositif de commande de vitesse semi- conducteur.
16. N’utilisez pas le ventilateur sans dispositif de sécurité.
17. Mettez toutes les commandes sur arrêt avant le débranchement.
18. Toutes les réparations doivent être effectuées par un technicien qualifié. Utilisez uniquement des pièces de
rechange fournies par le fabricant ou des pièces équivalentes.
19. N’utilisez pas la machine à l’extérieur. N’exposez pas la machine à la pluie ou à l’humidité. Entreposez uniquement
à l’intérieur.
20. Branchez le cordon uniquement sur une prise correctement mise à la terre. Instructions de mise à la terre.
21. Cette unité est protégée thermiquement.
22. Afin d’éviter un choc pouvant causer des blessures sévèrves ou mortelles, tous les fil électriques et leurs
composantes doivent être gardés au sec en tout temps.
CONSERVEZ CES INSTRUCTIONS
FR
Powr-Flite.com
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

5
This dryer must be grounded! Grounding is a safety measure to reduce the risk of electrical shock to the operator
should the machine malfunction or stop working. Grounding provides the path of least resistance for electric current
and will trip the circuit breaker, stopping the flow of electricity.
This unit is equipped with a cord containing an equipment-grounding conductor and grounding plug. The plug must
be inserted in an appropriate outlet that is properly installed and grounded in accordance with all local codes and
ordinances. Cutting off the ground wire or using a cord that is not equipped with a ground plug will void the warranty
on the unit. Powr-Flite will accept NO liability associated with the unit.
This dryer is for use on a nominal 120-volt circuit, and has a grounded plug that looks like the plug illustrated in
Figure A. If a properly grounded outlet is not available, a temporary adapter that looks like the adapter illustrated in
Figure B and C may be used to connect this plug to a 2-pole receptacle as show in Figure B. The temporary adapter
should be used only until a properly grounded outlet (Figure A) can be installed by a qualified electrician. The green-
colored rigid ear, lug, or the like, extending for the adapter, must be connected to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw.
Note: In Canada, the use of a temporary adapter is not permitted by the Canadian Electrical Code.
The replacement or repair of damaged wiring should only be performed by a qualified
electrician or service engineer from the manufacturer or authorized service center.
groundIng InStructIonS
Improper connection of the equipment-grounding conductor can result in a risk
of electric shock. Check with a qualified electrician or service person if you are
in doubt as to whether the outlet is properly grounded. Do not modify the plug
provided with the appliance. If it will not fit the outlet, have a proper outlet installed
by a qualified electrician.
WARNING!
WARNING!
800.880.2913
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

6
oPeratIng InStructIonS
Ensure machine is in a safe operating location. Do
not place machine in a puddle and make sure it is
protected from drips and splashes.
Plug the power cord into a grounded electrical
outlet. Always unwind power cord completely before
operating machine. Inspect power cord for damage
before each use. Replace cord immediately if
damaged.
Place the machine in the desired operating position.
A.Horizontal-dryoorsandcarpets
B.Tilted-dryoornishes,paint,etc.
C. Vertical - dry wall and ceiling
Set the desired speed by turning switch.
Check for proper operation before leaving the machine
unattended. Do not move or carry the machine when it
is operating.
To shut-off machine, turn the switch to the off (O)
position.
The machine is equipped with an automatic reset
motor overload shut-off thermal sensor to protect
motor from overheating. Should the shut-off thermal
sensor trip, it will reset automatically when the motor
hascooledsufciently,usuallyafter15-30minutes.
To keep machine in good working condition, simply perform
the following maintenance procedures.
Unplug cord from outlet when not in
use and before servicing machine.
1. Inspect power cord for damage after each use. Replace
power cord immediately if damaged.
2. Clean machine with a damp cloth.
3. Check for dust accumulation around the air inlet and
outlet vents and clean if necessary. Blocked vents will
cause the motor to overheat, and may lead to premature
failure. Warranty claims for this type of damage will not
be accepted.
Neatly wrap power cord and store
machine in a cool dry area. Do not
expose to rain, store indoors.
Stack machines for storage as shown.
CAUTION: Do not stack beyond four
high. Do not stack during transporting
and secure with strap.
Unplug cord from outlet when not in
use and before servicing machine.
If machine fails to operate:
- Check power cord for damage.
- Check plug connection.
- Check building circuit breaker.
- Thermal sensor shut-off - wait 15-30 minutes to cool.
- Contact service center.
1.
2.
3.
4.
5.
6.
7.
MACHINE COMPONENTS MACHINE MAINTENANCE
MACHINE SPECIFICATIONS
STORING AND TRANSPORTING MACHINE
TROUBLE SHOOTING
MACHINE OPERATION
1. 2.
3.
4.
5.
6.
MODEL 3-SPEED BLOWER
Width x Height x Depth 15 in x 18.5 in x 18 in
38.1 cm x 47 cm x 45.7 cm
Weight 22.5 lb / 10.2 kg
Voltage / Frequency 120 V / 60 Hz
Motor Rating .6 HP, 522 W, 4.35 A
Air Flow 3,800 feet per minute
Speeds - Low/Med/High 710 rpm/1105 rpm/1550 rpm
Power Cord Length 18.5 ft / 5.6 m
Sound Pressure Level LpA 69 dBA
Protection Grade IP20
1. 3-Speed Switch
2. Carrying Handle
3. Power Cord Storage
4. Air Outlet Vent
5. Air Intake Vent
6. Kick Stand
A. B. C.
WARNING!
WARNING!
Powr-Flite.com
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

7
SchematIc and PartS LISt
15
6
7
2
3
14
17
13
11
8
12 10
1
5
16
18
9
4
ITEM PART NO. DESCRIPTION OTY
1 X1438 FAN ASSEMBLY 1
2 X1414 KICKSTAND ASSEMBLY 1
3 X1378 GRILL 1
4 X1440 CONTROL PANEL ASSEMBLY 1
5 X1370 HOUSING (LEFT) 1
6 X1371 HOUSING (RIGHT) 1
7 X1443 MOTOR AND CAPACITOR ASSEMBLY 1
8 A732-8314 HOUSING FASTENERS 18
9 X1419
WIRING AND SWITCH ASSEMBLY 1
10 X1420 WHEEL AND HANDLE ASSEMBLY KIT (DX Model) 1
11 X1524 HANDLE AND HARDWARE ASSEMBLY (DX Model) 1
12 X1422 WHEEL AND AXLE ASSEMBLY (DX Model) 1
13 X1416 HANDLE INSERT ASSEMBLY (DX Model) 1
14 X9719 CORD 18/3 SJTW 20FT. 1
15 X1550 MOTOR MOUNTING HARDWARE 1
16 X1556 WARNING LABEL 1
17 X1374 SWITCH KNOB 1
18 X1003 MADE IN USA LABEL 1
X1415 WHOLE HOUSING, NOT ILLUSTRATED 1
X1418 WIRING ASSEMBLY, NOT ILLUSTRATED 1
800.880.2913
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

A Tacony Company
3101 Wichita Court • Ft. Worth, TX 76140-1755
1-800-880-2913 • Fax: [phone] • www.Powr-Flite.com
PoWr-fLIte LImIted Warranty
Powr-Flite will repair or exchange parts for your dryer in the event of a
manufacturing defect as follows:
PARTS: New or comparable rebuilt parts, for one year after original
purchase. Five year warranty on housing.
LABOR: Carry-in service can be obtained during the warranty period by
taking your dryer to an Authorized Powr-Flite Warranty Service Center.
IMPORTANT WARRANTY CONDITIONS: A purchase receipt or other proof
of date of original consumer purchase also will be required before warranty
service is rendered.
This warranty covers normal use and does not cover damage which occurs
in shipment or failure resulting from alteration, accident, misuse, abuse,
neglect, or improper maintenance.
STATEMENT: This warranty is not transferable and extends only to the
original purchaser when a new Powr-Flite dryer is purchased from an
Authorized Powr-Fite Dealer. This warranty gives you specific legal rights,
and you may have other rights that vary from state to state.
©Powr-Flite, All Rights Reserved X1505 11/2016
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
