Precision Medical PM50 User manual

USER MANUAL
Model: PM50
SAVE THESE INSTRUCTIONS
CAUTION Federal (USA) law restricts this device to sale
by or on the order of a physician.
300 Held Drive Tel: [phone]
Northampton, PA 18067 USA Fax: [phone]
www.precisionmedical.com

1
CONTENTS
RECEIVING/INSPECTION................................................... 2
INTENDED USE................................................................... 2
READ ALL INSTRUCTIONS BEFORE USING .................... 2
EXPLANATION OF ABBREVIATIONS ................................ 2
SAFETY INFORMATION - WARNINGS AND CAUTIONS... 2
SPECIFICATIONS................................................................ 4
COMPONENT IDENTIFICATION......................................... 5
GROUNDING INSTRUCTIONS ........................................... 6
OPERATING INSTRUCTIONS............................................. 6
CLEANING/MAINTENANCE................................................ 7
RETURNS ............................................................................ 8
DISPOSAL INSTRUCTIONS................................................ 8
REPLACEMENT PARTS...................................................... 8
LIMITED WARRANTY........................................................ 10

2
RECEIVING/INSPECTION
Remove the Precision Medical, Inc. Easy Comp Compressor
from packaging and inspect for damage. If there is any damage,
DO NOT USE and contact your Provider.
INTENDED USE
The basic function is to supply a portable compressed air
source adequate to drive high volume nebulizers.
READ ALL INSTRUCTIONS BEFORE USING
This manual instructs the end user how to install, operate
and safely use the PM50 Easy Comp Compressor. If you do
not understand this manual, DO NOT USE the Easy Comp
Compressor and contact your Provider.
EXPLANATION OF ABBREVIATIONS
psi Pounds Per Square Inch
l/min Liters Per Minute
SAFETY INFORMATION - WARNINGS AND CAUTIONS
DANGER Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
WARNING Indicates a potentially hazardous situation
which, if not avoided, could result in death
or serious injury.
CAUTION Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
CAUTION Used without the safety alert symbol indicates
a potentially hazardous situation which, if not
avoided, may result in property damage.
CONSULT ACCOMPANYING
DOCUMENTS
Type B Equipment

3
DANGER
• Caution must be exercised when using this Easy Comp
Compressor where oxygen is being administered.
• DO NOT use near any type of ame or ammable/explosive
substances.
• DO NOT allow the Compressor to exceed Operating or Storage
Temperature specications.
TO REDUCE THE RISK OF ELECTROCUTION
• Always unplug the Compressor immediately after using.
• DO NOT use while bathing.
• DO NOT place or store the Compressor where it can fall or be
pulled into a tub or sink.
• DO NOT place or drop into water or other liquid.
• DO NOT reach for the Compressor that has fallen into water.
Unplug immediately.
• DO NOT attempt to repair the Easy Comp Compressor. Any
attempt could result in electrical shock.
WARNING
To reduce risk of burns, electrocution, re, or injury to persons:
• Close supervision is necessary when this Easy Comp
Compressor is used by, on, or near children or invalids.
• Use this Easy Comp Compressor only for its “Intended Use” as
described in this manual.
• DO NOT use attachments not recommended by Precision
Medical, Inc.
• DO NOT use the Compressor with any equipment that requires
“dry” air, including ventilators, gas blenders, or ow generators,
without a device to properly dehumidify the discharged air of
the PM50.
• DO NOT use if the Compressor has a damaged cord or plug.
• DO NOT use if the Compressor has been dropped or
damaged.
• DO NOT drop or insert any object into any openings.
• DO NOT cover air vents. Restriction of air ow will cause
unit to overheat, causing the thermal reset to shut down the
Compressor.

4
SPECIFICATIONS
Flow Output at 50 psig: ≥13 l/min
Maximum Rated Sustained Pressure: 60 psi
Duty Cycle: Continuous
Dimensions:
Length: 10.25 in (26.0 cm)
Width: 5.25 in (13.3 cm)
Height: 9.5 in (24.1 cm)
Weight: 9.7 lbs (4.4 kg)
Shipping Weight: 11.2 lbs (5.1 kg)
Electrical: 120 VAC, 60 Hz, 5 Amps
Operating Temperature Range: 50°F to 104°F (10°C to 40°C)
Storage Temperature Range: -4°F to 120°F (-20°C to 49°C)
Outlet: 9/16 - 18 Male Threaded Fitting
Safety Systems: High Temperature Motor Shutdown
Thermal Protector: Class B, Thermal Limit Automatic Reset
This Easy Comp Compressor is not suitable for use in the
presence of a ammable anesthetic mixture with air, oxygen,
or nitrous oxide.
Specications are subject to change without prior notice.

5

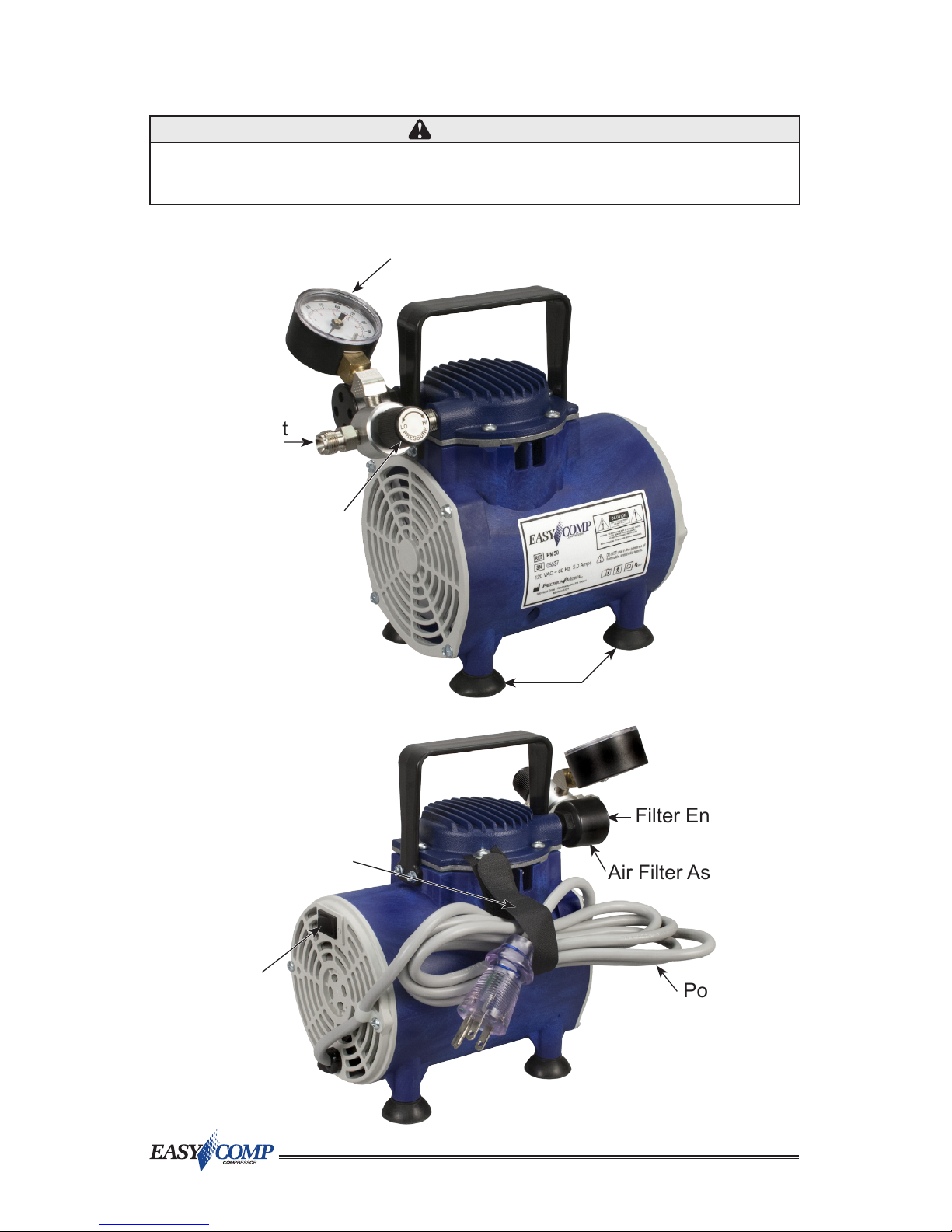

COMPONENT IDENTIFICATION
CAUTION
Missing or illegible labels must be replaced, contact
Precision Medical, Inc.
Pressure Gauge
Air Outlet
Fitting
Suction Feet
Filter End Cap
Power Cord
Air Filter Assembly
Regulator Knob
Power Cord Keeper
On / Off
Switch

6
GROUNDING INSTRUCTIONS
The Easy Comp Compressor must be plugged into an
electrical outlet that is properly grounded. In the event of an
electrical short circuit, grounding reduces the risk of electrical
shock. This product is equipped with a grounding circuit.
DANGER
Improper use of the grounding plug can result in a risk of
electrical shock.
WARNING
Ground reliability can only be achieved when the power
cord is connected to a properly grounded receptacle.
OPERATING INSTRUCTIONS
CAUTION
Inspect the Easy Comp Compressor for visual damage,
DO NOT USE if damaged.
1. Become familiar with the Compressor (see Compo-
nent Identication).
2. Place Compressor near a properly grounded electrical
receptacle on a table, oor or other horizontal, smooth,
hard surface. Allow a minimum of 4 in. (10 cm) clearance
on all sides to ensure adequate air ow for cooling of
product.
3. Press down on Compressor until Suction Feet are
secure.
4. Ensure the On/Off Switch is in the “OFF” position.
5. Plug the Compressor into a properly grounded
receptacle.
6. Attach appropriate device to the Outlet Fitting, securely,
without overtightening.
7. Press the On/Off Switch to the “ON” position.
8. Adjust pressure.
To INCREASE pressure - Turn Knob CLOCKWISE
To DECREASE pressure - Turn Knob
COUNTERCLOCKWISE

7
9. Begin procedure.
10.When procedure is complete, press the On/Off Switch to
the “OFF” position.
CLEANING/MAINTENANCE
WARNING
Turn the Easy Comp Compressor off and disconnect
from power source before cleaning .
To clean the lter (weekly):
1. Unplug Compressor.
2. Pry off lter end cap to check air lter for dust buildup.
3. If dust buildup occurs, remove air lter and wash in warm,
soapy water and rinse.
4. Absorb excess water from lter with a dry towel.
5. Return lter and end cap.
Cleaning for Exterior Components:
Use a clean cloth or sponge dampened with soap and water.
Wipe dry with a clean cloth or paper towel.
CAUTION
• Excessive dust buildup on lter will reduce performance of
Compressor. If this occurs, clean or replace with a new lter.
• The air lter does not lter out saline. Treatments
using nebulized saline will draw the saline mist back into
the Compressor . Saline cause rapid deterioration of the
compressor seals and will void the warranty.

8
RETURNS
Returned products require a Returned Goods Authorization
(RGA) number, contact Precision Medical, Inc. All returns
must be packaged in sealed containers to prevent damage.
Precision Medical, Inc. will not be responsible for goods
damaged in transit. Refer to Precision Medical, Inc. Return
Policy available on the Internet, www.precisionmedical.com.
Manuals available on our website; www.precisionmedical.com
DISPOSAL INSTRUCTIONS
This device may contain electrical components that are
hazardous to the environment. DO NOT dispose device into
standard trash. Contact your local waste Management for
disposal of Electrical Equipment.
Please Recycle
REPLACEMENT PARTS
Description Part Number
Filter Assembly 1834
Filter (Case -10 ea.) 1841-10

9
TROUBLESHOOTING
If the PM50 Easy Comp Compressor fails to function, consult
the Troubleshooting Guide below.
If the problem cannot be corrected, consult your Provider.
Problem Probable Cause Remedy
Compressor will
not operate
1. On/Off switch in
“OFF” position
2. Power cord
not connected
properly
3. Compressor
overheated
1. Push On/Off
switch to “ON”
position
2. Check power
cord
3. Shut Compressor
off, wait 15
minutes, Ensure
vents are clear
Unable to adjust
pressure
1. Defective
regulator
1. Contact Provider
Overheating 1. Poor Ventilation 1. Move
Compressor to
a cooler, better
ventilated area
Low pressure 1. Loose
connection at
outlet tting
2. Improper
regulator
adjustment
1. Tighten
connection
2. Readjust
regulator

10
LIMITED WARRANTY
AND LIMITATION OF LIABILITY
Precision Medical, Inc. warrants that the PM50 Easy Comp
Compressor (the Product) will be free of defects in workmanship
and/or material for the following period:
One (1) year from shipment
Should any failure to conform to this warranty appear within the
applicable period, Precision Medical, Inc. shall, upon written
notication thereof and substantiation that the goods have been
stored, installed, maintained and operated in accordance with
Precision Medical, Inc.’s instructions and standard industry
practice, and that no modications, substitutions, or alterations
have been made to the goods, correct such defect by suitable
repair or replacement at its own expense.
ORAL STATEMENTS DO NOT CONSTITUTE WARRANTIES.
The representatives of Precision Medical, Inc. or any retailers are
not authorized to make oral warranties about the merchandise
described in this contract, and any such statements shall not
be relied upon and are not part of the contract for sale. Thus,
this writing is a nal, complete and exclusive statement of the
terms of that contract.
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF
ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR
A PARTICULAR PURPOSE OR OTHER WARRANTY OF
QUALITY, WHETHER EXPRESS OR IMPLIED.
Precision Medical, Inc. shall not under any circumstances
be liable for special, incidental or consequential damages
including but not limited to lost prots, lost sales, or injury to
person or property. Correction of non-conformities as provided
above shall constitute fulllment of all liabilities of Precision
Medical, Inc. whether based on contract, negligence, strict
tort or otherwise. Precision Medical, Inc. reserves the right to
discontinue manufacture of any product or change product
materials, designs, or specications without notice.
Precision Medical, Inc. reserves the right to correct clerical or
typographical errors without penalty.

Tell us how we are doing!
Visit us at www.precisionmedical.com
1971 Rev10 2/16 (??m) Printed in USA
Precision Medical, Inc.
300 Held Drive
Northampton, PA 18067 USA
Toll Free Tel: [phone]
Toll Free Fax: [phone]
Tel:[phone]
Fax:[phone]
ISO 13485 Certied
