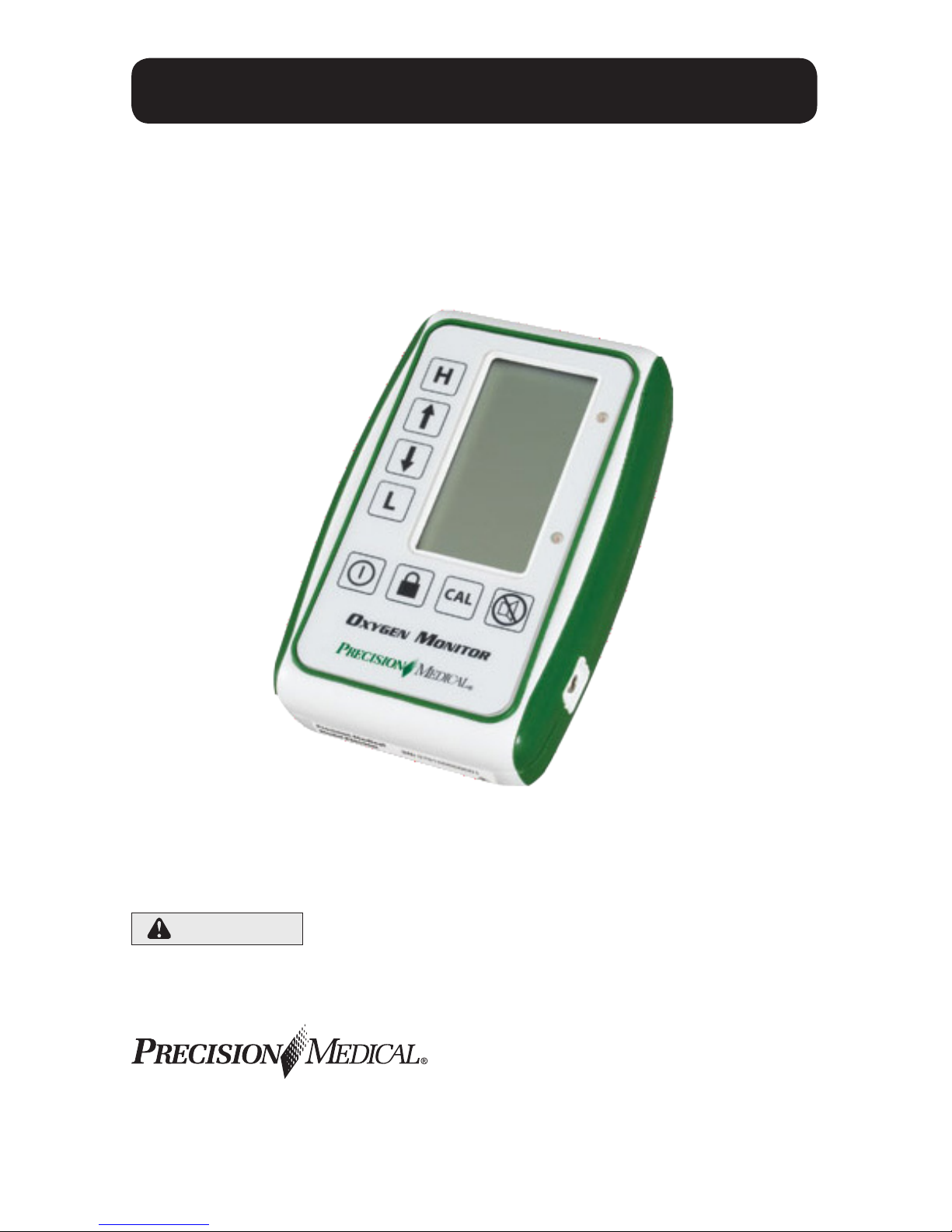

Precision Medical PM5900 User manual

Oxygen MOnitOr
Model: PM5900
USER MANUAL
300 Held Drive Tel: [phone]
Northampton, PA 18067 USA Fax: [phone]
www.precisionmedical.com
CAUTION Federal (USA) law restricts this device to sale
by or on the order of a physician.
SAVE THESE INSTRUCTIONS

1
Oxygen
MOnitOr
CONTENTS
RECEIVING/INSPECTION....................................................................... 2
INTENDED USE....................................................................................... 2
OPERATOR PROFILE ............................................................................. 2
READ ALL INSTRUCTIONS BEFORE USING ........................................ 2
SAFETY INFORMATION - WARNINGS AND CAUTIONS....................... 2
SPECIFICATIONS.................................................................................... 4
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR
NOTICE.................................................................................................... 4
COMPONENT DESCRIPTION................................................................. 5
Oxygen Monitor IDENTIFICATION...................................................... 5
Oxygen Monitor LCD Display IDENTIFICATION................................. 8
Oxygen Sensor Component Identication........................................... 9

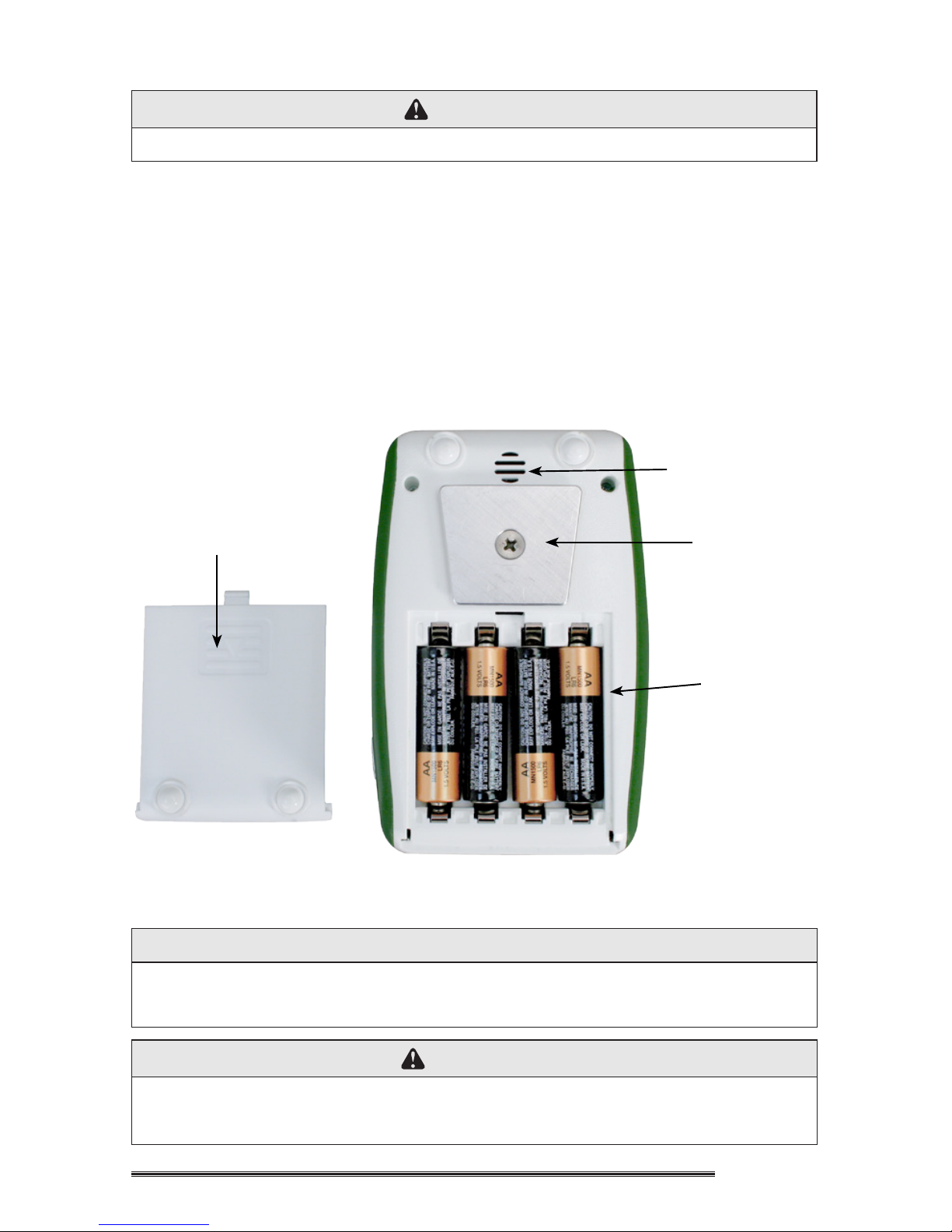

BATTERY INSTALLATION ..................................................................... 10
Battery Installation DIAGRAM ........................................................... 10
OPERATING INSTRUCTIONS............................................................... 10
QUICK SETUP GUIDE........................................................................... 11
SENSOR INSTALLATION ...................................................................... 11
CALIBRATION........................................................................................ 12
Effects of Temperature: ..................................................................... 13
Effects of Humidity: ........................................................................... 13
Effect of Pressure:............................................................................. 14
Effects of Anesthetic Gases: ............................................................ 14
ALARMS................................................................................................. 15
To Set Alarm: ..................................................................................... 15
Alarm Situation: ................................................................................. 16
CLEANING ............................................................................................. 16
MAINTENANCE ..................................................................................... 16
SENSOR REPLACEMENT ............................................................... 16
Battery Replacement......................................................................... 16
RETURNS .............................................................................................. 17
DISPOSAL INSTRUCTIONS.................................................................. 17
TROUBLESHOOTING ........................................................................... 17
REPLACEMENT PARTS........................................................................ 19
ACCESSORIES...................................................................................... 19
NOTES ................................................................................................... 20
LIMITED WARRANTY............................................................................ 21

2
Oxygen
MOnitOr
RECEIVING/INSPECTION
Remove the Precision Medical Oxygen Monitor from the packaging
and inspect for damage. If there is any damage, DO NOT USE and
contact your Provider.
INTENDED USE
Precision Medical, Inc. Oxygen Monitor provides continuous, direct
monitoring of oxygen mixtures in a wide variety of medical applications
such as anesthesiology (e.g., anesthesia machines), respiratory devices
(e.g., respirators, ventilators, pediatric incubators), and oxygen therapy
(e.g., oxygen tents).
OPERATOR PROFILE
The oxygen monitor is to be used by trained healthcare professionals
under the supervision, or on the order, of a physician in a hospital (or
other clinical setting). The Precision Medical, Inc. Oxygen Monitor is not
intended for transport use. This device is not an oxygen supply source.
READ ALL INSTRUCTIONS BEFORE USING
This manual instructs a Professional to install and operate the Oxygen
Monitor. This is provided for your safety and to prevent damage to the
Oxygen Monitor. If you do not understand this manual, DO NOT USE
the Oxygen Monitor and contact your Provider .
SAFETY INFORMATION - WARNINGS AND CAUTIONS
DANGER
Indicates an imminently hazardous situation which, if
not avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
CAUTION Used without the safety alert symbol indicates a
potentially hazardous situation which, if not avoided,
may result in property damage.
CONSULT ACCOMPANYING DOCUMENTS.
Direct current.
PM5900 WITH RESPECT TO ELECTRICAL SHOCK,
FIRE AND MECHANICAL HAZARDS ONLY IN
ACCORDANCE WITH UL60601-1, IEC60601-1,
CAN/CSA C22.2 No. 601.1

3
Oxygen
MOnitOr
DANGER
This product is not intended as a life-sustaining or life-
supporting device.
WARNING
• Only trained, qualied medical personnel under the direct
supervision of a licensed physician should operate the
Oxygen Monitor.
• Use this Oxygen Monitor only for its intended use as
described in this manual.
• Medical Oxygen should meet the requirements of USP.
• Always follow ANSI and CGA standards for Medical Gas
Products, Flowmeters, and Oxygen Handling.
• The Oxygen Monitor should be serviced by a qualied hospital/
dealer service technician, or by Precision Medical, Inc.
• DO NOT obstruct the alarm grill on the back of the
Oxygen Monitor.
• DO NOT use near any type of ame or ammable/
explosive substances, vapors or atmosphere.
• DO NOT allow an excess length of cable near the patient’s
head or neck, this could result in strangulation. Secure
excess cable to bed rail or suitable object.
• DO NOT use Oxygen Monitor with a cable that appears
worn, cracked or has damaged insulation.
CAUTION
• The Oxygen Monitor contains magnetic, ferrous material
that may affect the results of an MRI.
• Store the Oxygen Monitor in a clean, dry area when not in use.
• DO NOT use if dirt or contaminants are present on or
around this Oxygen Monitor or connecting devices.
• DO NOT smoke in an area where oxygen is being
administered.
• DO NOT clean with aromatic hydrocarbons.
• DO NOT steam autoclave.
• DO NOT gas sterilize with (EtO) Ethylene Oxide.
• DO NOT immerse Oxygen Monitor or Sensor in liquid.

4
Oxygen
MOnitOr
SPECIFICATIONS
Base Unit Specications
Dimensions: (Monitor without Cable and Sensor attached)
Length: 1.72 in (4.36 cm)
Width: 3.56 in (9.04 cm)
Height: 5.44 in (13.82 cm)
Cable Length:
(Fully extended) 10 ft (3.05 m)
Weight:
Oxygen Monitor, Sensor, Batteries and Cable Weight: 1.11 lbs (0.50 kg)
Shipping Weight: 1.64 lbs (0.75 kg)
Operating Conditions:
Temperature: 50°F to 113°F (10°C to 45°C)
Altitude: Sea Level to 8,000 ft / 2438 m
Storage Conditions:
Temperature: 5°F to 122°F (-15°C to 50°C)
Humidity: 0 - 95% Noncondensing
Power Requirements: 4 AA Alkaline Batteries (4 x 1.5=6 Volts)
Battery Life: Approximately 2,000 hours continuous use non-
alarm condition
Diverter Fitting: 15 mm “T” adapter
Measurement Range: 0.0 - 100% Oxygen
Resolution: 0.1 increments
Accuracy & Linearity: ± 1% of full scale at constant temperature, relative
humidity and pressure when calibrated at full scale
Total Accuracy: ± 3% actual oxygen level over full operating
temperature range
Response Time: 90% of nal value in less than 12 seconds at
77°F (25°C)
Warm-up Time: None required
Low Battery
Indication:
“LO BATTERY” message displayed on graphics
screen, and audible alarm
Alarm System: High/Low alarms, ashing red LEDs and graphics,
and nominal 68 db audible alarm @ 1 meter
Alarm Accuracy: displayed value ±0.1
Low Alarm Range: 18% - 99% Oxygen
High Alarm Range: 19% - 100% Oxygen
High Alarm De-Activation Setting: Above 100% (“---” will appear )
Sensor Specications:
Sensor Type: Galvanic Oxygen Sensor (fuel cell)
Precision Medical Part Number (504877)
Expected Sensor Life: > 1,000,000 O2% Hours
Drift: < 1% volume O2/ month @ air
Specications are subject to change without prior notice

5
Oxygen
MOnitOr
COMPONENT DESCRIPTION
CAUTION
Missing or illegible labels must be replaced, contact
Precision Medical, Inc.
3. Low Alarm
Set Key
7. High Alarm LED
9. Low Alarm LED
1. High Alarm
Set Key
2. ↑ Up &
↓ Down Keys
10. Alarm Silence Key
4. Power
Key
5. Lock /
Unlock Key 12. Calibration Key
11. Sensor Cable Connector
8. LCD Display
6. Serial Number Label
OXYGEN MONITOR IDENTIFICATION

6
Oxygen
MOnitOr

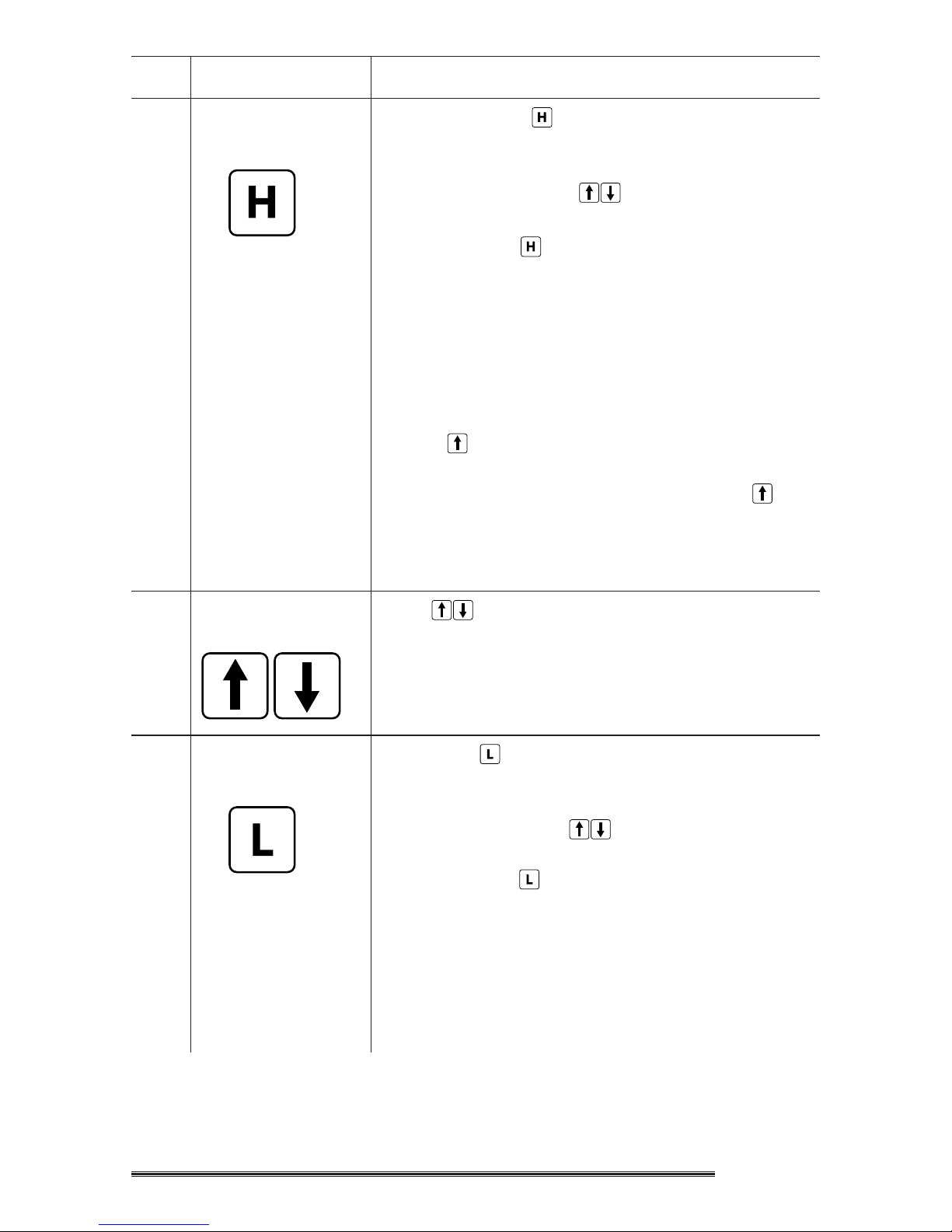

NO. ITEM NAME DESCRIPTION
1High Alarm
Set Key
Pressing the key when the keypad
is unlocked, the high alarm set point
will flash. The high alarm setting can be
adjusted with the UP/DOWN keys.
When the high alarm value is changed,
pressing the key will save the setting.
The Oxygen Monitor will also save the
setting and revert to normal operation if
no keys are pressed within 10 seconds.
The High Alarm Set is adjustable up
to 100% Oxygen. To disable the HIGH
Alarm, raise the HIGH Alarm setting above
100%. Dashes (---) will be displayed next
to the UP key on the LCD display.
NOTE: When the High alarm is disabled
dashes (---) will appear next to the UP
key on the LCD display, the Low alarm
will still function.
NOTE: Factory Preset = 50% Oxygen.
2Up and Down
Keys
The keys are used in conjunction
with the alarm set keys. Pressing either
of these keys will change the alarms set
points by 1% increments or 5% if held
down continuously.
3Low Alarm
Set Key
Pressing key when the keypad is
unlocked, the Low Alarm set point will
flash. The Low Alarm setting can be
adjusted with the UP/DOWN keys.
When the Low Alarm value is changed,
pressing the key will save the setting.
The Oxygen Monitor will also save the
setting and revert to normal operation if
no keys are pressed within 10 seconds.
The Low Alarm Set is adjustable down
to 18% Oxygen .
NOTE: Factory Preset = 18% Oxygen.

7
Oxygen
MOnitOr

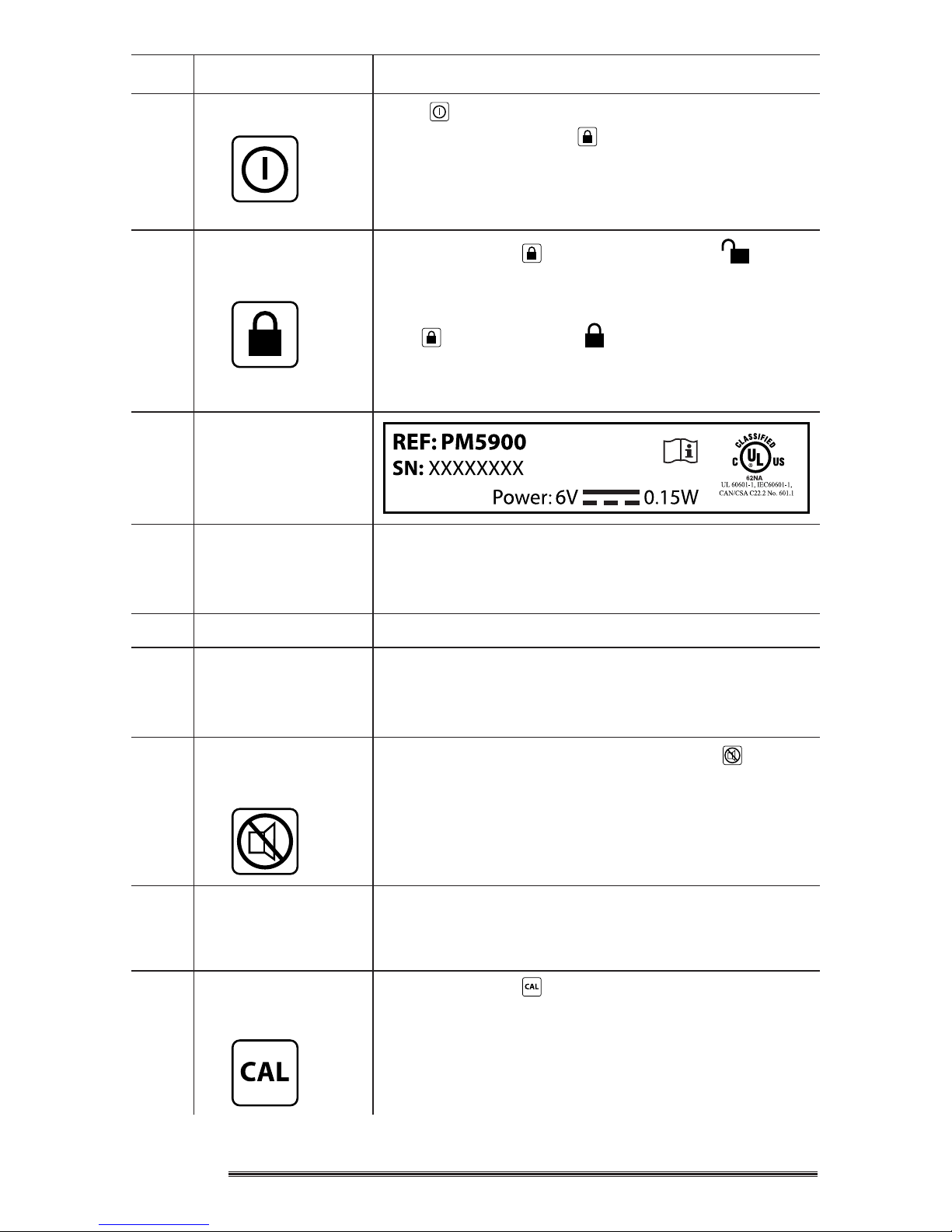

NO. ITEM NAME DESCRIPTION
4Power Key The key turns the Oxygen Monitor
ON and OFF. The LOCK/UNLOCK
key must be pressed to unlock the
Oxygen Monitor, before being powered
OFF.
5Lock / Unlock
Key Pressing the key will “Unlock ”
the keypad, so changes in the stored
settings can be made. When pressing
the key to “Lock ” the Oxygen
Monitor disables the key pad, and no
changes can be made.
6 Serial Number
Label
7High Alarm
LED
During a High Alarm condition, the red
LED will ash accompanied by the triple
pulse audible alarm.
8 LCD Display Graphic Display with backlight.
9 Low Alarm
LED
During a Low Alarm condition, the red
LED will ash accompanied by the triple
pulse audible alarm.
10 Alarm Silence
Key
In alarm condition, pressing the Key
will deactivate the audible alarm for 120
seconds. The visual alarm will continue
to display.
11 Sensor Cable
Connector
Cable Interface connection between
Oxygen Monitor and Oxygen Sensor
Cable.
12 Calibration
Key
Pressing the key calibrates the
Oxygen Monitor with air or oxygen.

8
Oxygen
MOnitOr
OXYGEN MONITOR LCD DISPLAY IDENTIFICATION
19. High Alarm
Indicator
18. % Oxygen
20. Oxygen
Concentration
16. Low Alarm Set Point
22. Alarm Silence
Indicator
13. High Alarm Set Point
14. Message Indicator
21. Low Alarm
Indicator
17. Lock / Unlock Indicator
15. Low Battery Indicator
13 High Alarm
Set Point
The High Alarm set point value.
14 Message
Indicator
CHK SENSOR
CAL @ AIR
CAL @ 100
CAL FAIL
DONE
SERVICE NEED
15 Low Battery
Indicator
Indicates when the batteries shall be
replaced.
16 Low Alarm
Set Point
The Low Alarm set point value.
17 Lock / Unlock
Indicator
Indicates if the keypad is “Locked ”/
“Unlocked ”.
18 % Oxygen Unit of measure.
19 High Alarm
Indicator
Indicates High Alarm.
20 Oxygen
Concentration
Displays percentage of Oxygen
Concentration.
21 Low Alarm
Indicator
Indicates Low Alarm.
22 Alarm Silence
Indicator
“AUDIO PAUSED” Indicates Alarm
Silence Mode.

9
Oxygen
MOnitOr
OXYGEN SENSOR COMPONENT IDENTIFICATION
23. Coiled Cable
24. Locking Ring
25. Oxygen Sensor
26. Diveter Fitting
27. Tee Adaptor
NO. ITEM NAME DESCRIPTION
23 Coiled Cable
with Male Plugs
The Coiled Cable allows the Sensor to
be positioned up to 10 ft from the side
of the Oxygen Monitor. There are Male
Plugs at each end of the Coiled Cable.
24 Locking Ring Male Plug has a Locking Ring and
must be engaged when in use.
25 Oxygen Sensor Galvanic Oxygen Sensor
26 Diverter Fitting Fitting used to connect to the Oxygen
Source.
27 Tee Adaptor The Tee Adaptor is used to connect
the Oxygen Sensor and Diverter
Fitting to a oxygen pathway circuit.

10
Oxygen
MOnitOr
BATTERY INSTALLATION
CAUTION
Use ONLY AA Alkaline Batteries.
1. Press down the center, top edge of the battery cover and
slide down.
2. Remove old batteries, if applicable.
3. Install 4 AA Alkaline Batteries, and follow the diagram
stamped in the bottom of the battery compartment.
4. Slide the battery cover back into position until the cover
snaps on to the Monitor.
OPERATING INSTRUCTIONS
CAUTION
Inspect the Oxygen Monitor, Sensor and Cable for visual
damage before use, DO NOT USE if damaged.
WARNING
Read this User Manual before installing or operating the
Oxygen Monitor.
BATTERY INSTALLATION DIAGRAM
Mounting
Block
Battery
Compartment
(4 AA Alkaline
Batteries)
Alarm Grill
Battery Cover

11
Oxygen
MOnitOr
QUICK SETUP GUIDE
1. Install 4 AA Alkaline Batteries.
2. Connect the Oxygen Sensor and Diverter Fitting.
3. Connect the Coiled Cable.
4. Calibrate the Oxygen Monitor.
5. Set the High/Low Alarms.
SENSOR INSTALLATION
CAUTION
• Inspect the Oxygen Sensor and Diverter Fitting for visual
damage or electrolyte leakage before use. DO NOT USE
if damaged.
• Use ONLY an Oxygen Sensor specied by Precision
Medical, Inc.
• The Oxygen Sensor should not be used in the presence
of ammable anesthetics such as Diethyl Ether or
Cyclopropane.
WARNING
• DO NOT attempt to open or repair the Oxygen Sensor.
• The Sensor electrolyte is corrosive, and contains lead.
DO NOT let it come in contact with the skin. If it does,
ush affected area with water.
• Check the Sensor regularly for leaks. If the Sensor is leaking,
replace with NEW Sensor. Leaking or used Sensors should be
handled and disposed of in accordance with local regulations.
An MSDS is available from Precision Medical, Inc.
• If the Oxygen Sensor is used in breathing circuits, the
Diverter must be attached to the Sensor and must be used
with the Tee Adapter.
• The Oxygen Sensor must be installed before the Oxygen
Monitor can be operated.
1. Screw the Diverter to the bottom of the Oxygen Sensor,
tighten until snug.
2. If using the Tee Adapter, attach to the Diverter.
3. Insert the one end of the Coiled Cable into the top of the
Sensor, and secure by tightening the Locking Ring, until
snug.

12
Oxygen
MOnitOr
4. Insert the other end of the Coiled Cable into the Sensor
Cable Connection located on the right side of the Oxygen
Monitor. Secure it in place by tightening the Locking Ring,
until snug.
5. Wait approximately 20 minutes for the NEW Sensor to
stabilize to the environment.
6. Calibrate the Oxygen Monitor with the NEW Sensor.
CALIBRATION
1. Place the Sensor with Diverter and Plastic Tee attached
into the gas stream of 100% USP Oxygen or room air. The
highest accuracy is achieved when using 100% USP Oxygen
at a constant pressure and ow.
2. Wait at least 20 seconds or more for the oxygen to purge the
line.
3. Turn the Oxygen Monitor “ON” by pressing the POWER
key.
4. Let the oxygen concentration display stabilize, the readout
should not drift more than 0.2%.
5. Press the key to UNLOCK the keys.
CAUTION
• Calibrate the Oxygen Monitor before each use, and when
replacing the Oxygen Sensor or the batteries.
• The Precision Medical Oxygen Monitor can only be
calibrated accurately using 100% Oxygen or 20.9%
Oxygen (Room Air). Using any other concentration will
result in a inaccurate readings.
• Air calibration is not recommended unless the Sensor can
be exposed to a known source of clean air. Hospital room
air is often enriched with excess oxygen.
• Calibrate the Oxygen Monitor at a pressure and ow
similar to your clinical application.
• Before calibrating the Oxygen Monitor, the oxygen
concentration readout should be stable and not drifting
more than 0.2%.
• DO NOT calibrate the Oxygen Monitor in humidied gas,
as water vapor makes the oxygen concentration appear
lower than the actual value.

13
Oxygen
MOnitOr
EFFECTS OF TEMPERATURE:
To minimize temperature effects:
1. In a breathing circuit, place the Oxygen Sensor upstream of
the heater.
2. Allow time for the Oxygen Sensor to stabilize to its new
room temperature.
3. Perform the calibration procedure at a temperature close to
or similar to your clinical application.
EFFECTS OF HUMIDITY:
High Moisture levels will dilute the oxygen concentration,
decreasing the concentration of oxygen being monitored by
the Oxygen Sensor.
High humidity can cause condensation to collect on the
Oxygen Sensor, obstructing the passages and reducing the
effectiveness of the Oxygen Sensor.
CAUTION
To reduce the effects of humidity on the Sensor:
• DO NOT USE the Oxygen Sensor in environments with
greater than 95% humidity.
• Place the Oxygen Sensor upstream from the humidier
in a breathing circuit.
6. Press the CAL key. The display will show “CAL @ Air” or
“CAL @ 100” oxygen. When “DONE” appears, the calibration
is complete. The Oxygen Concentration will be displayed in
a gas percent value. Press LOCK/UNLOCK to save the
calibration data. If no keys are pressed within 3 seconds, the
setting will be saved, and the keypad will be locked.
7. Remove the Oxygen Sensor from the oxygen supply and
conrm that the display reads between 19-22% Oxygen in
room air.

14
Oxygen
MOnitOr
EFFECT OF PRESSURE:
When the Oxygen Sensor is placed in a breathing circuit, the
alternating “breathing” pressure cycles will be sensed as an
increase in oxygen concentration. The concentration is not
actually changing, but it appears to be due to the change in
pressure.
The following recommendation is provided to reduce the
chances of pressure causing false readings.
Calibrate the Precision Medical Oxygen Monitor using 100%
Oxygen or room air at the same pressure and ow as the gas
to be monitored.
EFFECTS OF ANESTHETIC GASES:
ANESTHETIC
AGENT
TEST
CONCENTRATION
Oxygen
CONCENTRATION
ERROR
Helium 50%, Balance Oxygen 0%
Nitrous Oxide 80%, Balance Oxygen 0%
Carbon Dioxide 10%, Balance Oxygen 0%
Halothane 4% <1.5% Oxygen*
Enurane 5% <1.5% Oxygen*
Isourane 5% <1.5% Oxygen*
Sevourane 5% <1.5% Oxygen*
Desurane 15% <1.5% Oxygen*
Test mixture = 30% O2,balance 70% N2O except where noted.
* Errors may vary based on concentrations and exposure times.
These results meet or exceed the requirements of ISO 7767 and
DIN EN 12598.
CAUTION
The Oxygen Sensor should not be used in the presence
of ammable anesthetics such as Diethyl Ether or
Cyclopropane.

15
Oxygen
MOnitOr
ALARMS
The Precision Medical Oxygen Monitor will store the HIGH/LOW
alarm settings in memory after the Oxygen Monitor is turned
“OFF”.
The Oxygen Monitor is designed to prevent crossing of the HIGH/
LOW alarm settings. The LOW alarm cannot be set above the HIGH
alarm and the High alarm cannot be set below than the LOW alarm.
TO SET ALARM:
1. With the Power key ON.
2. Press the LOCK/UNLOCK key.
3. To set the HIGH Alarm: Press the HIGH ALARM SET key
once. Press the UP and DOWN arrow keys until the
desired value is displayed next to the Up arrow in the upper
right corner of the display. Continuously pressing the arrow
keys will move the value in increments of 5. Press the
HIGH ALARM SET key to save the setting. Flashing Number
indicates the Number can be changed. If no keys are pressed
for 10 seconds, the setting will be saved and the Oxygen
Monitor will revert to locked mode.
4. To set the LOW Alarm: Press the LOW ALARM SET key
once. Press the UP and DOWN arrow keys until the
desired value is displayed next to the Down arrow in the
lower right corner of the display. Continuously pressing the
arrow keys will move the value in increments of 5. Press
the LOW ALARM SET key to save the setting. Flashing
Number indicates the Number can be changed. If no keys are
pressed for 10 seconds, the setting will be saved and the
Oxygen Monitor will revert to locked mode.
5. Lock the display by pressing the LOCK/UNLOCK key.
6. To disable the HIGH Alarm, raise the HIGH Alarm setting
above 100%. “---” will be displayed next to the Up arrow on
the display. The LOW alarm will still function while the HIGH
alarm is disabled.

16
Oxygen
MOnitOr
ALARM SITUATION:
During a HIGH or LOW alarm.
1. Triple pulse alarm sounds.
2. LED will ash.
3. Alarm Low/High set point will ash.
4. UP or DOWN Arrow will turn dark.
Pressing the Alarm Silent key will deactivate the audible
alarm for 120 seconds. If the alarm exists after 120 seconds,
the alarm will sound again.
MAINTENANCE
SENSOR REPLACEMENT
(Reference “SENSOR INSTALLATION” on page 11.)
CAUTION
Sensor Replacement must be performed by a Qualied
Medical Personnel.
BATTERY REPLACEMENT
Replace batteries when “LO BATTERY” is displayed.
(Reference “BATTERY INSTALLATION” on page 10.)
CLEANING
CAUTION
• DO NOT steam autoclave.
• DO NOT immerse the Oxygen Monitor into any liquid.
• DO NOT use any strong solvent or abrasive cleaners.
• DO NOT allow any liquid to enter the Oxygen Monitor or
the Oxygen Sensor; this will damage the Oxygen Monitor
or Oxygen Sensor and will void the Warranty.
1. Disconnect all connections before cleaning.
2. Clean exterior surfaces of the Oxygen Monitor and Coiled
Cable with a cloth dampened with mild detergent and water.
3. Wipe dry with a clean cloth.

17
Oxygen
MOnitOr
RETURNS
Returned products require a Returned Goods Authorization
(RGA) number, contact Precision Medical, Inc. All returns must
be packaged in sealed containers to prevent damage. Precision
Medical, Inc. will not be responsible for goods damaged in transit.
Refer to Precision Medical, Inc. Return Policy available on the
Internet, www.precisionmedical.com.
TROUBLESHOOTING
If the Oxygen Monitor fails to function, consult the Troubleshooting
Guide. If the problem cannot be solved by using Troubleshooting
Guide, consult your Provider.
Problem Probable Cause Remedy
A. Low Battery
Indicator is
displayed with a
30 second chirp
alarm
1. Battery voltage
too low
1. Replace with 4 NEW
AA alkaline batteries
B. Check Sensor
appears on
display with
a continuing
pulsing alarm
1. Cable
connections are
not secure
2. Oxygen Sensor
not functioning
3. Using Oxygen
Sensor other than
Precision Medical
Oxygen Sensor
1. Make sure cable
connections are
secure and locking
rings are tight
2. Replace with New
Precision Medical
Oxygen Sensor
3. Attach New
Precision Medical
Oxygen Sensor
DISPOSAL INSTRUCTIONS
The Oxygen Sensor contains lead. Dispose of the Oxygen
Monitor, batteries and its components in accordance with the
local regulations.
Please Recycle

18
Oxygen
MOnitOr
Problem Probable Cause Remedy
C. New Oxygen
Sensor
responds slowly
or seems to drift
1. Oxygen Sensor
has NOT
temperature
stabilized
1. Wait approximately
20 minutes for
Oxygen Sensor to
stabilize with the
environment, and
then recalibrate the
Oxygen Monitor
D. Oxygen Sensor
does not react
to changes
in oxygen
concentration
1. Condensation
on the Oxygen
Sensor
2. Non functioning
Oxygen Sensor
1. Remove
Condensation
2. Replace with New
Precision Medical
Oxygen Sensor
E. Triple Pulse
Alarm and
ashing LED
1. Oxygen readings
are outside the
High/Low Alarm
limits
2. Loss of Air or
Oxygen Supply
1. Adjust the High/Low
Alarm setting to be
above/below the
oxygen value being
displayed
2. Reconnect the Air or
Oxygen Supply
F. Keys inoperable
(Power ON) 1. The keypad is
Locked
1. Unlock the
keypad
G. No Display/ LCD
screen will not
power ON
1. Dead Batteries
2. Battery installed
incorrectly
1. Check and replace
with 4 New AA
alkaline batteries
2. Check that batteries
are installed in the
proper position (+/-)
H. “SERVICE NEED”
appears on the
display
1. Electronic
malfunction
1. Oxygen Monitor
must be serviced
I. “ CAL FAIL”
appears on the
display
1. Improper or
wrong Oxygen
Sensor
2. Improper Air /
Oxygen source
3. Non functioning
Oxygen Sensor
1. Recalibrate the
Oxygen Monitor
2. Check the Air /
Oxygen source
3. Replace with New
Precision Medical
Oxygen Sensor

19
Oxygen
MOnitOr
REPLACEMENT PARTS
Description Part #
User Manual 505127
Precision Medical Oxygen Sensor
with Diverter
504877
Tee Adaptor 505126
Extendible Cable 504937
AA Alkaline Battery (4 Pack) 505124-4
Rubber Feet (4) 505122-4
Battery Cover 504909
V Block 505010
Diverter 505344
Circuit Board Assembly 505145
Key Pad 504926
Display 505125
Case Assembly, Front 504907
Case Assembly, Back 504908
ACCESSORIES
Description Part #
Monitor Wall Mount Bracket 505189
Monitor Vertical Pole Mount Clamp 505013
Monitor Horizontal Pole Mount Clamp 505014
Dove tail Bracket 505012
Dove tail Bracket Screw 505712
Orders for replacement parts should include the part number, if
available and the model and serial number of the instru-
ment for which the parts are intended.
