Precision LDT1002B User manual
8
Manufacture’s Limited Warranty for Pull Behind Accessories
The limited warranty set forth below is given by Precision
Products, Incorporated with respect to new merchandise
purchased and used in the United States, its possessions
and territories.
Precision Products, Incorporated warranties the product
(s) listed against defects in material and workmanship,
and will at our option, repair or replace, free of charge,
any part found to be defective in materials or
workmanship. This limited warranty shall only apply if
this product has been assembled, operated, and
maintained in accordance with the owner’s manual
furnished with the product, and has not been subject to
misuse, abuse, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage
because of other peril or natural disaster.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear parts or
component failures will be covered on the product for a
period of one year. Parts found to be defective within the
warranty period will be replaced at our expense. Our
obligation under this warranty is expressly limited to the
replacement or repair, at our option, of parts found to be
defective in material and workmanship.
Contacting Service
Warranty parts replacements are available, only with
Proof of Purchase, through our Customer Service
Department. Call 1 (800) 225-5891
This limited warranty does not provide coverage in the
following cases:
1. Routine maintenance items such as lubricants and
filters.
2. Normal deterioration of the exterior finish due to use
or exposure.
3. Transportation and/or labor charges.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies
after the applicable period of express written warranty
above as to the part as identified below. No other
express warranty whether written or oral, except as
mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product,
shall bind Precision Products, Inc. During the period of
the warranty, the exclusive remedy is repair or
replacement of the product as set forth above.
The provisions as set forth in this warranty provide the
sole and exclusive remedy arising from the sale.
Precision Products, Inc. will not be liable for incidental or
consequential loss or damage including, without
limitation, expenses incurred for substitute or
replacement lawn care services or for rental expenses to
temporarily replace a warranted product.
Some states do not allow the exclusion or limitation of
incidental or consequential damages, or limitations on
how long an implied warranty lasts, so the above
exclusions or limitations may not apply to you.
During the warranty period, the exclusive remedy is
replacement of the part. In no event shall recovery of
any kind be greater that the amount of the purchase
price of the product sold. Alteration of safety features of
the product shall void this warranty. You assume the risk
and liability for loss, damage, or injury to you and your
property and/or to others and their property arising out
of the misuse or inability to use this product.
This limited warranty shall not extend to anyone other
than the original purchaser or to the person for whom it
was purchased as a gift.
Local Law to this Warranty
This limited warranty gives you specific legal rights, and
you may also have other rights which vary from state to
state.
Warranty Period
The Warranty period stated below begins with the Proof
of Purchase. Without the proof of purchase, the
Warranty period begins from the date of manufacture.
Trailer Dump Cart Warranty Period
The warranty period for this unit is as follows: All part
are cover one year from date of sale.

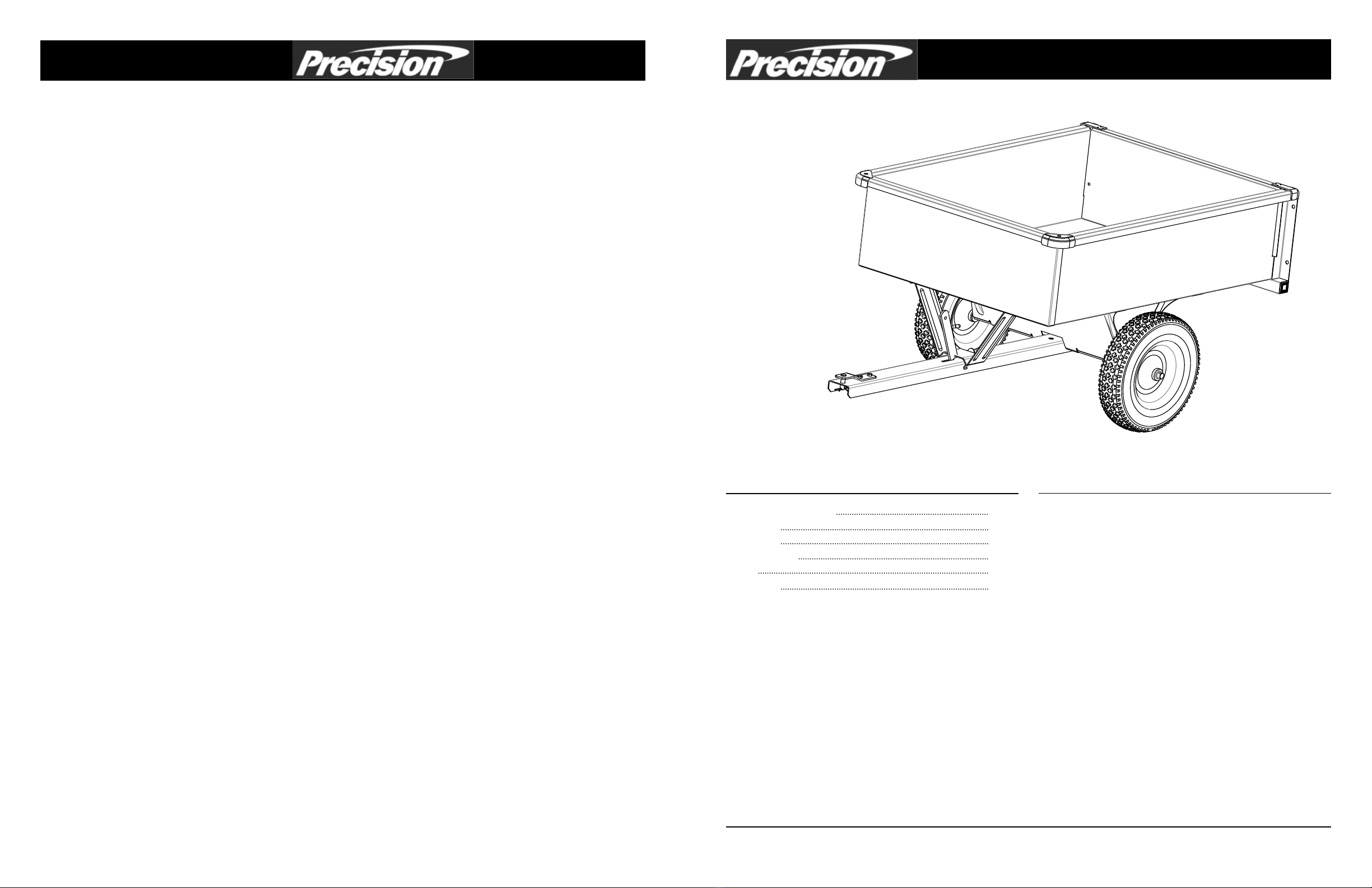

Owner’s Manual | LDT1002B| Dump Cart
Manual Contents Your New Trailer Dump Cart
Congratulations on your purchase of a new
Precision Products, Inc. Trailer Dump Cart. Your
Trailer Dump Cart has been engineered and built to
give you the most dependable and best performing
product possible.
If you experience any problem you can not easily
resolve, please feel free to contact our
knowledgeable and helpful customer service
department toll-free at 1 (800) 225-5891.
Caution: Carefully read all rules and instructions for safe operation.
Form No. 4677-3(Rev 6/20)
Safety Instructions
Assembly
Operation
Maintenance
Parts
Warranty
2
4-6
6
6
3
8
2
Rules for Safe Operation
The following safety precautions are suggested. This Trailer Dump Cart is designed, engineered and tested to
offer reasonably safe and effective service, provided that it is operated in strict accordance with these
instructions. Failure to do so may result in personal injury. Always observe the rules of safe operation. Please
read and retain this manual.
• Read and understand your tractor’s owner’s manual and towing safety rules, know how to operate you
tractor before using any attachment.
• Do not allow anyone to ride or sit on tow behind equipment during operation.
• Be alert for holes in the terrain and other hazards. This could cause you to lose control of the cart and
lawn tractor.
• Follow maintenance and lubrication instructions as outlined in this manual.
• Tractor braking and stability may be affected with the attachment of this unit. Be aware of changing
conditions on slopes. Refer to safety rules in your tractor owner’s manual concerning safe operation on
slopes. Stay Off Steep Slopes.
• Always operate up and down a slope, never across the face of a slope.
• Do not drive close to creeks, ditches or public highways.
• Always wear substantial footwear. Do not wear loose fitting clothing that may get caught in moving parts.
• Avoid extremely sharp turns.
• Follow the maintenance instructions as outlined in this owner’s manual.
• Do not exceed maximum towing speed of 3-4 M.P.H.
• Maximum Carrying Capacity 750 Lbs.
• Warning of danger of improper use of the Trailer Dump Cart. This unit is intended for use only
with Riding Mowers or Garden Tractors. It is definitely not for Highway use, being pulled at high speeds,
or transporting passenger(s) of any sort. Such use could result in injuries for which we cannot be held
responsible.

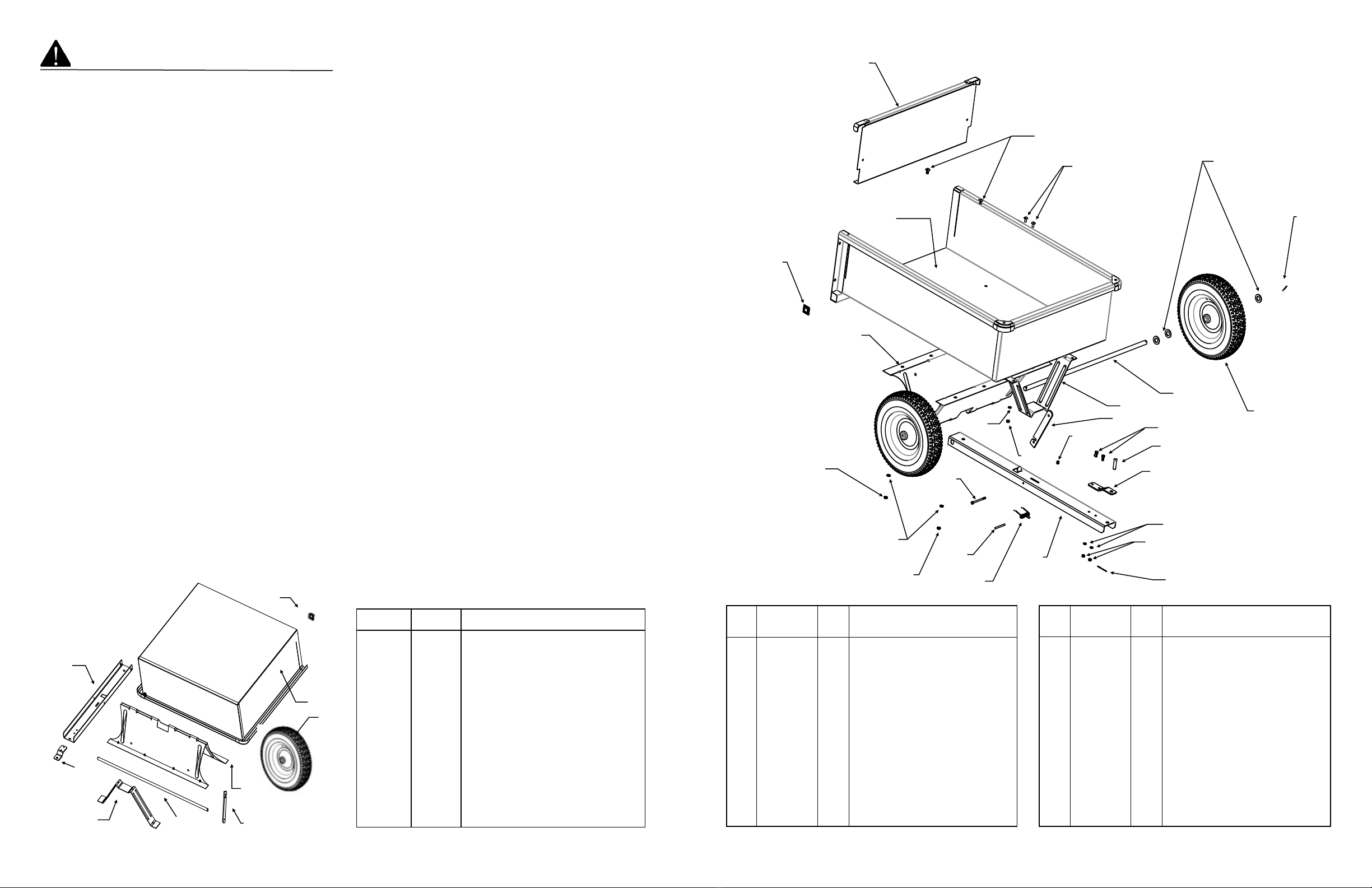

Carton Contents
1
4
3
2
67
5
8
9
Ref. Qty. Description
1
2
3
4
5
6
7
8
9
1
1
1
1
1
1
1
2
2
Body
Tow Bar
Clevis Plate
Undercarriage Axle Support
Axle
Pedestal
Latch
Wheels
1” x 1” Tube Plug
7
Ref
No.
Qty. DescriptionPart No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
1
1
2
2
1
6
1
1
1
1
1
1
4
Body
Tow Bar
Axle
Wheel
Cotter Pin
Tailgate
3/4” Flat Washer
Pedestal
Undercarriage
Clevis Plate
Latch
1/4” x 2 3/4” Spacer
Spring
5/16” x 3/4” Truss Head Bolt
5033TB
4631P
1252
4568C
1262
4560-2TB
1264
4630B
4556B
1243P
1265P
4468
4497
1586
Ref
No.
Qty. DescriptionPart No.
15
16
17
18
19
20
21
22
23
24
25
8
8
2
6
8
6
1
1
1
1
2
3/8” x 3/4” Truss Head Bolt
3/8” Hex Head Nut
5/16” x 3/4” Hex Head Bolt
5/16” Hex Head Nut
3/8” Lock Washer
5/16” Lock Washer
1/4” x 3-1/2” HH Bolt Grade 8
1/4” NyLock Nut
1/2” x 1-3/4” Hitch Pin
#14 Clevis Pin Clip
1” x 1” Tube Plug
4552
1273
1248
1275
1274
1276
1645
1558
1840
1042
2176
4
15
5
7
9
6
1
14
10
3
23
17
11
8
13
18
20
18
24
20
2
19
21
16
25
22
16
12
6
Parts and Support
Please do not return this product to the
store prior to contacting Precision.
At Precision Products, Inc. our goal is to deliver
quality, value and outstanding service. If for any
reason our product does not meet your expecta-
tions, please contact us and we will take care of any
problem you may have with this unit.
When ordering replacement parts please have the
model number, part description, part number, in-
spector number and date on carton, available so
that we can best serve you.
1 (800) 225-5891
www.precisionprodinc.com
Precision Products Inc.
316 Limit St.
Lincoln IL 62656
STOP
Operation
• TO DUMP - Pull Latch toward lawn tractor and
Cart Body will tilt back to dump position.
• TO RETURN TO PULLING POSITION - Push down
on front edge of Cart Body until Latch engages
and secures to Tow Bar.
• Tractor speed should be governed by weight of
load. The heavier the load, the slower the speed
for safe operation.
Maintenance Instructions
• Keeping the cart clean and dry will prolong the
unit’s life.
• Grease Wheels at regular intervals, at least once
every six months, more frequently if used regular-
ly.
• Should rust develop, sand lightly then paint area
with enamel paint.
• Check tire pressure at regular intervals. Proper
inflation will prolong the life of tires (see side of
tire for inflation amount.
9. Place one 3/4” Flat Washers on each side of Axle
next to Undercarriage. Next place Wheel onto Axle,
add one or two 3/4” Flat Washer on outside of
wheel Secure Wheel in place by inserting Cotter Pin
through hole in the end of Axle and spreading the
legs of the Cotter Pin outward. Repeat the Wheel
attachment step for the other wheel. See Figure 9.
10. Turn Cart to an upright position, then attach
Tow Bar to Hitch of tractor, placing Clevis Pin
through Clevis Plate Hole and securing with Clevis
Pin Clip. Insert 1” x 1” Tube Plug into Tailgate Sup-
port Tube. See Figure 10
11. Turn Cart to an upright position, then attach
Tow Bar to Hitch of tractor, placing Hitch Pin
through Hitch Plate Hole and securing with Hitch Pin
Clip.
Figure 10
Clevis Pin
Clevis Pin
Clip
Figure 9
3/4” Flat
Washer
Cotter Pin
Cotter Pin
3/4” Flat
Washer
1” x 1” Tube Plug
3
10 11
17 18
13
161514
12
21
19
20
Shown Full Size
22
Ref. Qty. Description
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
8
1
4
1
8
2
6
1
8
1
2
1
4
5/16” x 3/4” Truss Head Bolt
3/8” x 3/4” Truss Head Bolt
1/4” x 3-1/2” H H Bolt 3.5 Grade
5/16 x 3/4” Truss Head Bolt
1/2” x 1-3/4” Clevis Pin
3/8” Lock Washer
5/16” Lock Washer
5/16” Hex Head Nut
1/4” NyLock Nut
3/8” Hex Head Nut
#14 Hitch Pin Clip
1/8’ x 1-1/4” Cotter Pin
Spring
3/4” Flat Washer
* Hardware Sack may contain more parts than need for
assembly of this unit.
23
4
Assembly Instructions
Tools Needed For Cart Assembly
(2) 7/16” Wrenches
(2) 1/2” Wrenches
(1) 9/16” Wrench
(1) Pair Pliers
(1) Large Standard or Flat Screwdriver
Remove from Carton
Remove all parts and hardware packages from the
carton. Lay out all parts and hardware and identify
them using the illustrations pages 2 and 3.
1. Slide Spring over the Latch Handle as shown in
Figure 1.
2. Slide the 1/4” x 2.75” Spacer through the Spring
and Latch as shown in Figure 2.
1/4” x 2.75”
Spacer
Figure 2
Figure 1
Latch
Spring
3. Slide the Latch, Spring and Spacer through the
Tow Bar. This will cause the Spring to open. See
Figure 3.
4. Slide 1/4” x 3—1/2” Hex Head Bolt through
Spacer and secure with a 1/4” Nylon Lock Nut.
See Figure 4.
Figure 3
Spring
Top of Tow Bar
Latch
Pedestal Tab
1/4” x 3 1/2”
Hex Head
Bolt
1/4” Nylon
Lock Nut
Figure 4
5
5. If assembled correctly the Latch should be forced
toward the back of the Tow Bar by the spring. See
Figure 5.
6. Attach Undercarriage Axle Support to the bottom
of the Body. Use 3/8” x 3/4” Truss Head Bolts, 3/8”
Lock Washers, and secure with 3/8” Hex Head Nuts.
See Figure 6.
7. Attach Pedestal to bottom front of Body. Use
5/16” x 3/4” Truss Head Bolts from inside. On the
bottom side, use 5/16” Lock Washers and secure
with 5/16” Hex Head Nuts. See Figure 7.
8. Move Body to flat position with Undercarriage
and Pedestal face up. Slide Axle halfway through
Undercarriage. Place Tow Bar into center slot on
Undercarriage, locking latch to Pedestal then slide
the Axle though the holes in the Tow Bar then all
the way through the Undercarriage. See Figure 8.
Figure 5
Force of Spring
Figure 7
5/16” x 3/4”
Truss Head
Bolt
Figure 6
3/8” Lock
Washer
3/8” Hex
Head Nut
3/8” Truss
Head Bolt
Figure 8
Latch
Pedestal
Axle
3/8”
Lock
Washer
3/8”
Hex
Head
Nut
5/16” Lock
Washer
5/16” Hex
Head Nut
Other Precision Outdoor Cart manuals
