Premier TSP-5276USBT User manual

5.1 MULTIMEDIA HOME THEATER SYSTEM
TSP-5276USBT
IR
DVD
BLU USB/SD
SLEEP
AUX
PRO
FM
TSP-5276USBT

Usage:
Specification:
*Output power: 1.4W+1.3W x 5 (RMS)
*Frequency Response:40Hz-20kHz
*S/N Ratio:≥75dB
*Separation:≥50dB
*Speaker:4"+2.75" x 5
*AC: 110V 60Hz / 220V 50Hz
Caution:
1.Do not expose to dripping or splashing.
2.Do not place any objects filled with water over the apparatus.
3.Do not block the ventilation holes.
4.For indoor use only.
5.When using high output signal don't turn the volume to maximum
to avoid distortion.
Inside Package:
Subwoofer Speaker 1pc
Satellite Speaker 5pcs
Audio Cable 1pc
Audio Converter 1pc
User Manual 1pc
Remote Control 1pc
FM ANT 1pc
How to use the Blue-connect:
1. Press BLU button on the remote to enter Blue-connect mode.
2. Search subwoofer's Blue-connect named " PREMIER " in your device
Bluetooth list.
3. Connect your device to " PREMIER " then you can play music on subwoofer.
PS) If your Bluetooth device is below 2.0 version, pls input password
" 0000" after connection.

PRO
FM AUX DVD IR
SLEEP BLU USB/SD
PRO-------------Pro-logic function indicator lamp.
SLEEP Sleep function key indicator lamp.----------
BLU--------------Blue connect function key indicator lamp.
USB/SD---------USB/SD function key indicator lamp.
FM----------------FM function key indicator lamp.
AUX--------------AUX function key indicator lamp.
DVD--------------DVD function key indicator lamp.
ST.BY------------USB/SD pause/Play function key will be Stand by function
when pressing more than 3 seconds.
IR-----------------The remote sensor to receive the window way.
INPUT------------Input function key.
USB/SD----------USB/SD function key indicator lamp.
VOL- ------------“previous” will be “volume-” function if u keep pressing
it more than 3 seconds.
PRO-LOGIC----- Pro-logic function key.
VOL+ ------------“next” will be “volume+” function if u keep pressing it
more than 3 seconds.
Front panel

1.When using SD card function, it is required to choose SD card
whose memory is more than 512M and also is legal edition.
2.USB and SD automatic switching Play
SD/MMC
CARD U DISK
1 2
Front panel
1. SD card socket
2.USB socket

*If the Remote Control cannot function,it is because the battery of
remote control has been used up.Thank you.
BLU
How to use the remote control
------------- Power switch button(stand by) switch On or
off for waiting or On condition.
SD----- SD Input
PRO
----------
-------------Pro-logic channel switch.
USB -------------USB Disk
FM ---------------FM Input
AUX--------------AUX Input
DVD -------------DVD Input
BLU ------------- Blue connect Input
SAVE ----------- Save FM Channel
TUNE-/+ --------Previous/Next channel keep pressing
to search the channel.
--------------- Play & pause
SCAN Keep pressing for FM channel
-------------- Previous song when USB/SD Input;
CH- Previous channel when FM Input
-------------- Next song when USB/SD Input;
CH+ Next channel when FM Input
SLEEP-/+ ----- To time on/off the speaker
FL-/+ ----------- FL volume to upgrade & attenuation of the key
FR-/+ -----------FR volume to upgrade & attenuation of the key
SW-/+ ----------SW volume to upgrade & attenuation of the key
CEN-/+ ---------CEN volume to upgrade & attenuation of the
key.
VOL-/+ --------- Master Volume
SL-/+ ----------- SL volume to upgrade & attenuation of the key
SR-/+ -----------SR volume to upgrade & attenuation of the key
------------------- Press any key to choose the song
REPEAT-------- Repeat
RESET---------- When the volume is at the maximum, press
“RESET” button. at the status while power on.
EQ-/+ ---------- EQ (When USB/SD Input)
DISP-/+ --------Lightness Adjust

SPEAKER TERMINALS
Connect front speakers, a center speaker,surround
speakers to 5.1 speaker output terminals.
-The front speaker cords to the FRONT SPEAKERS terminals
-The center speaker cords to the CENTER SPEAKERS terminals
-The surround speaker cords to the SURROUND SPEAKERS terminals
NOTE
* Do not leave objects generating magnetism near the speakers.
110V 220V
ON
OFF

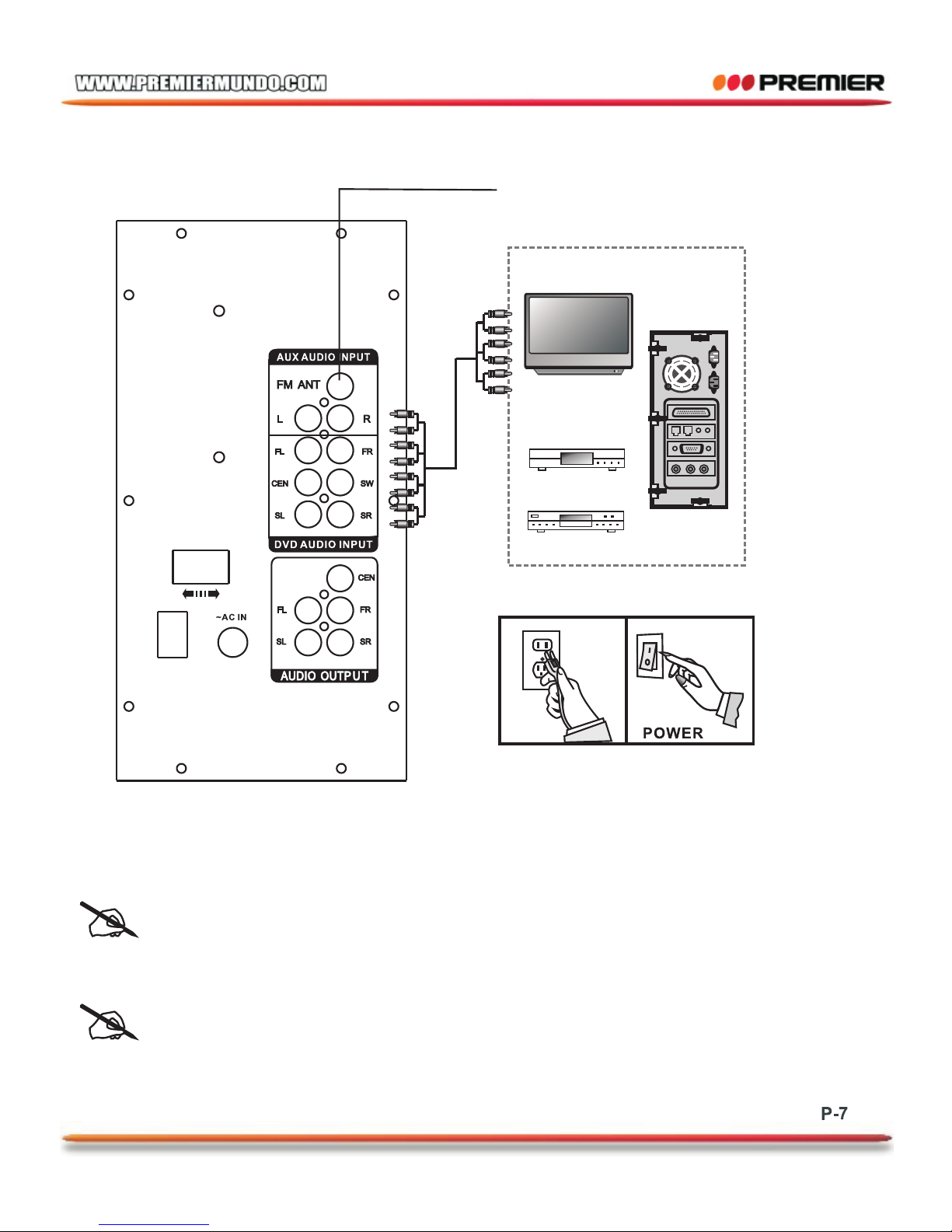

System connection diagram

110V 220V
ON
OFF
Connecting equipment
Jacks and plugs of the connecting cord are color-coded as follows:
Red jacks and plugs: For the left channel of audio signals
Insert the plugs fully into the jacks. Loose connections may produce a
humming sound or other noise interference.
Connect the speakers and all other external equipment, and finally
connect the AC power cord.
IMPORTANT:
AUDIO INPUT
COMPUTER
TV
DVD
DVD
VCD
FM RADIO ANTENNA
System connection diagram
NOTE:

b
c
d
Surround Speakers
Front Speakers
Center Speaker
Place the surround speakers directly to the side or a slightly
behind the listening area.
Align them horizontally,about 1 meter above ear height.
Position in the center of the two front speakers.in addition
Position on or below the TV set.If connecting a TV set to the unit.
Sub-woofer
Place the sub-woofer any place on the floor.
(There is no directionai requirement for the Bass effect.)
a
a
b
c
TV
d
c
b

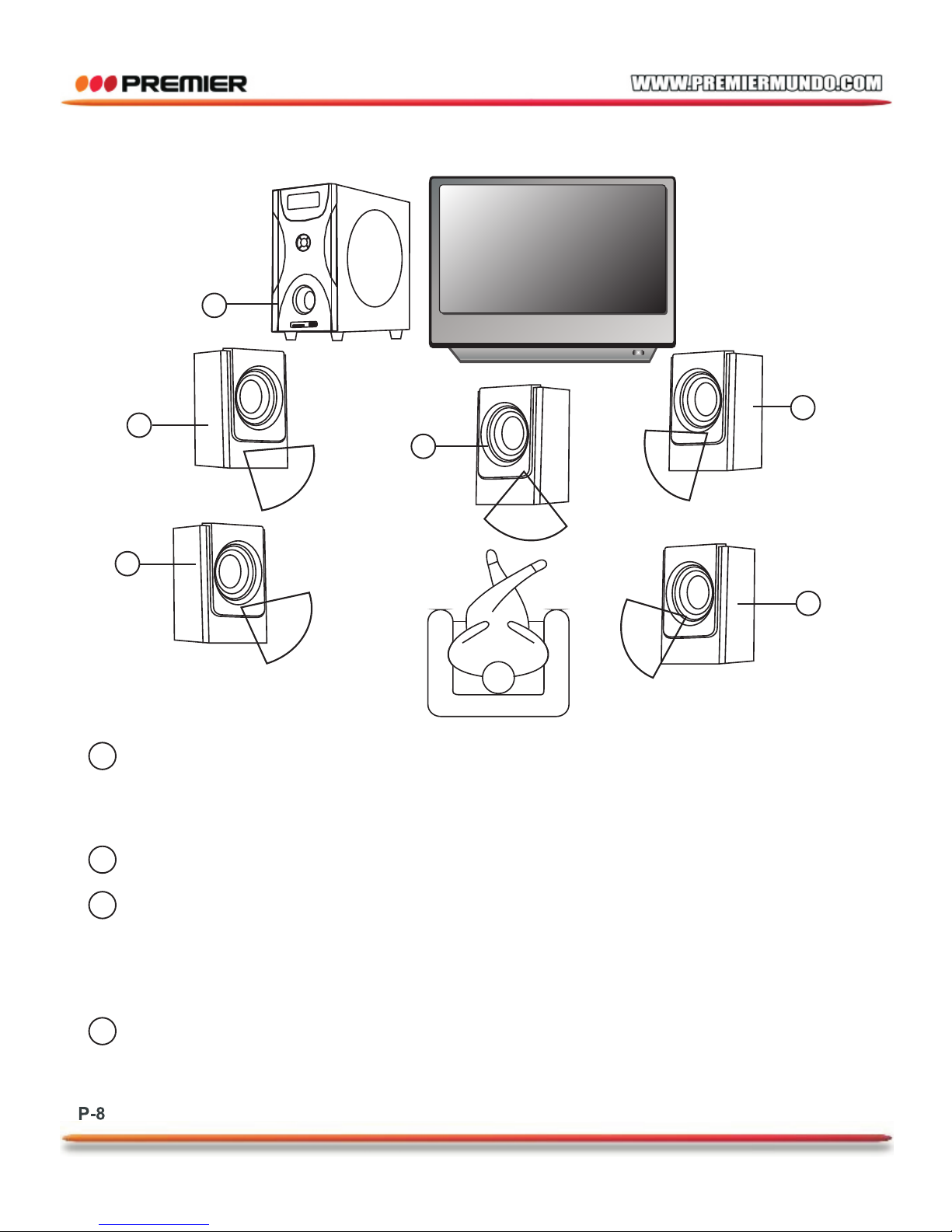

Positioning the speakers

Schematic diagram
