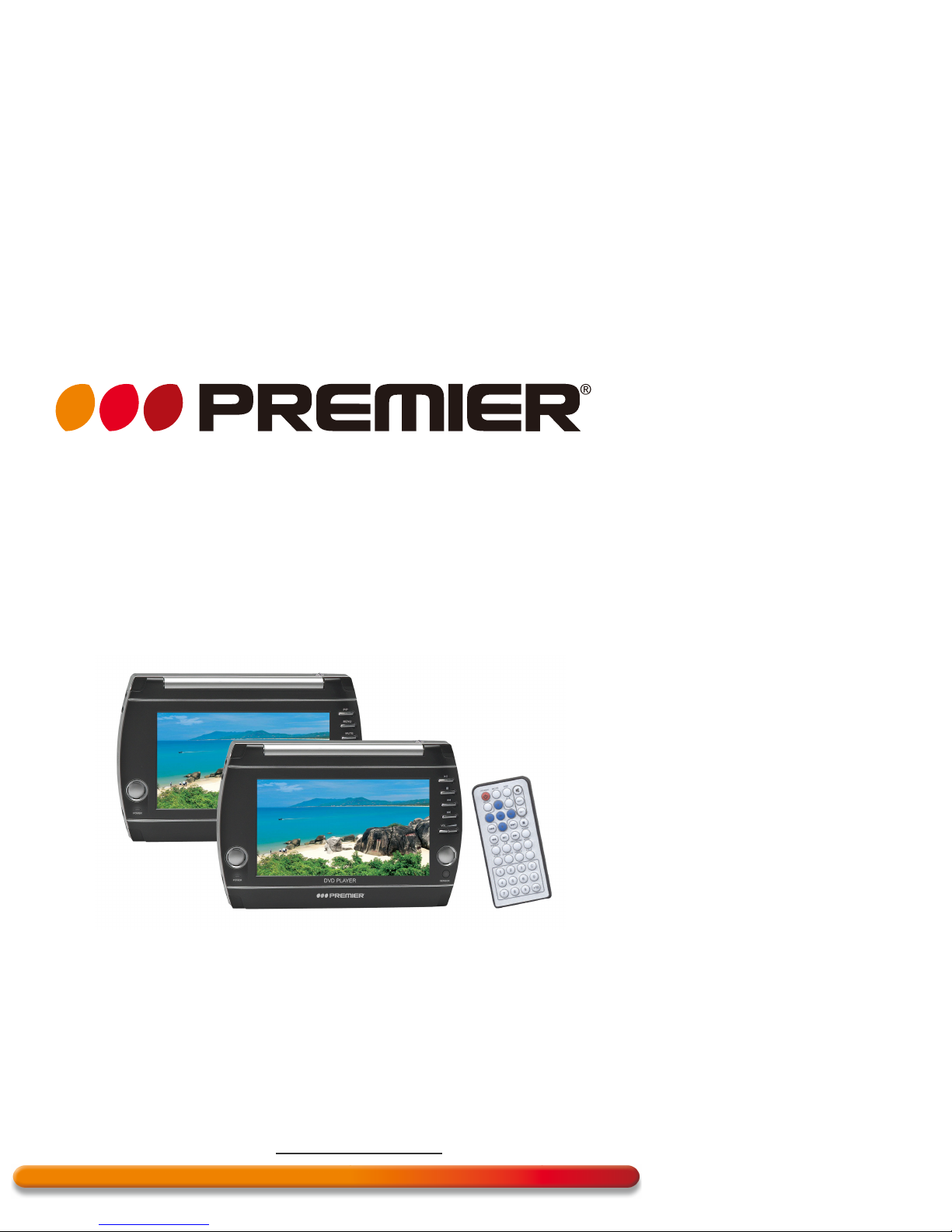

Premier SX-2735TFT User manual

INSTRUCTION MANUAL
PORTABLE DVD PLAYER
SX-2735TFT
DEAR CUSTOMER
Congratulations for your purchase!
Please read this manual carefully, and keep it for future reference.
If you need extra support, please write to [email protected]

1

2
CONTENT
•PRECAUTIONS ................................................................................................. 4
•CAUTIONS ON USING THIS PLAYER ............................................................ 7
•PORTABLE DVD ACCESSORIES ................................................................... 9
•TECHNICAL DATA ........................................................................................... 9
•SPECIFICATION ............................................................................................... 10
Types of discs playable on this player
Portable dvd specifications
Monitor accessories and specifications
•PARTS NAME AND FUNCTION ...................................................................... 12
Part in the front of the player
Keypad in the player
Part in the front of the monitor
Keypad in the monitor
Part in the back of the player
Part in the right side of the player
Part in the left side of the player
Part in the top of the player.
Part in the back of the monitor.
Part in the left side of the monitor.

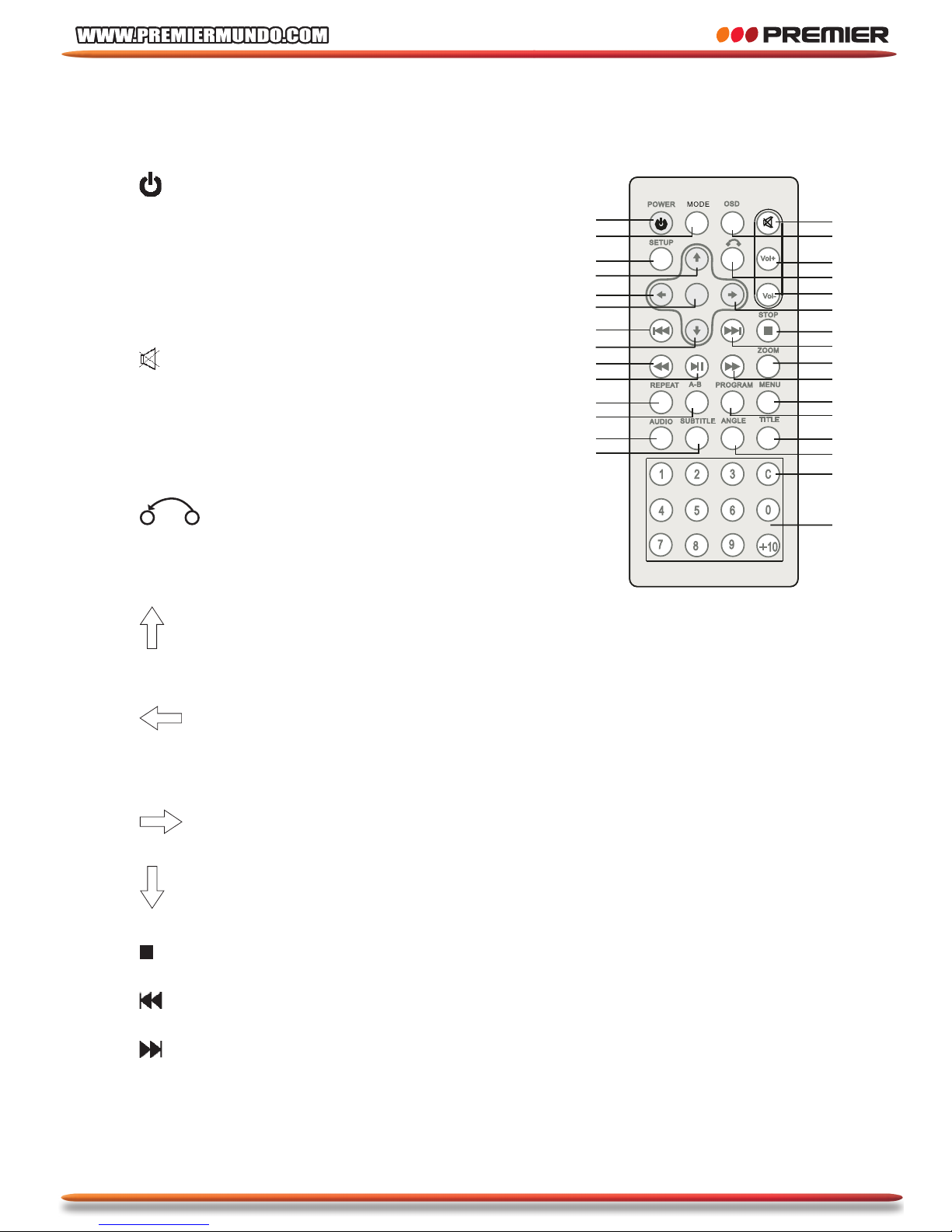

Remote control unit
•USING REMOTE CONTROL UNIT ................................................................... 20
Precautions before using remote control unit
Range
Install battery for remote control unit
•USING THE BATTERY ..................................................................................... 22
Precautions before using the battery
Battery storage.
Battery life
Using the battery
Installing and removing the battery
Recharging the battery by using ac-dc adapter.
Cautions when charging the battery
•CONNECTING THE PLAYER TO OTHER COMPONENTS ............................ 25
Connecting to ac-dc adapter
Connecting earphone
Connecting to usb storage
Connecting to memory card.

3
CONTENT
Connecting toatv set
Connecting to an amplifier.
Connecting to an active speaker system.
Connecting to an audio/video player
System if you want the unit as a monitor
Connect to a monitor
•BASICOPERATIONS ....................................................................................... 32
Turning on/off the main unit.
Placing disc.
Playing discs
Removing discs
Mode settings (brightness/contrast/ Color/tft display mode/tft reverse Mode/
av out/in mode)
Stopping the playing
Pausing the disc
Scanning forward and backward
Repeat playing the disc
Zoom playing
Program playing
Using OSD
Selecting a sub-title
Selecting an audio
Selecting an angle
Playing audio files and jpeg disc
Playing the file storing in a usb storage
Playing the file storing in a memorycard.
•MAIN UNIT SETTINGS ..................................................................................... 40
Selecting a tv system
Setting screen saver
Selecting a tv scale
Setting parent lock
Setting parent lock level
Default setting
Selecting a osd language
Selecting an audio language
Selecting a subtitle language
Select a menu language
•TROUBLE SHOOTING ..................................................................................... 46
•IMPORTANT USERINFORMATION ................................................................ 47
•IMPORTANT SAFETY INFORMATION ........................................................... 48

4
PRECAUTIONS
Thank you for purchasing Portable DVD player. Please read this manual carefully
before operating and reserve it for future reference. It will be helpful to you if you
encounter any operational problem.
Warning
To reduce the risk of fire or electric shock, do not expose this appliance to rain
or moisture, dripping or splashing and that no objects filled with liquids, such
as vases, shall be placed on the apparatus. Dangerous high voltages are present
inside the enclosure. Do not open the cabinet. Refer servicing to qualified
personnel only.
Attention
To prevent electric shock, match wideblade ofplug to wide slot, fullyinsert.
LASER:
This Digital Video Disc player employs a Laser System.To ensure proper use of this
product, please read this owner s manual carefully and retain for future reference.
Should the unit require maintenance, contact an authorized service location -see
service procedure.
Use of controls, adjustments or the performance of procedures other than
those
specified may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the enclosure.
Visible and invisible laser radiation when open and interlocks defeated.
Do not stare into beam.
LASER
Type
Semiconductor laser GaAIAs
Wave length 650 nm/780 nm
Output Power 5 mW
Beam divergente 60 degree
CLASS 1
LASER
PRODUCT

5
PRECAUTIONS
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAINOR MOISTURE.
CAUTION
Use of controls or adjustments or performance of proceduresthose specified
may resultin hazardous radiation exposure.
CAUTION
RISKOF ELECTRIC SHOCK. DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIEDSERVICE PERSONNEL.
The lightning flash with arrowhead symbol, with in an
equilateraltriangle, is intended to alert user to the presence of
uninsulated”dangerous voltage” within the product enclosure that
may beof sufficient magnitude to constitute a risk of electric shock
to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to the presence of imporant operating andmaintenance
(servicing)instruction in the literature accompanying the appliance
CAUTION
INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK
FAILED OR DEFEATED. AVOID DIRECT EXPOSURE TO LASER
BEAM.

6
PRECAUTIONS
MACROVISION
This product incorporates copyright protection technology that is protected by U.S.
patents and other intellectual property rights. Use of this copyright protection
technology must be authorized by Macrovision, and is intended for home and other
limited viewing uses only unless otherwise authorized by Macrovision. Reverse
engineering or disassembly is prohibited.
FCC NOTICE
This device complies with part 15 of the FCC Rules. Operation is subject of the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.

7
CAUTIONS ON USING THIS PLAYER
Do not move the player during playback
During playback, the disc spins at high speed, so do not lift or move the player.
Doing so may damage the disc.
Transporting the player
When transporting the player be sure to remove the disc and turn off the power, then
unplug the power cord .
Place of installation
Select a stable place near the TV or stereo system to which you are going to connect
the player. Do not place the player on top of a TV or color monitor. Install the player
away from cassette decks or other devices which are easily affected by magnetic
forces.
Do not place objects on top of the player
Do not place any objects on top of the player.
Turn off the power when not using the player
If the player is connected to your TV but not in use then switch the power off this will
prevent interference with your normal TV picture. Noise problems may also be
experienced if used near a radio.
Special note regarding use of player in vehicles:
•Unit must not be used when the vehicle is moving at all.
•Most countries and states have laws which prohibit or severely restrict the use of
the player in vehicles while driving.
•Do not leave the player or the battery pack in places where the temperature is
extremely low (about-10! or lower) or extremely high (about 60! or higher), such as
inside the passenger cabin or trunk in midsummer. Doing so may warp the outer
case or reduce the performance or quality of the battery pack.
When carrying on planes
Heed the airline company’s rules.
When carrying in hospitals
Heed the hospital’s rules.

8
CAUTIONS ON USING THIS PLAYER
When using with car power cable in cars
Please turn on the engine and then connect with the car power cable for using.
Cleaning the player
Normally clean the player using a soft, dry cloth. For tough dirt, apply some neutral
detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off
the dirt, then wipe the player with a dry cloth. Note that alcohol, thinner, benzene,
insecticides, etc., may cause the print or coating to peel off. Also avoid leaving
rubber or plastic products in contact with the player for long periods of time, as this
may damage the cabinet. When using chemically treated cloths, read the cloth’s
instructions carefully. Always unplug the power cord from the power
outlet before cleaning the player.
To clean dirt off the liquid crystal display, wipe the display gently with a soft, dry
cloth (such as an eyeglass cleaning cloth). Note that leaving water droplets on the
display for long periods of time may result in discoloration or stains. For tough dirt,
use a commercially available liquid crystal display cleaner.
Copyrights
Unauthorized duplication, broadcast, public performance or rental of discs is prohibited
by law.

•• •• •• •• •• •• •• •••••
•• • • • •• ••• •• •• •• •• •
• •• •• •• ••••• ••
•O•K
PORTABLE DVD ACCESSORIES
After unpacking, check that all the accessories listed below are included
AC/DC ADAPTER AV CABLE EARPHONE
CAR POWER CABLE
(OPTIONAL)
CARD-TYPE REMOTE
CONTROL UNIT
AC&DC CABLE
(OPTIONAL HEADREST BAG
)
OPERATING
INSTRUCTIONS
TECHNICAL DATA
- 7’ tft 16:9 lcd screen and dvd-player
- Usb and sd/mmc multi-media cardreader
- Pal / ntsc compatible
- Plays dvd, mpeg4, dvd-r/+r, dvd-rw/+rw, cd, cd-r, mp3, vcd/svcd, jpeg
- Audio-video in-out / 12 volt dc in-out / earphones out
- Headrest supports
- 2 sets of earphones
- Full function remote control
- 12v car cord adaptor
- AC100-AC240V AC/DC adaptor
- DC 6 x “AA” size rechargeable batteries (batteries included)
9

10

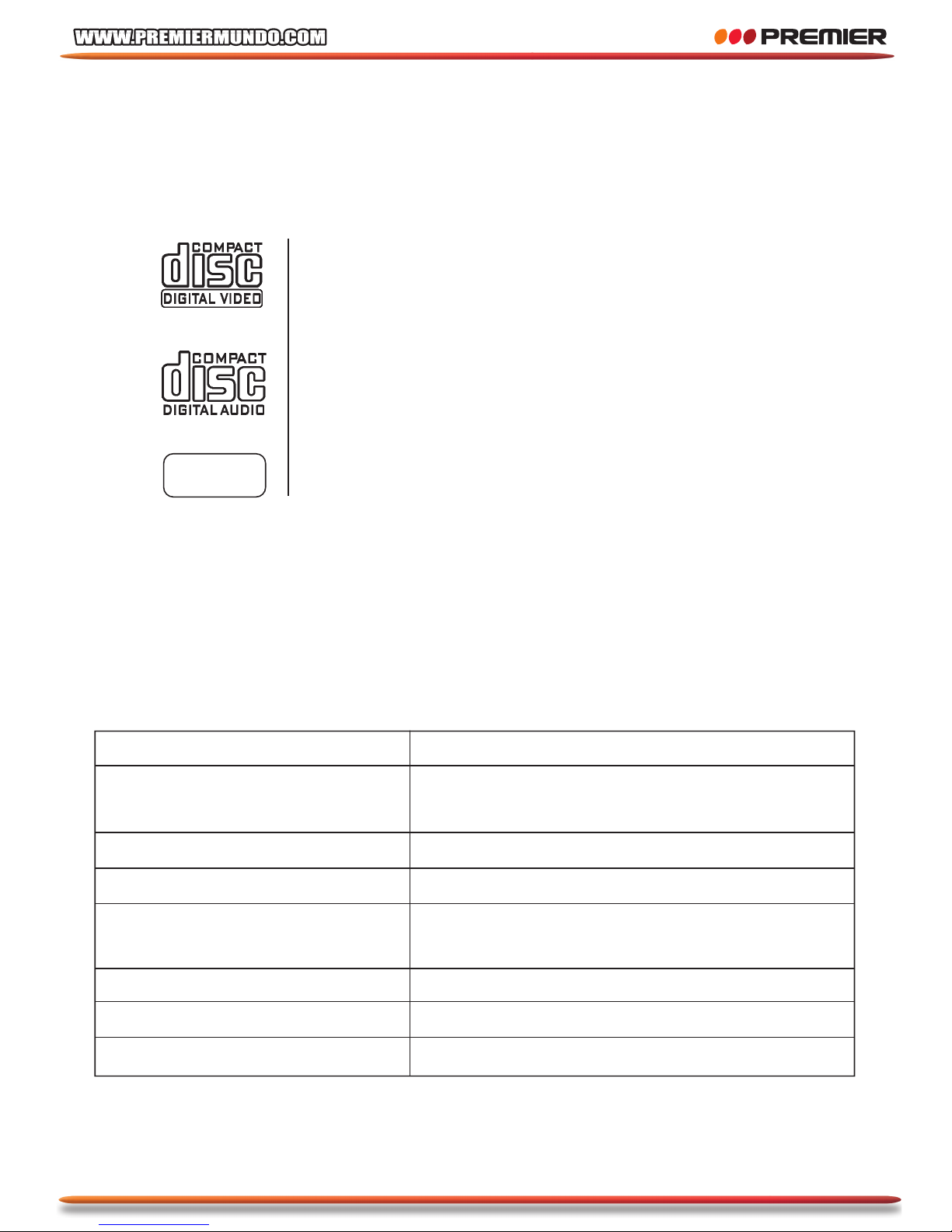

PORTABLE DVD SPECIFICATIONS
The discs listed on the below can be played on this player without any adapter.
Video CDs 8 cm / 12 cm
Audio CDs 8 cm / 12 cm
CDs JPG 8 cm / 12 cm
Noted: Don’t using the disc that is scratched seriously
Specifications
Disc type DVD Video / VideoCD CD-DA / JPEG
Audio output LINE OUT (20Hz-20kHz)
Earphone output
Video output Video output: 1.0Vpp / 75ohm
LCD panel 7” color TFT
Power AC-DC adapter 12V/1.2A
battery Rechargeable AA 1.2V
Unit size 220 mm X 150 mm X 34.5 mm
Weight 665 g
Working temperature 5°C~45°C
JP G

11
•• • •
• •• •• •• • • •• •• ••
• • • • • • • • •
•••• • •• • •• •• •
• • • •• •• •• • • •
MONITORACCESSORIES AND SPECIFICATIONS
After unpacking, check that all the accessories listed below are included.
AC&DC Cable
(optional)
Operating instructions
(this manual) Ear phone
Specifications
Audio input 1Vrms – 2Vrms
Video input 1.0 Vpp / 75 ohm
Power CC 12V / 0.6°
Earphone output 20 Hz - 20 kHz
LCD panel TFT colori 7"
Unit size 220 mm X 150 mm X 34.5 mm
Weight 470 g
Working temperature 5°C ~ 45°C

12

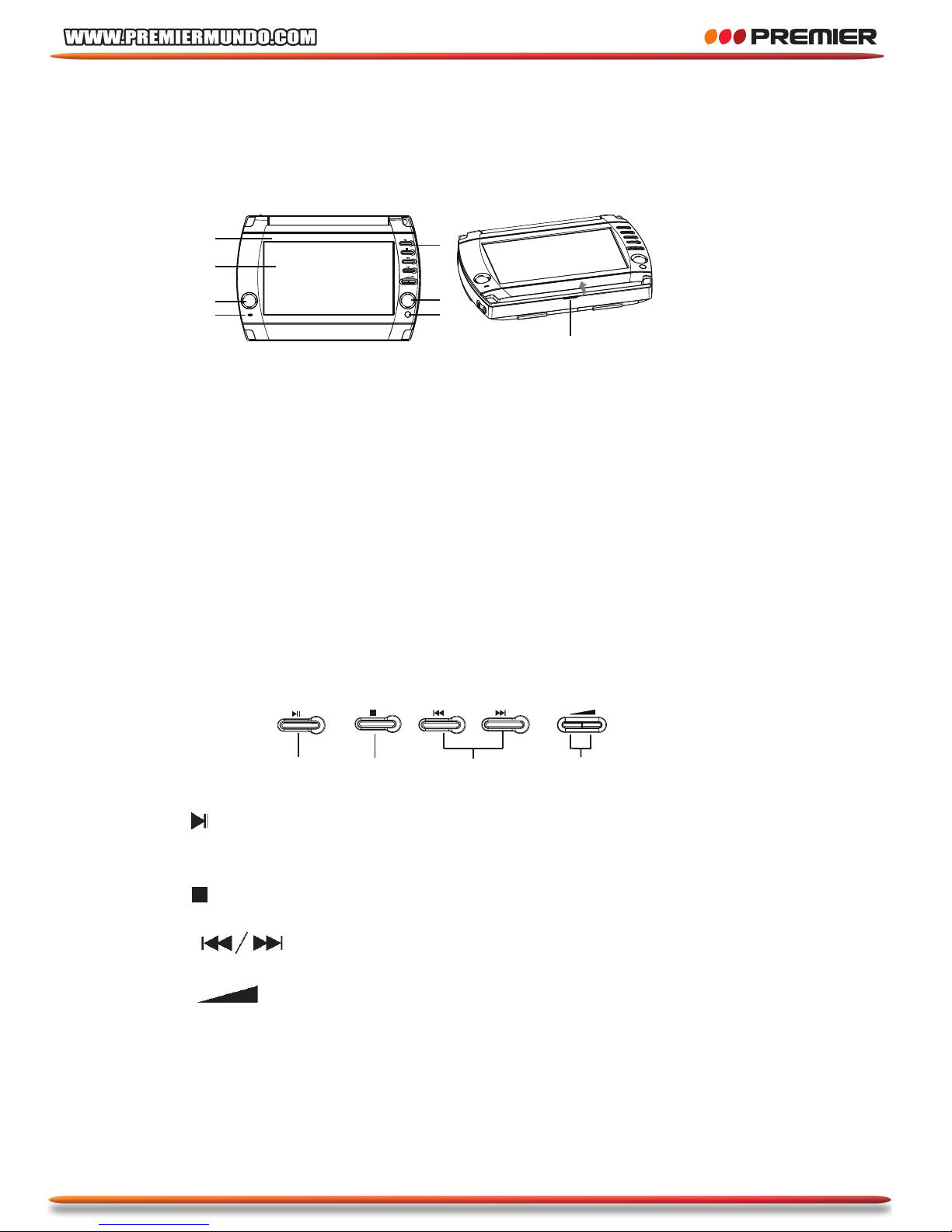

PORTABLE DVD PARTS NAME AND FUNCTION
Part in the front of the player
1. TFTcover
2. LCD display
3. Speakers
4. Control keypad
5. IRreceiver window
6. Power LED indicator
• LEDlight: Power switch is on
• LEDoff: Power switch is off
7. Open TFT cover
Pull the part according to the direction then open the TFT cover.
Keypad in the main unit
1. Button
•Press this to play disc. When press this in the play mode, pause mode is set.
Press again to resume playback.
2. Button
• Press this to stop play mode
3. Buttons
•Usingthese buttons to scan backward or forward throughthe tracks or chapters.
4. Button
•Press these buttons to increase/decrease the volume when the main unit is in
play mode.
1
2
3
4
5
3
6
7
1234

13
MONITORPARTS NAME AND FUNCTION
Part in the front of the monitor
1. LCD display
2. Speakers
3. Control keypad
4. Power LED indicator
•LED light: Power switch is on
•LED off: Power switch is off

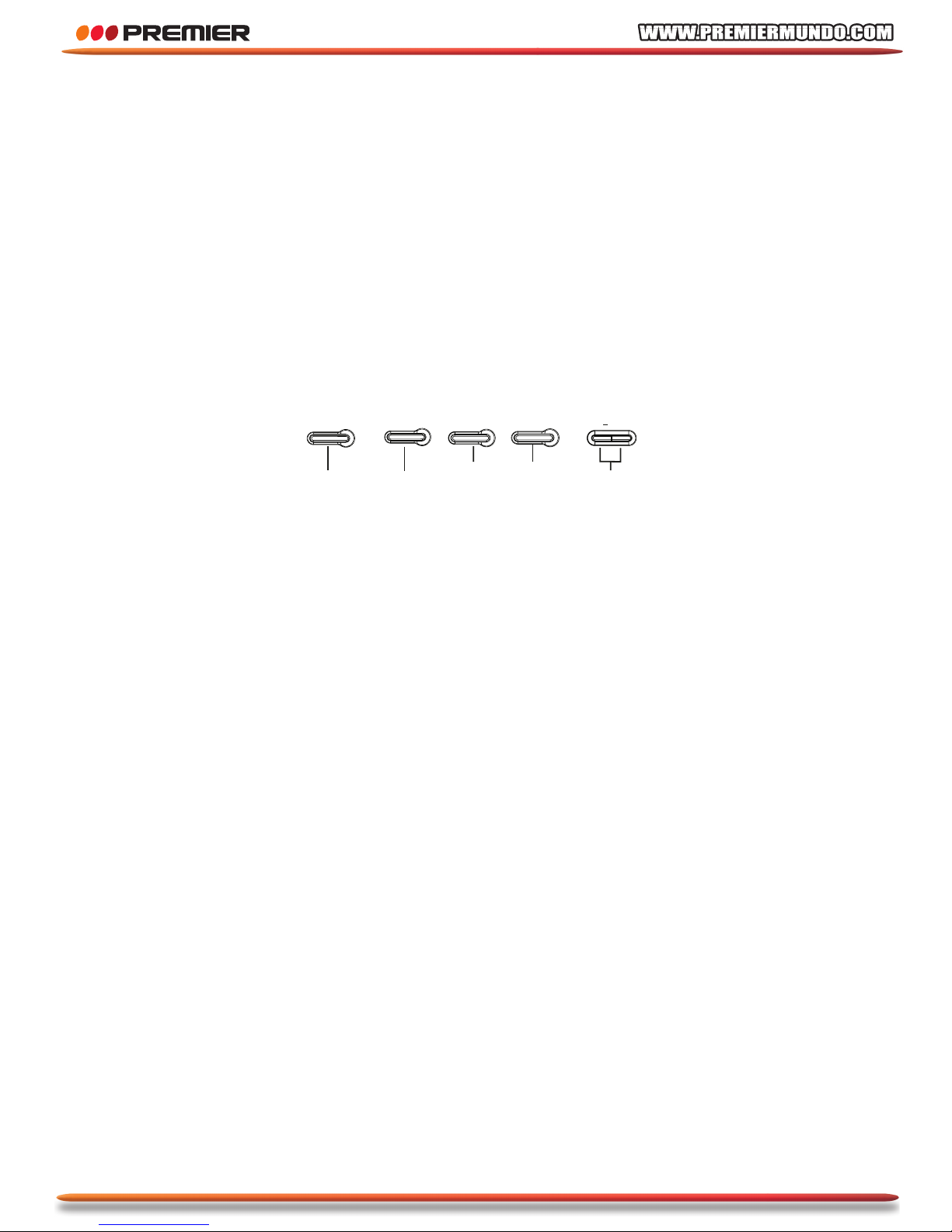

Keypad in the monitor
1. P/P Button
•Press the button to set BRIGHT or PASTEL or VIVID or STANDARD or
NORMAL.
2. MENU Button
•Press the button to select Brightness, Contrast,color,then use M-/M+ buttons
to adjust.
3. MUTE Button
•Press the button to mute the audio output.
4. MODEButton
•Press the button to select screen NORMAL L TO R or NORMAL R TO L or
REVERSE L TO R or REVERSE R TO L,then use M-/M+ buttons to adjust
5. V- /V+ Buttons
•Press these buttons to increase/decrease the volume when the monitor
is in play mode.
•Press these buttons to adjust Brightness,Contrast,Color.
•Press these buttons to adjust screen mode.
1235
4
P / P M ENU MUTE MODE V/ V +

14
UK
1
1
2
PORTABLE DVD PARTS NAME AND FUNCTION
Part in the back of the player
1. Support
Pull out the support to the proper position in order to let the unit stand.
2. Battery cover
Open the battery cover and place six rechargeable LR-06 NiMH 1.2V/1800mAH
batteries into it.
Part in the right side of the player
1. Memory card socket (optional)
Suit for SD/MMC/MS card reader
2. USB(1.1)socket (optional) connecting USB storage
21

15
PORTABLE DVD PARTS NAME AND FUNCTION
Part in the left side of the player
1. Earphone jack,
Connecting to earphone.
2. Audio/Video input or output,
input/output audio/video signal.
3. 12V DC output
Connecting to the monitor.
4. 12V DC input
Connecting to the AC-DC adapter or car
adapter.
Part in the top of the player
1. Power switch
Turn ON/OFF the unit.
•O •N •/ •O •F •F
1
1 2 3 4
•A•V• •I •N•/ •O•U •T
•D•C• •O •U•T• •1 •2•V •D•C• •I •N• •1•2 •V

16
PORTABLE DVD PARTS NAME AND FUNCTION
Part in the back of the monitor
1. Support
Pull out the support to the proper position in order to let the unit stand.
Part in the top of the monitor
1. Power switch
Turn ON/OFF the unit
•Push power switch to ON to turn on the monitor when the unit is power,
power indicator led light.
•Push power switch to OFF to turn off the monitor,power indicator led off.
1
1
•O•N•/•O•F•F
1

17
PORTABLE DVD PARTS NAME AND FUNCTION

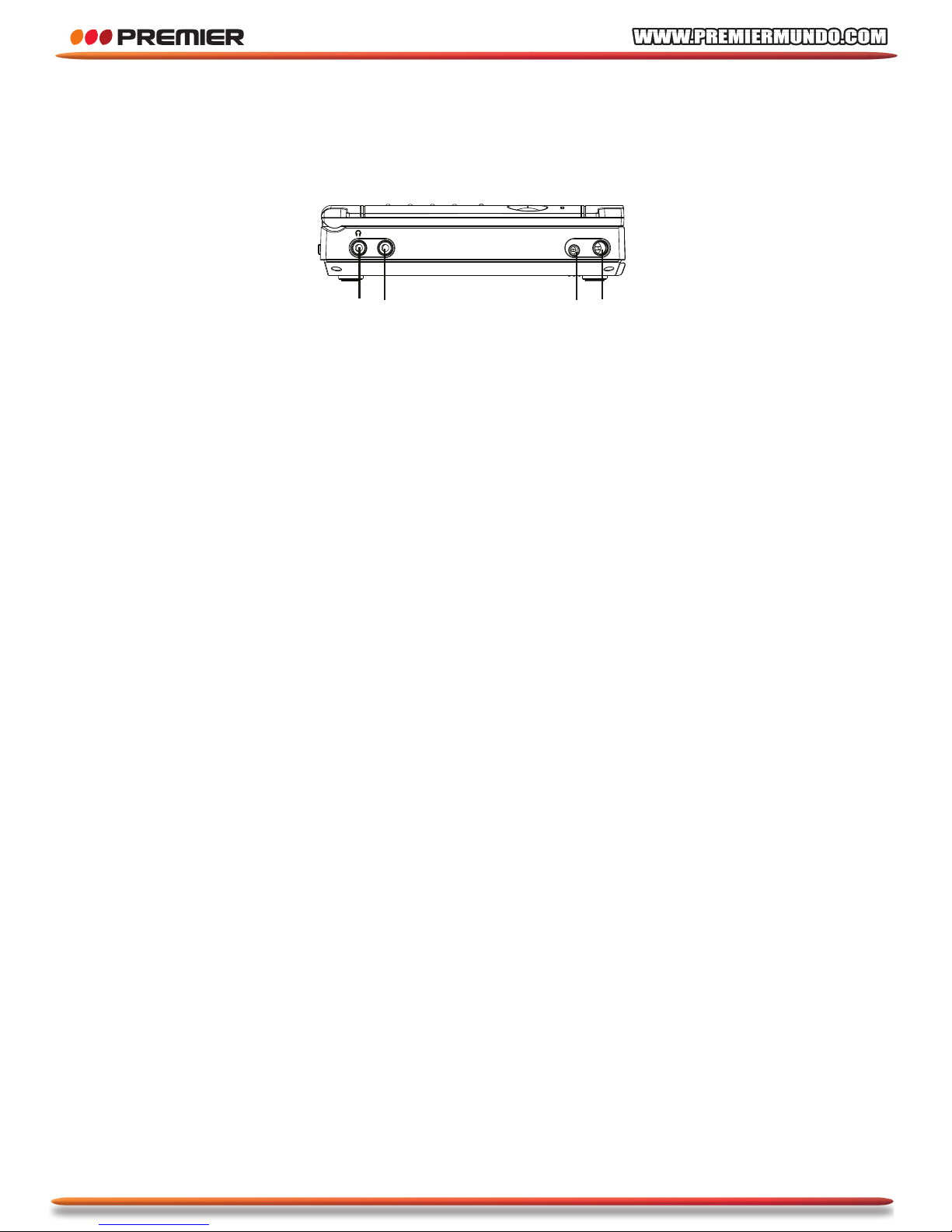

Part in the left side of the monitor
1. Earphone jack connecting to earphone.
2. Audio/Videoinput
Input audio/video signal.
3. 12V DC output.
4. 12V DC input.
Connecting to the DVD Player.
1234
•A•V• •I•N
•D•C• •O•U•T• •1•2•V •D•C• •I•N• •1•2•V

18
PORTABLE DVD PARTS NAME AND FUNCTION
Remote control
1.
Power on/off the unit
2. MODE
Press this to switch LCD mode
3. OSD
Press this buttons to displaythe disc and
playing information in the LCD
4.
Switch off the speakers or earphone
5. VOL+
Increasing the volume
6. VOL-
Decreasing the volume
7.
Return to menu.
8. SETUP
Set up menu when the unit in play mode
9.
Moving cursor Up
10.
Moving cursor let
11. OK
this to confirm settings
12.
Moving cursor Right
13.
Moving cursor down
14.
Stop playing disc
15.
Skip previous track/chapter
16.
Skip next track/chapter
17. ZOOM
Zooming the picture
•O•K
1
23
4
5
6
7
8
11 12
9
10
15
16
13
14
19
20
17
18
23
24
21
22
26
25
27
28
29
30

19
PORTABLE DVD PARTS NAME AND FUNCTION
18.
Press this to fast backward play when the unit in play mode
19.
Press this to fast forward play when the unit in play mode
20.
Press this to play or pause Displaying DVD title
21. REPEAT
DVD: repeat play the title, chapter
VCD,CD: repeat the track or whole disc
22. A - B
Press this to set A point, press again to set B point, then the
unit playing from A to B repeated.
Press 3’ rd to cancel the A-B play
23. AUDIO
DVD: selecting audio language
VCD or CD: Selecting the audio channel
24. SUBTITLE
Selecting sub-title
25. MENU
Menu play
26. PROGRAM
Programming the play sequence
27. TITLE
Display DVD title
28. ANGLE
Press this to select the DVD angle
29. C
Clearing the digit that is just input
30. DIGIT INPUT
