Pressol Barrel pump G2 Instruction Manual

OPERATING INSTRUCTIONS
AND SAFETY NOTES
Barrel pump G2“
for diesel and heating oil
88 930 932 A402 GB

2
GB Operating Instructions - Barrel pump for diesel and heating oil
Pressol Schmiergeräte GmbH
This documentation is exclusively intended for the operating company and their sta.
Without our written consent, the content of this documentation (textes, gures, drawings, charts,
diagrams etc. ), must not be duplicated or distributed, neither in full or in part, utilized for the purpose
of competition or passed on/made availabe to third parties.
Pressol Schmiergeräte GmbH
Parkstraße 7
93167 Falkenstein | Germany
Tel. [phone]
Fax [phone]
[e-mail]
www.pressol.com
Operating instructions translation
Date of issue: 06/2020
We reserve the right to make design and product modications, which serve to improve the product.
Table of Contents
1. Introduction ________________________________________________________________________3
1.1. Preface ____________________________________________________________________________3
1.2. Obligations of the personnel __________________________________________________________3
1.3. Symbols in this manual _______________________________________________________________3
1.3.1. Structure of the safety notes ___________________________________________________________3
1.3.2. Hazard symbols _____________________________________________________________________3
1.3.3. General symbols ____________________________________________________________________4
2. Intended conditions of use ____________________________________________________________4
3. Risks when handling diesel fuels and heating oils __________________________________________4
4. Technical data ______________________________________________________________________4
5. Assembly __________________________________________________________________________4
6. Commissioning _____________________________________________________________________5
7. Disposal____________________________________________________________________________5
8. Repair/Service ______________________________________________________________________5
9. Exploded view of the barrel pump with discharge spout ____________________________________6

3
Operating Instructions - Barrel pump for diesel and heating oil GB
1. Introduction
1.1. Preface
IMPORTANT
 Read and observe the directions of use carefully before use.
Our sta will be pleased to provide support if you have any questions about the product.
Yours sincerely, Pressol Schmiergeräte GmbH
1.2. Obligations of the personnel
Before they start to work, all persons who are entrusted to work with the barrel pump are obliged:
– to follow all applicable regulations on occupational safety and accident prevention.
– to read and to comply with all safety instructions and warning notes contained in these operating
instructions.
Please observe the following instructions in the interest of all concerned:
 Refrain from any unsafe working methods!
 In addition to this documentation, keep to all generally accepted safety rules, legal provisions as
well as all other binding rules regarding occupational safety, accident prevention and environmental
protection!
 Wear appropriate protective clothing in accordance with the work to be done!
 Perform only work for which you have been suciently trained and instructed!
 Only genuine spare parts as well as original tools and auxiliaries of the manufacturer are allowed to be
used in order to ensure the functional safety and maintain the warranty coverage.
1.3. Symbols in this manual
1.3.1. Structure of the safety notes
The warning notes have the following structure:
SIGNAL WORD
Type and source of the hazard
– Consquences of non-compliance with the notes
– Measures to avoid that risk
Depending on the danger level, dierent signal words are used:
Signal word Danger level Consequences of non-compliance
DANGER Imminent threat of danger Death or serious bodily injury
Note
Indicates further information or tips which facilitate work.
1.3.2. Hazard symbols
Symbol Meaning
This symbol warns of a hazardous explosive atmosphere.

4
GB Operating Instructions - Barrel pump for diesel and heating oil
1.3.3. General symbols
Symbol Meaning
A small black square indicates the work you have to perform.
–The dash denotes lists.
2. Intended conditions of use
 The barrel pump may only be used to discharge oils, upt to SAE 50, diesel, petroleum, kerosene,
glycerin, antifreeze undiluted.
 The temperature of the pumped liquid must be between +10 °C and +35 °C.
 The pumping of explosive liquids is prohibited.
 Use in the food industry is prohibited.
 The user is liable for any damage resulting from non-intended use.
DANGER
Risk of injury and material damage from explosive vapors!
 Never use the pump to deliver explosive uids such as petrol or other
uids with similar ashpoints!
3. Risks in handling diesel and heating oil solutions
Diesel fuels and heating oils are ammable liquids. If improperly handled, they can cause risks to hu-
man health or to the environment.
NOTE
 Avoid skin and eye contact. In case of contact with the eyes, rinse the
eyes with plenty of drinking water and consult a physician!
 Observe the safety sheets for diesel and heating oil!
4. Technical data
Pump type Hand pump 13044
Delivery rate (l/stroke) 0,4
Delivery rate at 60 strokes per minute (l/min) 24
Pumping media Oils, up to SAE 50, diesel, petroleum,
kerosene, glycerin and antofreeze undiluted
Usage Barrels 60/200/220 l
Telescopic suction tube 3-pieces (mm) 355-955
Barrel screw couplings G 2“
Materials of parts in contact with liquid
Pump body ABS / PA 6
Seals FKM + HNBR
5. Assembly
Check and prepare all parts before assembly.
 Mount the telescopic suction tube to the pump. See g. 5.-1 (1)
 Fit the curved discharge spout with the union nut to the pump. See g. 5.-1 (1)
 Screw in the pump lever. See g. 5.-1 (1)
 Screw the barrel screw coupling into the barrel, hand-tighten. See g. 5.-1 (2)
 Align the pump to the desired position and press downwards. See g. 5.-1 (2)

5
Operating Instructions - Barrel pump for diesel and heating oil GB
6. Commissioning
 Before starting up, check the pump for proper installation and visible damage.
 Operate the lever several times until the pump sucks.
7. Disposal
The operating company is responsible for the proper disposal of the pump.
Dispose of the dierent materials in accordance with all industry-specic, local, regional and federal
regulations.
Only qualied personnel is authorized to disassemble and dispose of the barrel pump.
8. Repair/Service
The barrel pump for diesel and heating oil was developed and produced according to the highest
quality standards.
Should a problem develop, despite all quality controls, please contact our customer service:
Pressol Schmiergeräte GmbH
Tel.: [phone]
Fax: [phone]
[email protected]

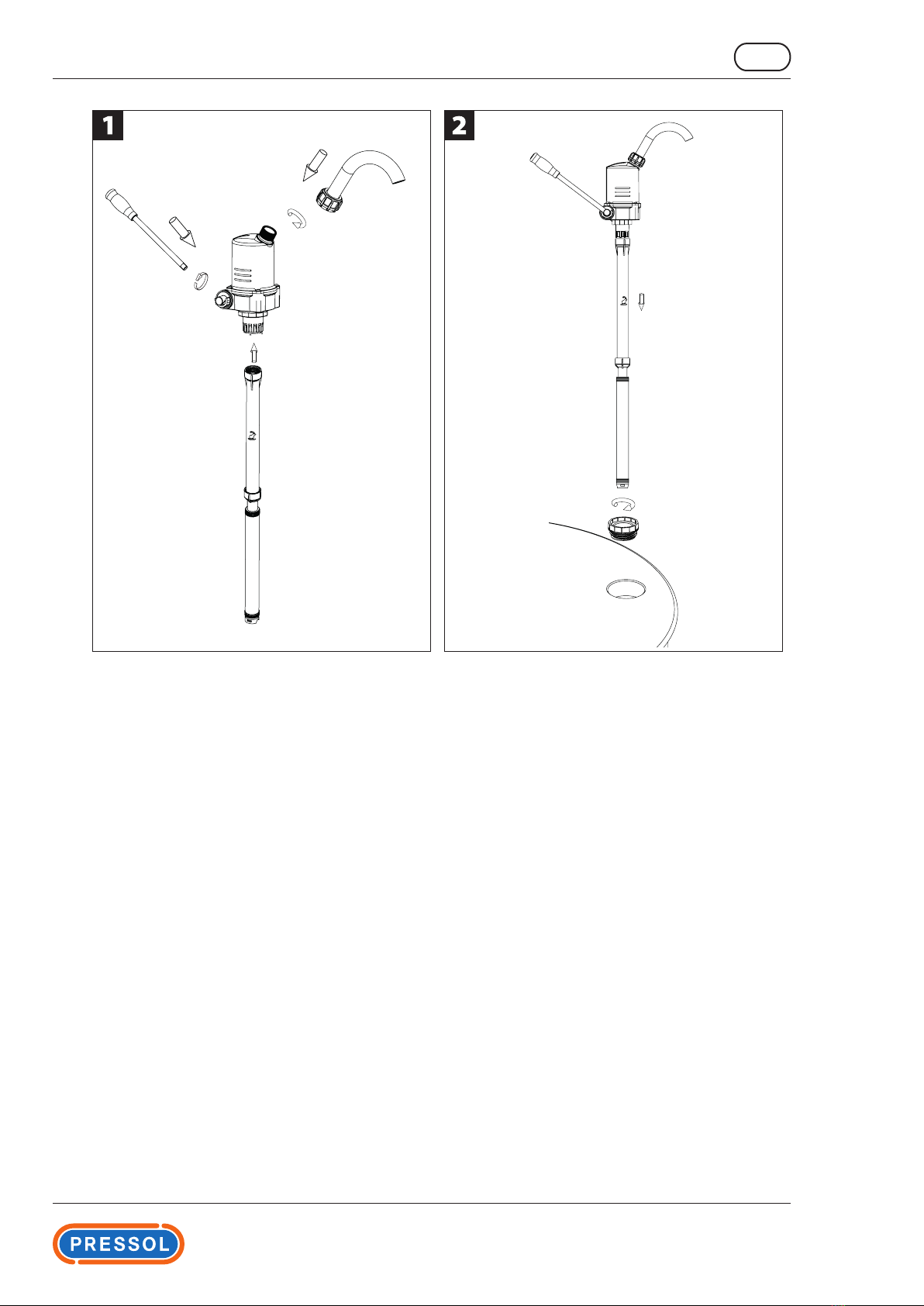

Fig. 5.-1: Assembly example

6
GB Operating Instructions - Barrel pump for diesel and heating oil
9. Exploded view of the barrel pump with discharge spout
Fig. 9.-1: Exploded view of the barrel pump for diesel and heating oil with discharge spout

7
Operating Instructions - Barrel pump for diesel and heating oil GB
Pos. Quantity Description Item number
1 2 Coupling nut-G 1“ 82 857 012
2 1 Curved discharge spout, plastic 81 112
3 1 Barrel screw coupling-G 2“ male 81 511 001
4 1 O-ring FKM 70-84x2 81 509 879
5 2 Lock washer 81 507
6 1 Piston 81 501
7 4 Hexagon nut 86 773
8 2 Lens head screw 81 514
9 1 O-ring FKM 80-69x6 81 640
10 1 Locking washer 00 159 889
11 1 Valve cone 87 982
12 1 Bearing sleeve-close-black 81 499 001
13 2 O-ring FKM 70-24x2.5 81 515 879
14 2 O-ring FKM 70-14x2.5 81 517 879
15 2 Lens head screw 81 636
16 1 Compression spring conical 81 508
17 1 Piston valve 81 502
18 1 Pump housing-black 81 496 001
19 1 Handle 81 492
20 1 Pump cylinder 81 493 001
21 1 Compression spring 87 932 889
22 1 O-ring FKM 70-18x3 81 516 879
23 1 Bearing sleeve-open-black 81 498 001
24 4 O-ring FKM 80-20x2,5 86 921 878
25 1 Con rod 81 503
26 1 Flat gasket 87 920
27 2 O-ring FKM 80-29x2,5 89 111 878
28 2 O-ring FKM 70-19,5x3 83 013
29 1 Con rod pin 87 346
30 2 Worm-drive hose clamp 20 156
31 1 Lenghthening 81 617
32 1 Pump shaft 87 349
33 1 Steel discharge spout 00 844
34 1 Standpipe 81 619
35 1 Connecting rod 87 347
36 1 Lockingring 82 862
37 1 Lever 87 348
38 1 Hose for diesel-DN 19 80 371
39 1 Immersion tube 81 618
40 1 Piston pin 87 345
41 1 Angle 90°-straight-black 82 861 002
42 2 PRESSOL-Logo 90 956
Tab. 9.-1: Overview of components for g. 9.-1
