Prestige Solo 175 Guide

WARNING
2004-3 Prestige User’s Manual
If the information in this manual is not followed exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
FOR YOUR SAFETY
•Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
• WHAT TO DO IF YOU SMELL GAS
-Do not try to light any appliance
-Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
-If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
prestige
User' s Information Manual
Revised 8/31/06

Table of Contents
i
PRODUCT & SAFETY INFORMATION Page 1
Service and Maintenance
PRESTIGE Operation
Boiler & System Water
SECTION I - Combustion Air - Prevention of Contamination Page 2
Potential Contaminating Products
Areas likely to find these Products
SECTION II - Maintenance Schedule Page 3
Service Technician
Owner Maintenance
SECTION III - Maintenance Procedures Page 4
Daily Maintenance
Monthly Maintenance
6-Month Maintenance
SECTION IV - Operations Instructions Page 7

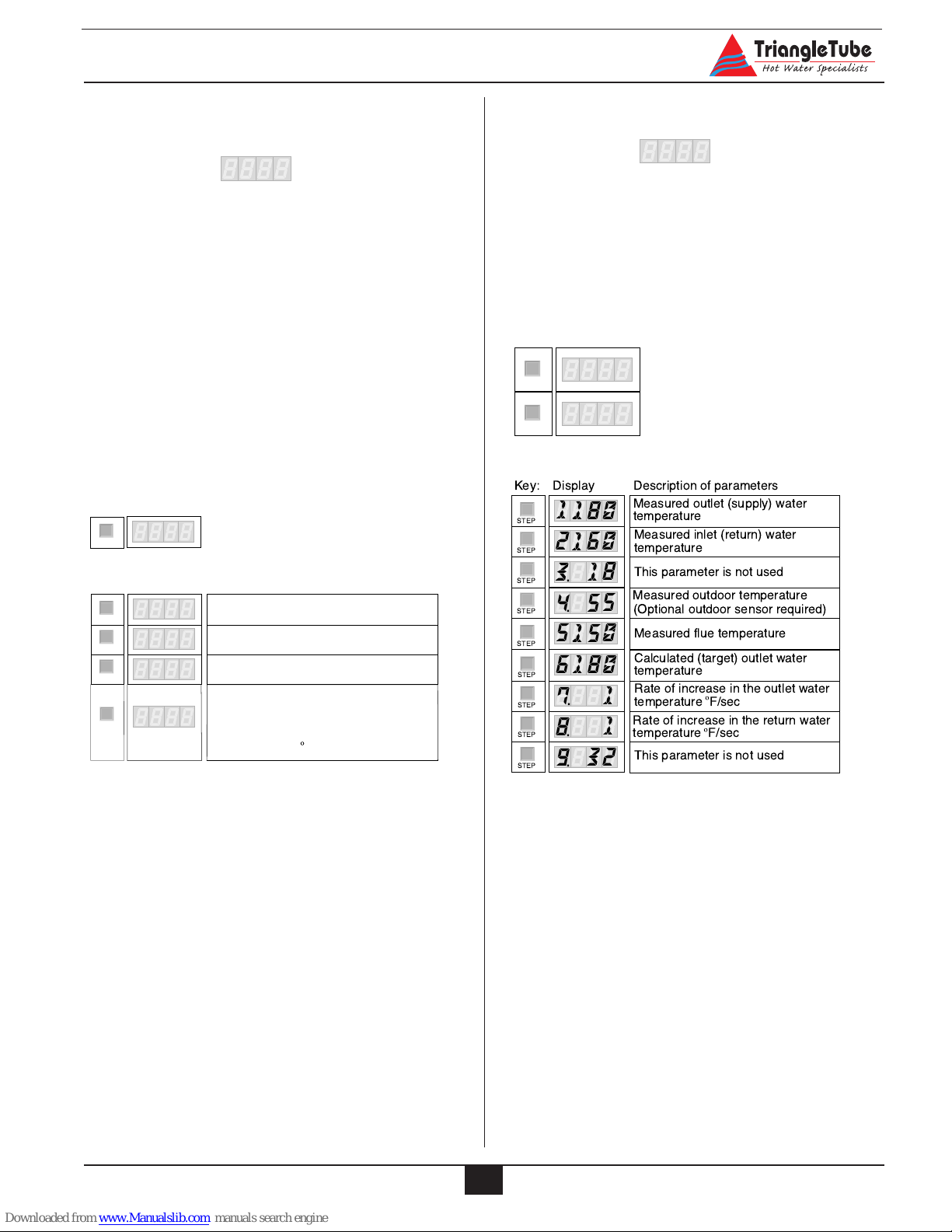

SECTION V - Boiler Control Display Page 8

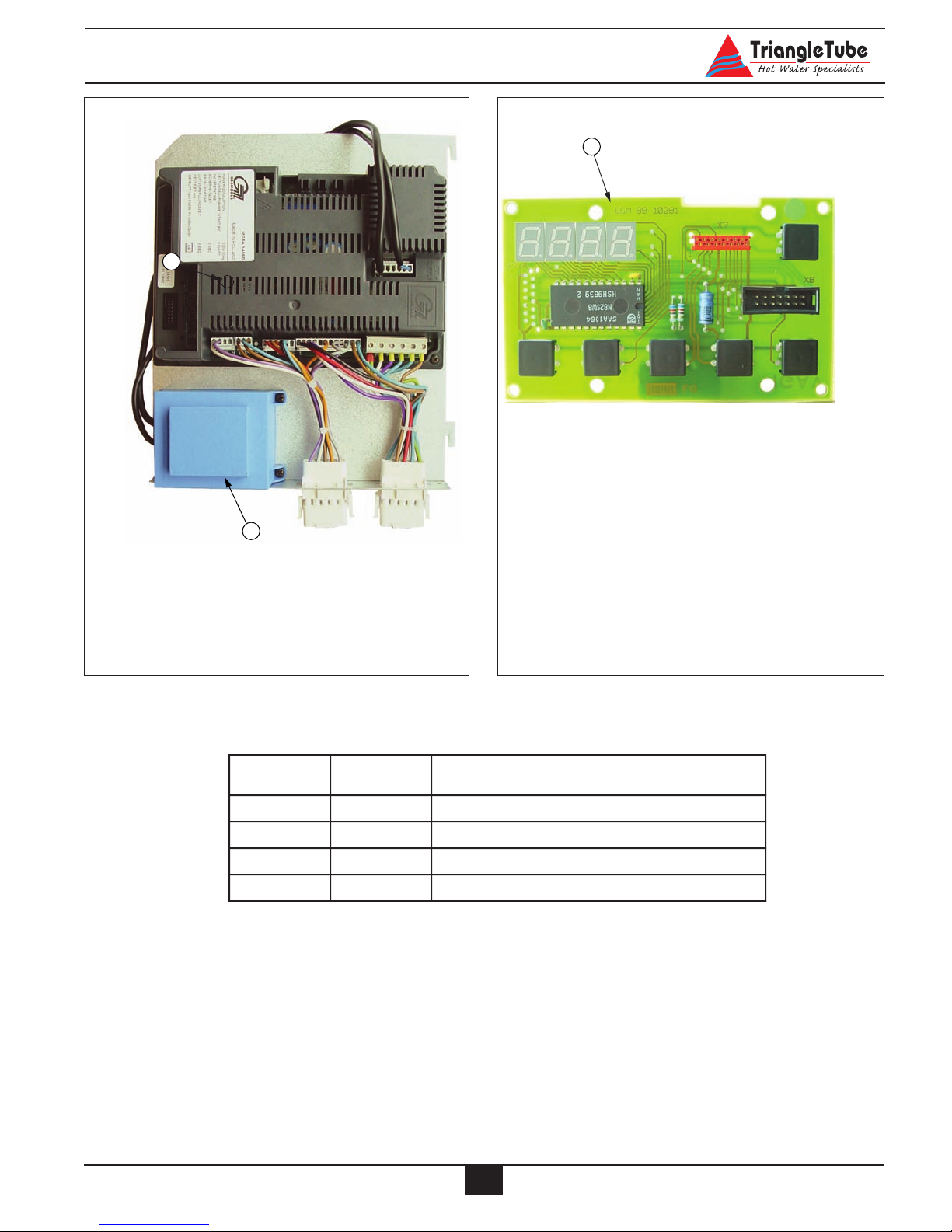

Replacement parts Page 11
Indicates a potentially hazardous situation,
which if ignored, can result in death, serious
injury or substantial property damage.
Indicates special instructions on installation,
operation or maintenance, which are important to
equipment but not related to personal injury haz-
ards.
NOTICEWARNING
The following terms are used throughout this manual to bring attention to the presence of potential hazards or
to important information concerning the product.

Product & Safety Information
1
PRODUCT & SAFETY INFORMATION
HOMEOWNER: The PRESTIGE installation manual is
for use only by a qualified heating installer / service
technician. Refer to this User’s Information Manual
for your reference. Failure to comply could result in
severe personal injury, death or substantial property
damage.
TECHNICIAN: When calling or writing about the
PRESTIGE, please have the boiler model and serial
number available.
STOP! READ BEFORE SERVICING
Failure to adhere to the guidelines on this page can
result in severe personal injury, death or substantial
property damage.
Service and Maintenance
•To avoid electric shock, disconnect electrical supply
before performing service or maintenance.
•Allow the unit to cool down prior to servicing to avoid
severe burns.
•The PRESTIGE must be maintained as outlined in
this manual and have at least annual service per-
formed by a qualified service technician to ensure
unit / system reliability.
WARNING
NOTICE
WARNING
PRESTIGE Operation
• Do not block flow of combustion air to the PRES-
TIGE. If the combustion air blockage is easily
accessible and removable, then remove it. If block-
age is not obvious or cannot be removed, have the
unit and system checked by a qualified service tech-
nician.
• Do not allow contaminated air to enter the unit’s
combustion air inlet. See page 2 for details.
• The PRESTIGE is equipped with a low water cutoff
device. The boiler and system piping must be filled
and pressurized to 15 psig prior to startup. The unit
will shut down if the pressure falls below 10 psig.
• Should overheating occur or the gas supply fail to
shut off, DO NOT turn OFF or disconnect the elec-
trical supply to the pump. Instead, shut off the gas
supply at a location external to the appliance.
• Do not use this unit if any part has been under water.
Immediately call a qualified service technician to
inspect the boiler and to replace any part of the con-
trol system and any gas control, which has been
under water.
Boiler & System Water
•Have the boiler and system water chemistry
checked at least annually by a qualified service tech-
nician.
• Do not use petroleum-based cleaning or sealing
compounds in the boiler or system. Gaskets and
seals in the system may be damaged. This can
result in substantial property damage.
• Do not use any product not specifically designed for
boiler / hydronic heating systems. Serious damage
to the unit, piping system, personnel and / or prop-
erty may result.
• Continual fresh makeup water will reduce the life of
the PRESTIGE. Addition of oxygen can cause inter-
nal corrosion in the system components. All leaks in
the piping system must be repaired at once to pre-
vent makeup water.
•Do not add cold water to a hot unit. Thermal shock
can cause premature failure to the boiler heat
exchanger.

Combustion Air - Prevention of Contamination
2
SECTION I - COMBUSTION AIR - PREVENTION OF
CONTAMINATION
If the PRESTIGE combustion air inlet is located in
any area likely to cause or contain contamination, or
if products, which would contaminate the air cannot
be removed, the combustion air must be re-piped
and terminated to another location. Contaminated
combustion air will damage the unit and its burner
system, resulting in possible severe personal injury,
death or substantial property damage.
Do not operate a PRESTIGE unit if its combustion air
inlet or the unit is located in or near a laundry room
or pool facility.These areas will always contain haz-
ardous contaminates.
Pool and laundry products and common household
and hobby products often contain fluorine or chlo-
rine compounds. When these chemicals pass
through the burner and vent system, they can form
strong acids. These acids can create corrosion of
the heat exchanger, burner components and vent
system, causing serious damage and presenting a
possible threat of flue gas spillage or water leakage
into the surrounding area.
Please read the following information. If contami-
nating chemicals will be present near the location of
the combustion air inlet, the installer should pipe the
combustion air inlet to another location per the
PRESTIGE installation manual.
WARNING
WARNING
Potential Contaminating Products
- Spray cans containing chloro/fluorocarbons
- Permanent Wave Solutions
- Chlorinated wax
- Chlorine - based swimming pool chemicals and
spa cleaners
- Calcium Chloride used for thawing ice
- Sodium Chloride used for water softening
- Refrigerant leaks
- Paint or varnish removers
- Hydrochloric acid / muriatic acid
-Cements and glues
- Antistatic fabric softeners used in clothes dryers
-Chlorine-type bleaches, detergents, and clean-
ing solvents found in household laundry rooms
- Adhesives used to fasten building products and
other similar products
Areas likely to find these products
- Dry cleaning / laundry areas and establishments
- Beauty salons
- Metal fabrication shops
- Swimming pools and health spas
- Refrigeration Repair shops
- Photo processing plants
- Auto body shops
-Plastic manufacturing plants
- Furniture refinishing areas and establishments
- New building construction
- Remodeling areas
-Garages with workshops

Maintenance Schedule
3
SECTION II - Maintenance Schedule
Service Technician
At least on an annual basis the following maintenance
should be performed by a qualified service technician:
General
- Attend to any reported problems.
- Inspect the interior of the boiler jacket area; clean
and vacuum if necessary.
- Clean the condensate trap and fill with fresh water.
- Check for leaks: water, gas, flue and condensate.
-Verify flue vent piping and air inlet piping are in good
condition and sealed tight.
- Check boiler water pressure, piping and expansion
tank.
- Check control settings.
-Check ignition electrode (sand offany white oxide;
clean and reposition).
- Check ignition wiring and ground wiring.
- Check all control wiring and connections.
- Check burner flame pattern (stable and uniform) and
flame.
Additional items if combustion or performance is
poor:
- Clean heat exchanger and flue ways.
- Remove burner assembly and clean burner head
using compressed air only.
Once the maintenance items are completed, review the
service with the owner.
Owner Maintenance
Periodically:
- Check the area around the unit.
- Check and remove any blockage from the combus-
tion air inlet and ventilation openings.
- Check the temperature/pressure gauge.
Monthly:
- Check vent piping.
- Check combustion air inlet piping.
- Check the pressure relief valve.
- Check the condensate drain system.
Every 6 months:
- Check boiler piping and gas supply piping for corro-
sion or potential signs of leakage.
- Operate the pressure relief valve.
Follow the maintenance procedures given
throughout this manual. Failure to perform the
service and maintenance or follow the directions
in this manual could result in damage to the
PRESTIGE or in system components, resulting
in severe personal injury, death or substantial
property damage.
WARNING

Maintenance Procedures
4
SECTION III - MAINTENANCE PROCEDURES
The PRESTIGE must be inspected and serviced
annually, preferably at the start of the heating sea-
son, by a qualified service technician. In addition,
the maintenance and care of the boiler as outlined
on page 3 and further explained on pages 4 through
6must be performed to assure maximum efficiency
and reliability of the unit. Failure to service and
maintain the PRESTIGE and the system components
could result in equipment failure, causing possible
severe personal injury, death or substantial property
damage.
The following information provides detailed instruc-
tion for completing the maintenance items outlined
in the maintenance schedule on page 3. In addition
to this maintenance, the PRESTIGE should be serv-
iced at the beginning of the heating season by a
qualified service technician.
Daily Maintenance
Check the surrounding area
To prevent potential of severe personal injury, death
or substantial property damage, eliminate all the
materials listed on page 2 from the area surrounding
the unit and from the vicinity of the combustion air
inlet. If contaminates are found:
Remove products immediately from the area. If they
have been there for an extended period, call a quali-
fied service technician to inspect the unit for possi-
ble damage from acid corrosion.
If products cannot be removed, immediately call a
qualified service technician to re-pipe the combus-
tion air inlet piping and locate the combustion air
intake away from the contaminated areas.
WARNING
NOTICE
WARNING
1.Combustible / flammable materials - Do not
store combustible materials, gasoline or other
flammable vapors or liquids near the unit.
Remove immediately if found.
2. Air contaminates - Products containing chlorine
or fluorine, if allowed to contaminate the com-
bustion air, will cause acidic condensate within
the unit. This will cause significant damage to
the unit. Read the list of potential materials list-
ed on page 2 of this manual. If any of these
products are in the room from which the unit
takes its combustion air, they must be removed
immediately or the combustion air intake must
be relocated to another area.
Check Combustion Air Inlets
1. Verify that ventilation air openings to the
mechanical room are open and unobstructed.
2. Verify that the unit’svent termination and com-
bustion air intake are clean and free of obstruc-
tions. Remove any debris on the air intake or
flue exhaust openings. If removing the debris
does not allow the unit to operate correctly, con-
tact your qualified service technician to inspect
the unit and the vent / combustion air system.
Check Temperature Display and Pressure Gauge
1. Ensure the pressure reading on the pressure
gauge does not exceed 25 psig. Higher pres-
sure readings may indicate a problem with the
expansion tank.
2. Ensure the temperature on the display panel
does not exceed 194ºF. Higher temperature
readings may indicate a problem with the oper-
ating thermostat controls.
3. Contact a qualified service technician if prob-
lem persists.

Maintenance Procedures
Monthly Maintenance
Check Vent Piping
1. Visually inspect the flue gas vent piping for any
signs of blockage, leakage or deterioration of
the piping. Notify a qualified service technician
immediately if any problems are found.
Failure to inspect the venting system as noted and
have it repaired by a qualified service technician can
result in the vent system failure, causing severe per-
sonal injury or death.
Check Combustion Air Inlet Piping
1. Visually inspect the combustion air inlet piping for
any signs of blockage. Inspect the entire length
of the combustion air inlet piping to ensure piping
is intact and all joints are properly sealed.
2. Notify a qualified service technician if any prob-
lems are found.
Check Pressure Relief Valve
1. Visually inspect the primary pressure relief valve
and the relief valve discharge pipe for signs of
weeping or leakage.
2. If the pressure relief valve often weeps, the
expansion tank may not be operating properly.
Immediately contact a qualified service techni-
cian to inspect the unit and system.
Check Vent Condensate Drain System
1. While the unit is running, check the discharge
end of the condensate drain tubing. Ensure no
flue gas is leaking from the condensate drain
tubing or tee connection by holding your fingers
near the opening.
2. If you notice flue gas leaking from the opening,
this indicates a dry condensate drain trap. Fill
the condensate trap assembly. Contact a quali-
fied service technician to inspect the unit and
condensate line and refill the condensate trap if
problem persists regularly.
WARNING
Under some circumstances the PRESTIGE may not
produce enough condensate to keep the condensate
trap full of liquid. If the trap is not full, small
amounts of flue gases can be emitted into the sur-
rounding area through the condensate drain line or
tee.
3. Ensure the condensate drain line is not blocked
by pouring water through the plug port on the
condensate drain assembly. The water should
flow out of the end of the drain line. If water
does not appear at the end of the drain line, con-
tact a qualified service technician to inspect and
clean the condensate line.
4. To fill the condensate drain assembly, if neces-
sary, remove the plug from the condensate
assembly. Slowly pour water into the trap
assembly until water appears at the end of the
drain line. Stop filling and replace plug.
Check Automatic Air Vents (If Used)
1. Remove the cap “A” from any automatic air vent
in the system and check operation by depressing
valve “B” slightly with the tip of a screwdriver.See
Fig. 1.
2. If the air vent valve appears to be working freely
and not leaking, replace cap “A”, screwing it on
fully.
3. Loosen cap “A” one full turn to allow vent to
operate properly.
4. Have the air vent replaced by a qualified service
technician if it does not operate correctly.
WARNING
5
A
B
Fig. 1: Automatic Air Vent

6-Month Maintenance
Check Water and Gas Piping
1. Remove the boiler front jacket panel and perform a
gas leak inspection per steps 1 through 6 of the
Operating Instructions on page 7. If gas odor or
leak is detected, immediately shut down the unit
following procedures on page 7. Call a qualified
service technician.
2. Visually inspect for leaks around the internal boiler
water connections and around the heat exchanger.
Visually inspect the external system piping, circula-
tors, and system components and fittings.
Immediately call a qualified service technician to
repair any leaks.
Have leaks fixed at once by a qualified service tech-
nician. Failure to comply could result in severe per-
sonal injury, death or substantial property damage.
Operate Pressure Relief Valve
1. Before proceeding, verify that the relief valve
outlet has been piped to a safe place of dis-
charge, avoiding any possibility of scalding from
hot water.
To avoid water damage or scalding due to valve
operation, a discharge line must be connected to the
relief valve outlet and directed to a safe place of dis-
posal. This discharge line must be installed by a
qualified service technician or heating / plumbing
installer in accordance with the PRESTIGE installa-
tion manual. The discharge line must be terminated
so as to eliminate possibility of severe burns or
property damage should the valve discharge.
WARNING
WARNING
2.Read the temperature display and pressure
gauge to ensure the system is pressurized. Lift
the relief valve top lever slightly, allowing water to
relieve through the valve and discharge piping.
3. If water flows freely, release the lever and allow
the valve to seat. Watch the end of the relief
valve discharge pipe to ensure that the valve
does not weep after the line has had time to
drain. If the valve weeps, lift the lever again to
attempt to clean the valve seat. If the valve
does not properly seat and continues to weep
afterwards, contact a qualified service techni-
cian to inspect the valve and system.
4. If the water does not flow from the valve when
you lift the lever completely, the valve or dis-
charge line may be blocked. Immediately shut
the unit down per the instructions on page 7.
Call a qualified service technician to inspect the
valve and system.
Maintenance Procedures
6

Operating Instructions
7
WARNING
FOR YOUR SAFETY READ BEFORE LIGHTING
OPERATING INSTRUCTIONS
TO TURN OFF GAS TO APPLIANCE
1. STOP! Read the safety information above on
this label. This appliance is equipped with an
ignition device which automatically lights the
burner. DO NOT try to light the burner by hand,
2. Set room thermostat(s) to lowest setting. Turn the
external manual gas valve handle clockwise
“CLOSE” (valve handle shall be per-
pendicular to gas piping)
3. Turn the service switch on the PRESTIGE con-
trol panel OFF.
4. Remove the front jacket panel on the unit.
5. Turn the external manual gas valve handle count-
er clockwise to “OPEN” gas supply
(valve handle shall be parallel to gas piping).
6. Wait five (5) minutes to clear out any gas. If you
then smell gas in the jacket enclosure or around
the unit, STOP! Follow “B” in the safety infor-
mation above. If you don’t smell gas, go to the
next step.
7. Turn the service switch on the PRESTIGE con-
trol panel “ON”.
8. Set room thermostat(s) to desired setting(s).
9. The PRESTIGE control panel display will show
asequence of numbers (0,1,2,3,4,etc.) as the left
digit. Sequence digit 3 or 4 indicates the boiler is
firing. Sequence digit 0 means there is no call for
heat (all external thermostats are satisfied)
10. If the unit will not operate with a call for heat and the
system piping is not hot, follow the instructions
“To Turn Off Gas to Appliance”, below and call
your service technician or gas supplier.
11. Replace the front jacket panel. Make sure the panel is
seated firmly in place and all mounting screws are
tighten.
If you do not follow these instructions exactly, a fire or explosion may
result causing property damage, personal injury or loss of life.
1. Set the room thermostat to lowest setting.
2. Turn the service switch on the PRESTIGE con-
trol panel to “OFF”
3. Turn the external manual gas valve handle clock-
wise to “CLOSE”.
A. This appliance does not have a pilot. It is
equipped with an ignition device which automat-
ically lights the burner. DO NOT try to light the
burner by hand.
B. BEFORE OPERATING, smell all around the
appliance area for gas. Be sure to smell next to
the floor because some gas is heavier than air and
will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
•Do not touch any electric switch; do not use
any phone in your building
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
•If you cannot reach your gas supplier, call the
fire department.
C. Use only your hand to turn the external manual gas
valve. Never use tools. If the valve will not turn by
hand, don’t try to repair it; call a qualified service
technician. Force or attempted repair may result in
afire or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualified service
technician to inspect the appliance and to replace
any part of the control system and any gas control
which has been under water.
SECTION IV - OPERATING INSTRUCTIONS

8
Boiler Control Display
BOILER CONTROL DISPLAY
Standby Mode
After the boiler is turned on, the control panel will display
STANDBY mode as shown in the figure above.
This is the standard mode for the PRESTIGE. The con-
trol automatically returns to this mode after 20 minutes if
no keys have been pressed on the display.
The first character shows (on left side of display) the cur-
rent status of the boiler depending on the condition of
both the boiler and the burner. The last 3 characters indi-
cate the current boiler supply temperature.
If the burner is blocked due to a “soft” lockout, the dis-
play alternates between a 9 followed by the boiler outlet
temperature and a “b” with a two digit error code.
StbY
STANDBY, no demand for heat
Fan prepurge (10 seconds) or post purge cycle
Ignition sequence
Burner ON for space heating (CH)
Burner ON for domestic water heating (DHW)
Pre-check for air flow prior to prepurge cycle
Burner OFF due to reaching supply
temperature set point
Post pump cycle for domestic hot water
(30 seconds)
Post pump cycle for primary space heating
(1 minute)
Burner blocked:
Supply temperature too high (203 F) .Burner will
remain OFF until outlet temperature drops
below 200 F
Return temperature too high (203 F). Burner
will remain OFF until temperature drops
below 200 F
Return temperature is measured higher than
supply temperature. Burner will remain OFF
until corrected.
Supply temperature increased too quickly.
Burner will remain OFF for a 10 minute period.
Burner will recycle, increasing waiting period 1
minute for a max. 15 minutes
Factory supplied LWCO pressure device or
external limit (terminals 15 & 16) is OPEN.
Burner off for 150 seconds, auto reset.
0
1
180
180
180
180
180
180
180
180
180
180
2
3
4
5
6
7
8
9
18
b
19
b
24
b
25
b
26
b
2
Display Boiler function
No blower signal
Blower signal present, Burner will remain OFF
until condition terminates
Temperature rise between the supply and return
is more than 72 F. Burner will remain OFF for 150
seconds. Burner will recycle increasing wating
period 1 minute each cycle for a max. 20 cycles.
Short circuit measured across flue temperature
sensor terminals. Burner OFF until corrected.
Open circuit measured across the flue
temperature sensor.
Flue temperature greater than 241 F less than
250 F. Burner off for 150 seconds
Wait for the blower to start
8
b
29
b
30
b
35
b
40
b
52
b
65
b

9
Boiler Control Display
SETTING THE BOILER PARAMETERS
Parameter Mode
To access PARAMETER mode when the system is in
STANDBY mode, press the MODE button once.
To scroll through the list of parameters, simply press the
“STEP” button. To modify a parameter value, use the +
or - keys. Then press “STORE” to save the value you
just changed. The display flashes once to confirm the
data has been saved.
To activate the parameters you changed, press MODE
once more (which brings you into INFORMATION
mode). However, if you do not press a key, the system
returns to STANDBY mode after 20 minutes and auto-
matically enables the changes.
Note 1: This parameter is factory set to 140ºF. It is
important to note the control adds 46ºFto this setting,
therefore the actual domestic hot water setting is 140ºF
+46ºF=186ºF.
Note 2: This parameter should not be changed from the
factory setting. The performance of the DHW will be
affected and can become unreliable.
Note 3: This parameter should not be changed from the
factory setting. The performance of the CH
(Central/Space Heating) will be affected and can
become unreliable.
ARA
P
ACCESSING BOILER INFORMATION
Information Mode
Toswitch from STANDBY mode to Information mode,
press MODE twice.
Press STEP until the system displays the information
you need. The decimal point located behind the first
position flashes to indicate that the boiler is in INFO
mode.
If STEP is pressed after parameter 9, the display
will show A-32.
NFO
I
Domestic Hot Water Setting (See Note 1)
Domestic Hot Water Setup (See Note 2)
Space Heating Mode (See Note 3)
Maximum temperature in space heating
(CH) mode. In applications using an
outdoor sensor, this is the boiler outlet
target temperature at an outdoor
temperature of 0 F
1.
2
140
01
01
8
10
ARA
3
4
P
.
.
.
.
MODE
STEP
STEP
STEP
STEP
Key: Display
Key: Display
Description of parameters
Pressing MODE once
ARA
P
MODE
NFO
I
MODE
Key: Display
Pressing MODE once
Pressing MODE twice
Measured outlet (supply) water
temperature
Measured inlet (return) water
temperature
This parameter is not used
Measured outdoor temperature
(Optional outdoor sensor required)
1.
21
180
6
0
1
8
5
5
3
4
STEP
STEP
STEP
STEP
Key: Display Description of parameters
Measured flue temperature
Rate of increase in the outlet water
temperature F/sec
Rate of increase in the return water
temperature F/sec
This parameter is not used
6.
7
180
1
1
3
2
8
9
.
.
.
.
.
STEP
Calculated (target) outlet water
temperature
5.
150
STEP
STEP
STEP
STEP

10
Boiler Control Display
Error (Hard Lockout) Mode
Ifasystem fault occurs while the boiler is running, the
system goes into lockout and the display starts to flash
with the first digit as an E and the next two digits repre-
sent the fault code.
For a detailed description of the error codes, reference
the PRESTIGE Trouble Shooting Guide.
During a hard lockout or low water condition the
boiler will not re-start without service. If the
heating system is left unattended in cold weath-
er appropriate safeguards or alarms should be
installed to prevent property damage.
Boiler Freeze Protection Feature
The boiler control has a freeze protection feature built in.
This feature monitors the boiler temperature and
responds as follows when no call for heat is present.
-45ºFBoiler circulator is ON
-37ºF Boiler circulator is ON and burner operates
at low fire.
-50ºFBurner OFF and boiler circulator operates
for approximately 10 minutes.
The boiler freeze protection feature is dis-
abled during a Hard Lockout.
CAUTION
WARNING
Gas valve harness not properly connected
Failed ignition after 5 attempts
Power supply lost after lockout occured
Internal control failure
Internal control failure
E
E
02
03
04
08
09
E
E
E
Display Hard Lockout
Internal control failure
05
EInternal control failure
06
EInternal control failure
07
E
Flame detected prior to burner startup
E00
Internal control failure
External limit (terminals 13 & 14) control is OPEN
Blower signal does not reset to zero
No blower signal present
Supply temperature sensor is short circuited
11
12
15
16
29
28
E
E
E
E
E
EFlue temperature exceeds 250 F
52
EInternal control error - failure to read parameters
61
E
Return temperature is short circuited
Supply temperature sensor is OPEN
Return temperature sensor is OPEN
Internal control failure
Internal control failure
Inadequate power supply to the fan
E
E
31
32
36
37
44
60
65
E
E
E
E
E
Return temperature exceeds 212 F
Supply temperature increased too rapidly
Internal control failure
Internal control failure
Internal control failure
Internal control failure
Internal control failure
17
19
25
13
E
E
E
E
Supply Temperature exceeds 212 F
18
E
E14

11
Replacement Parts
5
9
8
3
5
2
4
6
7
1
Fig. 2: Prestige Jacket Components
Item Part No. Description
1 PSCS01 Display/Control Panel
PSJKT01B Base Panel - Solo 110
PSJKT02B Base Panel - Solo 175/250
3 PSJKT01F Front Jacket Panel
PSJKT01R Rear Jacket Panel - Solo 110
PSJKT02R Rear Jacket Panel - Solo 175/250
5 PSJKT01S Side Jacket Panel (Left and Right)
PSJKT01T Top Jacket Panel - Solo 110
PSJKT03T Top Jacket Panel - Solo 175/250
PSJKT02T Top Jacket Panel - Access - Solo 110
PSJKT04T Top Jacket Panel - Access - Solo 175/250
8 PSJKT03 Control Cover Panel
9 PSRKT21 Wall Mounting Bracket with Hardware
2
4
6
7

12
Replacement Parts
Item Part No. Description
1 PSRKIT01 Heat Exchanger Body
2 PSRKIT02 Vent Outlet Adapter
3 PSRKIT03 Combustion Air Inlet Adapter
4 PSRKIT04 NTC Sensor (NTC1, NTC2 and NTC5)
5PGRKIT20 LWCO Pressure Device
6 PSRKIT05 Condensate Drain Assembly
7 PSRKIT06 Boiler Piping - Return Assembly
8 PSRKIT07 Boiler Piping - Supply Short Assembly
9 PSRKIT08 Boiler Piping - Supply Long Assembly
10 HMVCIR02 Circulator
11 -- Pressure Gauge Fitting
8
7
6
9
10
11
2
3
1
4
4
5
Fig. 3: Prestige Internal Components - Solo 110

13
Replacement Parts
8
5
4
4
10
9
7
1
3
2
6
Item Part No. Description
PSRKIT25 Heat Exchanger Body SOLO 175
PSRKIT26 Heat Exchanger Body SOLO 250
2 PSRKIT27 Vent Outlet Adapter
3 PSRKIT03 Combustion Air Inlet Adapter
4 PSRKIT04 NTC Sensor (NTC1, NTC2 and NTC5)
5 PGRKIT20 LWCO Pressure Device
6 PSRKIT05 Condensate Drain Assembly
7 PSRKIT28 Boiler Piping - Return Assembly
8 PSRKIT29 Boiler Piping - Supply
9 -- Pressure Gauge Fitting
1
Fig. 4: Prestige Internal Components - Solo 175/250

14
Replacement Parts
5
2
4
8
1
3
9
6
7
Item Part No. Description
PSRKIT09 Combustion Chamber Insulation - Solo 110
PSRKIT30 Combustion Chamber Insulation - Solo 175/250
PSRKIT10 Burner Head with Gasket - Natural - Solo 110
PSRKIT11 Burner Head with Gasket - Propane - Solo 110
PSRKIT31 Burner Head with Gasket - Propane - Solo 175/250
3 PSRKIT12 Burner Plate - Solo 110
PSRKIT32 Burner Plate - Solo 175/250
4 PSRKIT13 Blower with Gasket
5 PGRKIT01 Gas Valve
6 -- Venturi -001
7 PSRKIT14 Ignition Cable
8 PSRKIT15 Igniter with Gasket
9 PSRKIT16 Sight Glass Assembly (Glass, Gasket and Bracket)
10 -- Propane Orifice 0.204" (#52) - Not Shown
11 -- Burner Plate Gasket - Not Shown
12 PGRKIT15 Gas Valve Rectifier Plug - Not Shown
1
2
Fig. 5: Prestige Burner Components

15
Replacement Parts
1
2
Item Part No. Description
1 PSRKIT18 Prestige Control Module
2 PSRKIT19 Transformer with Surge Protection
3 PSRKIT20 Prestige Control Module Display
4 PSRKIT17 Pressure Gauge - Not shown
3
Fig. 6: Prestige Electronic Components

Additional quality water heating equipment available from Triangle Tube/Phase III
Heat Master Commercial Water Heaters
Delta ELITE & PERFORMANCE Combination Heaters
Phase III Indirect Fired Water Heaters
Maxi-flo Pool and Spa Heat Exchangers
Freeway Center - 1 Triangle Lane
Blackwood, NJ 08012
Tel: [phone] - Fax: [phone]
E-mail: [email protected]
Member of
Group
-Stainless steel construction
-Oil and Gas fired
- A unique design that eliminates the problem of associated with traditional
water heaters
- Inputs ranging from 165,000 BTU/hr to 390,000 BTU/hr
- 5 year non-prorated warranty
- ASME version available
-Constructed of high quality corrosion resistant stainless steel (AISI 316)
- Specially designed built-in flow restrictor to assure maximum heat exchange
- Compact and light weight
- Available in 5 sizes that can accommodate any size pool or spa
- Exclusive “tank-in-tank” design
- Stainless steel construction
- Available in 8 sizes and 2 models
- Limited LIFETIME residential warranty
-15 year limited commercial warranty
-Self cleaning/self descaling design
-Heat and hot water in one footprint
- Up to 292 gph domestic hot water
- Completely piped and wired from the factory
- Zero clearance to combustibles
- Available in direct vent
- Limited LIFETIME warranty
- Exclusive “tank-in-tank” design
