1. SUMMARY
Thank you for purchasing our Venus W15 LED Moving Wash French Lense. Please
read these instructions carefully before operating the system to avoid any possible
damage or misuse.
PRODUCT INTRODUCTION
The Venus W15 LED Moving Wash has a light source that uses high powered
OSRAM 4-in-115W LED lights, each made up of R, G, B, and W LEDs which can
be independently dimmed and altered. This fixture has a long life span, low power
consumption, good colour mixing effects and high brightness. The built-in programs
include dimming, strobe, gradual change, fading etc. settings, and the rotation angles
are 540°Pan and 220°tilt. It is recommended that an international standard DMX
512 signal is used for best results.
.
CONTENT LIST
oLED moving head light (x1)
oBracket (x1)
oDMX signal cable (x1)
oPower in cable (x1)
oThe usermanual (x1)
oWarranty Card (x1)
2. SAFETY INFORMATION
SAFETY NOTES
Seek advice from a professional prior to authoring any repairs
Always ensure the system is disconnected from the power source before assembling,
deconstructing and moving
Avoid direct eye exposure when in use

4"
Venus W15 LED Moving Wash French Lens – User Manual
SAFETY INSTRUCTIONS
Ensure the power supply voltage corresponds with the required voltage for the lights,
and is within the range of the requested technical restrictions.
Before installing,check the lights’fasteners and mechanical structuresare in good
condition and there is no apparent damage.
This light is designed for indoor and outdoor use, however the working
temperature must be kept below 50 degrees.
The fixtures can be mounted in any position,provided there is adequate room for
ventilation. Make sure there are no inflammable and explosive items within 0.5 meters
of the fixture.
The yellow/green cables are for earthling safety. These should not flicker when fixture
is in use.
3.PRODUCT DIAGRAM

5"
Venus W15 LED Moving Wash French Lens – User Manual
4. FEATURES
oUseshigh quality LED light sources which have low power consumption, high
brightness, stable performance and a long life span.
oUsesthe 32-bit ARM for dimming, with a 0-16666 -class of PWM output and
dimming frequencies up to 1.5K Hz;
oLinear dimming 0%-100%, with effects including strobe, gradual change,
jumping change etc.
oDMX512 Controller，4 button set DMX ID address with LCD display
oAuto run/ sound activated/ master slave/ interconnected multi-machine
control
oUses switching power supply to protect the LED and enhance the
performance
oPan 540 degrees, Tilt 220 degrees, reset function
oFocusing anglesvaryfrom 8 to 52 degree
oDMX channels optional, 19CH,23CH
oFive kinds of dimming mode，Dimmer1~4。OFF for not use. Dimming
smooth without flicker from Dimmer1 to Dimmer4, smoothness from weak
to strong respectively.

6"
Venus W15 LED Moving Wash French Lens – User Manual
5. DMX CONTROL
23CH
Channel
DMX Value
Function
1CH
0—255
General dimming
2CH
0—255
Red dimming 1
3CH
0—255
Green dimming 1
4CH
0—255
Blue dimming 1
5CH
0—255
White dimming 1
6CH
0—255
Red dimming 2
7CH
0—255
Green dimming 2
8CH
0—255
Blue dimming 2
9CH
0—255
White dimming 2
10CH
0—255
Red dimming 3
11CH
0—255
Green dimming 3
12CH
0—255
Blue dimming 3
13CH
0—255
White dimming 3
14CH
0—10
11—255
Strobe off
Strobe speed（1-20Hz）
15CH
0—50
51—100
101—150
151—200
201—255
Invalid
AUTO 1
AUTO 2
AUTO 3
Keep
16CH
0—255
Automatic speed
（slow-fast）
17CH
0-255
Pan 0--540°
18CH
0-255
Tilt 0--220°
19CH
0-255
Pan fine 0—2.1°
20CH
0-255
Tilt fine 0—1.0°
21CH
0-255
X/Y speed（fast to slow）
22CH
0-255
Zoom (zoom in - zoom
out)
23CH
0-10
11-20
21-30
31-40
41-50
51-60
Use menu to set the
Dimmer
Dimmer off
Dimmer 1
Dimmer 2
Dimmer 3

7"
Venus W15 LED Moving Wash French Lens – User Manual
19CH
Channel
DMX Value
Function
1CH
0—255
General dimming
2CH
0—255
Red dimming 1
3CH
0—255
Green dimming 1
4CH
0—255
Blue dimming 1
5CH
0—255
White dimming 1
6CH
0—255
Red dimming 2
7CH
0—255
Green dimming 2
8CH
0—255
Blue dimming 2
9CH
0—255
White dimming 2
10CH
0—255
Red dimming 3
11CH
0—255
Green dimming 3
12CH
0—255
Blue dimming 3
13CH
0—255
White dimming 3
14CH
0—10
11—255
Strobe off
Strobe speed（1-20Hz）
15CH
0-255
Pan 0--540°
16CH
0-255
Tilt 0--220°
17CH
0-255
X/Y speed（fast to slow）
18CH
0-255
Zoom (zoom in -zoom
out)
19CH
0-10
11-20
21-30
31-40
41-50
51-60
61-254
255-255
Use menu to set the
Dimmer
Dimmer off
Dimmer 1
Dimmer 2
Dimmer 3
Dimmer 4
Setted Dimmer
Reset（5 seconds）
61-254
255-255
Dimmer 4
Setted Dimmer
Reset（5 seconds）

8"
Venus W15 LED Moving Wash French Lens – User Manual

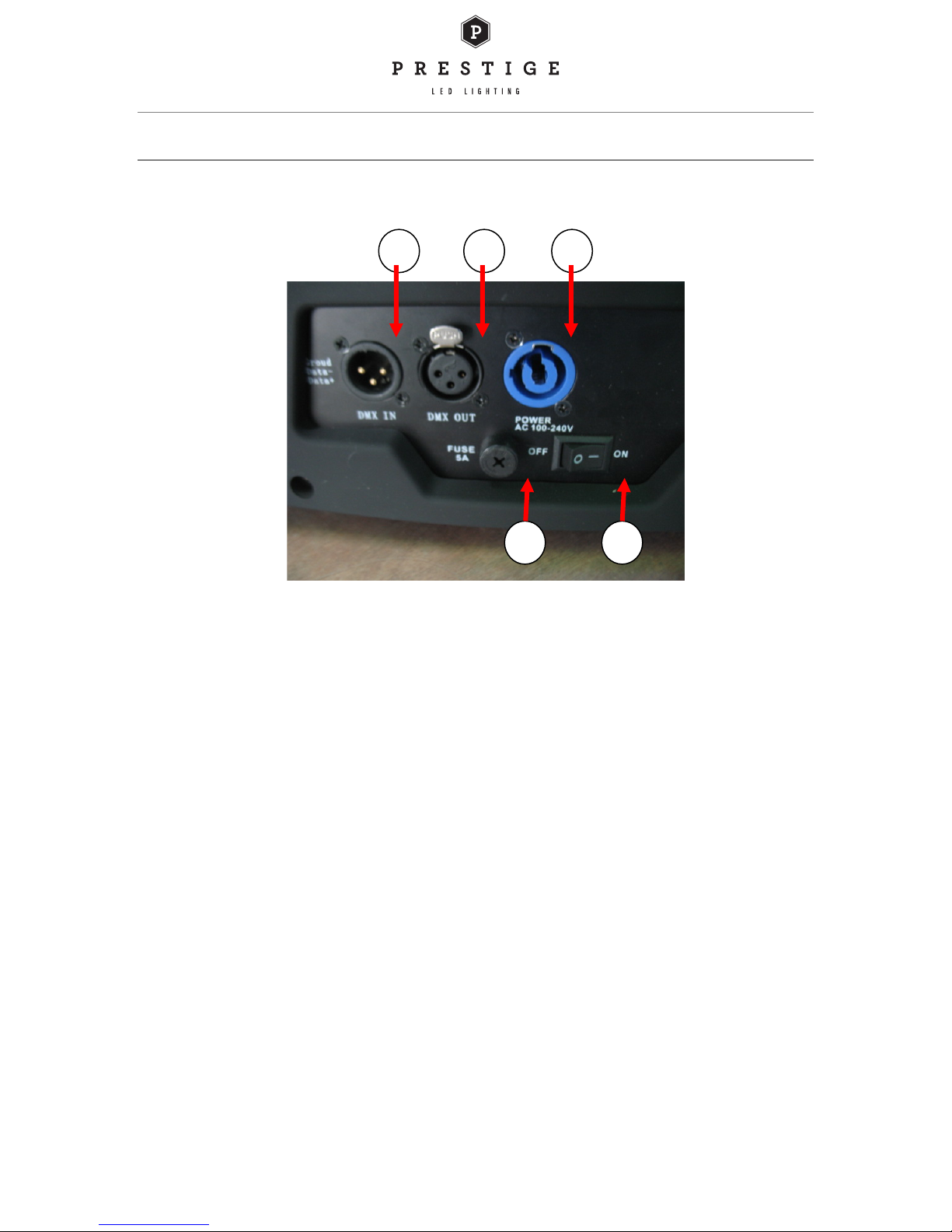

6. DISPLAY OPERATION INSTRUCTIONS
Graphic
1: DMX512 DMX-IN XLR socket
2: DMX512 DMX-OUT XLR socket
3: AC POWER-IN socketAC100-240V50-60Hz
4: FUSE5A
5: power switchON/OFF
1
2
3
4
5

9"
Venus W15 LED Moving Wash French Lens – User Manual
7. MENU INSTRUCTIONS
1：Press the menu or enter button
2：Press the up and down buttons to choose to desired functions
Menu
DMX Address
001-512
Option
X reverse
No/Yes
Y reverse
No/Yes
XXY exchange
No/Yes
Dimmer mode
OffDimmer1-4
CH mode
19CH/23CH
Display
Language
/English
Lightness
01-32
Poorlight
Constant open/No
operation dim/No
operation off
Manual control
CH1
0-255
CH2
0-255
CH3
0-255
CH4
0-255
CH5
0-255
CH6
0-255
CH7
0-255
CH8
0-255
CH9
0-255
CH10
0-255
CH11
0-255
CH12
0-255
CH13
0-255
CH14
0-255
CH15
0-255
CH16
0-255
CH17
0-255
CH18
0-255
CH19
0-255
CH20
0-255

10"
Venus W15 LED Moving Wash French Lens – User Manual
CH21
0-255
CH22
0-255
CH23
0-255
Test operation
Sound
Running…
Auto
Running…
Resume default
Yes/No
Fixture reset
Yes/No
Note: When operating in the sound activated mode or automatic mode, the machine will transmit
the data as the master.

11"
Venus W15 LED Moving Wash French Lens – User Manual
8. XLR CABLE CONNECTING
XRL CABLE
The standard connection of the XRL should have one end connecting to the male
plug, and the other connecting to the female.
As below: pin 1 -ground, pin 2 -negative signal, pin 3 -positive signal
Note: In order to avoid failures and interference with signal transmission, connect a
resistance 120（1/4W）at the end of the DMX connection as shown below:
The conversion between 3 pin and 5 pin XLR.
If the output cable of the DMX512 controller is a 5PIN, a5PIN to 3PIN cable is
necessary.

12"
Venus W15 LED Moving Wash French Lens – User Manual
9. WIRING DIAGRAM

13"
Venus W15 LED Moving Wash French Lens – User Manual
10. TROUBLE SHOOTING
Problem
Suggestions
The light won’t turn
on
Check if the power plug is working normally
Check if the light switch is off or on
Check if the power supply is working normally
The DMX is not
controlling the light
Check if the DMX cable is connected to the light properly
Check if the DMX512 controller is working normally.
Check if the DMX cable is damaged.
Check if the light is in DMX mode (Addr:001).
The display is not
working
When the electricity is connected, the LED should flash once. If this is
not the case, check the power switch and transformer.
Check if the power input of the IC board is working.
Check if the cable connected to the display is secure.
Change the main board to ensure that it is working properly.
Change the display.
The LED is not
light
When the electricity is connected, the LED should flash once. If this is
not the case, check the power switch and transformer.
Check if the power input of the IC board is working.
Check if the cable connected to the display is secure.
Change the main board to ensure that it is working properly.
Some of the LEDs
are not light
Check if the LEDs are secure, as the LED is connected by LEDs in
series.
Use the multimeter (diode) to check if the LED is bright or not. If not,
the LED will need replacing.
Check constant current IC is working properly (compared with the
normal IC).

14"
Venus W15 LED Moving Wash French Lens – User Manual
Single color LEDs
are always light/not
light at all
Check if the voltage of the input end of corresponding color is
working.
Change the IC control board.
Note: Seek advice from a professional prior to authoring any repairs
11. TECHNICAL SPECIFICATIONS
oInput voltage: AC 100V-240V/47-63HZ
oOutput voltage: DC24V
oConsumption: 320W
oLamp Type: High power LED
oLamp Spec: OSRAM RGBW 4-IN-1 LED (19pcs)
oConstant current drive: 1000mA (single color drive)
oRefresh Rate: above 600Hz
oLife Span: over 50000 hours
oControl Signal: DMX512/sound activated/auto run
oControl mode: stand alone／master and slaver
oDMX channels: 23CH/ 19CH
oColor effect: R, G, B, W, Mixing
oFunction effect: Dimmer, strobe, gradual change, sound activated
oPan 540 degree; Tilt 220 degree; Reset
oPan fine2.1 degree; Tilt fine 1.0 degree
oBeam angle: 8º-52º
oCooling mode: Fan cooling
oProtection rate: IP20
oAnti-electricity intension: 1.5KV
oInsulation resistance: ＞２M
oSize: 320*254*398mm
oNet weight: 15 Kg

15"
