Blackjack 55 Owner's Manual
Gas-Powered Catamaran Boat

2
Congratulations on the purchase of your Pro Boat®Blackjack™
55 catamaran. You are just minutes from one of the most
thrilling experiences the radio control hobby has to offer.
The Pro Boat Blackjack 55 is a professionally built, catamaran,
fiberglass composite model. Powered by the potent Zenoah™
G26M engine, you will be able to race across the water at
speeds in excess of 35 mph!
Read this owner’s manual thoroughly. You also need to read
the included Zenoah G26 engine manual.
Carefully unpack your Blackjack 55 and examine the boat and
its contents. The box should contain the Blackjack 55 and a
boat stand. If you are missing any of these items or notice any
damage, immediately contact the place of purchase.
NOTICE: All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon
Hobby, Inc. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product.
Meaning of Special Language:
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this
product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility
of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of
serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage,
collateral damage, and serious injury OR create a high probability of supercial injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure
to operate the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product and NOT a toy. It must be operated with caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product
or other property.This product is not intended for use by children without direct adult supervision. Do not attempt disassembly, use
with incompatible components or augment product in any way without the approval of Horizon Hobby, Inc.This manual contains
instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual,
prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
Introduction ............................................................................................2
Table of Contents ..................................................................................2
General Guidelines................................................................................3
Additional Required Items...................................................................3
Suggested Field Equipment and Supplies..........................................3
Contents ..................................................................................................3
Section 1: Building the Boat Stand.....................................................4
Section 2: Removing the Canopy .......................................................4
Section 3: Installing the Radio System Batteries.............................4
Section 4: Installing the Wing ..............................................................5
Section 5: Installing the Rudder Stabilizer........................................5
Section 6: Installing the Rudders ........................................................5
Section 7: Propeller Balancing.............................................................5
Section 8: Fueling the Tank...................................................................6
Section 9: Range Checking...................................................................6
Section 10: Starting the Engine ...........................................................6
Section 11: Stopping the Engine .........................................................7
Section 12: Handling Adjustments......................................................7
Section 13: Clutch..................................................................................8
Section 14: Cooling System .................................................................8
Section 15:Troubleshooting Guide....................................................9
Section 16: Hull Care............................................................................9
Section 17: Maintenance.......................................................................9
Section 18: Blackjack 55 Replacement Parts .................................10
Section 19: Flex Shaft Lubrication....................................................10
Warranty and Repair Policy ..............................................................11
Warranty Services ...............................................................................11
FCC Statement.....................................................................................13
Compliance Information for the European Union.......................13
Section 20:Appendix...........................................................................15
Table of ContentsIntroduction

3
It is important that you read and follow this instruction
manual before you run this exciting boat. Failure to read
and understand the manual could result in personal injury,
property damage or permanent damage to your boat. It is also
important to run your boat responsibly. With proper care and
maintenance, you will be able to proudly enjoy your Blackjack
55 for many years to come.
When operating the boat, stay clear of people, full-scale boats,
stationary objects and wildlife. It is preferable to operate the
Blackjack 55 in low wake, low wind conditions and in areas
free of people, wildlife and objects.
Before you operate your model, make sure that your
frequency is clear. If someone is operating on the same
frequency, both models could go out of control, possibly
causing damage to the models or to others. Check all of the
hardware, manifold, pipe and propeller for security before and
after each run.
If at any time while operating your model you sense any
abnormal function, end your operation immediately. Do not
operate your boat again until you are certain the problem has
been corrected. Always stay clear of the propeller.
Although the Blackjack™55 comes fully assembled and ready
for action, you will need a few additional items in order to run
your boat. You will need the following:
Evolution®2-Cycle Oil (EVOX1001Q)
Flex Shaft Lubrication (PRB0100)
CA or Epoxy Glue
Fuel Container
Gasoline (+87 Octane), Ethanol-free
12 AA Alkaline Batteries
(4 for the transmitter and 4 for the receiver)
Spektrum DSM2 Marine Compatible Transmitter
In addition to the items needed to run the Blackjack 55, we
recommend that you carry the following in your field box:
Engine Tuning Screwdriver (DYN3048)
Bronze Alloy Propeller (PRB0153)
2.5mm Hex Wrench
#1 Phillips Screwdriver
Wax
Clean Towels
2mm Hex Wrench
4mm Hex Wrench
Small Crescent Wrench
Screw-locking Compound

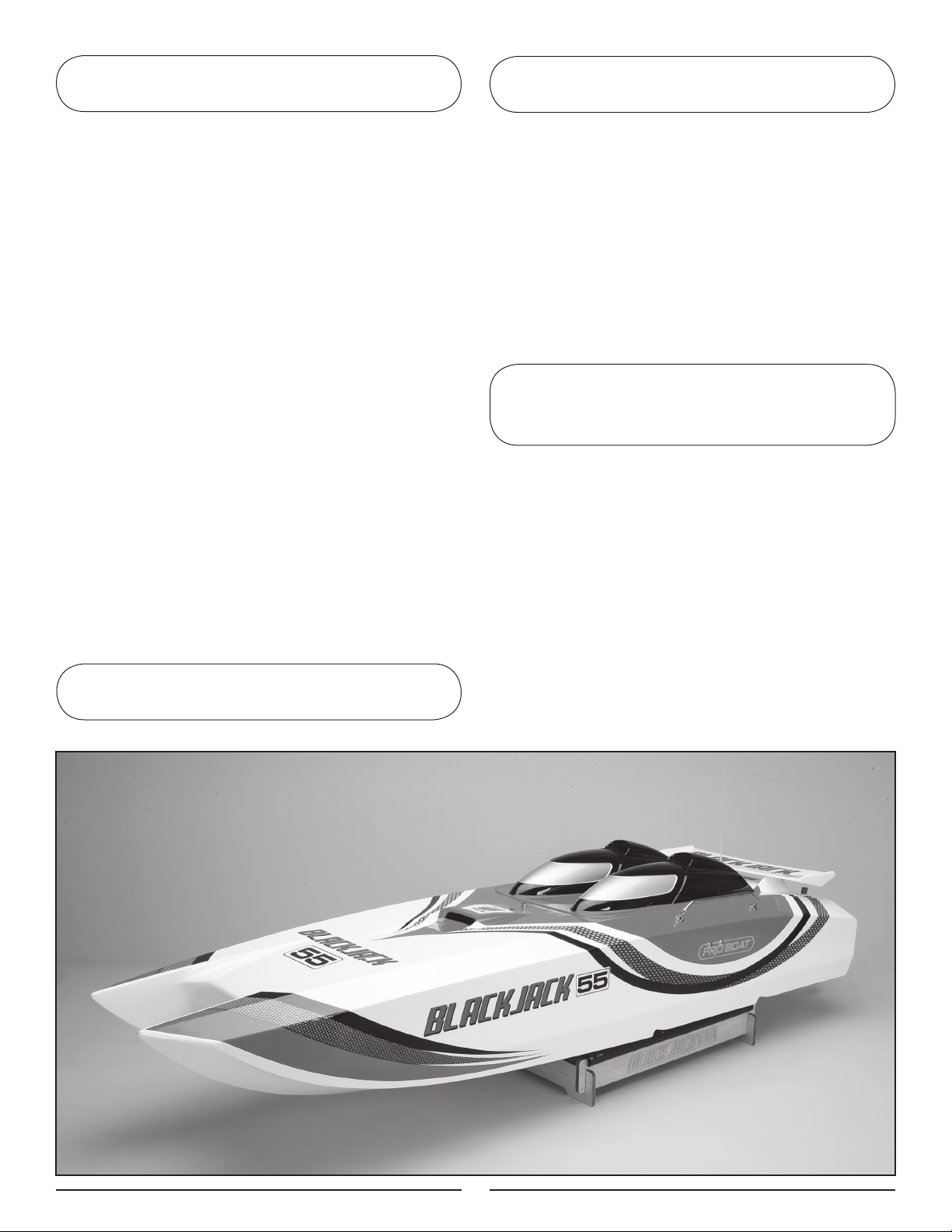

• Assembled Blackjack 55 BND
• Boat stand
• Rudder (2)
General Guidelines Additional Required Items
Suggested Field Equipment
and Supplies
Contents

4

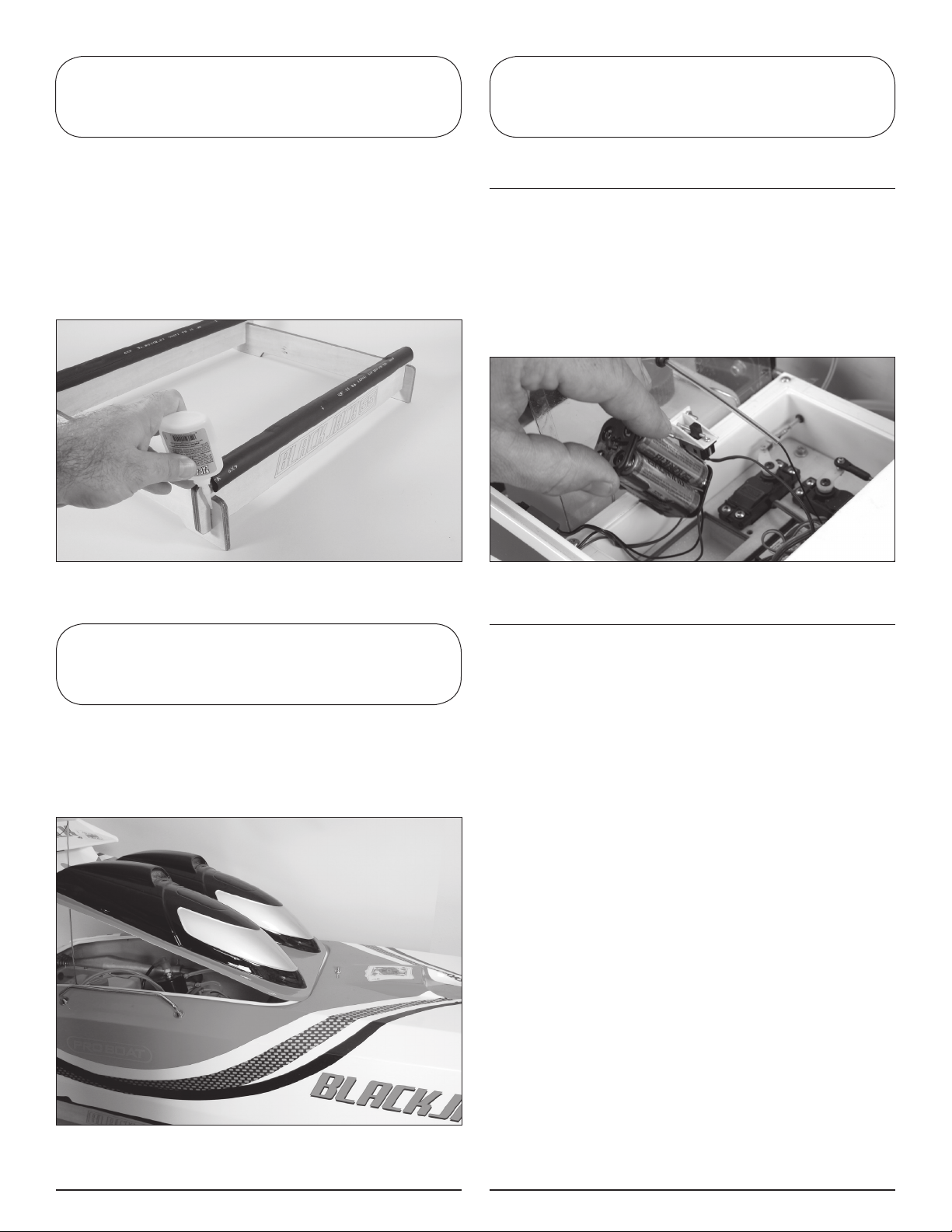

m1. There are 4 plywood boat stand pieces. The 2 short
plywood pieces are the ends of the boat stand.
m2. Secure the 2 long plywood pieces of the interlocking
boat stand to one end of the short plywood pieces.
Repeat with the remaining short plywood pieces.
m3. Secure the stand together where each piece is joined
with epoxy or CA glue (not included).
mUnscrew the 2 knurled hatch-mounting screws from the
rear of the hatch. Slide the front hatch retainer toward
the rear of the boat and lift the hatch from the boat.
Receiver Batteries
m1. Remove the ten 2.5mm hex head screws that secure
the radio box cover.
m2. Remove the battery holder and install 4 AA alkaline
batteries in the polarity shown on the battery box.
Note:You may consider upgrading to a
rechargeable battery pack.We recommend
the DYN1453. See your local Pro Boat
dealer.
Recommended Radio Equipment
You will need a 2-channel transmitter.We recommend one of
the crystal-free, interference-free Spektrum™, Pro Boat or JR®
radio systems using DSM®marine technology. Compatible tran-
mitters include:
mDX3E (SPM3160)
mDX2.0 (SPM20220)
mDX3.0 (SPM20320)
mDX2S (SPM2120)
mDX3S (SPM3140)
mPro Boat Pistol Grip 2.4GHz (PRB8060)
mSpektrum and JR DSM2™aircraft transmitters
www.spektrumrc.com
Note:The radio system will require
binding (linking the receiver to the
transmitter). Please see your radio system's
manual for binding instructions.
Section 1:
Building the Boat Stand
Section 2:
Removing the Canopy
Section 3: Installing the
Radio System Batteries

5

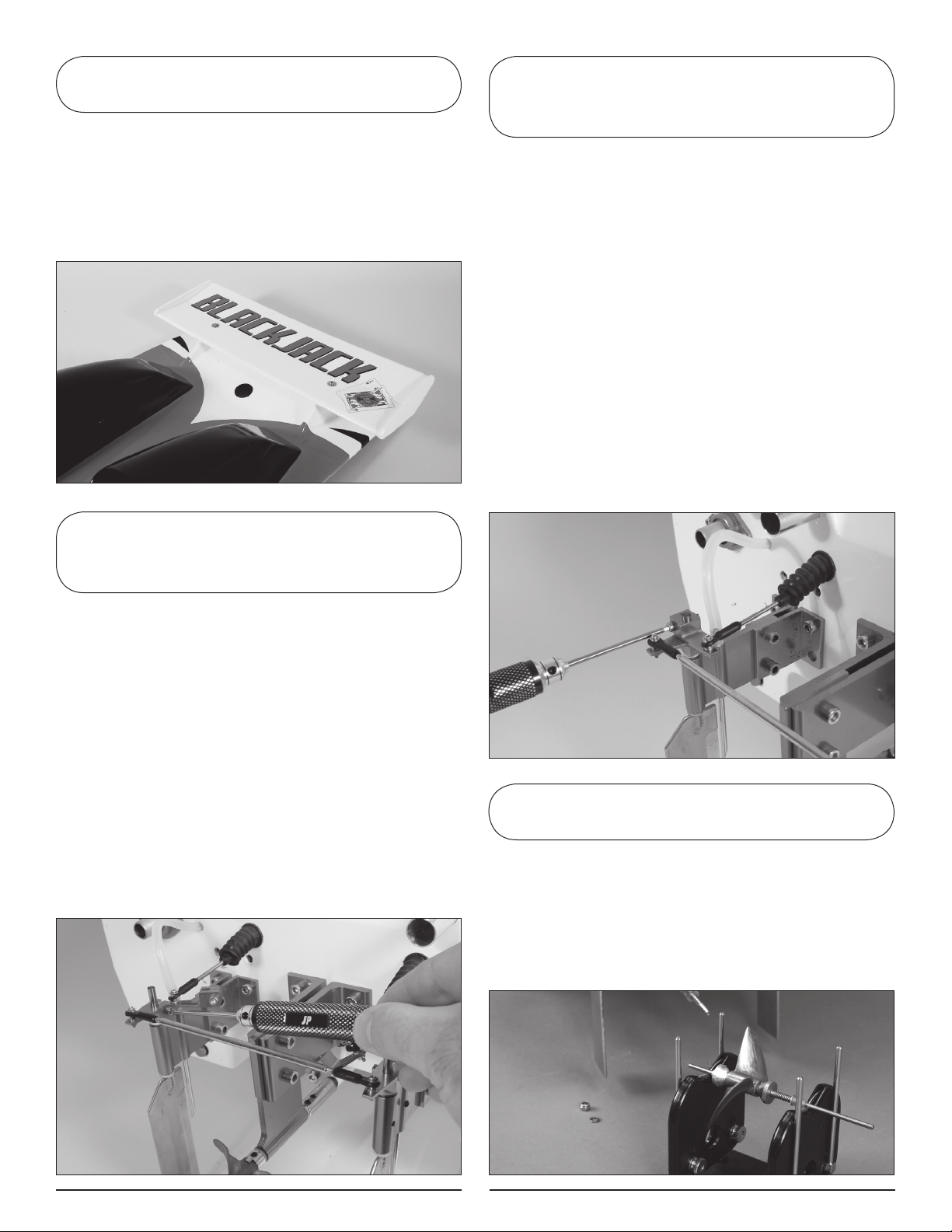

m1. Install the wing in the direction shown.
m2. Use two 3mm x 12mm sheet metal screws and two
3mm washers to secure the wing to the hatch.
Note:The wing is not intended to
be a handle.
m1. Carefully remove the tie wraps holding the rudder
control arms and the nylon rudder bushings in place.
m2. Slide the rudders into the rudder struts with a bushing
above and below the strut.
m3. Position the rudder stabilizer arms as shown with the
control arms pointing away from the transom.
m4. Tighten the 3mm x 15mm hex screws, securing them
with 3mm nuts.
Note: Be sure the rudders are parallel
with one another and centered before
tightening the screws.
Important: Always use screw-locking
compound on metal-to-metal fasteners to
prevent them from vibrating loose.
For optimum performance, propeller balancing can add
several mph to top speed and reduce vibration. There are
several different propeller balancing tools available. Read the
instructions that accompany the propeller balancing tool, as
removing material from the correct part of the propeller is
crucial. Contact a local hobby retail store for assistance.
m1. Turn on the transmitter, then the receiver. Center the
steering wheel and trim lever. Check that both rudder
servos operate using the radio system.
m2. Slide the rudder control arms onto the rudder shafts.
m3. Position the rudder control arms at a 90-degree angle
to the rudder as shown. Tighten the 3mm x 15mm hex
screws, securing them with 3mm nuts.
Important: Always use screw-locking
compound on metal-to-metal fasteners to
prevent them from vibrating loose.
Note:The twin-oversized rudders offer
incredible handling and eliminate the need
for skid fins.They also help protect the
propeller from impact with submerged
obstacles in the water. Care must be taken
in shallow water to keep the rudders from
becoming damaged.
Section 4: Installing the Wing
Section 5: Installing
the Rudder Stabilizer
Section 7: Propeller Balancing
Section 6:
Installing the Rudders

6
Use only Evolution 2-Cycle Synthetic Oil and premium
gasoline mixed 32:1 to power the Blackjack 55. Fill the tank
completely and secure the fuel cap. Keep fuel in a moisture-
free environment, as stale fuel will cause the Zenoah
G26M engine to lose performance.
Before the first run of the Blackjack 55, you should check
the radio for proper operation and to ensure proper control
movement of the rudder and throttle. Also ensure that the
antenna on the boat is extended properly and that all batteries
are in working condition.
m1. With the radio system turned on (transmitter and
receiver) (engine off), walk off 40 to 50 paces from the
Blackjack 55.
m2. Have an assistant remain with the boat to check for
proper control movement of the rudder from your
transmitter input.
m3. If everything appears to be operating correctly, start the
engine. Place the boat in the water and run it (at about
1⁄3 throttle) close to the shoreline. If the radio system is
operating properly, you can begin to run the boat faster
and further away from the shoreline.
Note: It is a good idea to range check
prior to operating your boat after any
repair, installation of new batteries, or at
the beginning of each boating session.
Section 8: Fueling the Tank
Section 9: Range Checking
Note:The Zenoah G26M carburetor
is factory adjusted to deliver optimum
performance. See the Zenoah Engine
manual for fine-tuning adjustments and
other helpful information to make your RC
boating experience trouble-free.
Priming the Engine
Press the priming bulb several times until it becomes filled with
fuel. This is not necessary if the engine has recently been run.
Section 10:
Starting the Engine

7
Choking the Engine
Close the choke by rotating the small yellow tubing extension.
This is not necessary if the engine is warm.
Pull-starting the Engine
With an assistant holding the boat to the boat
stand and bracing the engine with one hand, pull
the starting cord briskly several times. Once the engine fires
(begins to start), partially open the choke. Prolonged choking
will flood the engine with fuel until the engine warms up. See
Section 15: Troubleshooting Guide to correct the flooding
condition.
Idle the boat near shore and press the kill switch located on
the hull as shown.
Propeller Trim Angle
You may also adjust the propeller strut to add up or down
trim to the propeller by loosening the 2 propeller strut bolts
and sliding the propeller strut up to increase top-end speed
(but steering response will decrease and cavitation may occur
if excessively adjusted). Lowering the trim angle will increase
handling performance (but may cause the boat to over-steer
and decrease speed).
Section 11:
Stopping the Engine
Section 12:
Handling Adjustments

8
mThe centrifugal clutch automatically engages when the
engine rpm is increased. Be sure that the idle speed
adjustment is set low enough so that the propeller does
not rotate at idle.
mPeriodically disassemble the clutch and clean debris from
the clutch shoes and the inner clutch bell with DYN5505
Dynamite®Nitro Force™.
Zenoah G26M Engine
Carburetor
Insulator Plate
Water-Cooled
Cylinder Head
Tuned Pipe
Manifold Cooling Plate
Water Pump
Rudder
Pick-Up
Tube
Rudder
Pick-Up
Tube
Water
Outlet
Water
Outlet

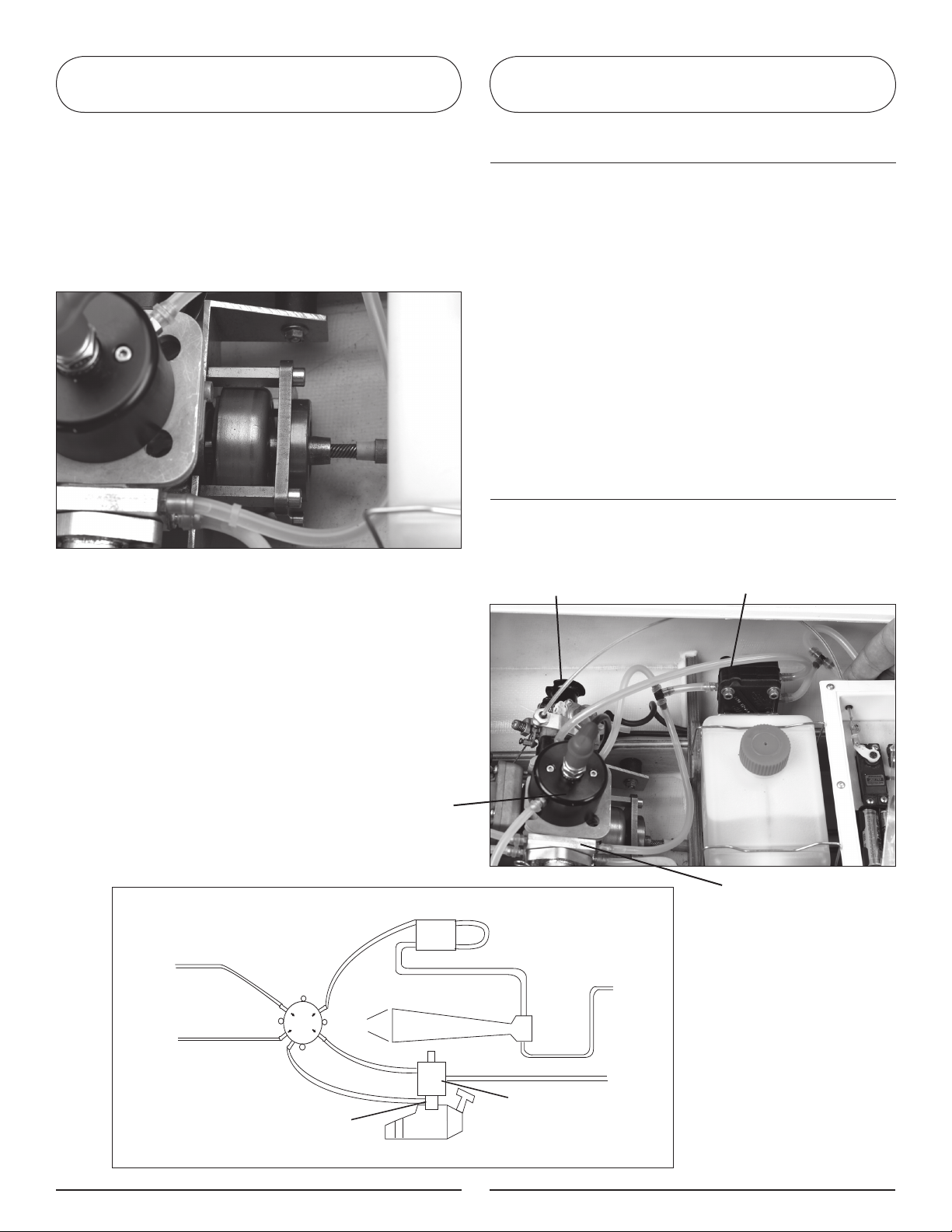

Section 13: Clutch Section 14: Cooling System
Water Pump
The water pump is operated from crankcase pressure. Be sure
that water is exiting the 2 water jackets mounted on the left
side of the boat when the engine is running and the boat is in
the water. If water does not stream out of either the exhaust
or cylinder head cooling ports, immediately stop engine
operation and remove obstructions in the lines or replace
broken cooling lines.
Hint:To test each cooling line for
obstructions or a leak in the cooling
system, place a piece of tubing over the
water inlet tube in front of each rudder
and blow into the tube.When testing for
obstructions in the cooling system, be sure
to isolate each system by pinching the
appropriate water lines.
Water-Cooled Cylinder Head and
Exhaust Manifold Cooling Jacket
The exhaust system is cooled independently from the cylinder
head. See photo for proper cooling line routing. Do not alter
the cooling line routing method.
Water PumpCarburetor
Water-Cooled
Cylinder Head
Manifold Cooling Plate

9
Problem Possible Solution
Engine will not start Improper needle setting: see Zenoah engine manual; baseline settings are 2 turns out
for high-speed, 1 turn out for low-speed
Out of fuel: fill fuel tank
Improper fuel: use fresh gasoline & Zenoah 2-cycle oil (mixed 32 parts gas to 1 part oil)
Bad Spark plug: replace
Flooded engine: remove spark plug, invert boat and operate the pull-starter to
remove fuel
Engine starts, then dies Fuel line blocked or broken: connect or replace fuel line
Reset needles to baseline setting: see Zenoah instructions
Engine starts and runs for Bad fuel: replace
several minutes, then dies Improper needle settings: see Zenoah engine manual
Overheated engine: check for clogged or damaged cooling system
Debris in carburetor, disassemble carburetor and clean
The hull of the Blackjack 55 is finished using the highest quality
paints and the most advanced painting methods available. The
base coat/clear cote technique delivers an amazing shine that is
as durable as it is beautiful. To keep your Blackjack 55 looking
new, you should apply a wax coating as used on automotive
finishes to prevent oxidation and to further protect against
damage caused by fuel and other harmful chemicals.
Section 15: Troubleshooting Guide
Section 16: Hull Care
The Pro Boat Blackjack 55 should provide many hours of
exciting high-speed racing fun with just minor maintenance.
Preventative maintenance is very important. Taking the time
to ensure that all the setscrews and bolts are tight before each
operation of the boat will prevent many problems.
Before operating Blackjack 55:
Check that all screws and hardware are securely in place. This
is very important, as the manifold screws will occasionally
vibrate loose during the initial runs.
Check the propeller for damage in the form of chipping or
cracking. If you find any damage, replace the propeller, as the
damage will affect the performance of the boat and could also
cause safety concerns.
When refueling, always wipe away any excess fuel that may
have spilled into or on the boat.
After operating the Blackjack 55:
Wipe off any exhaust residue from the boat. If you operate
the Blackjack 55 in salt water, it is suggested that you
thoroughly rinse the deck, hull, and all the metal hardware
with fresh water, then dry them with a clean towel. After
cleaning, coat all metal parts with a silicone spray lubricant.
This will help to prevent corrosion.
Ensure that the radio box and equipment inside is dry.
Section 17: Maintenance

10
In the event that you need to purchase replacement parts for your engine or the Blackjack 55, please see your local hobby store.
You can also purchase them from Horizon Hobby by calling 1-800-338-4639 or shopping online at www.horizonhobby.com.
Stock # Description
PRB2851 Hull Only
PRB2852 Canopy
PRB2655 Servo Tray
PRB2853 Boat Stand
PRB2657 Radio Box Cover
PRB2658 Fuel Tank
PRB2659 Kill Switch
PRB2660 Motor Mounting Plates
PRB2661 Manifold Cooling Plate
PRB2662 Manifold
PRB2663 Throttle Cable
PRB2664 Radio Box
PRB2665 Vibration Dampener
PRB2666 Tuned Pipe
PRB2855 Canopy Mounting Nut
PRB2669 Pushrod Bellow
PRB2670 Rudder Pushrods
PRB2671 Receiver Switch Mount
PRB2672 Flex Shaft
PRB2673 Flex Shaft Liner
PRB2281 Drive Dog
PRB2856 Rudder Strut with Bracket
PRB2857 Rudder Control Arm
PRB2677 Rudder
PRB2679 Cooling Tubing
PRB2680 Ball Linkage Set
PRB2854 Exhaust Port
PRB2683 Clutch
PRB2651 Water Pump with Bracket
PRB2684 Clutch Shoes
PRB2687 Clutch Springs
PRB2688 Clutch Bearing
PRB2858 Prop Strut with Bracket
PRB2690 Prop Shaft Nylon Bushing
PRB2691 Exhaust Spring
PRB2692 Throttle Cable Mount
PRB2693 Fuel Tank Straps
PRB2694 Stuffing Box
PRB2291 Propeller Nut
PRB0153 Bronze Alloy Propeller
PRB2282 Prop Shaft
PRB2068 Water Outlet
PRB2239 Drain Plug
PRB2695 Exhaust O-Ring Set
PRB0100 Grease Gun with Marine Grease
PRB0101 Marine Grease 5 oz
PRB2861 Decal
PRB2859 Hull Handle
Section 18: Blackjack 55 Replacement Parts
Pro Boat recommends PRB0100 Grease Gun with Marine Grease.
m1. The flexshaft should be lubricated after each day of use.
Failure to clean and lubricate the flex shaft may cause it to
rust and shorten the life of the flex shaft.
Loosen the two 1.5mm setscrews on the brass ferrule
located in front of the propeller strut and remove the
propeller shaft assembly from the rear. Note that there
is a nylon bushing located on either end of the propeller
strut.
m2. Remove the lower propeller strut mounting bolt and
loosen the top bolt. Rotate the propeller strut upwards to
access the flex shaft.

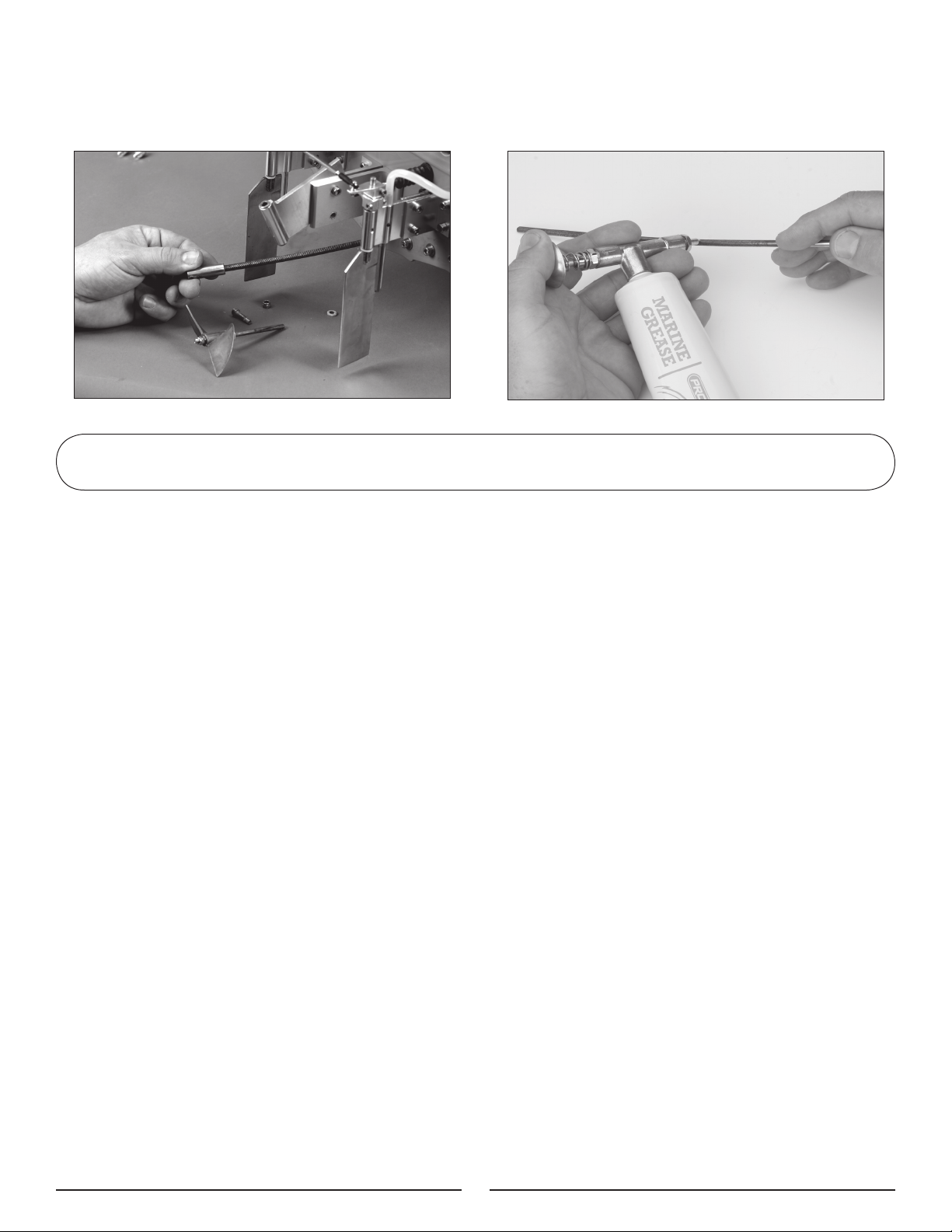

Section 19: Flex Shaft Lubrication

11
m3. Slide the flex shaft out of the boat.
m4. Lubricate the flex shaft with flex shaft grease (see your
local hobby shop). Reinstall in reverse order. Be sure
to reinstall the nylon washers in front and behind the
propeller strut.
approved in writing by Horizon before shipment.
Damage Limits: HORIZON SHALL NOT BE
LIABLE FOR SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES, LOSS OF PROFITS OR PRODUCTION OR
COMMERCIAL LOSS IN ANY WAY CONNECTED WITH
THE PRODUCT, WHETHER SUCH CLAIM IS BASED IN
CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY. Further, in no event shall the liability of Horizon
exceed the individual price of the Product on which liability
is asserted. As Horizon has no control over use, setup, final
assembly, modification or misuse, no liability shall be assumed
nor accepted for any resulting damage or injury. By the act of
use, setup or assembly, the user accepts all resulting liability.
If you as the Purchaser or user are not prepared to accept
the liability associated with the use of this Product, you are
advised to return this Product immediately in new and unused
condition to the place of purchase.
Law: These Terms are governed by Illinois law (without regard
to conflict of law principals).
WARRANTY SERVICES
Questions, Assistance, and Repairs: Your local
hobby store and/or place of purchase cannot provide warranty
support or repair. Once assembly, setup or use of the Product
has been started, you must contact Horizon directly. This
will enable Horizon to better answer your questions and
service you in the event that you may need any assistance.
For questions or assistance, please direct your email to
[email protected], or call 877.504.0233
toll free to speak to a Product Support representative.
You may also find information on our website at
www.horizonhobby.com.
Warranty Period: Exclusive Warranty- Horizon Hobby,
Inc., (Horizon) warranties that the Products purchased
(the "Product") will be free from defects in materials and
workmanship at the date of purchase by the Purchaser.
Limited Warranty: Horizon reserves the right to
change or modify this warranty without notice and
disclaims all other warranties, express or implied.
(a) This warranty is limited to the original Purchaser
(“Purchaser”) and is not transferable. REPAIR OR
REPLACEMENT AS PROVIDED UNDER THIS WARRANTY
IS THE EXCLUSIVE REMEDY OF THE PURCHASER. This
warranty covers only those Products purchased from an
authorized Horizon dealer. Third party transactions are not
covered by this warranty. Proof of purchase is required for
all warranty claims.
(b) Limitations- HORIZON MAKES NO WARRANTY
OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT
NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OF THE PRODUCT. THE
PURCHASER ACKNOWLEDGES THAT THEY ALONE
HAVE DETERMINED THAT THE PRODUCT WILL
SUITABLY MEET THE REQUIREMENTS OF THE
PURCHASER’S INTENDED USE.
(c) Purchaser Remedy- Horizon’s sole obligation hereunder
shall be that Horizon will, at its option, (i) repair or (ii)
replace, any Product determined by Horizon to be defective.
In the event of a defect, these are the Purchaser’s exclusive
remedies. Horizon reserves the right to inspect any and all
equipment involved in a warranty claim. Repair or replacement
decisions are at the sole discretion of Horizon. This warranty
does not cover cosmetic damage or damage due to acts
of God, accident, misuse, abuse, negligence, commercial
use, or modification of or to any part of the Product. This
warranty does not cover damage due to improper installation,
operation, maintenance, or attempted repair by anyone other
than Horizon. Return of any Product by Purchaser must be
Warranty and Repair Policy

12
Inspection or Repairs: If this Product needs to be
inspected or repaired, please use the Horizon Online Repair
Request submission process found on our website or call
Horizon to obtain a Return Merchandise Authorization
(RMA) number. Pack the Product securely using a shipping
carton. Please note that original boxes may be included, but
are not designed to withstand the rigors of shipping without
additional protection. Ship via a carrier that provides tracking
and insurance for lost or damaged parcels, as Horizon is not
responsible for merchandise until it arrives and is accepted
at our facility. An Online Repair Request is available at www.
horizonhobby.com http://www.horizonhobby.com under the
Repairs tab. If you do not have internet access, please contact
Horizon Product Support to obtain a RMA number along with
instructions for submitting your product for repair. When
calling Horizon, you will be asked to provide your complete
name, street address, email address and phone number where
you can be reached during business hours. When sending
product into Horizon, please include your RMA number, a list
of the included items, and a brief summary of the problem.
A copy of your original sales receipt must be included for
warranty consideration. Be sure your name, address, and
RMA number are clearly written on the outside of
the shipping carton.
Notice: Do not ship batteries to Horizon. If you
have any issue with a battery, please contact the
appropriate Horizon Product Support office.
Warranty Inspection and Repairs: To receive
warranty service, you must include your original sales
receipt verifying the proof-of-purchase date. Provided
warranty conditions have been met, your Product will be
repaired or replaced free of charge. Repair or replacement
decisions are at the sole discretion of Horizon.
Non-Warranty Repairs: Should your repair not
be covered by warranty the repair will be completed
and payment will be required without notification or
estimate of the expense unless the expense exceeds
50% of the retail purchase cost. By submitting the item
for repair you are agreeing to payment of the repair without
notification. Repair estimates are available upon request. You
must include this request with your repair. Non-warranty
repair estimates will be billed a minimum of ½ hour of labor.
In addition you will be billed for return freight. Horizon
accepts money orders and cashiers checks, as well as Visa,
MasterCard, American Express, and Discover cards. By
submitting any item to Horizon for inspection or repair,
you are agreeing to Horizon’s Terms and Conditions
found on our website under the Repairs tab.
Country of
Purchase
Horizon Hobby Address Phone Number/ Email
United States
Horizon Service Center
(Electronics and engines)
Horizon
Product Support
(All other products)
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
877-504-0233
Online Repair Request visit:
www.horizonhobby.com/repairs
United
Kingdom
Horizon Hobby
Limited
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS, United Kingdom
[phone]
[email protected]
Germany Horizon
Technischer Service
Hamburger Str. 10
25335 Elmshorn
Germany
[phone]
[email protected]
France Horizon Hobby SAS 14 Rue Gustave Eiffel
Zone d’Activité du Réveil Matin
91230 Montgeron
France
[phone]
[email protected]

13
Country of
Purchase
Horizon Hobby Address Phone Number/ Email
United States
Horizon Service Center
(Electronics and engines)
Horizon
Product Support
(All other products)
4105 Fieldstone Rd
Champaign, Illinois
61822 USA
877-504-0233
Online Repair Request visit:
www.horizonhobby.com/repairs
United
Kingdom
Horizon Hobby
Limited
Units 1-4 Ployters Rd
Staple Tye
Harlow, Essex
CM18 7NS, United Kingdom
[phone]
[email protected]
Germany Horizon
Technischer Service
Hamburger Str. 10
25335 Elmshorn
Germany
[phone]
[email protected]
France Horizon Hobby SAS 14 Rue Gustave Eiffel
Zone d’Activité du Réveil Matin
91230 Montgeron
France
[phone]
[email protected]
Compliance Information for the European Union
Declaration of Conformity
(in accordance with ISO/IEC 17050-1)
No. HH2010102802
Product(s): Blackjack 55 Catamaran BND
Item Number(s): PRB2850BD
Equipment Class: 1
The object of declaration described above is in conformity with the requirements of the specifications listed below, following the
provisions of the European R&TTE directive 1999/5/EC:
EN 301 489-1, 301 489-17 General EMC requirements
Signed for and on behalf of:
Horizon Hobby, Inc.
Champaign, IL USA
October 27, 2010
Instructions for Disposal of WEEE by Users in the European Union
This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of
their waste equipment by handing it over to a designated collection point for the recycling of waste electrical
and electronic equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the
environment. For more information about where you can drop off your waste equipment for recycling, please contact
your local city office, your household waste disposal service or where you purchased the product.
Steven A. Hall
Vice PresidentInternational Operations and Risk Management
Horizon Hobby, Inc.

14
Konformitätshinweise für die Europäische Union
Konformitätserklärung gemäß Gesetz über Funkanlagen und Telekomunikationseinrichtungen (FTEG) und der Richtlinie
1999/5/EG (R&TTE)
Declaration of conformity in accordance with the Radio and Telecommunications Terminal Equipment Act (FETG) and directive
1999/5/EG (R&TTE)
Horizon Hobby GmbH
Hamburger Straße 10
D-25337 Elmshorn
erklärt das Produkt: Blackjack 55 Catamaran BND
declares the product: PRB2850BD
Geräteklasse: 1
equipment class
den grundlegenden Anforderungen des §3 und den übrigen einschlägigen Bestimmungen des FTEG (Artikel 3 der R&TTE)
entspricht.
complies with the essential requirments of §3 and other relevant provisions of the FTEG (Article 3 of the R&TTE directive).
Angewendete harmonisierte Normen:
Harmonised standards applied:
EN 60950 Gesundheit und Sicherheit gemäß §3 (1) 1. (Artikel 3(1)a)
Health and safety requirments pursuant to §3 (1) 1.(article 3(1)a))
EN 301 489-1 Schutzanforderungen in Bezug auf elektromagnetische
Verträglichkeit §3 (1) 2, (Artikel 3 (1) b))
EN 301 489-17 Protection requirement concerning electromagnetic
compatibility §3 (1) 2, (article 3 (1)b))
EN 300 328 Maßnahmen zur effizienten Nutzung des Frequenzspektrums
§ 3 (2) (Artikel 3 (2))
Measures for the efficient use of the radio frequency spectrum
§ 3 (2) (Article 3 (2))
Elmshorn, 31.08.2010
Birgit Schamuhn
Geschäftsführerin
Managing Director
Steven A. Hall
Geschäfstführer
Managing Director

15
Photo 1 Photo 4
Photo 2 Photo 5
Photo 3 Photo 6
PRB2658
PRB2666
PRB2662
Water Outlet
PRB2651
Water Inlet
Engine Pressure Line
PRB2291
PRB2677
PRB2675
PRB2676
PRB2672
PRB2673
PRB2689
PRB2281
PRB2681
PRB2670
PRB2669
PRB2687
PRB2684
PRB2683
PRB2679
PRB2667
PRB2688
Water Inlet
Water Outlet
PRB0153
Section 20: Appendix

www.ProBoatModels.com
© 2010 Horizon Hobby, Inc.
The Spektrum trademark is used with permission of Bachmann Industries, Inc.
Zenoah is a trademark of Zenoah Co., Ltd. of Japan.
Pro Boat, DSM, DSM2, Bind-N-Drive, Evolution, Blackjack, JR, Race Guard, Dynamite and Nitro Force
are trademarks or registered trademarks of Horizon Hobby, Inc. Patents pending.
Printed in China
29204
Printed 10.2010
