Pro-Form 460 Crosswalk User manual

Model No. PFTL39310
Serial No.
Serial Number
Decal L
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID UNNECESSARY DE-
LAYS, PLEASE CALL DIRECT TO
OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our Customer Hot Line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.-Fri., 6 a.m.-6 p.m. MST
USER'S MANUAL
www.proform.com
new products, prizes,
fitness tips, and much more!

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS ................................................................. 2
BEFORE YOU BEGIN ....................................................................... 4
ASSEMBLY ............................................................................... 5
OPERATION AND ADJUSTMENT ............................................................. 7
HOW TO FOLD AND MOVE THE TREADMILL .................................................. 10
TROUBLE-SHOOTING ..................................................................... 12
CONDITIONING GUIDELINES ............................................................... 14
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY ............................................................... Back Cover

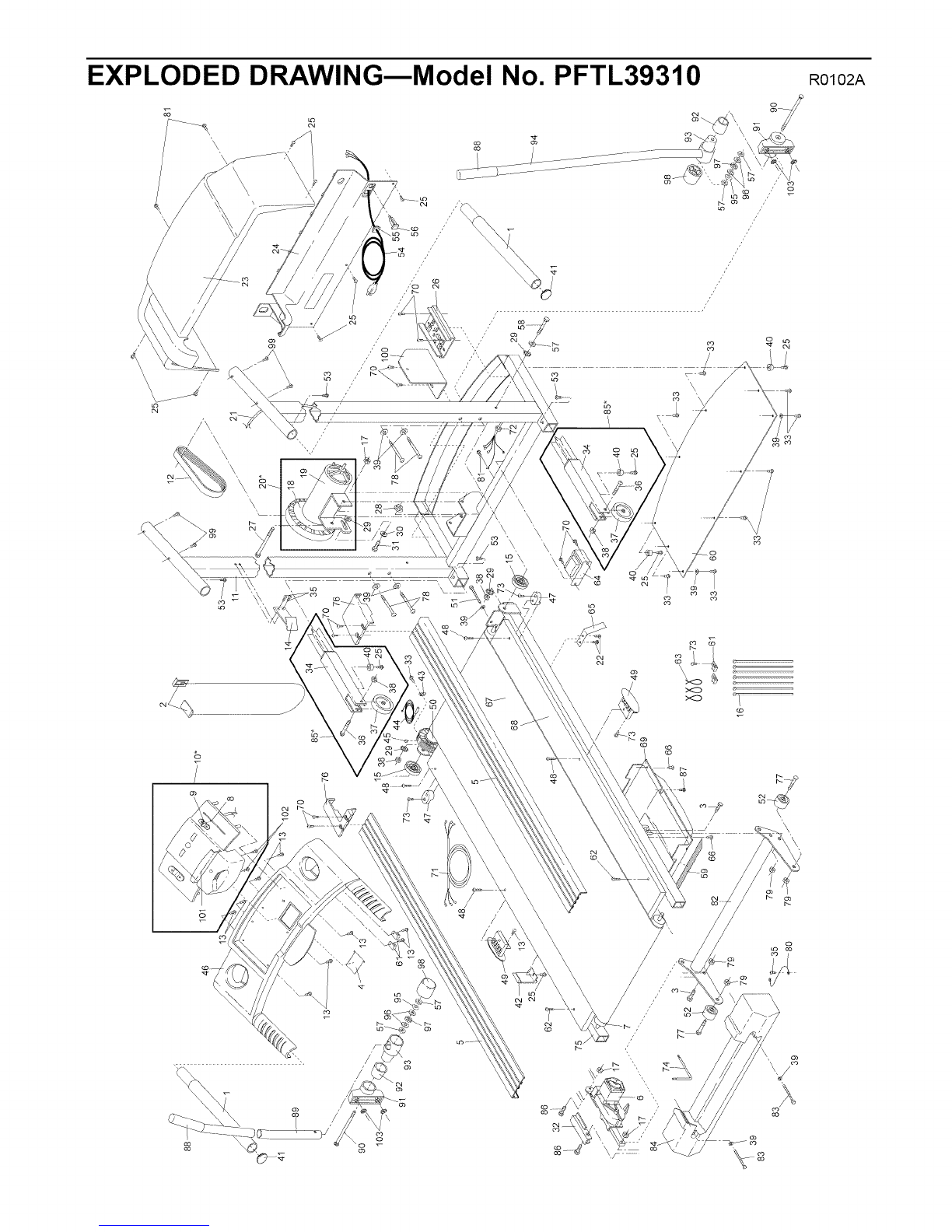

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual. Save the
EXPLODED DRAWING and PART LIST for future reference.
IMPORTANT PRECAUTIONS
WARN ING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
.
.
3.
.
.
.
.
.
.
It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
Use the treadmill only as described.
Place the treadmill on a level surface, with
eight feet of clearance behind it. Do not place
the treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place a mat under the treadmill.
Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
Keep children under the age of 12 and pets
away from the treadmill at all times.
The treadmill should be used only by persons
weighing 250 pounds or less.
Never allow more than one person on the
treadmill at a time.
Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth-
ing that could become caught in the treadmill.
Athletic support clothes are recommended for
10.
11.
12.
13.
14.
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
When connecting the power cord (see page 7),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 8. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-806-
3651 and order part number 146148.
Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
Keep the power cord and the surge suppres-
sor away from heated surfaces.
Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BE-
FORE YOU BEGIN on page 4 if the treadmill is
not working properly.)
2

15. Never start the treadmill while you are
standing on the walking belt. Always hold
the handrails or upper body arms while
using the treadmill. 20.
sure that the storage latch is fully closed.
Inspect and tighten all parts of the treadmill
every three months.
16.
17.
18.
The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
Never leave the treadmill unattended while
it is running. Always remove the key and un-
plug the power cord when the treadmill is
not in use.
Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 5, and HOW TO FOLD
AND MOVE THE TREADMILL on page 10.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
19. When folding or moving the treadmill, make
21. Never drop or insert any object into any
opening.
22. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by
an authorized service representative.
Servicing other than the procedures in this
manual should be performed by an autho-
rized service representative only.
23. This treadmill is intended for in-home use
only. Do not use this treadmill in any com-
mercial, rental, or institutional setting.
AA,LWARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS

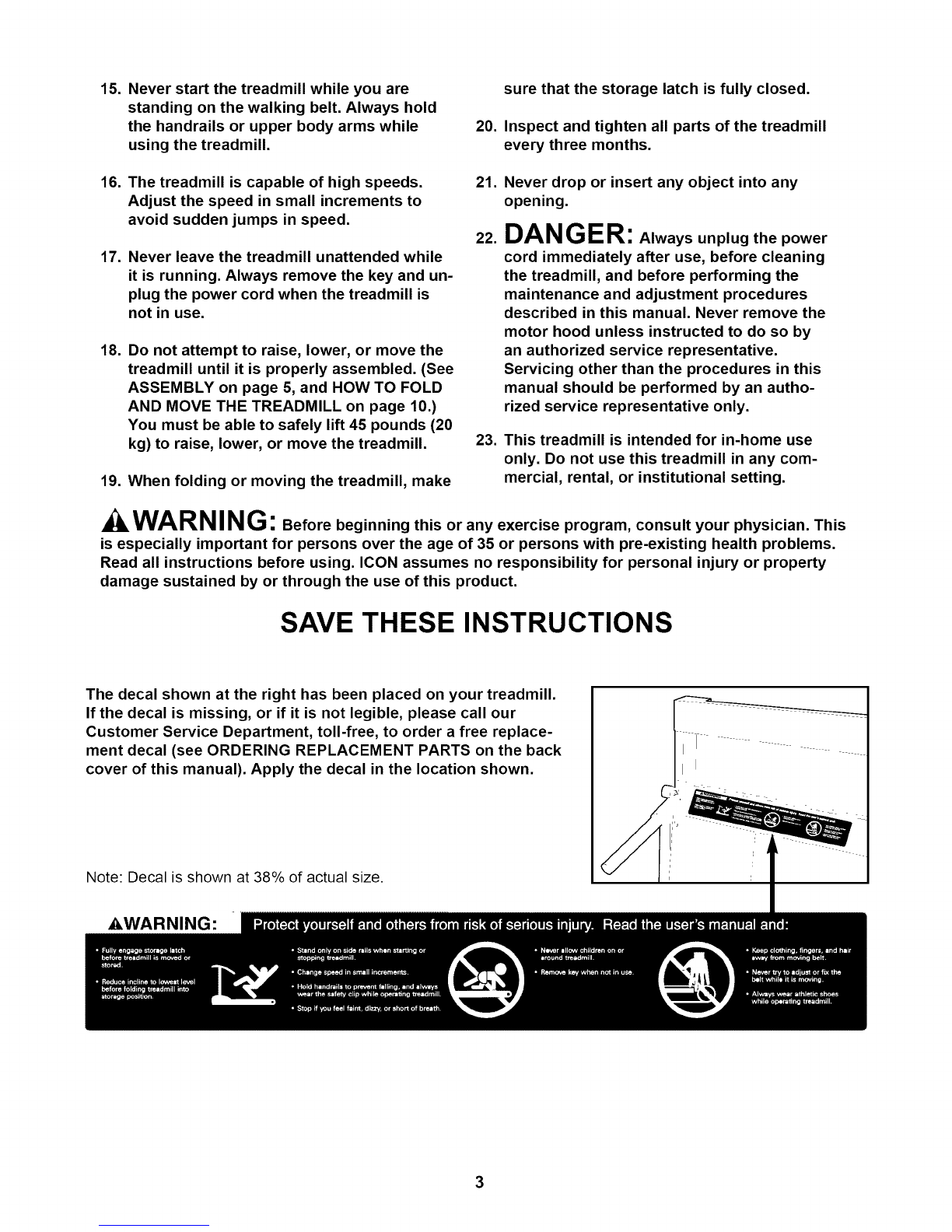

The decal shown at the right has been placed on your treadmill.
If the decal is missing, or if it is not legible, please call our
Customer Service Department, toll-free, to order a free replace-
ment decal (see ORDERING REPLACEMENT PARTS on the back
cover of this manual). Apply the decal in the location shown.
Note: Decal is shown at 38% of actual size.
AWARNING:

BEFORE YOU BEGIN
Thank you for selecting the new PROFORM _ CROSS-
WALK 460 treadmill. The CROSSWALK 460 treadmill
combines advanced technology with innovative design
to let you enjoy an excellent form of cardiovascular ex-
ercise in the convenience and privacy of your home.
And when you're not exercising, the unique CROSS-
WALK 460 can be folded up, requiring less than half
the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is PFTL39310. The serial num-
ber can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Upper Body Arms
Console Water Bottle Holder
(Bottle not included)
Handrail
Storage Latch
Walking Belt
Foot Rail
Upright
RIGHT SIDE
Circuit
Breaker
Power
Cord
Rear Roller
Adjustment Bolts BACK Incline Leg
Cushioned Walking Platform
for maximum exercise comfort
4

ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench _
and your own phillips screwdriver and wire cutters __.
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Extension Leg Screw/Handrail Screw (53)-4 Latch Screw (35)-2
,Cut the plastic tie off the side of the treadmill.
With the help of a second person, carefully raise the
Uprights (11) until the treadmill is in the position shown.
,Insert one of the Extension Legs (34) into the treadmill
as shown. (Note: It may be helpful to tip the Uprights
[11] in the direction shown by the arrow as you insert
the Extension Leg.) Make sure that the Base Pad (40) is
on the indicated side of the Extension Leg. Attach the
Extension Leg with an Extension Leg Screw (53). Be
sure to push on the head of the Extension Leg
Screw while tightening it.
Attach the other Extension Leg (34) in the same way.
2
5

3. Back out a Handrail Screw (53) from one of the Handrails
(1). Insert the Handrail into the tube at the upper end of
the right Upright (11).
4. Align the hole in the Handrail (1)with the indicated hole
in the Upright (11). Tighten a Handrail Screw (53) into the
Upright and the Handrail at the angle shown in drawing
4b. It may be helpful to lift up and push down on the
Handrail as you thread the Handrail Screw.
Attach the other Handrail to the left Upright as described
in steps 3 and 4 (not shown).
48
i53
--11
Bottom View
4b
1
,Attach the Storage Latch (14) to the left Upright (11) with
two Latch Screws (35). Be careful not to overtighten
the Latch Screws.
11j /
6. Make sure that all parts are tightened before you use the treadmill. Keep the included allen wrench in a
secure place. The allen wrench is used to adjust the walking belt (see page 13). To protect the floor or carpet,
place a mat under the treadmill.

OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE TM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.

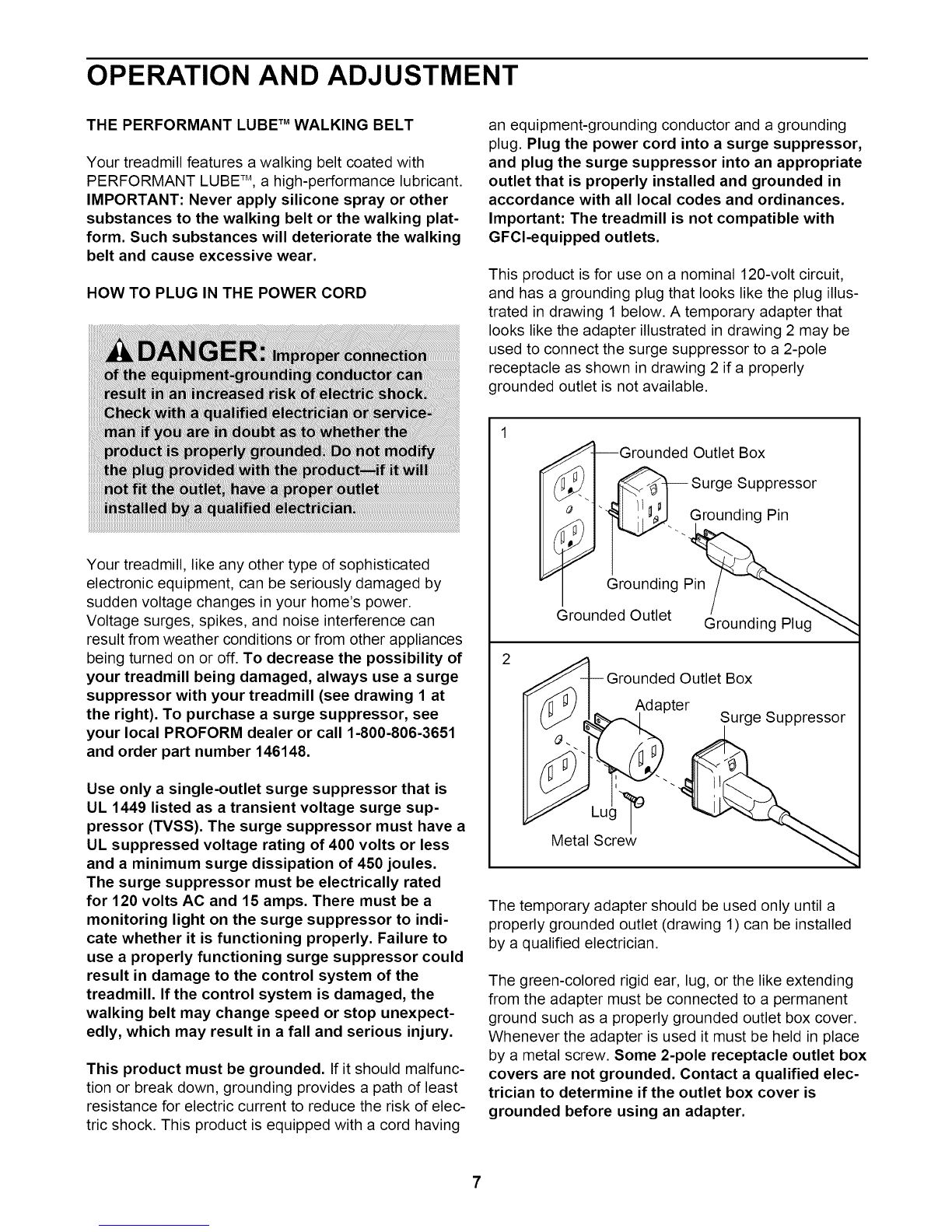

HOW TO PLUG IN THE POWER CORD
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCl-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home's power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call 1-800-806-3651
and order part number 146148.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
_Grounded Outlet Box
1 su 0e su esso
II I' ll i: ;J Grounding Pin
I_Groun Grounding Plug
Grounded Outlet Box
Adapter A
11_(_'J Z6%,--_1., . Surge _uppressor
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.

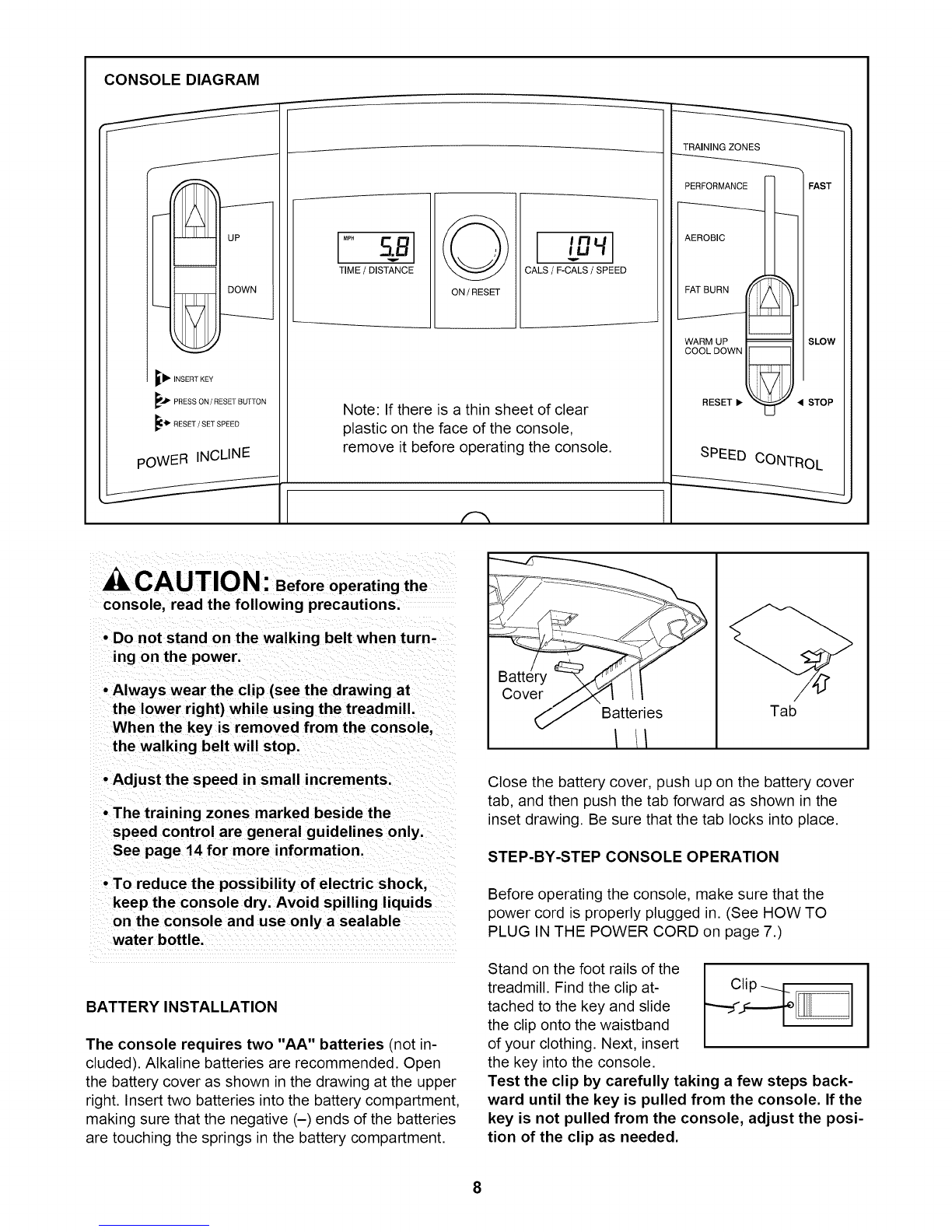

CONSOLE DIAGRAM
A
uP I
DOWN I
II_INSERT KEY
PRESS ON/RESET SUTTON
'_'RESET/SETSPEED
poWER INCLINE
..______--------
_........------
I "P"£B
v
TIME /DISTANCE
ON /RESET
CALS /F-CALS /SPEED
Note: If there is a thin sheet of clear
plastic on the face of the console,
remove it before operating the console.
TRAINING ZONES
PERFORMANCE
AEROBIC
FAST
SLOW
STOP
SPEED CONTROL
CAUTION: Beforeoperating the
console, read the following precautions.
• Do not stand on the walking belt when turn-
ing on the power.
•Always wear the clip (see the drawing at
the lower right) while using the treadmill.
When the key is removed from the console,
the walking belt will stop.
•Adjust the speed in small increments.
•The training zones marked beside the
speed control are general guidelines only.
See page 14 for more information.
•To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console and use only a sealable
water bottle.
BATTERY INSTALLATION
The console requires two "AA" batteries (not in-
cluded). Alkaline batteries are recommended. Open
the battery cover as shown in the drawing at the upper
right. Insert two batteries into the battery compartment,
making sure that the negative (-) ends of the batteries
are touching the springs in the battery compartment.
Batteries Tab
Close the battery cover, push up on the battery cover
tab, and then push the tab forward as shown in the
inset drawing. Be sure that the tab locks into place.
STEP-BY-STEP CONSOLE OPERATION
Before operating the console, make sure that the
power cord is properly plugged in. (See HOW TO
PLUG IN THE POWER CORD on page 7.)
Stand on the foot rails of the
treadmill. Find the clip at-
tached to the key and slide
the clip onto the waistband
of your clothing. Next, insert
the key into the console.
Test the clip by carefully taking a few steps back-
ward until the key is pulled from the console. If the
key is not pulled from the console, adjust the posi-
tion of the clip as needed.

Follow the steps below to operate the console.
nInsert the key into the power switch.
Inserting the key will
not turn on the dis- O
plays. The displays will
turn on when the
ON/RESET button is
pressed or when the
walking belt is started.
Note: If you just
installed batteries, the displays will already be on.
FIReset the speed control.
Slide the speed control
down to the RESET
position. Note: Each
time the walking belt
is stopped, the speed
control must be
moved to the RESET
position before the
walking belt can be
restarted.
WARM UP SLOW
RESET • _ STOP
DStart the walking belt.
After you have moved the speed control to the
RESET position, slowly slide it upward until the
walking belt begins to move at slow speed.
Carefully step onto the walking belt and begin ex-
ercising. Change the speed of the walking belt as
desired by sliding the speed control.
To stop the walking belt, step onto the foot rails
and slide the speed control to the RESET position.
Note: During the first few minutes that you use the
treadmill, inspect the alignment of the walking belt,
and align it if necessary (see page 13).
B Adjust the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
top or bottom of the in-
cline control until the
desired incline level is
reached.
f ...............
DMonitor your progress with the two displays.
TIME/DISTANCE dis-
play--This display
shows the elapsed time
and the distance that
you have walked or
run, in miles. Every
seven seconds, the dis-
Arrow
TIME /DISTANCE
play will change from one number to the other, as
shown by the arrows in the display.
CALS/FAT CALS/
SPEED display--This
display shows the ap-
proximate numbers of
calories and fat calories
you have burned. (See
FAT BURNING on
Arrow
\
CALS /F-CALS /SPEED
page 14.) In addition, the display shows the speed
of the walking belt, in miles per hour. Every seven
seconds, the display will change from one number
to the next, as shown by the arrows in the display.
To reset the displays at
any time, press the
ON/RESET button.
ON/RESET
r_ hen you are finished exercising, stop the
walking belt and remove the key.
Step onto the foot rails, slide the speed control to
the RESET position, and remove the key from the
console. The displays will turn off about five min-
utes after the key is removed. Note: Any time that
the walking belt is stopped and the ON/RESET
button is not pressed for five minutes, the dis-
plays will automatically turn off in order to con-
serve the batteries.

HOWTOUSETHEUPPERBODYARMS
As you exercise on the treadmill, you can hold either the
handrails or the upper body arms. The upper body arms are
designed to exercise your arms, shoulders, and back for a
total body workout. Hold one upper body arm with each
hand, and move them forward and back as you walk on the
treadmill.
IUpper Body
Arms
To vary the intensity of your upper body exercise, the resis-
tance of the upper body arms can be adjusted. To increase
the resistance, turn the resistance knobs clockwise; to de-
crease the resistance, turn the knobs counterclockwise.
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord.
CAUTION: You must be able to safely lift 45 pounds (20
kg) in order to raise, lower, or move the treadmill.
,Hold the treadmill with your hands in the locations shown
at the right. To decrease the possibility of injury, bend
your legs and keep your back straight. As you raise
the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the
vertical position.
\
2. Move your right hand to the position shown and hold the
treadmill firmly. Raise the treadmill until the storage latch
closes over the catch. Make sure that the storage latch
is fully engaged over the catch.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor-
age position in temperatures above 85°Fahrenheit.
10

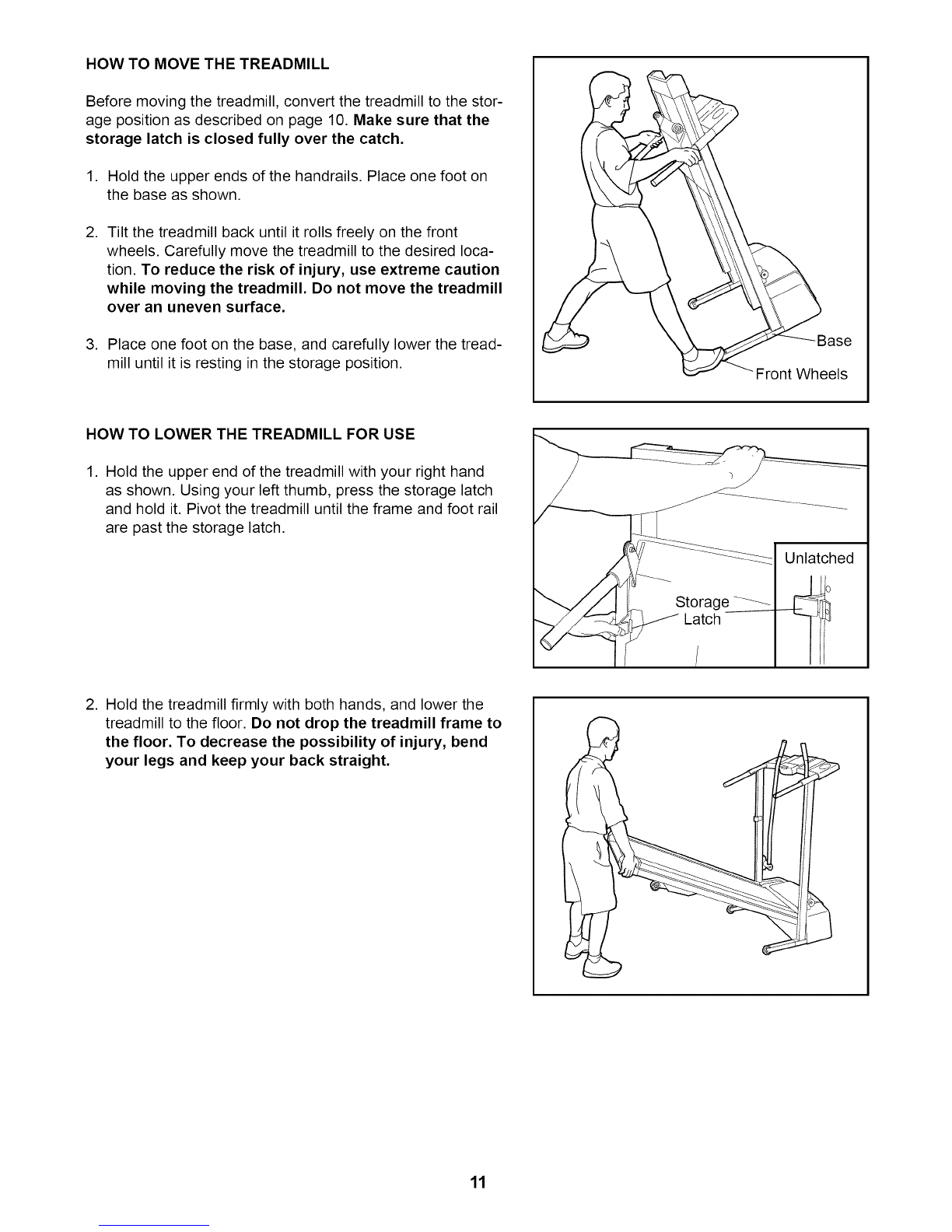

HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described on page 10. Make sure that the
storage latch is closed fully over the catch.
1. Hold the upper ends of the handrails. Place one foot on
the base as shown.
,Tilt the treadmill back until it rolls freely on the front
wheels. Carefully move the treadmill to the desired loca-
tion. To reduce the risk of injury, use extreme caution
while moving the treadmill. Do not move the treadmill
over an uneven surface.
3. Place one foot on the base, and carefully lower the tread-
mill until it is resting in the storage position. Front Wheels
HOW TO LOWER THE TREADMILL FOR USE
1. Hold the upper end of the treadmill with your right hand
as shown. Using your left thumb, press the storage latch
and hold it. Pivot the treadmill until the frame and foot rail
are past the storage latch.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. Do not drop the treadmill frame to
the floor. To decrease the possibility of injury, bend
your legs and keep your back straight.
11

TROUBLE-SHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department toll-
free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor
that meets all of the specifications described on page 7. Important: The treadmill is not compatible
with GFCl-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
C, Check the circuit breaker located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the circuit breaker has tripped. To reset
the circuit breaker, wait for five minutes and then
press the switch back in.
c
Tripped Reset
PROBLEM: The power turns off during use
SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above). If the circuit breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Unplug the power cord, wait for five minutes, and then plug the power cord back in.
d. Remove the key from the console. Reinsert the key fully into the console.
e. If the treadmill still will not run, please call our Customer Service Department, toll-free.
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Check the batteries in the console. If the batteries need to be replaced, see "BATTERY
INSTALLATION" on page 8. Most problems are the result of drained batteries.
b, Remove the key from the console and UNPLUG THE
POWER CORD. Remove the two Resistance Bracket
Bolts (78), two Star Washers (103), and two Washers
(39) from the left Upright (11). Remove the screws
from the hood. Carefully remove the hood.
Locate the Reed Switch (86) and the Magnet (87) on
the left side of the Pulley (85). Turn the Pulley until the
Magnet is aligned with the Reed Switch. Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8". If necessary, loosen the Screw
(82) and move the Reed Switch slightly. Retighten the
Screw. Re-attach the hood, and run the treadmill for a
few minutes to check for a correct speed reading.
b 11--
39
78
12

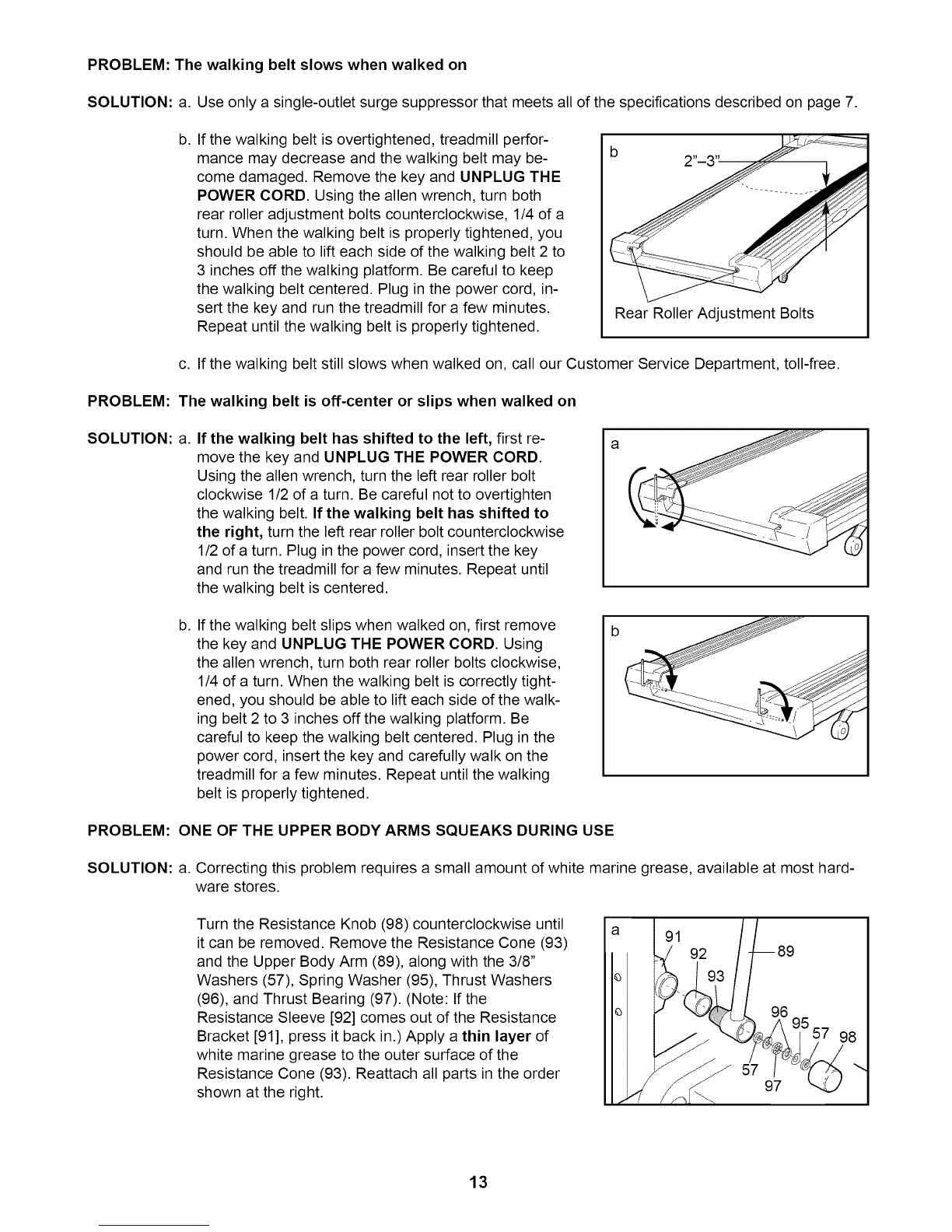

PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 7.
b, If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be-
come damaged. Remove the key and UNPLUG THE
POWER CORD. Using the allen wrench, turn both
rear roller adjustment bolts counterclockwise, 1/4 of a
turn. When the walking belt is properly tightened, you
should be able to lift each side of the walking belt 2 to
3 inches off the walking platform. Be careful to keep
the walking belt centered. Plug in the power cord, in-
sert the key and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened. Rear Roller Adjustment Bolts
c. If the walking belt still slows when walked on, call our Customer Service Department, toll-free.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt has shifted to the left, first re-
move the key and UNPLUG THE POWER CORD.
Using the allen wrench, turn the left rear roller bolt
clockwise 1/2 of a turn. Be careful not to overtighten
the walking belt. If the walking belt has shifted to
the right, turn the left rear roller bolt counterclockwise
1/2 of a turn. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until
the walking belt is centered.
b, If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the allen wrench, turn both rear roller bolts clockwise,
1/4 of a turn. When the walking belt is correctly tight-
ened, you should be able to lift each side of the walk-
ing belt 2 to 3 inches off the walking platform. Be
careful to keep the walking belt centered. Plug in the
power cord, insert the key and carefully walk on the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
PROBLEM: ONE OF THE UPPER BODY ARMS SQUEAKS DURING USE
SOLUTION: a. Correcting this problem requires a small amount of white marine grease, available at most hard-
ware stores.
Turn the Resistance Knob (98) counterclockwise until
it can be removed. Remove the Resistance Cone (93)
and the Upper Body Arm (89), along with the 3/8"
Washers (57), Spring Washer (95), Thrust Washers
(96), and Thrust Bearing (97). (Note: If the
Resistance Sleeve [92] comes out of the Resistance
Bracket [91], press it back in.) Apply a thin layer of
white marine grease to the outer surface of the
Resistance Cone (93). Reattach all parts in the order
shown at the right.
91 92
57 97
13

CONDITIONING GUIDELINES
WARN ING: Beforebeginning
this or any exercise program, consult your
physician. This is especially important for in-
dividuals over the age of 35 or individuals
with pre-existing health problems.
The following guidelines will help you to plan your ex-
ercise program. For more detailed exercise informa-
tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the de-
sired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom-
mended heart rates for fat burning and aerobic exer-
cise.
HEART RATE TRAINING ZONE
AGE
20 IfP_ fi_!.l fi_.-_
30 Iz:J
60 I
80 I .,m
To find the proper heart rate for you, first find your age
on the left side of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers to
the right of your age. The three numbers are your
"training zone." The lower two numbers are recom-
mended heart rates for fat burning; the higher number
is the recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your
training zone. It may also be helpful to set the speed
control on the console to FAT BURN to help you main-
tain the proper intensity level. (See page 9.)
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys-
tem, your exercise must be "aerobic." Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone. It may also be helpful to set the speed control on
the console to AEROBIC to help you maintain the
proper intensity level. (See page 9.)
High Performance Athletic Conditioning
If your goal is high performance athletic conditioning,
set the speed control on the console to PERFOR-
MANCE to help you maintain the proper intensity level.
(See page 9.) Note: During the first few weeks of your
exercise program, keep your heart rate near the low
end of your training zone.
HOW TO MEASURE YOUR HEART RATE
To measure your
heart rate, stop exer-
cising and place two
fingers on your wrist
as shown. Take a
six-second heartbeat
count, and multiply
the result by ten to
find your heart rate.
(A six-second count is used because your heart rate
drops quickly when you stop exercising.) If your heart
rate is too high or too low, adjust the speed or incline
of the treadmill accordingly.
WORKOUT GUIDELINES
A well-rounded workout includes the following three
important parts:
A Warm-up
Start each workout with 5 to 10 minutes of stretching
and light exercise (see SUGGESTED STRETCHES on
page 15). A proper warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
14

Training Zone Exercise
After warming up, increase the intensity of your exer-
cise until your pulse is in your training zone for 20 to
60 minutes. (During the first few weeks of your exer-
cise program, do not keep your pulse in your training
zone for longer than 20 minutes.) Breathe regularly
and deeply as you exercise--never hold your breath.
A Cool-down
Finish each workout with 5 to 10 minutes of stretching
to cool down. This will increase the flexibility of your
muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be-
tween workouts. After a few months, you may com-
plete up to five workouts each week if desired.
The key to success is to make exercise a regular and
enjoyable part of your everyday life.

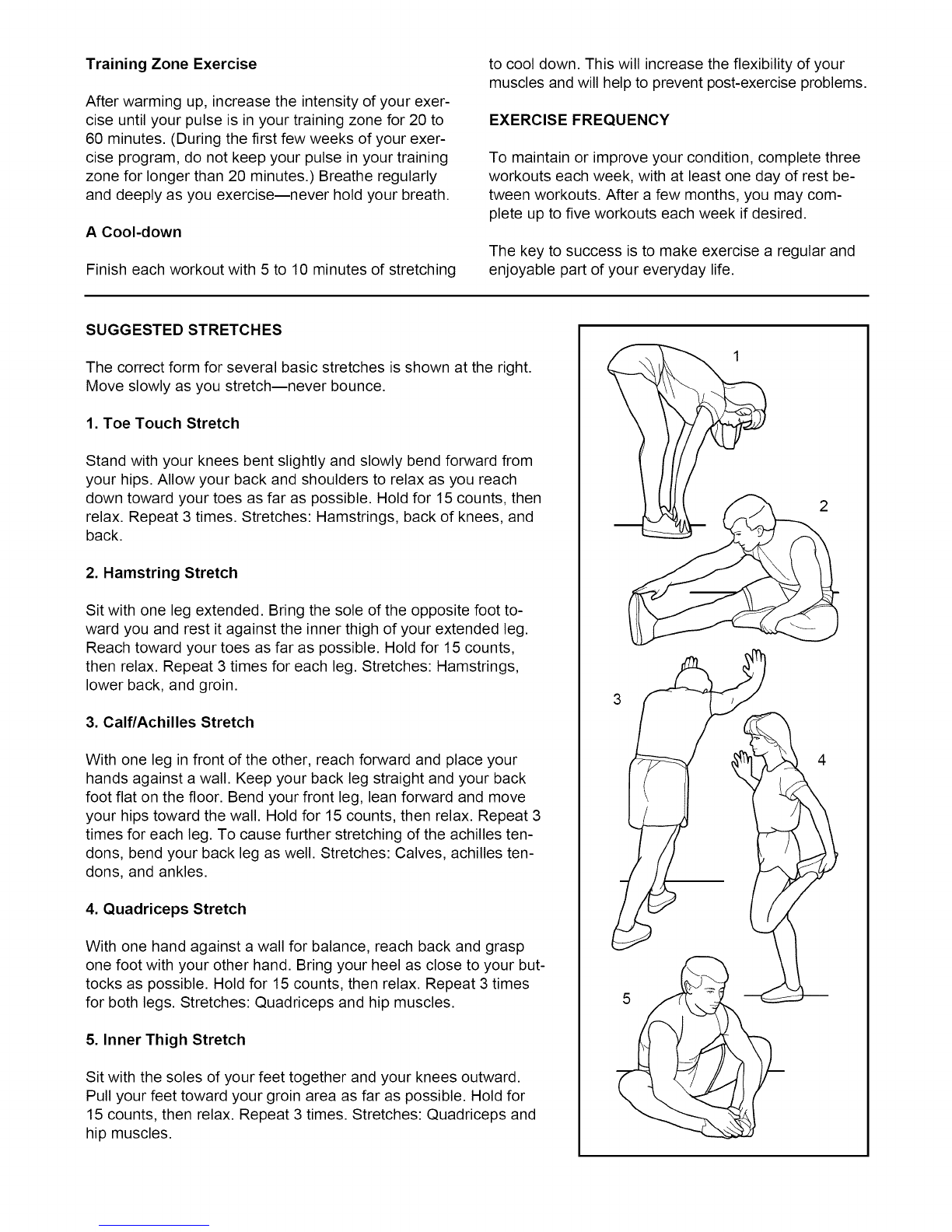

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch--never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees, and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot to-
ward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles ten-
dons, bend your back leg as well. Stretches: Calves, achilles ten-
dons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your but-
tocks as possible. Hold for 15 counts, then relax. Repeat 3 times
for both legs. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
4

REMOVE THIS EXPLODED DRAWING
AND PART LIST FROM THE MANUAL
Save this EXPLODED DRAWING and PART LIST for future reference.
Note: Specifications are subject to change without notice. For information about
ordering replacement parts, see the back cover of the User's Manual.

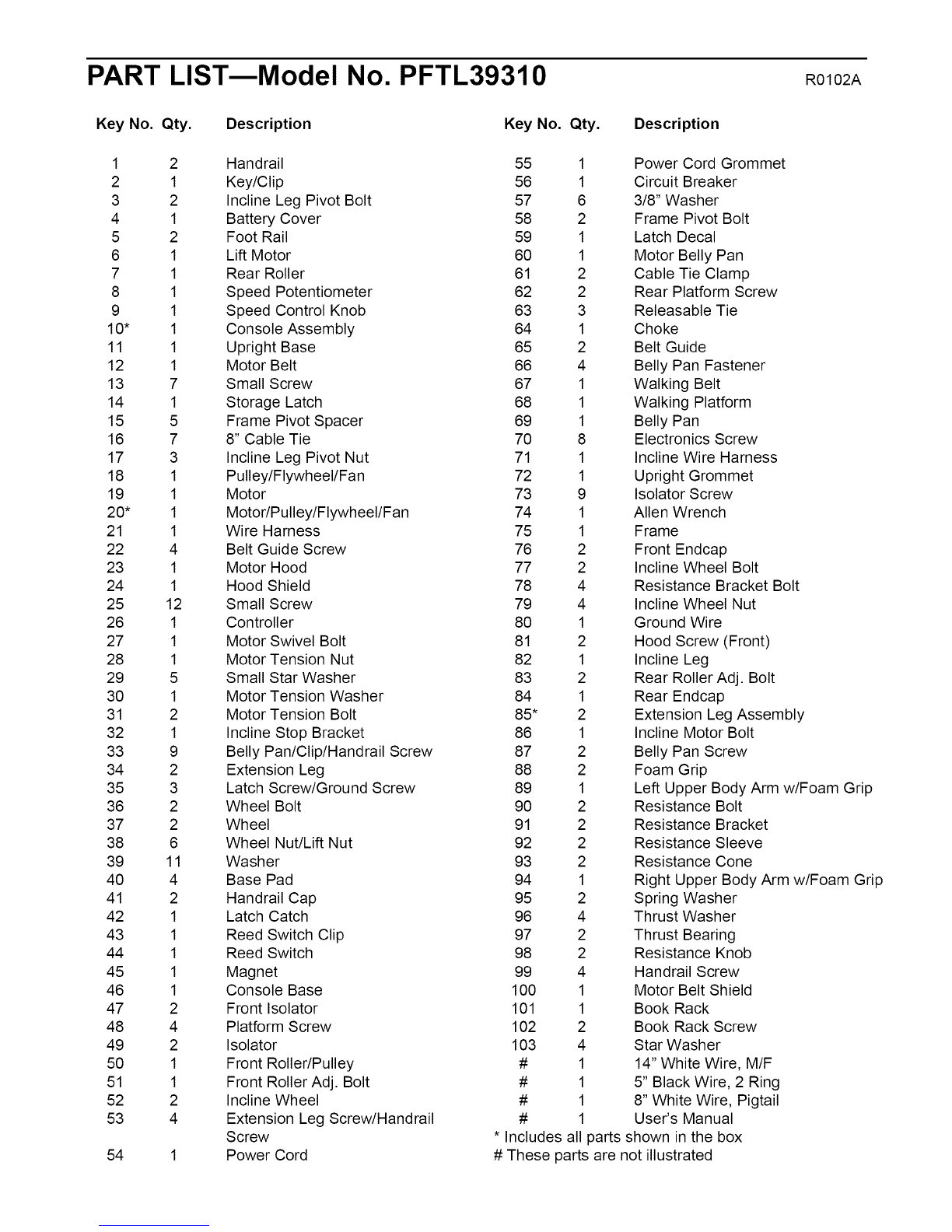

PART LISTmModel No. PFTL39310 Ro o2A
Key No. Qty. Description
1 2
2 1
3 2
4 1
5 2
6 1
7 1
8 1
9 1
10" 1
11 1
12 1
13 7
14 1
15 5
16 7
17 3
18 1
19 1
20* 1
21 1
22 4
23 1
24 1
25 12
26 1
27 1
28 1
29 5
30 1
31 2
32 1
33 9
34 2
35 3
36 2
37 2
38 6
39 11
40 4
41 2
42 1
43 1
44 1
45 1
46 1
47 2
48 4
49 2
5O 1
51 1
52 2
53 4
54
Handrail
Key/Clip
Incline Leg Pivot Bolt
Battery Cover
Foot Rail
Lift Motor
Rear Roller
Speed Potentiometer
Speed Control Knob
Console Assembly
Upright Base
Motor Belt
Small Screw
Storage Latch
Frame Pivot Spacer
8" Cable Tie
Incline Leg Pivot Nut
Pulley/Flywheel/Fan
Motor
Motor/Pulley/Flywheel/Fan
Wire Harness
Belt Guide Screw
Motor Hood
Hood Shield
Small Screw
Controller
Motor Swivel Bolt
Motor Tension Nut
Small Star Washer
Motor Tension Washer
Motor Tension Bolt
Incline Stop Bracket
Belly Pan/Clip/Handrail Screw
Extension Leg
Latch Screw/Ground Screw
Wheel Bolt
Wheel
Wheel Nut/Lift Nut
Washer
Base Pad
Handrail Cap
Latch Catch
Reed Switch Clip
Reed Switch
Magnet
Console Base
Front Isolator
Platform Screw
Isolator
Front Roller/Pulley
Front Roller Adj. Bolt
Incline Wheel
Extension Leg Screw/Handrail
Screw
Power Cord
Key No. Qty. Description
55
56
57
58
59
6O
61
62
63
64
65
66
67
68
69
7O
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85*
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
#
#
#
#
1
1
6
2
1
1
2
2
3
1
2
4
1
1
1
8
1
1
9
1
1
2
2
4
4
1
2
1
2
1
2
1
2
2
1
2
2
2
2
1
2
4
2
2
4
1
1
2
4
1
1
1
1
Power Cord Grommet
Circuit Breaker
3/8" Washer
Frame Pivot Bolt
Latch Decal
Motor Belly Pan
Cable Tie Clamp
Rear Platform Screw
Releasable Tie
Choke
Belt Guide
Belly Pan Fastener
Walking Belt
Walking Platform
Belly Pan
Electronics Screw
Incline Wire Harness
Upright Grommet
Isolator Screw
Allen Wrench
Frame
Front Endcap
Incline Wheel Bolt
Resistance Bracket Bolt
Incline Wheel Nut
Ground Wire
Hood Screw (Front)
Incline Leg
Rear Roller Adj. Bolt
Rear Endcap
Extension Leg Assembly
Incline Motor Bolt
Belly Pan Screw
Foam Grip
Left Upper Body Arm w/Foam Grip
Resistance Bolt
Resistance Bracket
Resistance Sleeve
Resistance Cone
Right Upper Body Arm w/Foam Grip
Spring Washer
Thrust Washer
Thrust Bearing
Resistance Knob
Handrail Screw
Motor Belt Shield
Book Rack
Book Rack Screw
Star Washer
14" White Wire, M/F
5" Black Wire, 2 Ring
8" White Wire, Pigtail
User's Manual
* Includes all parts shown in the box
# These parts are not illustrated

EXPLODED DRAWINGmModel No. PFTL39310 R0102A
/
/
/
/
/'
/
/
/
/
/
o
o
\
co
\

ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
• The MODEL NUMBER OF THE PRODUCT (PFTL39310)
• The NAME OF THE PRODUCT (PROFORM _ CROSSWALK 460 treadmill)
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST
attached in the center of this manual).
If possible, place the treadmill near your telephone for easy reference when calling.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service
centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of pur-
chase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal
usage or repairs not provided by an ICON authorized service center, to products used for commercial or
rental purposes, or to products used as store display models. No other warranty beyond that specifically
set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in-
cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 175547 R0102A Printed in USA © 2002 ICON Health & Fitness, Inc.
