USER'S MANUAL
www.iconeurope.com

TABLE OF CONTENTS
WARNINGDECALPLACEMENT..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................5
ASSEMBLY...............................................................................6
HOWTOUSETHECHESTPULSESENSOR...................................................15
OPERATIONANDAD USTMENT ............................................................16
HOWTOFOLDANDMOVETHETREADMILL ..................................................23
TROUBLESHOOTING .....................................................................25
EXERCISEGUIDELINES ...................................................................28
PARTLIST ..............................................................................30
EXPLODEDDRAWING ....................................................................32
ORDERINGREPLACEMENTPARTS ..................................................BackCover
RECYCLINGINFORMATION.........................................................BackCover
This drawing shows the locations of the
warning decals. If a decal is missing or il-
legible, call the telephone number on the
front cover of this manual and request a
free replacement decal. Apply the decal
in the location shown. Note: The decals
may not be shown at actual size.
WARNING DECAL PLACEMENT
2
PROFORM is a registered trademark of ICON IP, Inc.

3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 330 lbs. (150 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
16), plug the power cord into an earthed cir-
cuit. No other appliance should be on the
same circuit. When replacing the fuse in the
power cord adapter, insert an ASTA-approved
BS1362, 13-amp fuse into the fuse carrier.
12. If an extension cord is needed, use only a 3-
conductor, 14-gauge (1 mm2) cord that is no
longer than 5 ft. (1.5 m).
13. Keep the power cord away from heated sur-
faces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLES OOTING on page 25 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
OW TO TURN ON T E POWER on page 18).
16. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS

4
19. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the lo-
cation of the power switch.)
20. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and OW TO FOLD
AND MOVE T E TREADMILL on page 23.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
21. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
22. Never insert any object into any opening on
the treadmill.
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
25. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
26. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE T ESE INSTRUCTIONS

5
Thank you for selecting the revolutionary PROFORM®
905 ZLT treadmill. The 905 ZLT treadmill offers an im-
pressive array of features designed to make your
workouts at home more enjoyable and effective. And
when youʼre not exercising, the unique treadmill can
be folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
BEFORE YOU BEGIN
Handrail
Upright
Accessory Tray
Key/Clip
Power Switch
Walking Belt
Platform Cushion
Foot Rail
Idler Roller
Adjustment Bolts
Console
Pulse Sensor

6
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-
cant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key and your own Phillips screwdriver ,
adjustable wrench , needlenose pliers , and scissors .

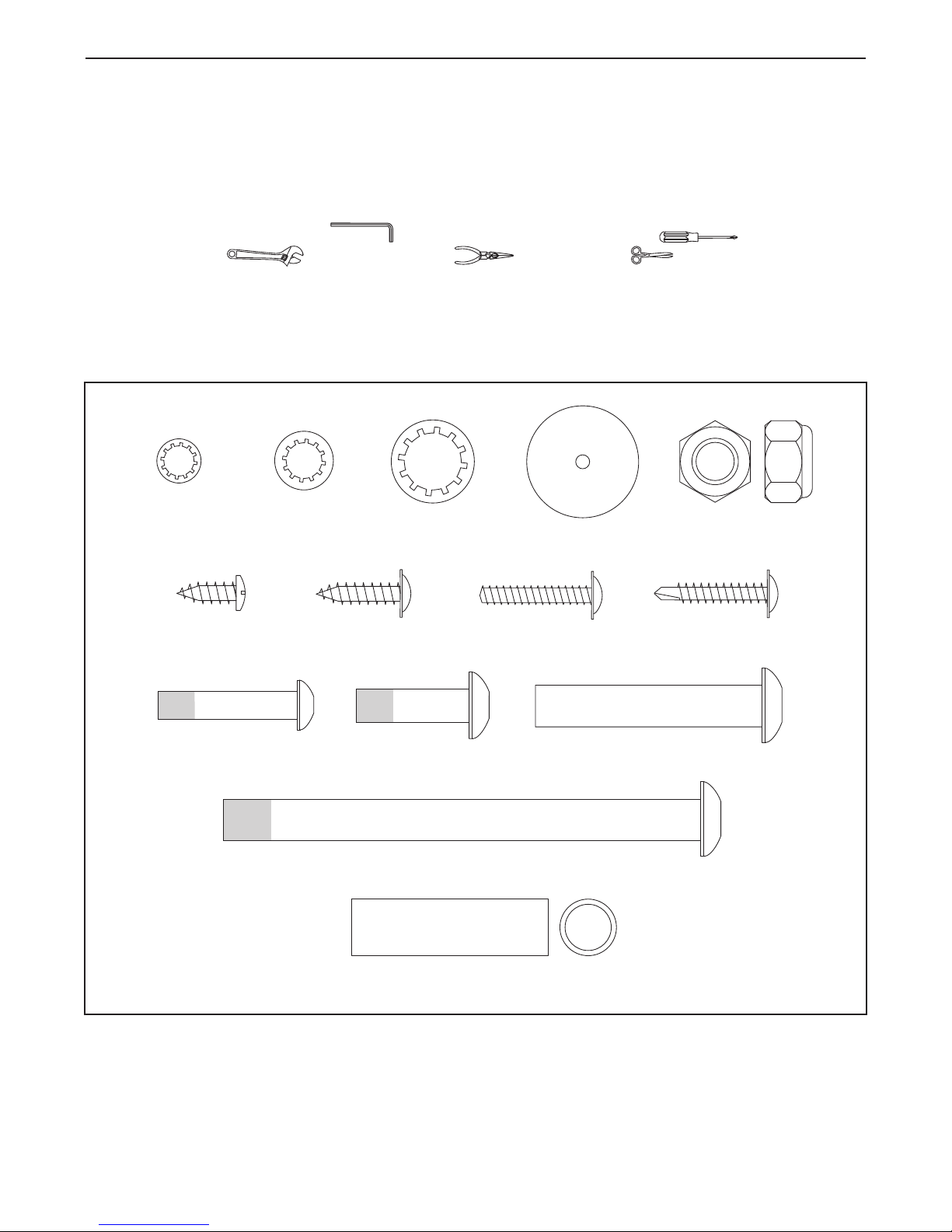

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-
aging parts, do not use power tools for assembly. Extra hardware may be included.
Base Foot Spacer
(94)–2
3/8" Star
Washer (11)–4
#8 x 1/2" Screw
(3)–8
#8 x 1" Tek Screw
(5)–4
3/8" Nut (10)–3
5/16" Star
Washer (13)–6
5/16" x 1"
Patch Bolt (4)–6
Bolt Spacer (14)–4
3/8" x 2" Bolt (8)–3
3/8" x 4 1/4" Patch Bolt (7)–4
1/4" Star
Washer (12)–4
#8 x 3/4" Washer
Head Screw (2)–2
#8 x 1" Screw
(107)–4
1/4" x 1 1/4" Patch
Bolt (9)–4

7
2. With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (B)
and the shipping bracket (C).
Cut the shipping tie securing the Upright Wire
(87) to the Base (95). Locate a plastic tie in the
indicated hole in the Base, and use the tie to pull
the Upright Wire out of the hole.
Attach two Base Feet (90) to the Base (95) in the
locations shown with two #8 x 1" Tek Screws (5)
and two Base Foot Spacers (94).
Then, attach the other two Base Feet (90) with
two #8 x 1" Tek Screws (5).
2
95
5
55
90
90
5
5
5
90
94
90
87
Hole
94
C
B
1. Make sure that the power cord is unplugged.
Remove the 3/8" Nut (10), the 3/8" x 2" Bolt (8),
and the shipping bracket (A) from the Base (95).
Repeat this step on the other side of the
treadmill.
The 3/8" Nuts (10) and the 3/8" x 2" Bolts (8) will
be used in assembly steps 3 and 6. Discard the
shipping brackets.
1
95
A
8
10

8

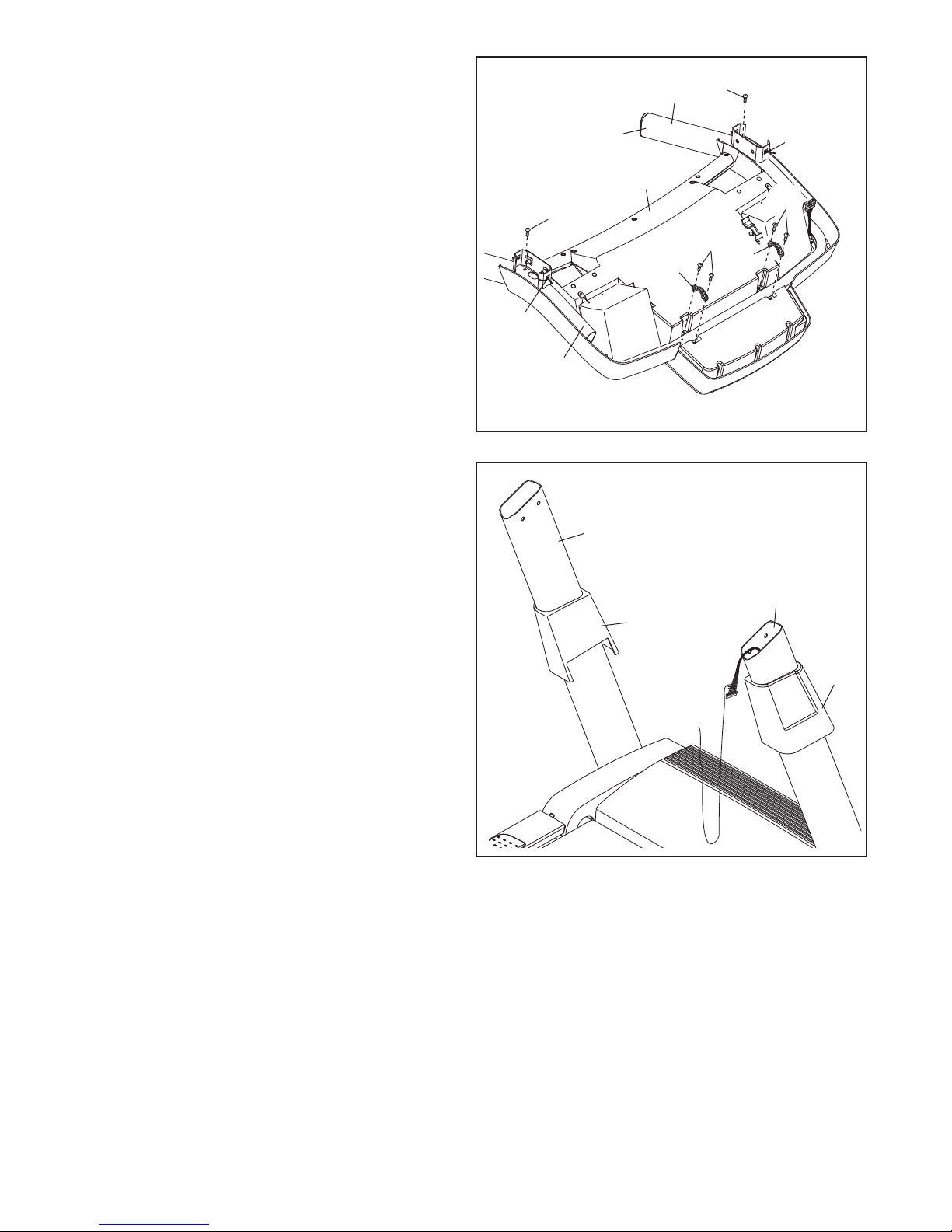

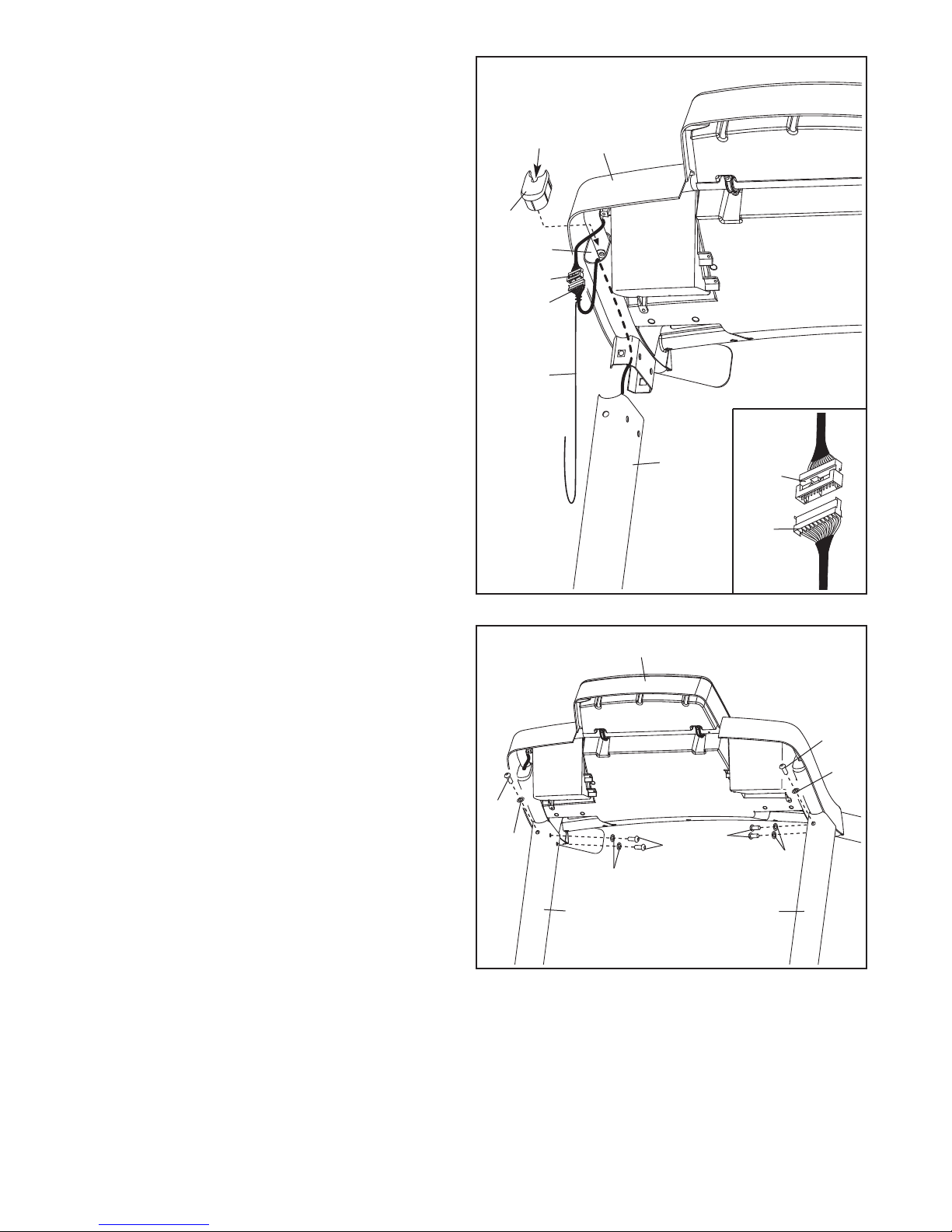

4. Identify the Right Upright (85) and the Right
Upright Spacer (91), which are marked with
“Right” stickers. Align the oval hole in the Right
Upright Spacer with the oval hole in the Base
(95). If the holes do not line up, turn the Right
Upright Spacer and try again.
Insert the Upright Wire (87) through the Right
Upright Spacer (91) as shown. Set the Right
Upright Spacer on the Base (95).
Have a second person hold the Right Upright
(85) near the Base (95). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Upright Wire (87). Then,
pull the other end of the wire tie until the Upright
Wire is routed completely through the Right
Upright.
95
Wire Tie
87
85
91
87
4
Wire
Tie
85
87
Oval
Hole
Oval
Hole
3. Attach a Wheel (96) to the Base (95) with the
3/8" x 2" Bolt (8) and the 3/8" Nut (10) that you
removed in step 1. Do not overtighten the Nut;
the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
95
8
10
3
96
89

9
6. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the two indicated bolts (B)
and the shipping bracket (C).
Attach a Wheel (96) to the Base (95) with the
3/8" x 2" Bolt (8) and the 3/8" Nut (10) that you
removed in step 1. Do not overtighten the Nut;
the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
6
8
55
10
95
89
96
C
B
5. Hold a Bolt Spacer (14) inside the lower end of
the Right Upright (85). Insert a 3/8" x 4 1/4"
Patch Bolt (7) with a 3/8" Star Washer (11) into
the Right Upright and the Bolt Spacer. Repeat
this step with a second Bolt Spacer (14), 3/8"
x 4 1/4" Patch Bolt (7), and 3/8" Star Washer
(11).
Hold the Right Upright (85) against the Right
Upright Spacer (91). Be careful not to pinch
the Upright Wire (87). Tighten the 3/8" x 4 1/4"
Patch Bolts (7) until the heads of the Patch Bolts
touch the Right Upright; do not fully tighten
the Patch Bolts yet.
91
85
87
11
14
7
5

10

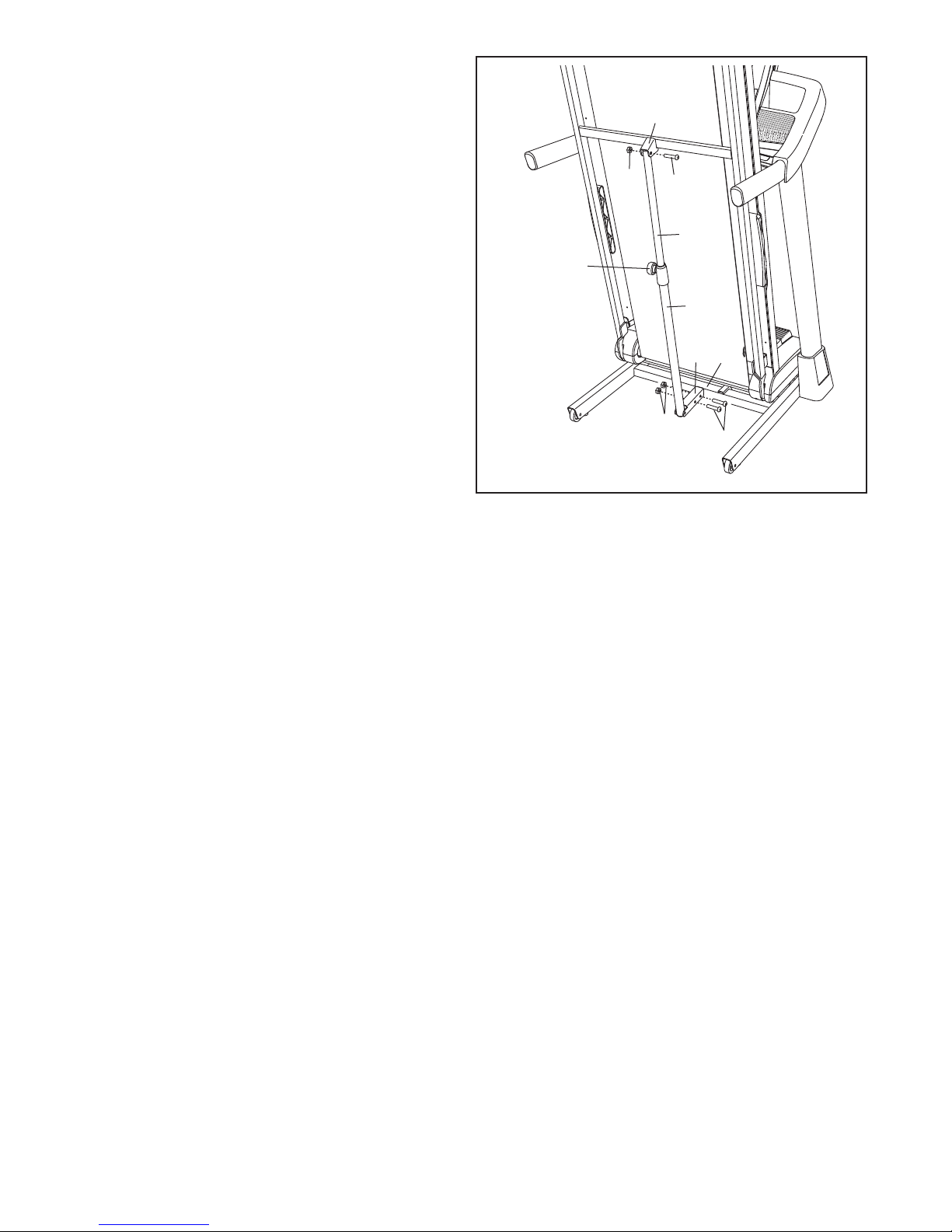

8. Insert the bracket on the Left Handrail (82) into
the Left Upright (84).
Insert the Upright Wire (87) several inches
downward into the Right Upright (85); make
sure that the wire tie does not fall into the
Right Upright. Then, insert the Right Handrail
(83) into the Right Upright. Be careful not to
pinch the Upright Wire.
Orient the Console Frame (102) as shown, with
the welded nuts on the bottom. Insert the ends
of the Console Frame into the Left and Right
Handrails (82, 83). Attach the Console Frame
with four 1/4" x 1 1/4" Patch Bolts (9) and four
1/4" Star Washers (12). Start all four Patch
Bolts, and then tighten them.
Lift the Console Frame (102) and the Handrails
(82, 83) off the Uprights (84, 85). Then, pull the
Upright Wire (87) out of the Right Upright.
102
9
84
Bracket
12
Welded
Nuts
Wire
Tie
Welded
Nuts
9
12
85
83
87
82
8
7. Align the oval hole in the Left Upright Spacer
(88) with the oval hole in the Base (95) as
described in step 4.
Hold a Bolt Spacer (14) inside the lower end of
the Left Upright (84). Insert a 3/8" x 4 1/4" Patch
Bolt (7) with a 3/8" Star Washer (11) into the
Left Upright and the Bolt Spacer. Repeat this
step with a second Bolt Spacer (14), 3/8" x
4 1/4" Patch Bolt (7), and 3/8" Star Washer
(11).
Hold the Left Upright Spacer (88) and the Left
Upright (84) against the Base (95). Tighten the
3/8" x 4 1/4" Patch Bolts (7) until the heads of
the Patch Bolts touch the Left Upright; do not
fully tighten the Patch Bolts yet.
With the help of a second person, tip the tread-
mill so that the Base (95) is flat on the floor.
88
84
7
95
14
11
7

11
10. With the help of a second person, hold the
handrail assembly (E) upside-down near the
console assembly (D). Connect the Console
Ground Wires (6) in the handrail assembly to
the ground wires in the console assembly.
Insert the console wire (F) into the track in the
console assembly (D).
Insert the Console Ground Wires (6) into the
hole in the console assembly (D) as you set the
handrail assembly (E) in the console assembly.
Make sure that the console wire (F) stays in
the track. Be careful not to pinch any wires.
10
Ground
Wires
Track
F
102
D
E
6
9. Set the console assembly (D) face-down on a
soft surface to avoid scratching the console.
Attach the Left Accessory Tray (103) with four
#8 x 1/2" Screws (3). Start all four Screws,
and then tighten them.
Attach the Right Accessory Tray (104) in the
same way.
9
D
3
3
103
3
104

12
12. Slide the Left Upright Cover (80) onto the Left
Upright (84).
Slide the Right Upright Cover (86) onto the
Right Upright (85).
12
80
84
85
86
11. Attach the handrail assembly (E) to the console
assembly (D) with two #8 x 3/4" Washer Head
Screws (2). Start both Washer ead Screws,
and then tighten them. Be careful not to
overtighten the Washer ead Screws.
Attach a Console Clamp (105) to the console
assembly (D) with two #8 x 1" Screws (107).
Start both Screws, and then tighten them. Be
careful not to overtighten the Screws. Attach
the other Console Clamp (105) in the same way.
Remove the wire ties from the Handrails (82,
83). If necessary, press the 5/16" Cage Nuts
(38) back into place.
D
105 105
83
82
2
2
11
107
107
38
38
E

13
14. Attach the console assembly (D) to the Left
Upright (84) and the Right Upright (85) with six
5/16" x 1" Patch Bolts (4) and six 5/16" Star
Washers (13). Start all six Patch Bolts, and
then tighten them.
See steps 5 and 7. Tighten the 3/8" x 4 1/4"
Patch Bolts (7).
14
85 84
4
44
13
13
13
4
D
13
13. With the help of a second person, hold the con-
sole assembly (D) near the Right Upright (85)
and the Left Upright (not shown). Insert the
Upright Wire (87) into the hole in the bottom of
the Right Handrail and pull it out of the end as
shown.
Connect the Upright Wire (87) to the console
wire (F). See the inset drawing. The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF YOU DO NOT CONNECT T E
CONNECTORS PROPERLY, T E CONSOLE
MAY BECOME DAMAGED W EN YOU TURN
ON T E POWER. Remove the wire tie from the
Upright Wire.
Set the console assembly (D) on the Right
Upright (85) and the Left Upright (not shown). Be
careful not to pinch any wires.
Insert the wires into the Right andrail (83).
Press a Handrail Cap (63) into the end of the
Right Handrail and the Left Handrail (not shown).
Make sure that the console wire (F) is in the
notch in the right andrail Cap.
13
F
Wire
Tie
85
87
83
63
87
F
D
Notch

14
16. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used to
adjust the walking belt (see pages 26 and 27).
15. Raise the Frame (55) to the position shown.
ave a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the Latch Bracket (109) and Storage Latch
(51) to the Base (95) with two 3/8" x 2" Bolts (8)
and two 3/8" Nuts (10).
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x 2"
Bolt (8) and a 3/8" Nut (10). Note: It may be
necessary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 24).
51
95
10
Large
Barrel
8
55
10
109
15
8
Latch Knob

15

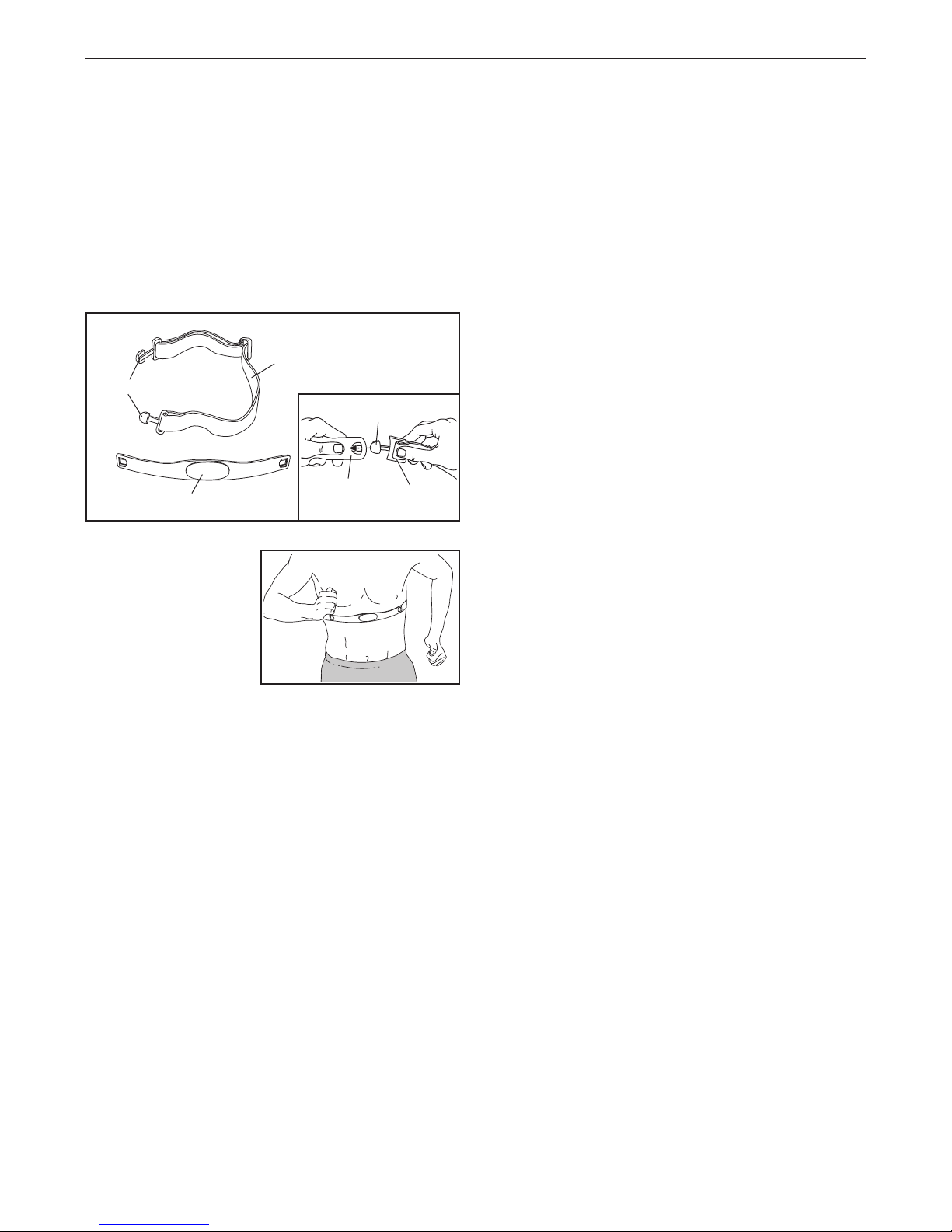

OW TO PUT ON T E C EST PULSE SENSOR
The chest pulse sensor consists of two components:
the chest strap and the sensor unit. Insert the tab on
one end of the chest strap into the hole in one end of
the sensor unit, as shown in the inset drawing. Press
the end of the sensor unit under the buckle on the
chest strap. The tab should be flush with the front of
the sensor unit.
Next, wrap the chest
pulse sensor around
your chest and attach
the other end of the
chest strap to the
sensor unit. Adjust
the length of the
chest strap, if neces-
sary. The chest pulse
sensor should be under your clothes, tight against your
skin, and as high under the pectoral muscles or
breasts as is comfortable. Make sure that the logo on
the sensor unit is facing forward and is right-side-up.
Pull the sensor unit away from your body a few inches
and locate the two electrode areas on the inner side
(the electrode areas are covered by shallow ridges).
Using saline solution such as saliva or contact lens so-
lution, wet both electrode areas. Return the sensor unit
to a position against your chest.
CARE AND MAINTENANCE
• Thoroughly dry the chest pulse sensor after each
use. The chest pulse sensor is activated when the
electrode areas are wetted and the chest pulse sen-
sor is put on; the chest pulse sensor shuts off when
it is removed and the electrode areas are dried. If
the chest pulse sensor is not dried after each use, it
may remain activated longer than necessary, drain-
ing the battery prematurely.
• Store the chest pulse sensor in a warm, dry place.
Do not store the chest pulse sensor in a plastic bag
or other container that may trap moisture.
• Do not expose the chest pulse sensor to direct
sunlight for extended periods of time; do not expose
it to temperatures above 122° F (50° C) or below 14°
F (-10° C).
• Do not excessively bend or stretch the sensor unit
when using or storing the chest pulse sensor.
• Clean the sensor unit using a damp cloth—never
use alcohol, abrasives, or chemicals. The chest
strap may be hand washed and air dried.
TROUBLES OOTING
The instructions on the following pages explain
how the chest pulse sensor is used with the con-
sole. If the chest pulse sensor does not function
properly, try the steps below.
• Make sure that you are wearing the chest pulse sen-
sor as described at the left. Note: If the chest pulse
sensor does not function when positioned as de-
scribed, move it slightly lower or higher on your chest.
• Use saline solution such as saliva or contact lens
solution to wet the two electrode areas on the
sensor unit. If heart rate readings do not appear until
you begin perspiring, rewet the electrode areas.
• As you walk or run on the treadmill, position your-
self near the center of the walking belt. For the
console to display heart rate readings, the user
must be within armʼs length of the console.
• The chest pulse sensor is designed to work with
people who have normal heart rhythms. Heart rate
reading problems may be caused by medical
conditions such as premature ventricular contrac-
tions (pvcs), tachycardia bursts, and arrhythmia.
• The operation of the chest pulse sensor can be
affected by magnetic interference caused by high
power lines or other sources. If it is suspected that
this is a problem, try relocating the treadmill.
Chest Strap
Tabs
Sensor Unit
Tab
Sensor
Unit Buckle
OW TO USE T E C EST PULSE SENSOR

16
TE PRE-LUBRICATED WALKING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking belt
or the walking platform. Such substances will dete-
riorate the walking belt and cause excessive wear.

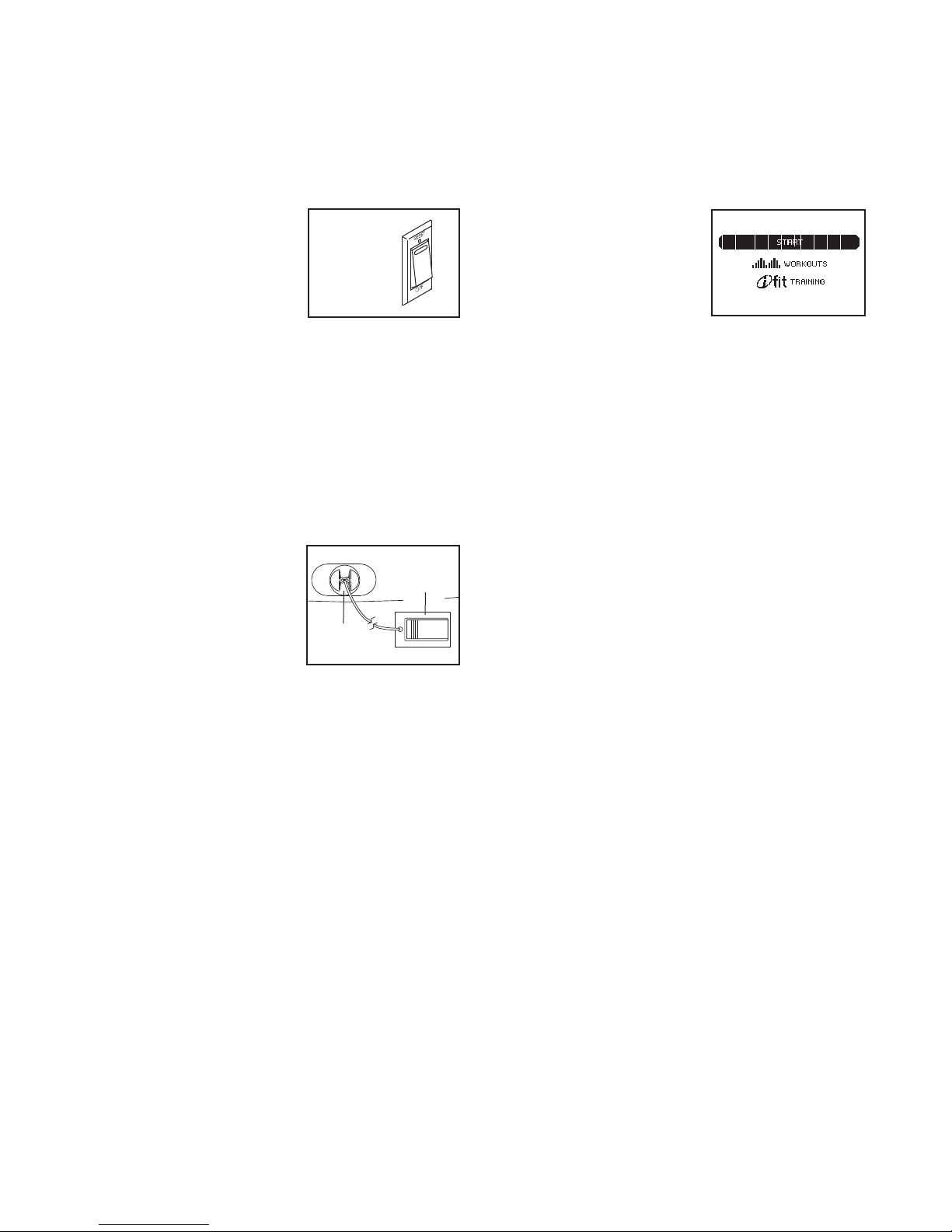

OW TO PLUG IN T E POWER CORD
This product must be earthed. If it should malfunc-
tion or break down, earthing provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a power cord
having an equipment-earthing conductor and an earth-
ing plug. IMPORTANT: If the power cord is dam-
aged, it must be replaced with a manufacturer-
recommended power cord.
Follow the steps below to plug in the power cord.
1. Plug the indicated end of the power cord into the
socket on the treadmill.
2.If you are plugging in the power cord in
Australia, go to step 3.
If you are plugging in the power cord in the UK,
first press the pins on the power cord into the metal
clips in the adapter as shown. Close the adapter
cover over the end of the power cord and tighten the
screw in the adapter. IMPORTANT: Make sure that
the screw is tightened into the adapter cover.
Then, go to step 3.
3. Plug the power cord into an appropriate outlet that is
properly installed and earthed in accordance with all
local codes and ordinances.
DANGER: Improper connection of
the equipment-earthing conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product is
properly earthed. Do not modify the plug pro-
vided with the product—if it will not fit the
outlet, have a proper outlet installed by a
qualified electrician.
OPERATION AND ADJUSTMENT
Socket on Treadmill
Metal
Clips
Pins
Screw
Adapter
Outlet
UK Australia
Adapter
Cover
Outlet
Power Cord

17
FEATURES OF T E CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable. When you use the manual mode of
the console, you can change the speed and incline of
the treadmill with the touch of a button. As you exer-
cise, the console will display continuous exercise feed-
back. You can even measure your heart rate using the
handgrip pulse sensor or the chest pulse sensor (see
page 15 for information on the chest pulse sensor).
In addition, the console features twenty preset work-
outs—eight calorie workouts and twelve performance
workouts. Each preset workout automatically controls
the speed and incline of the treadmill as it guides you
through an effective exercise session.
The console also features an iFit training mode that al-
lows your treadmill to communicate with your wireless
network through an optional iFit Live module. The iFit
Live module allows you to download personalized
workouts, to track and analyze your workout results on
the iFit Live website, and to access other exciting fea-
tures. To purchase an iFit Live module at any time,
go to www.ifit.com or call the telephone number on
the front cover of this manual.
You can even listen to your favorite workout music or
audio books with the consoleʼs stereo sound system.
To turn on the power, see page 18. To use the man-
ual mode, see page 18. To use a preset workout,
see page 20. To use the iFit training mode, see
page 21. To use the information mode, see page 22.
To use the stereo sound system, see page 22.
IMPORTANT: If there is a sheet of plastic on the
console, remove the plastic. To prevent damage to
the walking platform, wear clean athletic shoes
while using the treadmill. The first time the tread-
mill is used, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 27).
CONSOLE DIAGRAM
Audio
ack

18
OW TO TURN ON T E POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
page 16). Next, locate the
power switch on the tread-
mill frame near the power
cord. Make sure that the
switch is in the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see T E INFORMATION MODE on page
22 to turn off the demo mode.
Next, stand on the foot rails
of the treadmill. Locate the
clip attached to the key
(see the drawing at the
right), and slide the clip se-
curely onto the waistband
of your clothes. Then, insert
the key into the console.
After a moment, the displays will light. IMPORTANT:
In an emergency situation, the key can be pulled
from the console, causing the walking belt to slow
to a stop. Test the clip by carefully taking a few
steps backward; if the key is not pulled from the
console, adjust the position of the clip.
Note: The console can display speed and distance in
either kilometers or miles. To find which unit of mea-
surement is selected, see THE INFORMATION MODE
on page 22. For simplicity, all instructions in this
manual refer to kilometers.
OW TO USE T E MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Each time the key is in-
serted, the main menu
will appear. To select
the manual mode, use
the increase and de-
crease buttons next to
the Enter button and
highlight START. Press the Enter button. Note: If
you have selected a workout or the iFit training
mode, press the Menu button to return to the main
menu.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the speed but-
tons numbered 2 to 20.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 2
Km/H. As you exercise, change the speed of the
walking belt as desired by pressing the Speed in-
crease and decrease buttons. Each time you press
one of the buttons, the speed setting will change
by 0.1 Km/H; if you hold down the button, the
speed setting will change in increments of 0.5
Km/H.
If you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered
speed buttons.
Key
Reset
Clip

19
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
Incline increase or decrease button, or one of the
incline buttons numbered 0 to 10. Each time you
press one of the buttons, the incline will gradually
change until it reaches the selected incline setting.
5. Select a display mode and monitor your
progress with the display.
The console offers several display modes. The dis-
play mode that you select will determine which
workout information is shown. To select the de-
sired display mode, press the Display button re-
peatedly.
As you walk or run on the treadmill, the display can
show the following workout information:
• The incline level of the treadmill
• The speed of the walking belt
• The distance that you have walked or run
• The elapsed time
• Your pace in minutes per mile or minutes per
kilometer
• The approximate number of calories you have
burned
• Your heart rate (see step 6 on this page)
Regardless of which display mode you select, the
speed and incline settings will appear in the display
for a few seconds each time you change the setting.
6. Measure your heart rate if desired.
Note: If you use the handgrip pulse sensor and
the chest pulse sensor at the same time, the
console will not display your heart rate accu-
rately. For information on the chest pulse sensor,
see page 15.
Before using
the handgrip
pulse sensor,
remove the
sheets of plas-
tic from the
metal contacts.
In addition,
make sure that
your hands are
clean.
To measure your heart rate, stand on the foot
rails and hold the contacts for at least ten sec-
onds—avoid moving your hands. When your
pulse is detected, your heart rate will be shown.
For the most accurate heart rate reading, con-
tinue to hold the contacts for about 15 sec-
onds.
7. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest set-
ting when you fold the treadmill to the storage
position, or you may damage the treadmill.
Next, remove the key from the console and put it in
a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmillʼs electrical components may
wear prematurely.
Contacts

20
OW TO USE A PRESET WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 18.
2. Select a preset workout.
If you have selected the manual mode, a workout,
or the iFit training mode, press the Menu button to
return to the main menu.
To select a preset workout, use the increase and
decrease buttons next to the Enter button and
highlight WORKOUTS. Press the Enter button.
Then, press the increase and decrease buttons to
highlight the desired workout category and press
the Enter button. You can also press the 8 Calorie
Workouts button or the 12 Performance Workouts
button.
If you select a performance workout, use the in-
crease and decrease buttons to highlight the de-
sired workout category and press the Enter button.
Use the increase and decrease buttons to select
the desired workout. When you select a workout,
the display will show the name, the duration, the
maximum speed setting, the maximum incline set-
ting, and a profile of the speed settings of the work-
out. Press the Enter button. Note: When a distance
workout is selected, the duration of the workout will
not appear in the display.
3. Start the workout.
Press the Start button or the Speed increase but-
ton to start the workout. A moment after you press
the button, the treadmill will automatically adjust to
the first speed and incline settings of the workout.
Hold the handrails and begin walking.
Each preset workout is divided into segments. One
speed setting and one incline setting are pro-
grammed for each segment. Note: The same
speed and/or incline setting may be programmed
for consecutive segments.
During the work-
out, the profile will
show your
progress. The
flashing segment
of the profile repre-
sents the current
segment of the workout. The height of the flashing
segment indicates the speed setting for the current
segment.
At the end of each segment, a series of tones will
sound and the next segment of the profile will
begin to flash. If a new speed and/or incline setting
is programmed for the next segment, the speed
and/or incline will appear in the display and the
treadmill will automatically adjust to the new speed
and incline settings.
The workout will continue in this way until the last
segment of the profile flashes in the display and
the last segment ends. The walking belt will then
slow to a stop. Note: When a distance workout or a
calorie workout ends, a cool down mode will begin
and the walking belt will gradually slow to a stop.
Current Segment
