Pro-Form PFTL79022 User manual

Serial Number Decal
Model No. PFTL79022
Serial No.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete sat-
isfaction through direct assis-
tance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!

TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: An EXPLODED DRAWING is attached in the center of this manual.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 250 pounds or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 8),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 8. To purchase a surge suppressor, see
your local PROFORM dealer or call 1-888-533-
1333 and order part number 146148.
12. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BE-
FORE YOU BEGIN on page 4 if the treadmill is
not working properly.)
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
2

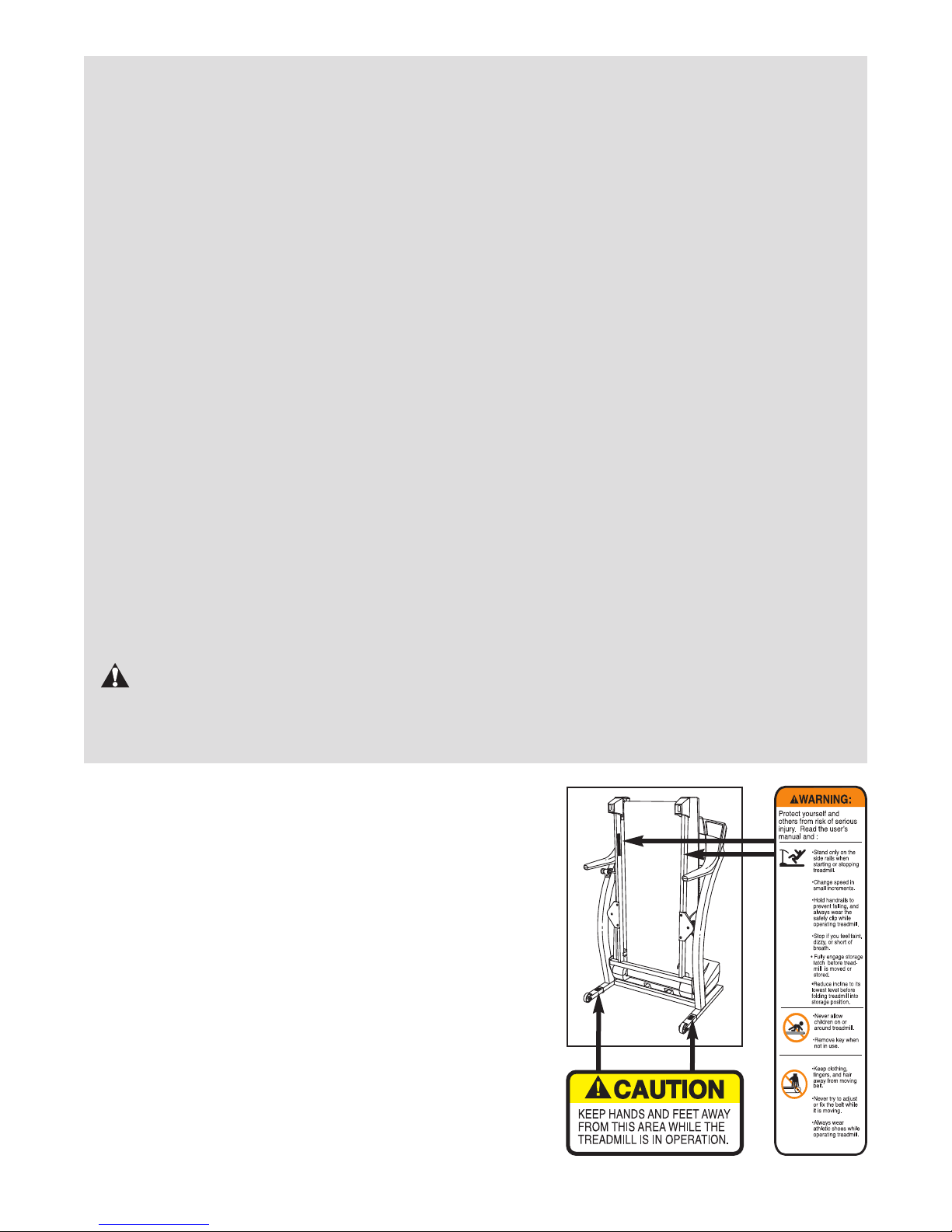

The decals shown have been placed on your treadmill. If a
decal is missing, or if it is not legible, please call our
Customer Service Department, toll-free, to order a free re-
placement decal (see the front cover of this manual). Apply
the decal in the location shown.
15. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
16. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.
17. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 4 for the location of the circuit breaker.)
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 5, and HOW TO FOLD
AND MOVE THE TREADMILL on page 21.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
19. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
20. When using iFIT.com CDs and videos, an
electronic “chirping” sound will alert you
when the speed of the treadmill is about to
change. Always listen for the “chirp” and be
prepared for speed changes. In some in-
stances, the speed may change before the
personal trainer describes the change.
21. When using iFIT.com CDs and videos, you
can manually override the speed setting at
any time by pressing the speed buttons.
However, when the next “chirp” is heard, the
speed will change to the next setting for the
CD or video program.
22. Remove iFIT.com CDs and videos from your
CD player or VCR when you are not using
them.
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. Never insert any object into any opening.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
SAVE THESE INSTRUCTIONS
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3

Thank you for selecting the revolutionary PROFORM®
720 treadmill. The 720 treadmill combines advanced
technology with innovative design to help you get the
most from your exercise program in the convenience
and privacy of your home. And when you’re not exer-
cising, the unique 720 treadmill can be folded up, re-
quiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service
Department toll-free at 1-888-533-1333, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (ex-
cluding holidays). To help us assist you, please note
the product model number and serial number before
calling. The model number of the treadmill is
PFTL79022. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
4
Handrail
Upright
Storage Latch
Accessory Tray
Fan
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Cushioned Walking Platform
for maximum exercise comfort
Foot Rail
Power Cord
RIGHT SIDE
Rear Roller
Adjustment Bolts
Console
CD Holder
BACK

1. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise the
Uprights (97) to the position shown. Insert one of the
Extension Legs (92) into the base of the Uprights. (Note:
It may be helpful to tip the Uprights forward as you insert
the Extension Leg.) Make sure that the Warning Decal
(91) is in the indicated location.
Insert the other Extension Leg (not shown) in the same
way.
5
92
97
91
1
1/4” Washer
(39)–4
Internal Star
Washer (77)–4
Extension Leg Bolt (96)–4 1” Tek Screw (80)–2
Upright Bolt (76)–4
Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled.
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver
and wire cutters .

3. Remove the Latch Knob (88) from the Latch Pin (84).
Make sure that the Latch Pin Collar (56) and the Spring
(34) are on the Latch Pin. (Note: If there are two Latch
Pin Collars, place one on each side of the Spring.) Insert
the Latch Pin into the Latch Housing (82) and tighten the
Latch Knob onto the Latch Pin. 88
34
56
84
82
3
4. See drawing 4c. With the help of a second person, hold
the Console Base (101) near the Uprights (80, 84). Look
under the Console Base and locate the wires on the
sides of the Console Base. Make sure that the wires are
not routed through the openings for the Trays (109,
111). Drawing 4a shows the correct route for the wires.
Drawing 4b shows an incorrect route.
See drawing 4c. Cut the plastic ties holding the Wire
Harness (74) and the pulse wire in the Uprights (80, 84).
Locate the Wire Harness (74) and the pulse wire in the
Uprights (80, 84). Connect the Wire Harness and the
pulse wire to the connectors on the sides of the Console
Base (101). Make sure to connect the connectors
properly (see the inset drawings). IF THE CONNEC-
TORS ARE NOT CONNECTED PROPERLY, THE CON-
SOLE MAY BE DAMAGED WHEN THE POWER IS
TURNED ON. The connectors should slide together
easily and snap into place. If the connectors do not
slide together easily and snap into place, turn a connec-
tor and try to insert it again. Insert the excess Wire
Harness and pulse wire up into the Console Base.
101
111 109
80 84
4c
74
Pulse
Wire
2. With the help of a second person, carefully tip the
Uprights (97) down as shown. (Note: It may be helpful to
place your foot on one of the Extension Legs [92] as you
tip the Uprights.) Make sure that the Extension Legs
remain in the Uprights.
Attach each Extension Leg (92) with two Extension Leg
Bolts (96) and two 1/4” Washers (39) as shown. Thread
the two Leveling Feet (95) into the base of the Uprights
(97); do not thread the Leveling Feet fully into the
base of the Uprights.
Attach the two Base Pads (99) to the base of the
Uprights (97) in the locations shown with two 1” Tek
Screws (80).
With the help of a second person, raise the Uprights (97)
to the vertical position.
96
80
80
99
99
39
96
92
95
95
96
92
96
39
39
97
2
6
4a 4b
Correct Incorrect
74

7
If you purchase the optional chest pulse sensor (see
page 20), follow the steps below to install the receiver
included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (108) and the Access Door (116).
2. Remove the paper from the adhesive pad on the back of
the receiver (A). Hold the receiver so the small cylin-
der is near the lower edge of the receiver and is fac-
ing the Console (107) as shown. Firmly press the re-
ceiver onto the indicated corner of the Access Door
(116). Connect the wire on the receiver to the indicated
wire extending from the Console.
3. Make sure that no wires are pinched. Reattach the
Access Door (116) with the Screw (108). Discard the wires
included with the chest pulse sensor.
7. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may
be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the
walking belt (see page 23). To protect the floor or carpet, place a mat under the treadmill. If there are thin
sheets of clear plastic on the decals, remove them.
107
116 Cylinder
108
Wire
Wire
6. Fold the treadmill to the storage position (see page 21).
If the Wheels (94) are resting on the floor or if the tread-
mill rocks slightly, turn one or both of the Leveling Feet
(95) under the Uprights (97) until the Wheels are off the
floor and the rocking motion is eliminated. Note: If neces-
sary, tip the treadmill and use a phillips screwdriver to
turn the Leveling Feet.
6
95
94
94
97
5. Set the Console Base (101) on the Uprights (80, 84).
Thread four Upright Bolts (76) with four Internal Star
Washers (77) into the Uprights and the Console Base.
Be careful not to pinch the Wires (not shown) in the
Uprights. Tighten the two Upright Bolts indicated by the
arrows first; then, tighten the other two Upright Bolts.
Make sure that the Left and Right Trays (109, 111) are
pressed into the Console Base (101).
76 77
101
76
77
111 109
80
84
5
77
A

8
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETM WALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat-
form. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call 1-888-533-1333
and order part number 146148.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a
monitoring light on the surge suppressor to indi-
cate whether it is functioning properly. Failure to
use a properly functioning surge suppressor could
result in damage to the control system of the
treadmill. If the control system is damaged, the
walking belt may change speed or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin

9
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features that help you get the most from your workouts.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
a touch of a button. As you exercise, the console will
display instant exercise feedback. You can even mea-
sure your heart rate using the handgrip pulse sensor or
the optional chest pulse sensor (see page 20).
In addition, the console offers six preset workout pro-
grams. Each program automatically controls the speed
and incline of the treadmill as it guides you through an
effective workout. Two pulse programs are also offered.
Each program automatically adjusts the speed and in-
cline of the treadmill to keep your heart rate within a tar-
get range while you exercise.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per-
sonal trainer in your home. Using the included audio
cable, you can connect the treadmill to your home
stereo, portable stereo, or computer and play special
iFIT.com CD and video programs ( iFIT.com CDs and
videocassettes are available separately). iFIT.com CD
and video programs automatically control the speed
and incline of the treadmill as a personal trainer guides
you through every step of your workout. High-energy
music provides added motivation. To purchase
iFIT.com CDs or videocassettes, call toll-free 1-
888-533-1333.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and ac-
cess programs directly from the internet. Additional op-
tions are soon to be available. See www.iFIT.com for
more information.
To use the manual mode of the console, follow the
steps beginning on page 10. To use preset programs,
see page 12. To use heart rate programs, see page
13. To use an iFIT.com CD or video program, see
page 17. To use iFIT.com programs directly from
our Web site, see page 19.
Note: If there are thin sheets of clear
plastic on the console, remove them.
Clip
Key

10
HOW TO TURN ON THE POWER
Plug in the power cord (see page 8).
Locate the reset/off
circuit breaker near
the power cord. Make
sure that the circuit
breaker is in the reset
position.
Stand on the foot rails of the treadmill. Find the clip
attached to the key (see the drawing on page 9)
and slide the clip onto the waistband of your
clothes. Next, route the cord attached to the clip
under the handgrip pulse sensor, and insert the
key into the console. After a moment, the displays
and various indicators will light. Test the clip by
carefully taking a few steps backward until the
key is pulled from the console. If the key is not
pulled from the console, adjust the position of
the clip.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
See HOW TO TURN ON THE POWER above.
Select the manual mode.
When the key is in-
serted, the manual
mode will be selected.
To reselect the manual
mode, press the
Program Select button
repeatedly until a track
appears in the matrix. Make sure that the indicator
on the iFIT.com button is not lit.
Press the Start button or the Speed
s
s
button to
start the walking belt.
A moment after the button is pressed, the walking
belt will begin to move at 1 mph. Hold the handrails
and begin walking.
As you exercise, change the speed of the walking
belt as desired by pressing the Speed
t
t
and
s
s
buttons. Each time a
button is pressed, the
speed setting will
change by 0.1 mph; if a
button is held down, the
speed setting will
change in increments of 0.5 mph. To change the
speed setting quickly, press the Quick Speed but-
tons. Note: The console can display speed and
distance in either miles or kilometers. For sim-
plicity, all instructions in this section refer to
miles.
To stop the walking belt, press the Stop button.
The Time/Pace display will begin to flash. To
restart the walking belt, press the Start button or
the Speed
s
s
button.
Note: The first time the treadmill is used, observe
the alignment of the walking belt, and align the
walking belt if necessary (see page 23).
Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
Incline
t
t
and
s
s
buttons.
Each time a button is
pressed, the incline will
change by 0.5%. To
change the incline setting quickly, press the Quick
Incline buttons.
Follow your progress with the matrix and the
displays.
The matrix—When the
manual mode or the
iFIT.com mode is se-
lected, the matrix will
display a 1/4-mile track.
As you exercise, the in-
dicators around the track
will light, one at a time, until the entire track is lit.
The track will then darken and begin to light again.
Speed display—This
display shows the speed
of the walking belt. Note:
When the KM/H indica-
tor is lit, the console will
display speed and dis-
tance in kilometers; when the KM/H indicator is
not lit, the console will display speed and distance
in miles.
5
4
3
2
1
3
2
1
Reset
Position

11
To change the unit of
measurement, first hold
down the Stop button
while inserting the key
into the console. An “E”
for English miles or an
“M” for metric kilometers will appear in the Speed
display. Press the Speed
s
s
button to change the
unit of measurement. When the desired unit of
measurement is selected, remove the key.
Calories/Pulse
display—This display
shows the approximate
numbers of calories and
fat calories you have
burned (see FAT BURN-
ING on page 24). The
display will change from one number to the other
every few seconds. The display will also show
your heart rate when you use the handgrip pulse
sensor or the optional chest pulse sensor.
Distance/Incline dis-
play—This display
shows the distance that
you have walked or run
and the incline level of
the treadmill. The display
will change from one number to the other every
few seconds. Note: Each time the incline changes,
the display will show the incline setting for several
seconds.
Time/Pace display—
When the manual mode
or the iFIT.com mode is
selected, this display will
show the elapsed time
and your current pace
(pace is measured in minutes per mile). The dis-
play will change from one number to the other
every few seconds. When a preset program or a
heart rate program is selected, the display will
show the time remaining in the program rather
than the elapsed time.
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
Measure your heart rate if desired.
You can measure your heart rate using either the
handgrip pulse sensor or the optional chest pulse
sensor.
To use the hand-
grip pulse sen-
sor, first make
sure that your
hands are clean.
Next, stand on
the foot rails
and place your
hands on the
metal contacts on the handgrip pulse sensor. Your
palms should be resting on the contacts. Avoid
moving your hands. When your pulse is detected,
two dashes (– –) will appear in the Calories/Pulse
display, and then your heart rate will be shown.
For the most accurate heart rate reading, con-
tinue to hold the contacts for about 15 sec-
onds.
Turn on the fan if desired.
To turn on the fan, press the button below the fan.
To turn on the fan at high speed, press the button
a second time. To turn off the fan, press the but-
ton a third time. Note: A few minutes after the
walking belt is stopped, the fan will automatically
turn off.
When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage posi-
tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se-
cure place. Note: If the displays and various indi-
cators on the console remain lit after the key is
removed, the console is in the “demo” mode.
See page 20 and turn off the demo mode.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the off position and
unplug the power cord.
8
7
6
Contacts

12
HOW TO USE PRESET PROGRAMS
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
10.
Select one of the preset programs.
When the key
is inserted,
the manual
mode will be
selected. To
select a pre-
set program,
press the Program Select button repeatedly until
one of the six preset program indicators lights.
When a preset program is selected, the Speed
display will flash the maximum speed setting of
the program, and the Distance/Incline display will
flash the maximum incline setting, for six seconds.
The Time/Pace display will show how long the
program will last.
The matrix will show
the first seven speed
settings of the program.
Note: The profiles
below the matrix show
how the speed and in-
cline of the treadmill
will change during the programs.
Press the Start button or the Speed
s
s
button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each program is divided into several time seg-
ments of different lengths. One speed setting and
one incline setting are programmed for each seg-
ment. Note: The same speed setting and/or in-
cline setting may be programmed for consecutive
segments.
The speed setting for the
first segment is shown in
the flashing Current
Segment column of the
matrix. (The incline set-
tings are not shown in
the matrix.) The speed
settings for the next
seven segments are
shown in the seven columns to the right.
When only three seconds remain in the first seg-
ment of the program, both the Current Segment
column and the column to the right will flash and a
series of tones will sound. In addition, if the speed
and/or incline of the treadmill is about to change,
the Speed display and/or the Distance/Incline dis-
play will flash to alert you. When the first segment
is completed, all speed settings will move one col-
umn to the left. The speed setting for the second
segment will then be shown in the flashing Current
Segment column and the treadmill will automati-
cally adjust to the speed and incline settings for
the second segment. Note: If all of the indicators in
the Current Segment column are lit after the speed
settings have moved to the left, the speed settings
will move downward so that only the highest indi-
cators appear in the matrix. If some of the indica-
tors in the Current Segment column are not lit
when the speed settings move to the left again, the
speed settings will move back up.
The program will continue in this way until the
speed setting for the last segment is shown in the
Current Segment column of the matrix and the
Time/Pace display counts down to zero. The walk-
ing belt will then slow to a stop.
If the speed or incline setting is too high or too low
at any time during the program, you can manually
override the setting by pressing the Speed or
Incline buttons. Every few times a Speed button is
pressed, an additional indicator will light or darken
in the Current Segment column. (If any of the
columns to the right of the Current Segment col-
umn have the same number of lit indicators as the
Current Segment column, an additional indicator
may light or darken in those columns as well.)
Note: When the next segment of the program
begins, the treadmill will automatically adjust
to the speed and incline settings for the next
segment.
3
2
1
Current Segment

13
To stop the program temporarily, press the Stop
button. The Time/Pace display will begin to flash.
To restart the program, press the Start button or
the Speed
s
s
button. To end the program, press
the Stop button, remove the key, and then reinsert
the key.
Follow your progress with the displays.
See step 5 on page 10.
Measure your heart rate if desired.
See step 6 on page 11.
Turn on the fan if desired.
See step 7 on page 11.
When the program is finished, remove the key
from the console.
When the program has ended, make sure that
the incline of the treadmill is at the lowest set-
ting. Next, remove the key from the console and
put it in a safe place. Note: If the displays and
various indicators on the console remain lit
after the key is removed, the console is in the
“demo” mode. See page 20 and turn off the
demo mode.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the off position and
unplug the power cord.
HOW TO USE HEART RATE PROGRAMS
Follow the steps below to use a heart rate program.
Note: You must wear the optional chest pulse sen-
sor (see page 20) to use a heart rate program.
Put on the chest pulse sensor.
See the instructions included with the optional
chest pulse sensor.
Insert the key fully into the console.
See HOW TO TURN ON THE POWER on page
10.
Select a heart rate program.
When the key
is inserted, the
manual mode
will be se-
lected. To se-
lect a heart
rate program,
press the Program Select button repeatedly until
one of the two heart rate program indicators lights.
The two profiles on the left side of the matrix show
how the target heart rate will change during the
programs. During heart rate program 1, your heart
rate will reach approximately 85% of your esti-
mated maximum heart rate; during heart rate pro-
gram 2, your heart rate will reach approximately
80% of your estimated maximum heart rate.
Note: Your estimated maximum heart rate is de-
termined by subtracting your age from 220. For
example, if you are 30 years old, your estimated
maximum heart rate is 190 beats per minute
(220 – 30 = 190).
3
2
1
7
6
5
4
CAUTION: If you have heart prob-
lems, or if you are over 60 years of age and
have been inactive, do not use the heart rate
programs. If you are taking medication regu-
larly, consult your physician to find whether the
medication will affect your exercise heart rate.

14
During heart rate pro-
grams, the matrix will
show a graphic that
represents your heart
rate. Each time a heart-
beat is detected, an ad-
ditional peak will ap-
pear.
Enter your age and a maximum speed setting.
When a heart rate pro-
gram is selected, the
word “AGE” and the
current age setting will
flash in the Calories/
Pulse display. If you
have already entered
your age, simply press the Enter Age button. If
you have not entered your age, press the
s
s
and
t
t
buttons beside the Enter Age button to enter your
age. Then, press the Enter Age button.

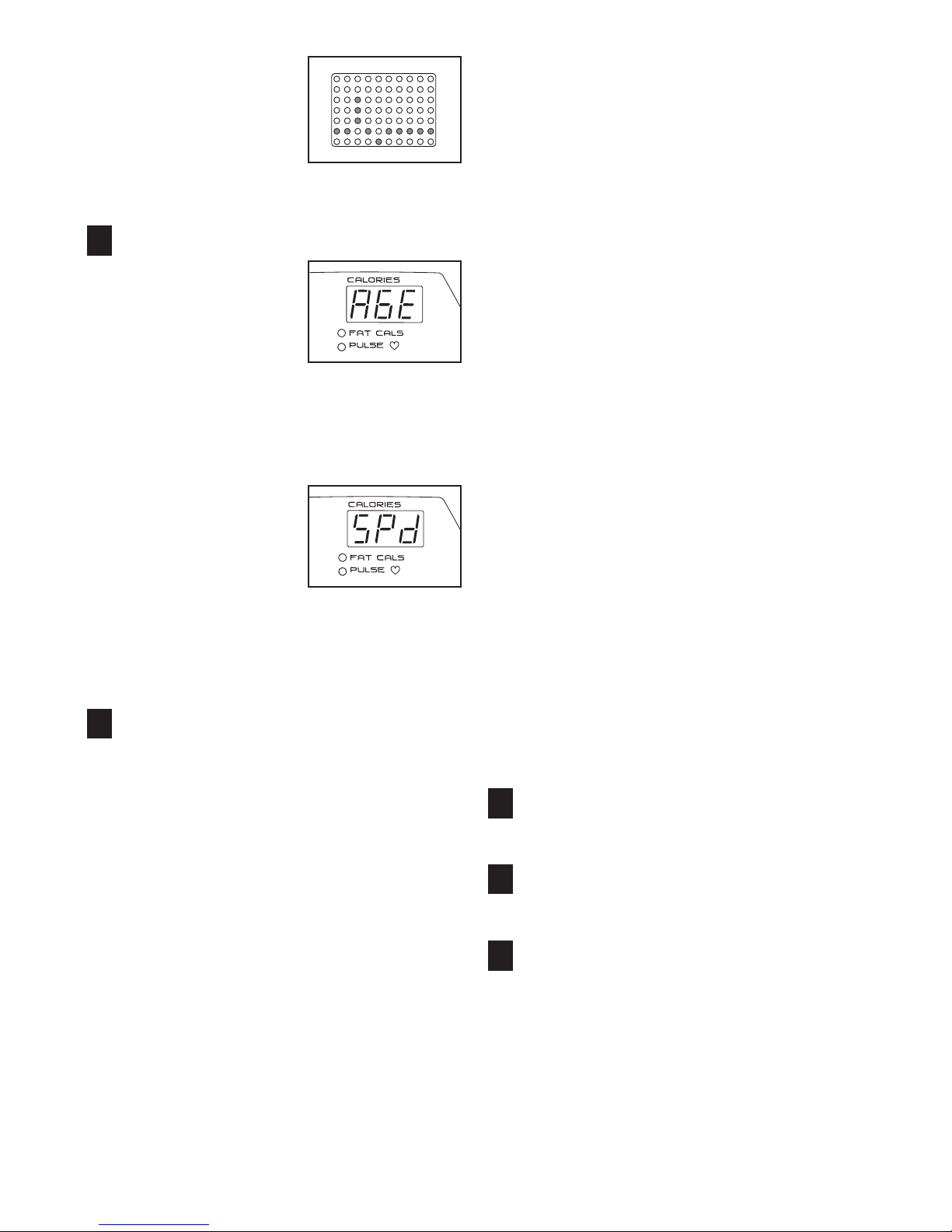

After you have entered
your age, the letters
“SPd” and the maxi-
mum speed setting of
the program will flash in
the Calories/Pulse dis-
play. If desired, press
the
s
s
and
t
t
buttons beside the Enter Age button
to adjust the maximum speed setting. When the
desired setting is shown, press the Enter Age but-
ton.
Press the Start button or the Speed
s
s
button to
start the program.
A moment after the button is pressed, the tread-
mill will automatically adjust to the first speed and
incline settings of the program. Hold the handrails
and begin walking.
Each heart rate program is divided into several time
segments of different lengths. One target heart rate
is programmed for each segment.
During each segment, the console will regularly
compare your heart rate to the current target heart
rate. If your heart rate is too far below or above
the target heart rate, the speed of the treadmill will
automatically increase or decrease to bring your
heart rate closer to the target heart rate. If the
speed reaches the maximum speed setting of the
program (see step 4 at the left) and your heart
rate is still too far below the current target heart
rate, the incline of the treadmill will also increase
to bring your heart rate closer to the target heart
rate.
During the last three seconds of each segment, a
series of tones will sound and the Speed display
and the Distance/Incline display will flash.
The program will continue until no time remains in
the program. The walking belt will then slow to a
stop.
If the speed or incline setting is too high or too low
at any time during the program, you can adjust the
setting with the Speed or Incline buttons. However,
each time the console compares your heart rate to
the current target heart rate, the speed and/or in-
cline of the treadmill may automatically change to
bring your heart rate closer to the target heart
rate.
If your pulse is not detected during the program,
the letters “PLS” will flash in the Calories/
Pulse display and the speed and incline of the
treadmill may automatically decrease until your
pulse is detected. If this occurs, see the instruc-
tions included with the optional chest pulse sensor.
To stop the program at any time, press the Stop
button. Heart rate programs cannot be stopped
temporarily and then restarted. To use a heart rate
program again, reselect the program and start it at
the beginning.
Follow your progress with the displays.
See step 5 on page 10.
Turn on the fans if desired.
See step 7 on page 11.
When the program is finished, remove the key
from the console.
See step 7 on page 13.
8
7
6
5
4

15
HOW TO CONNECT THE TREADMILL TO YOUR
CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs, the treadmill must be connected
to your portable CD player, portable stereo, home
stereo, or computer with CD player. See pages 15 and
16 for connecting instructions. To use iFIT.com video-
cassettes, the treadmill must be connected to your
VCR. See page 17 for connecting instructions. To use
iFIT.com programs directly from our internet site,
the treadmill must be connected to your home com-
puter. See page 16 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and
PHONES jacks, see instruction A below. If your CD
player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your CD player. Plug your headphones into the
PHONES jack.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter (avail-
able at electronics stores). Plug the Y-adapter into
the PHONES jack on your CD player. Plug your
headphones into the other side of the Y-adapter.
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT
jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your
stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter. Plug
the adapter into an AUDIO OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your stereo.
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your stereo. Plug your
headphones into the other side of the Y-adapter.
A
LINE OUT
PHONES LINE OUT
PHONES
B
PHONES
PHONES
Audio
Cable
Head-
phones
A
A
C
PHONES
LINE OUT
B
AUDIO OUT
RIGHT
LEFT
Audio
Cable
Adapter
A
A
C
PHONES
LINE OUT
B
AUDIO OUT
RIGHT
LEFT
Audio
Cable
B
A
C
PHONES
LINE OUT
B
AUDIO OUT
RIGHT
LEFT
Audio
Cable
C
A
LINE OUT
PHONES LINE OUT
PHONES
B
PHONES
PHONES
Audio
Cable
3.5mm
Y-adapter
Headphones
B
3.5mm
Y-adapter
Headphones

16
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack,
see instruction A below. If the LINE OUT jack is
being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the LINE OUT jack on your
stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the LINE OUT jack on your
stereo and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the LINE OUT
jack on your stereo.
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack,
see instruction A. If your computer has only a
PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the LINE OUT jack on
your computer.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into a 3.5mm Y-adapter
(available at electronics stores). Plug the Y-adapter
into the PHONES jack on your computer. Plug your
headphones or speakers into the other side of the
Y-adapter.
B
A
LINE OUT
CD
VCR
Amp
LINE OUT
CD
VCR
Amp
LINE OUT
Audio
Cable
Adapter
A
A
PHONES
LINE OUT
B
Audio
Cable
A
B
A
LINE OUT
CD
VCR
Amp
LINE OUT
CD
VCR
Amp
LINE OUT
Audio
Cable
RCA
Y-adapter
Wire removed from
LINE OUT jack
B
Adapter
A
PHONES
LINE OUT
B
Audio
Cable
B
3.5mm
Y-adapter
Headphones/Speakers

17

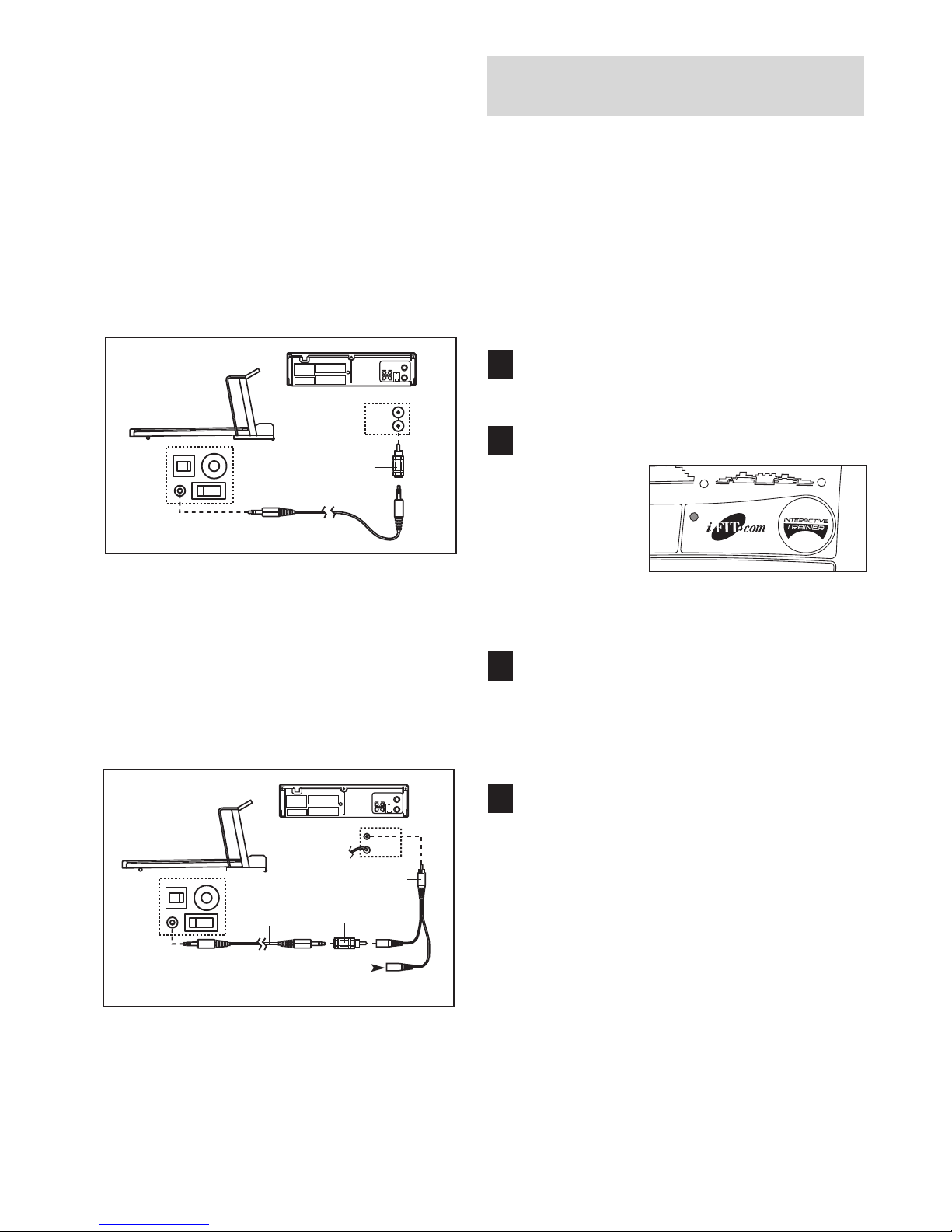

HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack,
see instruction A below. If the AUDIO OUT jack is
being used, see instruction B. If you have a TV
with a built-in VCR, see instruction B. If your VCR
is connected to your home stereo, see HOW TO
CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into the AUDIO OUT jack on your
VCR.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the
other end of the cable into the included adapter.
Plug the adapter into an RCA Y-adapter (available
at electronics stores). Next, remove the wire that is
currently plugged into the AUDIO OUT jack on your
VCR and plug the wire into the unused side of the
Y-adapter. Plug the Y-adapter into the AUDIO OUT
jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO
PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill
must be connected to your portable CD player, portable
stereo, home stereo, computer with CD player, or
VCR. See HOW TO CONNECT THE TREADMILL TO
YOUR CD PLAYER, VCR, OR COMPUTER on pages
15 to 17. Note: To purchase iFIT.com CDs or video-
cassettes, call toll-free 1-888-533-1333.
Follow the steps below to use an iFIT.com CD or video
program.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 11.
Select the iFIT.com mode.
When the key
is inserted, the
manual mode
will be se-
lected. To use
iFIT.com CDs
or videocas-
settes, press the iFIT.com button. The iFIT.com
indicator will light.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD
into your CD player. If you are using an iFIT.com
videocassette, insert the videocassette into your
VCR.
Press the PLAY button on your CD player or
VCR.
A moment after the button is pressed, your per-
sonal trainer will begin guiding you through your
workout. Simply follow your personal trainer’s
instructions. Note: If the Time/Pace display is
flashing, press the Start button or the Speed
s
s
button on the console. The treadmill will not re-
spond to a CD or video program when the
Time/Pace display is flashing.
During the CD or video program, an electronic
“chirping” sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be
prepared for speed and/or incline changes. In
some instances, the speed and/or incline may
change before the personal trainer describes
the change.
4
3
2
1
B
A
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
C
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio
Cable
Adapter
A
B
A
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
C
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT.IN
RF OUT
IN
OUT
CH
34
Audio
Cable Adapter
B
Wire removed from
AUDIO OUT jack
RCA Y-adapter

18
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the CD or video program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Pace dis-
play will begin to flash. To restart the program,
press the Start button or the Speed
s
s
button. After
a moment, the walking belt will begin to move at 1
mph. When the next “chirp” is heard, the
speed and incline will change to the next set-
tings of the CD or video program.
When the CD or video program is completed, the
walking belt will stop and the Time/Pace display
will begin to flash. Note: To use another CD or
video program, press the Stop button or remove
the key and go to step 1 on page 17.
Note: If the speed or incline of the treadmill
does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and
that the Time/Pace display is not flashing. If
the Time/Pace display is flashing, press the
Start button or the Speed
s
s
button on the
console.
• Adjust the volume of your CD player or VCR.
If the volume is too high or too low, the con-
sole may not detect the program signals.
• Make sure that the audio cable is properly
connected, that it is fully plugged in, and that
it is not wrapped around a power cord.
• If you are using your portable CD player and
the CD skips, set the CD player on the floor or
another flat surface instead of on the console.
Follow your progress with the track and the
displays.
See step 5 on page 10.
Measure your heart rate if desired.
See step 6 on page 11.
Turn on the fans if desired.
See step 7 on page 11.
When the program is completed remove the
key.
See step 7 on page 13.
CAUTION: Always remove iFIT.com CDs and
videocassettes from your CD player and VCR
when you are finished using them.
8
7
6
5

19

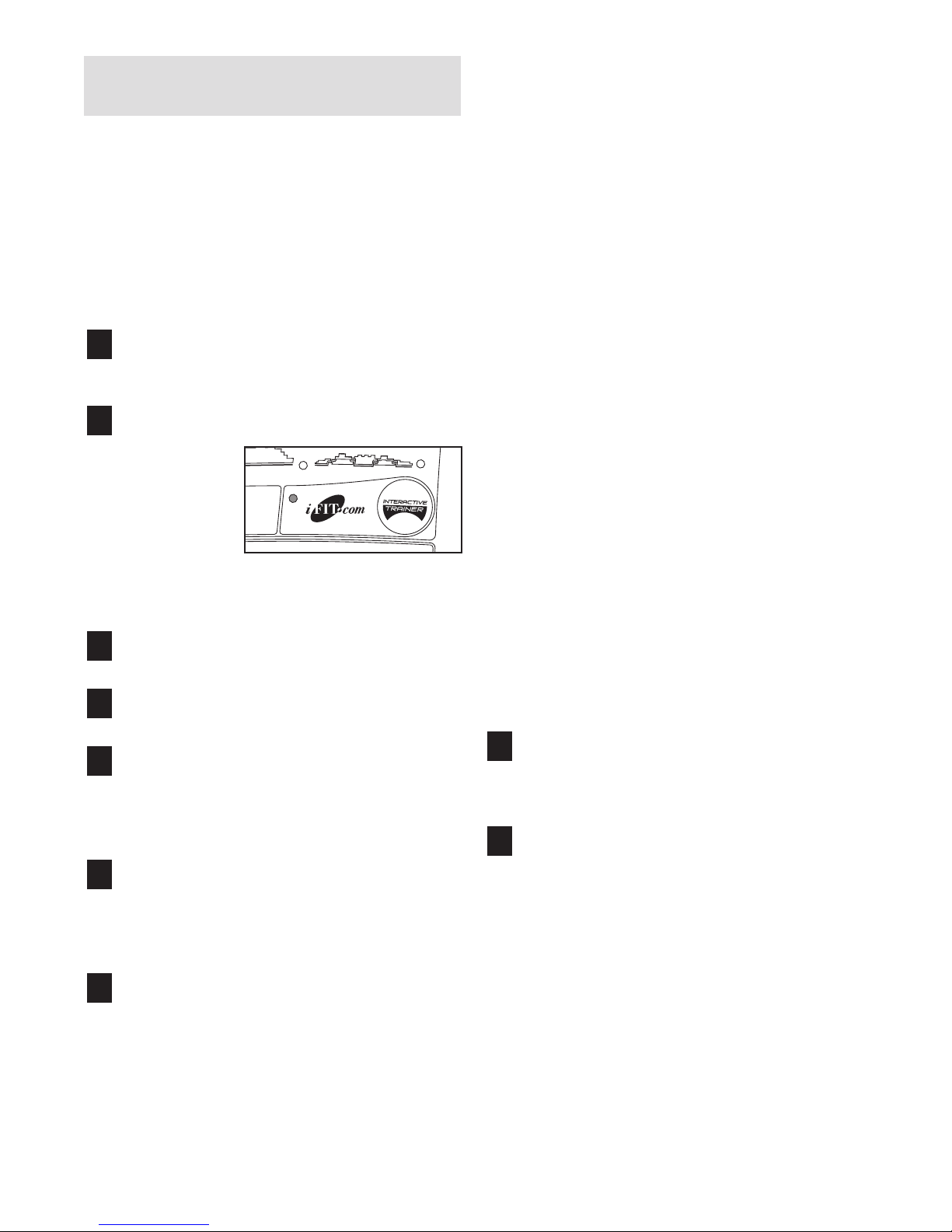

HOW TO USE PROGRAMS DIRECTLY FROM
OUR WEB SITE
To use programs from our Web site, the treadmill must
be connected to your home computer. See HOW TO
CONNECT YOUR COMPUTER on page 16. In addi-
tion, you must have an internet connection and an in-
ternet service provider. A list of specific system re-
quirements is found on our Web site.
Follow the steps below to use a program from our
Web site.
Insert the key into the console.
See HOW TO TURN ON THE POWER on page 10.
Select the iFIT.com mode.
When the key
is inserted, the
manual mode
will be se-
lected. To use
a program
from our Web
site, press the iFIT.com button. The iFIT.com indi-
cator will light.
Go to your computer and start an internet
connection.
Start your web browser, if necessary, and go to
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
lect a program.
Read and follow the on-line instructions for using a
program.
Follow the on-line instructions to start the
program.
When you start the program, an on-screen count-
down will begin.
Return to the treadmill and stand on the foot
pads. Find the clip attached to the key and slide
the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program
will begin and the walking belt will begin to move.
Hold the handrails, step onto the walking belt, and
begin walking. During the program, an electronic
“chirping” sound will alert you when the speed
and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be
prepared for speed and/or incline changes.
If the speed or incline settings are too high or too
low, you can manually override the settings at any
time by pressing the Speed or Incline buttons on
the console. However, when the next “chirp” is
heard, the speed and/or incline will change to
the next settings of the program.
To stop the walking belt at any time, press the
Stop button on the console. The Time/Pace dis-
play will begin to flash. To restart the program,
press the Start button or the Speed
s
s
button. After
a moment, the walking belt will begin to move at 1
mph. When the next “chirp” is heard, the speed
and incline will change to the next settings of
the program.
When the program is completed, the walking belt
will stop and the Time/Pace display will begin to
flash. Note: To use another program, press the
Stop button and go to step 5.
Note: If the speed or incline of the treadmill
does not change when a “chirp” is heard, make
sure that the iFIT.com indicator is lit and that
the Time/Pace display is not flashing. In addi-
tion, make sure that the audio cable is properly
connected, that it is fully plugged in, and that it
is not wrapped around a power cord.
Follow your progress with the track and the
displays.
See step 5 on page 10.
When the program has ended, remove the key.
See step 7 on page 13.
9
8
7
6
5
4
3
2
1

20
THE INFORMATION MODE/DEMO MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also al-
lows you to switch the console from miles per hour to
kilometers per hour. In addition, the information mode
allows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console. When
the information mode is selected, the following informa-
tion will be shown:
The Distance/Incline display
will show the total number of
miles (or kilometers) that the
walking belt has moved.
The Time/Pace display will
show the total number of
hours the treadmill has been
used.
An “E” for English miles or
an “M” for metric kilometers
will appear in the Speed dis-
play. Press the Speed
s
s
but-
ton to change the unit of
measurement.
IMPORTANT: The
Calories/Pulse display
should be blank. If a “d” ap-
pears in the display, the con-
sole is in the “demo” mode.
This mode is intended to be
used only when a treadmill is displayed in a store.
When the console is in the demo mode, the power cord
can be plugged in, the key can be removed from the
console, and the displays and indicators on the console
will automatically light in a preset sequence, although
the buttons on the console will not operate. If a “d” ap-
pears in the Calories/Pulse display when the infor-
mation mode is selected, press the Speed
t
t
button
so the display is blank.
To exit the information mode, remove the key from the
console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor adds even more
features to the console. The chest pulse sensor provides
hands-free operation and allows the console’s heart
rate programs to be used. To purchase the optional
chest pulse sensor, call toll-free 1-888-533-1333.
