Pro-Form XP Trainer 580 User manual

Serial Number
Decal
Model No. 831.24855.6
Serial No.
Write the serial number in the space
above for reference.
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
• Assembly
• Operation
• Maintenance
• Part List and Drawing
Sears, Roebuck and Co.
Hoffman Estates, IL 60179
TREADMILL EXERCISER
Userʼs Manual

TABLE OF CONTENTS
WARNNGDECALPLACEMENT..............................................................2
MPORTANTPRECAUTONS ................................................................3
BEFOREYOUBEGN ......................................................................5
ASSEMBLY...............................................................................6
OPERATONANDADJUSTMENT ............................................................14
HOWTOFOLDANDMOVETHETREADMLL ..................................................20
TROUBLESHOOTNG .....................................................................22
EXERCSEGUDELNES ...................................................................25
PARTLST ..............................................................................26
EXPLODEDDRAWNG ....................................................................28
ORDERNGREPLACEMENTPARTS ..................................................BackCover
90DAYFULLWARRANTY ..........................................................BackCover

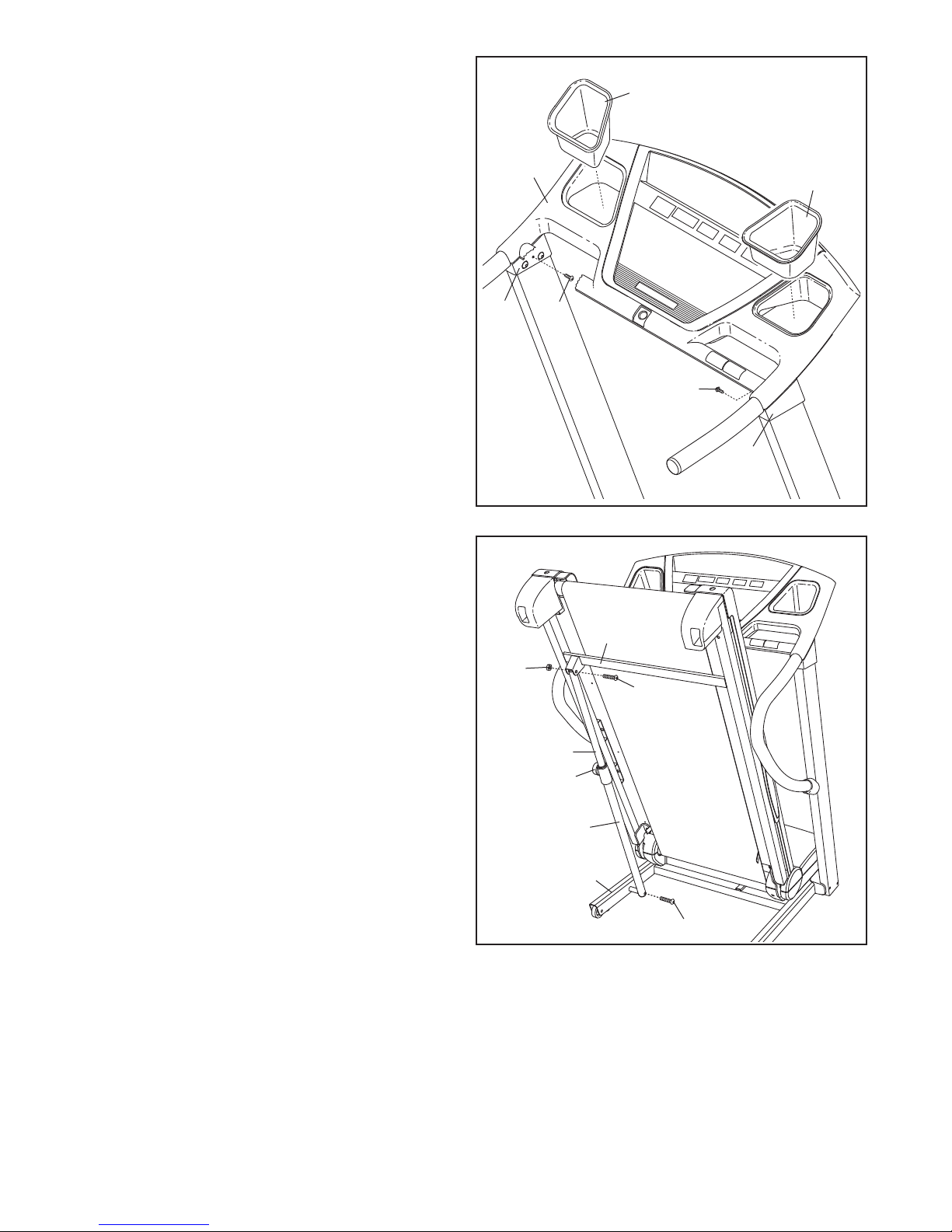

This drawing shows the locations of the
warning decals. If a decal is missing or il-
legible, call 1-888-533-1333 and request
a free replacement decal. Apply the
decal in the location shown. Note: The
decals may not be shown at actual size.
WARNING DECAL PLACEMENT
2

3
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air open-
ings. To protect the floor or carpet from dam-
age, place a mat under the treadmill.
5. eep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. eep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
14), plug the power cord into a surge sup-
pressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 14. To purchase a surge suppressor, see
your local Sears store or call the telephone
number on the back cover of this manual and
order part number 146148, or see your local
electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the con-
trol system of the treadmill. If the control sys-
tem is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. eep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU-
BLESHOOTING on page 22 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 16).
17. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's move-
ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. Sears as-
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS

4
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
nance and adjustment procedures described in
this manual. Never remove the motor hood un-
less instructed to do so by an authorized ser-
vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer-
cial, rental, or institutional setting.
SAVE THESE INSTRUCTIONS

5
Thank you for selecting the revolutionary PROFORM®
XP TRA NER 580 treadmill. The XP TRA NER 580
treadmill offers an impressive selection of features de-
signed to make your workouts at home more enjoyable
and effective. And when youʼre not exercising, the
unique treadmill can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. f you have questions after read-
ing this manual, please see the back cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial num-
ber decal are shown on the front cover of this manual.

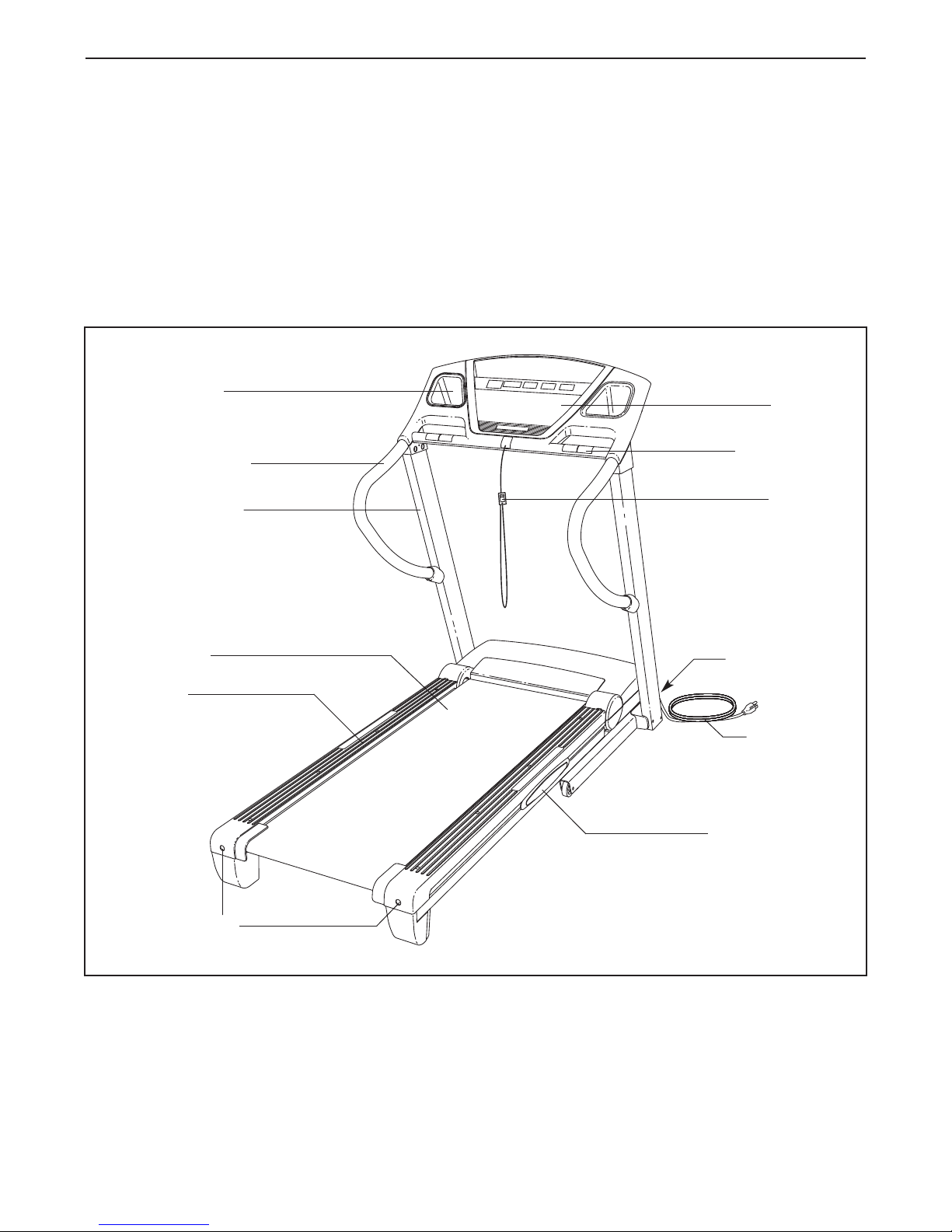

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
BEFORE YOU BEGIN
Handrail
Upright
Tray
Key/Clip
Reset/Off
Circuit Breaker
Walking Belt
Platform Cushion
Foot Rail
Power Cord
dler Roller
Adjustment Bolts
Console
Pulse Sensor

6
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor-
mance. f there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , needlenose pliers , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART L ST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assem-
bly. Extra hardware may be included. If a part is missing, call 1-888-533-1333.
#8 x 1/2" Ground
Screw (3)–1
Base Foot Spacer
(89)–2
#8 x 3/4" Screw
(1)–4
3/8" Star
Washer (12)–4
1/4" Star
Washer (14)–2
#8 x 1/2" Screw
(2)–6
#8 x 1" Tek Screw
(4)–4
3/8" Nut (11)–3
5/16" Star
Washer (13)–4
#10 x 3/4" Screw
(5)–2
3/8" x 4" Bolt (9)–4
3/8" x 2" Bolt (7)–3
1/4" x 3/4" Bolt
(10)–2
5/16" x 1" Bolt (6)–6 3/8" x 1 3/4" Bolt (8)–1

7

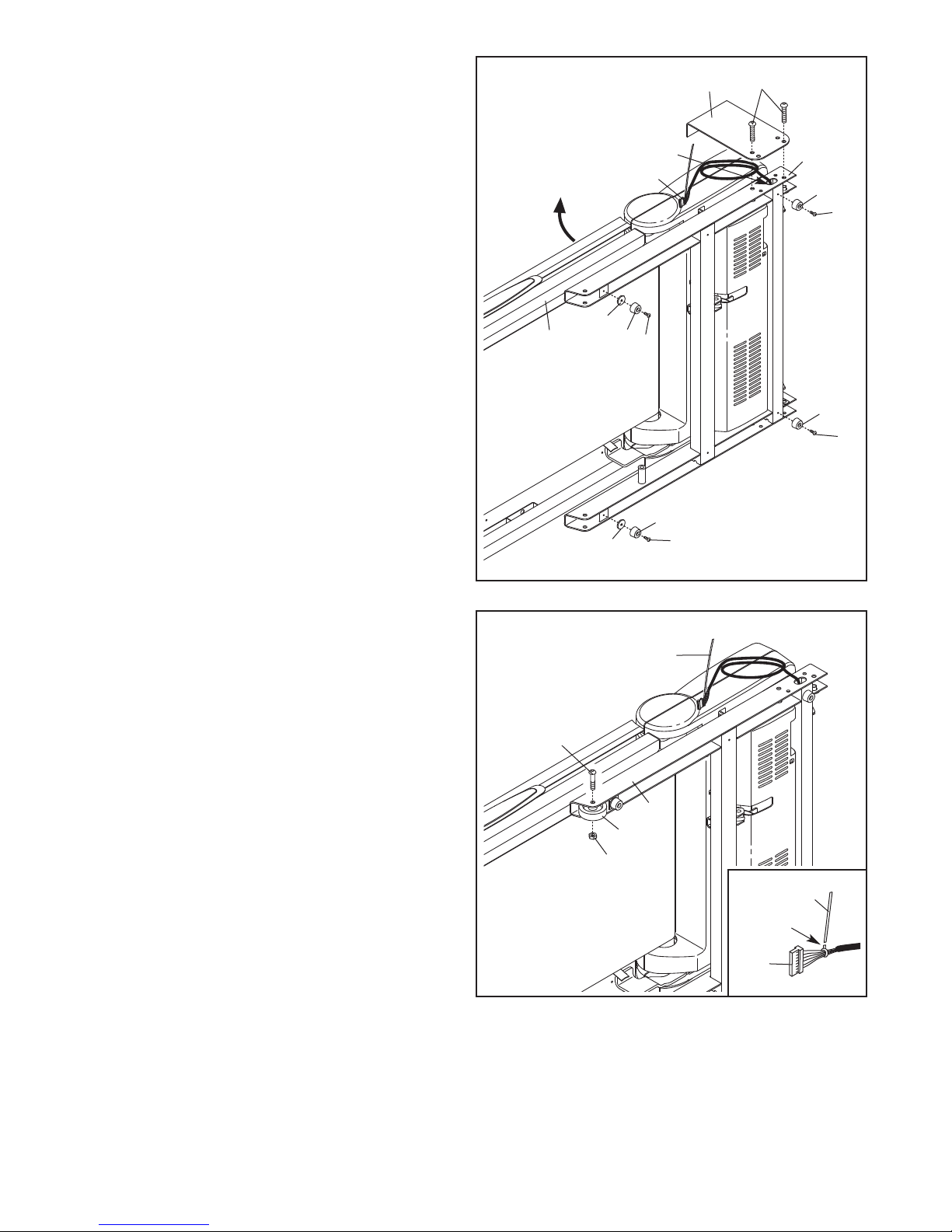

2. See the inset drawing. Cut the plastic tie near
the Upright Wire (79).
Attach a Wheel (88) to the Base (87) with a 3/8"
x 2" Bolt (7) and a 3/8" Nut (11). Do not over-
tighten the Nut; the Wheel must turn freely.
87
7
11
2
88
1.Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (51) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the indicated bolts (A) and
the shipping bracket (B).
Cut the shipping tie securing the Upright Wire
(79) to the Base (87). Locate the plastic tie in
the indicated hole in the Base, and use the tie to
pull the Upright Wire out of the hole.
Attach two Base Feet (84) to the Base (87) in the
locations shown with two Base Foot Spacers
(89) and two #8 x 1" Tek Screws (4).
Then, attach the other two Base Feet (84) with
two #8 x 1" Tek Screws (4).
1
87
4
51
84
84
4
4
4
84
89
84
79
Hole
89
Plastic Tie
Cut
79
A
B
Plastic Tie

8

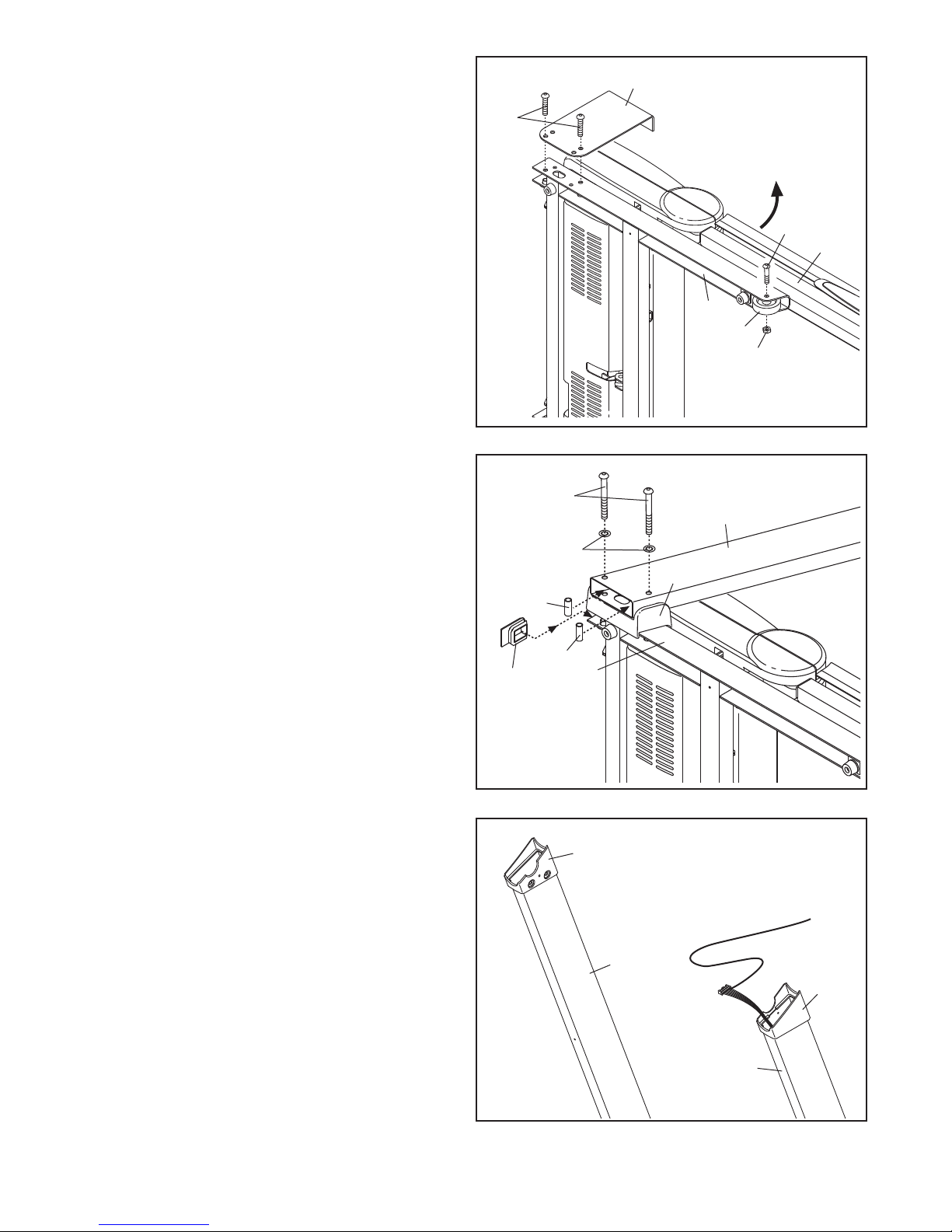

4. Hold a Bolt Spacer (81) inside the lower end of
the Right Upright (80). nsert a 3/8" x 4" Bolt (9)
with a 3/8" Star Washer (12) into the Right
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (81), 3/8" x 4" Bolt
(9), and 3/8" Star Washer (12).
Hold the Right Upright (80) against the Right
Upright Spacer (82). Be careful not to pinch
the Upright Wire (79). Tighten the 3/8" x 4"
Bolts (9) until the heads of the Bolts touch the
Upright; do not fully tighten the Bolts yet.
Press a Base Cap (83) into the Base (87).
82
80
79
12
83
81
81
9
4
87
3. dentify the Right Upright (80) and the Right
Upright Spacer (82), which are marked with
stickers.
nsert the Upright Wire (79) through the Right
Upright Spacer (82) as shown. Set the Right
Upright Spacer on the Base (87).
Have a second person hold the Right Upright
(80) near the Base (87). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Upright Wire (79). Then,
pull the other end of the wire tie until the Upright
Wire is routed completely through the Right
Upright.
87
Wire Tie
79
80
82
79
3
Wire
Tie
80
79

7. Slide the Left Handrail Spacer (74) and the Right
Handrail Spacer (78) onto the top of the Left
Upright (75) and the Right Upright (80). 74
78
75
80
7
6. Hold a Bolt Spacer (81) inside the lower end of
the Left Upright (75). nsert a 3/8" x 4" Bolt (9)
with a 3/8" Star Washer (12) into the Left
Upright and the Bolt Spacer. Repeat this step
with a second Bolt Spacer (81), 3/8" x 4" Bolt
(9), and 3/8" Star Washer (12).
Hold the Left Upright Spacer (86) and the Left
Upright (75) against the Base (87). Tighten the
3/8" x 4" Bolts (9) until the heads of the Bolts
touch the Upright; do not fully tighten the
Bolts yet.
Press a Base Cap (83) into the Base (87).
With the help of a second person, tip the tread-
mill so that the Base (87) is flat on the floor.
86
75
9
87
81
81
83
12
6
9
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (51) so that the treadmill is more stable;
do not fully fold the Frame yet.
Remove and discard the indicated bolts (A) and
the shipping bracket (B).
Attach a Wheel (88) to the Base (87) with a 3/8"
x 2" Bolt (7) and a 3/8" Nut (11). Do not over-
tighten the Nut; the Wheel must turn freely.
5
7
51
11
87
A
B
88

10
9. Attach the Right Handrail (104) and the Left
Handrail (107) with six 5/16" x 1" Bolts (6) and
four 5/16" Star Washers (13) as shown. Do not
fully tighten the Bolts yet.
Slide the Handrail Caps (105) away from the
Uprights (75, 80). Attach the lower end of each
Handrail (104, 107) to the Uprights with a #10 x
3/4" Screw (5).
Orient the Handrail Caps (105) as shown.
Attach a Handrail Cap to each Handrail (104,
107) with a #8 x 1/2" Screw (2).
75
6
13
6
2
2
5
5
6
6
13
80
9
105
104
107
105
8. nsert the end of the Upright Wire (79) into the
bottom of the Right Handrail (104) and pull it out
of the hole in the side of the Right Handrail.
Slide the Handrail Caps (105) onto the lower
ends of the Left Handrail (107) and the Right
Handrail (104). Then, insert the brackets on the
Handrails into the tops of the Uprights (75, 80).
Remove the wire tie from the Upright Wire (79).
107
105
105
Hole
Wire
Tie
Bracket
75 79
104
80
8

11
11. Attach the Crossbar (106) to the Right and Left
Handrails (104, 107) with two 1/4" x 3/4" Bolts
(10) and two 1/4" Star Washers (14). Do not
tighten the Bolts yet.
11
106
104
107
14
10
14
10

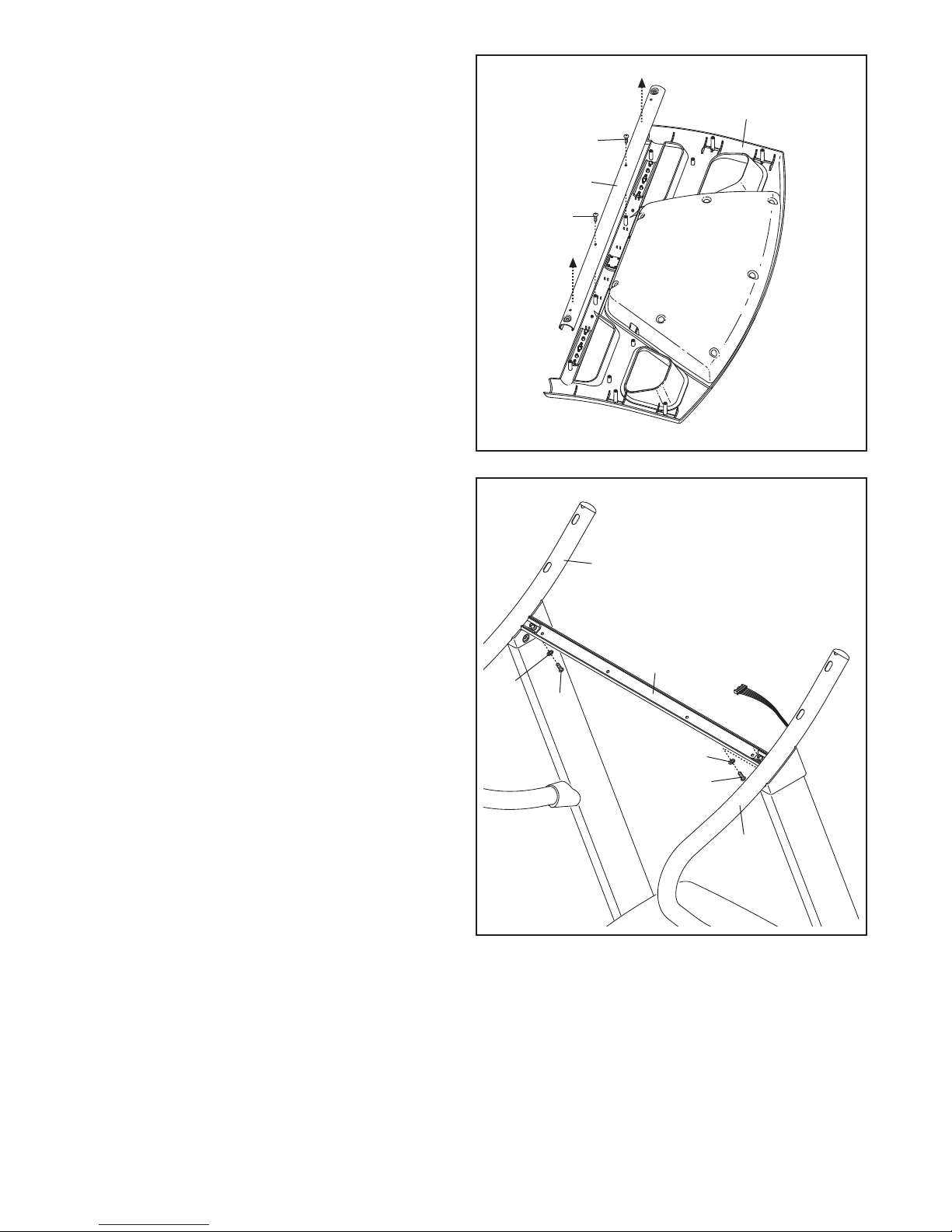

10. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly.
Remove the two #8 x 1/2" Screws (2) from the
Crossbar (106), and then remove the Crossbar.
Save the Crossbar and the two Screws for
steps 11 and 14.
Console
Assembly
2
2
106
10

12
14. Attach the console assembly to the Right and
Left Handrails (104, 107) and the Crossbar (106)
with four #8 x 3/4" Screws (1) and four #8 x 1/2"
Screws (2). Start all eight Screws before tight-
ening any of them. Note: Use the two #8 x 1/2"
Screws that you removed in step 10.
Tighten the six 5/16" x 1" Bolts (6) (only three
are shown).
Tighten the two 1/4" x 3/4" Bolts (10) (only one
is shown).
See assembly steps 4 and 6. Firmly tighten the
four 3/8" x 4" Bolts (9).
2
104
107
Console Assembly
14
1
2
2
1
6
10
106

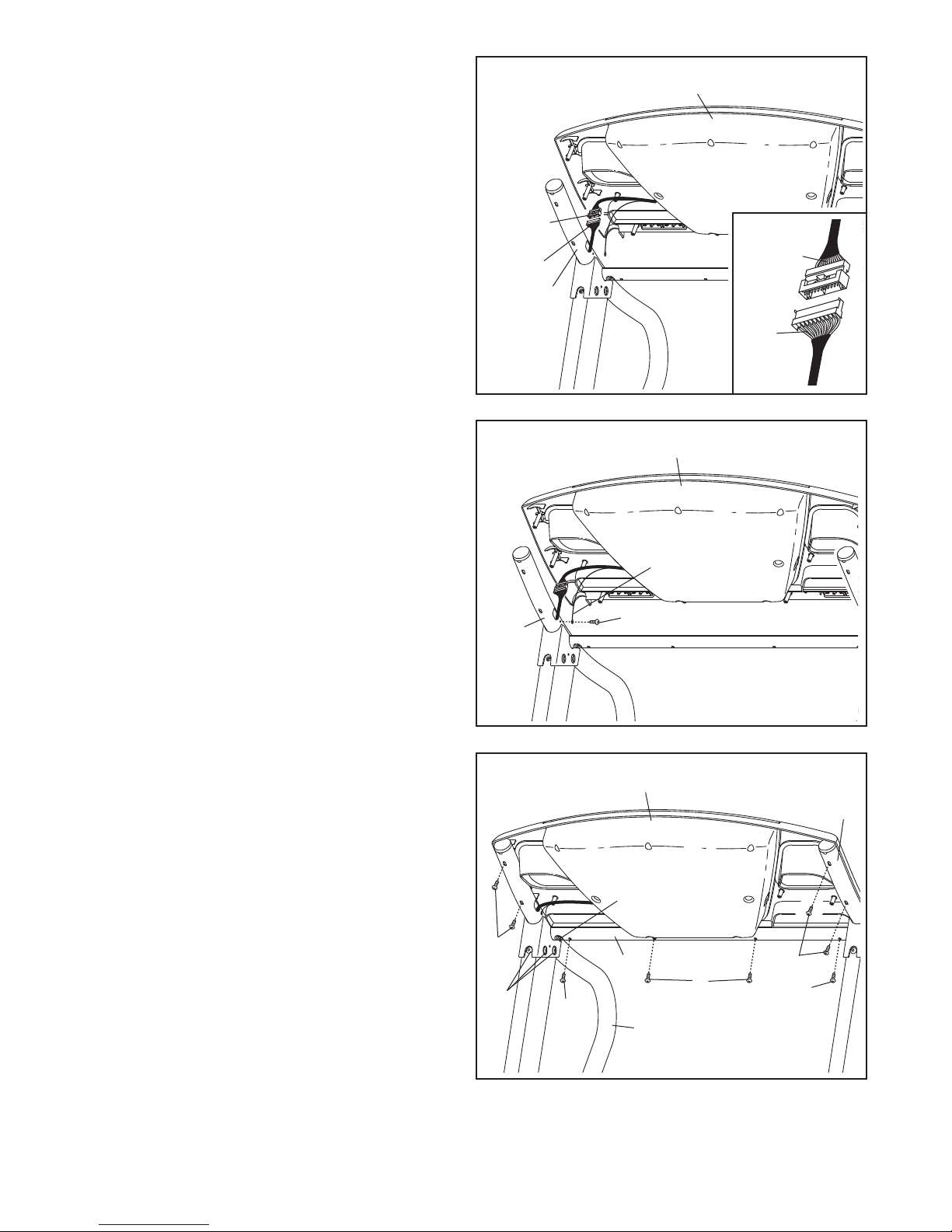

12. Have a second person hold the console assem-
bly near the Right Handrail (104) and the Left
Handrail (not shown). Connect the Upright Wire
(79) to the console wire. See the inset drawing.
The connectors should slide together easily
and snap into place. f they do not, turn one
connector and try again. IF THE CONNECTORS
ARE NOT CONNECTED PROPERLY, THE
CONSOLE MAY BE DAMAGED WHEN YOU
TURN ON THE POWER.
Console Assembly
12
Console
Wire
79
104
79
Console
Wire
13. Attach the ground wire from the console assem-
bly to the Right Handrail (104) with a #8 x 1/2"
Ground Screw (3). Note: It may be difficult to
turn the Ground Screw.
Set the console assembly on the Right Handrail
(104) and the Left Handrail (not shown). Be
careful not to pinch the wires. nsert the con-
nectors and the excess wire into the Right
Handrail.
Console Assembly
13
Ground
Wire
3
104

13
17. Make sure that all parts are properly tightened before you use the treadmill. f there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-
mill. Note: Extra hardware may be included. Keep the included hex keys in a secure place; the large hex key
is used to adjust the walking belt (see pages 23 and 24).
16. Raise the Frame (51) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (48) so that the large
barrel and the Latch Knob (49) are oriented as
shown.
Attach the upper end of the Storage Latch (48)
to the bracket on the Frame (51) with a 3/8" x 2"
Bolt (7) and a 3/8" Nut (11).
Attach the lower end of the Storage Latch (48) to
the Base (87) with a 3/8" x 1 3/4" Bolt (8). Note:
t may be necessary to move the Frame (51)
back and forth to align the Storage Latch with
the Base.
Lower the Frame (51) (see HOW TO LOWER
THE TREADM LL FOR USE on page 21).
48
87
11
Large
Barrel
8
51
16
7
49
15. f necessary, press the Left Tray (94) and the
Right Tray (103) into the Console Back (98).
Tighten a #8 x 1/2" Screw (2) into each Handrail
Spacer (74, 78).
94
103
78
74 2
98
2
15

14
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WAL ING BELT
Your treadmill features a walking belt coated with high-
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeʼs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local Sears store or call the telephone number
on the back cover of this manual and order part
number 146148, or see your local electronics store.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge sup-
pressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a moni-
toring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate, or stop unexpect-
edly, which may result in a fall and serious injury.
This product must be grounded. f it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus-
trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified elec-
trician to determine if the outlet box cover is
grounded before using an adapter.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service-
man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Surge Suppressor
Surge Suppressor
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
Grounding Pin
Grounding Plug

15

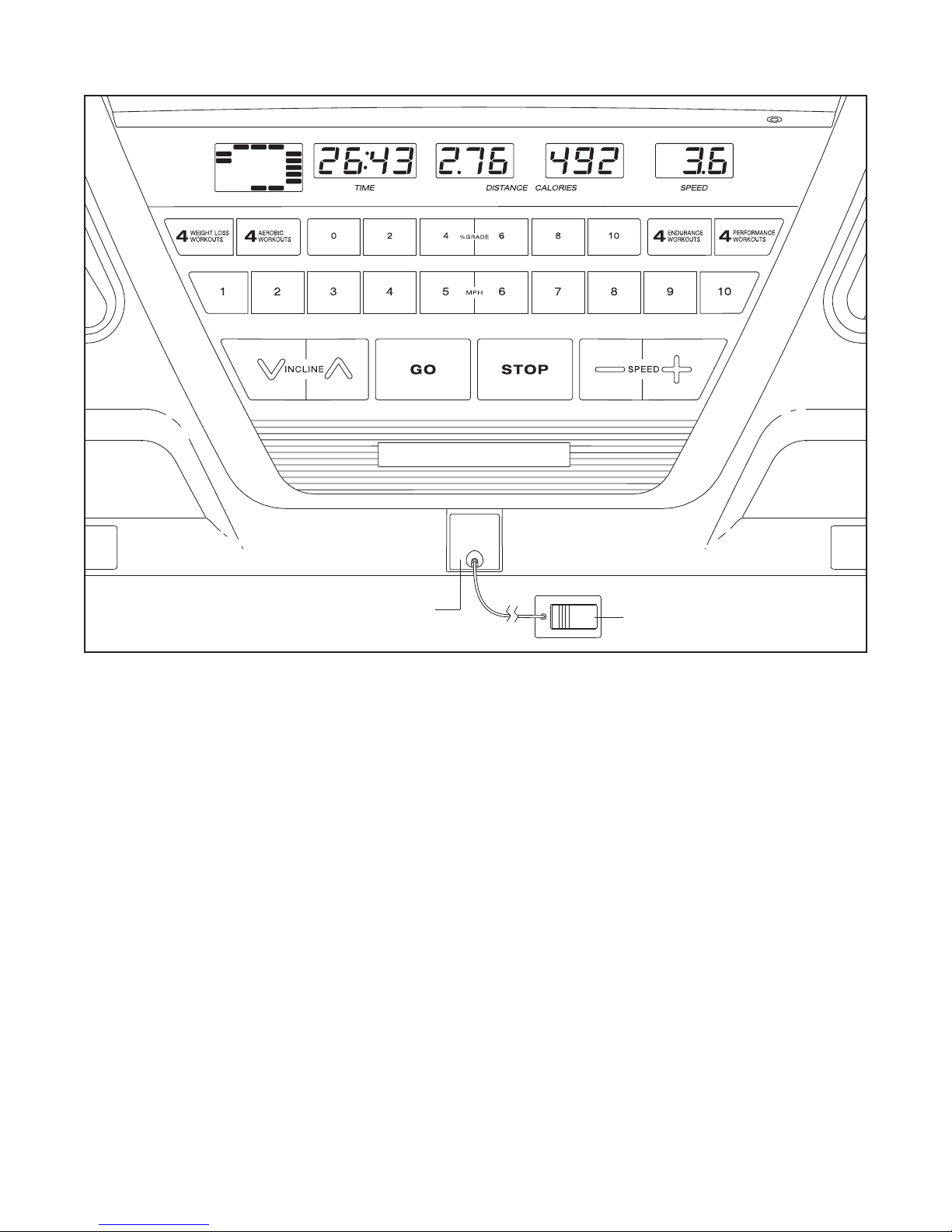

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effec-
tive and enjoyable.
When the manual mode of the console is selected, you
can change the speed and incline of the treadmill with
the touch of a button. As you exercise, the console will
display instant exercise feedback. You can even mea-
sure your heart rate using the handgrip pulse sensor.
n addition, the console offers sixteen preset work-
outs—four weight loss workouts, four aerobic work-
outs, four endurance workouts, and four performance
workouts. Each workout automatically controls the
speed and incline of the treadmill as it guides you
through an effective exercise session.
You can even listen to your favorite workout music or
audio books with the consoleʼs premium stereo sound
system while you get in shape.
To turn on the power, see page 16. To use the man-
ual mode, see page 16. To use a preset workout,
see page 18. To use the information mode, see
page 19. To use the stereo sound system, see page
19.
IMPORTANT: If there is a sheet of clear plastic on
the console, remove the plastic. To prevent dam-
age to the walking platform, wear clean athletic
shoes while using the treadmill. The first time the
treadmill is used, observe the alignment of the
walking belt, and center the walking belt if neces-
sary (see page 24).
Note: The console can display speed and distance in
either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of mea-
surement, see THE NFORMAT ON MODE on page
19. For simplicity, all instructions in this section refer to
miles.
Clip
Key

16
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
cold temperatures, allow it to warm to room tem-
perature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
page 14). Next, locate the
reset/off circuit breaker on
the treadmill frame near the
power cord. Switch the cir-
cuit breaker to the reset po-
sition.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is dis-
played in a store. If the displays light as soon as
you plug in the power cord and switch the reset/off
circuit breaker to the reset position, the demo
mode is turned on. To turn off the demo mode,
hold down the Stop button for a few seconds. If the
displays remain lit, see THE INFORMATION MODE
on page 19 to turn off the demo mode.
Next, stand on the foot rails of the treadmill. Find the
clip attached to the key (see the drawing on page 15)
and slide the clip onto the waistband of your clothes.
Then, insert the key into the console. After a moment,
the displays will light. IMPORTANT: In an emergency
situation, the key can be pulled from the console,
causing the walking belt to slow to a stop. Test the
clip by carefully taking a few steps backward; if the
key is not pulled from the console, adjust the posi-
tion of the clip.
HOW TO USE THE MANUAL MODE
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
When the key is inserted,
the manual mode will be
selected and a track will
appear in the matrix. f a
preset workout has been
selected, remove the key
and then reinsert it.
3. Start the walking belt.
To start the walking belt, press the Go button, the
Speed increase button, or one of the speed but-
tons numbered 1 through 10.
f you press the Go button or the Speed increase
button, the walking belt will begin to move at 1 mph.
As you exercise, change the speed of the walking
belt as desired by pressing the Speed increase
and decrease buttons. Each time you press a but-
ton, the speed setting will change by 0.1 mph; if
you hold down a button, the speed setting will
change in increments of 0.5 mph. Note: After you
press the buttons, it may take a moment for the walk-
ing belt to reach the selected speed setting.
f you press one of the numbered speed buttons,
the walking belt will gradually change speed until it
reaches the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Go button, the
Speed increase button, or one of the speed but-
tons numbered 1 through 10.
Reset
Position

17
4. Change the incline of the treadmill as desired.
To change the incline of
the treadmill, press the
ncline increase and de-
crease buttons or one of
the numbered incline
buttons. Each time you
press the incline increase or decrease button, the
incline will change by 0.5%. f you press one of the
numbered incline buttons, the treadmill will adjust
to the selected incline setting. Note: After you
press the buttons, it may take a moment for the
treadmill to reach the selected incline setting.
5. Monitor your progress with the matrix and the
displays.
The matrix—When the
manual mode is se-
lected, the display will
show a track that repre-
sents 1/4 mile (400 me-
ters). As you exercise,
the indicators around the
track will light in succession until the entire track is
lit. The track will then darken and the indicators will
again begin to light in succession.
Time display—When
the manual mode is se-
lected, this display will
show the elapsed time.
When a workout is se-
lected, the display will
show the time remaining in the workout rather than
the elapsed time.
Distance/Incline dis-
play—This display
shows the distance that
you have walked or run.
This display will also
show the incline setting
for several seconds, each time the incline changes.
Calories/Pulse
display—This display
shows the approximate
number of calories you
have burned. The dis-
play will also show your
heart rate when you use the handgrip pulse sen-
sor.
Speed display—This
display shows the speed
of the walking belt.
To reset the displays, press the Stop button, re-
move the key, and then reinsert the key.
6. Measure your heart rate if desired.
Before using the
handgrip pulse
sensor, first re-
move the sheets
of clear plastic
from the metal
contacts. n addi-
tion, make sure
that your hands
are clean.
To use the handgrip pulse sensor, stand on the
foot rails and hold the metal contacts. Avoid mov-
ing your hands. When your pulse is detected, your
heart rate will be shown. For the most accurate
heart rate reading, continue to hold the contacts
for about 15 seconds.
7. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
or you may damage the treadmill when you fold
it to the storage position. Next, remove the key
from the console and put it in a secure place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the treadmillʼs electrical compo-
nents may wear prematurely.
Contacts

18
HOW TO USE A PRESET WOR OUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select a preset workout.
To select a preset workout, press the Weight Loss
Workouts, Aerobic Workouts, Endurance
Workouts, or Performance Workouts button repeat-
edly.
When a preset workout
is selected, the workout
time will appear in the
Time display, the mini-
mum speed setting of
the workout will appear
in the Distance/ ncline display, the maximum
speed setting will appear in the Calories/Pulse dis-
play, and the name of the workout will appear in
the Speed display. n addition, a profile of the
speed settings of the workout will scroll across the
matrix.
3. Press the Go button to start the workout.
A moment after you press the Go button, the tread-
mill will automatically adjust to the first speed and
incline settings of the workout. Hold the handrails
and begin walking.
Each workout is divided into one-minute segments.
One speed setting and one incline setting are pro-
grammed for each segment. Note: The same
speed setting and/or incline setting may be pro-
grammed for consecutive segments.
During the workout, the profile will show your
progress. The flashing segment of the profile rep-
resents the current segment of the workout. The
height of the flashing segment indicates the speed
setting for the current segment. At the end of each
segment, a series of
tones will sound and the
next segment of the pro-
file will begin to flash. f a
different speed or incline
setting is programmed for
the next segment, the
speed or incline setting
will flash in the display to alert you.
The workout will continue in this way until the last
segment of the profile flashes in the display and
the last segment ends. The walking belt will then
slow to a stop.
f the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the speed or in-
cline buttons; however, when the next segment
of the workout begins, the treadmill will auto-
matically adjust to the speed and incline set-
tings for the next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Go button.
The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings for the next segment.
4. Monitor your progress with the matrix and the
displays.
See step 5 on page 17.
5. Measure your heart rate if desired.
See step 6 on page 17.
6. When you are finished exercising, remove the
key from the console.
See step 7 on page 17.
Current Segment

19
THE INFORMATION MODE
The console features an information mode that keeps
track of the total number of hours that the treadmill has
been used and the total distance that the walking belt
has moved. The information mode also allows you to
switch the measurement system from miles to kilome-
ters and to turn on and turn off the display demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:
The Time display will show
the total number of hours the
treadmill has been used.
The Distance/ ncline display
will show the total number of
miles (or kilometers) that the
walking belt has moved.
An “E” for English miles or
an “M” for metric kilometers
will appear in the
Calories/Pulse display.
Press the Speed increase
button to change the unit of
measurement if desired.
The console features a dis-
play demo mode, designed
to be used if the treadmill is
displayed in a store. While
the demo mode is turned on,
the console will function nor-
mally when you plug in the power cord, switch the
reset/off circuit breaker to the reset position, and insert
the key into the console. However, when you remove
the key, the displays will remain lit, although the but-
tons will not function. f the demo mode is turned on, a
“d” will appear in the Speed display while the informa-
tion mode is selected. To turn on or turn off the demo
mode, press the Speed decrease button.
To exit the information mode, remove the key from the
console.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the consoleʼs
stereo speakers, you must connect your MP3 player,
CD player, or other personal audio player to the con-
sole through the audio jack.
To use the audio jack, locate the audio cable and plug
it into the audio jack near the speakers. Then, plug the
audio cable into a jack on your MP3 player, CD player,
or other personal audio player. Make sure that the
audio cable is fully plugged in.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player.
f you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat sur-
face instead of on the console.

20
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If you do not do this, you may damage the
treadmill when you fold it. Remove the key and unplug the
power cord. CAUTION: You must be able to safely lift 45
lbs. (20 kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by
the arrow at the right. CAUTION: To decrease the pos-
sibility of injury, do not lift the frame by the plastic
foot rails. Make sure to bend your legs and keep your
back straight as you raise the frame. Raise the frame
about halfway to the vertical position.
2. Raise the frame until the latch knob locks into the storage
position. Make sure that the latch knob is locked in the
storage position.
To protect the floor or carpet from damage, place a
mat under the treadmill. eep the treadmill out of di-
rect sunlight. Do not leave the treadmill in the storage
position in temperatures above 85° F (30° C).
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the stor-
age position as described above. Make sure that the latch
knob is locked in the storage position.
1. Hold a handrail and the frame and place one foot against
one of the wheels.
2. Tip the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot against a wheel, and carefully lower the
treadmill until it is resting in the storage position.
Handrail
Frame
Wheel
Latch Knob
Frame
