Pro2 HDCP2214 User manual

Operating Instructions
PRODUCT SERVICE
1) Damage requiring service:
The unit should be serviced by qualified service personnel if:
(a) The DC power supply cord or AC adaptor has been damaged;
(b) Objects or liquids have gotten into the unit;
(c) The unit has been exposed to rain;
(d) The unit does not operate normally or exhibits a marked change in performance;
(e) The unit has been dropped or the cabinet damaged.
2) Servicing Personnel: Do not attempt to service the unit beyond that described in
these operating instructions.Refer all other servicing to authorized servicing
personnel.
3) Replacement parts: When parts need replacing ensure the servicer uses parts
specified by the manufacturer or partsthat have the same characteristics as the
original parts. Unauthorized substitutes may result in fire, electric shock, or other
hazards.
4) Safety check: After repairs or service, ask the servicer to perform safety checks
to confirm that the unit is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or
workmanship, our Company (referred to as "the warrantor" ) will, for the length of the
period indicated as below, (Parts(2)Years, Labor(90) Days) which starts with the
date of original purchase ("Limited Warranty period"), at its option either(a) repair
your product with new or refurbished parts, or (b) replace it with a new of a
refurbished product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in
your product during the warranty period. This Limited Warranty is extended only to
the original purchaser and only covers product purchased as new. Apurchase receipt
or other proof of original purchase date is required for Limited Warranty service.
MAIL-IN SERVICE
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and provide a
day time phone and/or email address where you can be reached.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
The Limited Warranty ALSO DOES NOT COVER damages which occurred in
shipment,
or failures which are caused by products not supplied by warrantor, or failures which
result from accidents, misuse, abuse, neglect, mishandling, misapplication,
alteration, faulty installation, set-up adjustments, misadjustment of consumer
controls, improper maintenance, power line surge, lightning damage, modification,
or service by anyone other than a Factory Service center or other Authorized
Servicer, or damagethat is attributable to acts of God.
2) THERE ARE NO EXPRESSWARRANTIES EXCEPTAS LISTED UNDER
"LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR
INCIDENTALOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, ORARISING OUTOF ANY BREACH OF THIS WARRNTY. (As
examples, this excludes damages for lost time, cost of having someone remove or
re-install an installed unit if applicable,
travel to and from the service, loss of or damage to media or images, data or other
recorded content. The items listed are not exclusive, but are for illustration only.)
3) PARTS AND SERVICE, WHICHARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
4
Operating Instructions
HDCP2.2 to HDCP1.4 Converter
Model: Pro2 HDCP2214
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
INTRODUCTION
This is a Newest converter to convert HDCP2.2 to HDCP1.4, You can connect the
converter with HDCP1.4 devices to make sure the HDCP2.2 source can be
displayed on the HDCP1.4 displays.
FEATURES
lHDMI IN, HDMI OUT, compliant HDMI 1.4B.
lConverter HDCP 2.2 to HDCP1.4.
lSupport 4Kx2K@60HZ, YUV 4:2:0.
lSupport audio format Dolby, DTS, LPCM.
lSupport 3D, CEC.
lSupport 5V 1A.
1

Operating Instructions
TABLE OF CONTENTS
Specifications
Package Contents
Panel Descriptions
Connecting and Operating
Maintenance
Product Service
Warranty
SPECIFICATIONS
Operating Temperature Range -5 to +35℃(+23 to +95℉)
Operating Humidity Range 5 to 90%RH (No Condensation)
HDMI input HDCP2.2
HDMI output HDCP1.4
Video Format Supported DTV/HDTV:480i/576i/480P/576P/720P/1080i/1080P/4Kx2K
3D video support
Maximum video Format 4Kx2K@60Hz, YUV 4:2:0
HDMI input 1xHDMI (Standard Type A connector)
HDMI output 1xHDMI (Standard Type A connector)
Support Video Color Format xv-YCC/deep color 36bit
Support Audio Format DTS-HD Master Audio, Dolby true-HD. LPCM
Power consumption 1.5 watts(Maximum)
Dimension (L×W×H) 70.2*60.2*21.1mm
Net Weight 120g(pcs)
NOTICE
Our company reserve the right tomake changes in the hardware, packaging and any
accompanying documentation without prior written notice.
PACKING CONTENTS
1) Main Unit: HDCP Converter
2) DC 5V 1Ax1PCS
3) Operating Instructions
2
Operating Instructions
PANEL DESCRIPTIONS

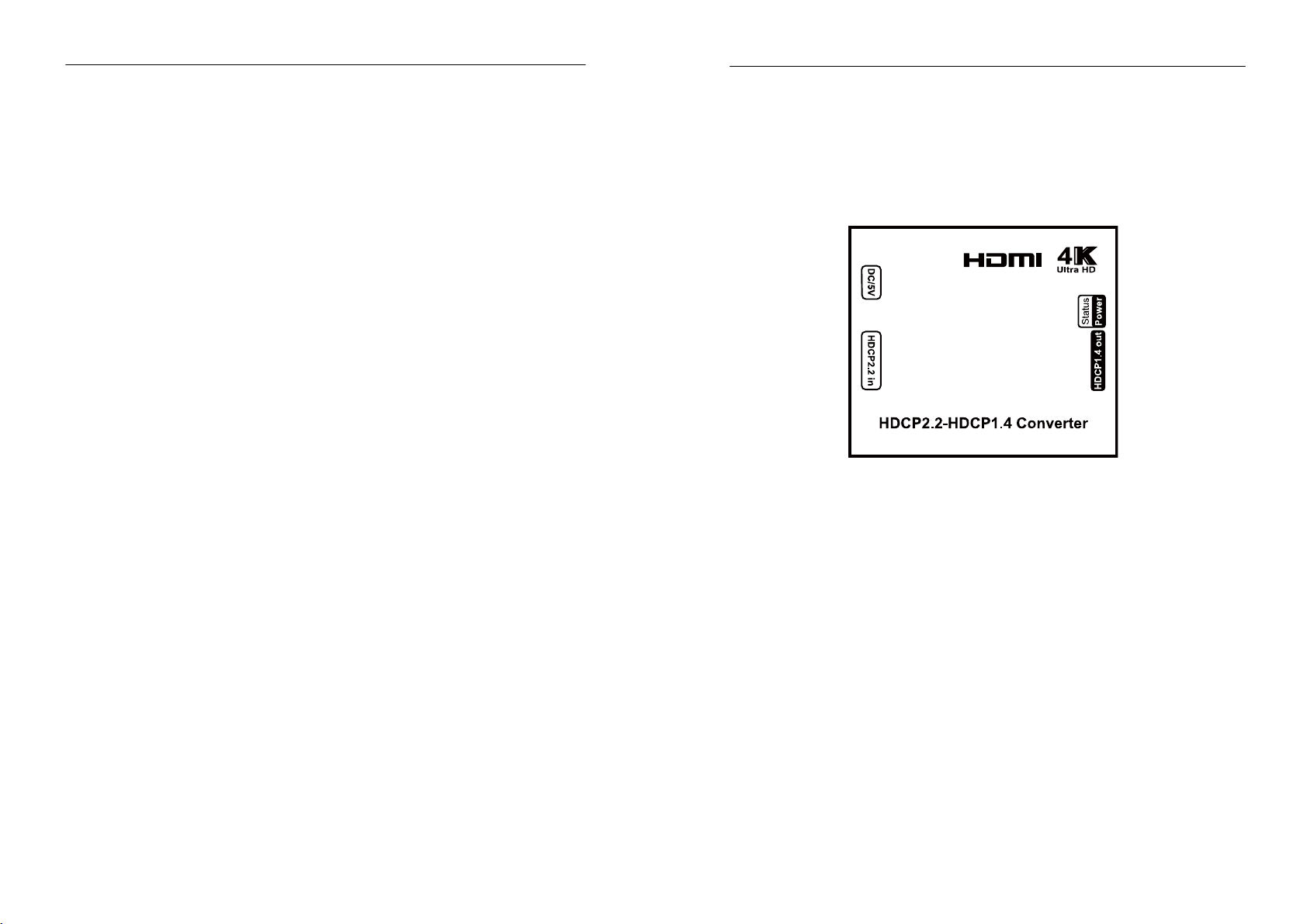

1. Powr input 2.HDCP2.2 input 3.Singnal status indicator
4. Power status indicator 5.HDCP 1.4 out
CONNECTING AND OPERATING
1) Connect 4K HDMI source with HDCPconverter.
2) Connect HDCPconverter to other HDCP1.4 devices.
3) Connect power adapter into HDCP converter.
Connection Diagram
Application 1
Application 2
MAINTENANCE
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to
clean this unit.
3
