PROAIM CINEMA DL-BRIO-00 User manual

Instruction Manual
Brio Multi-Function Doorway
Dolly (DL-BRIO-00)

2
Subject Page
Foreword 3
Introducon 4
Safety Hints 5
Assembling 6-9
Warranty 10
At Proaim, our goal is to ensure 100% Customer Sasfacon in all that we do.
We back our sales with a 1 year warranty from the date of purchase and work hard
to resolve any problems in the unlikely event one should arise.
With our commitment to connuous improvement and your Feedback, building on
our reputaon of providing aordable, quality products is
PRIORITY #1.
Table of Contents

3
Dear Client,
On behalf of all the people that work so hard to provide you with the most
up-to-date, exible and cost-ecient producon gear, we would like to welcome
you into the Proaim family.
By purchasing your Brio Mul-Funcon Doorway Dolly, you have just joined a host
of designers, engineers, machinists, assembly, customer service and oce sta that
take great pride in all that they do. Our mantra of connuous improvement has
been the guiding principle of how we conduct our business since day one.
Once you have the opportunity to experience your new Brio Mul-Funcon
Doorway Dolly, we hope you will agree that we cra quality products at a
compeve price. Products designed to meet and exceed the standards of today’s
real producon world.
Standards set by our valued clients and standards we strive to maintain.
With Best Wishes,
Proaim Team
Welcome To Proaim!

4
Please inspect the contents of your shipped package to ensure you have received
everything that is listed below.
Proaim Brio is a compact Doorway Dolly that passes through any door with ease. It
ts perfectly in ght spaces, such as the aisles of trains or airplanes. It is an ideal
dolly for smaller lm, television as well as broadcast producons. It is fairly light
and easy to transport. At the same me, it has a stable plaorm allowing up to
300kg/660lb payload. The cameraman and assistant can stand, sit or even kneel
down on the dolly’s solid plaorm. The 2-plate plaorm system is stored in a ight
transport case.
Brio Doorway Dolly Plaorm Plates Steering Push/Pull Bar
with Foam Handle
Rear-Wheel Axle with
2 x Pneumac Wheels
Introducon
What’s In The Box
2 x Pneumac Wheels
Flight Case

5
ATTENTION: PLEASE READ THIS BEFORE USING TO PREVENT DAMAGE TO THE
DOLLY!
ALWAYS FIX BOTH THE PLATES SECURELY
While using dual plate plaorm, carefully slide-in both the secons unrestricng
the ngers and ghten the knob.
INSPECT THE SURROUNDINGS PRIOR TO OPERATION
The operang area of the dolly and its accessories must be kept clear. Keep a
distance of approximately 0.5m to surrounding objects.
BALANCE THE DOLLY AS IT SHOULD BE
Make sure that it does not lt over when you x the accessories or step on it.
BE CAUTIOUS WHILE USING
Do not use the dolly on sloping ground/surface or in vehicles. Lack of aenon can
result in hing of equipment.
NEVER LEAVE THE FIXTURES LOOSE
The wheel mounng holes on the four corners must be bolted ghtly to avoid
destabilizing of the dolly and the whole setup.
FOLLOWING THESE GUIDELINES WILL PROVIDE BETTER IMAGES AND TROUBLE FREE
OPERATION.
SHOULD YOU NEED ADDITIONAL INFORMATION, TECHNICAL ASSISTANCE IS
AVAILABLE ‘ONLINE’ BY CONTACTING YOUR SALES REPRESENTATIVE.
Safety Hints

6
NOTE: You can conveniently combine or separate both Plaorm Plates, through a knob at the
boom, by sliding-in/out the secons. To increase the Size & Stability of Base and to reduce Risk
of Tilng, combine both Plaorm Plates.
 Slide-in both the Plates into each other, as shown in image. Then ghten the screws back.
 Turn the Plate upside-down. Then loosen and slide-out the connector screws.
 Connect Rear-Wheel Axle with respecve holes on plate and ghten the bolts properly to
secure them.
Assembling of Dolly with Double Plates

7
 Now insert rest of the two Pneumac Wheels into respecve holes on plate and ghten the
bolts to x them.
 Aach Steering Push/Pull Bar with Rear-Wheel Axle at its respecve slot. Lock it with the
Locking Pin accurately, as shown in image.
NOTE: Steering Push/Pull Bar turns only rear wheels while the front wheels remain xed.
 The Push/Pull Bar can lt down up to 90°. It stays where you leave, for more operator
convenience, by locking with a ratchet knob.

8
 The Dolly is easily congured to your
needs with accessories that provide
maximum versality. Proaim Brio
well-matches with Euro/Elemac Base
Mount, 100/150mm Bowl Mounts,
Turnsle Mount, Bazooka, Seat, Seat
Arm Extensions, Tripod, Jib/Crane, etc.
 Connect Rear-Wheel Axle with respecve holes on Single Plate and ghten the bolts properly
to secure them.
 Now insert rest of the two Pneumac Wheels into respecve holes on plate and ghten the
bolts to x them.
Assembling of Dolly with Single Plate

9

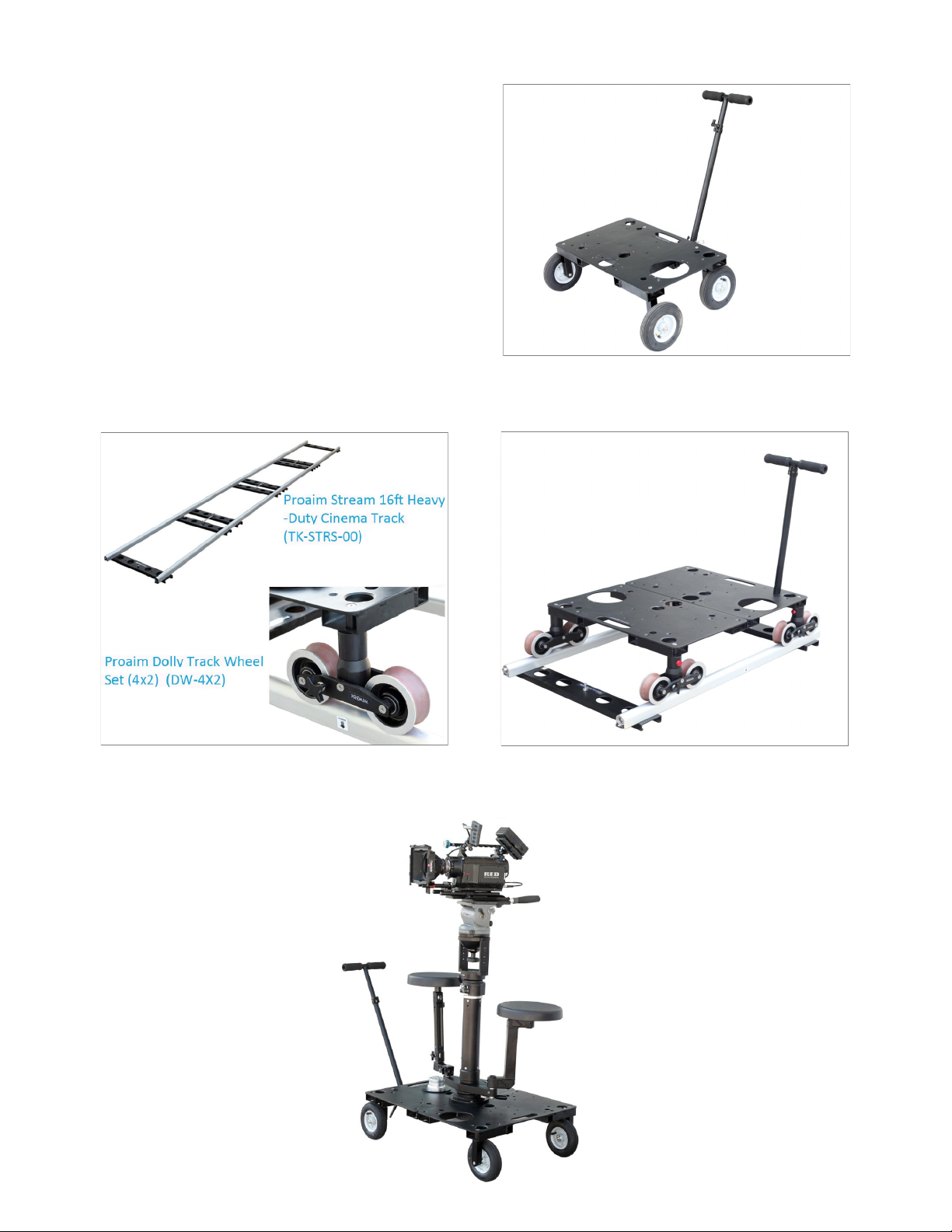

 The all-purpose Brio Dolly can be used
on the ground, as well as on track. It
passes through any door with ease. It
ts perfectly in ght spaces, such as the
aisles of trains or airplanes.
NOTE: Proaim Brio Dolly is also compable with following accessories. You can buy these
separately.
YOUR PROAIM BRIO MULTI-FUNCTION DOORWAY DOLLY
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)

10
WARRANTY
We oer a one year warranty for our products from the date of purchase.
We will repair or replace your product, free of charge, in the event of a defect in materials or
crasmanship obtained during normal use or handling based on the user manual. Please note
that we will not cover any shipping costs for returning the product to us. If any VAT or import
dues are applied to the return, we will also charge these costs to the customer.
The warranty does not include, by the way of example, damage caused by products that we do
not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product ,
or service by anyone other than our company.
We are not liable for incidental or consequenal damages resulng from the use of the unit or
occurring due to any breach of this warranty.
Replacement parts of the product will be provided at nominal cost (covering the cost price of the
replacement parts only) to the customers aer the Warranty Period has expired. We will cover
the complete cost of sending replacement parts within the warranty period. Aer that, Nominal
cost of the product & Actual shipping cost will be charged.
Do not send the unit to us without rst geng a response and geng the approval to send back
the item.
In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our
Best to help you out. For any other assistance you can reach us via email.
For any other assistance you can reach us via email.
