INSTALLATION,
USAGE, & CARE GUIDE
ASTRA LED
AREA LIGHT
Model No.
Mfr. SKU
ASTR20-PC-4K-BZ
103-07900002-1

3PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
2
Visit www.probrite.com/install for installation video tutorials and product support
Table of Contents...........................2
Safety Information......................... 2
Pre-Installation............................... 3
Planning Installation........................3
Specifications.................................... 3
Tools Required.................................. 3
Hardware Included..........................4
Package Contents............................4
Installation...................................... 5
Operation ....................................... 9
Care & Cleaning............................10
Troubleshooting............................10
Warranty......................................... 11
Table of Contents
Safety Information
IMPORTANT
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
NATIONAL ELECTRICAL CODE AND LOCAL BUILDING CODES BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED.
PRECAUTIONS
☐Please read and understand this entire
manual before attempting to assemble,
install, or operate this light fixture.
☐This light fixture requires a 120-Volt AC
power source.
☐Some codes require installation by a
qualified electrician.
☐This light fixture must be properly
grounded.
☐Make sure connections are secure
using wire nuts, crimp-on lugs or other
approved connecting devices
☐This light fixture should be installed
outdoors to a wall or to a pole.
☐This product may contain chemicals
known to be hazardous. Thoroughly
wash hands after installing, handling,
cleaning or otherwise touching the
product.
WARNING: Turn the power o at the circuit
breaker or fuse. Place tape over the circuit
breaker switch and verify power is o at the
light fixture.
WARNING: Risk of fire. Keep the lamp heads
at least 3 in. (76mm) from combustible
materials.
CAUTION: Burn hazard. Allow the light fixture
to cool before touching.
NOTICE: Do not connect this fixture to a
dimmer switch.
Pre-Installation
PLANNING INSTALLATION
Before installing the light fixture, ensure that all parts are present. Compare parts with the
Hardware Included and Package Contents sections. If any part is missing or damaged, do
not attempt to assemble, install, or operate this light fixture.
Estimated installation time: 20 minutes
Lumens (Light Output) 2500 Lumens
Watts (Power Consumption) 20 Watts LED
Replaces 70 Watt Metal Halide
Lumens/Watts (Efficacy) 125 lumens per watt
Power Requirements (Input Voltage) 120VAC
Light Color (CCT) 4000 Kelvins (Bright White)
Dimmable Non-Dimming (Do not wire to dimming switch)
Operating Modes Dusk-to-Dawn:
Automatically turns light fixture ON during night
and OFF during day.
Switch-Controlled:
Flip switch to turn light fixture ON and OFF. Use
included light sensor cap on fixture's light sensor
to utilize this mode setting.
SPECIFICATIONS
TOOLS REQUIRED
Phillips
Screwdriver
Wire strippers/
cutters
Circuit tester
Wrench Power
Drill
Work
gloves
Silicone
Sealant
Ladder
NOTICE: FCC Regulations state that any
unauthorized changes or modifications to
this equipment not expressly approved by the
manufacturer could void the user’s authoriza-
tion to operate this equipment.
INFORMATION: The device is tested and found to comply with Part 15 of the FCC Rules. Operation is subject
to two conditions: (1) This device may not cause harmful interference and, (2) this device must accept any
interference received, including any interference that may cause undesired operation.
These limits are designed to provide reasonable protections against harmful interference when the equip-
ment is operated in a commercial environment.
Safety
goggles

5PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
4
Visit www.probrite.com/install for installation video tutorials and product support
Pre-Installation (continued)

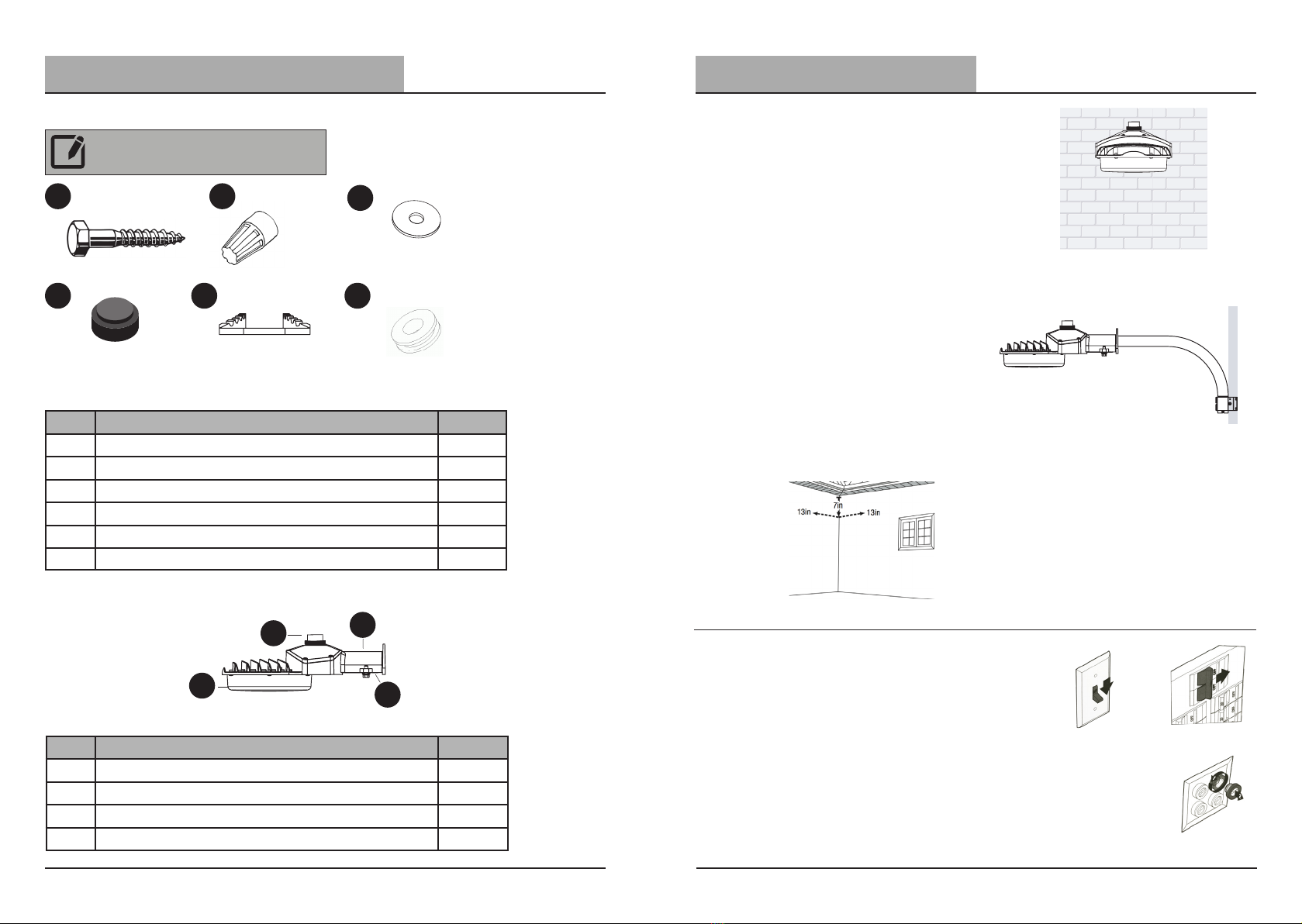

HARDWARE KIT
NOTE: Hardware not shown to actual size.
AA BB CC
DD EE FF
Part Description Quantity
AA Hex Head Lag bolts 3
BB Wire nut 3
CC Flat washers 3
DD Photocell opaque black cap cover 1
EE Extension pole arm mounting bracket 1
FF Rubber grommet 1
PACKAGE CONTENTS
Part Description Quantity
ALight fixture 1
BPhotocell (light sensor) 1
CWire cover plate 1
DFixture arm 1
Installation
1For best results
Wall Mount
Extension Arm Mount
(fig 1).
2Shut electric power off
☐At wall switch verify it is in the o
position (fig 1).
☐At the main electrical panel turn o
the circuit breaker that supplies power
to the outlet box you are working on
(fig 2).
☐For screw-in type fuses unscrew the
fuse that supplies power to the outlet
box you are working on (fig 3).
(fig 1). (fig 2).
(fig 3).
☐Install light 8-15 feet above the ground.
☐When mounting fixture, for Dusk
to Dawn operation, make sure the
photocell is in an area that receives
daylight and not too close to reflective
surfaces.
☐When installing two fixtures on one
switch, make sure the switch is rated
for at least a 1A inductive load.
☐Do NOT wire to dimming switch.
☐When mounting to a wall, make sure
the fixture is 7 in. on center away from
eave and 13 inches on center away
from inside corner of the exterior wall
(fig 1).
A
B
C
D
20W

7PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
6
Visit www.probrite.com/install for installation video tutorials and product support
Installation (continued)
3Preparing for mounting the fixture
C
AA
CC
D
D
NOTE: The fixture comes with the wire cover
plate (C) already installed on the fixture
arm(D).
4Mounting the fixture
Installation (continued)
LIGHTING
FIXTURE
(+) LINE
(-) COMMON
GROUND
BLACK
WHITE
GREEN
☐Feed supply wires through the arm (D)
☐Attach the fixture to the wall using the
three hex head bolts (AA) and the flat
washer (CC).
Wall Mount
Wall Mount
Wall Mount
Extension Arm Mount
☐Remove the wire cover plate (C) from
the arm (D) of the fixture by loosening
the screws.
☐Mark and pre-drill the three holes on
the desired location of the mounting
surface.
☐Remove the wire cover plate (C) from
the arm (D) of the fixture by loosening
the screws.
NOTE: Use any other suitable bolts or fasteners
as applicable to your mounting surface.
☐If necessary, strip 3/8" of insulation
from junction box or fixture (A) wires
(fig 1).
☐Connect fixture black wire to house
black wire, the (+) line, and fixture
white wire to house white wire, the (-)
common by twisting the exposed wires
together and using the wire nuts (BB).
Ensure no loose wires.
☐Connect house ground wire to the
green fixture ground wire, by twisting
the exposed wires together and using
the wire nuts (BB).
IMPORTANT INFORMATION: Extension Arm
(ARM24-SLV) is available and sold separately.
If you need to purchase the extension arm
please contact your retail store.
Installation instructions for the extension arm
are available in the instructions sheet provided
in the extension arm package.
☐Secure the extension arm to the light
fixture arm (D) using the included arm
mounting bracket (EE) and the screws
removed earlier, until the bracket
pushes firmly against the arm mount.
Extension Arm Mount
Extension Arm Mount
X3
X3
C
DFF
5Making the electrical
connections
(fig 1).
☐Place rubber grommet (FF) into the
hole of the wire cover plate before
threading wires through.
☐Thread the wires through the hole in
the wire cover plate (C) before making
wiring connections (fig 1).
Wall Mount
Wall and Extension Arm Mount
TIP: Hold stripped ends near each other and
align any frayed strands (do not twist wires).
Push the wires into wire nut (BB) and use your
fingers to twist the wire nut clockwise until tight.
Check for tightness by pulling wires.
TIP: After marking and predrilling the three
mounting holes, partially screw the bottom
hex bolts with washer and place the fixture's
two bottom mounting groves onto the bottom
bolts, then insert the top bolt, and tighten all
bolts to firmly secure fixture to surface.
EE
D

9PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
8
Visit www.probrite.com/install for installation video tutorials and product support
NOTE: If photocell (B) is located in an area
under heavy shade the photocell may not
detect enough light and may turn the light
fixture on.
TIP: To test if the light fixture (A) and pho-
tocell (B) works properly run power to the
fixture and cover the photocell to turn fixture
ON. Shine a light into the photocell to see if
fixture turns OFF.
OPTION 2: SWITCH CONTROLLED
Switch controlled operation enables the light fixture to
turn ON and OFF by flipping a switch that controls the
electricity to the outlet powering the fixture. The light
fixture will not turn ON and OFF automatically, but is
manually controlled.
☐To enable switch activated operation
remove the clear cap (installed on the
photocell) and put the black cap cover
(DD) provided, to cover the photocell
(B).
☐To enable dusk-to-dawn operation
make sure the photocell (B) is exposed
to light and is unobstructed.
☐Ensure the switch powering the outlet
connected to the light fixture is turned
to the ON position and leave it ON at
all times to enable dusk-to-dawn func-
tionality to operate automatically.
A
Operation
1Selecting Dusk-to-Dawn or
Switch-Activated control
OPTION 1: DUSK-TO-DAWN OPERATION
Dusk-to-dawn operation enables the light fixture to automatically turn
ON when dark outside and turn OFF when the sun rises, thus saving you
energy.
A
B
BDD
C
D
☐After wiring is complete, secure the
fixture on the extension arm using
the arm mounting bracket (EE) by
tightening the screws and washers
removed earlier, until the arm mounting
bracket (EE) pushes firmly against the
pole.
Wall Mount
Extension Arm Mount
6Securing the fixture and wiring
☐Once the fixture is wired, place the
wire guard protection plate (C) on the
arm (D) by tightening the two screws
and washers removed earlier.
Wall Mount
AUTOMATIC
NIGHTTIME ON
DAYTIME OFF
SWITCH
CONTROLLED
Installation (continued)
EE

11 PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
10
Visit www.probrite.com/install for installation video tutorials and product support
Care and Cleaning
☐Shut o main power supply before cleaning the product. To prolong the original ap-
pearance, clean the light fixture with clear water and a soft, damp cloth only.
☐Do not use abrasive cleaners or cleaners that contain alcohol. Do not apply paints,
solvents, or any other chemicals on this light fixture. They could cause a premature
deterioration of the finish and may void the warranty.
☐Do not spray the light fixture with a hose or power washer.
Troubleshooting
Problem Possible Cause Solution
Light does not
turn ON
No power to the fixture
Check if circuit breaker is tripped
Confirm wall switch is On Verify
wiring to fixture is correct (turn
power o to fixture beforehand)
Fixture is sensing daylight Cover photocell. Wait several
seconds until fixture turns ON.
Light cycles
ON and OFF
continuously
Photocell light sensor is
sensing reflected light
Relocate light fixture to a location
where there is no reflected light.
OR place the optional photocell
cover over the photocell light
sensor and use the wall switch to
turn the light ON and OFF.
Light
FLICKERS
The light fixture is wired
through a dimmer switch.
Do not use a dimmer switch to
control the light fixture. Replace
the dimmer with a standard ON/
OFF switch.
Light stays ON
Light sensor is in a shaded
area
Shine a flashlight into the light
sensor and wait a couple minutes.
If the light turns OFF, the fixture
should be moved to a location
with enough light in the daylight
hours for the light sensor to work.
OR place the optional opaque
cover over the photocell light
sensor and use the wall switch to
turn the light ON and OFF.
Light Sensor is faulty
If the light does not turn o when
a flashlight is shined on the light
sensor for a few minutes, then
the sensor may be faulty. Please
contact customer service.
5-Year Limited Warranty
This is a limited warranty oered by Probrite for a period of five years from the date of purchase
to its customers. Probrite warrants to customers that the products will be free from defects
in material and workmanship. The obligation of Probrite under this warranty is limited to the
provision of replacement of products and is extended to the original purchaser of the product
on presenting valid purchase receipt or other proof of date of original purchase acceptable to
Probrite. The receipt is required for rendering the warranty performance. Any warranty claims
without original proof of purchase would not be accepted.
It should be noted that the warranty does not apply to Probrite products that have been
altered or repaired by unauthorized personnel, have been subjected to neglect, abuse, misuse
or accident or damages caused during shipping. Any other products not manufactured by
Probrite which have been supplied, installed and/or used in conjunction with Probrite products
are not covered under this warranty. Any damages caused by replacements bulbs, LEDs or
corrosion or discoloration of brass components are also not covered by this warranty.
Limitation of Liability:
In no event Probrite shall be liable for indirect, consequential, incidental or special damages, or
lost profits. Probrite is not liable for any claims or damage arising out of or connected with the
manufacture, sale, delivery, use, maintenance and repair or modification of Probrite products,
or supply of any replacement parts that, exceed the purchase price of Probrite products giving
rise to a claim. Labor charges to remove or install the fixtures will not be accepted.
To Claim:
Please contact PROBRITE customer service at 1-844-507-5651 or email support@PROBRITE.
com and include your name, address and contact number, along with a copy of the purchase
receipt and a brief description of the problem.

Before returning to the store, call or email PROBRITE
Customer Service 9am-5pm EST Monday to Friday.
1-844-507-5651
[email protected]om
PROBRITE.COM
Questions? / Missing Parts? / Need Accessories?
RETAIN THIS MANUAL FOR FUTURE USE
Para las translaciones en español,
visit www.probrite.com/install
