ARC ARCHITECTURAL
LED WALLPACK
Model No.
Mfr. SKU
ARC50-PC-4K-BZ
103-01500005-1

3PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
2
Visit www.probrite.com/install for installation video tutorials and product support
Table of Contents........................ 2
Safety Information...................... 2
Pre-Installation............................ 3
Planning Installation.................... 3
Specifications.................................3
Tools Required............................... 3
Hardware Included...................... 4
Package Contents........................ 4
Installation....................................5
Operation .....................................8
Care & Cleaning...........................9
Troubleshooting.........................10
Warranty...................................... 11
Table of Contents
Safety Information
IMPORTANT
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE
NATIONAL ELECTRICAL CODE AND LOCAL BUILDING CODES BY A PERSON FAMILIAR
WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS
INVOLVED.
PRECAUTIONS
☐Please read and understand this entire
manual before attempting to assem-
ble, install, or operate this light fixture.
☐This light fixture requires a 120-Volt
AC power source.
☐Some codes require installation by a
qualified electrician.
☐This light fixture must be properly
grounded.
☐Make sure connections are secure
using wire nuts, crimp-on lugs or other
approved connecting devices
☐This light fixture should be installed
outdoors to a wall or eave.
☐This product may contain chemicals
known to be hazardous. Thoroughly
wash hands after installing, handling,
cleaning or otherwise touching the
product.
WARNING: Turn the power o at the circuit
breaker or fuse. Place tape over the circuit
breaker switch and verify power is o at the light
fixture.
WARNING: Risk of fire. Keep the lamp heads at
least 3 in. (76mm) from combustible materials.
CAUTION: Burn hazard. Allow the light fixture to
cool before touching.
NOTICE: For dimming use a 0-10V dimming
switch
Pre-Installation
PLANNING INSTALLATION
Before installing the light fixture, ensure that all parts are present. Compare parts with the
Hardware Included and Package Contents sections. If any part is missing or damaged, do
not attempt to assemble, install, or operate this light fixture.
Estimated installation time: 20 minutes
Lumens (Light Output) 5130 Lumens
Watts (Power Consumption) 50 Watts LED
Replaces 150 Watt Metal Halide
Lumens/Watts (Efficacy) 103 lumens per watt
Power Requirements (Input Voltage) 120-277VAC
Light Color (CCT) 4000 Kelvins (Bright White)
Dimmable Dimming (Use with 0-10V dimming switch)
Operating Modes Dusk-to-Dawn:
Automatically turns light fixture ON during night
and OFF during day.
Switch-Controlled:
Flip switch to turn light fixture ON and OFF. Use
included light sensor cap on fixture's light sensor
to utilize this mode setting.
SPECIFICATIONS
TOOLS REQUIRED
Phillips
Screwdriver
Wire strippers/
cutters
Circuit tester
Safety
goggles
Work
gloves
Silicone
Sealant
Ladder
NOTICE: FCC Regulations state that any
unauthorized changes or modifications to this
equipment not expressly approved by the man-
ufacturer could void the user’s authorization to
operate this equipment.
INFORMATION: The device is tested and found to comply with Part 15 of the FCC Rules. Operation is subject
to two conditions: (1) This device may not cause harmful interference and, (2) this device must accept any
interference received, including any interference that may cause undesired operation.
These limits are designed to provide reasonable protections against harmful interference when the equip-
ment is operated in a commercial environment.

5PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
4
Visit www.probrite.com/install for installation video tutorials and product support
Pre-Installation (continued)

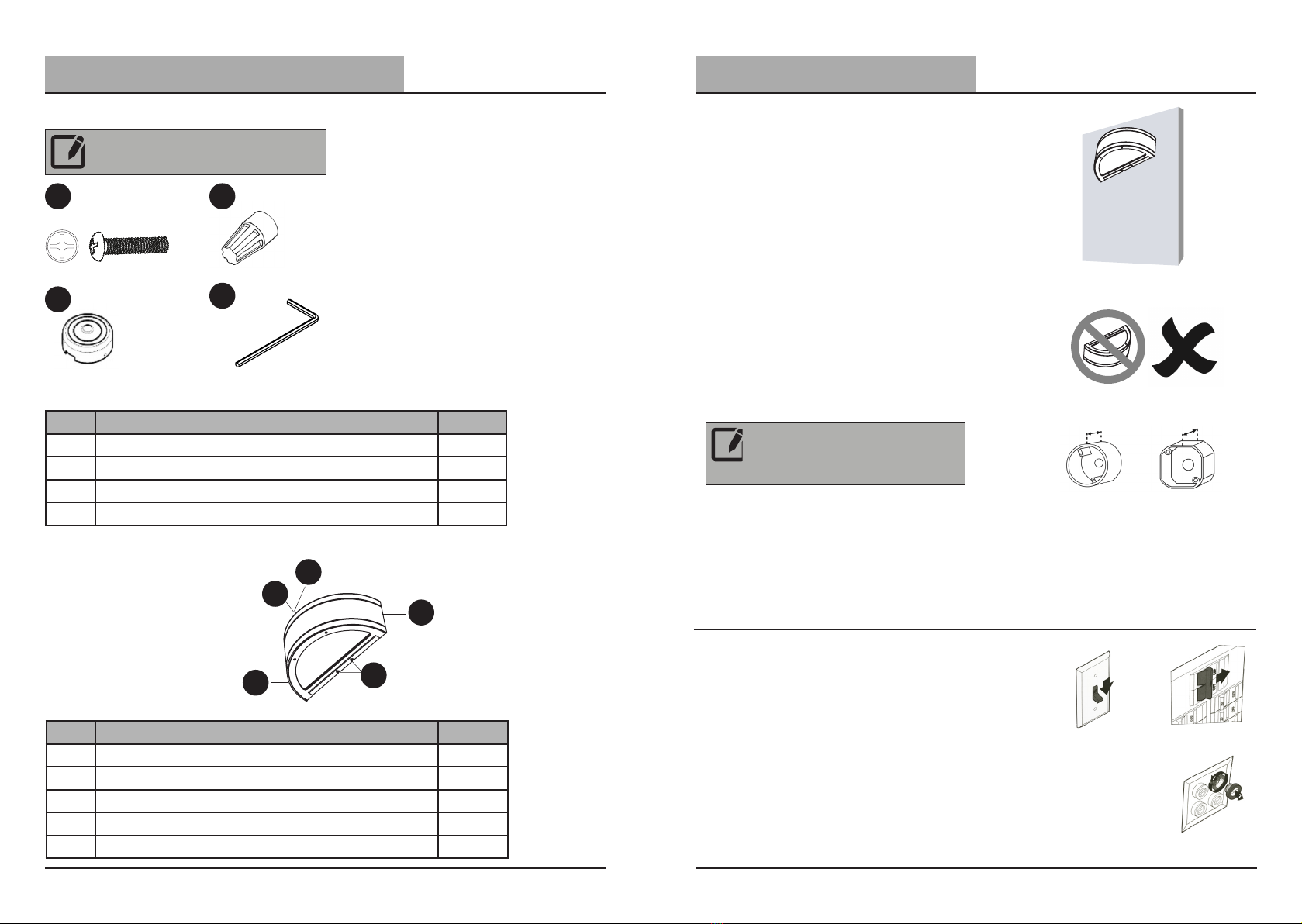

HARDWARE KIT
NOTE: Hardware not shown to actual size.
AA BB
CC DD
Part Description Quantity
AA #8-32 x 3/4" philips mounting bracket screw 2
BB Wire nut 3
CC Photocell (light sensor) screw-on clear cap 1
DD Allen key 1
PACKAGE CONTENTS
Part Description Quantity
ALight fixture 1
BPhotocell (light sensor) 1
CMounting plate tightening bolt (pre-installed) 2
DMounting plate (pre-installed) 1
EPhotocell (light sensor) screw-on opaque cap 1
Installation
1For best results
Wall Mount
1-1/2" 1-1/2"
Round Octagonal/
A
B
C
D
NOTE: Mounting plate (D) mounts to
recessed mounted standard junction boxes.
Junction box must be at least 1-1/2 inch in
depth for proper installation for recessed
mount application (fig 1).
(fig 1).
2Shut electric power off
☐At wall switch verify it is in the o
position (fig 1).
☐At the main electrical panel turn o the
circuit breaker that supplies power to
the outlet box you are working on (fig
2).
☐For screw-in type fuses unscrew the
fuse that supplies power to the outlet
box you are working on (fig 3).
(fig 1). (fig 2).
(fig 3).
☐Install light 8-18 feet above the ground.
☐When mounting fixture, for Dusk to
Dawn operation, make sure the photocell
orientation is at the top for wall mount,
in an area that receives daylight and not
too close to reflective surfaces.
☐When installing two fixtures on one
switch, make sure the switch is rated for
at least a 1A inductive load.
☐The fixture may or may not be wired to a
0-10V dimming switch.
E

7PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
6
Visit www.probrite.com/install for installation video tutorials and product support
Installation (continued)

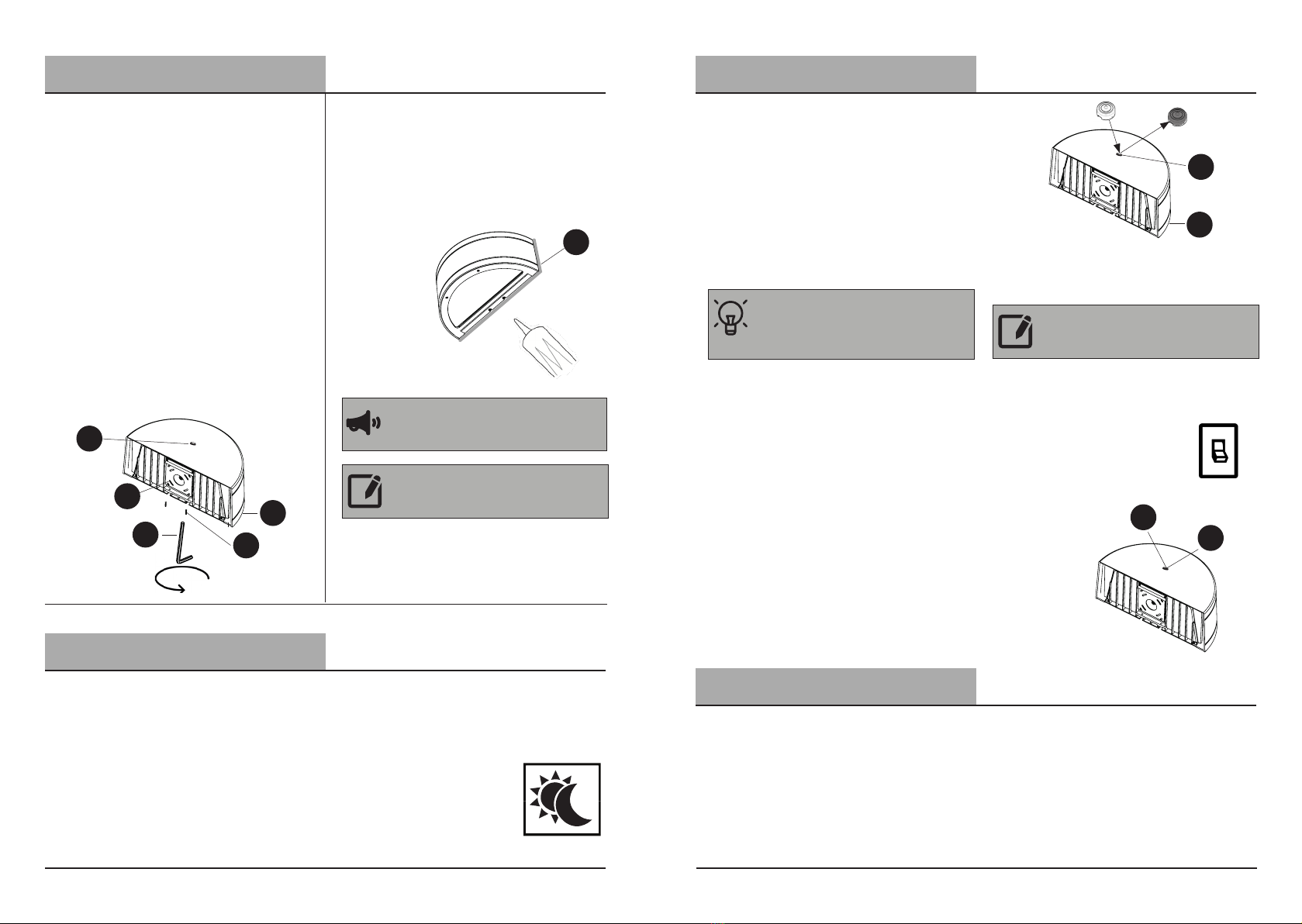

3Remove the
mounting plate
C
DD
D
NOTE: The mounting plate (D) comes
pre-assembled on the light fixture (A) for
shipping.
NOTE: The mounting plate tightening bolt
(C) comes pre-installed on the light fixture.
☐Remove the mounting plate (D)
from the back of the fixture by
loosening the mounting plate
tightening bolt (C) using the allen
key (DD).
4Installing the
mounting plate
D
Installation (continued)
5Making the electrical
connections
A
D
BB
(fig 1).
TIP: Only unscrew the tightening bolt (C) far
enough to remove the mounting plate (D).
Do not fully remove the tightening bolt (C). LIGHTING
FIXTURE
(+) LINE
(-) COMMON
GROUND
BLACK
WHITE
GREEN
☐Route the junction box wires
through the large center hole in the
mounting plate (D).
☐Align the holes on the mounting
bracket (D) with the holes on your
junction box. Use two #8 screws
(AA), depending on the size of the
holes in your junction box, attach
the mounting bracket (D) to your
junction box.
AA
☐If necessary, strip 3/8" of insulation from
junction box or fixture (A) wires (fig 1).
ON/OFF Wiring (Non Dimming) Method:
☐Connect fixture black wire to house black
wire, the (+) line, and fixture white wire
to house white wire, the (-) common by
twisting the exposed wires together and
using the wire nuts (BB). Ensure no loose
wires.
☐Connect house ground wire to the green
fixture ground wire, by twisting the
exposed wires together and using the
wire nuts (BB).
0-10V Dimmable Wiring Method:
☐Connect fixture black wire to house
black wire, the (+) line, and fixture
white wire to house white wire, the (-)
common by twisting the exposed wires
together and using the wire nuts (BB).
Ensure no loose wires.
☐Connect house ground wire to the
green fixture ground wire, by twisting
the exposed wires together and using
the wire nuts (BB).
☐Connect the purple wire to the (V+)
DIM wire and the gray wire with (V-)
DIM wire by twisting the exposed wire
together and using the wire nuts (BB).
LIGHTING
FIXTURE
(+) LINE
(-) COMMON
(+)DIM V+
BLACK
WHITE
PURPLE
GROUND
GRAY
GREEN
(-)DIM V-
(0-10V Dimming Wiring Diagram)
TIP: Hold stripped ends near each other and
align any frayed strands (do not twist wires).
Push the wires into wire nut (BB) and use your
fingers to twist the wire nut clockwise until tight.
Check for tightness by pulling wires.
(Non-Dimming Wiring Diagram)

9PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
8
Visit www.probrite.com/install for installation video tutorials and product support
C
A
DD
D
B
Installation (continued) Operation (continued)
7Mounting the light
fixture 8Caulking around the light fixture
D
NOTICE: Failure to properly caulk around the
surface and mounting plate (D) could lead
to water damage and is not covered under
warranty.
NOTE: When attaching this fixture (A) to an
external, surface mount junction box, caulk the
inside of the light fixture before attaching to
the mounting plate (D).
☐To enable dusk-to-dawn operation
remove black cap cover and ensure the
photocell (B) has clear cap cover (CC)
on it and is unobstructed.
☐Ensure the switch powering the outlet
connected to the light fixture is turned
to the ON position and leave it ON
at all times to enable dusk-to-dawn
functionality to operate automatically.
NOTE: If photocell (B) is located in an area
under heavy shade the photocell may not
detect enough light and may turn the light
fixture on.
TIP: To test if the light fixture (A) and
photocell (B) works properly run power to
the fixture and cover the photocell to turn
fixture ON. Shine a light into the photocell
to see if fixture turns OFF.
OPTION 2: SWITCH CONTROLLED
Switch controlled operation enables the light fixture to turn ON and
OFF by flipping a switch that controls the electricity to the outlet
powering the fixture. The light fixture will not turn ON and OFF
automatically, but is manually controlled.
Leave the black cap
cover (E) over the photocell
☐To enable switch activated operation
leave the black screw-on cap the
photocell (already installed on the
fixture) and remove the instructions
label.
B
(Clear cap cover on photocell for
Dusk-to-Dawn Operation)
Operation
1Selecting Dusk-to-Dawn or
Switch-Activated control
OPTION 1: DUSK-TO-DAWN OPERATION
Dusk-to-dawn operation enables the light fixture to automatically turn
ON when dark outside and turn OFF when the sun rises, thus saving you
energy.
A
Care and Cleaning
☐Shut o main power supply before cleaning the product. To prolong the original
appearance, clean the light fixture with clear water and a soft, damp cloth only.
☐Do not use abrasive cleaners or cleaners that contain alcohol. Do not apply paints,
solvents, or any other chemicals on this light fixture. They could cause a premature
deterioration of the finish and may void the warranty.
☐Do not spray the light fixture with a hose or power washer.
☐Once the fixture is wired, place
the light fixture (A) onto the
mounting plate (D) so the top
sloped grove on the plate rests
on the top sloped grove on the
back of the fixture.
☐Verify the fixture is flush with the
wall and photocell (B) is pointed
upward for wall mount.
☐Tighten the mounting plate
tightening bolt (C) back through
the hole on the bottom of the
fixture (A) until the bolt firmly
pushes against the mounting
plate (D).
☐Caulk around the mounting plate (D)
and surface with silicone sealant (not
included).
B
E
AUTOMATIC
NIGHTTIME ON
DAYTIME OFF
SWITCH
CONTROLLED
Swap

11 PROBRITE.COM
Please call 1-844-507-5651 or email [e-mail] for further assistance.
10
Visit www.probrite.com/install for installation video tutorials and product support
Troubleshooting 5-Year Limited Warranty
Problem Possible Cause Solution
Light does not
turn ON
No power to the fixture
Check if circuit breaker is tripped
Confirm wall switch is ON
Verify wiring to fixture is correct
(turn power o to fixture
beforehand)
Fixture is sensing daylight Cover photocell. Wait several
seconds until fixture turns ON.
Light cycles
ON and OFF
continuously
Photocell light sensor is sens-
ing reflected light
Relocate light fixture to a location
where there is no reflected light.
OR place the optional photocell
cover over the photocell light
sensor and use the wall switch to
turn the light ON and OFF.
Light
FLICKERS
The light fixture is wired
through an unsuitable dimmer
Replace with a 0-10V dimming
switch or with a standard ON/
OFF switch.
Light stays ON
Light sensor is in a shaded
area
Shine a flashlight into the light
sensor and wait a couple minutes.
If the light turns OFF, the fixture
should be moved to a location
with enough light in the daylight
hours for the light sensor to work.
OR place the optional opaque
cover over the photocell light
sensor and use the wall switch to
turn the light ON and OFF.
Light Sensor is faulty
If the light does not turn o when
a flashlight is shined on the light
sensor for a few minutes, then
the sensor may be faulty. Please
contact customer service.
This is a limited warranty oered by Probrite for a period of five years from the date of purchase
to its customers. Probrite warrants to customers that the products will be free from defects
in material and workmanship. The obligation of Probrite under this warranty is limited to the
provision of replacement of products and is extended to the original purchaser of the product
on presenting valid purchase receipt or other proof of date of original purchase acceptable to
Probrite. The receipt is required for rendering the warranty performance. Any warranty claims
without original proof of purchase would not be accepted.
It should be noted that the warranty does not apply to Probrite products that have been
altered or repaired by unauthorized personnel, have been subjected to neglect, abuse, misuse
or accident or damages caused during shipping. Any other products not manufactured by
Probrite which have been supplied, installed and/or used in conjunction with Probrite products
are not covered under this warranty. Any damages caused by replacements bulbs, LEDs or
corrosion or discoloration of brass components are also not covered by this warranty.
Limitation of Liability:
In no event Probrite shall be liable for indirect, consequential, incidental or special damages, or
lost profits. Probrite is not liable for any claims or damage arising out of or connected with the
manufacture, sale, delivery, use, maintenance and repair or modification of Probrite products,
or supply of any replacement parts that, exceed the purchase price of Probrite products giving
rise to a claim. Labor charges to remove or install the fixtures will not be accepted.
To Claim:
Please contact PROBRITE customer service at 1-844-507-5651 or email support@PROBRITE.
com and include your name, address and contact number, along with a copy of the purchase
receipt and a brief description of the problem.
NOTE: Photocell (B) may have a few minute delay, to reduce it's
sensitivity to sudden light changes. When testing shine a light/cover
the photocell for a few minutes to check if fixture functions properly

Before returning to the store, call or email PROBRITE
Customer Service 9am-5pm EST Monday to Friday.
1-844-507-5651
[email protected]om
PROBRITE.COM
Questions? / Missing Parts? / Need Accessories?
RETAIN THIS MANUAL FOR FUTURE USE
Para las translaciones en español,
visit www.probrite.com/install
