PT-PR01G-10 10G PoE Surge Protector
rocetpoe.com
Quick Installation Guide

Declaration
Copyright ©2024 Creative Lianjie Network Technology Co.Ltd
All rights reserved.
Declaration
This document belongs to PROCET company. It is not allowed to reproduce and
modify without the original author's permission. It is PROCET's policy to improve
its products as new technology, components, software, and firmware at any time.
PROCET, therefore, reserves the right to change specifications without prior notice.
Please follow WEEE (Waste Electrical and Electronic Equipment) disposal
instructions for old electronic products.
Please do not dispose of the old product in your general household waste bin.
The symbol indicates that the product should notbe discarded as unsorted
waste but must be sent to separate collection facilities for recovery and recycling.

Overview
Network Engineers
Network Administrators
The installation Guide for PT-PR01G-10 and mainly introduces the hardware
specification, installation methods, and precautions of the installation. There
may be differences in the appearance and configuration from other models. All
product images in this manual are for illustration purposes only and may differ
from the actual product.
This manual includes the following chapters:
1. Product Introduction. Including the basic functions and specification of
PT-PR01G-10, as well as the product appearance and applications introduction.
2. Installation Introduction. Introducing the preparation work and precautions
before installing the product.
3. Product Installation.
Field Technicians
Overview
For whom

T
2.1 Package Contents........................................................... 04
2.2 Installation Toolkits.......................................................... 04
1.1 Introduction.......................................................................01
1.2 Appearance.......................................................................01
Table of Contents
1.3 Specification.....................................................................03
2.3 Inspection........................................................................... 04
able of Contents
1. Introduction 01
2. Installation Preparation 04
3. Installation 06
3.1 Mounting Installation..................................................... 06
3.2 Inspection...........................................................................08

1. I
Introduction 01
ntroduction
1.1 Introduction
1.2 Appearance
Upper View
PT-PR01G-10 is a single-port Ethernet surge protector. Enclosed in an
Aluminum Alloy shell, with a silver color exterior, complemented by an
anodized aluminum surface. Enhanced RJ45 socket exhibits minimal signal
attenuation. High-quality Gas discharge tube(GDT). Withstand extreme
environmental conditions within a temperature range of -40 to 85 degrees
Celsius.
Max Discharge Current: 10KA (8/20us, 1.25KA per line). Supports power of
120W, 60Vdc(max) Ethernet equipment.
PT-PR01G-10 can not only work with IEEE802.3af/at/bt/PoE++ standard
devices, but also supports non-standard Ethernet equipment, that well
protects your devices against surge damage. And it can support 10/100/
1000Mbps, 2.5/5/10Gbps data rate.
The common mode surge voltage exceeds 10KV(10/700us) and the
differential mode surge voltage is 1.5KV(10/700us).

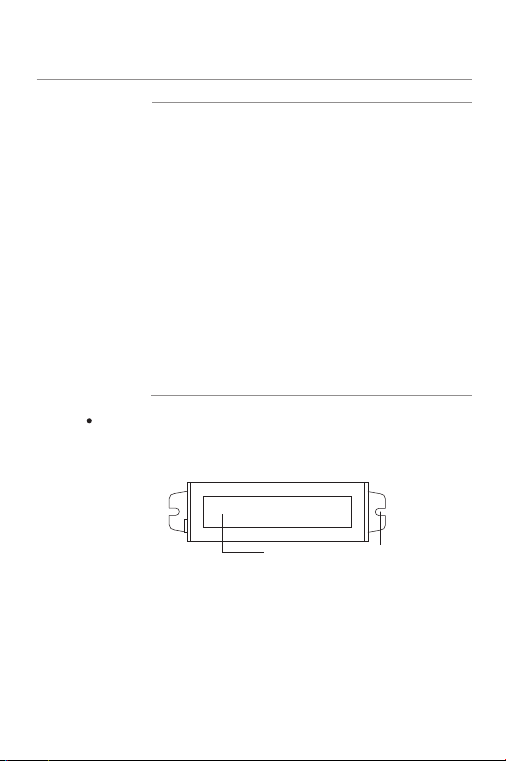

1-1 Upper View
Label Fixing Holes

02 Introduction
1-2 Side View
1-3 Front View
Side View
Front View
PoE Input Or
PoE Output
GND Terminal

Introduction 03
1.3 Specification
Items
Input Voltage
Description
1A for 2 pairs, 2A for 4 pairs
120W
Operating Temp.
Operating Humidity
Operating Altitude
Storge Temp.
Storge Humidity
-40℃ to 85℃
20%-80%，non-condensation
Up to 5000 meters
-40℃ to 85℃
10%-90%，non-condensation
103mm X 28mm X 30mm（71.5g）
CE
IP40
IP Rated
Regulatory Compliance
Dimensions &NW
Data Speed 10/100/1000Mbps, 2.5/5/10Gbps
60Vdc (Max)
Maximum Operating Power
10KA(8/20us,1.25KA per line)
Max Discharge Current
Maximum Operating Current
PoE Surge Protection
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 10KV
Differential Mode Protection Level(10/700us): 1.5KV

2. I
04 Installation
nstallation
2.1 Packing Contents
Open the box of the PT-PR01G-10 and carefully
unpack it, the box should contain the following items:
2.2 Installation Toolkits
These tools may be needed during equipment installation, and should be
prepared by yourself: level ruler, marking pen, craft knife, wire stripper,
network pliers, impact drill,different matching drilbits, rubber hammer,
cross screwdriver, wrench, ladder, etc.
2.3 Inspection
Cautions：
This device protects Ethernet Equipment with RJ45 port
Connect the PT-PR01G-10 with the protected device, and check if the
terminal device work normally.
against surge lightning damage.
!
PT-PR01G Operating Manual Ground
lug Wire& M6
screw

2-1
Installation 05

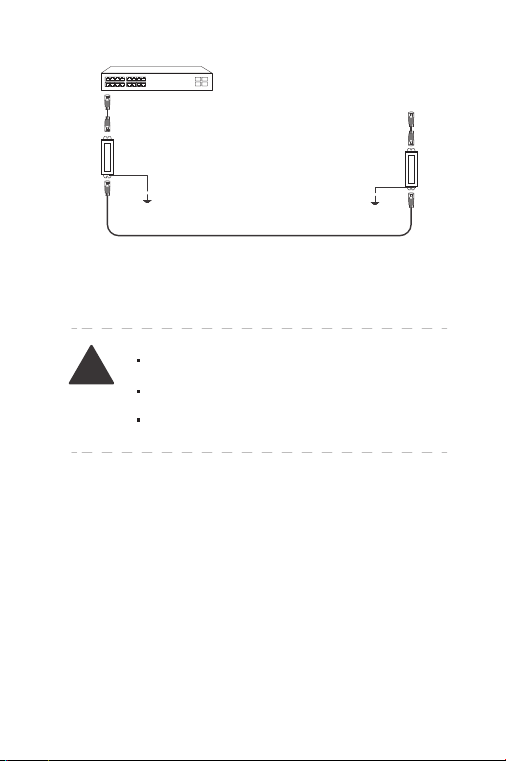

Device Connection
Switch
PT-PR01G-10
PT-PR01G-10
GND Terminal
PD
Caution：
We recommend to use Cat5 or higher UTP/STP cables
for 100Base-TX Ethernet；
We recommend to use Cat5e or above UTP/STP cables
for 1000Base-T Ethernet.
We recommend to use Cat6 or above UTP/STP cables
for 2.5/5/10Gbps Ethernet.
!
GND Terminal

3. Installation
3.1 Wall mounting
06 Installation
This product is safe to use wall-mounted installation.
3-1 Wall mounting installation
Fixing holes
Screw holes
Screws
Backplate
If it is placed in an outdoor environment, please install the device in a
waterproof case with a height of 45cm if possible.
3.1.1Fix the product with screws and tighten them into the screw
holes.

3-2 Installation in waterproof case
Installation 07
Backplate
Cables
GND
Screws
Fixing screws
Backplate
Grounding
Lug wires Cables

08 Installation
Caution：
Waterproof Ethernet cables should be with a
protective sheath. CAT6 cables are recommended.
!
3.2 Inspection
Inspect the installed equipment before putting it into operation：
· Make sure the PD connected can work normal.
· Make sure the Ethernet cable connection is correct.
