PROCET PT-PR01G-DIN User manual

ＰＴ－ＰＲ０１Ｇ－ＤＩＮ Ｒａｉｌ Ｉｎｄｕｓｔｒｉａｌ PoE Surge Protector
www.procetpoe.com
Ｑｕｉｃｋ Ｉｎｓｔａｌｌａｔｉｏｎ Ｇｕｉｄｅ

Ｄｅｃｌａｒａｔｉｏｎ
Ｃｏｐｙｒｉｇｈｔ ©２０２3Ｃｒｅａｔｉｖｅ Ｌｉａｎｊｉｅ Ｎｅｔｗｏｒｋ Ｔｅｃｈｎｏｌｏｇｙ Ｃｏ．Ｌｔｄ
Ａｌｌ ｒｉｇｈｔｓ ｒｅｓｅｒｖｅｄ．
Ｄｅｃｌａｒａｔｉｏｎ
The symbol indicates that the product should not be discarded as unsorted
This document belongs to PROCET company. It is not allowed to reproduce and
modify without the original author's permission. It is PROCET's policy to improve
its products as new technology, components, software, and firmware at any time.
PROCET, therefore, reserves the right to change specifications without prior notice.
Please follow WEEE (Waste Electrical and Electronic Equipment) disposal
instructions for old electronic products.
Please do not dispose of the old product in your general household waste bin.
waste but must be sent to separate collection facilities for recovery and recycling.

Ｏｖｅｒｖｉｅｗ
Ｎｅｔｗｏｒｋ Ｅnｇｉｎｅｅｒｓ
Ｎｅｔｗｏｒｋ Aｄｍｉｎｉｓｔｒａｔｏｒｓ
Field Technician
The installation Guide for PT-PR01G-DIN and mainly introduces the hardware
specification, installation methods, and precautions of the installation. There
may be differences in the appearance and configuration from other models. All
product images in this manual are for illustration purposes only and may differ
from the actual product.
This manual includes the following chapters:
1. Product Introduction. Including the basic functions and specification of
PT-PR01G-DIN, as well as the product appearance and applications
introduction.
2. Installation Introduction. Introducing the preparation work and precautions
before installing the product.
3. Product Installation.
s
Ｏｖｅｒｖｉｅｗ
Ｆｏｒ ｗｈｏｍ

1.1 Introduction..................................................................... 01
1.2 Appearance..................................................................... 01
Table of Contents
1.3 Specification................................................................... 03
2.1 Package contents...................................................... 03
2.2 Installation toolkit........................................................ 04
2.3 Installation inspection................................................ 04
Ｔａｂｌｅ ｏｆ Ｃｏｎｔｅｎｔｓ
１． Ｉｎｔｒｏｄｕｃｔｉｏｎ 01
２． Ｉｎｓｔａｌｌａｔｉｏｎ Ｐｒｅｐａｒａｔｉｏｎ 03
3.1 DIN Rail Installation..................................................... 06
3.2 Cable connection......................................................... 07
3.3 Inspection........................................................................08
３． Ｉｎｓｔａｌｌａｔｉｏｎ 06

Introduction 01
１． Ｉｎｔｒｏｄｕｃｔｉｏｎ
１．１ Ｉｎｔｒｏｄｕｃｔｉｏｎ
１．２ Ａｐｐｅａｒａｎｃｅ
Ｕｐｐｅｒ Ｖｉｅｗ
ＰＴ－ＰＲ０１Ｇ－ＤＩＮ ｉｓ ａ ｓｉｎｇｌｅ－ｐｏｒｔ ｉｎｄｕｓｔｒｉａｌ ＰｏＥ ｓｕｒｇｅ ｐｒｏｔｅｃｔｏｒ ｄｅｓｉｇｎｅｄ ｆｏｒ
ｅｘｔｅｒｉｏｒ ｃｏｍｐｌｅｘ ｂａｃｋｈａｕｌ ａｎｄ ｎｅｔｗｏｒｋｉｎｇ ａｐｐｌｉｃａｔｉｏｎｓ ｗｉｔｈ ａｎ ＩＰ ４０ ｒａｔｅｄ
Ｚｉｎｃ ａｌｌｏｙ ｓｈｅｌｌ． Ｉｔ ｓｕｐｐｏｒｔｓ ８ ｌｉｎｅｓ ｎｅｔｗｏｒｋ ｓｉｇｎａｌｓ ａｎｄ ｐｒｏｖｉｄｅｓ ｓｕｒｇｅ
ｐｒｏｔｅｃｔｉｏｎ ｆｏｒ ＰｏＥ ｗｉｒｅｓ for １０ＫＶ ｓｕｒｇｅ ｐｒｏｔｅｃｔｉｏｎ． Ｐｅａｋ Ｓｕｒｇｅ Ｃｕｒｒｅｎｔ is
ｕｐ ｔｏ １０ＫＡ． Ｉｔ ｓｕｐｐｏｒｔｓ １０／１００／１０００Ｍｂｐｓ ｏｆ ｄａｔａ ｒａｔｅｓ． Ｉｄｅａｌ ｆｏｒ １20Ｗ
（ｍａｘ） ＰｏＥ ｗｉｒｅｓ ａｎｄ ｗｅｌｌ ｐｒｏｔｅｃｔｓ ｙｏｕｒ ｄｅｖｉｃｅｓ ａｇａｉｎｓｔ ｓｕｒｇｅ ｄａｍａｇｅ．
ＰＴ－ＰＲ０１Ｇ－ＤＩＮ ｏｐｅｒａｔｅｓ ｆｒｏｍ －４０℃ ｔｏ ＋８５℃ ａｎｄ ｗｏｒｋｓ ｗｉｔｈ ｖｏｌｔａｇｅ ｏｆ
６０Ｖｄｃ （ｍａｘ）． Either port can be PoE in or PoE out.
Ｉｔ ｉｓ ｃｏｎｎｅｃｔｅｄ ｔｏ ｎｅｔｗｏｒｋ ｏｖｅｒ Ｃａｔ５ｅ／Ｃａｔ６ ｃａｂｌｅｓ ｗｉｔｈ ＲＪ４５ ｃｏｎｎｅｃｔｏｒ
ｃｏｎｖｅｎｉｅｎｔｌｙ ａｎｄ ｔｉｇｈｔｌｙ． Ｔｈｉｓ ｍｏｄｅｌ ｅｑｕｉｐｐｅｄ ｓｔａｎｄａｒｄ ＤＩＮ ｒａｉｌ ｍｏｕｎｔｉｎｇ
ｂｒａｃｋｅｔ， ｗｈｉｃｈ ｃａｎ ｅａｓｉｌｙ ｊａｍ ｉｎｔｏ ｔｈｅ ｇｕｉｄｅ ｒａｉｌ． Ｔｈｅ ＤＩＮ ｒａｉｌ ａｓ ａ ｇｒｏｕｎｄ
ｗｉｒｅ ｔｏ ｔｒａｎｓｍｉｔ ｔｈｅ ｃｕｒｒｅｎｔ ｔｏ ｔｈｅ ｅａｒｔｈ．
1-1 Upper View
Sliding Clip

１－２
02 Introduction

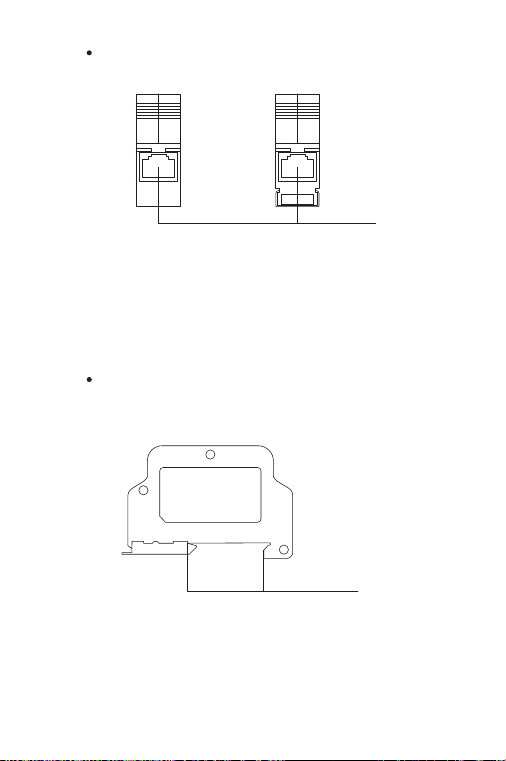

Ｓｉｄｅ Ｖｉｅｗ
１－３ Ｆｒｏｎｔ Ｖｉｅｗ
Ｓｉｄｅ Ｖｉｅｗ
Ｆｒｏｎｔ Ｖｉｅｗ
ＲＪ４５ Ｉｎｐｕｔ
ｏｒ Ｏｕｔｐｕｔ
ＤＩＮ Ｒａｉｌ Ｃｌｉｐ

Introduction 03
１．３ Ｓｐｅｃｉｆｉｃａｔｉｏｎ
Ｉｔｅｍｓ
Ｗｏｒｋｉｎｇ Ｖｏｌｔａｇｅ
１Ａ ｆｏｒ ２ ｐａｉｒｓ， ２Ａ ｆｏｒ ４ ｐａｉｒｓＭａｘ Ｏｐｅｒａｔｉｎｇ ＤＣ Ｃｕｒｒｅｎｔ
１２０Ｗ
Ｄｅｓｃｒｉｐｔｉｏｎ
Ｍａｘ Ｏｐｅｒａｔｉｎｇ Ｐｏｗｅｒ
Ｏｐｅｒａｔｉｎｇ Ｔｅｍｐ．
Ｏｐｅｒａｔｉｎｇ Ｈｕｍｉｄｉｔｙ
Ｏｐｅｒａｔｉｎｇ Ａｌｔｉｔｕｄｅ
Ｓｔｏｒａｇｅ Ｔｅｍｐ．
Ｓｔｏｒａｇｅ Ｈｕｍｉｄｉｔｙ
－４０℃ ｔｏ ８５℃
２０％－８０％，ｎｏｎ－ｃｏｎｄｅｎｓａｔｉｏｎ
Ｕｐ ｔｏ ５０００ ｍｅｔｅｒｓ
１０％－９０％，ｎｏｎ－ｃｏｎｄｅｎｓａｔｉｏｎ
７７．２ｍｍ Ｘ ４５ｍｍ Ｘ １９ｍｍ（１１５ｇ）
ＣＥ
ＩＰ４０
ＩＰ Ｒａｔｅｄ
Ｒｅｇｕｌａｔｏｒｙ Ｃｏｍｐｌｉａｎｃｅ
Ｄｉｍｅｎｓｉｏｎｓ＆ＮＷ
Ｓａｆｅｔｙ Ａｐｐｒｏｖａｌｓ
ＲｏＨＳ／ ＷＥＥＥ
Ｄｉｆｆｅｒｅｎｔｉａｌ Ｍｏｄｅ Ｐｒｏｔｅｃｔｉｏｎ Ｌｅｖｅｌ（１０／７００ｕｓ）： １．５ＫＶ
Ｄａｔａ Ｓｐｅｅｄ １０／１００／１０００Ｍｂｐｓ
６０Ｖｄｃ （Ｍａｘ）
ＩＥＣ６００６８－２－６ （Ｖｉｂｒａｔｉｏｎ）
ＩＥＣ６００６８－２－２７ （Ｉｍｐａｃｔ）
ＩＥＣ６００６８－２－３２ （Ｆｒｅｅ Ｆａｌｌ）
Immunity
Ｃｏｍｍｏｎ Ｍｏｄｅ Ｐｒｏｔｅｃｔｉｏｎ Ｌｅｖｅｌ（１０／７００ｕｓ）：１０ＫＶ
PoE Surge Protection
－４０℃ ｔｏ ８５℃
ＰｏＥ Ｓｔａｎｄａｒｄ ＩＥＥＥ８０２．３ ａｆ／ａｔ／ｂｔ ＆ ＰｏＥ ＋＋

04 Installation Preparation
２．２ Ｉｎｓｔａｌｌａｔｉｏｎ Ｔｏｏｌｋｉｔ
Ｔｈｅｓｅ ｔｏｏｌｓ ｍａｙ ｂｅ ｎｅｅｄｅｄ ｄｕｒｉｎｇ ｅｑｕｉｐｍｅｎｔ ｉｎｓｔａｌｌａｔｉｏｎ， ａｎｄ ｓｈｏｕｌｄ ｂｅ
ｐｒｅｐａｒｅｄ ｂｙ ｙｏｕｒｓｅｌｆ： ｌｅｖｅｌ ｒｕｌｅｒ， ｍａｒｋｉｎｇ ｐｅｎ， ｃｒａｆｔ ｋｎｉｆｅ， ｗｉｒｅ ｓｔｒｉｐｐｅｒ，
ｎｅｔｗｏｒｋ ｐｌｉｅｒｓ， ｉｍｐａｃｔ ｄｒｉｌｌ，ｄｉｆｆｅｒｅｎｔ ｍａｔｃｈｉｎｇ ｄｒｉｌｂｉｔｓ， ｒｕｂｂｅｒ ｈａｍｍｅｒ，
ｃｒｏｓｓ ｓｃｒｅｗｄｒｉｖｅｒ， ｗｒｅｎｃｈ， ｌａｄｄｅｒ， ｅｔｃ．
２．３ Ｉｎｓｐｅｃｔｉｏｎ
Ｃｏｎｎｅｃｔ ｔｈｅ ＰＴ－ＰＲ０１Ｇ－ＤＩＮ ｗｉｔｈ ｔｈｅ ｐｒｏｔｅｃｔｅｄ ｄｅｖｉｃｅ， ａｎｄ ｃｈｅｃｋ ｉｆ ｔｈｅ
terminal ｄｅｖｉｃｅ ｗｏｒｋ ｎｏｒｍａｌｌｙ．
ＰＴ－ＰＲ０１Ｇ－ＤＩＮ Ｏｐｅｒａｔｉｎｇ Ｍａｎｕａｌ
２． Ｉｎｓｔａｌｌａｔｉｏｎ Ｐｒｅｐａｒａｔｉｏｎ
２．１ Ｐａｃｋａｇｅ Ｃｏｎｔｅｎｔｓ
Ｏｐｅｎ ｔｈｅ ｂｏｘ ｏｆ ｔｈｅ ＰＴ－ＰＲ０１Ｇ－ＤＩＮ ａｎｄ ｃａｒｅｆｕｌｌｙ ｕｎｐａｃｋ ｉｔ，
ｔｈｅ ｂｏｘ ｓｈｏｕｌｄ ｃｏｎｔａｉｎ ｔｈｅ ｆｏｌｌｏｗｉｎｇ ｉｔｅｍｓ：

Installation Preparation 05
Ｃａｕｔｉｏｎ：
We recommend to use Cat5 or higher UTP/STP cables
for 100Base-TX Ethernet；
We recommend to use Cat5e or above UTP/STP cables
for 1000Base-T Ethernet.
!

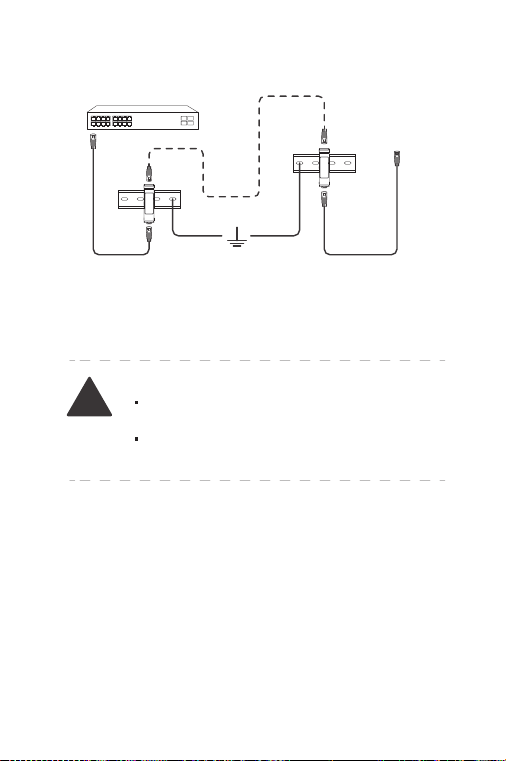

２－１ Ｄｅｖｉｃｅ Ｃｏｎｎｅｃｔｉｏｎ
Ｓｗｉｔｃｈ
ＰＴ－ＰＲ０１Ｇ
－ＤＩＮ
ＰＴ－ＰＲ０１Ｇ
Ｇｒｏｕｎｄｉｎｇ
－ＤＩＮ
PD
Protected Wire
Protected Wire
Ｌｉｇｈｔｎｉｎｇ
Strike Ｗｉｒｅ

06 Installation
３． Ｉｎｓｔａｌｌａｔｉｏｎ
３．１ ＤＩＮ Ｒａｉｌ Ｉｎｓｔａｌｌａｔｉｏｎ
３．１．１ Ｓｅｃｕｒｅ ｏｎｅ ｓｉｄｅ ｏｆ ｔｈｅ ｐｒｏｄｕｃｔ ｂｙ ｉｎｓｅｒｔｉｎｇ ｉｔ ｉｎｔｏ ｔｈｅ ｅｄｇｅ ｏｆ
ｔｈｅ ｇｕｉｄｅ ｒａｉｌ， ａｎｄ ｓｌｉｄｅ ｔｈｅ ｏｔｈｅｒ ｓｉｄｅ＇ｓ ｌａｔｃｈ ｉｎｔｏ ｔｈｅ ｅｄｇｅ ｏｆ ｔｈｅ
ｇｕｉｄｅ ｒａｉｌ ｏｎ ｔｈｅ ｏｐｐｏｓｉｔｅ ｓｉｄｅ．
Ａｓ ｓｈｏｗｅｄ ｉｎ ３－１.
This product is safe for use in a waterproof case and DIN Rail mounts.
３－１ ＤＩＮ Ｒａｉｌ Ｉｎｓｔａｌｌａｔｉｏｎ
Ｓｌｉｄｉｎｇ ｌａｔｃｈ
ＤＩＮ Ｒａｉｌ
Ｒａｉｌ Ｍｏｕｎｔｉｎｇ Ｈｏｌｅｓ

Ｉｆ ｉｔ ｉｓ ｐｌａｃｅｄ ｉｎ ａｎ ｏｕｔｄｏｏｒ ｅｎｖｉｒｏｎｍｅｎｔ， ｐｌｅａｓｅ ｉｎｓｔａｌｌ ｔｈｅ ｄｅｖｉｃｅ ｉｎ ａ
ｗａｔｅｒｐｒｏｏｆ ｃａｓｅ ｗｉｔｈ ａ ｈｅｉｇｈｔ ｏｆ ４５ｃｍ ｉｆ ｐｏｓｓｉｂｌｅ．
As showed in figure 3-2.
３－２ Ｗａｔｅｒｐｒｏｏｆ Ｃａｓｅ Ｉｎｓｔａｌｌａｔｉｏｎ
Installation 07
Ｂａｃｋｐｌａｔｅ
ＤＩＮ Ｒａｉｌ
Ｃａｂｌｅ

08 Installation
Ｃａｕｔｉｏｎｓ：
Ｗａｔｅｒｐｒｏｏｆ Ｅｔｈｅｒｎｅｔ ｃａｂｌｅｓ ｓｈｏｕｌｄ ｂｅ ｗｉｔｈ ａ
ｐｒｏｔｅｃｔｉｖｅ ｓｈｅａｔｈ． ＣＡＴ５ｅ／６ ｃａｂｌｅｓ ａｒｅ ｒｅｃｏｍｍｅｎｄｅｄ．
!
３．３ Ｉｎｓｐｅｃｔｉｏｎ
Ｉｎｓｐｅｃｔ ｔｈｅ ｉｎｓｔａｌｌｅｄ ｅｑｕｉｐｍｅｎｔ ｂｅｆｏｒｅ ｐｕｔｔｉｎｇ ｉｔ ｉｎｔｏ ｏｐｅｒａｔｉｏｎ：
Ｍａｋｅ ｓｕｒｅ ｔｈｅ Ｅｔｈｅｒｎｅｔ ｃａｂｌｅ ｃｏｎｎｅｃｔｉｏｎ ｉｓ ｃｏｒｒｅｃｔ．
３．２ Ｃｏｎｎｅｃｔｉｏｎ
Ａｆｔｅｒ ｉｎｓｔａｌｌａｔｉｏｎ ｉｓ ｄｏｎｅ， ｔｈｅ ｎｅｘｔ ｓｔｅｐ ｉｓ ｔｈｅ ｃｏｎｎｅｃｔｉｏｎ． Ｔｈｅ ｆｏｌｌｏｗｉｎｇ
ｐｒｅｃａｕｔｉｏｎｓ ｓｈｏｕｌｄ ｂｅ ｔａｋｅｎ ｗｈｅｎ ｃｏｎｎｅｃｔｉｎｇ ｔｈｅ Ｅｔｈｅｒｎｅｔ ｃａｂｌｅ：
３．２．１ Ｌａｙ ｔｈｅ ｃａｂｌｅ ａｃｃｏｒｄｉｎｇ ｔｏ ｔｈｅ ｄｅｓｉｇｎ ｒｅｑｕｉｒｅｍｅｎｔｓ． Ｔｈｅ ｃａｂｌｅ
ｓｈｏｕｌｄ ｂｅ ｌａｉｄ ｆｉｒｍｌｙ ａｎｄ ｎｅａｔｌｙ， ｗｉｔｈ ｎｏ ｃｒｏｓｓｉｎｇ， ｔｗｉｓｔｉｎｇ， ｏｒ ｃｒａｃｋｉｎｇ．
３．２．２ Ｄｏ ｎｏｔ ｌａｙ ｔｈｅ ｃａｂｌｅ ｔｏｇｅｔｈｅｒ ｗｉｔｈ ｈｉｇｈ－ｖｏｌｔａｇｅ ｐｉｐｅｌｉｎｅｓ， ｆｉｒｅ
ｐｉｐｅｌｉｎｅｓ， ｏｒ ｂｕｉｌｄｉｎｇ ｌｉｇｈｔｎｉｎｇ ｐｒｏｔｅｃｔｉｏｎ ｓｙｓｔｅｍｓ ｔｏ ａｖｏｉｄ ｉｎｔｅｒｆｅｒｅｎｃｅ
ｆｒｏｍ ｓｔｒｏｎｇ ｅｌｅｃｔｒｉｃｉｔｙ ｏｒ ｍａｇｎｅｔｉｓｍ．
３．２．３ Ｕｓｅ ＰＶＣ ｐｉｐｅｓ， ｉｒｏｎ ｐｉｐｅｓ， Ｐｒｉｌｋａ ｐｉｐｅｓ， ｏｒ ｃａｂｌｅ ｔｒａｙｓ ｆｏｒ ｃａｂｌｅ
ｌａｙｉｎｇ． Ｔｈｅ ｃａｂｌｅ ｔｒａｙｓ ｓｈｏｕｌｄ ｂｅ ｐｌａｃｅｄ ａｇａｉｎｓｔ ｔｈｅ ｗａｌｌ， ｗｉｔｈ ｎｅａｔ ａｎｄ
ｂｅａｕｔｉｆｕｌ ｒｏｕｔｉｎｇ． Ｓｏｆｔ ｈｏｓｅｓ ｏｒ ｅｌｂｏｗ ｊｏｉｎｔｓ ｓｈｏｕｌｄ ｂｅ ｕｓｅｄ ａｔ ｔｕｒｎｉｎｇ
ｐｏｉｎｔｓ． Ｔｈｅ ｃａｂｌｅ ｔｒａｙｓ ｓｈｏｕｌｄ ｂｅ ｓｅｃｕｒｅｄ ｗｉｔｈ ｃａｂｌｅ ｔｉｅｓ， ｈａｎｇｅｒｓ， ａｎｄ
ａｎｇｌｅ ｓｔｅｅｌｓ ａｔ ａ ｓｐａｃｉｎｇ ｏｆ １ ｔｏ １．５ ｍｅｔｅｒｓ． Ｉｆ ａ ｍｅｔａｌ ｃａｂｌｅ ｔｒａｙ ｉｓ ｕｓｅｄ，
ｉｔ ｓｈｏｕｌｄ ｂｅ ｇｒｏｕｎｄｅｄ ａｔ ｂｏｔｈ ｅｎｄｓ．
３．２．４ Ｆｏｒ ｏｕｔｄｏｏｒ ｈｏｒｉｚｏｎｔａｌ ｗｉｒｉｎｇ， ｐｌｅａｓｅ ｕｓｅ ａ ｓｌｏｔ ｅｖｅｒｙ ６ ｍｅｔｅｒｓ
ｕｎｄｅｒ ｔｈｅ ＰＶＣ ｐｉｐｅ ａｓ ａ ｄｒａｉｎ ｔｏ ｐｒｅｖｅｎｔ ｗａｔｅｒ ａｃｃｕｍｕｌａｔｉｏｎ ｉｎｓｉｄｅ ｔｈｅ
ｐｉｐｅ．
３．２．５ Ｔｈｅ ｗａｌｌ ｐｅｎｅｔｒａｔｉｏｎ ｆｏｒ ｔｈｅ Ｅｔｈｅｒｎｅｔ ｃａｂｌｅ ｓｈｏｕｌｄ ｂｅ ｓｅａｌｅｄ ｗｉｔｈ
ｗａｔｅｒｐｒｏｏｆ ａｎｄ ｆｌａｍｅ－ｒｅｔａｒｄａｎｔ ｍａｔｅｒｉａｌｓ

Qualication Card
PASS
Ｃｒｅａｔｉｖｅ Ｌｉａｎｊｉｅ Ｎｅｔｗｏｒｋ Ｔｅｃｈｎｏｌｏｇｙ Ｃｏ．Ｌｔｄ
www.procetpoe.com
