PROCET PT-PR01G User manual

PT-PR01G PoE Surge Protector
www.procetpoe.com
Quick Installation Guide

Declaration
Copyright ©2024 Creative Lianjie Network Technology Co.Ltd
All rights reserved.
Declaration
This document belongs to PROCET company. It is not allowed to reproduce and
modify without the original author's permission. It is PROCET's policy to improve
its products as new technology, components, software, and firmware at any time.
PROCET, therefore, reserves the right to change specifications without prior notice.
Please follow WEEE (Waste Electrical and Electronic Equipment) disposal
instructions for old electronic products.
Please do not dispose of the old product in your general household waste bin.
The symbol indicates that the product should notbe discarded as unsorted
waste but must be sent to separate collection facilities for recovery and recycling.

The installation Guide for PT-PR01G and mainly introduces the hardware
specification, installation methods, and precautions of the installation. There
may be differences in the appearance and configuration from other models. All
product images in this manual are for illustration purposes only and may differ
from the actual product.
This manual includes the following chapters:
1. Product Introduction. Including the basic functions and specification of
PT-PR01G, as well as the product appearance and applications introduction.
2. Installation Introduction. Introducing the preparation work and precautions
before installing the product.
3.
Overview
Product Installation.
Network Engineers
Network Administrators
Field Technicians
Overview
For whom

T
1.1 Introduction.......................................................................01
1.2 Appearance.......................................................................01
Table of Contents
1.3 Specification.....................................................................03
2.1 Package Contents........................................................... 04
2.2 Installation Toolkits......................................................... 04
2.3 Inspection........................................................................... 04
2.4 Caution.................................................................................05
able of Contents
1. Introduction 01
2. Installation Preparation 04
3. Installation 06
3.1 Mounting Installation.................................................... 06
3.2 Inspection...........................................................................08
3.3 Grounding...........................................................................08

1. I
Introduction 01
ntroduction
1.1 Introduction
1.2 Appearance
Upper View
PT-PR01G is a single-port Ethernet surge protector. Enclosed in an Aluminum
Alloy shell, with a silver color exterior, complemented by an anodized
aluminum surface. Enhanced RJ45 socket exhibits minimal signal attenuation.
High-quality Gas discharge tube(GDT). Withstand extreme environmental
conditions within a temperature range of -40 to 85 degrees Celsius.
Max Discharge Current: 10KA (8/20us, 1.25KA per line). Supports power of
120W, 60Vdc(max) Ethernet equipment.
PT-PR01G can not only work with IEEE802.3af/at/bt/PoE++ standard devices,
but also supports non-standard Ethernet equipment, that well protects your
devices against surge damage.
The common mode surge voltage exceeds 10KV(10/700us) and the
differential mode surge voltage is 1.5KV(10/700us).

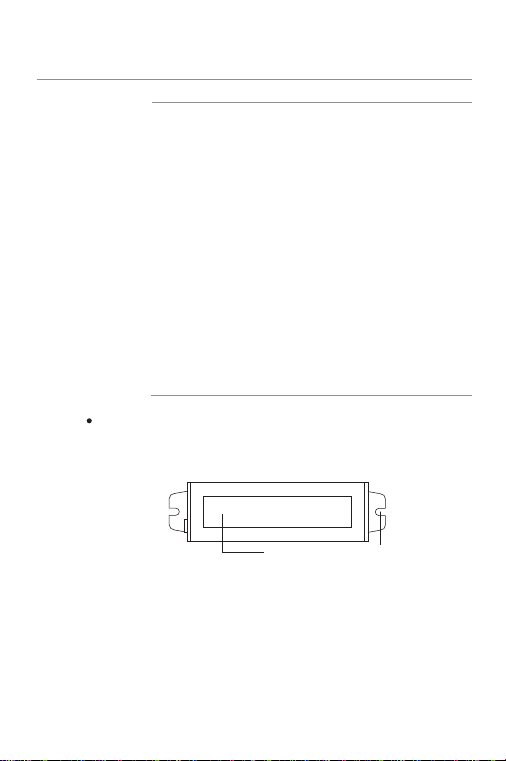

1-1 Upper View
Label Fixing Holes

02 Introduction

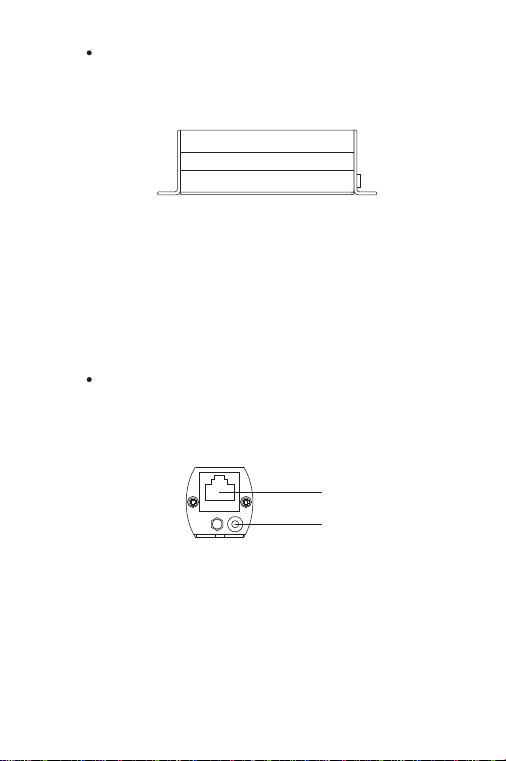

1-2 Side View
1-3 Front View
Side View
Front View
PoE Input Or
PoE Output
GND Terminal

Introduction 03
1.3 Specification
Items
Input Voltage
Description
1A for 2 pairs, 2A for 4 pairs
O
120W Max
perating Temp.
Operating Humidity
Operating Altitude
Storge Temp.
Storge Humidity
-40℃ to 85℃
20%-80%，non-condensation
Up to 5000 meters
-40℃ to 85℃
10%-90%，non-condensation
103mm X 28mm X 30mm（71.5g）
CE
IP40
IP Rated
Regulatory Compliance
Dimensions &NW
Data Speed 10/100/1000Mbps
60Vdc (Max)
Maximum Operating Power
10KA(8/20us,1.25KA per line)
Max Discharge Current
Maximum Operating Current
PoE Surge Protection
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 10KV
Differential Mode Protection Level(10/700us): 1.5KV

2. I
04 Installation
nstallation

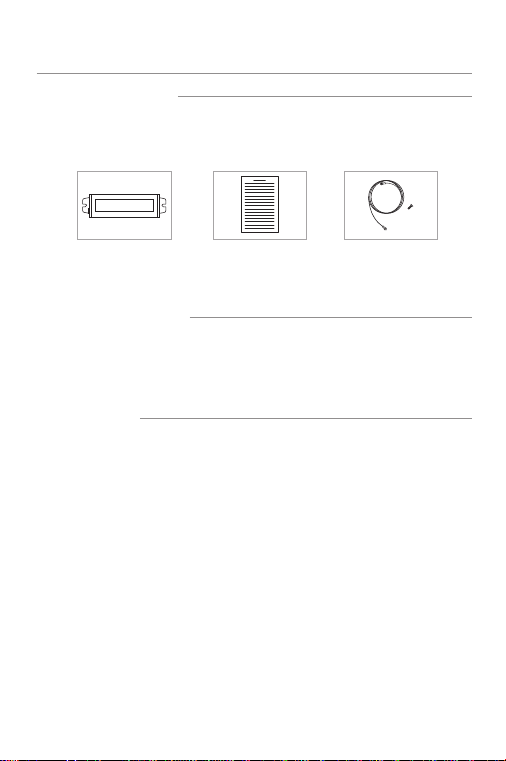

2.1 Packing Contents
Open the box of the PT-PR01G and carefully unpack it,
the box should contain the following items:
2.2 Installation Toolkits
These tools may be needed during equipment installation, and should be
prepared by yourself: level ruler, marking pen, craft knife, wire stripper,
network pliers, impact drill,different matching drilbits, rubber hammer,
cross screwdriver, wrench, ladder, etc.
2.3 Inspection
Connect the PT-PR01G with the protected device, and check if the terminal
device work normally.
PT-PR01G Operating Manual Ground
lug Wire& M6
screw

2-1
Installation 05
Device Connection
Switch
PT-PR01G
PT-PR01G
GND Terminal
PD
Caution：
We recommend to use Cat5 or higher UTP/STP cables
for 100Base-TX Ethernet；
We recommend to use Cat5e or above UTP/STP cables
for 1000Base-T Ethernet.
!
GND Terminal
≤
≤50cm
50cm
2.4 Caution
1.This device is for indoor use only. If you need to use it outdoors, please use it
with a waterproof case.
2.Please use Cat 5e or ethernet cables with shielding.
3.Grounding is required when using.
4.It is recommended to place the device in close proximity to the protected
equipment with a distance of ≤50cm.
Vertical installation is also recommended with a tilt angle not exceeding 50°.
5.Please install the device on a wall or metal back panel. Do not use a
wooden back panel to prevent the risk of fire.

3. Installation
3.1 Wall mounting
06 Installation

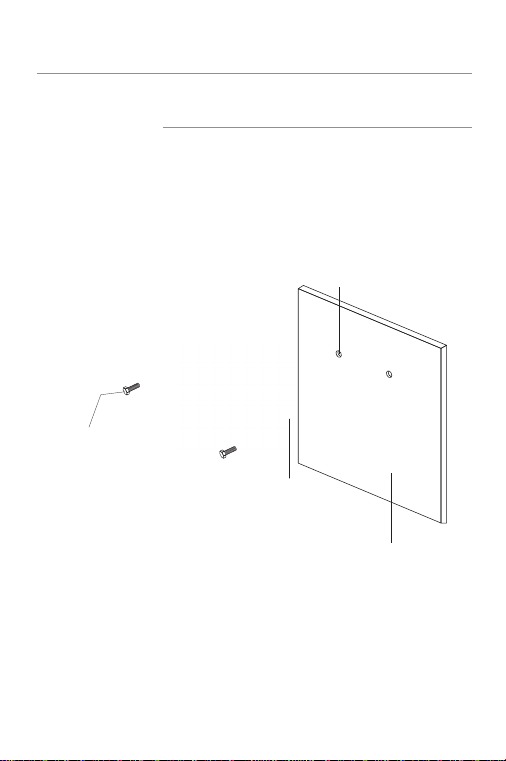

This product is safe to use wall-mounted installation.
3-1 Wall mounting installation
Fixing holes
Screw holes
Screws
Backplate
If it is placed in an outdoor environment, please install the device in a
waterproof case with a height of 45cm if possible.
3.1.1Fix the product with screws and tighten them into the screw
holes.

3-2 Installation in waterproof case
Installation 07
Backplate
Cables
GND
Screws
Fixing screws
Backplate
Grounding
Lug wires Cables

08 Installation
Caution：
Waterproof Ethernet cables should be with a
protective sheath. CAT5e/6 cables are recommended.
!
3.2 Inspection
Inspect the installed equipment before putting it into operation：
· Make sure the PD connected can work normal.
· Make sure the Ethernet cable connection is correct.
· Make sure the Grounding is correct.
3.3 Grounding
2.5 Scre
GND Terminal
w
Grounding Busbar

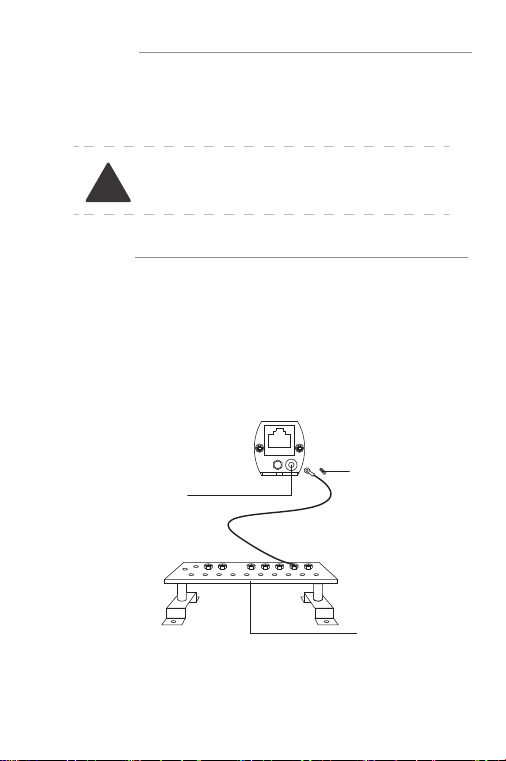

PROCET Single port PoE surge protector PT-PR01G has the following grounding
solutions for reference
during construction:
If the installation is in the computer room, it can be connected to the
dedicated grounding busbar in the room.The grounding busbar is a
connecting conductor between the grounding bodies of the building,
such as flat iron, flat steel, nanomaterial conductors, copper-clad steel,
3-3 Grounding
etc. Pls refer to the figure 3-3.

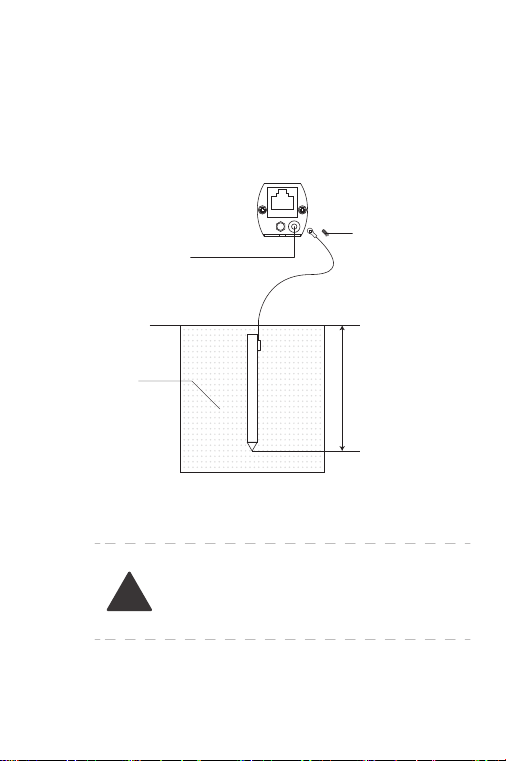

For the safety of personnel and equipment in an environment without dedicat
ed grounding equipment, a simple grounding device can be constructed as
follows:
a. Prepare a 6mm 2 grounding wire or a braided soft copper wire.
b. Prepare a copper tube or angleiron,or other metal tube, bury it
underground to a depth of one meter or more as a grounding electrode.
c. Use the grounding wire to connect the external grounding
Installation 09
terminal of the product to the metal tube. (or angle iron)
Cautions:
Use a galvanized metal pipe buried underground at a d
epth of one meter or more, such as a water or sew age
pipe, as an emergency grounding if no other grounding
environment is available.
!
2200
2.5 Scre
3-4 Simple Grounding
Grounding
w
MM
Soil
GND Terminal

Qualication Card
PASS
Creative Lianjie Network Technology Co.Ltd
www.procetpoe.com
