Procom HearthSense BF30T-BB Quick start guide

VENT-FREE GAS WALL
HEATER
OWNER’S OPERATION AND
INSTALLATION MANUAL
BLUE FLAME MODELS
BF30T-BB
WARNING: If the information in this manual is not
followed exactly, a re or explosion may result causing
property damage, personal injury or loss of life.
— Do not store or use gasoline or other ammable va-
pors and liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re
department.
— Installation and service must be performed by a quali-
ed installer, service agency or the gas supplier.
WARNING: This appliance is equipped for natural and
propane gas. Field conversion is not permitted other than
between natural or propane gases.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service department at
1-866-573-0674, 8:00 am - 4:30 pm CST, Monday through Friday

HearthSense 200549-05A2
TABLE OF CONTENTS
Safety ........................................................ 3
Qualied Installing Agency ........................ 4
Specications ............................................ 5
Product Features....................................... 5
Local Codes............................................... 5
Preparing For Installation .......................... 6
Unpacking.................................................. 6
Water Vapor: A By-Product Of
Unvented Room Heaters....................... 6

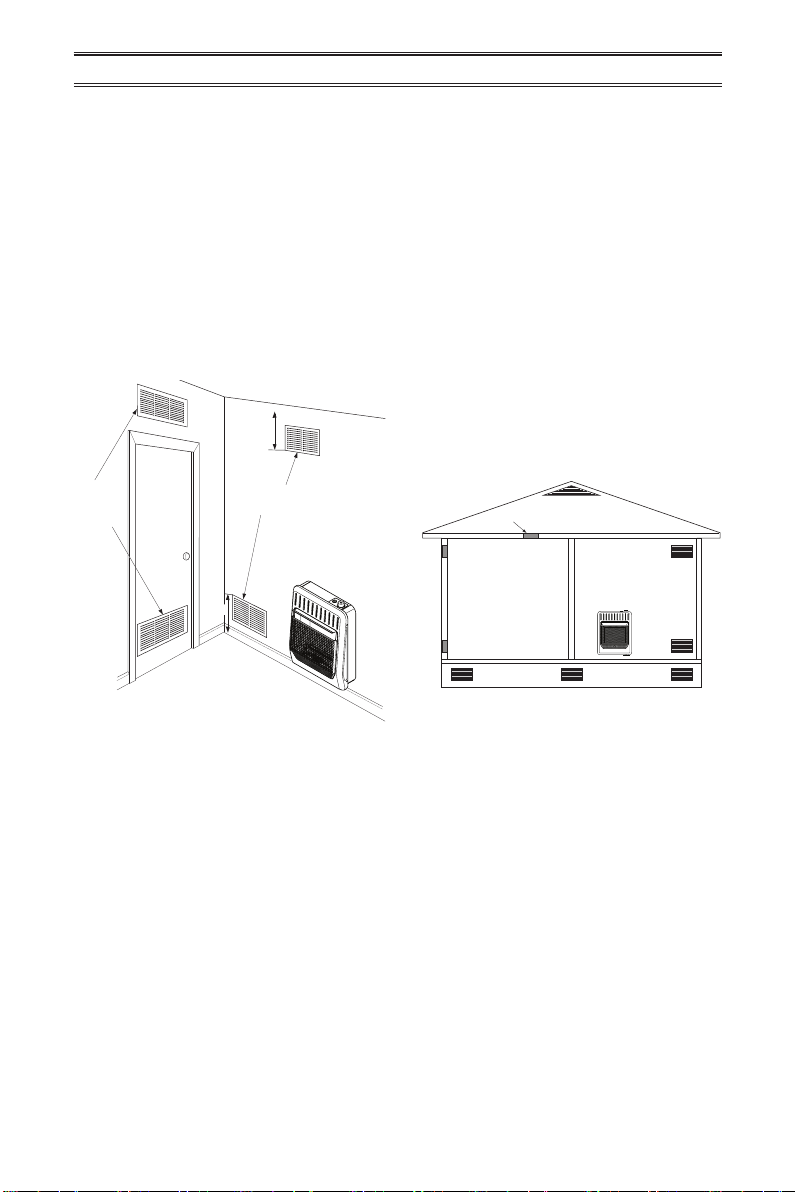

Air For Combustion and Ventilation........... 7

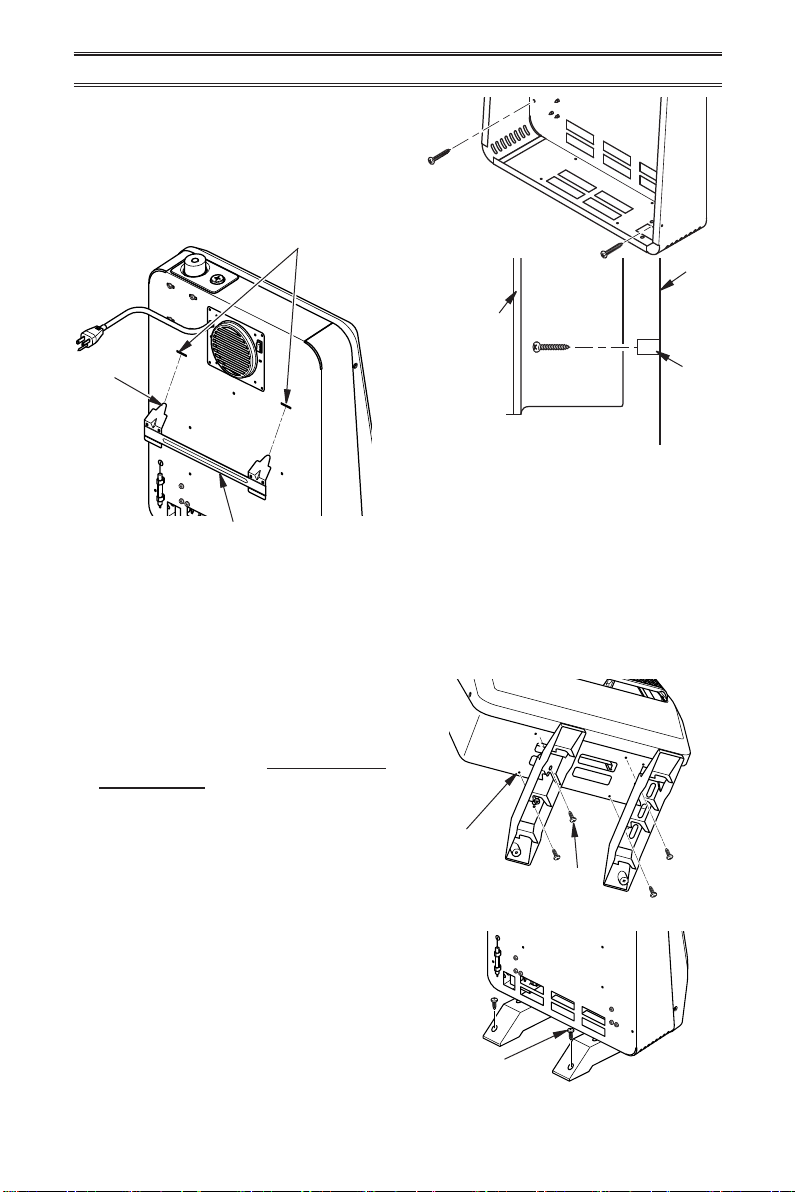

Installation ................................................. 9

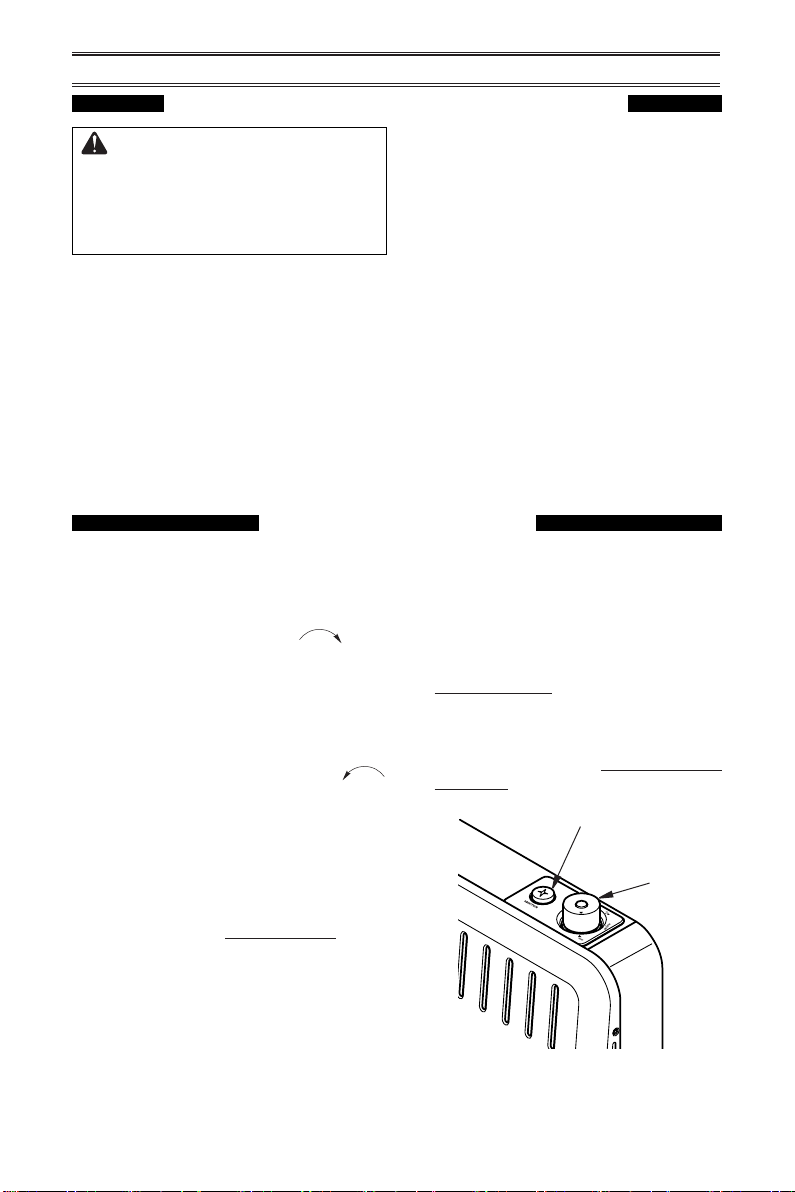

Operation................................................. 18

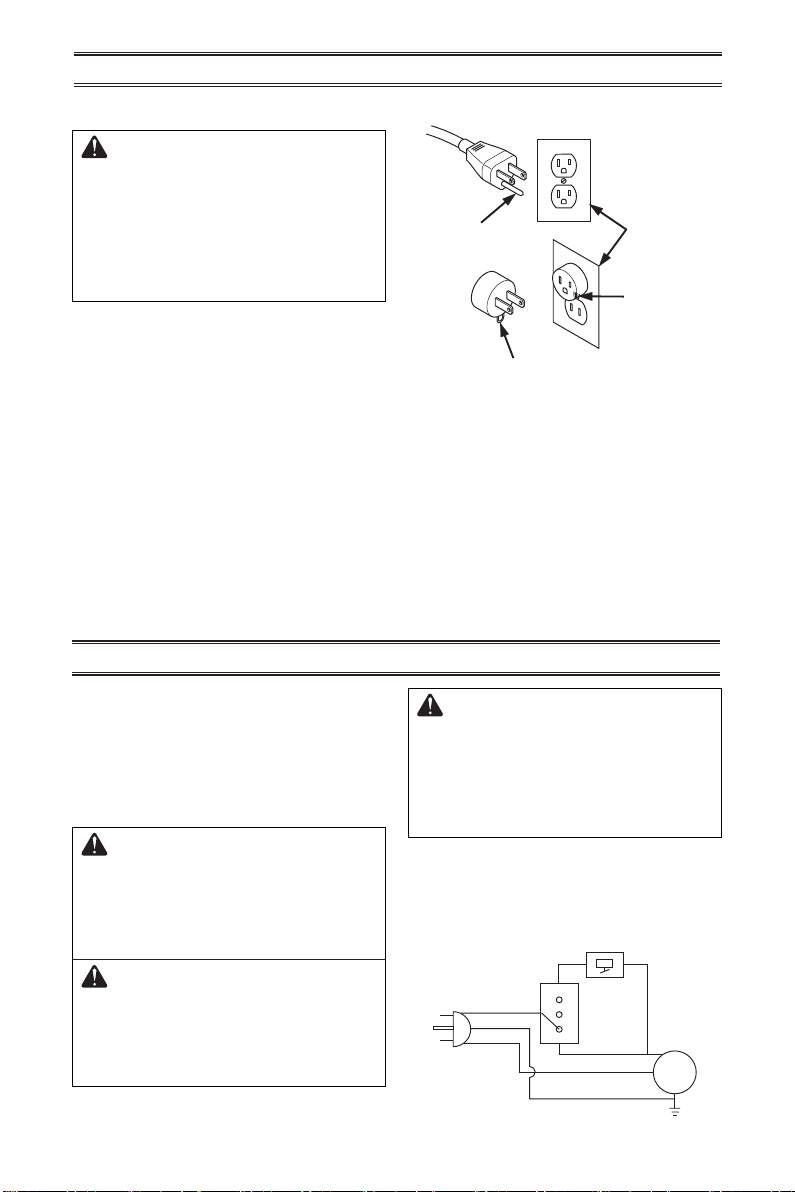

Electrical Connection............................... 20
Electrical Wiring....................................... 20
Inspecting Burners................................... 21
Care And Maintenance............................ 22
Troubleshooting....................................... 23
Technical Service..................................... 26
Replacement Parts.................................. 27
Accessories ............................................. 27
Service Hints ........................................... 27
Warranty .................................................. 32
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This is an unvented gas-red heater. It uses air (oxygen)
from the room in which it is installed. Provisions for ad-
equate combustion and ventilation air must be provided.
Refer to Air For Combustion and Ventilation section on
page 7 of this manual.
WARNING: Improper installation, adjustment, al-
teration, service or maintenance can cause injury or
property damage. Refer to this manual for correct in-
stallation and operational procedures. For assistance
or additional information consult a qualied installer,
service agency or the gas supplier.
This appliance may be installed in an aftermarket,* per-
manently located, manufactured (mobile) home, where
not prohibited by local codes.
This appliance is only for use with propane or natural
gas. Field conversion by any other means including the
use of a kit is not permitted.
* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.
SAVE THIS BOOK
PATENT INFORMATION
This product may be covered by one or more of the following United States patents:
9,829,195 9,423,123 9,441,833 9,518,732 9,752,779 9,416,977 8,764,436
8,568,136 8,516,878 8,297,968 8,281,781 8,235,708 7,967,006
7,967,007 7,730,765 7,677,236 7,607,426 7,434,447

HearthSense 3200549-05A
SAFETY
IMPORTANT: Read this owner’s
manual carefully and completely
before trying to assemble, op-
erate, or service this heater.
Improper use of this heater can
cause serious injury or death
from burns, fire, explosion,
electrical shock and carbon
monoxide poisoning.
Only a qualied installer, service
agent, or local gas supplier may
install and service this product.
WARNING: Keep the appli-
ance area clear and free from
combustible materials, gasoline,
and other ammable vapors and
liquids.
WARNING: This appliance
can be used with propane or
natural gas. It is shipped from
the factory adjusted for use with
propane.
This appliance is only for use
with the type of gas indicated on
the rating plate. This appliance
is not convertible for use with
other gases.
DANGER: Carbon monoxide
poisoning may lead to death!
CARBON MONOXIDE POISONING: Early
signs of carbon monoxide poisoning resemble
the u, with headaches, dizziness or nausea.
If you have these signs, the heater may not be
working properly. Get fresh air at once! Have
heater serviced. Some people are more af-
fected by carbon monoxide than others. These
include pregnant women, people with heart or
lung disease or anemia, those under the inu-
ence of alcohol and those at high altitudes.
NATURAL AND PROPANE GAS: Natural and
propane gas are odorless. An odor-making
agent is added to the gas. The odor helps you
detect a gas leak. However, the odor added to
the gas can fade. Gas may be present even
though no odor exists.
WARNING: FIRE, EXPLOSION
AND ASPHYXIATION HAZARD
Improper adjustment, altera-
tion, service, maintenance, or
installation of this heater or its
controls can cause death or
serious injury.
Readandfollowinstructionsand
precautions in User's Informa-
tion Manual provided with this
heater.
WARNING: Do not use any
accessories not approved for
use with this heater.
WARNING: Carefully super-
vise young children when they
are in the room with the heater.
WARNING: The re screen or
guard designed for this unvent-
ed appliance must be installed
prior to operation.
WARNING: Due to high tem-
peratures, the appliance should
be located out of tra󰀩c and away
from furniture and draperies.
WARNING: Heater becomes
very hot when running. Children
and adults should be alerted
to the hazards of high surface
temperatures and should stay
away to avoid burns and cloth-
ing ignition. Heater will remain
hot for a time after shuto󰀨. Allow
surfaces to cool before touching.

HearthSense 200549-05A4
WARNING: Do not place
clothing or other flammable
material on or near the appli-
ance. Never place any objects
in the heater.

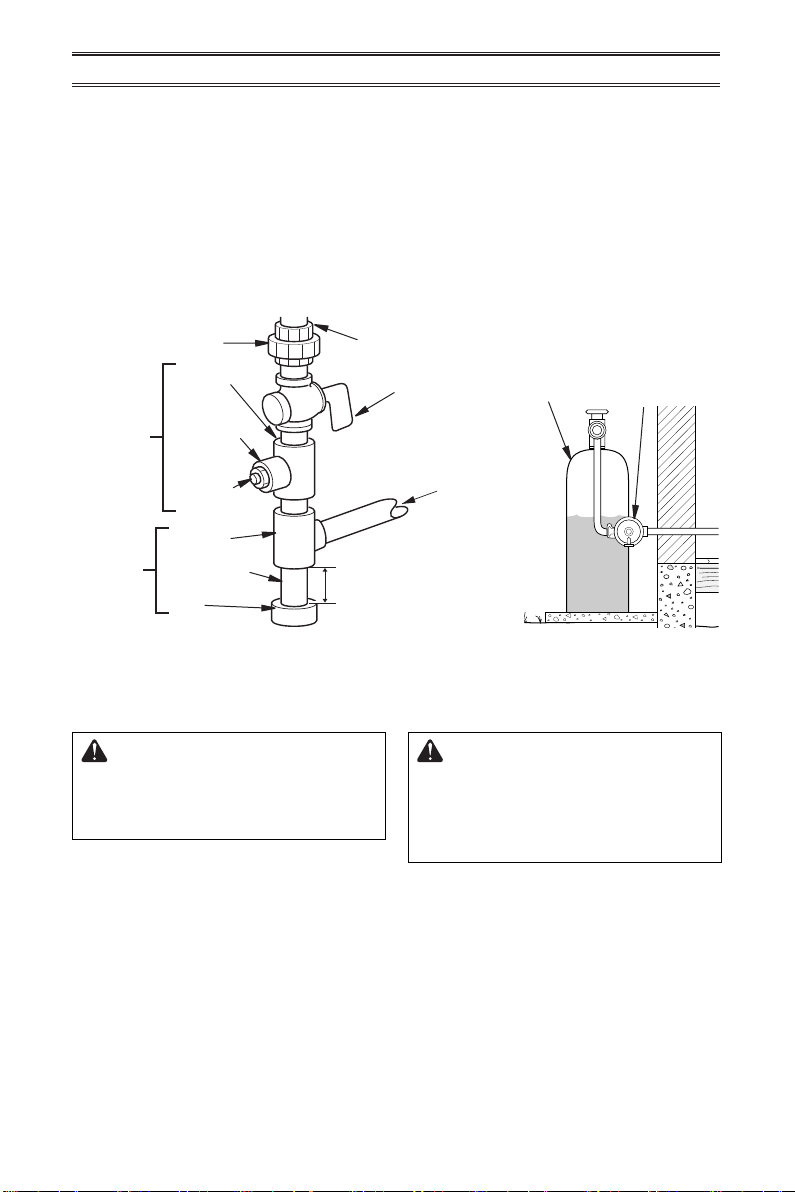

1. Do not place propane supply tank(s) inside
any structure. Propane supply tank(s)
must be placed outdoors.
2. Heaters with a maximum input over
6,000 Btu/Hr shall not be installed in a
bathroom. Heaters with a maximum input
over 10,000 Btu/Hr shall not be installed
in a bedroom.
3. This heater needs fresh air ventilation to
run properly. This heater has an Oxygen
Depletion Sensing (ODS) safety shuto󰀨
system. The ODS shuts down the heater
if not enough fresh air is available. See Air
for Combustion and Ventilation, pages 7
through 9. If heater keeps shutting o󰀨, see
Troubleshooting, page 23.
4. Keep all air openings in front and bottom
of heater clear and free of debris. This will
ensure enough air for proper combustion.
5. If heater shuts o󰀨, do not relight until you
have provided fresh, outside air. If heater
keeps shutting o󰀨, have it serviced.
6. Do not run heater:
• Where ammable liquids or vapors are
used or stored.
• Under dusty conditions.
7. Before using furniture polish, wax, carpet
cleaner, or similar products, turn heater o󰀨.
If heated, the vapors from these products
SAFETY
may create a white powder residue within
burner box or on adjacent walls or furniture.
8. Do not use heater if any part has been
under water. Immediately call a qualied
service technician to inspect the room
heater and to replace any part of the
control system and any gas control which
has been under water.
9. Turn o󰀨 and unplug heater and let cool
before servicing. Only a qualied service
person should service and repair heater.
10. Operating heater above elevations of
4,500 feet could cause pilot outage.
11. To prevent performance problems, do not
use propane fuel tank of less than 100 lbs.
capacity.
QUALIFIED INSTALLING AGENCY
Only a qualied agency should install and
replace gas piping, gas utilization equipment
or accessories, and repair and equipment ser-
vicing. The term “qualied agency” means any
individual, rm, corporation, or company that
either in person or through a representative
is engaged in and is responsible for:
a) Installing, testing, or replacing gas piping
or
b) Connecting, installing, testing, repairing,
or servicing equipment; that is experienced
in such work; that is familiar with all precau-
tions required; and that has complied with
all the requirement of the authority having
jurisdiction.

HearthSense 5200549-05A
SPECIFICATIONS
Model BF30T-BB
Ignition Piezo Ignitor
Gas Type Natural Propane
BTU/Hr Input Max. (available) 30,000 30,000
BTU/Hr Input Min. (available) 15,000 24,000
Pressure Regulator Setting 4" W.C. 9" W.C.
Inlet Gas Pressure*
(inches of water)
Max. 9.5" Max. 14"
Min. 5" Min. 11"
Heater Dimensions (HxWxD) 24.1" x 25.5 x 8.46"
Carton Dimensions (HxWxD) 26.18" x 28.15" x 9.84"
Heater Weight 27.6 lbs
Shipping Weight 31.9 lbs
Electrical Requirement for Blower Kit (included)
Voltage • 120 VAC, 60 Hz
Note: Dimensions listed are outer most points on the
heater (includes control knobs and grill).
* For purposes of input adjustment.
PRODUCT FEATURES
SAFETY PILOT

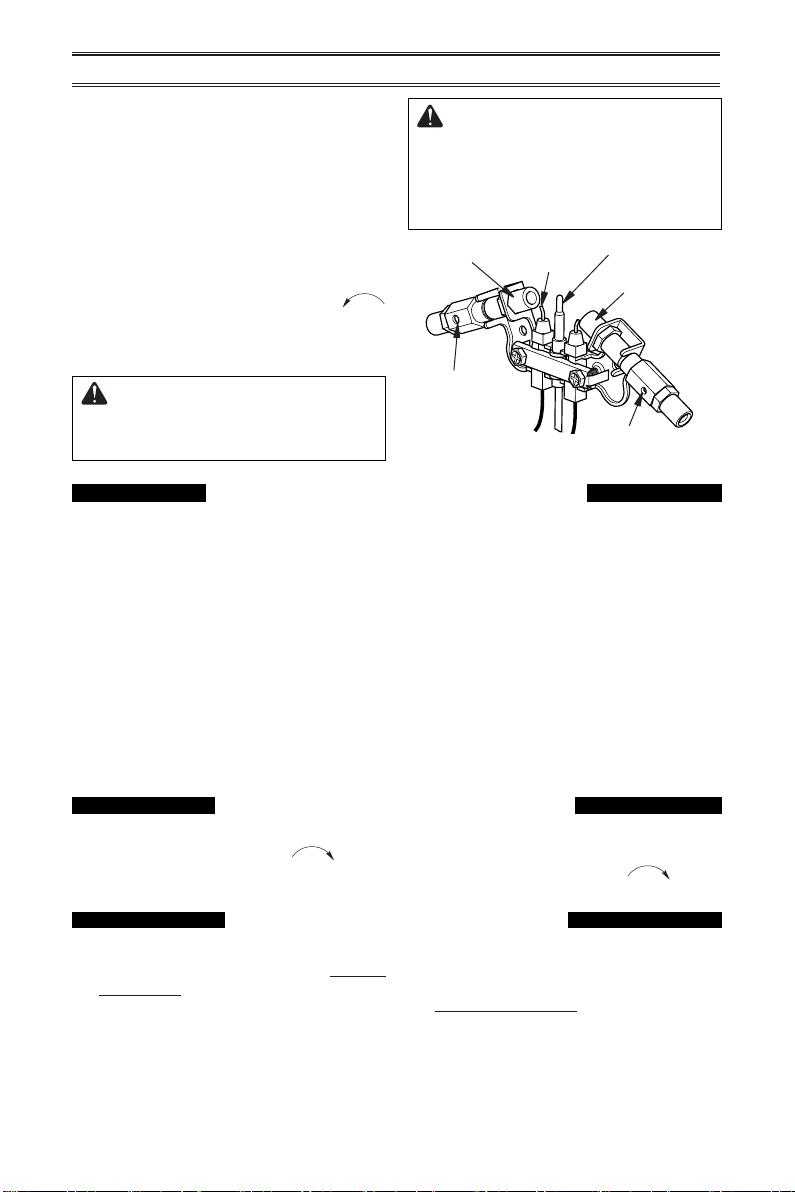

This heater has a pilot with an Oxygen Deple-
tion Sensing (ODS) safety shuto󰀨 system. The
ODS/pilot shuts o󰀨 the heater if there is not
enough fresh air.
THERMOSTATIC CONTROL
The control automatically cycles the burner
on and off to maintain a desired room
temperature.

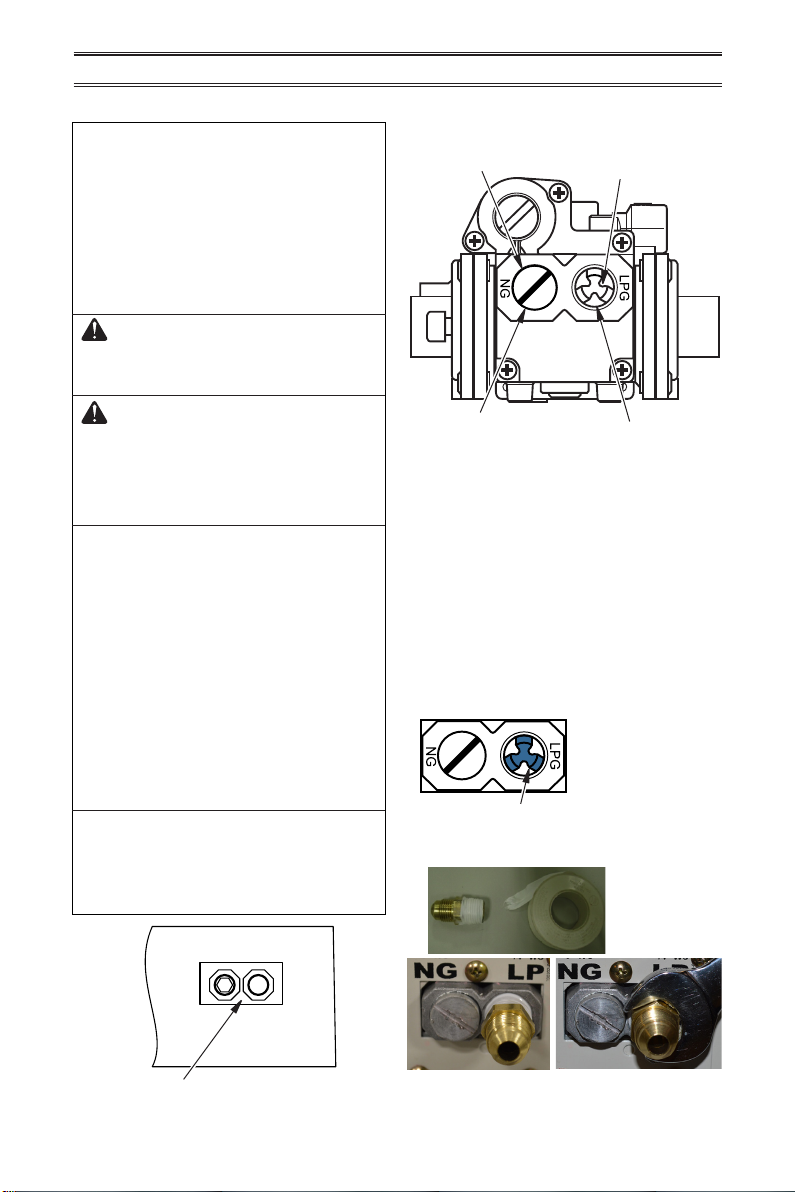

2 GAS OPTIONS AVAILABLE
Your heater is equipped to operate on either
propane or natural gas. The heater is shipped
from the factory ready for connecting to pro-
pane. The heater can easily be changed to
natural gas by having your qualied installer
follow the instructions on page 13 and the
markings on the heater.
LOCAL CODES
Install and use heater with care. Follow all
local codes. In the absence of local codes,
use the latest edition of The National Fuel
Gas Code, ANSI Z223.1/NFPA 54*.
*Available from:
American National Standards Institute, Inc.
25 West 43rd Street
New York, NY 10036
National Fire Protection Association, Inc.
1 Batterymarch Park
Quincy, MA 02269-9101
This heater is designed for vent-free op-
eration. State and local codes in some areas
prohibit the use of vent-free heaters.
State of Massachusetts: The installation
must be made by a licensed plumber or
gas tter in the Commonwealth of Mas-
sachusetts.
Sellers of unvented propane or natural
gas-red supplemental room heaters shall
provide to each purchaser a copy of 527
CMR 30 upon sale of the unit.
In the State of Massachusetts the gas
cock must be a T-handle type. The State
of Massachusetts requires that a exible
appliance connector cannot exceed three
feet in length.

HearthSense 200549-05A6
PREPARING FOR INSTALLATION
Before beginning assembly or operation of
the product, make sure all parts are present.
Compare parts with package contents list and
Figure 1. If any part is missing or damaged,
do not attempt to assemble, install or operate
the product. Contact customer service for
replacement parts.
UNPACKING
1. Remove heater from carton.
2. Remove all protective packaging applied
to heater for shipping
Figure 1 - Vent-Free Gas Heater
Control
Knob
Ignitor Button
Front
Panel
Grill Burner
Heater Cabinet
3. Check heater for any shipping damage. If
heater is damaged, promptly inform dealer
where you bought heater.
WATER VAPOR: A BY-PRODUCT OF
UNVENTED ROOM HEATERS
Water vapor is a by-product of gas combus-
tion. An unvented room heater produces ap-
proximately one (1) ounce (30 mL) of water for
every 1,000 BTUs (0.3 KWs) of gas input per
hour. Unvented room heaters are recommended
as supplemental heat (a room) rather than a
primary heat source (an entire house). In most
supplemental heat applications, the water vapor
does not create a problem. In most applications,
the water vapor enhances the low humidity
atmosphere experienced during cold weather.
The following steps will help ensure that water
vapor does not become a problem.
1. Be sure the heater is sized properly for the
application, including ample combustion
air and circulation air.
2. If high humidity is experienced, a dehu-
midier may be used to help lower the
water vapor content of the air.
3. Do not use an unvented room heater as
the primary heat source.

HearthSense 7200549-05A
AIR FOR COMBUSTION AND VENTILATION
WARNING: This heater shall
not be installed in a conned space
or unusually tight construction
unless provisions are provided
for adequate combustion and
ventilation air. Read the following
instructions to insure proper fresh
air for this and other fuel-burning
appliances in your home.
Today’s homes are built more energy e󰀩cient
than ever. New materials, increased insulation
and new construction methods help reduce
heat loss in homes. Home owners weather
strip and caulk around windows and doors
to keep the cold air out and the warm air in.
During heating months, home owners want
their homes as airtight as possible.
While it is good to make your home energy
e󰀩cient, your home needs to breathe. Fresh
air must enter your home. All fuel-burning ap-
pliances need fresh air for proper combustion
and ventilation.
Exhaust fans, replaces, clothes dryers and
fuel burning appliances draw air from the house
to operate. You must provide adequate fresh
air for these appliances. This will insure proper
venting of vented fuel-burning appliances.
WARNING: This heater shall
not be installed in a room or
space unless the required vol-
ume of indoor combustion air
is provided by the method de-
scribed in the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, the
International Fuel Gas Code, or
applicable local codes.
WARNING: Iftheareainwhich
the heater may be operated is
smaller than that dened as
an unconned space or if the
building is of unusually tight
construction, provide adequate
combustion and ventilation air
by one of the methods described
in the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, the In-
ternational Fuel Gas Code, or
applicable local codes.

HearthSense 200549-05A8
VENTILATION AIR
AIR FOR COMBUSTION AND VENTILATION
Outlet
Air
Ventilated
Attic
Outlet
Air
Inlet
Air
Inlet Air Ventilated
Crawl Space
To
Crawl
Space
To Attic
Figure 2 - Ventilation Air from Inside
Building
Figure 3 - Ventilation Air from Outdoors
Or
Remove
Door into
Adjoining
Room,
Option 3
Ventilation Grills
Into Adjoining Room,
Option 2
12"
12"
Ventilation
Grills
into Adjoining
Room,
Option 1
Ventilation Air From Inside Building
This fresh air would come from an adjoining
unconned space. When ventilating to an
adjoining unconned space, you must provide
two permanent openings: one within 12" of the
ceiling and one within 12" of the oor on the
wall connecting the two spaces (see options
1 and 2, Figure 2). You can also remove door
into adjoining room (see option 3, Figure 2).
Follow the National Fuel Gas Code, ANSI
Z223.1/NFPA 54, Air for Combustion and
Ventilation for required size of ventilation
grills or ducts.
Ventilation Air From Outdoors
Provide extra fresh air by using ventilation
grills or ducts. You must provide two perma-
nent openings: one within 12" of the ceiling
and one within 12" of the oor. Connect these
items directly to the outdoors or spaces open
to the outdoors. These spaces include attics
and crawl spaces. Follow the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Air for
Combustion and Ventilation for required size
of ventilation grills or ducts.
IMPORTANT: Do not provide openings
for inlet or outlet air into attic if attic has a
thermostat-controlled power vent. Heated air
entering the attic will activate the power vent.
Rework worksheet, adding the space of the
adjoining unconned space. The combined
spaces must have enough fresh air to supply
all appliances in both spaces.

HearthSense 9200549-05A
INSTALLATION
NOTICE: This heater is intended
for use as supplemental heat. Use
this heater along with your primary
heating system. Do not install this
heater as your primary heat source.
If you have a central heating system,
you may run system’s circulating
blower while using heater. This will
help circulate the heat throughout
the house. In the event of a power
outage, you can use this heater as
your primary heat source.
CAUTION: When installing
heater in a home garage
• heater pilot and burner must
be at least 18" above oor
• locate heater where moving
vehicle will not hit it
WARNING: A qualied ser-
vice person must install heater.
Follow all local codes.
WARNING: Never install the
heater
• in a bedroom or a bathroom
• in a recreational vehicle
• wherecurtains,furniture,cloth-
ing, or other ammable objects
are less than 36" from the front,
top, or sides of the heater
• in high tra󰀩c areas
• in windy or drafty areas
CAUTION: This heater creates
warm air currents. These currents
move heat to wall surfaces next
to heater. Installing heater next
to vinyl or cloth wall coverings or
operating heater where impurities
(such as tobacco smoke, aromatic
candles, cleaning uids, oil or
kerosene lamps, etc.) in the air
exist, may cause walls to discolor.

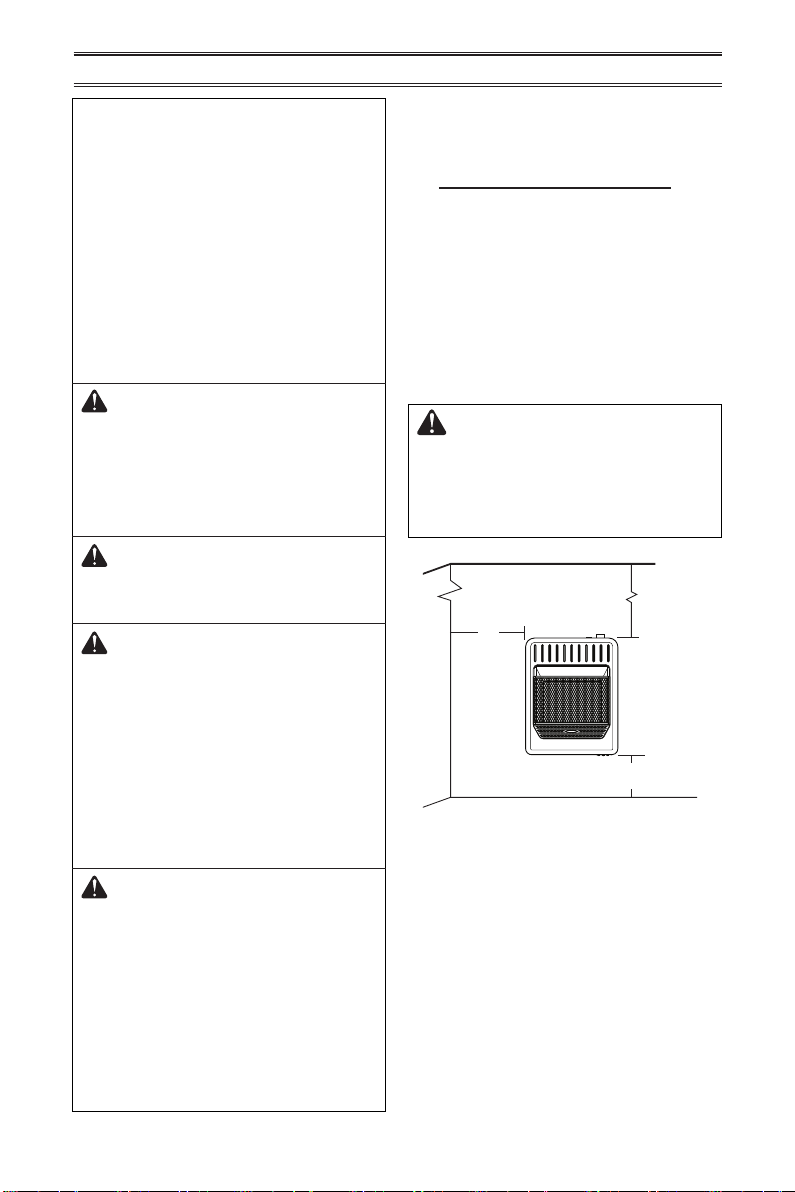

Figure 4 - Mounting Clearances as
Viewed From Front of Heater
IMPORTANT: Vent-free heaters add moisture
to the air. Although this is benecial, installing
heater in rooms without enough ventilation air
may cause mildew to form too much moisture.
See Air for Combustion and Ventilation, pages
7 and 8.
CHECK GAS TYPE
Be sure your gas supply is right for your heat-
er. Otherwise, call dealer where you bought
the heater for proper type heater.
CLEARANCES TO
COMBUSTIBLES
Carefully follow the instructions below. This
heater is a freestanding unit designed to be
mounted on a wall or set on a base.
WARNING: Maintain the
minimum clearances shown in
Figure 4. If you can, provide
greater clearances from oor,
ceiling, and joining wall.
CEILING
36"
Minimum
6"
Minimum
From
Sides of
Heater
Left
Side
Right
Side
2" Minimum to Top Surface of Carpeting,
Tile or Other Combustible Material
FLOOR
LOCATING HEATER
This heater is designed to be mounted on a
wall. For convenience and e󰀩ciency, install
heater:
1. Where there is easy access for operation,
inspection, and service.
2. In the coldest part of room.
When installing the appliance directly on car-
peting, tile or other combustible material other
than wood ooring, the appliance shall be
installed on a metal or wood panel extended
the full width and depth of the appliance.

HearthSense 200549-05A10
Figure 5 - Moving Thermostat Sensing
Bulb
Figure 6 - Removing Front Panel
INSTALLATION
1. Carefully remove bulb clips with ther-
mostat sensing bulb from the shipping
position in the back panel, see Figure 5.
2. Insert bulb clips into 2 rectangular slots
beside the shipping location (relocation
position). If clips are damaged replace with
clips located in the hardware package.
FASTENING HEATER TO WALL
INSTALLING THERMOSTAT SENSING BULB (OPTIONAL)
For Heaters with Blower Installed Only
REMOVING FRONT PANEL
Screw
Front
Panel
1. Remove 4 screws securing front panel.
2. Carefully slide front panel forward.
Mounting Bracket
The mounting bracket is located on back panel
of heater. It has been taped there for shipping.
Remove mounting bracket from back panel.
Methods For Attaching Mounting
Bracket To Wall
Use only the last hole on each end of mount-
ing bracket to attach bracket to wall. Attach
mounting bracket to a wall only in one of two
ways:
1. Attaching to wall stud: This method pro-
vides the strongest hold. Insert mounting
screws through mounting bracket and into
wall studs.
2. Attaching to wall anchor: This method
allows you to attach mounting bracket to
hollow walls (wall areas between studs)
or to solid walls (concrete or masonry).
Decide which method better suits your needs.
Either method will provide a secure hold for
the mounting bracket.
Thermostat
Sensing
Bulb
Relocation
Location
Thermostat Sensing Bulb Shipping Position
Bulb Clip
Capillary
Thermostat Sensing Bulb

HearthSense 11200549-05A
10 1/8"
Min. 17 3/8"
18"
Min.
Only Insert Mounting
Screws Through Last
Hole On Each End
Adjoining Wall
Non-combustible Flooring or Top of
Combustible Tile Carpeting or Other Material
Figure 7 - Mounting Bracket Clearances
INSTALLATION
Figure 8 - Folding Anchor
Figure 9 - Popping Open Anchor Wings
For Thin Walls
Attaching to Wall Anchor Method
For attaching mounting bracket to hollow
walls (wall areas between studs) or solid walls
(concrete or masonry):
1. Drill holes at marked locations using
5/16" drill bit. For solid walls (concrete or
masonry), drill at least 1" deep.
2. Fold wall anchor as shown in Figure 8.
3. Insert wall anchor (wings rst) into hole.
Tap anchor ush to wall.
4. For thin walls (1/2" or less), insert red key
into wall anchor. Push red key to “pop”
open anchor wings (see Figure 9).
IMPORTANT: Do not hammer anchor key! For
thick walls (over 1/2" thick) or solid walls, do
not pop open wings.
5. Place mounting bracket onto wall. Line up
last hole on each end of bracket with wall
anchors.
6. Insert mounting screws through bracket
and into wall anchors.
7. Tighten screws until mounting bracket is
rmly fastened to wall.
Marking Screw Locations
1. Tape mounting bracket to wall where
heater will be located. Make sure mount-
ing bracket is level.
WARNING: Maintain mini-
mum clearances shown in Figure
4, page 9. If you can, provide
greater clearances from oor
and joining wall.
2. Mark screw locations on wall (see Fig-
ure 7). Note: Mark only last hole on each
end of mounting bracket. Insert mounting
screws through these holes only.
3. Remove tape and mounting bracket from
wall.
Attaching Mounting Bracket To Wall
Note: Wall anchors, mounting screws, and
spacers are in hardware package. The hard-
ware package is provided with heater.
Attaching to Wall Stud Method
For attaching mounting bracket to wall studs:
1. Drill holes at marked locations using 9/64"
drill bit.
2. Place mounting bracket onto wall. Line
up last hole on each end of bracket with
holes drilled in wall.
3. Insert mounting screws through bracket
and into wall studs.
4. Tighten screws until mounting bracket is
rmly fastened to wall studs.

HearthSense 200549-05A12
INSTALLATION
Installing Wall Spacers
1. Place heater on wall mounting bracket.
2. Mark screw locations on wall.
3. Remove heater from mounting bracket.
4. If installing bottom mounting screws into hol-
low or solid wall, install wall anchors. Follow
steps 1 through 4 under Attaching To Wall
Anchor Method, page 11. If installing bottom
mounting screw into wall stud, drill holes at
marked locations using 9/64" drill bit.
5. Replace heater onto mounting bracket.
6. Place spacers between bottom mounting
holes and wall anchor or drilled hole.
7. Hold spacer in place with one hand. With other
hand, insert mounting screw though bottom
mounting hole and spacer. Place tip of screw
in opening of wall anchor or drilled hole.
8. Tighten both screws until heater is rmly
secured to wall. Do not over tighten.
Note: Do not replace front panel at this time.
Replace front panel after making gas connec-
tions and checking for leaks.
Figure 10 - Mounting Heater Onto
Mounting Bracket
Mounting Bracket
(attached to wall)
Horizontal Slots
Stand-
Out
Tab
Figure 12 - Attaching Base Feet to Heater
Figure 13 - Securing Heater to Floor
Screw
Hole
Screw
Screw
INSTALLING BASE FEET
1. Align screw holes in base feet to the bot-
tom of the heater. Attach using Phillips
head screws (provided) (see Figure 12).
2. Position the heater to the desired location.
Secure the base feet to the oor by using
two Phillips head screws (provided) (see
Figure 13).
Figure 11 - Installing Bottom Mounting
Screws
Placing Heater On Mounting
Bracket
1. Locate two horizontal slots on back panel
of heater (see Figure 10).
2. Place heater onto mounting bracket. Slide
horizontal slots onto stand-out tabs on
mounting bracket.
Side View
Front View
Side View
Front View
Wall
Spacer
Heater

HearthSense 13200549-05A
INSTALLATION
Figure 14 - Bottom of Heater
Yellow Natural Gas
Plunger Underneath
Metal Cap Blue Propane
Gas Plunger
Figure 15 - Gas Regulator
Insert Gas Fitting
for Natural Gas Insert Gas Fitting
for Propane Gas
GAS SELECTION
This appliance is factory
preset for propane gas. No
changes are required for
connecting to propane. Only
a qualied installer or service
technician can perform gas se-
lection and connecting to gas
supply.
CAUTION: Two gas line
installations at the same time
are prohibited.
CAUTION: To avoid gas
leakage for the gas not being used
at the inlet of regulator, a qualied
installer or service technician
must use supplied cap.
You will notice a color coded
plunger on the inside of the
regulator. This is normal. When
the inlet connection tting is
inserted and tightened, this
plunger will be pushed back
by the tting making all of the
adjustments for the gas being
supplied. DO NOT REMOVE THE
PLUNGER. The regulator will
not work and the warranty will
be voided.
The inlet regulator is color coded
for identication of the correct
gas type. Blue is for propane (LP
gas) and yellow is for natural gas.
FOR PROPANE GAS
INSTALLATION: BLUE
Apply thread sealant to the threads on a 3/8"
NPT brass connection tting. While pushing
in, rotate the tting clockwise until the threads
engage the regulator. After the tting has been
hand tightened into the regulator use a wrench
to complete tightening of the tting. Install ad-
ditional tting to connect to the house supply.
FOR NATURAL GAS (NG)
NG
LPG
INLET GAS PRESSURE
MAX 1/2 PSIG (3.5 KPA)
Gas Connection
Fitting
supplied
by installer,
may vary.
Never use a pipe
nipple or thin-walled
tting. Fitting must
push plunger to set
gas type.
DO NOT REMOVE
Blue Propane Plunger
Install Gas Fitting Here

HearthSense 200549-05A14
INSTALLATION
Use only the metal cap. DO NOT
use an o󰀨 the shelf 3/8" NPT
pipe plug. This will damage
the plungers located inside the
regulator.
DO NOT TRY TO REMOVE THE
PLUNGERS FROM INSIDE THE
REGULATOR. THE PLUNGER
WILL BE PUSHED BACK AS THE
FITTING IS INSTALLED. REMOV-
ING THE PLUNGERS WILL VOID
THE WARRANTY.
Make sure the type of gas being
used is correct. Check to make
sure the connection tting is in
the correct inlet on the regula-
tor. Refer to Connecting to Gas
Supply, page 15.
If you are using natural gas
and the pilot will not light, see
Troubleshooting, page 23.
Use only the cap supplied
on the regulator. Do not use
an off the shelf pipe plug.
This can damage the plunger.
The supplied regulator cap is
designed so it will not engage
the unused gas type.
3. Apply thread sealant to the threads on
the connection tting. While pushing in,
rotate the tting clockwise until the threads
engage the regulator. After the tting has
been hand tightened into the regulator
use a wrench to complete tightening of the
tting. Install additional tting to connect
to the house supply.
Metal Cap
Metal Cap
DO NOT REMOVE
Yellow Natural Gas Plunger
Install Gas Fitting Here
INSTALLATION: YELLOW
1. Remove the metal cap installed over the
NG regulator inlet.
2. Install metal cap over Propane regulator
inlet. This will keep debris out of regulator.
Fitting
supplied
by installer,
may vary.

HearthSense 15200549-05A
CONNECTING TO GAS SUPPLY
WARNING: A qualied ser-
vice technician must connect
heater to gas supply. Follow all
local codes.
WARNING: This appliance
requires a 3/8" NPT (National
Pipe Thread) inlet connection to
the pressure regulator.
WARNING: For natural gas,
Never connect heater to private
(non-utility) gas wells. This gas
is commonly known as wellhead
gas.
WARNING: Do not over-
tighten gas connections.
CAUTION: Use only new,
black iron or steel pipe. Inter-
nally tinned copper tubing may
be used in certain areas. Check
your local codes. Use pipe of
1/2" diameter or greater to allow
proper gas volume to heater. If
pipe is too small, undue loss of
pressure will occur.
CAUTION: For natural gas,
check your gas line pressure
before connecting heater to gas
line. Gas line pressure must be
no greater than 9.5" of water. If
gas line pressure is higher, heater
regulator damage could occur.
CAUTION: For propane gas,
Never connect heater directly
to the gas supply. This heater
requires an external regulator
(not supplied). Install the external
regulator between the heater and
gas supply. Gas supplier provides
external regulator for natural gas.
The installer provides the external
regulator for propane gas.
CAUTION: Avoid damage to
regulator. Hold gas regulator
with wrench when connecting
into gas piping and/or ttings.
CAUTION: Use pipe joint
sealant that is resistant to gas
(Propane or Natural Gas).
Before installing heater, make sure you have
the items listed below:
• piping (check local codes)
• sealant (resistant to natural gas and
propane gas)
• equipment shuto󰀨 valve*
• test gauge connection*
• sediment trap
• tee joint
• pipe wrench
• exible gas hose (check local codes)
• 3/8" NPT brass tting
* A CSA design-certied equipment shuto󰀨
valve with 1/8" NPT tap is an acceptable al-
ternative to test gauge connection. Purchase
the optional CSA design certied equipment
shuto󰀨 valve from your dealer.
Typical Inlet Pipe Diameters
Use 3/8" black iron pipe or greater. Installa-
tion must include an equipment shuto󰀨 valve,
union, and plugged 1/8" NPT tap. Locate NPT
tap within reach for test gauge hook up. NPT
tap must be upstream from heater (see Figure
16, page 16).
IMPORTANT: Install an equipment shuto󰀨
valve in an accessible location. The equip-
ment shuto󰀨 valve is for turning on or shutting
o󰀨 the gas to the appliance.
INSTALLATION

HearthSense 200549-05A16
INSTALLATION
external regulator with the vent pointing down
as shown in Figure 17. Pointing the vent down
protects it from freezing rain or sleet.
Install sediment trap in supply line as shown
in Figure 16. Place sediment trap where it is
within reach for cleaning. Place sediment trap
where trapped matter is not likely to freeze. A
sediment trap traps moisture and contaminants.
This keeps them from going into heater controls.
If sediment trap is not installed or is installed
wrong, heater may not run properly.
Figure 16 - Gas Connection
* Purchase the optional CSA design-certied equipment
shuto󰀨 valve from your dealer.
For propane installations, apply pipe joint
sealant lightly to male threads. This will
prevent excess sealant from going into pipe.
Excess sealant in pipe could result in clogged
heater valves.
The installer must supply an external regulator.
The external regulator will reduce incoming
gas pressure. You must reduce incoming gas
pressure to between 11" and 14" of water. If
you do not reduce incoming gas pressure,
heater regulator damage could occur. Install
Figure 17 - External Regulator
with Vent Pointing Down
External
Regulator with
Vent Pointing
Down
Propane
Supply Tank
Equipment
Shuto󰀨 Valve
Ground
Joint Union 3/8" NPT
Pipe Nipple
Tee Joint
Reducer
Bushing to
1/8" NPT
1/8" NPT
Plug Tap
Test Gauge
Connection*
Sediment
Trap
Tee Joint
Pipe Nipple
Gap 3" Minimum
Natural Gas
From Gas Meter
(5" W.C.** to 9.5" W.C.
Pressure)
Propane
From External
Regulator (11"
W.C.** to 14" W.C.
Pressure)
CHECKING GAS CONNECTIONS
1. Disconnect heater with its appliance main
gas valve (control valve) and equipment
shuto󰀨 valve from gas supply piping sys-
tem. Pressures in excess of 1/2 PSIG will
damage heater regulator.
2. Cap o󰀨 open end of gas pipe where equip-
ment shuto󰀨 valve was connected.
3. Pressurize supply piping system by either
opening propane supply tank valve for
propane gas or opening main gas valve
WARNING: Test all gas piping
and connections for leaks after
installing or servicing. Correct
all leaks at once.
WARNING: Never use an open
ame to check for a leak. Apply a
noncorrosive leak detection uid
to all joints. If bubbles form, there
is a leak. Correct all leaks at once.
PRESSURE TESTING GAS SUPPLY PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG (3.5 kPa)
located on or near gas meter for natural
gas or using compressed air.
4. Check all joints of gas supply piping sys-
tem. Apply a noncorrosive leak detection
uid to all joints. If bubbles form, there may
be a leak.
5. Correct all leaks at once.
6. Reconnect heater and equipment shuto󰀨
valve to gas supply. Check reconnected
ttings for leaks.

HearthSense 17200549-05A
Figure 18 - Equipment Shuto Valve
Open
Closed
Equipment
Shuto󰀨 Valve
Test Pressures Equal To or Less Than 1/2 PSIG (3.5 kPa)
1. Close equipment shuto󰀨 valve (see Fig-
ure 18).
2. Pressurize supply piping system by either
opening propane supply tank valve for
propane gas or opening main gas valve
located on or near gas meter for natural
gas or using compressed air.
3. Check all joints from gas meter to
equipment shuto󰀨 valve for natural gas
or propane supply to equipment shuto󰀨
valve for propane (see Figure 19 or 20).
Apply a noncorrosive leak detection uid
to all joints. Bubbles forming show a leak.
4. Correct all leaks at once.
PRESSURE TESTING HEATER GAS CONNECTIONS
5. Correct all leaks at once.
6. Light heater (see Lighting Instructions on
page 18). Check all other internal joints
for leaks.
7. Turn o󰀨 heater (see To Turn O Gas Ap-
pliance, page 19).
8. Replace front panel.
1. Open equipment shuto󰀨 valve (see Fig-
ure 18).
2. Open main gas valve located on or near
gas meter for natural gas or open propane
gas supply tank valve.
3. Make sure control knob of heater is in the
OFF position.
4. Check all joints from equipment shuto󰀨
valve to control valve (see Figure 19 or
20). Apply a noncorrosive leak detection
uid to all joints. Bubbles forming show a
leak.
Gas Valve
Equipment
Shuto󰀨 Valve
Propane
Supply Tank
Figure 19 - Checking Gas Joints for
Propane Gas
Figure 20 - Checking Gas Joints for
Natural Gas
INSTALLATION
Gas Valve
Equipment Shuto󰀨 Valve
Gas
Meter
External
Regulator
Supplied by
Gas Supplier

HearthSense 200549-05A18
OPERATION
FOR YOUR SAFETY READ BEFORE LIGHTING
WARNING: If you do not fol-
low these instructions exactly, a
re or explosion may result caus-
ing property damage, personal
injury or loss of life.
A. This appliance has a pilot which must
be lighted by hand. When lighting the
pilot, follow these instructions exactly.
B. BEFORE LIGHTING smell all around
the appliance area for gas. Be sure to
smell next to the oor because some
gas is heavier than air and will settle
on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do
not use any phone in your building.
• Immediately call your gas supplier
from a neighbor’s phone. Follow the
gas supplier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
C. Use only your hand to push in or turn
the gas control knob. Never use tools.
If the knob will not push in or turn
by hand, don’t try to repair it, call a
qualied service technician. Force or
attempted repair may result in a re or
explosion.
D. Do not use this appliance if any part
has been under water. Immediately call
a qualied service technician to inspect
the appliance and to replace any part of
the control system and any gas control
which has been under water.
1. STOP! Read the safety information
above.
2. Make sure equipment shuto󰀨 valve is fully
open.
3. Turn control knob clockwise to the
OFF position.
4. Wait ve (5) minutes to clear out any air.
Then smell for gas, including near the
oor. If you smell gas, STOP! Follow "B"
in the safety information above. If you do
not smell gas, go to the next step.
5. Turn control knob counterclockwise
to the PILOT position. Press in control
knob for ve (5) seconds (see Figure 21).
Note: The rst time that the heater is oper-
ated after connecting the gas supply,the
control knob should be pressed for about
thirty (30) seconds. This will allow air to
bleed from the gas system. If pilot does
not stay lit, refer to Troubleshooting, pages
23 though 26. Also contact a qualied
service technician or gas supplier for
repairs. Until repairs are made, light pilot
with match.
• If control knob does not pop up when
released, contact a qualified service
technician or gas supplier for repairs.
LIGHTING INSTRUCTIONS
6. With control knob pressed in, push
down and release ignitor button. This
will light pilot. The pilot is attached to
the front of burner. The pilot can be
seen through the grill. If needed, keep
pressing ignitor button until pilot lights.
Note: If pilot does not stay lit, refer to
Troubleshooting, pages 23 though 26.
Also contact a qualied service technician
or gas supplier for repairs. Until repairs
are made, light pilot with match. To light
pilot with match, see Manual Lighting
Procedure, page 19.
Figure 21 - Control Knob in the OFF
Position
Ignitor Button
Control
Knob

HearthSense 19200549-05A
OPERATION
THERMOSTAT CONTROL OPERATION
The thermostatic control used on this model
di󰀨ers from standard thermostats. You set
standard thermostats to a specic tempera-
ture such as 72° F. The control of this heater
establishes a "comfort level". In order for the
thermostat to operate e󰀨ectively, the heater
should be the main source of heat in the
room. Follow the instructions for lighting the
heater on page 18. When the room reaches
the desired comfort level, rotate the control
knob clockwise slowly until the main burner
turns o󰀨 and the pilot remains on (this position
on the knob will change depending on room
temperature).Turn the knob counter-clockwise
slowly until the main burner reignites. Note the
position of the control knob by the numbers
printed on the knob. Leave the knob in this
position. As the room temperature increases,
the main burner will turn o󰀨 and the pilot
will remain on. When the room temperature
cools, the heater's main burner will come back
on. If left at this set point the thermostat will
turn the main burner on or o󰀨 as needed to
maintain the room temperature at the desired
comfort level.
Note: The thermostat sensing bulb reacts
to the temperature depending on housing
construction.
TO TURN OFF GAS TO APPLIANCE
Shutting Off Heater
Turn control knob clockwise to the
OFF position.
Shutting Off Burner Only
(pilot stays lit)
Turn control knob clockwise to the
PILOT position.
MANUAL LIGHTING PROCEDURE
1. Remove front panel.
2. Follow steps 2 through 5 under Lighting
Instructions, page 18.
3. With control knob pressed in, strike match.
Hold match to pilot until pilot lights.
7. Keep control knob pressed in for 30 sec-
onds after lighting pilot. After 30 seconds,
release control knob. If control knob does
not pop up when released, contact a quali-
ed service technician or gas supplier for
repairs.
Note: If pilot goes out, repeat steps 2
through 6. This heater has a safety inter-
lock system. Wait one (1) minute before
lighting pilot again.
8. Turn control knob counterclockwise
to desired heating level. The main burner
should light. Set control knob to any heat
level between HIGH and LOW.
CAUTION: Do not try to ad-
just heating levels by using the
equipment shuto󰀨 valve.
WARNING: If input gas
type is NG, make sure NG pilot
burner ignites. If input gas type
is LP, make sure LP pilot burner
ignites.
Figure 22 - Pilot
Pilot Air
Inlet Hole
Natural Gas
Burner Propane
Gas Burner
Thermocouple
Pilot Air Inlet Hole
Ignitor
Electrode
4. Keep control knob pressed in for 30 sec-
onds after lighting pilot. After 30 seconds,
release control knob. Follow step 8 under
Lighting Instructions, page 18.
5. Replace front panel.

HearthSense 200549-05A20
ELECTRICAL CONNECTION
FOR BLOWER KIT
Do not use this heater if any
part of it has been under water.
Immediately call a qualied ser-
vice technician to inspect the
heater and replace any part of
the electrical system which has
been under water.
GROUNDING INSTRUCTIONS
This heater is for use on 120 volts. The cord
has a plug as shown at A in Figure 23. An
adapter as shown at C is available for con-
necting three-blade grounding-type plugs to
two-slot receptacles. The green grounding
lug extending from the adapter must be
connected to a permanent ground such as
a properly grounded outlet box. The adapter
should not be used if a three-slot grounded
receptacle is available.
Grounding Pin
Grounding Means
Metal Screw
Cover of
Grounded
Outlet Box
A
B
C
Adapter
Figure 23 - Grounded Electrical Outlet
ELECTRICAL WIRING
Any electrical re-wiring of this appliance must
be done by a qualied electrician. This wiring
must be done in accordance with local codes
and/or in Canada with the current CSA C22.1
Canadian Electrical Code, and for US instal-
lations, the National Electrical Code ANSI/
NFPA NO 70.
WARNING: If repairing or
replacing any electrical compo-
nent or wiring, the original wire
routing, color coding and secur-
ing locations must be followed.
CAUTION: Label all wires
prior to disconnection when
servicing controls. Wiring errors
can cause improper and danger-
ous operation.
WARNING: Never attempt to
service heater while it is plugged
in, operating, or hot. Burns and
electrical shock could result.
Only a qualied service person
should service or repair heater.
Verify proper operation after servicing. If any
of the original wire as supplied with the appli-
ance must be replaced, it must be replaced
with a wire of at least a 105º C temperature
rating.
Motor
Black
Green
White
Switch
Thermostat Switch
AUTO
O
MAN
(Sold
Separately)
FAN OPERATION
To operate the manual unit, turn ON/OFF
switch to the ON position. To operate the
Automatic unit, turn AUTO/O/MAN switch to
the desired position. MAN position will remain
constantly on. AUTO position will be controlled
by the sensor on the fan blower unit. The sen-
sor will be activated when the temperature of
the sensor head reaches the set point of the
switch after the heater is started. To stop the
operation, turn the switch to the O position.
