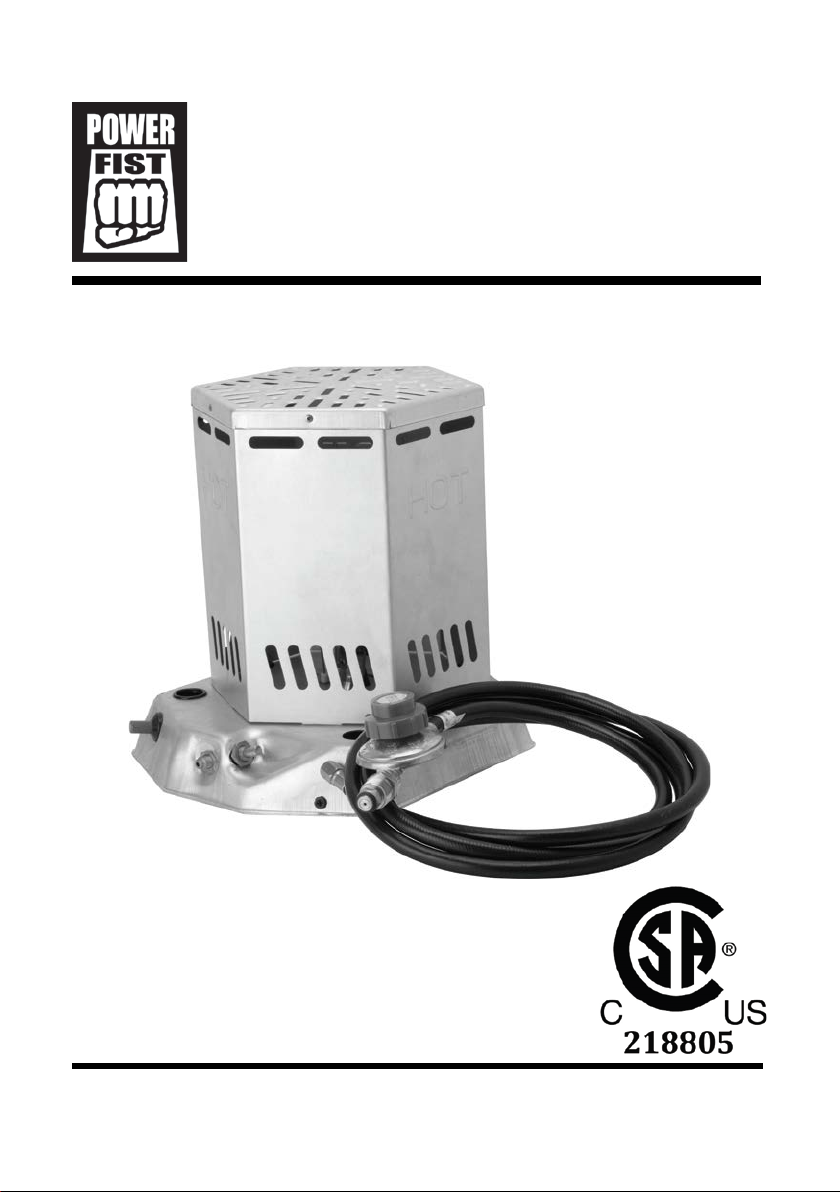

PROPOINT 8619488 User manual

V 4.0 8619488
User Manual
15,000to25,000BTU
ConvectionPropaneHeater
Please read and understand all instructions before use. Retain this manual for
future reference.

8619488 15,000 to 25,000 BTU Convection Propane Heater V 4.0
SPECIFICATIONS
Type Convection Propane
BTU Rating 15,000 to 25,000 BTU
Heating Capability 600 sq. ft.
Ignition Push Button
Fuel Consumption 29 hours on a 20 lb. propane tank
Overview Circulate heat without electricity.
Cool air is drawn in through the bottom,
hot air flows out of the top of the heater
creating inflow/outflow.
These heaters are best suited for small
to medium size areas where electricity is
not available.
Contents
Includes 10 ft. hose and regulator
CSA CSA 218805
SAFETY
WARNING! Read and understand all instructions before using this tool. The
operator must follow basic precautions to reduce the risk of personal injury
and/or damage to the equipment.
SAVE THESE INSTRUCTIONS
Keep this manual for safety warnings, precautions, operating or inspection and
maintenance instructions.
15,000to25,000BTU
ConvectionPropaneHeater
2 For technical questions call 1-800-665-8685

V 4.0 15,000 to 25,000 BTU Convection Propane Heater 8619488
HAZARD DEFINITIONS
Please familiarize yourself with the hazard notices found in this manual. A notice
is an alert that there is a possibility of property damage, injury or death if certain
instructions are not followed.
DANGER! This notice indicates an immediate and specific hazard that will
result in severe personal injury or death if the proper precautions
are not taken.
WARNING! This notice indicates a specific hazard or unsafe practice that
could result in severe personal injury or death if the proper
precautions are not taken.
CAUTION! This notice indicates a potentially hazardous situation that may result
in minor or moderate injury if proper practices are not taken.
NOTICE! This notice indicates that a specific hazard or unsafe practice will
result in equipment or property damage, but not personal injury.
WORK AREA
1. Operate in a safe work environment. Keep your work area clean, well lit and
free of distractions.
2. For outdoor use only.
3. Do not use the heater in occupied dwellings, sleeping quarters, campers,
tents, or any type of unvented or enclosed area.
4. Do not use the heater in a basement or below ground level. Propane gas is
heavier than air. If a leak occurs, propane gas will sink to the lowest
possible level.
5. Keep the appliance area clear and free from combustible materials,
gasoline, paint thinner, and other flammable vapours and liquids. Dust is
combustible. Do not use the heater in areas with high dust content.
6. Maintain a minimum heater clearances from combustibles:
Sides - 3 ft. (1m)
Top – 6 ft. (1.8m)
7. Keep the heater at least 10 ft. from propane tanks.
8. Locate the heater on a stable and level surface.
Visit www.princessauto.com for more information 3

8619488 15,000 to 25,000 BTU Convection Propane Heater V 4.0
9. Keep anyone not wearing the appropriate safety equipment away from the
work area.
10. Store unused tools properly in a safe and dry location to prevent rust or
damage. Lock tools away and keep out of the reach of children.
11. Do not use aerosols or vaporizers in the vicinity of this appliance when it
is operating.
12. Operate on heat resistant surfaces only.
PERSONAL SAFETY
WARNING! Wear personal protective equipment approved by the
Canadian Standards Association (CSA) or American National Standards
Institute (ANSI).
PERSONAL PROTECTIVE EQUIPMENT
1. Wear gloves that provide protection based on the work materials or to
reduce the effects of tool vibration.
2. Wear protective clothing designed for the work environment and tool.
3. Non-skid footwear is recommended to maintain footing and balance in the
work environment.
PERSONAL PRECAUTIONS
Control the tool, personal movement and the work environment to avoid
personal injury or damage to tool.
1. Do not operate any tool when tired or under the influence of drugs, alcohol
or medications.
2. Avoid wearing clothes or jewelry that can become entangled with the
moving parts of a tool. Keep long hair covered or bound.
3. Do not overreach when operating a tool. Proper footing and balance
enables better control in unexpected situations.
4 For technical questions call 1-800-665-8685

V 4.0 15,000 to 25,000 BTU Convection Propane Heater 8619488
SPECIFIC SAFETY PRECAUTIONS
WARNING! DO NOT let comfort or familiarity with product (gained from
repeated use) replace strict adherence to the tool safety rules. If you use
this tool unsafely or incorrectly, you can suffer serious personal injury.
1. Use the correct tool for the job. This tool was designed for a
specific function. Do not modify or alter this tool or use it for
an unintended purpose.
2. Use only the hose and factory preset regulator provided with this heater.
3. Use only propane gas set up for vapour withdrawal.
4. Do not use the heater in occupied dwellings, sleeping quarters, campers,
tents, or any type of unvented or enclosed area.
5. Do not use the heater in a basement or below ground level. Propane gas is
heavier than air. If a leak occurs, propane gas will sink to the lowest
possible level.
6. Do not use the heater as a cooking device. Do not place objects on top of
the heater.
7. Keep the heater at least 10 ft. from propane tanks.
8. Never block the air inlet (top of base) or air outlet (around the top of the
shell) of the heater.
9. Never operate the heater while sleeping or while unattended.
10. Keep children and animals away from the heater.
11. Never move, handle or service a hot or operating heater. Severe burns may
result. You must wait 15 minutes after turning the heater off to allow the
heater too cool down.
12. To prevent injury, wear gloves when handling the heater.
13. Always remove the heater from the propane tank after each use.
14. Turn off the propane supply to the heater when not in use.
15. Due to the high surface and exhaust temperatures, adults and children
must observe clearances to avoid burns or clothing ignition.
Visit www.princessauto.com for more information 5

8619488 15,000 to 25,000 BTU Convection Propane Heater V 4.0
PROPANE GAS SAFETY PRECAUTIONS
WARNING! Do not use this heater for heating human living quarters.
WARNING! Do not use in unventilated areas. The flow of combustion and
ventilation air must not be obstructed. Proper ventilation air must be
provided to support the combustion air requirements of the heater being
used. Refer to the specifications or the heater data plate to determine the
combustion ventilation requirements of the heater.
WARNING! Lack of proper ventilation air will lead to improper combustion.
Improper combustion can lead to carbon monoxide poisoning leading to
serious injury or death.
1. Use only propane/LP gas.
2. Use only vapour withdrawal propane/LP supply. If there is any question
about vapour withdrawal, contact your propane/LP dealer.
3. For outdoor use only. The area must be well ventilated. Provide a minimum
opening of 1 sq. ft. (0.093m2) near the floor and 1 sq. ft. (0.093m2) near
the ceiling. Do not use inside of a house, camper, tent, vehicle, or any other
type of unvented enclosed area.
4. Do not use the heater in a basement or below ground level.
5. Before connecting the heater to the propane/LP tank, make sure the heater
regulator knob is in the “OFF” position. Always connect and light the heater
in areas free of open flames.
6. Mount the propane/LP cylinders vertically (the shut-off valve up). Secure
them from falling or being knocked over and protect them from damage.
7. Only use the hose and regulator assembly provided with the heater. Inspect
the hose assembly before each use. If there is excessive abrasion or wear,
or the hose is cut, replace the hose before using the heater again. The hose
and regulator must be protected from damage.
WARNING! If at any time gas odour is detected, immediately discontinue
operation until the source of gas has been located and corrected.
8. Do not move, handle or service while hot or burning. Do not attach or
remove a hot or operating heater from the propane/LP tank.
9. Use only in accordance with local codes.
6 For technical questions call 1-800-665-8685

V 4.0 15,000 to 25,000 BTU Convection Propane Heater 8619488
CARBON MONOXIDE
All gas appliances consume air (oxygen) and can produce carbon monoxide
which is toxic and has no odour and can cause death. Using a gas appliance in a
small and enclosed area can be harmful. Never use this appliance in a small and
enclosed area, always have fresh air venting.
CARBON MONOXIDE POISONING
DANGER! Never operate a gas appliance indoors or in a confined space as
the exhaust contains carbon monoxide gas. Inhalation of carbon monoxide
gas can lead to illness or death. The area must be well ventilated. Opening
windows and doors is not enough to ventilate an area.
Carbon monoxide is a colourless and odourless gas that is difficult to detect.
Carbon monoxide poisoning results from inhalation of the gas and may be
lethal if left untreated. Evacuate all people to an area with clean air and
seek immediate medical attention for any person experiencing the
following symptoms:
1. Headache
2. Confusion
3. Shortness of breath
4. Weakness
5. Chest Pain
6. Dizziness
7. Vision Trouble
8. Nausea and vomiting
9. Unconsciousness
UNPACKING
WARNING! Do not operate the tool if any part is missing. Replace the
missing part before operating. Failure to do so could result in a malfunction
and personal injury.
Remove the parts and accessories from the packaging and inspect for damage.
Make sure that all items in the parts list are included.
Visit www.princessauto.com for more information 7

8619488 15,000 to 25,000 BTU Convection Propane Heater V 4.0
PARTS IDENTIFICATION
1 Top
2 Shell
3 Base
4 Automatic Control Valve Button
5 Gas Inlet Connector
6 Hose/Regulator/Fuel Gas Connector Assembly
7 Piezo Ignitor Button
ASSEMBLY & INSTALLATION
PROPANE (SOLD SEPARATELY)
Use this heater only with a propane vapour withdrawal supply system. See
Chapter 5 of the Standard for Storage and Handling of Liquefied Petroleum Gas,
ANSI/NFPA 58. Your local library or fire department will have this booklet.
The amount of propane gas ready for use from the propane tanks varies. Two
factors decide this amount:
1. The amount of propane gas in the tank(s).
2. The temperature of the tank(s).
8 For technical questions call 1-800-665-8685

V 4.0 15,000 to 25,000 BTU Convection Propane Heater 8619488
This heater is designed to operate with a minimum 20 lb. (9 kg) tank. You
may need two or more tanks or one larger tank in colder weather. Use a 100 lb.
(45 kg) tank for long operation or in very cold weather. Less gas is vapourized
at lower temperatures. Your local propane gas dealer will help you select the
proper propane supply system.
Temperature at the Tank Location Number of Tanks, 100 lb. (45 kg)
Above -18°C (0°F) 1
Below -18°C (0°F) 2
NOTE: Smaller tanks can be used for limited run times but it is recommended
to use larger tanks for optimum performances.

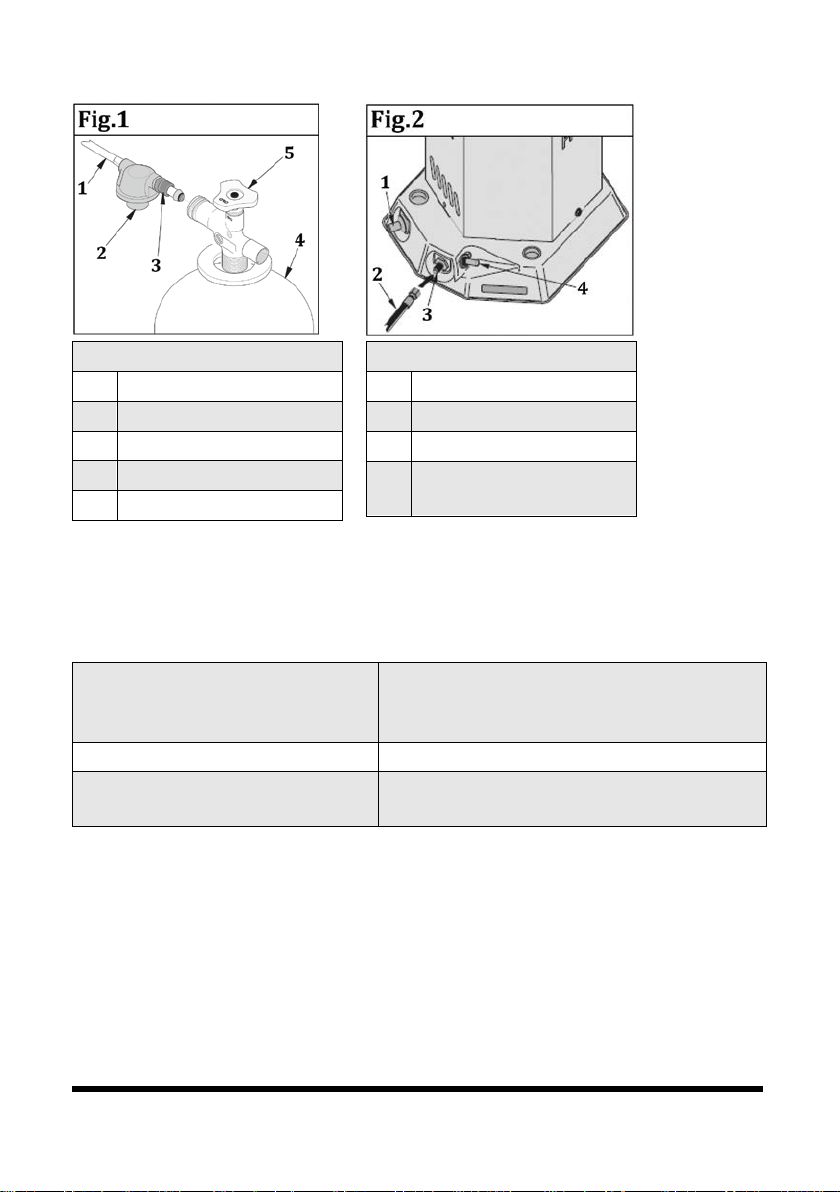

INSTALLATION
1. Wrench tighten the fuel connector nut into the propane tank valve. Turn the
fuel connector nut counterclockwise to tighten.
NOTICE: The threads are left-handed.
2. Connect the hose to the inlet connector. Tighten firmly using a wrench.
3. Open the propane supply valve on the propane tank(s) slowly.
NOTICE: If the tank(s) are not opened slowly, the excess-flow check valve on
the propane tank may stop the gas flow. If this happens, you may hear a
click inside the regulator assembly, this is the check valve closing. To reset
the excess-flow check valve, close the propane supply valve and open it
again slowly.
4. Check all connections for leaks. Apply a mixture of liquid soap and water to
the gas joints. Bubbles forming show a leak that must be corrected.
5. Close the propane supply valve.
WARNING! Test all gas piping and connections for leaks after installation or
servicing. Never use an open flame to check for a leak. Apply a mixture of
liquid soap and water to all joints. Bubbles forming show a leak. Correct all
leaks at once.
Visit www.princessauto.com for more information 9

8619488 15,000 to 25,000 BTU Convection Propane Heater V 4.0
Figure 1
1 Hose
2 Regulator
3 POL Fitting
4 Propane Tank
5 Propane Supply Valve
OPERATION
THEORY OF OPERATION
The Fuel System The hose/regulator assembly attaches to
the propane gas supply. This provides fuel
to the heater.
The Ignition System The piezo ignitor lights the burner.
The Automatic Control System This system causes the heater to shut down if
the flame goes out.
TO START THE HEATER
NOTICE! Follow all installation, ventilation, and safety information.
1. Locate the heater on a stable and level surface. Make sure strong drafts do
not blow on the heater.
2. Open the propane supply valve on the propane tank(s) slowly.
3. Turn the heater regulator knob clockwise to the “HI” position.
Figure 2
1 Piezo Ignitor
2 Hose
3 Inlet Connector
4 Automatic Control
Valve Button
10 For technical questions call 1-800-665-8685

V 4.0 15,000 to 25,000 BTU Convection Propane Heater 8619488
4. Push in and hold the automatic control valve button (see figure 2). Push
and release the piezo ignitor button. Keep pushing the piezo ignitor button
until the burner lights. Hold the control knob down for a maximum of 10
seconds while attempting ignition. If the heater does not light, release the
control knob and wait 30 seconds and then repeat this step.
NOTICE: Keep hands and face away from the outlet (around the top of the
shell) of the heater while attempting to start the heater.
5. After ignition, hold the control knob down for approximately 30 seconds.
This activates the automatic control system.
6. If the burner will not light after repeated tries, do not attempt to repair the
heater. Have the heater repaired at the nearest service centre.
7. When the burner remains lit, you can turn the heater regulator knob
clockwise to the desired heat setting. If the burner goes out, turn off the
gas. Check the fuel supply. If the fuel supply is OK, restart the heater.
TO STOP THE HEATER
1. Tightly close the propane supply valve on the propane tank(s) by turning
clockwise. Wait 15 minutes for the heater to cool down before handling
the heater.
2. Always remove the gas supply hose from the heater and the propane tank
after each use.
TO RESTART THE HEATER
1. Wait 5 minutes after stopping the heater.
2. Repeat the steps in the section To Start The Heater.
CARE & MAINTENANCE
1. Always remove the propane supply tank from the heater when not in use.
2. Maintain the tool with care. A tool in good condition is efficient, easier to
control and will have fewer problems.
3. Before each use, check the heater for leaks. Never use an open flame to check
for a leak. Apply a mixture of liquid soap and water to all joints. Bubbles
forming show a leak. Correct all leaks at once.
Visit www.princessauto.com for more information 11

8619488 15,000 to 25,000 BTU Convection Propane Heater V 4.0
4. Check the heater for damage before each use. Do not use a damaged heater.
5. Check the hose before each use of the heater. If highly worn or cut, replace
the hose.
6. Inspect the hose/regulator assembly before each use.
7. Keep all connections and fittings clean. Make sure the propane tank valve
outlet is clean. Check the rubber O-ring on the heater inlet fuel connection for
damage before each use. Replace if worn or damaged.
8. Keep the heater clean.
9. Do not alter the heater. Keep the heater in its original state. Do not use the
heater if altered.
10. Use only original replacement parts. This heater uses design-specific parts. Do
not substitute or use generic parts. Improper replacement parts could cause
serious or fatal injuries.
11. Only use accessories intended for use with this tool.
12. Maintain the tool’s labels and name plates. These carry important information.
If unreadable or missing, contact Princess Auto Ltd. for replacements.
NOTICE! Have the heater inspected yearly by a qualified service technician.
WARNING! Only qualified service personnel should repair the tool. An
improperly repaired tool may present a hazard to the user and/or others.
INSPECTING THE BURNER
To check for correct burner flame, look through the ventillation holes in the
top of the heater to see the burner flame. The burner flame should be mostly
blue with slight yellow colouring on the ends. If the burner flame is mostly
yellow, the primary air openings on the burn tube uder the heater base may
be blocked.
1. Stop the heater (see the section To Stop The Heater) and allow the heater
to cool down.
2. Turn the heater over to locate the primary air openings on the burn tube.
Remove any debris blocking the primary air openings.
WARNING! The heater shell, top, and heated air from the heater is very hot
during operation. Gradually move in closer to the heater to observe the
12 For technical questions call 1-800-665-8685

V 4.0 15,000 to 25,000 BTU Convection Propane Heater 8619488
flame colour. Do not touch the heater shell or the top. Do not get too close
to the heated air from the heater. Sever burns could oocure.
CLEANING
1. Keep the heater clean at all times. Wipe with a damp cloth and a mild
non-abrasive soap. Allow the heater too dry completely before using the
heater again.
2. Keep the burner area free of debris, insects, etc.
CAUTION! Only clean the heater once it has cooled down or is cool to
the touch.
3. Never use the heater if some parts are been wet.
STORAGE
1. Do not store the heater while attached to the propane tank(s). Remove the
gas supply hose from the propane tank(s) by turning the fuel gas
connector nut clockwise.
2. Store propane tank(s) in a safe manner. Refer to Chapter 5 of Standard for
Storage and Handling of Liquefied Petroleum Gases, ANSI/NFPA 58. Follow
all local codes. Always store propane tanks outdoors. Never store propane
tank(s) in a building, garage, or any other enclosed area. Never store
propane tanks near high heat, open flame, or where temperatures exceed
49℃(120℉).
3. Keep the heater 10 ft. from propane tank(s).
Figure 3
1 Burner Tube
2 Primary Air Openings
Visit www.princessauto.com for more information 13

8619488 15,000 to 25,000 BTU Convection Propane Heater V 4.0
4. Place plastic cover caps over the brass fittings on the inlet connector and
the hose/regulator assembly for storage.
5. Store in a dry, clean, and safe place.
WARNING! Disconnect the from the propane supply tank before storing.
DISPOSAL
Recycle a tool damaged beyond repair at the appropriate facility.
Contact your local municipality for a list of disposal facilities or by-laws for
electronic devices, batteries, oil or other toxic liquids.
14 For technical questions call 1-800-665-8685

V 4.0 15,000 to 25,000 BTU Convection Propane Heater 8619488
TROUBLESHOOTING
Visit a Princess Auto Ltd. location for a solution if the tool does not function
properly or parts are missing. If unable to do so, have a qualified technician
service the tool.
Problem(s) Possible Cause(s) Suggested Solution(s)
The burner fails to light.
1. Propane supply
valve is closed on the
propane tank(s).
1. Open the propane supply
valve slowly.
2. Blockage in the
burner/valve assembly.
2. Replace the burner/valve
assembly.
3. Piezo ignition system
not sparking.
3. Make sure the ignitor
electrode gap is 0.120 in.
(3.04mm). Check the
wire lead for damage.
Replace the piezo ignitor
and/or ignitor electrode
as necessary.
The burner lights but
goes out when the
automatic control valve
button is released.
1. Not enough
warm-up time.
1. Relight, hold the
automatic control valve
button in for 45 seconds.
2. Low gas pressure. 2. Check the propane
tank(s) for proper
gas supply.
3. Thermocouple is loose
or needs to be replaced.
3. Tighten the
connection or replace
the thermocouple.
4. The automatic
control valve needs
to be replaced.
4. Replace the automatic
control valve assembly.
The maximum burn
rate is low.
1. Low gas pressure. 1. Check the gas supply;
check the regulator output.
2. Low fuel supply. 2. Replace the fuel
supply tank(s).
3. Plugged gas orifices. 3. Replace the
burner assembly.
Visit www.princessauto.com for more information 15

8619488 15,000 to 25,000 BTU Convection Propane Heater V 4.0
PARTS BREAKDOWN
PARTS LIST
PART# DESCRIPTION QTY.
21 Thermocouple 1
26 Ignition Needle 1
32 Automatic Shut-off Valve 1
16 For technical questions call 1-800-665-8685

V4,0 8619488
Manuel d'utilisateur
Appareildechauffage
aupropaneàconvection
de15000à25000BTU
Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil.
Conservez ce manuel afin de pouvoir le consulter plus tard.

8619488 Appareil de chauffage au propane V4,0
à convection de 15 000 à 25 000 BTU
SPÉCIFICATIONS
Type Propane à convection
Puissance BTU 15 000 à 25 000 BTU
Capacité de chauffage 600 pi carrés
Allumage
Bouton-poussoir
Consommation de combustible 29 heures avec un réservoir de propane de 20 lb.
Aperçu Permet de faire circuler la chaleur sans utiliser
d'énergie électrique.
L'air frais est capté par le bas, tandis que l'air
chaud est expulsé par le haut de l'appareil de
chauffage, créant ainsi un courant d'air
d'admission/de sortie.
Ces appareils de chauffage sont
particulièrement adaptés aux zones de petites
à moyennes dimensions dépourvus de source
d'alimentation électrique.
Contenu Comprend un tuyau de 10 pi
et un régulateur
CSA CSA 218805
SÉCURITÉ
AVERTISSEMENT ! Veuillez lire et comprendre toutes les instructions avant
d'utiliser cet outil. L'utilisateur doit respecter les précautions de base
lorsqu'il utilise cet outil afin de réduire le risque de blessure ou de
dommage à l'équipement.
CONSERVER CES INSTRUCTIONS
Appareildechauffage
aupropaneàconvection
de15000à25000BTU
2 En cas de questions techniques, appelez le 1-800-665-8685

V4,0 Appareil de chauffage au propane 8619488
à convection de 15 000 à 25 000 BTU
Conservez ce manuel qui contient les avertissements de sécurité, les
précautions, les instructions de fonctionnement ou d'inspection et d'entretien.
DÉFINITIONS DE DANGER
Veuillez-vous familiariser avec les avis de danger qui sont présentés dans ce
manuel. Un avis est une alerte indiquant qu'il existe un risque de dommage à la
propriété, de blessure ou de décès si on ne respecte pas certaines instructions.
DANGER ! Cet avis indique un risque immédiat et particulier qui
entraînera des blessures corporelles graves ou même la
mort si on omet de prendre les précautions nécessaires.
AVERTISSEMENT ! Cet avis indique un risque particulier ou une pratique non
sécuritaire qui pourrait entraîner des blessures
corporelles graves ou même la mort si on omet de
prendre les précautions nécessaires.
ATTENTION ! Cet avis indique une situation possiblement dangereuse qui
peut entraîner des blessures mineures ou modérées si on
ne procède pas de la façon recommandée.
AVIS ! Cet avis indique un risque particulier ou une pratique
non sécuritaire qui entraînera des dommages au niveau
de l'équipement ou des biens, mais non des
blessures corporelles.
AIRE DE TRAVAIL
1. Travaillez dans un environnement de travail sécuritaire. Gardez votre aire
de travail propre, bien éclairée et exempte de toute distraction.
2. Pour un usage à l'extérieur seulement.
3. N'utilisez pas l'appareil de chauffage dans des édifices d'habitation
occupés, des dortoirs, des véhicules de camping, des tentes ou tout autre
type d'endroits fermé ou non aéré.
4. N'utilisez pas l'appareil de chauffage dans un sous-sol ou sous le niveau
du sol. Le gaz propane est plus lourd que l'air. En cas de fuite, le gaz
propane descendra au niveau le plus bas possible.
Visitez www.princessauto.com pour plus d'informations 3

8619488 Appareil de chauffage au propane V4,0
à convection de 15 000 à 25 000 BTU
5. Tenez la zone de l'appareil libre et exempte de matière combustibles,
d'essence, de diluant à peinture et d'autres vapeurs et liquides
inflammables. La poussière est combustible. N'utilisez pas l'appareil de
chauffage dans les endroits présentant une teneur élevée en poussière.
6. Assurez une distance minimale entre l'appareil de chauffage et les
matières combustibles :
Côtés - 1 m (3 pi)
Dessus - 1,8 m (6 pi)
7. Assurez-vous que l'appareil de chauffage se trouve au moins à 10 pieds
des réservoirs de propane.
8. Placez l'appareil de chauffage sur une surface stable et de niveau.
9. Assurez-vous que les personnes qui ne portent pas l'équipement de
sécurité approprié ne se trouvent pas à proximité de l'aire de travail.
10. Rangez les outils correctement dans un lieu sécurisé et sec. Gardez les
outils hors de la portée des enfants.
11. N'utilisez pas d'aérosols ou de vaporisateurs à proximité de cet appareil
lorsqu'il est en marche.
12. Utilisez sur des surfaces qui résistent à la chaleur seulement.
SÉCURITÉ PERSONNELLE
AVERTISSEMENT ! Portez de l'équipement de protection personnelle
homologué par l'Association canadienne de normalisation (CSA) ou
l'American National Standards Institute (ANSI).
ÉQUIPEMENT DE PROTECTION PERSONNELLE
1. Portez des gants qui protègent en fonction des matériaux de travail et pour
réduire les effets des vibrations de l'outil.
2. Portez des vêtements de protection conçus pour l'environnement de travail
et pour l'outil.
3. Les chaussures antidérapantes sont recommandées pour maintenir la
stabilité et l'équilibre au sein de l'environnement de travail.
4 En cas de questions techniques, appelez le 1-800-665-8685
